You have decided to purchase theTRELOCK
bike computer FC 520 (uni-base),
FC 530 (uni-base) or FC 535 (night-light
base) and, as such, your choice is an
excellent one. Your new bike computer is
easy and convenient to operate thanks to
the visual guidance system and large mono­button typical of TRELOCK products. Please
read through this manual prior to your initial
usage of the computer.

36

Contents

1. Scope of supply

38

2. Activation of bike computer 39

3. Insertion of night-light base battery 39

4. Assembly/Installation 40

5. Display design and operating principle 45

6. General default settings 46

7. Main menus 55

8. Training 63

9. Additional information

and instructions

63

37

1. Scope of supply

1.1 FC 520, 530

1.2 FC 535

4x

4x

2x

38

3. Insertion of night-light base battery

Lithium Battery CR2032

When supplied to the customer, the
battery has already been inserted into the
bike computer. In order to activate the
computer, the red plastic fl ag must fi rst be
removed. Turn the battery compartment
cap on the bottom of the computer in an
anti-clockwise direction and pull the fl ag
out. Then turn the cap fi rmly back in place.

2. Activation of bike computer

The display for your bike computer is fed
via a battery in the night-light base. In or­der to insert this battery, use a coin to turn
the battery compartment cap in an anti­clockwise direction and insert the battery
with the + sign pointing upwards (see fi g.).
Then turn the cap fi rmly back in place.

3.1 FC 535

39

4. Assembly/Installation

By activating the computer, you automati­cally access the “General Settings” in the
“Set” (SET) menu. How you can change
the general settings is described under

6.1. Should you wish to make changes to
the general settings at a later date, you
can access the “Set” (SET) menu by pres­sing the MODE button for the appropriate
number of times and then pressing and
holding the SET and MODE buttons for
approx. 3 sec.

3.2 Information on initial operation

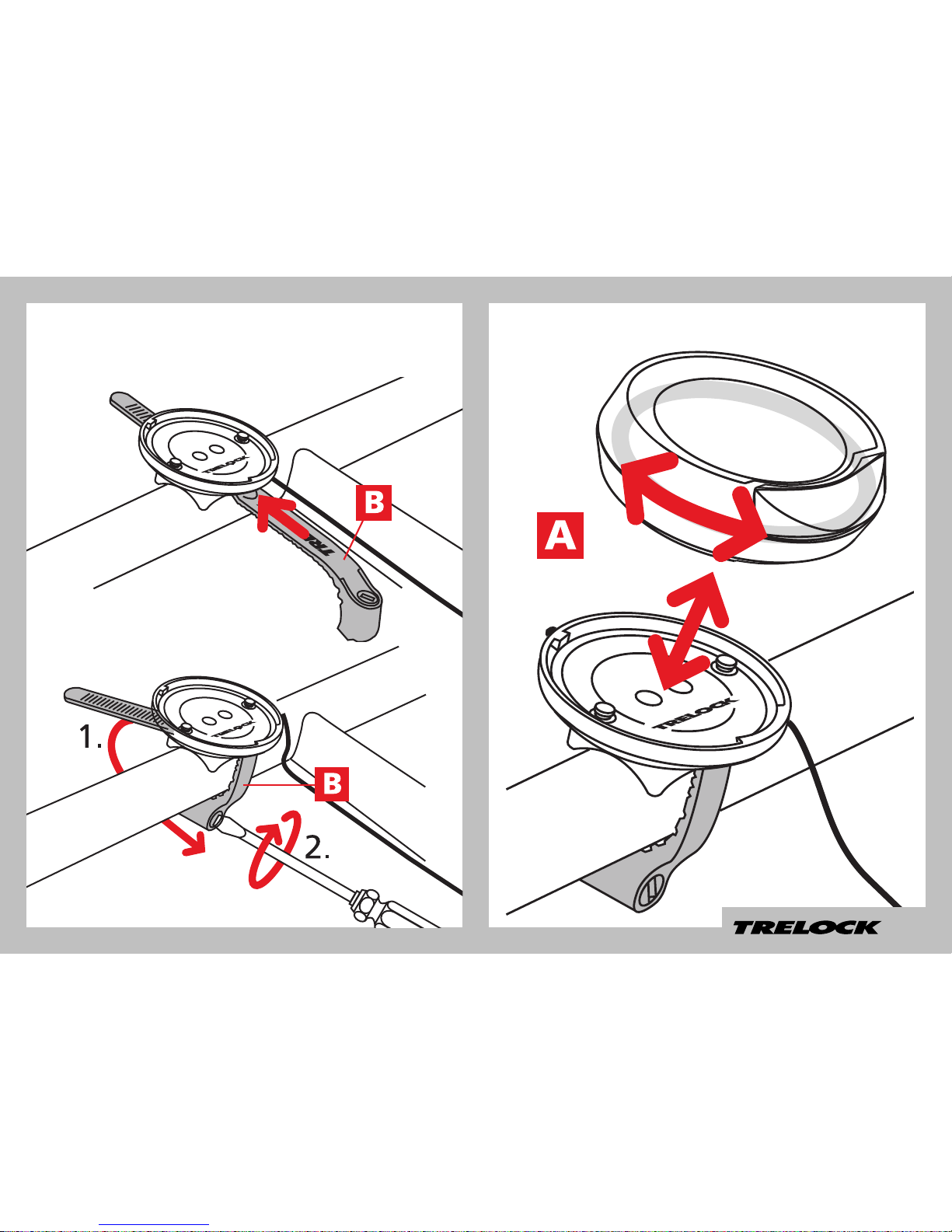

4.1 Assembly/Installation
of handlebar bracket

40

4.2 FC 520, 530

41

4.3 FC 535

42

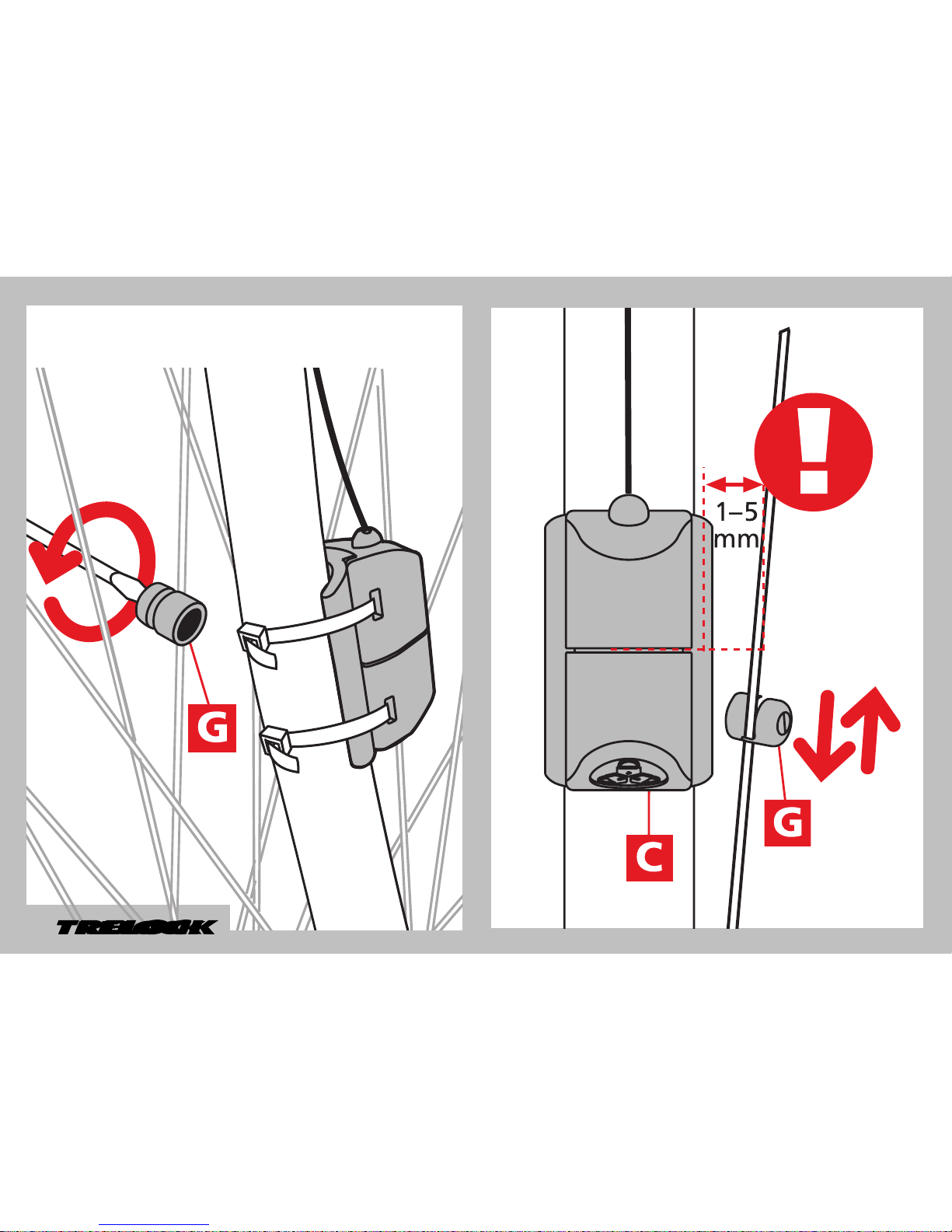

4.4 Assembly/Installation
of sensor

43

4.5 Assembly/Installation of magnet
