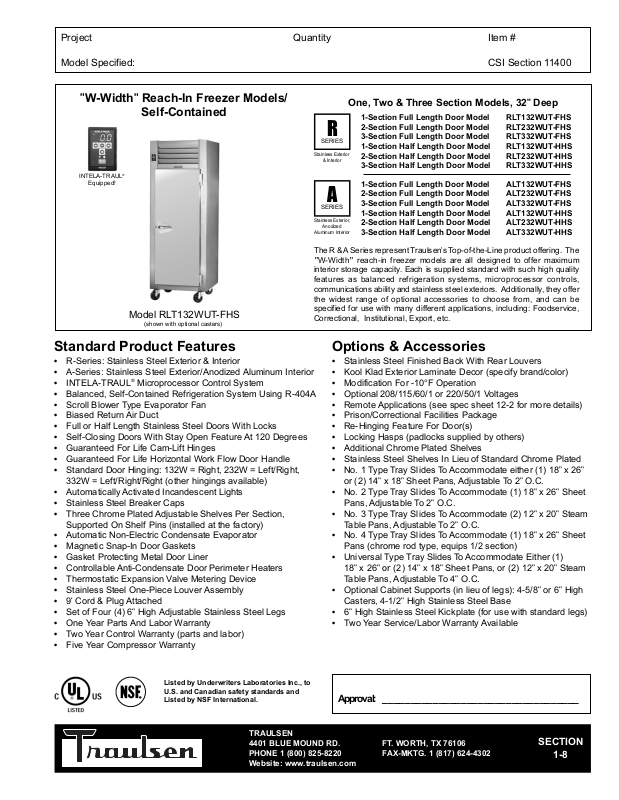

Traulsen RLT132WUT-FHS User Manual
Project Quantity Item #
Model Specified: CSI Section 11400
"W-Width" Reach-In Freezer Models/
Self-Contained
INTELA-TRAUL
Equipped!
®
Model RLT132WUT-FHS
(shown with optional casters)
Standard Product Features
• R-Series: Stainless Steel Exterior & Interior
• A-Series: Stainless Steel Exterior/Anodized Aluminum Interior
• INTELA-TRAUL® Microprocessor Control System
• Balanced, Self-Contained Refrigeration System Using R-404A
• Scroll Blower Type Evaporator Fan
• Biased Return Air Duct
• Full or Half Length Stainless Steel Doors With Locks
• Self-Closing Doors With Stay Open Feature At 120 Degrees
• Guaranteed For Life Cam-Lift Hinges
• Guaranteed For Life Horizontal Work Flow Door Handle
• Standard Door Hinging: 132W = Right, 232W = Left/Right,
332W = Left/Right/Right (other hingings available)
• Automatically Activated Incandescent Lights
• Stainless Steel Breaker Caps
• Three Chrome Plated Adjustable Shelves Per Section,
Supported On Shelf Pins (installed at the factory)
• Automatic Non-Electric Condensate Evaporator
• Magnetic Snap-In Door Gaskets
• Gasket Protecting Metal Door Liner
• Controllable Anti-Condensate Door Perimeter Heaters
• Thermostatic Expansion Valve Metering Device
• Stainless Steel One-Piece Louver Assembly
• 9' Cord & Plug Attached
• Set of Four (4) 6" High Adjustable Stainless Steel Legs
• One Year Parts And Labor Warranty
• Two Year Control Warranty (parts and labor)
• Five Year Compressor Warranty
One, Two & Three Section Models, 32" Deep
1-Section Full Length Door Model RLT132WUT-FHS
R
SERIES
Stainless Exterior
& Interior
A
SERIES
Stainless Exterior,
Anodized
Aluminum Interior
The R & A Series represent Traulsen's Top-of-the-Line product offering. The
“W-Width” reach-in freezer models are all designed to offer maximum
interior storage capacity. Each is supplied standard with such high quality
features as balanced refrigeration systems, microprocessor controls,
communications ability and stainless steel exteriors. Additionally, they offer
the widest range of optional accessories to choose from, and can be
specified for use with many different applications, including: Foodservice,
Correctional, Institutional, Export, etc.
2-Section Full Length Door Model RLT232WUT-FHS
3-Section Full Length Door Model RLT332WUT-FHS
1-Section Half Length Door Model RLT132WUT-HHS
2-Section Half Length Door Model RLT232WUT-HHS
3-Section Half Length Door Model RLT332WUT-HHS
1-Section Full Length Door Model ALT132WUT-FHS
2-Section Full Length Door Model ALT232WUT-FHS
3-Section Full Length Door Model ALT332WUT-FHS
1-Section Half Length Door Model ALT132WUT-HHS
2-Section Half Length Door Model ALT232WUT-HHS
3-Section Half Length Door Model ALT332WUT-HHS
Options & Accessories
• Stainless Steel Finished Back With Rear Louvers
• Kool Klad Exterior Laminate Decor (specify brand/color)
• Modification For -10°F Operation
• Optional 208/115/60/1 or 220/50/1 Voltages
• Remote Applications (see spec sheet 12-2 for more details)
• Prison/Correctional Facilities Package
• Re-Hinging Feature For Door(s)
• Locking Hasps (padlocks supplied by others)
• Additional Chrome Plated Shelves
• Stainless Steel Shelves In Lieu of Standard Chrome Plated
• No. 1 Type Tray Slides To Accommodate either (1) 18" x 26"
or (2) 14" x 18" Sheet Pans, Adjustable To 2" O.C.
• No. 2 Type Tray Slides To Accommodate (1) 18" x 26" Sheet
Pans, Adjustable To 2" O.C.
• No. 3 Type Tray Slides To Accommodate (2) 12" x 20" Steam
Table Pans, Adjustable To 2" O.C.
• No. 4 Type Tray Slides To Accommodate (1) 18" x 26" Sheet
Pans (chrome rod type, equips 1/2 section)
• Universal Type Tray Slides To Accommodate Either (1)
18" x 26" or (2) 14" x 18" Sheet Pans, or (2) 12" x 20" Steam
Table Pans, Adjustable To 4" O.C.
• Optional Cabinet Supports (in lieu of legs): 4-5/8" or 6" High
Casters, 4-1/2" High Stainless Steel Base
• 6" High Stainless Steel Kickplate (for use with standard legs)
• Two Year Service/Labor Warranty Available
Listed by Underwriters Laboratories Inc., to
U.S. and Canadian safety standards and
Listed by NSF International.
TRAULSEN
4401 BLUE MOUND RD. FT. WORTH, TX 76106
PHONE 1 (800) 825-8220 FAX-MKTG. 1 (817) 624-4302
Website: www.traulsen.com
Approval: ___________________________________
SECTION
1-8
Project Quantity Item #
Model Specified: CSI Section 11400
Specifications
Construction, Hardware and Insulation
Cabinet exterior front, one piece sides, louver assembly and doors are constructed
of 20 gauge stainless steel with #4 finish. Cabinet interior and door liners are
constructed of stainless steel (anodized aluminum in the A-Series). The exterior cabinet
top, back and bottom are constructed of heavy gauge aluminized steel. A set of four
(4) adjustable 6" high stainless steel legs are included.
Doors are equipped with a gasket protecting metal door pan, removable plug
cylinder locks and guaranteed for life cam-lift, gravity action, self-closing metal, glide
hinges with stay open feature at 120 degrees. Hinges include a concealed switch to
automatically activate the interior incandescent lighting. Guaranteed for life, work
flow door handles are mounted horizontally over recess in door which limits
protrusion from door face into aisleways. Doors have seamless, polished metal
corners.
Easily removable for cleaning, vinyl magnetic door gasket assures tight door seal.
Anti condensate heaters are located behind each door opening.
Both the cabinet and door(s) are insulated with an average of 2" thick high density,
non-CFC, foamed in place polyurethane.
DIMENSIONAL DATA R/ALT132WUT R/ALT232WUT R/ALT332WUT
Net capacity cu. ft. 24.2 (686 cu l) 51.6 (1462 cu l) 79.0 (2238 cu l)
Length - overall in. 297⁄8 (75.9 cm) 58 (147.3 cm) 861⁄8 (218.8 cm)
Depth - overall in. 35 (88.8 cm) 35 (88.8 cm) 35 (88.8 cm)
Depth - less handle in. 333⁄4 (84.4 cm) 333⁄4 (84.4 cm) 333⁄4 (84.4 cm)
Depth - over body in. 32 (81.3 cm) 32 (81.3 cm) 32 (81.3 cm)
Depth - door open 90° in. 5711⁄16 (146.5 cm) 5711⁄
16
(146.5 cm) 5711⁄16 (146.5 cm)
Clear door width in. 211⁄8 (53.6 cm) 211⁄8 (53.6 cm) 211⁄8 (53.6 cm)
Clear half-door height in. 271⁄2 (69.9 cm) 271⁄2 (69.9 cm) 271⁄2 (69.9 cm)
Clear full-door height in. 575⁄8 (146.3 cm) 575⁄8 (146.3 cm) 575⁄8 (146.3 cm)
Height - overall on 6" legs 831⁄4 (211.5 cm) 831⁄4 (211.5 cm) 831⁄4 (211.5 cm)
RLT Net Wt. lbs.
ALT Net Wt. lbs.
1
1
415 (188 kg) 705 (320 kg) 940 (426 kg)
365 (166 kg) 625 (283 kg) 820 (372 kg)
No. Standard Shelves 3 6 9
Shelf area sq. ft.
2
18.8 (1.75 sq m) 37.6 (3.49 sq m) 56.4 (5.23 sq m)
STANDARD ELECTRICAL & REFRIGERATION DATA
Voltage 115/60/1 115/60/1 208/115/60/1
Feed wires with Ground 3 3 4
Full load amperes 11.5 14.9 11.0
Refrigerant R-404A R-404A R-404A
BTU/HR H.P.
3
2160 (1⁄2 HP) 3790 (3⁄4 HP) 4710 (1 HP)
ELECTRICAL & REF'N DATA FOR UNITS BUILT WITH -10 DEGREE OPTION
Voltage 115/60/1 115/60/1 208/115/60/1
Feed wires with Ground 3 3 4
Full load amperes 12.0 14.9 11.0
Refrigerant R-404A R-404A R-404A
BTU/HR H.P.
NOTE: Figures in parentheses reflect metric equivalents.
1= For shipping weights and dimensions please refer to spec sheet 12-4.
2= Area of standard shelf compliment only, does not include storage area of additional shelves or available
3= Based on a 90 degree F ambient and -20 degree F evaporator. For information on remote models,
3
on cabinet bottom.
please refer to spec sheet 12-2.
2000 (3⁄4 HP) 2690 (1 HP) 3730 (1 HP)
NOTES
NEMA Plug Chart For Freezer Models
1-Section
Models
5-15P
2-Section
Models
5-20P
3-Section
Models
L14-20P
Refrigeration System
A top mounted, self-contained, balanced refrigeration system using R-404A
refrigerant is conveniently located behind the one piece louver assembly. It features
an easy to clean front facing condenser, thermostatic expansion valve, air-cooled
hermetic compressor, plenum effect blower coil, large, high humidity evaporator coil
located outside the food zone and a top mounted non-electric condensate
evaporator. Biased return air duct protects against introduction of warm kitchen air,
promoting even temperature maintenance and efficient operation. A 9' cord and
plug is provided. Standard operating temperature is 0 to -5°F.
Controller
The easy to use water resistant INTELA-TRAUL
®
microprocessor control system is
supplied standard. Unit is NAFEM Data Protocol communication (NDP) ready.
Optional hardware required to be NDP compliant. Third party software required for
network connection. It includes a 3-Digit LED Display, Fahrenheit or Celsius
Temperature Scale Display Capability, Defrost Lockouts, and an RS485 data port.
In addition it includes audio/visual alarms for: Hi/Lo Cabinet Temperature, Door Open,
Clean Condenser, Evaporator Coil and Discharge Line Sensor Failures, and Power
Supply Interruption.
Interior
Standard interior arrangements include three (3) chrome plated wire shelves per
section, mounted on shelf pins. Shelves are full-width, and do not have any large
gaps between them requiring the use of "bridge" or "junior shelves." Recommended
load limit per shelf should not exceed 225 lbs. Optional tray slides may be
purchased in combination with, or in lieu of these. Both standard and optional
interior arrangements are completely installed at the factory.
Warranties
Both a one year parts and labor warranty and a five year compressor warranty (selfcontained models only) are provided standard. An optional 2
nd
year extended parts
and labor warranty is also available. In addition the INTELA-TRAUL® control is
warranted by a two year parts and labor warranty.
Elevation R/ALT232WUT
Elevation R/ALT132WUT
Plan - R/ALT132WUT
Elevation -
R/ALT332WUT
Plan - R/ALT232WUT
NOTE: Full load amps and plug style may vary depending
on electrical options chosen and condensing unit employed.
NOTE: When ordering please specify: Voltage, Hinging, Door Size, Options and any
additional warranties.
Continued product development may necessitate specification changes without notice.
Part No. TR35762 (revised 1/07)
TRAULSEN
SECTION
1-8
4401 BLUE MOUND RD. FT. WORTH, TX 76106
PHONE 1 (800) 825-8220 FAX-MKTG. 1 (817) 624-4302
Website: www.traulsen.com
Plan - R/ALT332WUT
Section - All Models
