Introducing the Trapeze Networks Mobility System

Trapeze Networks Mobility System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

Documentation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

This guide shows you how to install a Trapeze Networks™ Mobility Point™
(MP™) access point in a Trapeze Networks Mobility System™ wireless LAN
(WLAN).

1

Read this guide if you are a network administrator or other person installing MP
access points in a network.

Trapeze Networks Mobility System

The Trapeze Networks Mobility System is a system for planning and deploying a
secure WLAN in an existing wired enterprise network. The Trapeze system
provides authenticated connectivity to both wireless and wired users in large
environments such as office buildings, hospitals, and university campuses.

The Trapeze Mobility System fulfills the three fundamental requirements of an
enterprise WLAN: It eliminates the distinction between wired and wireless
networks, allows users to work safely from anywhere (secure mobility), and
provides a comprehensive suite of intuitive tools for planning and managing the
network before and after deployment.

Introducing the Trapeze Networks Mobility System

1

Documentation

Chapter 1

The Trapeze Networks Mobility System consists of the following components:

● RingMaster tool suite—A full-featured graphical user interface (GUI)

application for planning, configuring, deploying, and managing a WLAN and
its users

● One or more Mobility Exchange™ (MX™) switches—Distributed,

intelligent machines for managing user connectivity, connecting and
powering Mobility Point (MP) access points, and connecting the WLAN to
the wired network backbone

● Multiple Mobility Point™ (MP™) access points—Wireless access points

(APs) that transmit and receive radio frequency (RF) signals to and from
wireless users and connect them to an MX switch

● Mobility System Software™ (MSS™)—The operating system that runs all

MX switches and MP access points in a WLAN, and is accessible through a
command-line interface (CLI), the Web View interface, or the RingMaster
GUI

Confidential—Beta Draft—Confidential—Beta Draft—12 May 04

Documentation

Consult the following documents to plan, install, configure, and manage a Trapeze
Networks Mobility System.

Planning, Configuration, and Deployment

Trapeze RingMaster Administrator’s Guide. Instructions for planning,

configuring, deploying, and managing the entire WLAN with the RingMaster tool
suite. Read this guide to learn how to create a network plan and a configuration
for network deployment.

Installation

● Trapeze Mobility Exchange Installation and Basic Configuration Guide.

Instructions and specifications for installing an MX switch in a Trapeze
Mobility System WLAN, and basic instructions for deploying a secure IEEE

802.11 wireless service

2

Trapeze Mobility Point Installation Guide

Version 2.1

Confidential—Beta Draft—12 May 04

Documentation

Chapter 1

● Trapeze Mobility Point Installation Guide. Instructions and specifications for

installing an MP access point and connecting it to an MX switch

● Trapeze Regulatory Information. Important safety instructions and

compliance information that you must read before installing Trapeze
Networks products

Note. Trapeze Regulatory Information is updated frequently. See

www.trapezenetworks.com for the most current version.

Configuration and Management

● Trapeze RingMaster Administrator’s Guide. Instructions for planning,

configuring, deploying, and managing the entire WLAN with the RingMaster
tool suite

● Trapeze Mobility System Software Configuration Guide. Instructions for

configuring and managing the system through the MSS CLI

● Trapeze Mobility System Software Command Reference. Functional and

alphabetic reference to all MSS commands supported on MX switches and
MP access points

Safety and Advisory Notices

The following kinds of safety and advisory notices appear in this manual. (For
translations of the warning conventions and of all warnings in this manual, see
Appendix C, “Translated Warning Conventions and Warnings,” on page 65.)

Caution! This situation or condition can lead to data loss or damage to the

product or other property.

Warning! This situation or condition can cause injury.

Introducing the Trapeze Networks Mobility System

3

Confidential—Beta Draft—Confidential—Beta Draft—12 May 04

Documentation

Chapter 1

Warning! High voltage. This situation or condition can cause injury due to

electric shock.

Warning! Radiation. This situation or condition can cause injury due to

improper handling of fiber-optic equipment.

Note. This information is of special interest.

Text and Syntax Conventions

Trapeze manuals use the following text and syntax conventions:

Convention Use

Monospace text Sets off command syntax or sample commands and

system responses.

Bold text Highlights commands that you enter or items you

select.

Italic text Designates command variables that you replace

with appropriate values, or highlights publication
titles or words requiring special emphasis.

Menu Name > Command Indicates a menu item that you select. For example,

File > New indicates that you select New from the

File menu.

[ ] (square brackets) Enclose optional parameters in command syntax.

{ } (curly brackets) Enclose mandatory parameters in command syntax.

| (vertical bar) Separates mutually exclusive options in command

syntax.

4

Trapeze Mobility Point Installation Guide

Version 2.1

Confidential—Beta Draft—Confidential—Beta Draft—12 May 04

MP Overview

MP Model Numbers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

External Hardware Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Connection Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

A Trapeze Networks Mobility Point (MP) access point provides IEEE 802.11
wireless access to the network. MP access points are designed for use with a
Trapeze Networks Mobility Exchange (MX) switch. MP access points require
hardware installation only. All configuration for an MP access point takes place
on the MX switch.

2

Warning! Installation must be performed by qualified service personnel only.

Read and follow all warning notices and instructions marked on the product or
included in the documentation. Before installing the product, read the Trapeze

Regulatory Information document. (For translations of this warning, see

“Qualified Service Personnel Warning” on page 67.)

MP Model Numbers

The MP access point models differ based on the number of 802.11 radios they
contain. Table 1 lists the MP access point model numbers.

MP Overview

5

Confidential—Beta Draft—Confidential—Beta Draft—12 May 04

MP Model Numbers

Chapter 2

Table 1. MP Access Point Model Numbers

Model Radios

MP-262 One 802.11a radio and one 802.11b/g radio. The 802.11a radio

has an internal omnidirectional antenna and the 802.11b/g
radio uses an external sectorized antenna, which must be
ordered and installed separately.

MP-252 One 802.11a radio and one 802.11b/g radio. Both radios have

internal omnidirectional antennas.

MP-241 One radio that can be configured through software for 802.11a

or 802.11b/g. The radio has an internal omnidirectional
antenna.

MP-52 One 802.11a radio and one 802.11b/g radio. Both radios have

sectorized external antennas that are adjustable and are
installed at the factory.

MP-122
(discontinued—

One 802.11a radio and one 802.11b radio. Both radios have
internal omnidirectional antennas.

order MP-252)

MP-101
(discontinued—

One radio that can be configured through software for 802.11a
or 802.11b. The radio has an internal omnidirectional antenna.

order MP-241)

The model number is listed on the product label, located to the right of the cable
ports on the bottom of the device.

Note. The MP access point radios are disabled by default and can be enabled

only by a system administrator using the MX switch.

6

Trapeze Mobility Point Installation Guide

Version 2.1

Confidential—Beta Draft—Confidential—Beta Draft—12 May 04

External Hardware Features

External Hardware Features

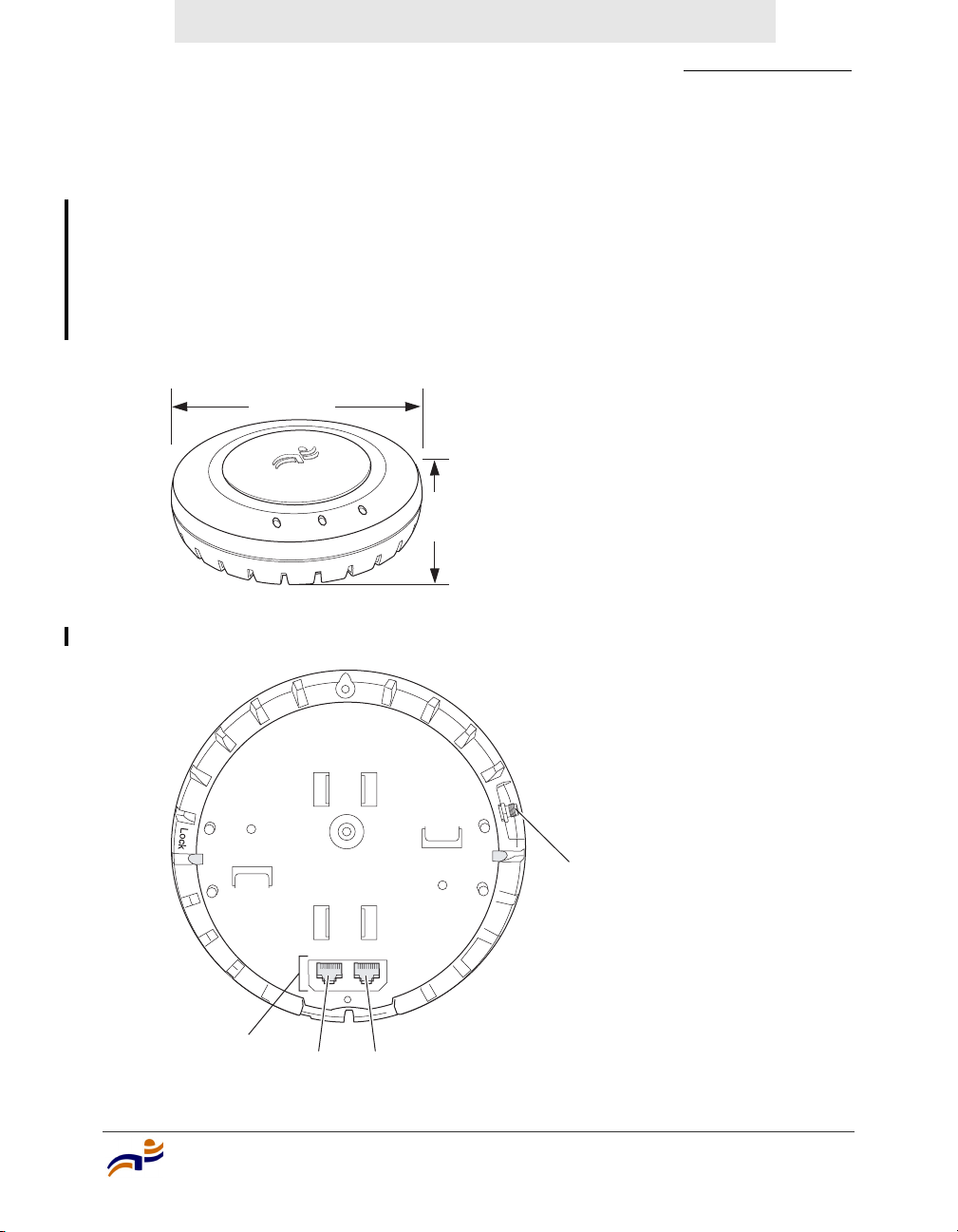

Figure 1 and Figure 2 show the external hardware features of MP access point
models MP-241, MP-252, and MP-262. All features except the external antenna
connector are the same on each model. The external antenna connector is on
model MP-262 only.

Figure 1. MP Access Point Model MP-2xx—Top View

Diameter

16.76 cm

(6.6 inches)

Height

4.69 cm
(1.85 inches)

Chapter 2

840-9502-0040

Figure 2. MP Access Point Model MP-2xx—Bottom View

External antenna
connector (MP-262 only)

RJ-45
ports

Unlock

Port 2 Port 1

840-9502-0007

MP Overview

7

Confidential—Beta Draft—Confidential—Beta Draft—12 May 04

External Hardware Features

Chapter 2

Cable Ports

MP access point models MP-241, MP-252, and MP-262 have two RJ-45 ports.
(See Figure 2.) Each port provides a 10/100BASE-TX Ethernet connection to an
MX switch. The connection can be direct to an MX-switch or indirect through an
intermediate Layer 2 or Layer network.

The MP receives power and data through the ports. Use a Category 5 (Cat 5) cable
with straight-through signaling and standard RJ-45 connectors to connect the MP
access point to an MX switch or other device in the network.

The two RJ-45 ports support dual-homed configurations for redundancy. An MP
uses only one link for booting, configuration, and data transfer. If the link
becomes unavailable, the MP can reboot using the other link.

The ports are identical except for logical numbering (1 or 2). You can use either
port to connect an MP access point to an MX switch. However, an MP always
attempts to boot on MP port 1 first. Only if the boot attempt on port 1 fails does
the MP attempt to boot on port 2.

If both ports are directly connected to MX switch ports supplying Power over
Ethernet (PoE), the ports load-share. If one port becomes unavailable, the other
port can provide full power to the MP.

MP model MP-52 has one RJ-45 port for direct or indirect connection to an MX
switch.

Note. MP access points do not support daisy-chain configurations. Do not

connect the MP access point to another MP access point.

External Antenna Connector

Model MP-262 has a connector for attaching an external sectorized antenna for
the 802.11b/g radio. (See Figure 2.) An external antenna is required for the

802.11b/g radio. The radio does not have an internal antenna. Table 2 lists the
MP-262 external antennas.

8

Trapeze Mobility Point Installation Guide

Version 2.1

Confidential—Beta Draft—Confidential—Beta Draft—12 May 04

Table 2. MP-262 External Antennas

Beamwidth

Model

Horizontal Vertical

A1060 60° 65°

A1120 120° 60°

A1180 180° 40°

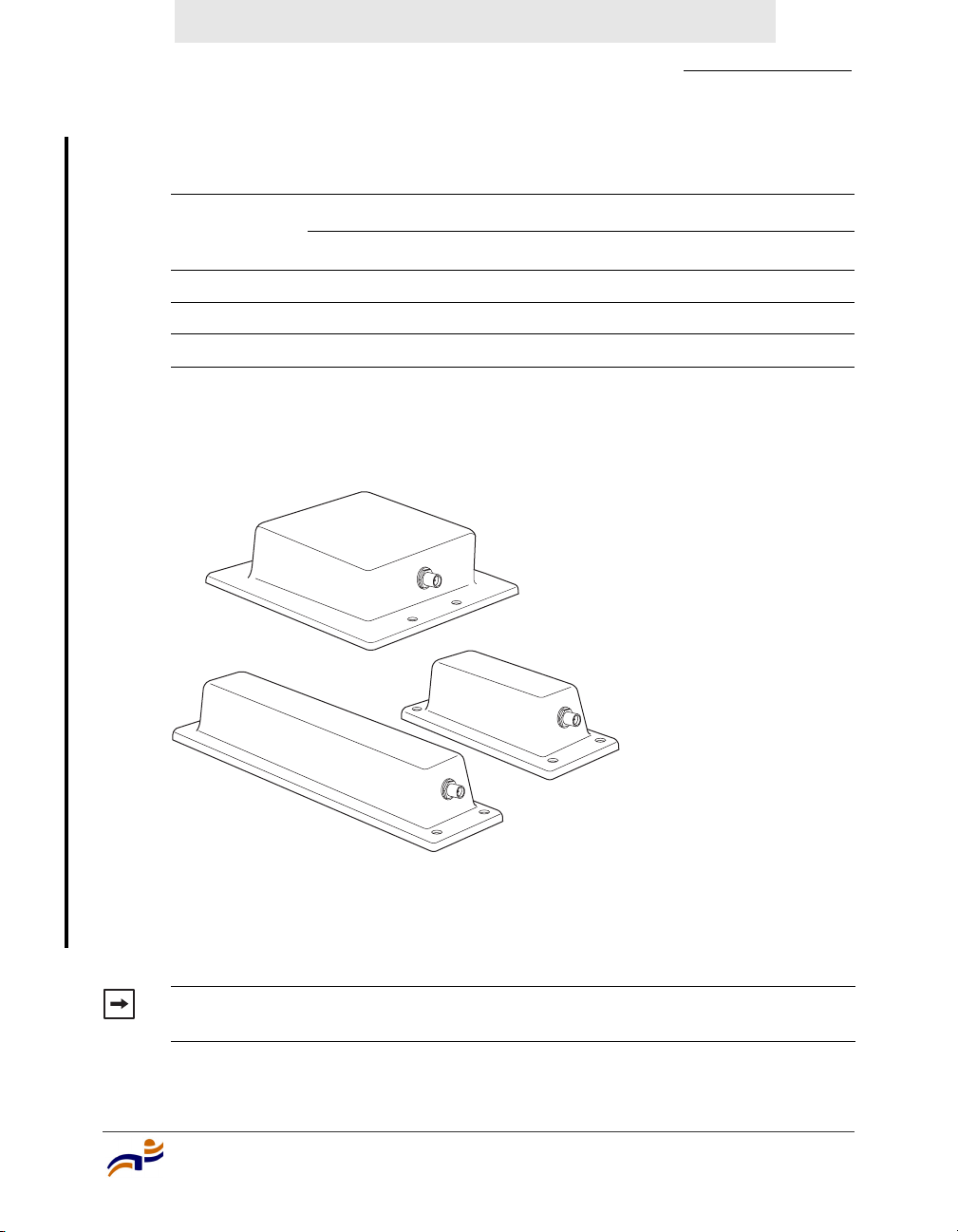

Figure 3 shows the antennas.

Figure 3. External Antennas—Model MP-262

External Hardware Features

Chapter 2

Model A1060

Model A1120

Model A1180

840-9502-0077

The antennas come with a connector cable, mounting hardware, and installation
instructions.

Note. The MP-262 802.11b/g radio is certified for use only with these

antennas.

MP Overview

9

Confidential—Beta Draft—Confidential—Beta Draft—12 May 04

External Hardware Features

Chapter 2

MP Mounting Options

You can mount an MP access point on any of the following types of surfaces:

● Suspended T-bar ceiling

● Junction box

● Solid surface wall or ceiling

● Table top

Note. The solid surface mounting option requires Cat 5 cable that does not

have strain relief. The other mounting options can use Cat 5 cable with or
without strain relief.

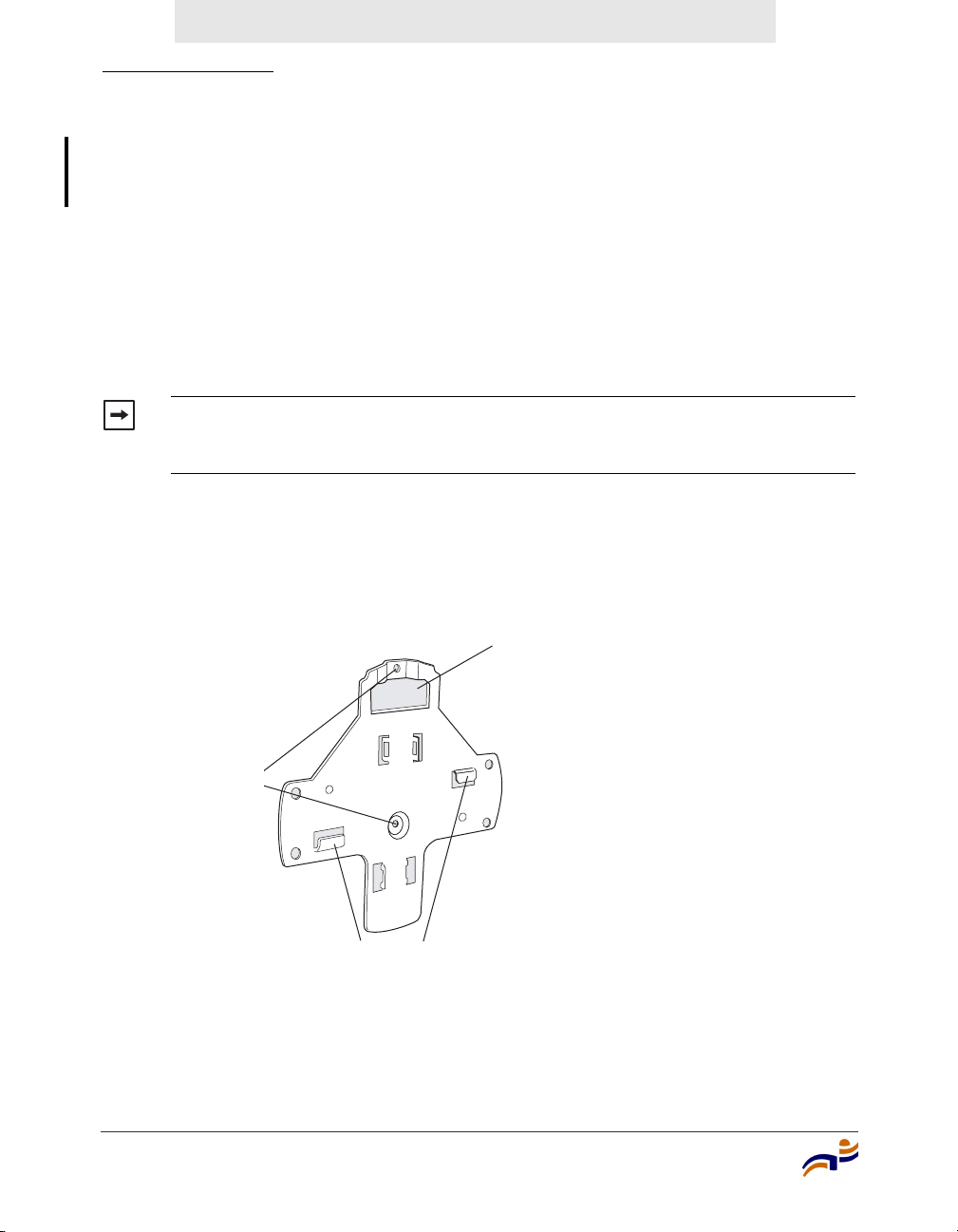

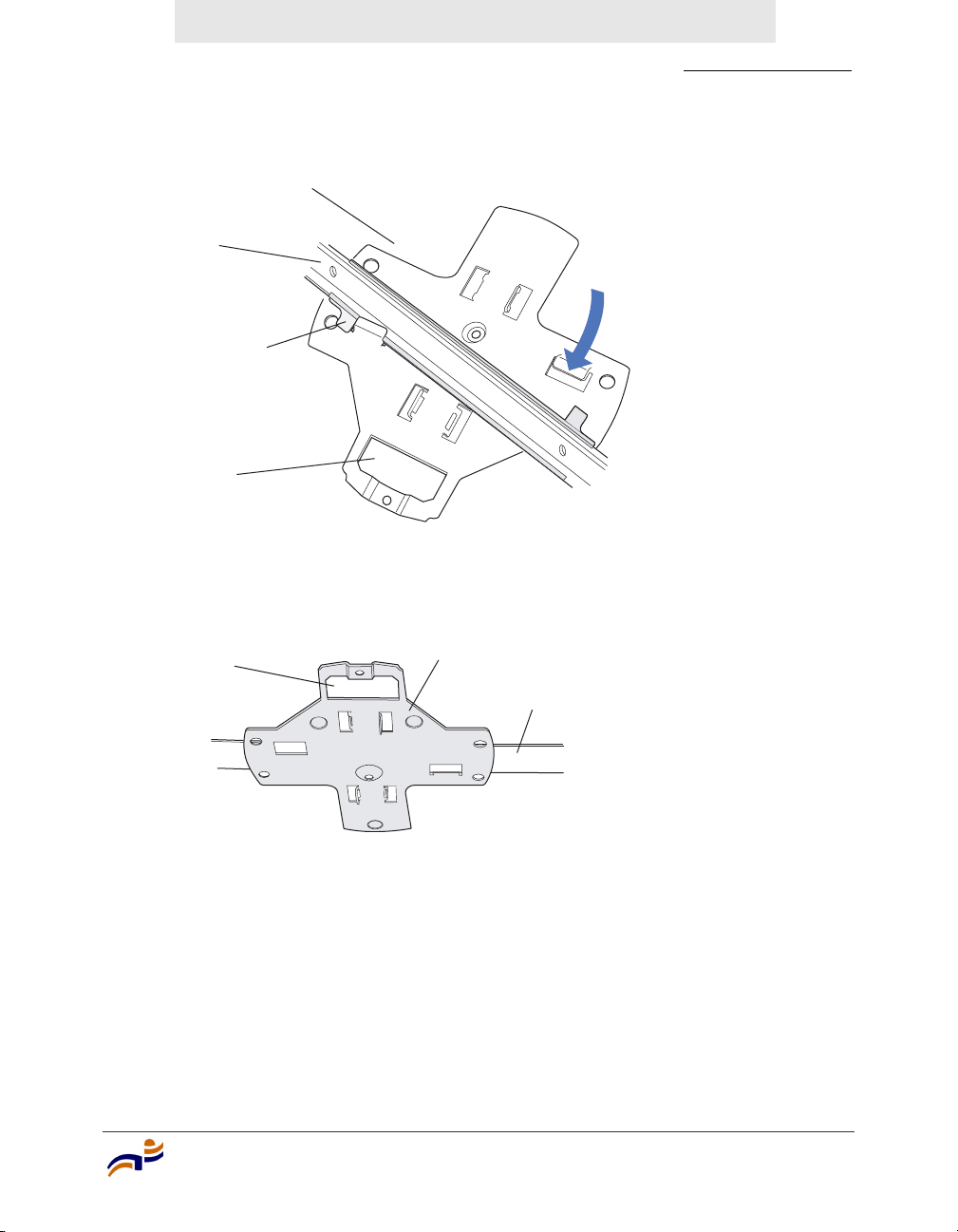

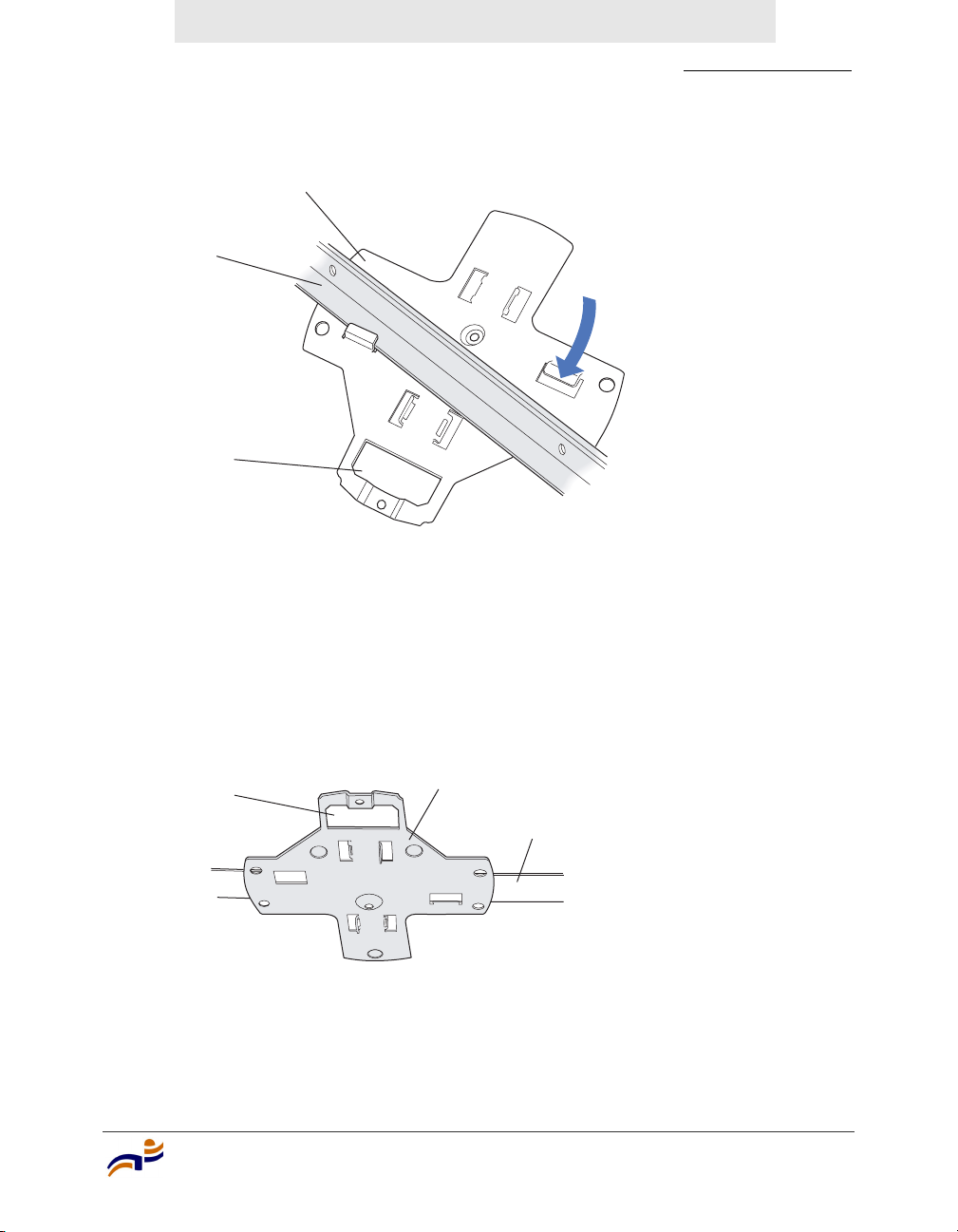

Figure 4 shows the universal mounting bracket for MP models MP-241, MP-252,
and MP-262.

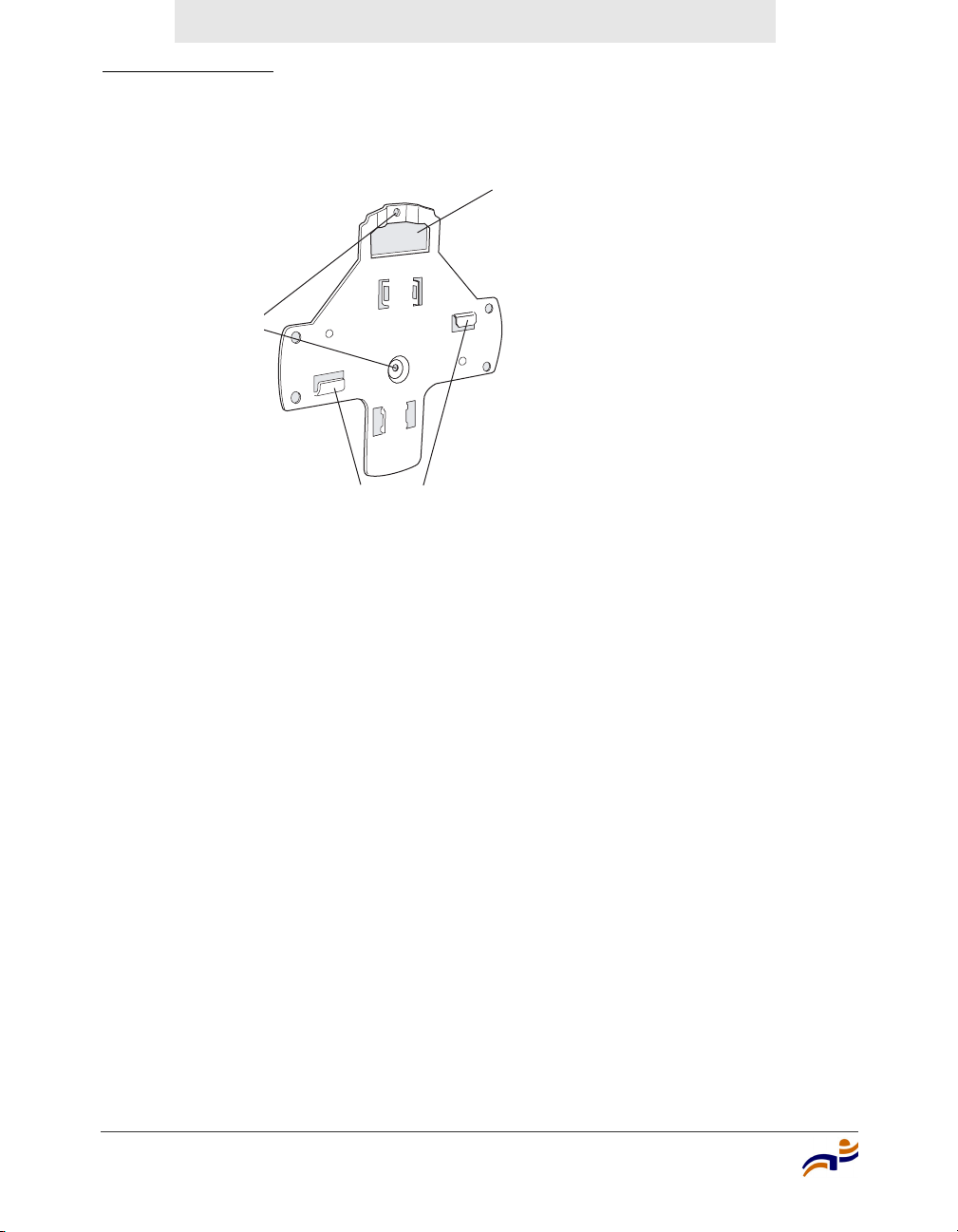

Figure 4. Universal Mounting Bracket

Port connector
opening

Screw holes

T-bar flanges

840-9502-0018

10

Trapeze Mobility Point Installation Guide

Version 2.1

Confidential—Beta Draft—Confidential—Beta Draft—12 May 04

External Hardware Features

Chapter 2

Status LEDs

MP access points have LEDs that provide status information for the device.

LEDs on Models MP-241, MP-252, and MP-262

Figure 5 shows the locations of the LEDs on models MP-241, MP-252, and
MP-262. Table 3 describes the LEDs.

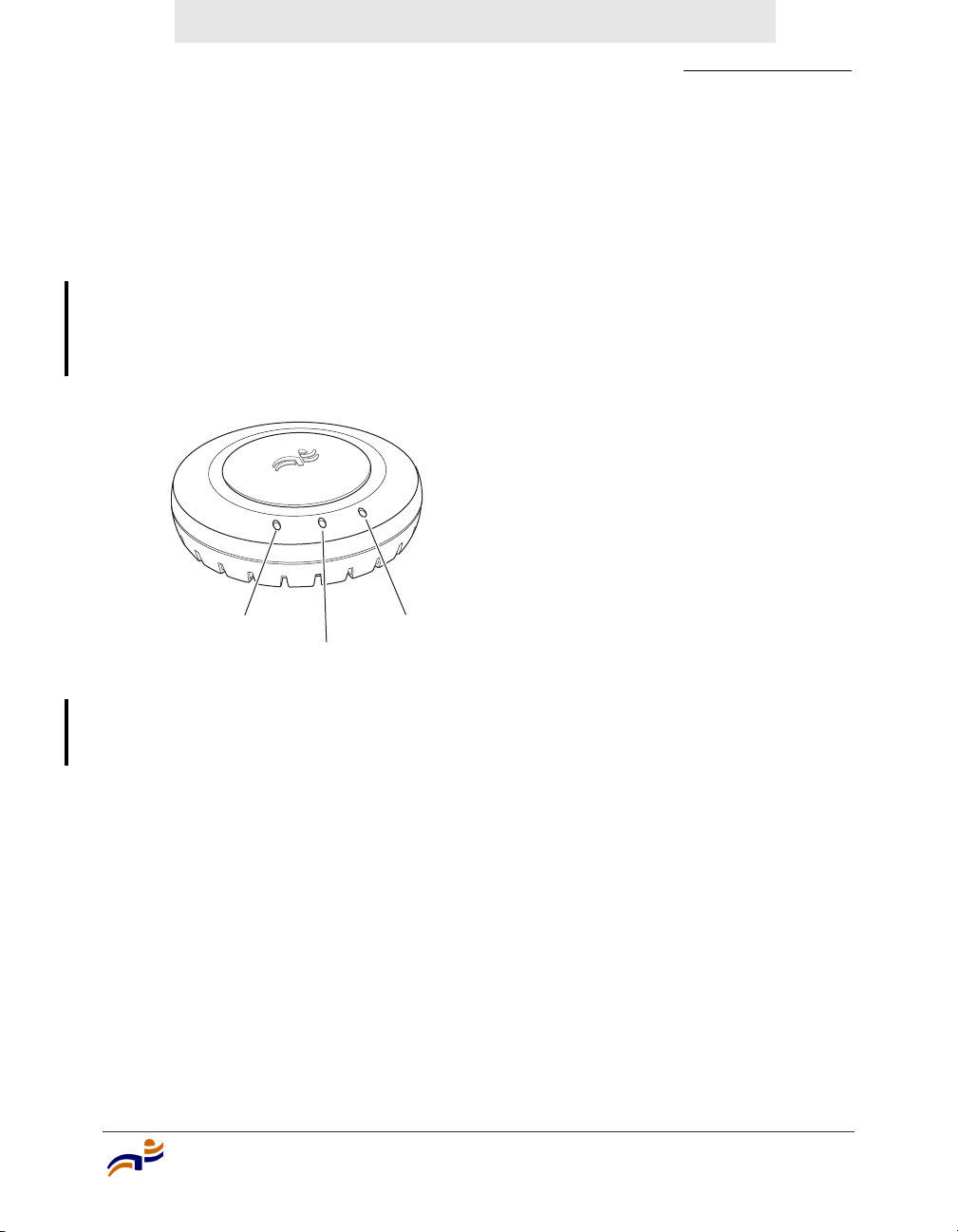

Figure 5. Health and Radio LEDs—MP-241, MP-252, and MP-262

Radio 2 LED

Health LED

Radio 1 LED

840-9502-0010

On model MP-241, radio LED 1 indicates activity for the single radio. On models
MP-252 and MP-262, radio LED 1 indicates activity for the 802.11b/g or 802.11b
radio, and radio LED 2 indicates activity for the 802.11a radio.

MP Overview

11

Confidential—Beta Draft—Confidential—Beta Draft—12 May 04

External Hardware Features

Chapter 2

Table 3. MP Access Point LEDs—MP-241, MP-252, and MP-262

LED Appearance Meaning

Health Solid green All the following are true:

• Management link with an MX switch is
operational.

• MP access point has booted.

• MP access point has received a valid
configuration from an MX switch.

• At least one radio is enabled or is in sentry
mode.

Solid amber MP access point is waiting to receive boot

instructions and a configuration file from an MX
switch.

Radio 1
Radio 2

Slowly alternating
green and amber

Solid green A client is associated with the radio.

Blinking green Associated client is sending or receiving traffic.

Blinking amber Non-associated client is sending or receiving

Alternating green and
amber

Solid amber Radio is disabled.

Unlit No radio is present or, if a radio is present and

MP access point is booting and receiving its
configuration file from an MX switch. After the
access point boots and receives its configuration,
this LED appearance persists until a radio is
enabled or is placed in sentry mode.

traffic.

Radio is unable to transmit. This state can occur
due to any of the following:

• The radio is in sentry rogue detection mode.

• Excessive radio interference in the
environment is preventing the radio from
sending beacons.

• The radio has failed.

enabled, no clients are associated with the radio
and there is no traffic activity.

12

Trapeze Mobility Point Installation Guide

Version 2.1

Confidential—Beta Draft—Confidential—Beta Draft—12 May 04

Connection Options

You can connect an MP access port directly to an MX switch port or indirectly to
MX switches through an intermediate Layer 2 or Layer 3 network. In either case,
use Category 5 (CAT 5) cable with straight-through signaling for each MP
connection.

For MP models with two Ethernet ports, you can provide data link redundancy by
connecting both of its ports directly to MX switch ports or indirectly to MX
switches through the network.

For all MP models, you can provide MX management redundancy even on a
single MP Ethernet port by connecting the MP indirectly to multiple MX switches
through an intermediate Layer 2 or Layer 3 network.

Note. Install the Cat 5 cables for the MP access point at the installation site

before installing the access point itself. During installation, you will insert the
Cat 5 cable(s) into the MP port(s) before attaching the access point to the
bracket.

Connection Options

Chapter 2

MP Overview

13

Connection Options

Chapter 2

Confidential—Beta Draft—Confidential—Beta Draft—12 May 04

14

Trapeze Mobility Point Installation Guide

Version 2.1

Confidential—Beta Draft—Confidential—Beta Draft—12 May 04

Installing and Connecting an MP

Unpacking an MP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Installation Requirements and Recommendations . . . . . . . . . . . . . . . . . . . . . 17

Installing an MP—Model MP-241, MP-252, and MP-262 . . . . . . . . . . . . . . . 22

Connecting an MP to an External Antenna . . . . . . . . . . . . . . . . . . . . . . . . . . . 47

Connecting an MP to an MX Switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48

Verifying MP Health . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51

3

Note. Before installing an MP access point, you might need to generate a

network plan and an MP work order with RingMaster. (See “RingMaster Network
Plan and Work Orders” on page 17.)

Unpacking an MP

The shipping carton for an MP access point contains the following items:

● One MP access point

● Mounting kit (models MP-241, MP-252, MP-262):

● One universal mounting bracket (attached to the MP)

● One paper mounting template (used for marking cutting areas and screw

holes)

Installing and Connecting an MP

15

Confidential—Beta Draft—Confidential—Beta Draft—12 May 04

Unpacking an MP

Chapter 3

● One two-piece 14.2-mm (9/16-inch) T-bar clamp

● One two-piece 15.9-mm (5/8-inch) T-bar clamp

● One two-piece 23.9-mm (15/16-inch) T-bar clamp

● Two #6 sheet metal screws and two drywall anchors

● Three adhesive rubber feet

● One documentation pack that includes quick mounting instructions, a

mounting template, and a registration card.

Figure 6 shows the contents of the shipping carton for model MP-241, MP-252, or
MP-262.

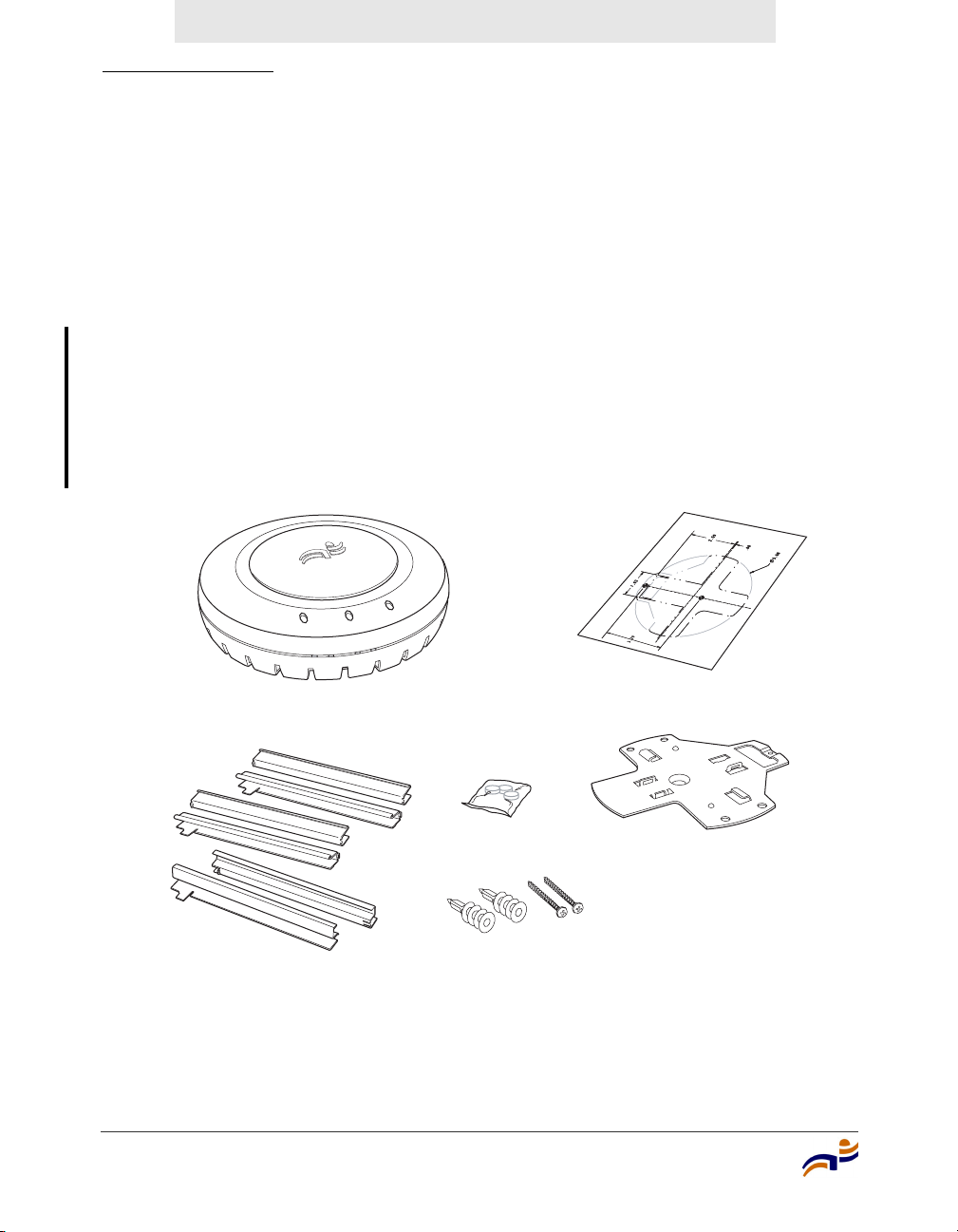

Figure 6. MP-241, MP-252, or MP-262 Shipping Carton Contents

16

Mobility point

T-bar clamps

Before you begin installation:

Trapeze Mobility Point Installation Guide

Rubber feet

Mounting hardware

Version 2.1

Mounting instructions and
mounting template

Universal
mounting bracket

840-9502-0001

Confidential—Beta Draft—Confidential—Beta Draft—12 May 04

Installation Requirements and Recommendations

1 Open the carton and carefully remove the contents, if you have not already

done so.

2 Place the packing materials back in the carton and save the carton.

3 Verify that you received each item in the previous list. If any item is missing

or damaged, contact Trapeze Networks.

Installation Requirements and
Recommendations

For best results, follow these requirements and recommendations before installing
an MP access point.

RingMaster Network Plan and Work Orders

If you are using RingMaster to plan your Trapeze Networks Mobility System
installation, you might want to create and verify a network plan for the entire
Trapeze network installation and generate an MP work order, before installing MP
access points. A network plan and the MP work orders generated from it provide
the following information about MP access point installation and configuration:

Chapter 3

● Number of MP access points required for adequate WLAN capacity in each

coverage area

● Detailed installation location for each MP access point

● Settings for all MP access points in the WLAN

(For information about installing RingMaster, creating and verifying a network
plan, and generating an MP work order, see the Trapeze RingMaster

Administrator’s Guide.)

Installing and Connecting an MP

17

Confidential—Beta Draft—Confidential—Beta Draft—12 May 04

Installation Requirements and Recommendations

Chapter 3

MX Switch Recommendation

Trapeze Networks recommends that you install and configure the MX switch
before installing an MP access point. If the switch is already installed and
configured for the MP access point(s), you can immediately verify the cable
connection(s) when you plug the cable(s) into the MP access point.

Caution! The MP access point is designed to receive power only from a

Trapeze Networks Mobility Exchange (MX) switch or Trapeze-approved power
injector. Connecting an MP access point to a Power over Ethernet (PoE) device
that is not approved by Trapeze Networks can damage the equipment.

(For information about connecting an MP access point to an MX switch port, see
“Connecting an MP to an MX Switch” on page 48.)

Wall Installation Recommendations

If you plan to install MP model MP-241 or MP-252 on a partial wall or other
vertical surface, orient the top of the access point (the side with the LEDs) toward
the intended coverage area. The radio antennas transmit through the top of the
access point but not through the bottom (where the bracket is). This
recommendation also applies to model MP-262 if you plan to use the 802.11a
radio.

The MP-52 and the 802.11b/g radio in the MP-262 use external antennas, which
you can orient independently of the MP itself:

● Orient an MP-262 external antenna to face the intended coverage area.

MP Radio Safety Advisories

When you enable the MP radio(s) as part of MX switch configuration, the radios
are able to receive and transmit radio frequency energy as soon as you connect the
MP access point(s) to the MX switch, either directly or through the network.

18

Trapeze Mobility Point Installation Guide

Version 2.1

Confidential—Beta Draft—Confidential—Beta Draft—12 May 04

Installation Requirements and Recommendations

Radio Frequency Exposure

Federal Communications Commission (FCC) Docket 96-8 for Spread Spectrum
Transmitters specifies a safety standard for human exposure to radio frequency
electromagnetic energy emitted by FCC-certified equipment. When used with the
proper antennas (shipped in the product), Trapeze Networks MP access point
products meet the uncontrolled environmental limits found in OET-65 and
ANSI C95.1-1991. Proper installation of the MP access point according to the
instructions in this manual will result in user exposure that is substantially below
the FCC recommended limits.

Chapter 3

Installing and Connecting an MP

19

Confidential—Beta Draft—Confidential—Beta Draft—12 May 04

Installation Requirements and Recommendations

Chapter 3

Additional Radio Safety Advisories

(For translations of these warnings, see “Radio Safety Warnings” on page 68.)

Warning! In the U.S., locate the MP access point a minimum of 20 cm

(7.9 inches) away from people. This safety warning conforms with FCC radio
frequency exposure limits for dipole antennas such as those used in the MP
access point.

Warning! Do not operate the MP access point near unshielded blasting caps

or in an otherwise explosive environment unless the device has been modified
for such use by qualified personnel.

Warning! Do not touch or move the MP access point when the antennas are

transmitting or receiving.

Warning! Do not hold any radio device so that the antenna is very close to or

touching the face, eyes, or other exposed body part while the device's radio
antenna is transmitting.

Warning! Before using a wireless device in a hazardous location, consult the

local codes, national codes, and safety directors of the location for usage
constraints.

Cable Requirements

Warning! Do not connect or disconnect cables or otherwise work with the MP

access point hardware during periods of lightning activity. (For translations of
this warning, see “Lightning Warning” on page 71.)

20

Trapeze Mobility Point Installation Guide

Version 2.1

Confidential—Beta Draft—Confidential—Beta Draft—12 May 04

Installation Requirements and Recommendations

Chapter 3

Note. The MP access point is intended for indoor use only. Do not install the

device outdoors, unless you install it in a properly installed Trapeze Networks
outdoor MP enclosure.

Note. To reduce the possibility of connection interference caused by dust,

clean the Cat 5 connector pins before inserting a cable into an MP access point.

Cat 5 cable with straight-through signaling must be installed at the site before you
install an MP access point. A single connection requires one cable. A dual-homed
connection requires two cables.

Table 4 lists the pin signals for 10/100 Ethernet straight-through wiring. Pins 4, 5,
7, and 8 are used only when Power over Ethernet (PoE) is enabled on the port. RD
means Receive Data and TD means Transmit Data.

Table 4. 10/100 Ethernet Straight-Through Pin Signals

MX Switch Other Device

Pin Function Pin Function

1RD+1TD+

2RD-2TD-

3TD+3RD+

4PoE4PoE

5PoE5PoE

6TD-6RD-

7PoE7PoE

8PoE8PoE

Mounting an MP access point on a solid surface requires Cat 5 cable that does not
have strain relief. For installation on all other surfaces, you can use Cat 5 cable
with or without strain relief.

(For more information about cables, see “Cable Ports” on page 8.)

Installing and Connecting an MP

21

Confidential—Beta Draft—Confidential—Beta Draft—12 May 04

Installing an MP—Model MP-241, MP-252, and MP-262

Chapter 3

Installing an MP—Model MP-241, MP-252,
and MP-262

To install an MP access point, use one of the procedures in this section.

Installation Hardware and Tools

Table 5 lists the mounting hardware and tools required for each type of
installation.

Table 5. Required Mounting Hardware and Tools—Models MP-241,

MP-252, and MP-262

Mounting Option Required Hardware and Tools

Suspended ceiling—flush
ceiling tiles

Suspended ceiling—drop
ceiling tiles

Mounting template Yes

Universal mounting bracket Yes

T-bar clamp

Note: A T-bar clamp is not required
for a 23.9-mm (15/16-inch) T-bar
ceiling with flush ceiling tiles.

Box cutter No

Small screwdriver (3-mm or
1/8-inch)

Mounting template Yes

Universal mounting bracket Yes

T-bar clamp Yes

Box cutter No

Small screwdriver (3-mm or
1/8-inch)

Included with the
Product

Ye s

No

No

22

Trapeze Mobility Point Installation Guide

Version 2.1

Confidential—Beta Draft—Confidential—Beta Draft—12 May 04

Installing an MP—Model MP-241, MP-252, and MP-262

Chapter 3

Table 5. Required Mounting Hardware and Tools—Models MP-241,

MP-252, and MP-262 (continued)

Mounting Option Required Hardware and Tools

Included with the
Product

Junction box Junction box No

Two #6-32 x 1-inch machine screws Yes

Universal mounting bracket Yes

Small screwdriver (3-mm or

No

1/8-inch)

#2 Phillips-head screwdriver No

Solid wall or ceiling Two #6 sheet metal screws and two

Ye s

drywall anchors

Universal mounting bracket Yes

Hammer No

Small screwdriver (3-mm or

No

1/8-inch)

#2 Phillips-head screwdriver No

Tabletop Universal mounting bracket Yes

Three adhesive rubber feet Yes

Small screwdriver (3-mm or

No

1/8-inch)

Figure 7 shows the universal mounting bracket.

Installing and Connecting an MP

23

Confidential—Beta Draft—Confidential—Beta Draft—12 May 04

Installing an MP—Model MP-241, MP-252, and MP-262

Chapter 3

Figure 7. Universal Mounting Bracket

Port connector
opening

Screw holes

T-bar flanges

840-9502-0018

Suspended Ceiling Installation—Flush Ceiling Tiles

(For required mounting hardware and tools, see Table 5 on page 22.)

1 Select an installation location that is centered over a T-bar in the ceiling.

2 Cut a hole as follows in the ceiling tile for the Cat 5 cable(s):

a Place the mounting template over the area where you plan to install the

MP access point.

b Use the box cutter to cut along the line marking the opening for the port

connectors.

c Remove the mounting template and the material you cut from the ceiling

panel.

3 Determine whether to install a T-bar clamp onto the ceiling T-bar:

● If the T-bar width is 14.2 mm (9/16 inches), you need to install the

14.2-mm (9/16-inch) T-bar clamp. Go to step 4.

● If the T-bar width is 23.9 mm (15/16 inches), the universal mounting

bracket fits directly onto the T-bar. Go to step 5.

24

4 Install the 14.2-mm (9/16-inch) T-bar clamp onto the ceiling T-bar as shown

in Figure 8.

Trapeze Mobility Point Installation Guide

Version 2.1

Confidential—Beta Draft—Confidential—Beta Draft—12 May 04

Installing an MP—Model MP-241, MP-252, and MP-262

a Slide each half of the clamp onto the T-bar so that the clamp lip is fully on

the T-bar.

b Slide the two halves of the clamp toward each other until the tabs are

inserted completely into the holes and the clamp fits snugly on the T-bar.

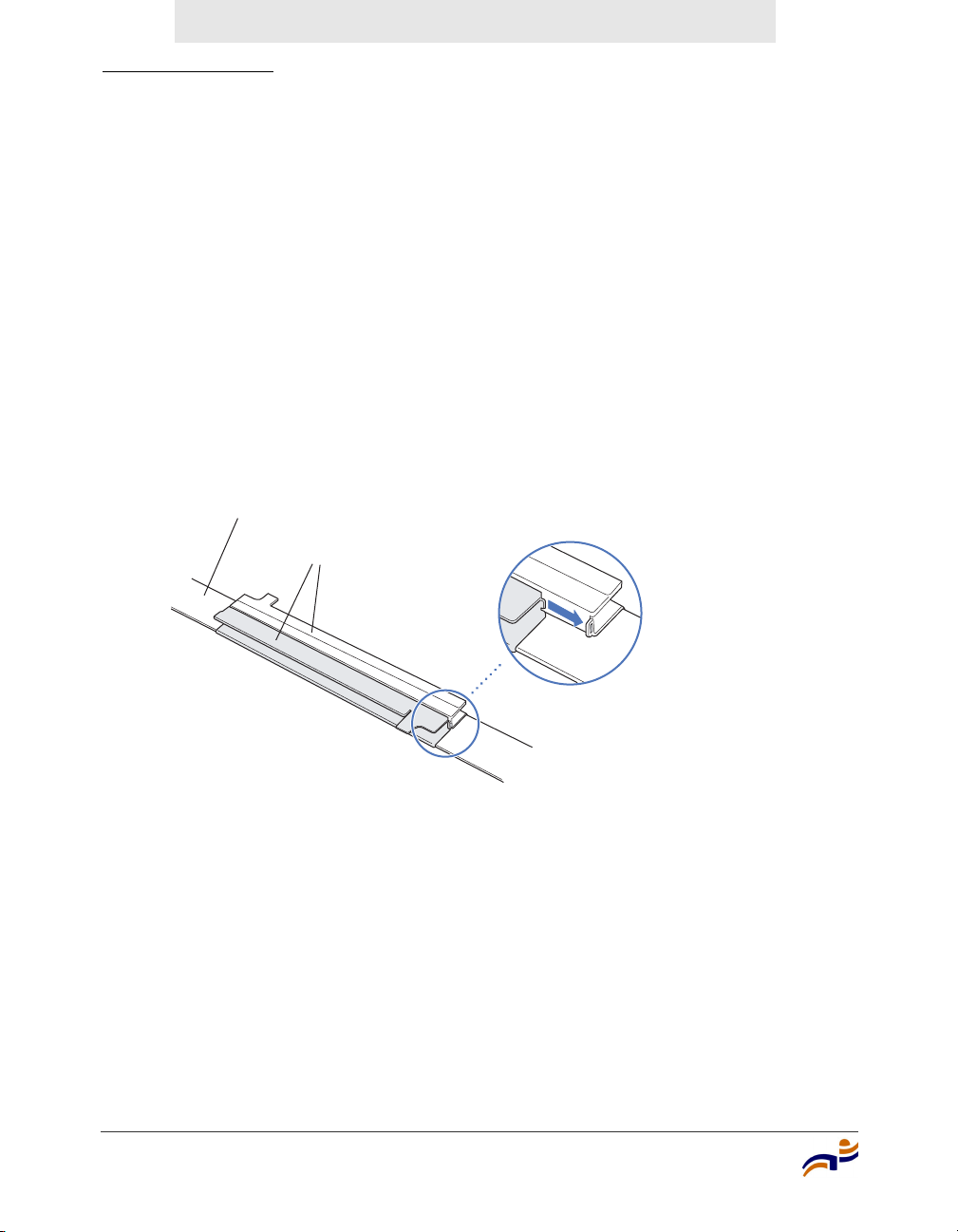

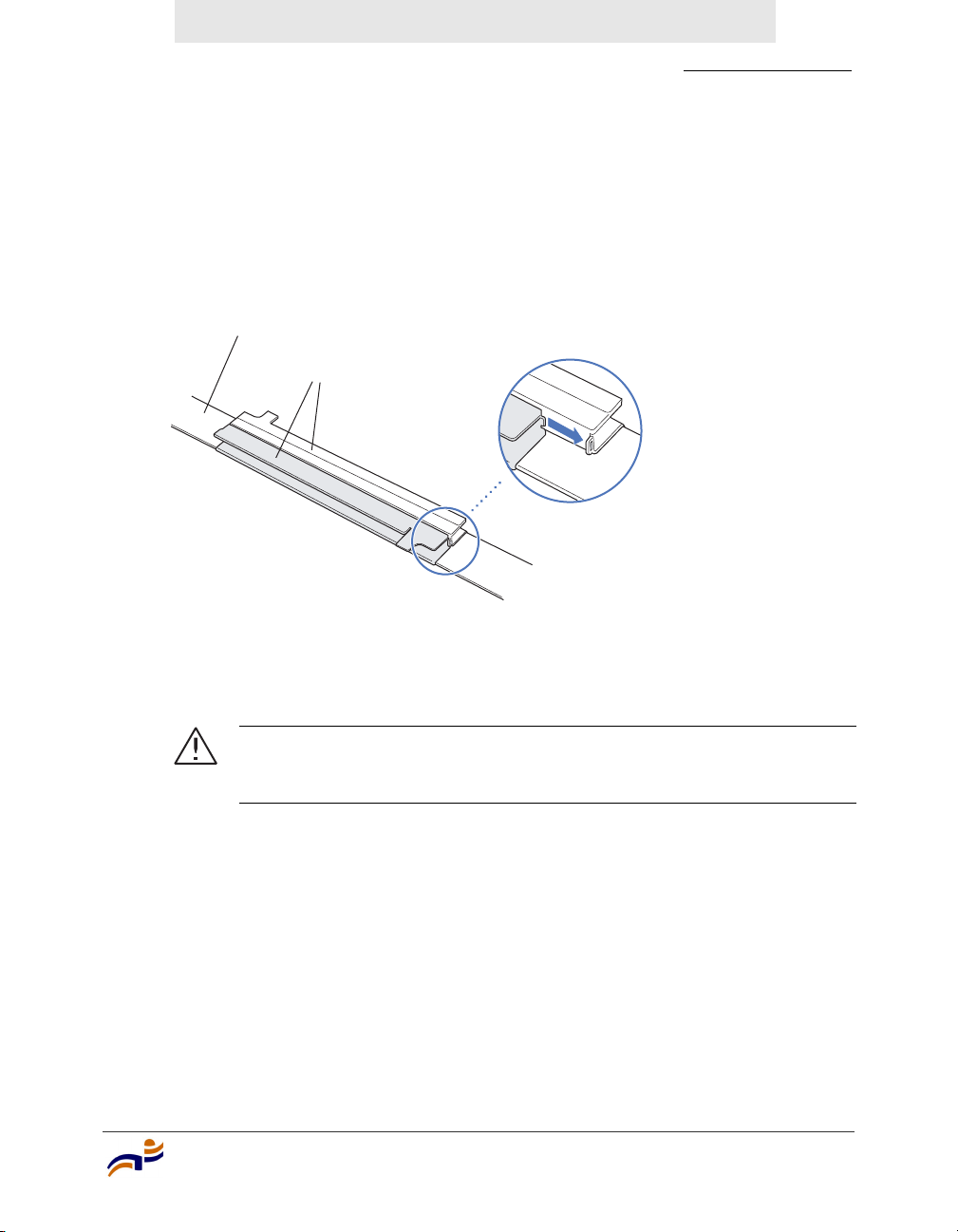

Figure 8. Step 4—Installing a T-bar Clamp

Chapter 3

T-bar

T-bar clamp halves

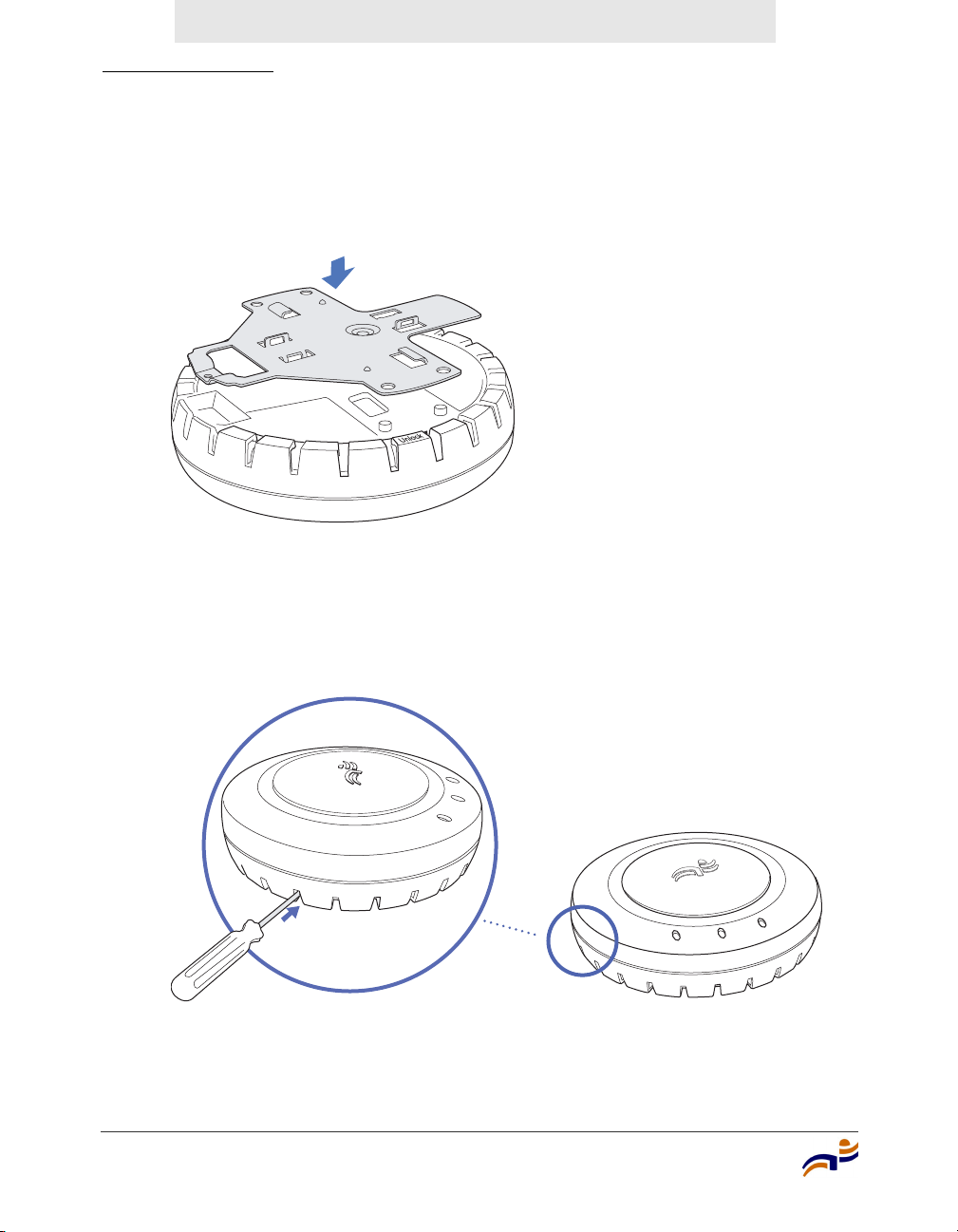

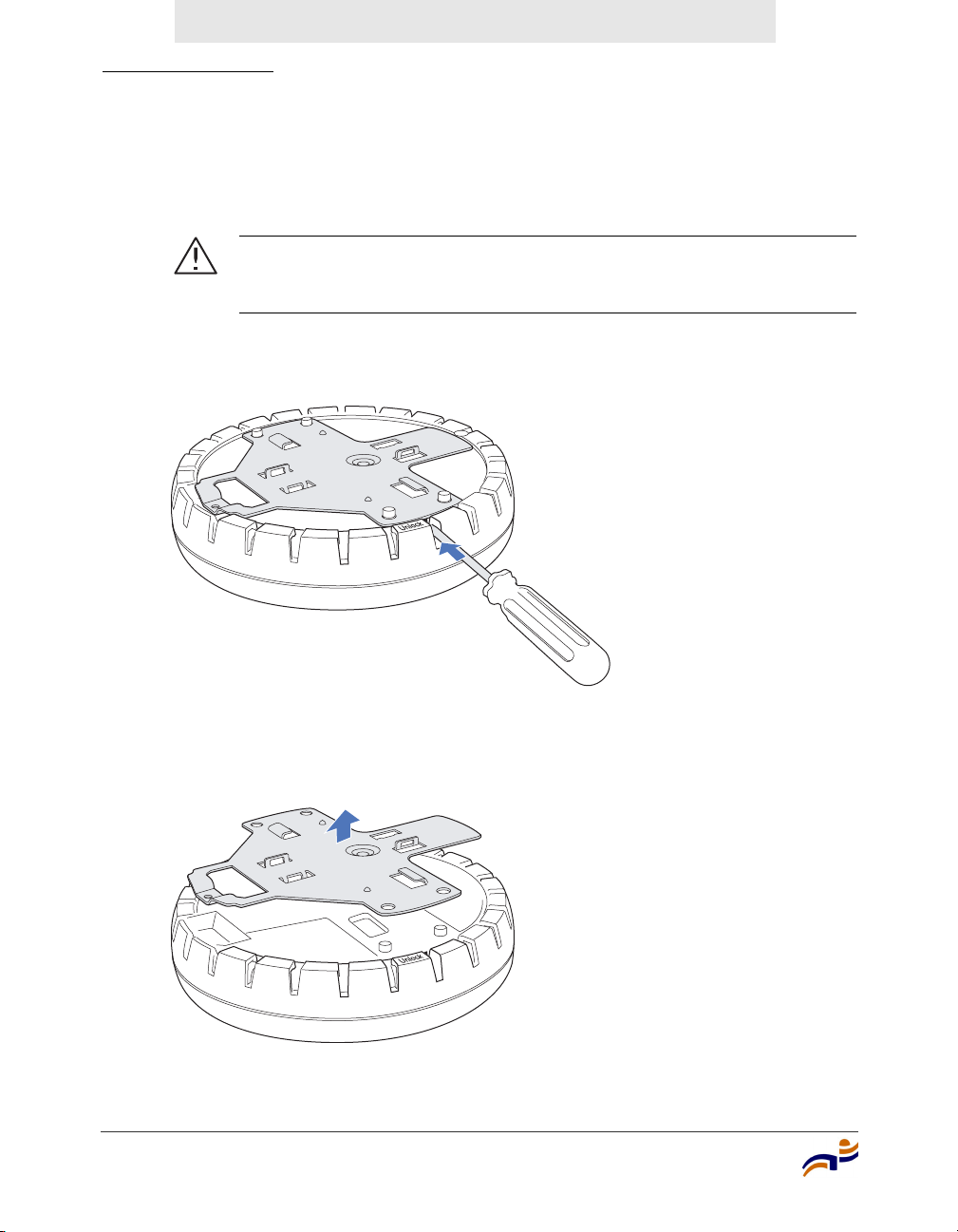

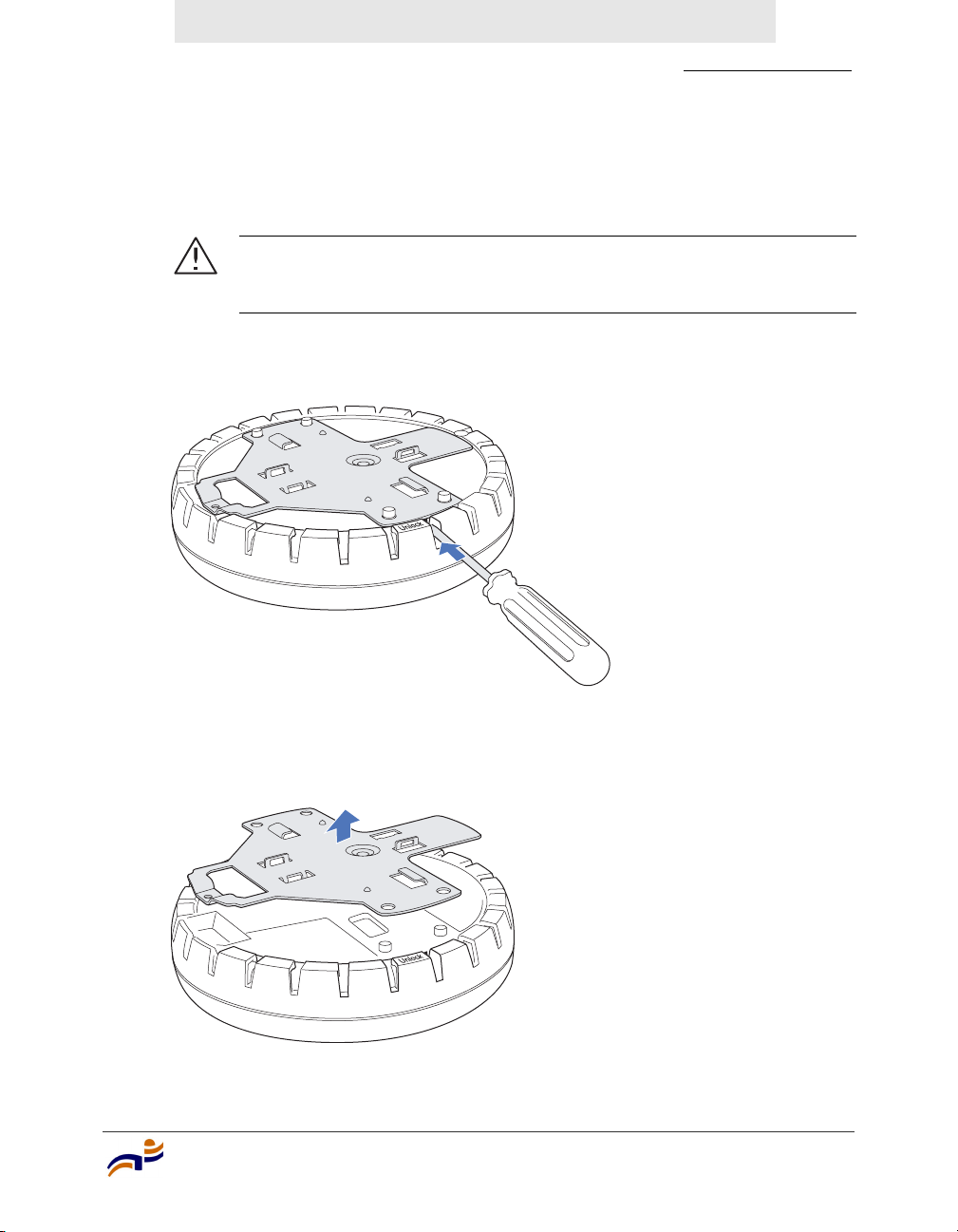

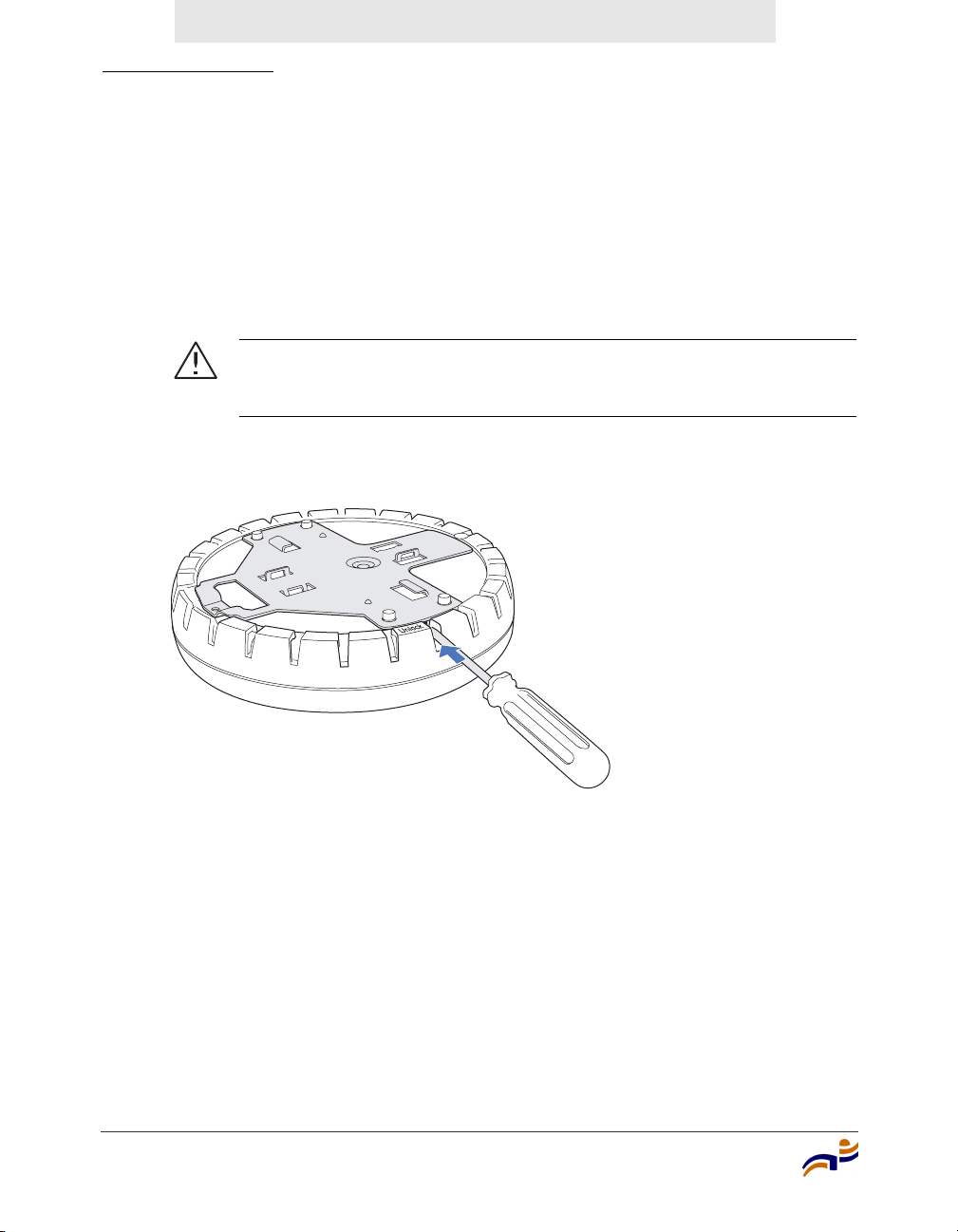

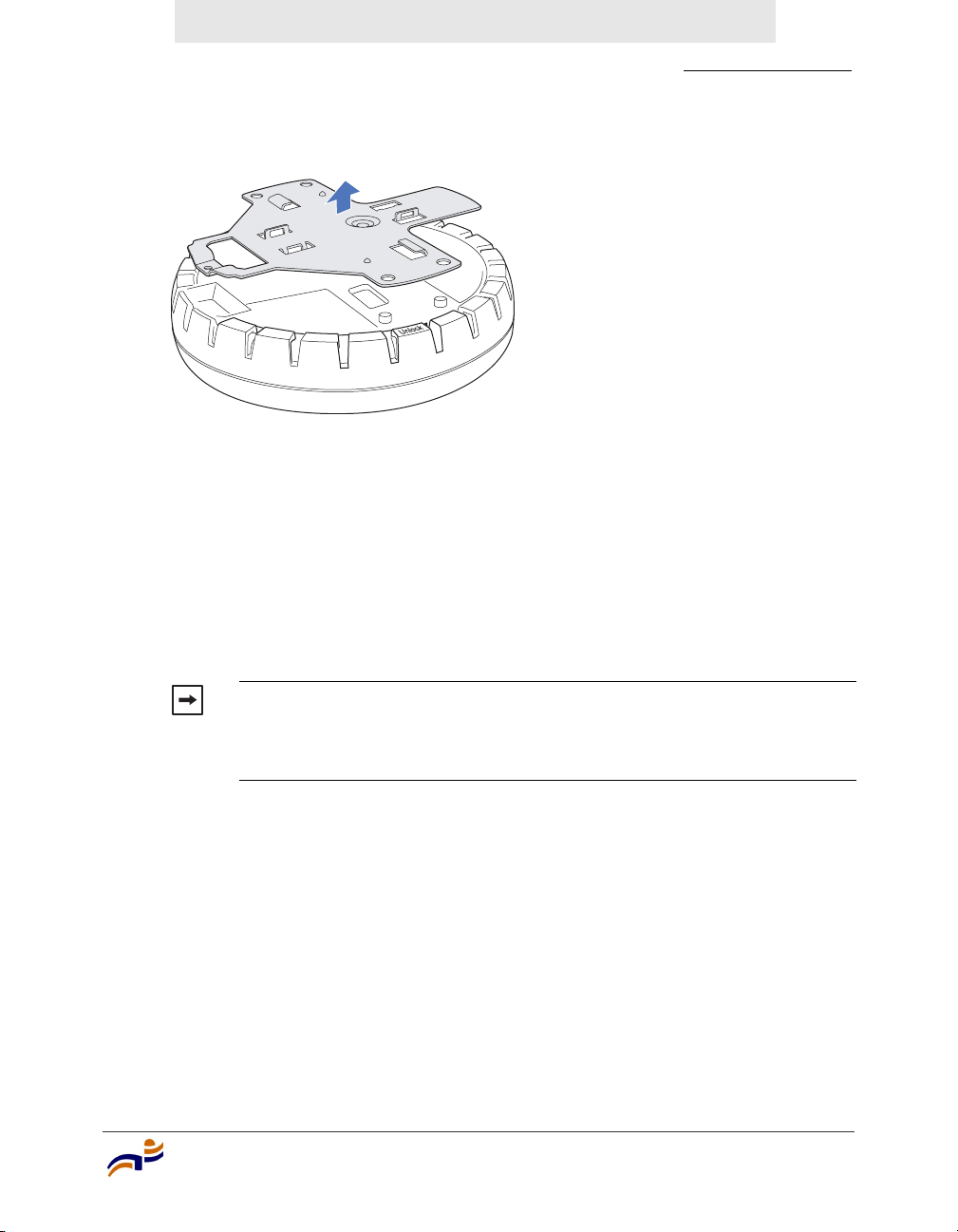

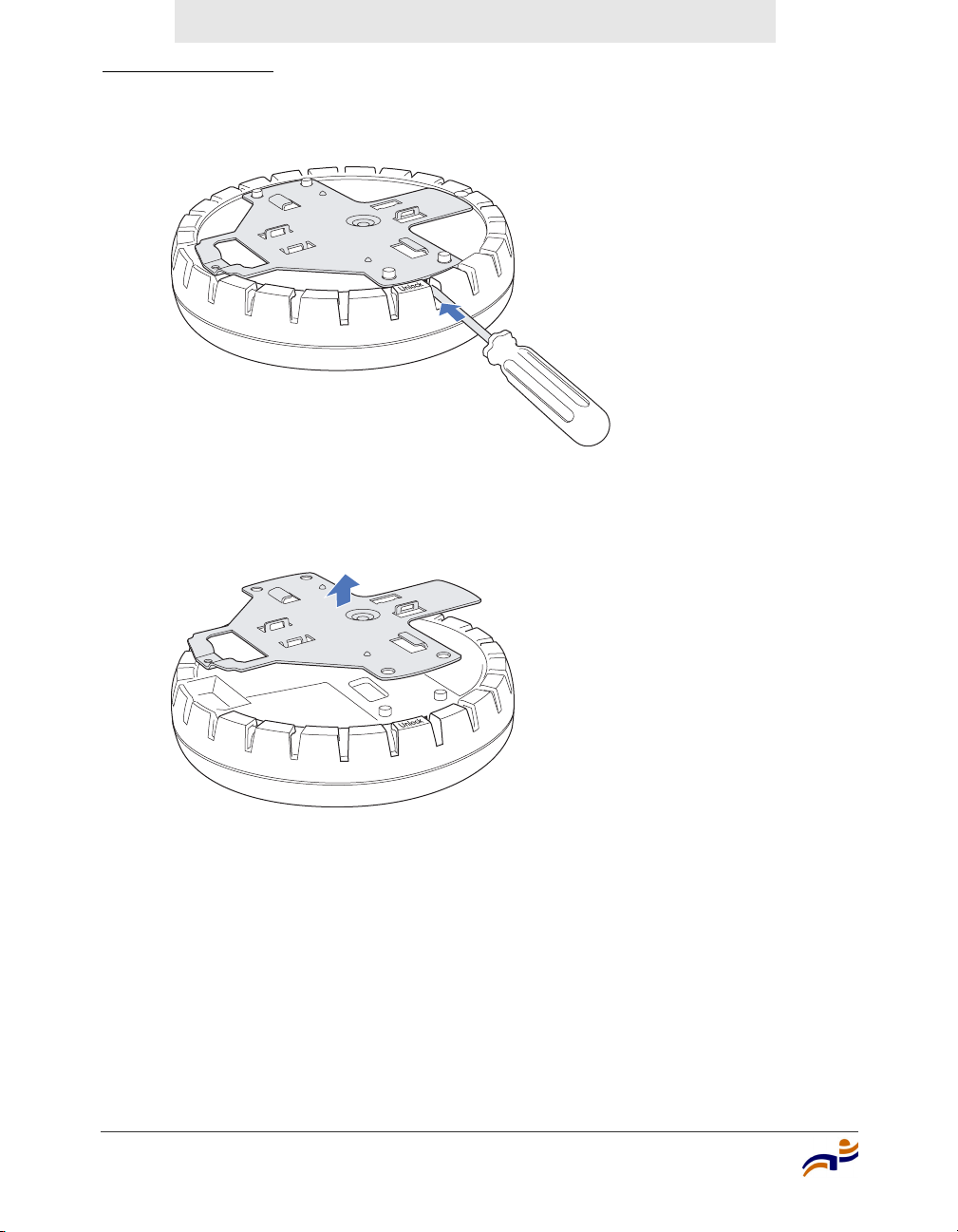

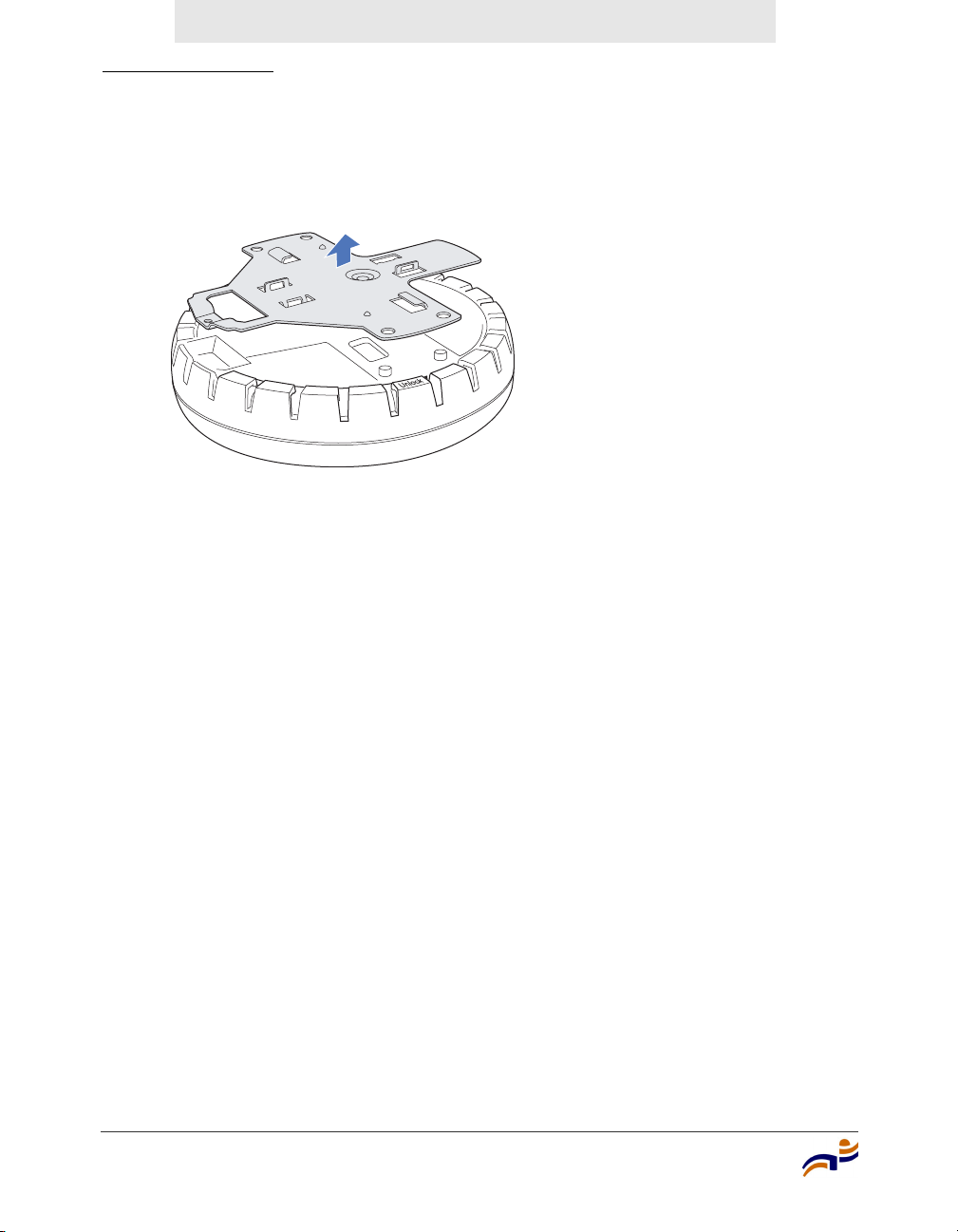

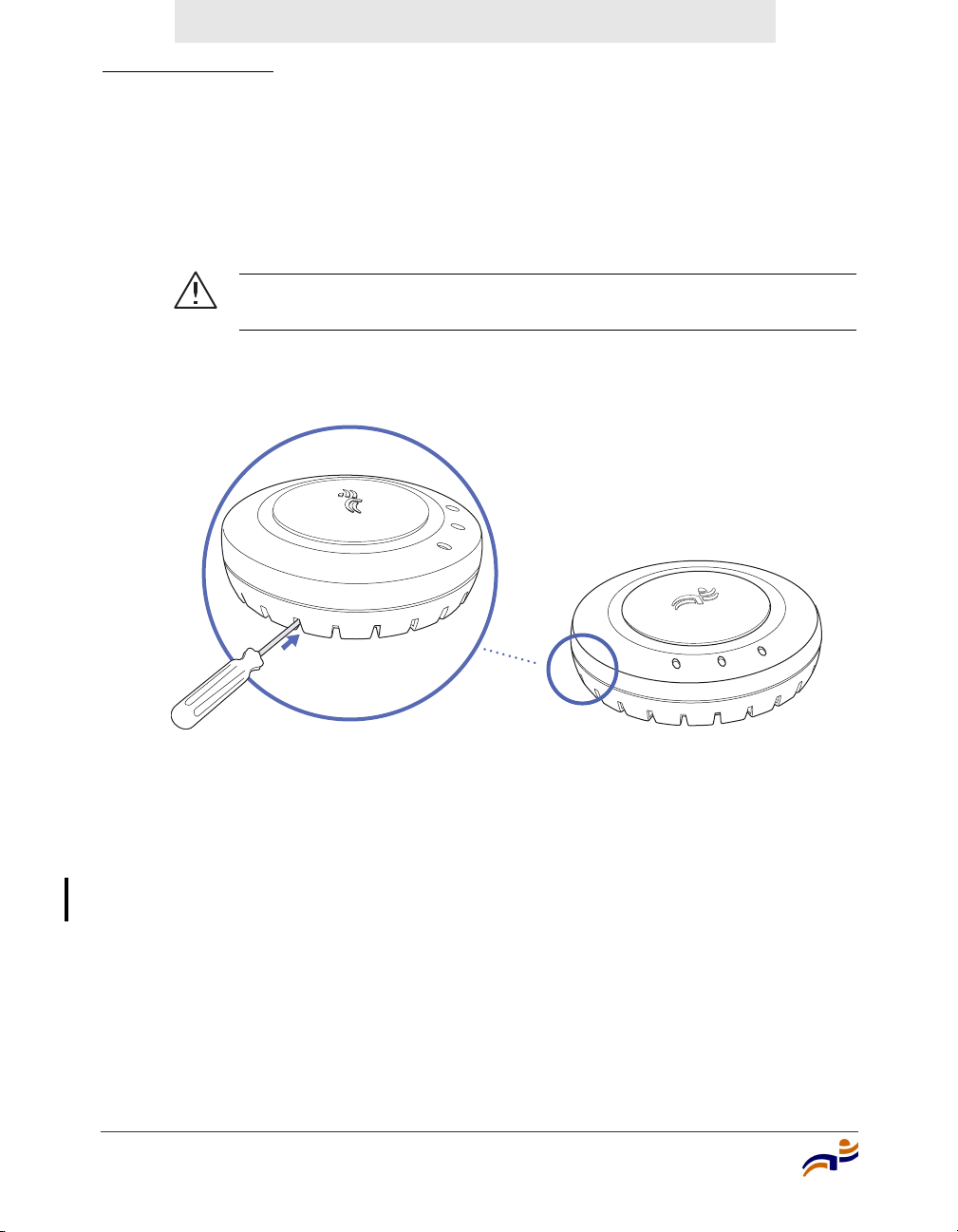

5 Unlock the universal mounting bracket from the MP access point by inserting

Slide together

840-9502-0003

the 3-mm or 1/8-inch screwdriver into the Unlock hole on the MP access point
as shown in Figure 9.

Caution! To avoid damage to the MP access point’s lock mechanism

or electronic components, do not use excessive force when inserting a
tool into the Unlock or Lock hole.

Installing and Connecting an MP

25

Confidential—Beta Draft—Confidential—Beta Draft—12 May 04

Installing an MP—Model MP-241, MP-252, and MP-262

Chapter 3

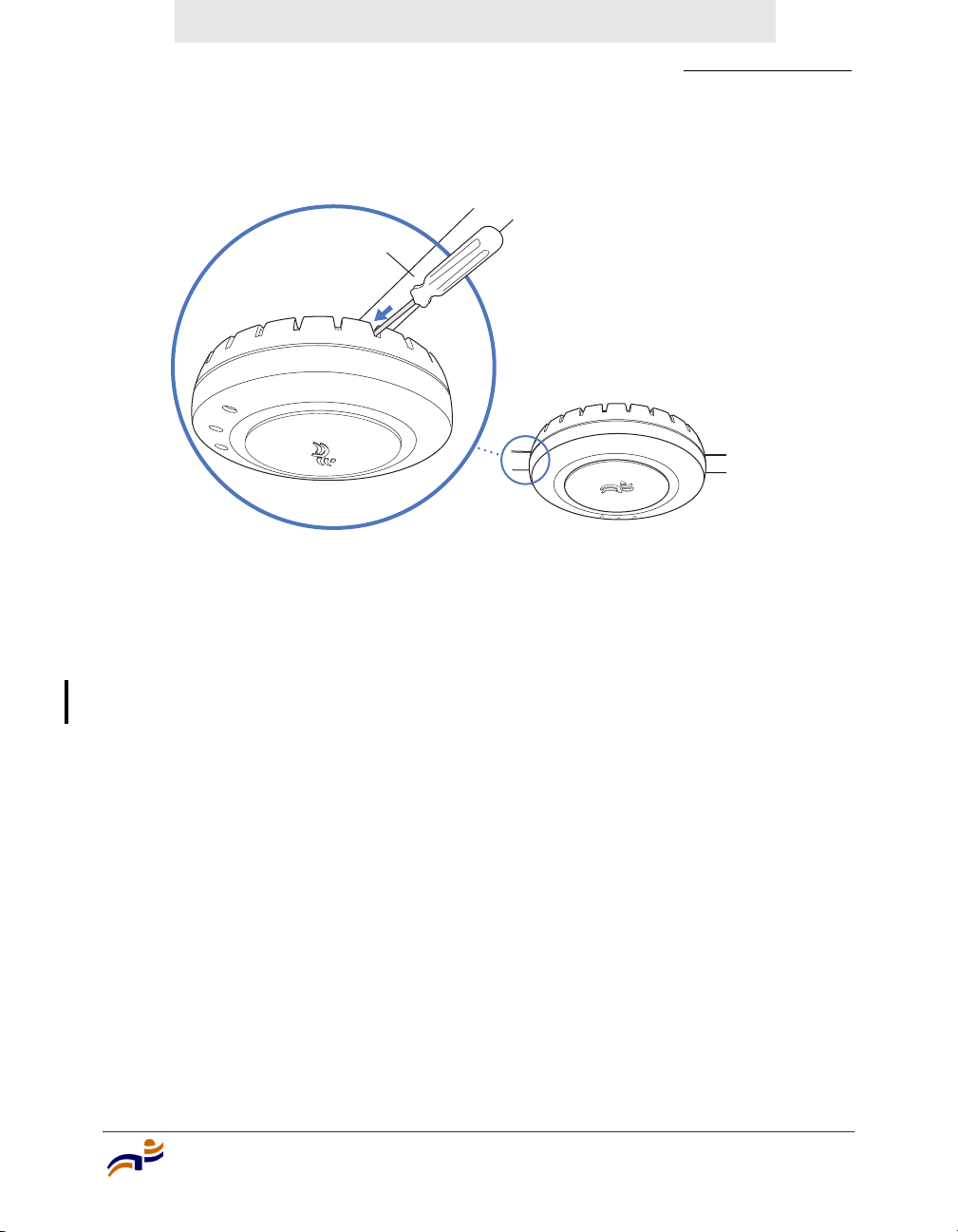

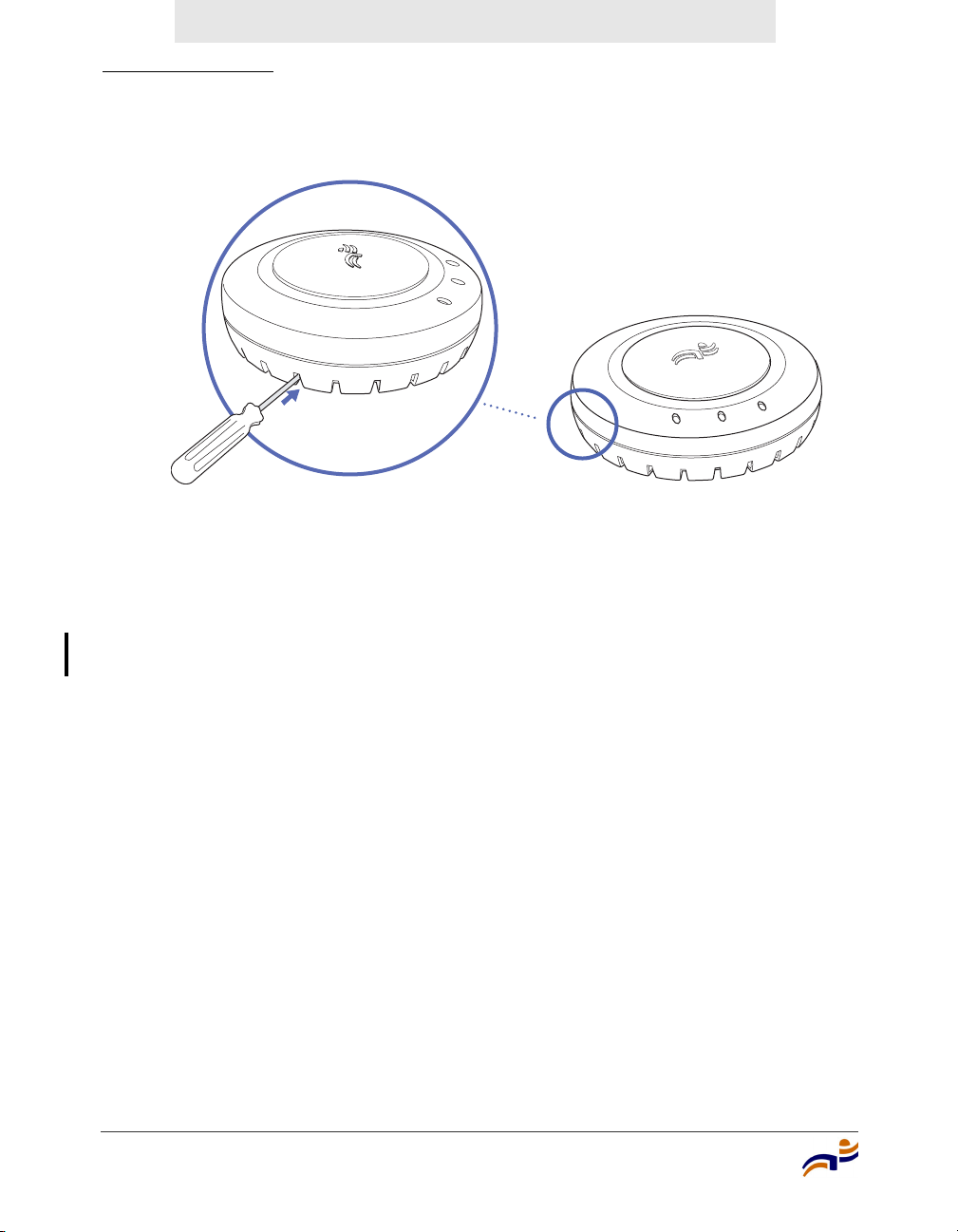

Figure 9. Step 5—Unlocking the Bracket

6 Remove the bracket as shown in Figure 10.

Figure 10. Step 6—Removing the Bracket

840-9502-0011

26

840-9502-0008

7 Install the universal mounting bracket as follows onto the T-bar or T-bar

clamp:

a As shown in Figure 11, place the universal mounting bracket against the

T-bar or clamp so that the two screw holes face downward and the two
T-bar flanges face upward and are adjacent to the T-bar edges.

Trapeze Mobility Point Installation Guide

Version 2.1

Confidential—Beta Draft—Confidential—Beta Draft—12 May 04

Installing an MP—Model MP-241, MP-252, and MP-262

Figure 11. Step 7—Top View

Universal mounting
bracket

T-bar

Port connector
opening

Chapter 3

(Viewed from above ceiling tiles, looking down.)

b Properly align the bracket for mounting by placing the bracket so that its

port connector opening is to the left of the hole you cut for the cables.

c Rotate the universal mounting bracket clockwise until the flanges snap

into place on the T-bar or clamp as shown in Figure 12.

Figure 12. Step 7—Bottom View

Port connector
opening

8 Pull the Cat 5 cable(s) about 15 cm (about 6 inches) out of the hole in the

Universal mounting bracket

ceiling tile and through the port connector opening to create enough slack to
insert the cable(s).

9 Insert the Cat 5 cable(s) into the connector(s):

840-9502-0005

T-bar

840-9502-0004

Installing and Connecting an MP

27

Confidential—Beta Draft—Confidential—Beta Draft—12 May 04

Installing an MP—Model MP-241, MP-252, and MP-262

Chapter 3

● For a single connection, use the connector for port 1.

● For a dual-homed connection, insert one cable into each connector.

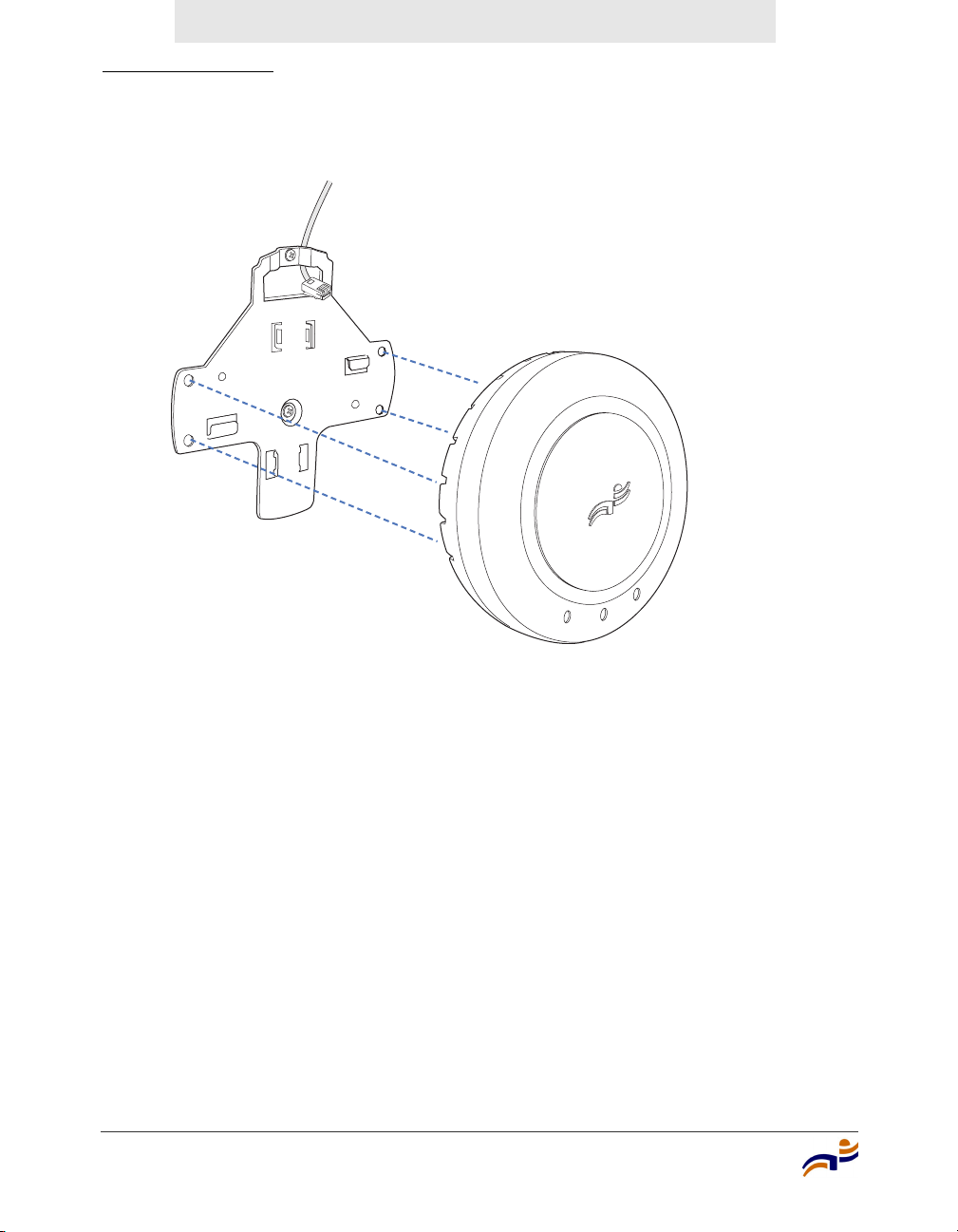

10 Lift the MP access point into place on the universal mounting bracket as

shown in Figure 13.

Make sure the cable feeds properly into the ceiling as you lift the device, and
does not become trapped between the access point and the bracket.

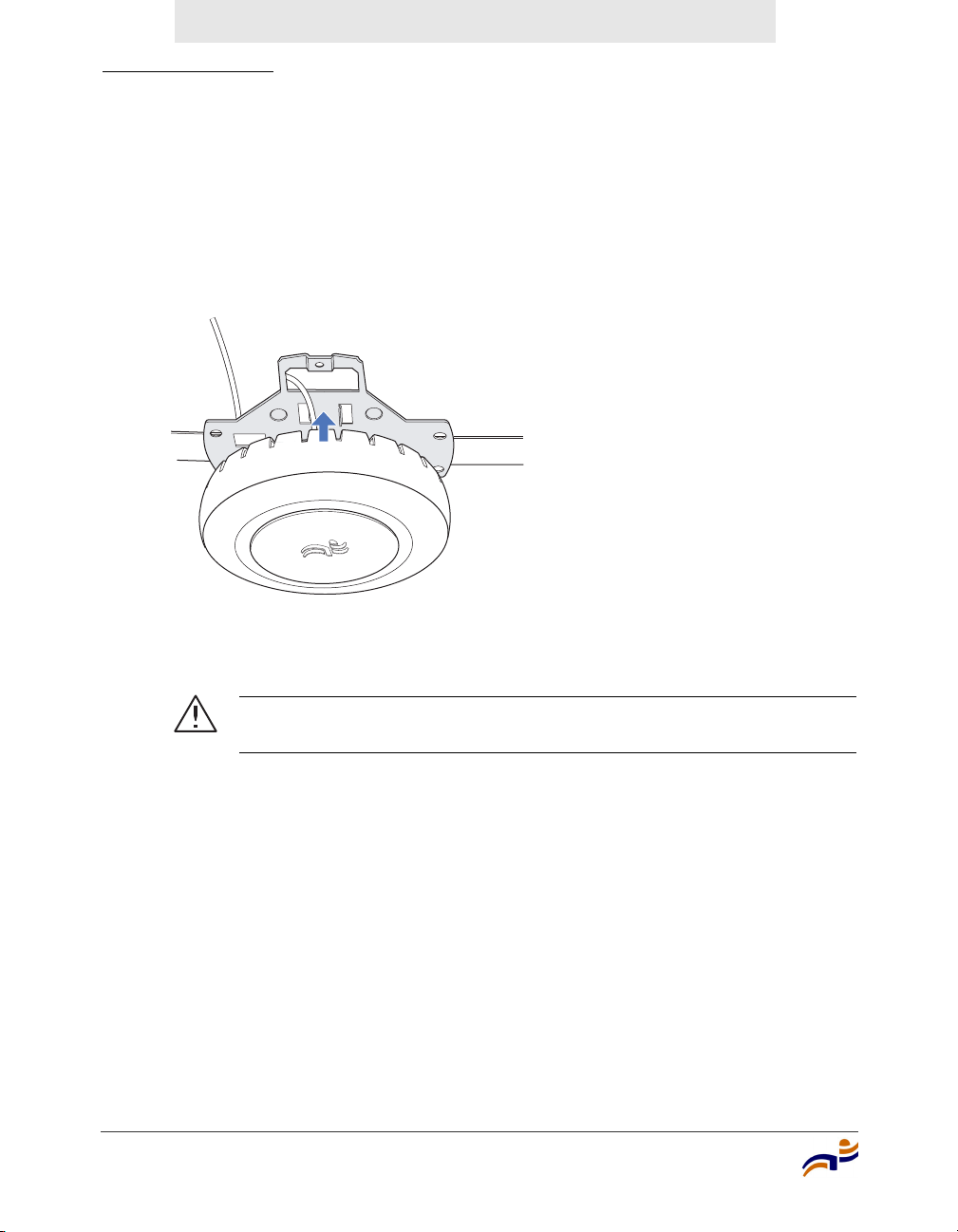

Figure 13. Step 10—Placing the MP Access Point on the Bracket

28

840-9502-0002

11 Lock the MP access point onto the bracket by inserting the 3-mm or 1/8-inch

screwdriver into the Lock hole on the access point as shown in Figure 14.

Caution! To prevent possible damage to the MP access point, make

sure the device is fully locked onto the bracket before letting go of it.

Trapeze Mobility Point Installation Guide

Version 2.1

Confidential—Beta Draft—Confidential—Beta Draft—12 May 04

Installing an MP—Model MP-241, MP-252, and MP-262

Figure 14. Step 11—Locking the Bracket

L

o

ck

T-bar

12 To ensure that the MP access point is fully locked onto the bracket, gently pull

down on the access point and attempt to rotate it from side to side.

Chapter 3

840-9502-0006

13 If the access point comes off the bracket, relock the device onto the bracket as

described in step 11 on page 28.

14 If the MP requires an external antenna, install and connect the antenna. (See

“Connecting an MP to an External Antenna” on page 47.)

15 If the other ends of the Cat 5 cable(s) are not already connected to an MX

switch and the link activated, go to “Connecting an MP to an MX Switch” on
page 48. Otherwise, go to “Verifying MP Health” on page 51.

Suspended Ceiling Installation—Drop Ceiling Tiles

(For required mounting hardware and tools, see Table 5 on page 22.)

1 Select an installation location that is centered over a T-bar in the ceiling.

2 Cut a hole as follows in the ceiling tile for the Cat 5 cable(s):

a Place the mounting template over the area where you plan to install the

MP access point.

b Use the box cutter to cut along the line marking the opening for the port

connectors.

Installing and Connecting an MP

29

Confidential—Beta Draft—Confidential—Beta Draft—12 May 04

Installing an MP—Model MP-241, MP-252, and MP-262

Chapter 3

c Remove the mounting template and the material you cut from the ceiling

panel.

3 Install the T-bar clamp that fits the T-bar:

a Slide each half of the clamp onto the T-bar so that the clamp lip is fully on

the T-bar.

b Slide the two halves of the clamp toward each other until the tabs are

inserted completely into the holes and the clamp fits snugly on the T-bar.

Figure 15 shows an example for a 23.9-mm (15/16-inch) T-bar. Figure 16
shows an example for a 15.9-mm (5/8-inch) T-bar.

Figure 15. Step 3—Installing the T-bar Clamp for a 23.9-mm

(15/16-inch) T-bar

T-bar

Slide together

T-bar clamp halves

840-9502-0003

30

Trapeze Mobility Point Installation Guide

Version 2.1

Confidential—Beta Draft—Confidential—Beta Draft—12 May 04

Installing an MP—Model MP-241, MP-252, and MP-262

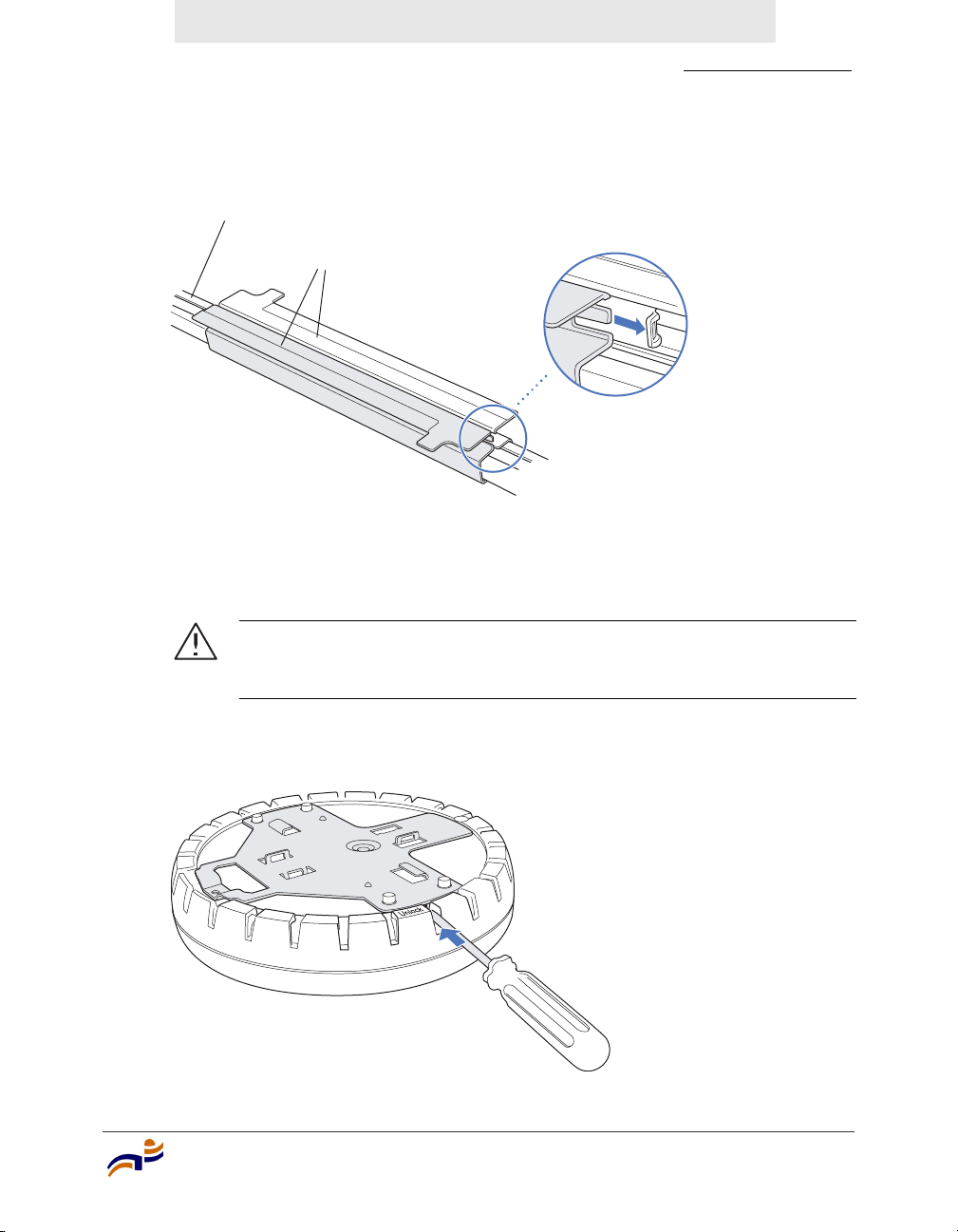

Figure 16. Step 3—Installing the T-bar Clamp for a 15.9-mm

(5/8-inch) T-bar

T-bar

Slide together

T-bar clamp halves

840-9502-0066

4 Unlock the universal mounting bracket from the MP access point by inserting

the 3-mm or 1/8-inch screwdriver into the Unlock hole on the MP access point
as shown in Figure 17.

Chapter 3

Caution! To avoid damage to the MP access point’s lock mechanism

or electronic components, do not use excessive force when inserting a
tool into the Unlock or Lock hole.

Figure 17. Step 4—Unlocking the Bracket

Installing and Connecting an MP

840-9502-0011

31

Confidential—Beta Draft—Confidential—Beta Draft—12 May 04

Installing an MP—Model MP-241, MP-252, and MP-262

Chapter 3

5 Remove the bracket as shown in Figure 18.

Figure 18. Step 5—Removing the Bracket

840-9502-0008

6 Install the universal mounting bracket as follows onto the T-bar clamp:

a As shown in Figure 19, place the universal mounting bracket against the

T-bar clamp so that the two screw holes face downward and the two T-bar
flanges face upward and are adjacent to the T-bar edges.

32

b Properly align the bracket for mounting by placing the bracket so that its

port connector opening is to the left of the hole you cut for the cables.

c Rotate the universal mounting bracket clockwise until the flanges snap

into place on the T-bar clamp as shown in Figure 20.

Trapeze Mobility Point Installation Guide

Version 2.1

Confidential—Beta Draft—Confidential—Beta Draft—12 May 04

Installing an MP—Model MP-241, MP-252, and MP-262

Figure 19. Step 6—Top View

Universal mounting
bracket

T- bar

T-bar clamps

(attached
to T-bar)

Port connector
opening

(Viewed from above ceiling tiles, looking down.)

Chapter 3

840-9502-0012

Figure 20. Step 6—Bottom View

Port connector
opening

7 Pull the Cat 5 cable(s) about 15 cm (about 6 inches) out of the hole in the

Universal mounting bracket

ceiling tile and through the port connector opening to create enough slack to
insert the cable(s).

8 Insert the Cat 5 cable(s) into the connector(s):

● For a single connection, use the connector for port 1.

● For a dual-homed connection, insert one cable into each connector.

Installing and Connecting an MP

T-bar

840-9502-0004

33

Confidential—Beta Draft—Confidential—Beta Draft—12 May 04

Installing an MP—Model MP-241, MP-252, and MP-262

Chapter 3

9 Lift the MP access point into place on the universal mounting bracket as

shown in Figure 21.

Make sure the cable feeds properly into the ceiling as you lift the device, and
does not become trapped between the access point and the bracket.

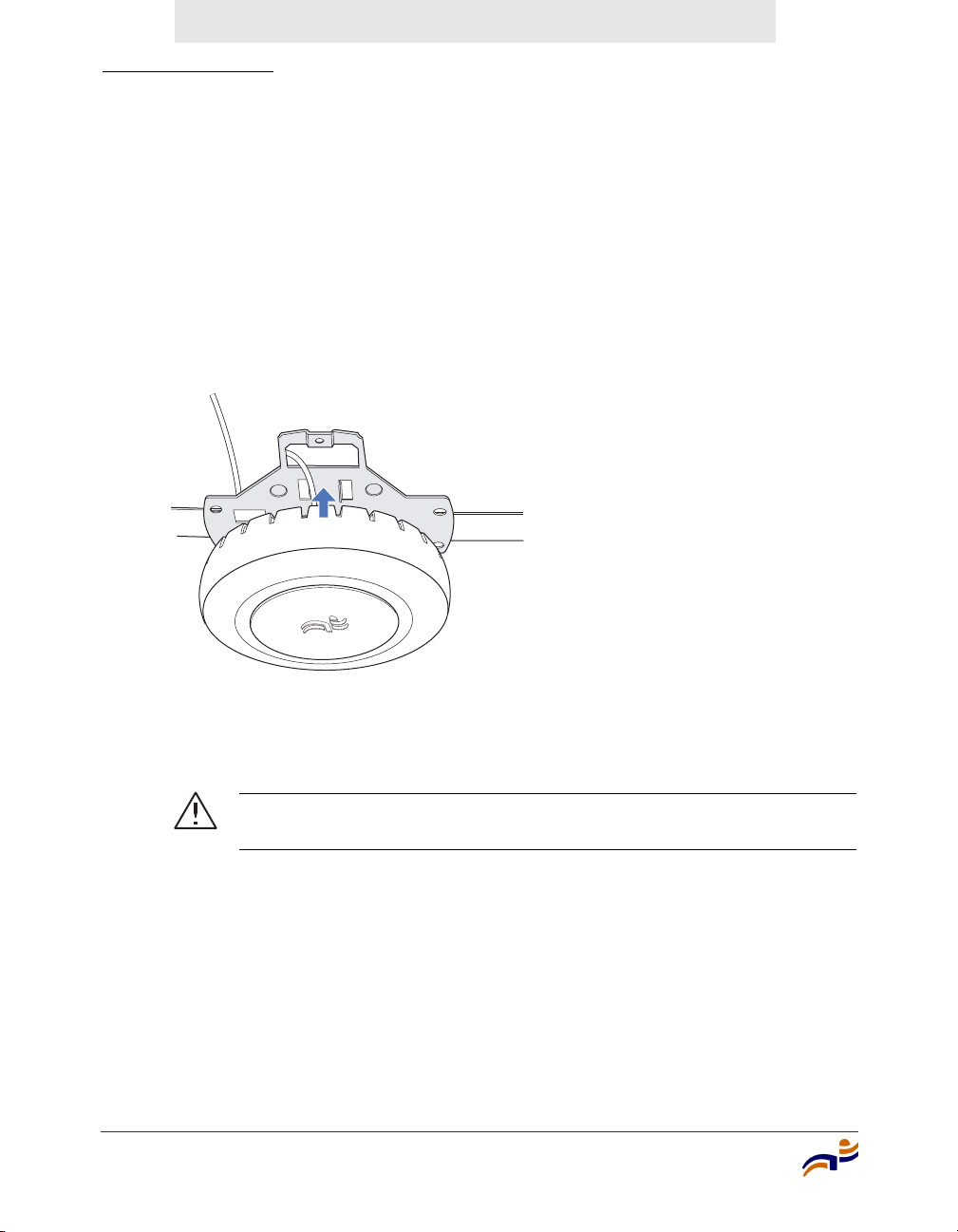

Figure 21. Step 9—Placing the MP Access Point on the Bracket

840-9502-0002

34

10 Lock the MP access point onto the bracket by inserting the 3-mm or 1/8-inch

screwdriver into the Lock hole on the access point as shown in Figure 22.

Caution! To prevent possible damage to the MP access point, make

sure the device is fully locked onto the bracket before letting go of it.

Trapeze Mobility Point Installation Guide

Version 2.1

Confidential—Beta Draft—Confidential—Beta Draft—12 May 04

Installing an MP—Model MP-241, MP-252, and MP-262

Figure 22. Step 10—Locking the Bracket

L

o

ck

T-bar

11 To ensure that the MP access point is fully locked onto the bracket, gently pull

down on the access point and attempt to rotate it from side to side.

Chapter 3

840-9502-0006

If the access point comes off the bracket, relock the device onto the bracket as
described in step 10 on page 34.

12 If the MP requires an external antenna, install and connect the antenna. (See

“Connecting an MP to an External Antenna” on page 47.)

13 If the other ends of the Cat 5 cable(s) are not already connected to an MX

switch and the link activated, go to “Connecting an MP to an MX Switch” on
page 48. Otherwise, go to “Verifying MP Health” on page 51.

Junction Box Installation

(For required mounting hardware and tools, see Table 5 on page 22.)

Installing and Connecting an MP

35

Confidential—Beta Draft—Confidential—Beta Draft—12 May 04

Installing an MP—Model MP-241, MP-252, and MP-262

Chapter 3

1 Unlock the universal mounting bracket from the MP access point by inserting

the 3-mm or 1/8-inch screwdriver into the Unlock hole on the MP access point
as shown in Figure 23.

Caution! To avoid damage to the MP access point’s lock mechanism

or electronic components, do not use excessive force when inserting a
tool into the Unlock or Lock hole.

Figure 23. Step 1—Unlocking the Bracket

2 Remove the bracket as shown in Figure 24.

Figure 24. Step 2—Removing the Bracket

36

Trapeze Mobility Point Installation Guide

Version 2.1

840-9502-0011

840-9502-0008

Confidential—Beta Draft—Confidential—Beta Draft—12 May 04

Installing an MP—Model MP-241, MP-252, and MP-262

3 Attach the universal mounting bracket to the junction box as shown in

Figure 25:

a Place the universal mounting bracket against the junction box so that the

two screw holes face the junction box and align over the screw holes in
the box.

b Insert the #6-32 x 1-inch machine screws in the universal mounting

bracket’s screw holes, and use a #2 Phillips-head screwdriver to tighten
them.

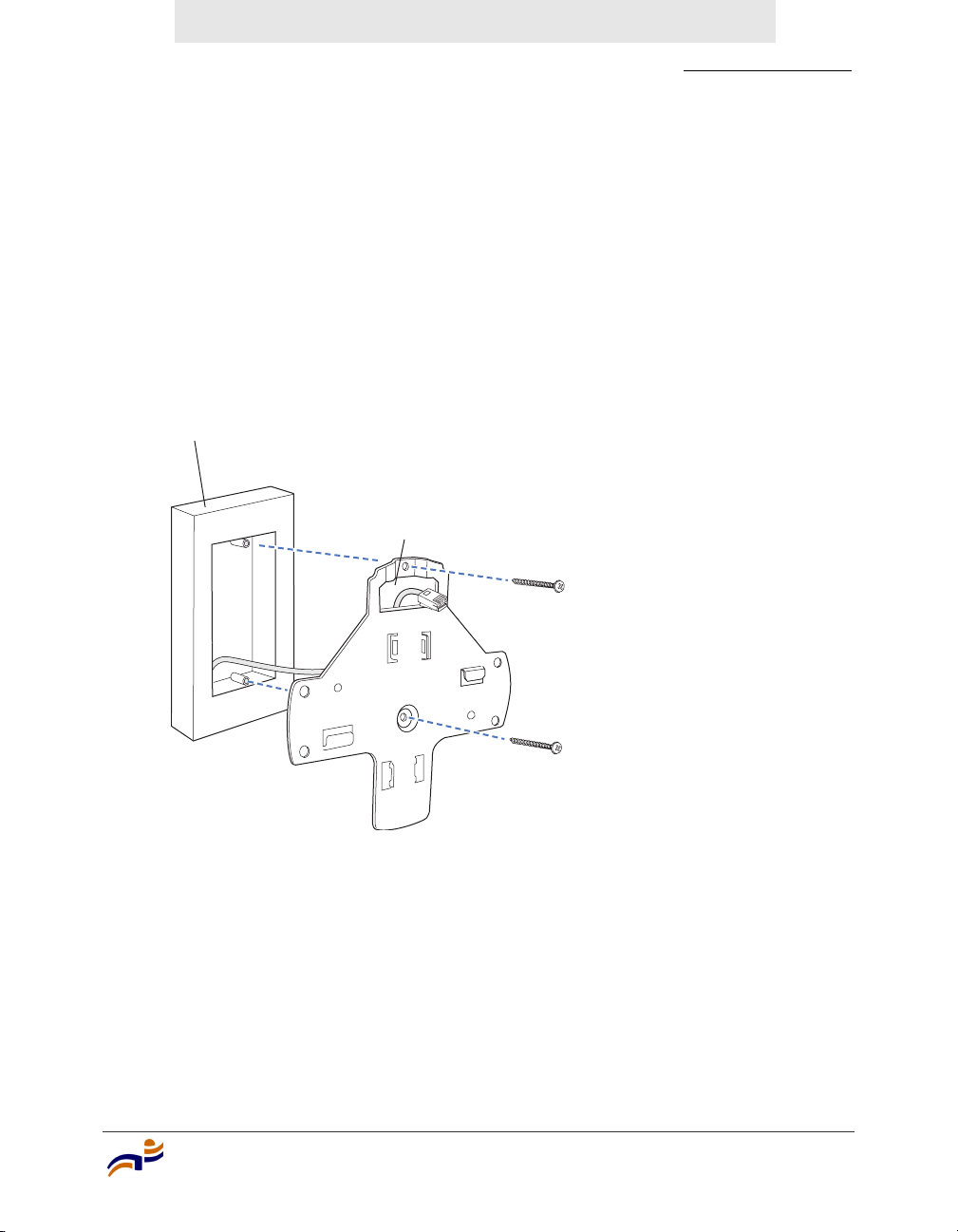

Figure 25. Step 3—Placing the Bracket on the Junction Box

Junction box

Port connector
opening

Chapter 3

840-9502-0017

4 Pull the Cat 5 cable(s) about 15 cm (about 6 inches) out of the junction box

and through the port connector opening to create enough slack to insert the
cable(s) into the port connectors.

5 Insert the Cat 5 cable(s) into the connector(s):

● For a single connection, use the connector for port 1.

● For a dual-homed connection, insert one cable into each connector.

6 Lift the MP access point into place on the universal mounting bracket.

Installing and Connecting an MP

37

Confidential—Beta Draft—Confidential—Beta Draft—12 May 04

Installing an MP—Model MP-241, MP-252, and MP-262

Chapter 3

Make sure the cable feeds properly into the junction box as you lift the device,
and does not become trapped between the access point and the bracket.

7 Lock the MP access point onto the bracket by inserting the 3-mm or 1/8-inch

screwdriver into the Lock hole on the access point as shown in Figure 26.

Caution! To prevent possible damage to the MP access point, make

sure the device is fully locked onto the bracket before letting go of it.

Figure 26. Step 7—Locking the Bracket

38

Lock

840-9502-0062

8 To ensure that the MP access point is fully locked onto the bracket, gently pull

down on the access point and attempt to rotate it from side to side.

If the access point comes off the bracket, relock the device onto the bracket as
described in step 7 on page 38.

9 If the MP requires an external antenna, install and connect the antenna. (See

“Connecting an MP to an External Antenna” on page 47.)

10 If the other ends of the Cat 5 cable(s) are not already connected to an MX

switch and the link activated, go to “Connecting an MP to an MX Switch” on
page 48. Otherwise, go to “Verifying MP Health” on page 51.

Trapeze Mobility Point Installation Guide

Version 2.1

Confidential—Beta Draft—Confidential—Beta Draft—12 May 04

Installing an MP—Model MP-241, MP-252, and MP-262

Solid Wall or Ceiling Installation

Note. The solid surface mounting option requires Cat 5 cable that does not

have strain relief, unless you plan to route the cable through a hole in the wall
or ceiling. The other options can use Cat 5 cable with or without strain relief.

(For required mounting hardware and tools, see Table 5 on page 22.)

1 Prepare holes in the wall or ceiling for the universal mounting bracket, using

the following steps:

a Place the paper mounting template over the location where you want to

install the MP access point.

b Mark the screw hole location(s).

❍ If you plan to route the Cat 5 cable externally along the wall or

ceiling, mark the locations of both the center screw hole and the
screw hole by the port connector opening.

Chapter 3

❍ If you plan to route the Cat 5 cable through a hole in the wall or

ceiling, mark the location of the center screw hole only. You cannot
use the screw hole by the port connector opening if you cut a hole for
the opening.

Note. Do not mark the four holes on the edges of the bracket. (These

are the holes indicated by the dashed lines in Figure 29.) The MP access
point fits into these holes. They are not screw holes.

c Remove the template.

2 Install the drywall anchor(s):

a Hammer a drywall anchor into each hole, up to the beginning of the

threads on the anchor.

b Screw each anchor the rest of the way into its hole using a

#2 Phillips-head screwdriver.

Installing and Connecting an MP

39

Confidential—Beta Draft—Confidential—Beta Draft—12 May 04

Installing an MP—Model MP-241, MP-252, and MP-262

Chapter 3

c Remove the screw from each anchor and save the screw(s) for step 6 on

page 41.

3 Unlock the universal mounting bracket from the MP access point by inserting

the 3-mm or 1/8-inch screwdriver into the Unlock hole on the MP access point
as shown in Figure 27.

Caution! To avoid damage to the MP access point’s lock mechanism

or electronic components, do not use excessive force when inserting a
tool into the Unlock or Lock hole.

Figure 27. Step 3—Unlocking the Bracket

40

840-9502-0011

4 Remove the bracket as shown in Figure 28.

Trapeze Mobility Point Installation Guide

Version 2.1

Confidential—Beta Draft—Confidential—Beta Draft—12 May 04

Installing an MP—Model MP-241, MP-252, and MP-262

Figure 28. Step 4—Removing the Bracket

5 As shown in Figure 29, feed the Cat 5 cable(s) through the port connector

opening and align the universal mounting bracket over the drywall anchors so
that the two screw holes in the bracket face the drywall anchors.

6 Insert the #6 sheet metal screws into the screw holes, and tighten them to

secure the universal mounting bracket to the wall or ceiling.

Chapter 3

840-9502-0008

(If you routed the Cat 5 cable through a hole in the wall or ceiling, insert the
screw into the center screw hole only.)

Note. Do not insert screws in the four holes on the edges of the

bracket. (These are the holes indicated by the dashed lines in
Figure 29.) The MP access point fits into these holes. They are not
screw holes.

Installing and Connecting an MP

41

Confidential—Beta Draft—Confidential—Beta Draft—12 May 04

Installing an MP—Model MP-241, MP-252, and MP-262

Chapter 3

Figure 29. Steps 5 and 6—Bracket Placement on Solid Wall or Ceiling

42

840-9502-0015

7 Insert the Cat 5 cable(s) into the connector(s):

● For a single connection, use the connector for port 1.

● For a dual-homed connection, insert one cable into each connector.

8 As shown in Figure 30, place the MP access point on the bracket, making sure

to remove any slack that occurs in the cable between the bracket and the MP
access point.

Trapeze Mobility Point Installation Guide

Version 2.1

Confidential—Beta Draft—Confidential—Beta Draft—12 May 04

Installing an MP—Model MP-241, MP-252, and MP-262

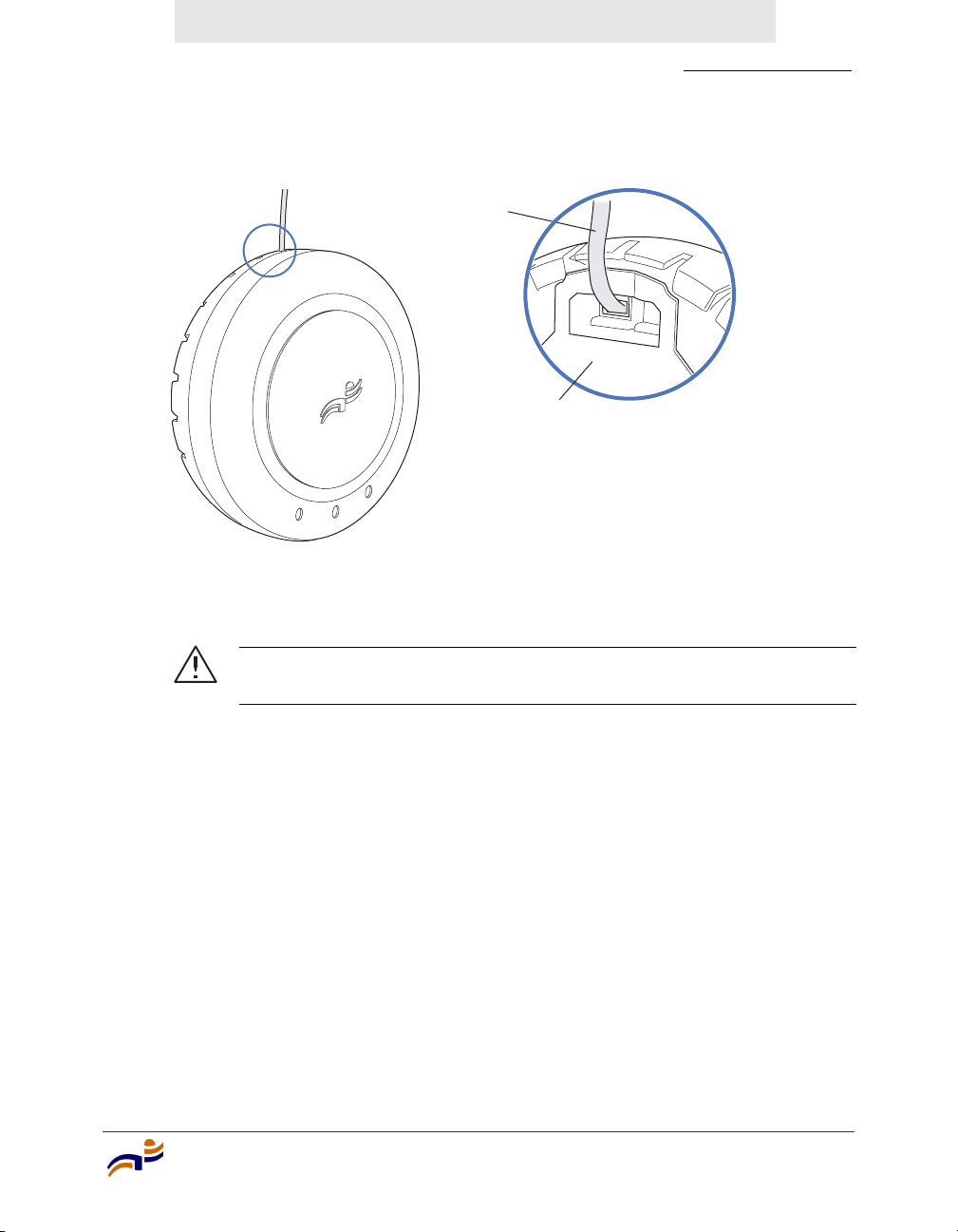

Figure 30. Step 8—Cable Placement

Cable

Universal mounting bracket

Chapter 3

840-9502-0016

9 Lock the MP access point onto the bracket by inserting the 3-mm or 1/8-inch

screwdriver into the Lock hole on the access point as shown in Figure 31.

Caution! To prevent possible damage to the MP access point, make

sure the device is fully locked onto the bracket before letting go of it.

Installing and Connecting an MP

43

Confidential—Beta Draft—Confidential—Beta Draft—12 May 04

Installing an MP—Model MP-241, MP-252, and MP-262

Chapter 3

Figure 31. Step 9—Locking the Bracket

Lock

10 To ensure that the MP access point is fully locked onto the bracket, gently pull

on the access point and attempt to rotate it from side to side.

840-9502-0062

If the access point comes off the bracket, relock the device onto the bracket as
described in step 9 on page 43.

11 If the MP requires an external antenna, install and connect the antenna. (See

“Connecting an MP to an External Antenna” on page 47.)

12 If the other ends of the Cat 5 cable(s) are not already connected to an MX

switch and the link activated, go to “Connecting an MP to an MX Switch” on
page 48. Otherwise, go to “Verifying MP Health” on page 51.

Tabletop Installation

(For required mounting hardware and tools, see Table 5 on page 22.)

1 Reverse the universal mounting bracket:

44

Trapeze Mobility Point Installation Guide

Version 2.1

Confidential—Beta Draft—Confidential—Beta Draft—12 May 04

Installing an MP—Model MP-241, MP-252, and MP-262

a Unlock the universal mounting bracket from the MP access point by

inserting the 3-mm or 1/8-inch screwdriver into the Unlock hole on the
MP access point as shown in Figure 32.

Caution! To avoid damage to the MP access point’s lock mechanism

or electronic components, do not use excessive force when inserting a
tool into the Unlock or Lock hole.

Figure 32. Step 1a—Unlocking the Bracket

Chapter 3

b Remove the bracket as shown in Figure 33.

Figure 33. Step 1b—Removing the Bracket

Installing and Connecting an MP

840-9502-0011

840-9502-0008

45

Confidential—Beta Draft—Confidential—Beta Draft—12 May 04

Installing an MP—Model MP-241, MP-252, and MP-262

Chapter 3

c Turn over the universal mounting bracket, then align the bracket over the

cable ports and the four mounting posts as shown in Figure 34.

Figure 34. Step 1c—Turning Over the Bracket

840-9502-0061

d Once the bracket is fully seated, lock the bracket onto the MP access point

by inserting the 3-mm or 1/8-inch screwdriver into the Lock hole on the
access point as shown in Figure 35.

Figure 35. Step 1d—Locking the Bracket

Lock

2 Attach the three rubber adhesive feet onto the universal mounting bracket, in

the three location circles, as shown in Figure 36.

46

Trapeze Mobility Point Installation Guide

Version 2.1

840-9502-0062

Confidential—Beta Draft—Confidential—Beta Draft—12 May 04

Installing an MP—Model MP-241, MP-252, and MP-262

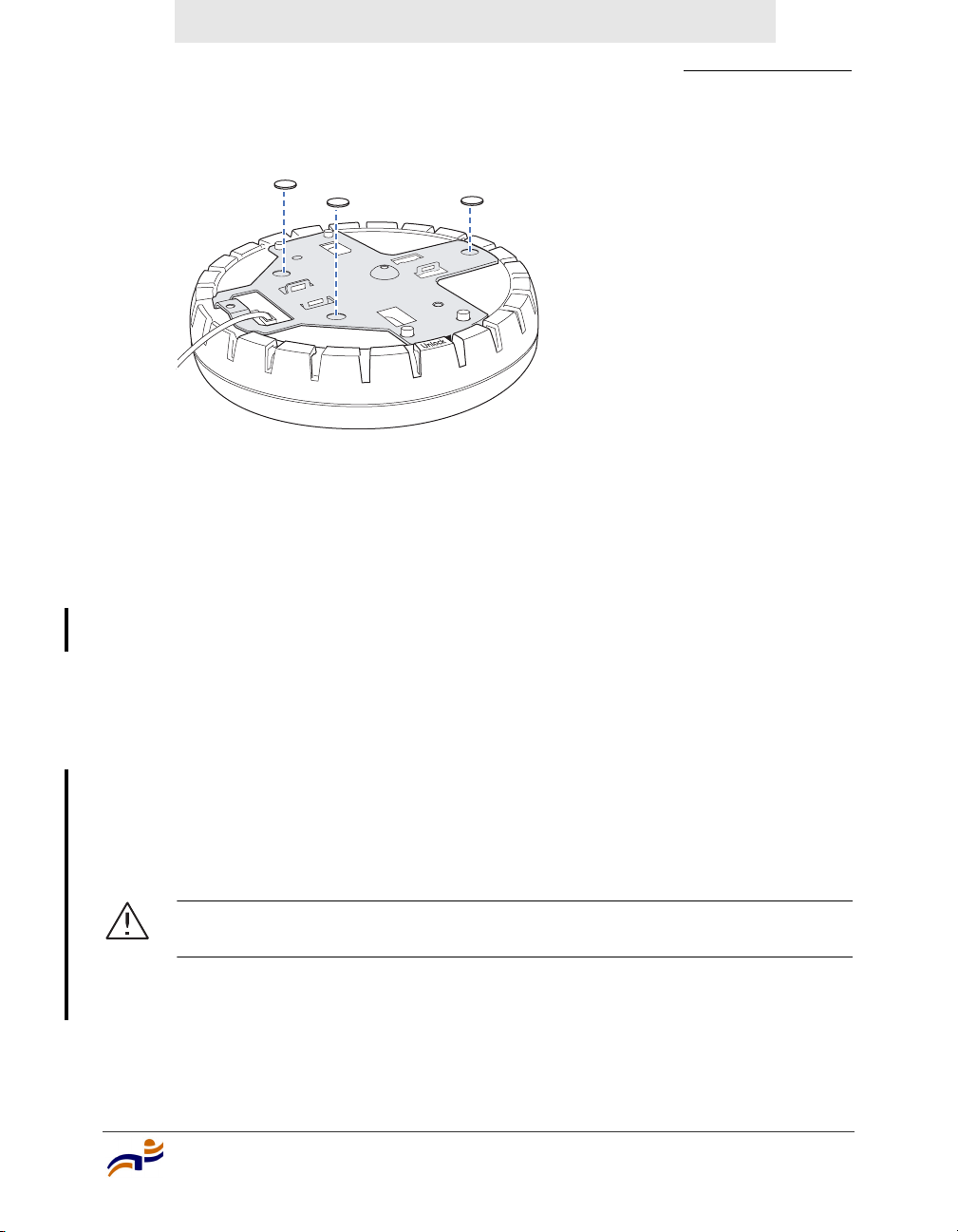

Figure 36. Step 2—Installing the Rubber Feet

3 Insert the Cat 5 cable(s) into the connector(s):

● For a single connection, use the connector for port 1.

● For a dual-homed connection, insert one cable into each connector.

Chapter 3

840-9502-0013

4 Place the MP access point in the desired location on the table.

5 If the MP requires an external antenna, install and connect the antenna. (See

“Connecting an MP to an External Antenna” on page 47.)

6 If the other ends of the Cat 5 cable(s) are not already connected to an MX

switch and the link activated, go to “Connecting an MP to an MX Switch” on
page 48. Otherwise, go to “Verifying MP Health” on page 51.

Connecting an MP to an External Antenna

The 802.11b/g radio in model MP-262 requires a Trapeze external antenna. To
install the antenna, see the instructions that come with the antenna.

Caution! The external antenna must be installed at least 20 cm from the MP

access point.

To connect the installed antenna to model MP-262:

Installing and Connecting an MP

47

Confidential—Beta Draft—Confidential—Beta Draft—12 May 04

Connecting an MP to an MX Switch

Chapter 3

1 Attach the 3-foot exterior antenna cable to the MP external antenna connector.

(For the location of the external antenna connector, see Figure 2 on page 7.)

Note. If the MP is installed in a Trapeze Networks outdoor MP

enclosure, attach the antenna cable to the lightning surge arrestor (if
installed) or the enclosure’s SMA bulkhead connector.

2 Attach the other end of the antenna cable to the antenna.

3 If the other ends of the Cat 5 cable(s) are not already connected to an MX

switch and the link activated, go to “Connecting an MP to an MX Switch” on
page 48. Otherwise, go to “Verifying MP Health” on page 51.

Connecting an MP to an MX Switch

You can connect an MP access point directly to an MX switch or indirectly to the
switch through an intermediate Layer 2 or Layer 3 network.

48

● To connect the MP directly to an MX switch, configure the MX switch port as

an MP access port and use the following procedure to insert the cable into the
MX switch and verify the link.

● To connect the MP indirectly to an MX switch though the network, configure

a Distributed MP connection on the MX switch.

Trapeze Mobility Point Installation Guide

Version 2.1

Confidential—Beta Draft—Confidential—Beta Draft—12 May 04

You can use the CLI or RingMaster to configure an MP access port or Distributed
MP connection. (See the Trapeze Mobility System Software Configuration Guide
or the Trapeze RingMaster Administrator’s Guide.)

Figure 37 shows how to insert a Cat 5 cable into 10/100 Ethernet port on an MX
switch. Refer to this figure as you perform the procedure.

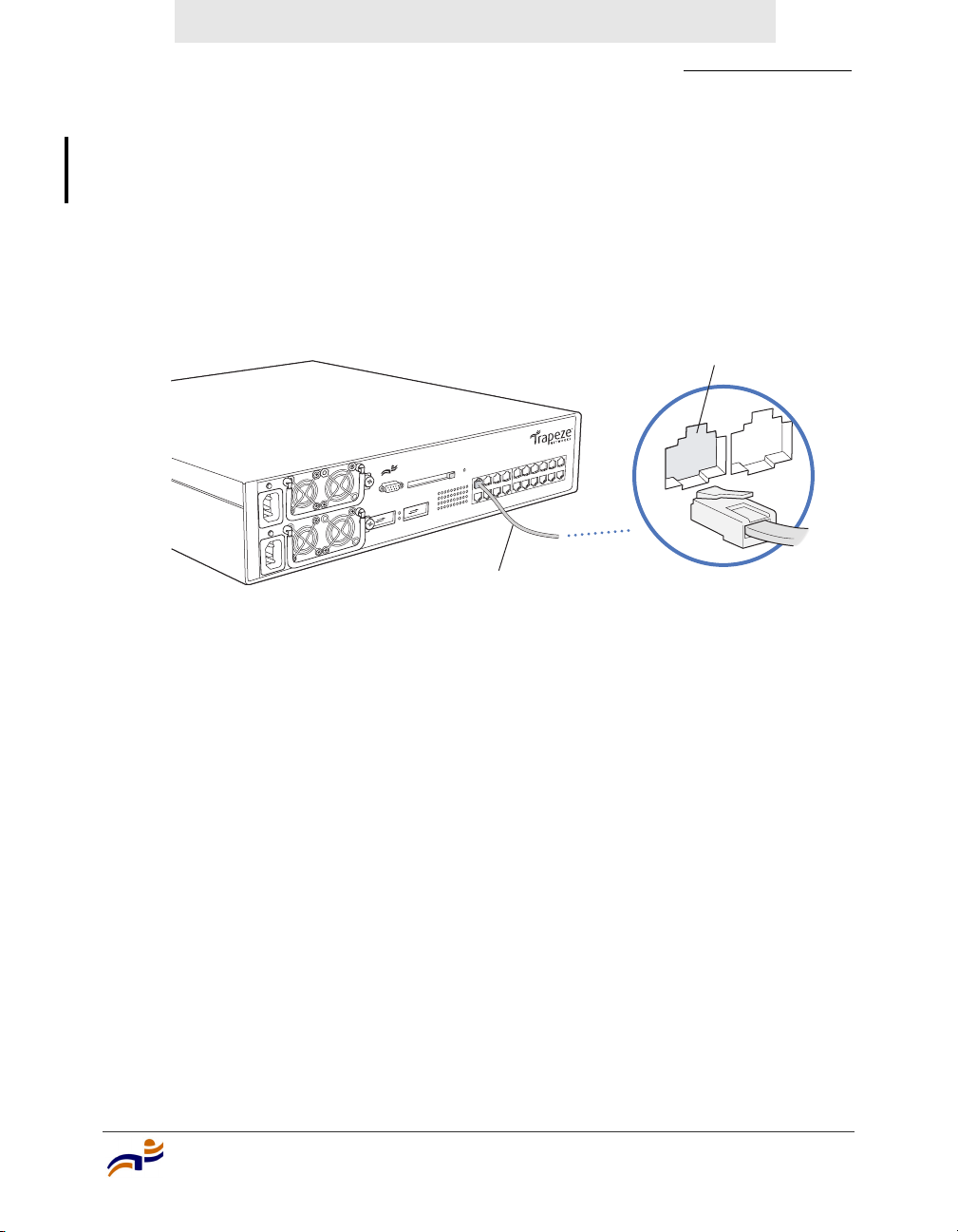

Figure 37. 10/100 Cat 5 Cable Installation

MX-20

Mobility Exchange

Connecting an MP to an MX Switch

Chapter 3

Ethernet port

Ethernet cable
(Cat 5 cable)

MP, switch, server

or other device

1 Insert a Cat 5 cable with a standard RJ-45 connector as shown in Figure 37.

For connection to an MP access point, use a straight-through cable.

840-9502-0058

Installing and Connecting an MP

49

Confidential—Beta Draft—Confidential—Beta Draft—12 May 04

Connecting an MP to an MX Switch

Chapter 3

2 When the link is activated, observe the MP LED for the port on the MX

switch:

MP LED Appearance Meaning

Solid green For an MP access point’s active link, all the

following are true:

• MP access point has booted.

• MP access point has received a valid
configuration from the MX switch.

• Management link with an MP access point is
operational.

• At least one radio is enabled or is in sentry
mode.

For an MP access point’s secondary link, the
link is present.

Alternating green and
amber

MP access point is booting with an image
received from the MX switch. After the access
point boots and receives its configuration, this
LED appearance persists until a radio is enabled
or is placed in sentry mode.

Solid amber PoE is on.

Blinking amber MP is unresponsive or there is a PoE problem.

Unlit PoE is off.

Note. An MX switch’s 10/100 Ethernet ports are configured as wired network

ports by default. You or the system administrator must change the port type for
an MX port directly connected to an MP to activate the link. (See the Trapeze

Mobility Exchange Installation and Basic Configuration Guide.)

50

Trapeze Mobility Point Installation Guide

Version 2.1

Confidential—Beta Draft—Confidential—Beta Draft—12 May 04

Verifying MP Health

After you install the MP access point and enable PoE on the Ethernet cable
connected to the MP, you can easily verify the MP’s status by observing the LEDs,
particularly the health LED. (For the location of the health LED, see Figure 5 on
page 11.)

The health LED indicates whether the MP access point is ready for operation.

● If the health LED is green and glowing steadily, the MP has been booted

successfully by the MX switch and is ready for operation.

● If the health LED is not steadily glowing green, contact the system

administrator for the MX switch or, if you are the system administrator, see
Appendix A, “MP Troubleshooting,” on page 53.

Verifying MP Health

Chapter 3

Installing and Connecting an MP

51

Verifying MP Health

Chapter 3

Confidential—Beta Draft—Confidential—Beta Draft—12 May 04

52

Trapeze Mobility Point Installation Guide

Version 2.1

Confidential—Beta Draft—Confidential—Beta Draft—12 May 04

MP Troubleshooting

After you insert a Cat 5 cable into an MP access point’s port connector and enable
PoE on the cable, observe the device’s health LED to determine the status of the
connection with the MX switch.

● If the health LED is green and is glowing steadily, the MP has been booted

successfully by the MX switch and is ready for operation.

● If the health LED is not steadily glowing green, see Table 6.

(For descriptions of all the LEDs, see “Status LEDs” on page 11.)

A

MP Troubleshooting

53

Confidential—Beta Draft—Confidential—Beta Draft—12 May 04

Appendix A

Table 6. Health LED States

Health LED
Appearance

Diagnosis Remedy

Not solid green MP radio needs to be

enabled.

Unlit MP access point is not

receiving power.

Enable at least one of the radios. If
the LED is still not solid green, try
the remedy listed in this table
based on the LED’s appearance.

Check the Cat 5 cable
connection(s).

For a direct connection to an MX
switch:

• Set the port type on the MX
switch to an MP port.

• Verify that Power over Ethernet
(PoE) is enabled on the MX
switch port connected to the
MP access point.

For an indirect connection through
the network:

• Configure a Distributed MP
connection on an MX switch.

• Verify that a Trapeze-approved
power injector is supplying
power to the MP.

54

Trapeze Mobility Point Installation Guide

Version 2.1

Confidential—Beta Draft—Confidential—Beta Draft—12 May 04

Table 6. Health LED States (continued)

Appendix A

Health LED
Appearance

Slowly alternating
green and amber

Diagnosis Remedy

MP access point is booting
with an image received from
an MX switch.

Solid amber MP access point is waiting to

receive boot instructions and
a configuration file from an
MX switch.

Wait a few seconds for the boot
process to complete. If this LED
appearance persists, enable a radio
or place a radio in sentry mode.

Wait a few seconds for the boot
process to begin.

If the LED remains amber, try the
remedies for the other health LED
appearances.

If the LED still remains amber,
make sure the MP access point is
securely connected to an MX
switch.

MP Troubleshooting

55

Appendix A

Confidential—Beta Draft—Confidential—Beta Draft—12 May 04

56

Trapeze Mobility Point Installation Guide

Version 2.1

Confidential—Beta Draft—Confidential—Beta Draft—12 May 04

MP Technical Specifications

This appendix lists the technical specifications for the Trapeze Networks MP
access point. Table 7 lists the mechanical and compliance specifications. Unless
otherwise noted, the values apply to all currently shipping MP models. (For
detailed compliance information, see the Trapeze Regulatory Information
document.) Table 8, Table 9, and Table 10 list the radio specifications. Table 11
lists the MAC address allocation schemes for MPs.

(For specifications for the MX switch, see the Trapeze Mobility Exchange

Installation and Basic Configuration Guide.)

Note. This Listed Accessory is designed and approved to be used only with

Trapeze Networks Mobility Exchange (MX) models MX-20 and MX-8. (The
MX-400 switch does not directly connect to the MP.)

B

Note. The MP access point radios are disabled by default and can be enabled

only by the system administrator using the RingMaster management application
or the MX switch’s command-line interface (CLI).

Note. The radio frequency band, operating channels, and transmit power

depend on the country of operation specified by the system administrator using
RingMaster or the MX switch’s CLI.

MP Technical Specifications

57

Confidential—Beta Draft—Confidential—Beta Draft—12 May 04

Appendix B

Table 7. MP Mechanical and Compliance Specifications

Specification Description

Size MP-101, MP-122, MP-241, MP-252, MP-262:

• Diameter: 16.76 cm (6.6 inches)

• Height: 4.69 cm (1.85 inches)
MP-52:

• Width: 22.00 cm (8.66 inches)

• Depth: 14.50 cm (5.71 inches)

• Height: 3.50 cm (1.38 inches)

Weight MP-101, MP-122, MP-241, MP-252, MP-262:

• Without mounting bracket: 0.35 kg (12.5 ounces)

• With mounting bracket: 0.40 kg (14 ounces)
MP-52:

• 0.50kg (17.6ounces)

Operating Temperature 0° C to +50° C (32° F to 122° F)

Storage Temperature -20° C to +70° C (-4° F to +158° F)

Humidity 10% to 95% noncondensing

Power over Ethernet
(PoE)

MP-101, MP-122, MP-241, MP-252, MP-262:

• 41 VDC to 49 VDC (46 VDC nominal)

•12W to 15.3W

Status indicators Health/MX and radio LEDs

(For descriptions of the LEDs, see “Status LEDs” on page 11.)

Wired network ports MP-101, MP-122, MP-241, MP-252, MP-262:

• Two RJ-45 ports for 10/100BASE-T Ethernet and Power
over Ethernet (PoE)

MP-52:

• One RJ-45 port for 10/100BASE-T Ethernet and Power
over Ethernet (PoE)

58

Trapeze Mobility Point Installation Guide

Version 2.1

Confidential—Beta Draft—Confidential—Beta Draft—12 May 04

Appendix B

Table 7. MP Mechanical and Compliance Specifications (continued)

Specification Description

Standards compliance IEEE 802.11

IEEE 802.11a
IEEE 802.11b
IEEE 802.11g

Safety and
electromagnetic
compliance

MP-101, MP-122, MP-241, MP-252, MP-262:

• FCC Part 15, UL 60950

• IC Part 15, CSA 22.2 N0-950, RSS-139-1 and RSS-210

• ETS 300 328 (2.4 GHz) and 301 893 (5 GHz), EN 301
489-17

• R&TTE Directive 1999/5/EC

• TELEC, ARIB T66

• GBT-15941-1995, GBT-16841-1997

• LP0002

MP-52:

• FCC Part 15

• IC Part 15, RSS-139-1 and RSS-210

• ETS 300 328 (2.4 GHz) and 301 893 (5 GHz),
EN 60101-1-2 (1993)

• R&TTE Directive 1999/5/EC

MP Technical Specifications

59

Confidential—Beta Draft—Confidential—Beta Draft—12 May 04

Appendix B

Table 7. MP Mechanical and Compliance Specifications (continued)

Specification Description

Encryption Wi-Fi Protected Access (WPA)

Advanced Encryption Standard (AES)
40-bit/104-bit Wired-Equivalent Privacy (WEP)

General Power-save mode supported

Transmit power control in 1 dBm increments
Supports up to 250 clients per radio

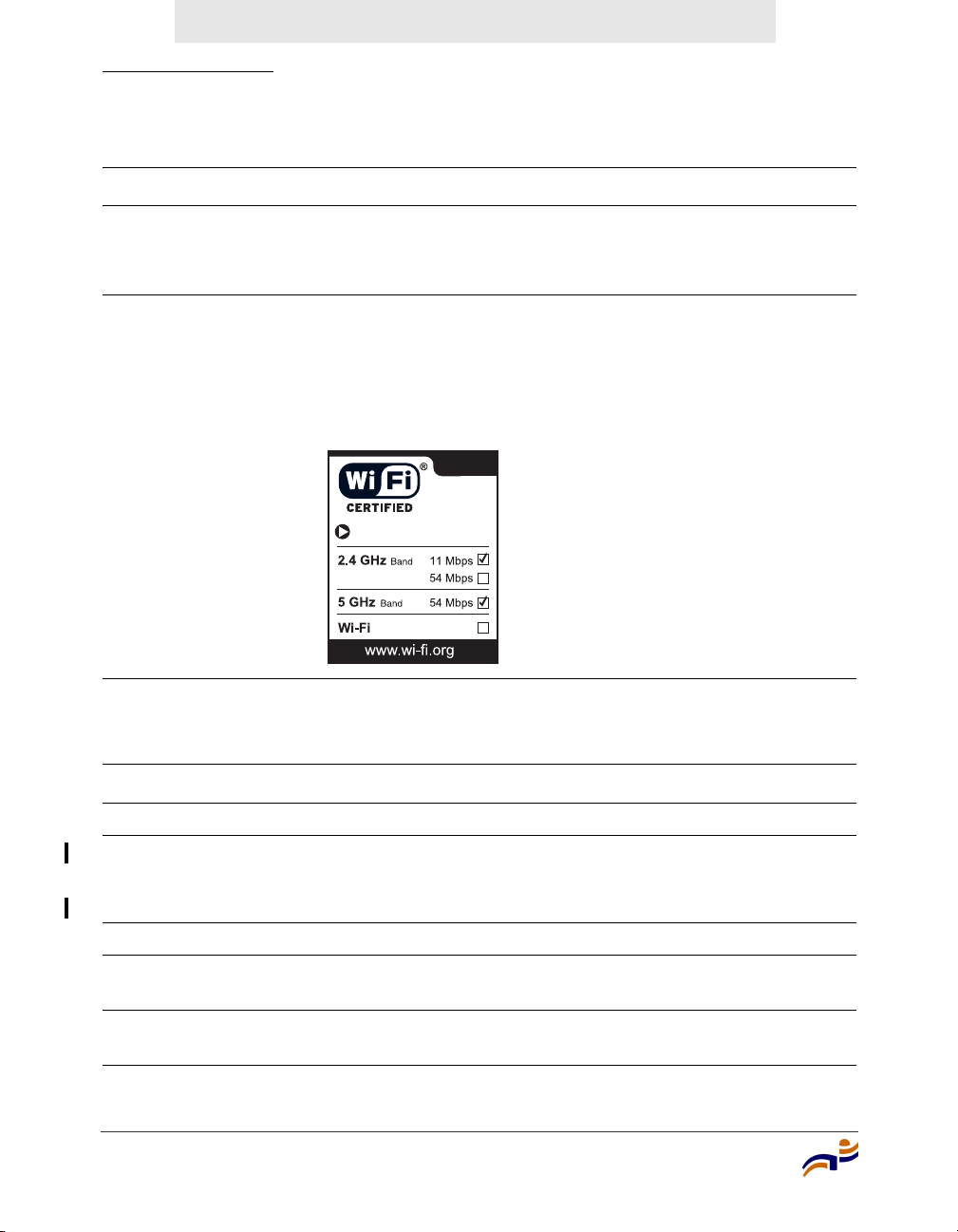

Wi-Fi Certified for 802.11a and 802.11b (MP-101, MP-122,

MP-241, MP-252, and MP-262)

Interoperable with:

Protected Access

Table 8. 802.11a Radio Specifications

Specification Description

TM

Antenna type Integrated omnidirectional diversity antennas

Antenna gain Internal (MP-101, MP-122, MP-241, MP-252):

•2dBi

•2dBi

Frequency band 5.15 GHz to 5.85 GHz based on country regulations

Operating channels Based on the country of operation specified by the system

administrator

Association rates 54 Mbps, 48 Mbps, 36 Mbps, 24 Mbps, 18 Mbps, 12 Mbps,

9 Mbps, and 6 Mbps, with automatic fallback

60

Trapeze Mobility Point Installation Guide

Version 2.1

Confidential—Beta Draft—Confidential—Beta Draft—12 May 04

Appendix B

Table 8. 802.11a Radio Specifications (continued)

Specification Description

Modulation Orthogonal frequency division multiplexing (OFDM)

Transmit power Based on the country of operation specified by the system

administrator

Table 9. 802.11b Radio Specifications

Specification Description

Antenna type Internal: integrated omnidirectional diversity antennas

External: sectorized

Antenna gain Internal (MP-101, MP-122, MP-241, MP-252):

•2dBi

External (MP-262):

• ≥ 6 dBi (A1180); ≥ 7 dBi (A1120); > 10 dBi (A1060)

•2dBi

Frequency band 2.4 GHz to 2.4835 GHz based on country regulations

Operating channels Based on the country of operation specified by the system

administrator

Association rates 11 Mbps, 5.5 Mbps, 2 Mbps, and 1 Mbps, with automatic

fallback

Modulation Direct-sequence spread-spectrum (DSSS)

Transmit power Based on the country of operation specified by the system

administrator

MP Technical Specifications

61

Confidential—Beta Draft—Confidential—Beta Draft—12 May 04

Appendix B

Table 10. 802.11g Radio Specifications

Specification Description

Antenna type Internal: integrated omnidirectional diversity antennas

External: sectorized

Antenna gain Internal (MP-101, MP-122, MP-241, MP-252):

•2dBi

External (MP-262):

• ≥ 6 dBi (A1180); ≥ 7 dBi (A1120); > 10 dBi (A1060)

•2dBi

Frequency band 2.4 GHz to 2.4835 GHz based on country regulations

Operating channels Based on the country of operation specified by the system

administrator

Association rates 54 Mbps, 48 Mbps, 36 Mbps, 24 Mbps, 18 Mbps, 12 Mbps,

9 Mbps, and 6 Mbps, with automatic fallback

Modulation Orthogonal frequency division multiplexing (OFDM)

Transmit power Based on the country of operation specified by the system

administrator

MAC Addresses

MP access point models MP-241, MP-252, and MP-262 are assigned blocks of 64
MAC addresses each. Models MP-101 and MP-122 are assigned blocks of four
MAC addresses each. An MP access point's MAC address block is listed on a
label on the back of the access point.

On all models, each Ethernet port is assigned one MAC address. Each radio on
models MP-241, MP-252, and MP-262 is assigned two MAC addresses, one for
the clear service set identifier (SSID) and another for the encrypted SSID. Each
radio on models MP-101 and MP-122 is assigned one MAC address, which is
shared by both the clear SSID and the encrypted SSID.

62

Trapeze Mobility Point Installation Guide

Version 2.1

Confidential—Beta Draft—Confidential—Beta Draft—12 May 04

Table 11 lists the default MAC address allocations.

Table 11. MAC Address Allocations on MP Access Points

Appendix B

Ethernet Ports All models

MP-252

MP-262

Radios and
SSIDs

MP-241

MP-122

MP-101

• Ethernet port 1 equals the base MAC address.

• Ethernet port 2 equals the base MAC address + 1.

• The clear SSID for the 802.11b/g radio equals the
base MAC address.

• The clear SSID for the 802.11a radio equals the
base MAC address + 1.

• The encrypted SSID for the 802.11b/g radio equals
the base MAC address + 2.

• The encrypted SSID for the 802.11a radio equals
the base MAC address + 3.

• The clear SSID equals the base MAC address.

• The encrypted SSID equals the base MAC address
+2.

• The 802.11b radio equals the base MAC address +
2, for both the clear and encrypted SSIDs.

• The 802.11a radio equals the base address + 3, for
both the clear and encrypted SSIDs.

• The radio equals the base MAC address + 2, for
both the clear and encrypted SSIDs.

MP Technical Specifications

63

Appendix B

Confidential—Beta Draft—Confidential—Beta Draft—12 May 04

64

Trapeze Mobility Point Installation Guide

Version 2.1

Confidential—Beta Draft—Confidential—Beta Draft—12 May 04

Translated Warning Conventions and Warnings

The following warning conventions and warnings apply to this manual.

Warning Conventions

Warning! This situation or condition can cause injury.

Waarschuwing! Deze situatie of omstandigheid kan letsel veroorzaken.

C

Warnung! Diese Situation oder dieser Zustand kann zu Verletzungen führen.

Avertissement ! Cette situation ou cette condition peuvent provoquer des

blessures.

Aviso Esta situación o condición puede causar lesiones.

Translated Warning Conventions and Warnings

65

Appendix C

Warning! High voltage. This situation or condition can cause injury due to

electric shock.

Waarschuwing! Hoog voltage. Deze situatie of omstandigheid kan letsel

veroorzaken door elektrische schokken.

Warnung! Hochspannung. Diese Situation oder dieser Zustand kann einen

Elektroschock verursachen.

Avertissement ! Haute tension. Cette situation ou cette condition peuvent

provoquer des blessures dues à des décharges électriques.

Aviso Alta tensión. Esta situación o condición puede causar lesiones por

descarga eléctrica.

Warning! Radiation. This situation or condition can cause injury due to

improper handling of fiber-optic equipment.

Confidential—Beta Draft—Confidential—Beta Draft—12 May 04

66

Waarschuwing! Straling. Deze situatie of omstandigheid kan letsel

veroorzaken door onjuist gebruik van glasvezelapparatuur.

Warnung! Strahlung. Diese Situation oder dieser Zustand kann durch

falschen Umgang mit glasfaserbasierten Geräten zu Verletzungen führen.

Avertissement ! Radiation. Cette situation ou cette condition peuvent

provoquer des blessures dues à une manipulation inappropriée d’appareils
équipés de fibres optiques.

Aviso Radiación. Esta situación o condición puede causar lesiones debido a un

manejo inadecuado del equipamiento de fibra óptica.

Trapeze Mobility Point Installation Guide

Version 2.1

Confidential—Beta Draft—Confidential—Beta Draft—12 May 04

Appendix C

Qualified Service Personnel Warning

Warning! Installation must be performed by qualified service personnel only.

Read and follow all warning notices and instructions marked on the product or
included in the documentation. Before installing the product, read the Trapeze

Regulatory Information document.

Waarschuwing! De installatie mag alleen worden uitgevoerd door bevoegd

onderhoudspersoneel. Het is essentieel dat u kennis neemt van alle
waarschuwingen en instructies aangebracht op het product zelf en/of
opgenomen in de documentatie. Voordat u het product installeert, dient u

Trapeze Regulatory Information in zijn geheel te hebben gelezen.

Warnung! Die Installation darf nur von einem qualifizierten

Kundendienstmitarbeiter vorgenommen werden. Lesen Sie alle Warnhinweise
und Anweisungen auf dem Produkt oder in der Dokumentation und befolgen Sie
sie. Bevor Sie das Produkt installieren, sollten Sie Trapeze Regulatory

Information vollständig lesen.

Avertissement ! L’installation doit être effectuée uniquement par des

techniciens qualifiés. Lisez et suivez toutes les notices d’avertissement et les
instructions figurant sur le produit ou comprises dans la documentation. Lisez l

Trapeze Regulatory Information avant d’installer ce produit.

Aviso Sólo puede realizar la instalación personal cualificado de asistencia

técnica. Lea y siga todas las notas de advertencia e instrucciones indicadas en
el producto o incluidas en la documentación. Antes de instalar el producto, lea

Trapeze Regulatory Information.

Translated Warning Conventions and Warnings

67

Appendix C

Radio Safety Warnings

Warning! Do not operate the MP access point near unshielded blasting caps

or in an otherwise explosive environment unless the device has been modified
for such use by qualified personnel.

Waarschuwing! Het MP-toegangspunt mag niet worden gebruikt in de

nabijheid van onafgeschermde slaghoedjes of in een andere explosieve
omgeving tenzij het apparaat voor een dergelijk gebruik is aangepast door
bevoegd personeel.

Warnung! Die MP-Zugriffspunkte sollten nicht neben ungeschirmten

Sprengkapseln betrieben oder in einer explosiven Umgebung eingesetzt
werden. Für einen solchen Einsatz muss das Gerät von einem qualifizierten
Kundendienstmitarbeiter entsprechend angepasst werden.

Avertissement ! Le point d’accès MP ne doit pas fonctionner près de

détonateurs non blindés ou dans un autre environnement qui présent un risque
d’explosion, à moins que cet appareil n’ait été adapté en vue d’une telle
utilisation par du personnel qualifié.

Confidential—Beta Draft—Confidential—Beta Draft—12 May 04

68

Aviso No utilice el punto de acceso de MP cerca de detonadores no blindados

ni en un entorno explosivo, a menos que haya sido modificado el dispositivo con
ese fin por personal cualificado.

Trapeze Mobility Point Installation Guide

Version 2.1

Confidential—Beta Draft—Confidential—Beta Draft—12 May 04

Appendix C

Warning! Do not touch or move the MP access point when the antennas are

transmitting or receiving.

Waarschuwing! Het MP-toegangspunt mag niet worden aangeraakt of

verplaatst terwijl de antennes uitzenden of ontvangen.

Warnung! Berühren oder bewegen Sie den MP-Zugriffspunkt nicht, während

die Antennen senden oder empfangen.

Avertissement ! Ne touchez ni ne déplacez le point d’accès MP lorsque les

antennes sont en cours de transmission ou de réception.

Aviso No toque ni mueva el punto de acceso de MP cuando las antenas estén

transmitiendo o recibiendo señales.

Warning! Do not hold any radio device so that the antenna is very close to or

touching the face, eyes, or other exposed body part while the device's radio
antenna is transmitting.

Waarschuwing! De antenne van een apparaat dat radiogolven aan het

uitzenden is, mag nooit vlakbij of tegen het gezicht, de ogen of een andere
onbedekt deel van het lichaam worden gehouden.

Warnung! Halten Sie die drahtlosen Geräte während der Übertragung mit

der Antenne nicht nahe ans Gesicht, an die Augen oder an andere ungeschützte
Körperteile und berühren Sie die Antenne nicht.

Avertissement ! Ne maintenez pas l’antenne d’un appareil radio près du

visage, des yeux ou d’une autre partie du corps exposée ou en contact avec ces
parties du corps, lorsqu’elle est en cours de transmission.

Aviso No coloque ningún dispositivo de radio demasiado cerca de la antena ni

en contacto con la cara, los ojos u otras partes del cuerpo que estén al
descubierto mientras la antena de radio del dispositivo esté transmitiendo
señales.

Translated Warning Conventions and Warnings

69

Appendix C

Warning! Before using a wireless device in a hazardous location, consult the

local codes, national codes, and safety directors of the location for usage
constraints.

Waarschuwing! Voordat u een draadloos apparaat gebruikt op een

gevaarlijke locatie, dient u de plaatselijke en landelijke voorschriften, en de
veiligheidsvoorschriften voor de locatie te raadplegen over eventuele
gebruiksbeperkingen.

Warnung! Bevor Sie drahtlose Geräte an einem gefährlichen Standort

einsetzen, sollten Sie die lokalen und nationalen Regelungen und
Sicherheitsbestimmungen des Standorts auf Nutzungsbeschränkungen
überprüfen.

Avertissement ! Avant d’utiliser un appareil sans fil dans un endroit

dangereux, consultez la réglementation locale et nationale ainsi que les
responsables de la sécurité de l’endroit concerné pour obtenir des informations
relatives aux conditions et aux limites d’utilisation de cet appareil.

Confidential—Beta Draft—Confidential—Beta Draft—12 May 04

Aviso Antes de utilizar un dispositivo inalámbrico en una ubicación peligrosa,

consulte los códigos locales y nacionales y a los responsables de seguridad de
la ubicación para conocer las restricciones de uso.

70

Trapeze Mobility Point Installation Guide

Version 2.1

Confidential—Beta Draft—Confidential—Beta Draft—12 May 04

Appendix C

Lightning Warning

Warning! Do not connect or disconnect cables or otherwise work with the MP

access point hardware during periods of lightning activity.

Waarschuwing! Tijdens onweer met bliksem mogen kabels nooit worden

aangekoppeld aan of losgekoppeld van het MP-toegangspunt of andere
werkzaamheden aan het MP-toegangspunt worden verricht.

Warnung! Verbinden und trennen Sie während eines Gewitters keine Kabel

zum MP-Zugriffspunkt und arbeiten Sie nicht damit.

Avertissement ! Ne connectez pas et ne déconnectez pas de câbles et, de

manière générale, ne travaillez pas sur le matériel du point d’accès MP lorsqu’il
y a un risque de foudre.

Aviso No conecte ni desconecte cables, ni tampoco trabaje con el hardware

del punto de acceso de MP durante una tormenta eléctrica.

Translated Warning Conventions and Warnings

71

Appendix C

Confidential—Beta Draft—Confidential—Beta Draft—12 May 04

72

Trapeze Mobility Point Installation Guide

Version 2.1

Confidential—Beta Draft—Confidential—Beta Draft—12 May 04

Index

A

A1060 8
A1120 8
A1180 8
access point. See MP (Mobility Point)
activating an MP 48
advisory notices, explanations of 3
antennas, external 8

B

bracket 10

C

cable ports 8
cable requirements 20

solid surface 39

Category 5 cables 8

strain relief 39

ceiling installation

drop tiles, MP-241, MP-252, and MP-262

29
solid, MP-241, MP-252, and MP-262 39
suspended, flush tiles, MP-241, MP-252, and

MP-262 24

connections

dual-homed 8
external antenna 47
LEDs 50
MX (Mobility Exchange) 48
troubleshooting 53

conventions, text and syntax 4
customer service iii

D

documentation conventions 4
documentation, product 2
drop ceiling installation, MP-241, MP-252, and

MP-262 29

dual-homed connections 8

E

Ethernet

cable requirements 20
connections to an MX switch, instructions

48

connections to an MX switch, MP port

locations 8
LEDs 50
ports 8

external antenna

connections to an MP, instructions 47

external antennas 8

F

flush ceiling installation 24

H

hardware

bottom view 7
features 7
inventory 15
mounting bracket 10
required, list of, MP-241, MP-252, and

MP-262 22
top view 7

Index

73

Confidential—Beta Draft—Confidential—Beta Draft—12 May 04

health LED

description 12
troubleshooting with 53
verifying MP health with 51

I

installation

junction box, MP-241, MP-252, and MP-262

35
MP 15
MP, model MP-241, MP-252, MP-262 22
requirements 17
requirements, tools, MP-241, MP-252, and

MP-262 22

solid surface, MP-241, MP-252, and MP-262

39
suspended ceilings, flush tiles, MP-241,

MP-252, and MP-262 24

suspended ceilings, MP-241, MP-252, and

MP-262 29
tabletop, MP-241, MP-252, and MP-262 44
T-bar ceilings. See suspended ceilings
warnings, cables 20
warnings, radio 18
warnings, service 5
warnings, translations 65

IP addresses 62

J

troubleshooting 53

M

MAC addresses 62
manuals, product 2
Mobility Exchange. See MX
Mobility Point. See MP
model numbers

external antennas 8

MP access points 5
mounting bracket 10
mounting options 10
MP (Mobility Point)
