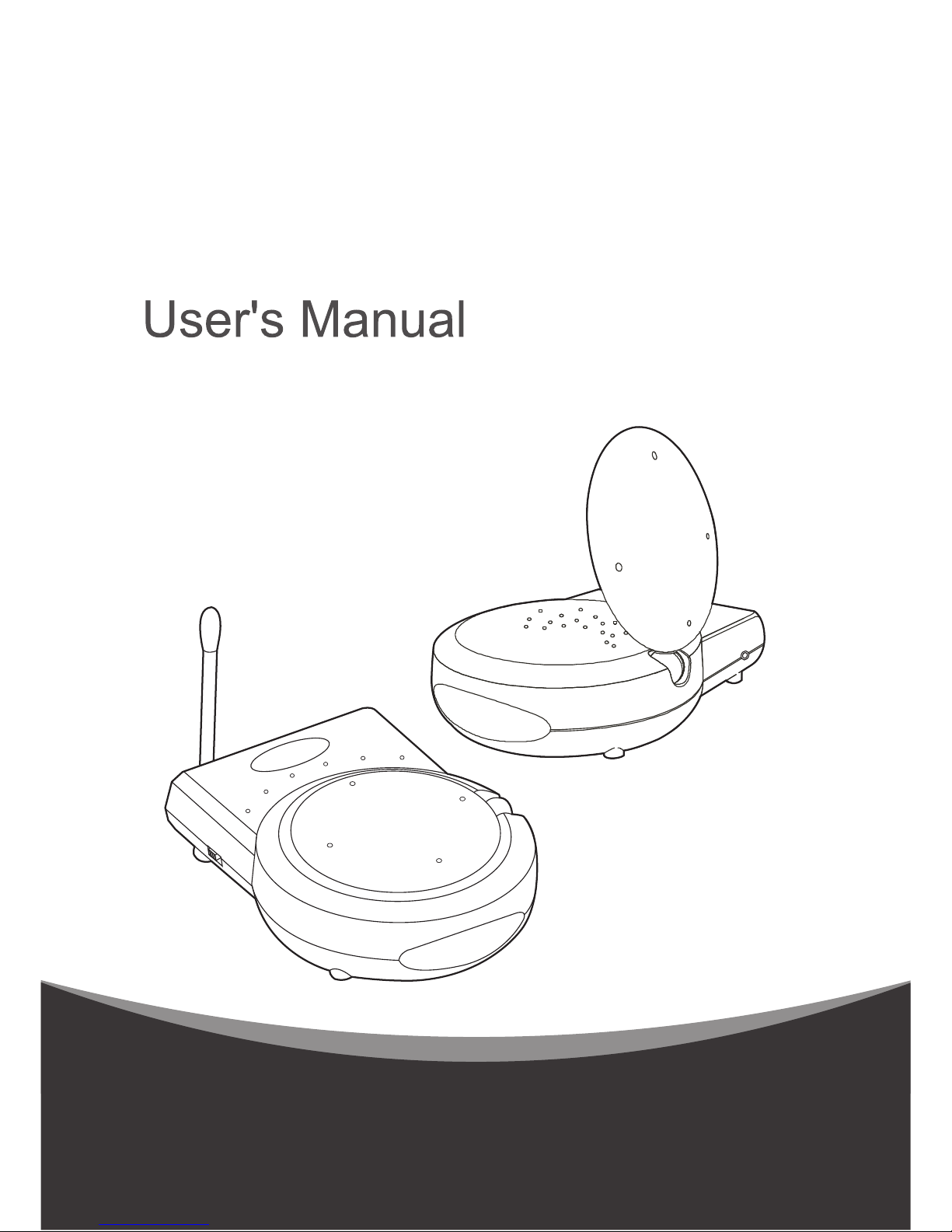

TRANWO Technology TTA-A5805R, TTA-A5805T User Manual

5.8 GHz Wireless Audio/Video Sender
1
To prevent fire or shock hazard, do not expose this product to rain and moisture. For example: do not use near a bathtub, washbowl, kitchen sink, or laundry tub, in a wet basement, or nearby a swimming pool. To avoid electric shock, do not take apart this product, provided as an accessory. This product should be operated only under power supply. Do not overload wall outlets and extension outlets as this can result in the risk of fire or electric shock.
Contents
1.Important Safety Information
1.Important Safety Information.......................................1
2.Package Content........................................................2
3.Panel Control And Function......................................... 3
4.Setup Guide...............................................................4
5.Orient Transmitter/Receiver for optimal performance.....5
FCC Statement
This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
Note:
This equipment has been tested and found to comply with the limits regulated by FCC and CE. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instruction, may cause harmful interference to radio communications. The change or modifcations not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. To comply with the FCC RF exposure compliance requirements, no change to the antenna or the device is permitted. Any change to the antenna or the device could result in the device exceeding the RF exposure requirements and void user’s authority to operate the device.
Industry Canada Statement
This device complies with RSS-210 of Industry Canada. Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device.

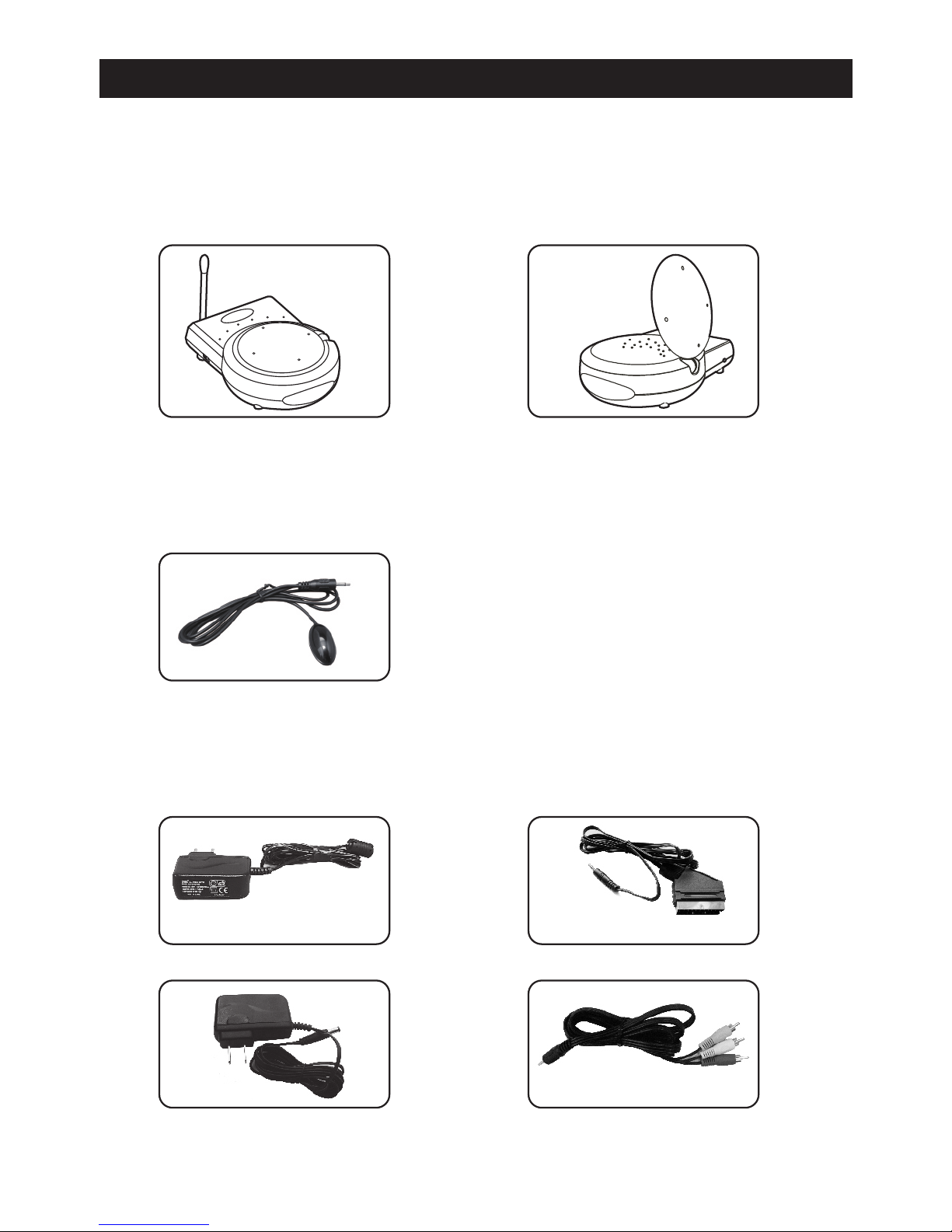

2.Package Contents
Check to make sure that all units shown as below are enclosed. If something missed, please contact your dealer.
3. IR Cable LED x 1
2. 5.8GHz Receiver x 1
UHF:433.92MHz
4.
(9V/ 500mA) x 2
Power Adapters
1. 5.8GHz Transmitter x 1
5. Cables x 2
2
EURO PE Type
USA Type
EURO PE Type(S CART Cable )
USA Type(RCA Ca bl e)
2.Package Contents3.Panel Control and Function
1
3
4
2
1. UHF Antenna
2. ON/OFF Switch
3. Power Indicator/IR Windows
4. IR mouse jack (transmitter only) Channel selection button to find optimal reception (receiver only)
5. Power Adapter Jack
6. DIP switch for ID code, the transmitter and receiver must to be configured as the same ID code.
7. A/V Jack
5
6
7
ID Code
3
Transmitter/Receiver
Note:
To eliminate static or unclear pictures caused by improper installation, please check the power of transmitter is already on, then turn off receiver power, press still on the channel selection button of receiver until you have turned on receiver power again.
1 2 3
ON
1 2 3
ON
1 2 3
ON
1 2 3
ON
1 2 3
ON
1 2 3
ON
1 2 3
ON
ID 2
1 2 3
ON
1 2 3
ON
ID 1 ID 4ID 3
ID 6ID 5 ID 8ID 7
2.Package Contents4.Setup Guide
1. Connect one end of the RCA cable (or scart cable) to the audio and video jacks, and connect the other end to a source device as well.
2. Connect the DC plug of the adapter to the DC jack, and connect the power supply to an outlet.
3. Keep the IR window oriented toward the source AV equipment, or alternatively use the IR Mouse to remotely control it.
2.Package Contents
Not e: Mak e su re the ON/ OFF swi tch is in the OFF pos ition bef ore co nne ction
Tran smi tt er
OUT
IR cable LED
Transmitter
Remote Controller
IN
Receiver
1. Connect one end of the RCA cable (or scart cable) to the audio and video jacks, and connect the other end to a TV (or monitor, speakers) on which you like to enjoy a program.
2. Connect the DC plug of the adapter to the DC jack, and connect the power supply to an outlet.
3. Keep the IR window oriented toward your remote controller.
To enjoy a life of wireless video and audio, just connect the transmitter to whatever A/V source you like and connect the receiver to a TV, monitor or speaker in another location.
4
To AV Equipment
Receiver
To TV
* A complete set-up procedure consists of:
1. Press “CH” button on receiver, receiver will make transmitter switch to the same channel.
2. Make sure the ID on transmitter and receiver is identical (For example, as exhibit
Transmitter: Receiver: )
whenever there is problem with installation, please implement the set-up procedure again.
1 2 3
ON
ID 1
1 2 3
ON
ID 1
Re cei ver
Tran smi tter
5.Orient Transmitter/Receiver for optimal performance
5
For optimal performance, both the audio/video and remote control antennas should be carefully oriented as described below. For maximum transmitting range, try to minimize obstacles (e.g. your TV or other electronics, large furniture) where between the transmitter and receiver.
Orients the 5.8GHz A/V Antennas
5.8GHz Antenna
5.8GHz Antenna
Tran smi tt er
Receiver
5.8GHz Antenna
5.8GHz Antenna
Fig. 1
Fig. 2
The system delivers high-quality audio and video by using directional antennas, which must be oriented to get the best results. The antennas are designed to be able to rotate in almost any direction.
In most situations, the convex of the antennas on both the transmitter and receiver should be facing one another and perpendicular (at a right angle) to an imaginary line drawn between the two units. Two examples are shown as Fig.1, Fig.2. Since all homes are different, for optimal reception, additional alignment may be necessary. If the transmitter and receiver are less than 10 feet apart, suggest to lie the antennas on their casings since the distance is so short.
6
Orients the UHF Antennas
In order to obtain optimal performance of the remote control extender, the remote control antennas should also be oriented at a right angle to an imaginary line drawn between the transmitter and receiver. If your remote control extender is not working satisfactorily, rotate the remote control antenna on either the transmitter or receiver 90 degrees so that it is still perpendicular to the path between the units.(See Fig.3)
IF you notice improved performance, keep this orientation.
Rotating the antenna on both units should have no effect.
Receiver
Fig. 3
Tran smi tt er
UH F Ante nna
UH F Ante nna
WEEE Directive & Product Disposal
At the end of its serviceable life, this product should not be treated as household or general waste. It should be handed over to the applicable collection point for the recycling of electrical and electronic equipment, or returned to the supplier for disposal.
408-000638-00
TTA-A5805T TTA-A5805R
This equipment is intend ed t o be operated in below countrie s.
