Tranwo Technology GIGAAIR-30T Users Manual
ContentsContents
Contents
ContentsContents
What You Get ............................................................................................................................................1
Product Layout ..........................................................................................................................................2
Setting Up ..................................................................................................................................................5
Setting Up-Camera ...................................................................................................................................6
Setting Up-Receiver ..................................................................................................................................9
Setting Up-Other Application ............................................................................................................... 12
Orienting Units for Optimal Performance ........................................................................................... 13
Auto-Sequence Function for Multiple Location Monitoring ............................................................ 14
Troubleshooting ...................................................................................................................................... 16
Care and Maintenance ........................................................................................................................... 17
Specifications ........................................................................................................................................... 18
FCC Statement ...................................................................................................................................... 18
What YWhat Y
What Y
What YWhat Y
ou Getou Get
ou Get
ou Getou Get
English
Camera
Receiver
• One Camera
• One Receiver
• One Audio/Video Cable (RCA to RCA for NTSC; RCA to Scart for PAL)
• Two Power Adapters
• One Quick Installation Guide
• This User's Manual
Note: Two AC adapters with different length cables are included with this product. Use either depending
on distance from the wall outlet.
1
Product LayoutProduct Layout
Product Layout
Product LayoutProduct Layout
Front View of
2
3
2
Camera
1
Rear View of
Camera
5
6
4
7
8
Bottom View of
Camera
10
11
9
Product LayoutProduct Layout
Product Layout
Product LayoutProduct Layout
Infrared LEDs
1
Eight LEDs to provide infrared light for night vision.
Lens
2
Focuses image automatically without any adjustment.
Lens Body
3
Rotates up to 180 degrees.
4
Microphone
5
2.4 GHz Audio/Video Antenna (Front )
Transmits audio/video signals. Caution: Antenna does not rotate freely through 360 degrees. (See "Orienting
Units for Optimal Performance", on page 13)
6
Channel Selection Switch
Select the channel by sliding the slide switch to the channel number you want.
Must select the same channel on both the camera and receiver.
7
Power Indicator LED
OFF/ON/NIGHT
8
POWER ON/POWER OFF and NIGHT VISION ON switch.
9
9V Power Adapter Plug
10
Mounting Hole
11
Battery Compartment
3
Product LayoutProduct Layout
Product Layout
Product LayoutProduct Layout
Front View of
Receiver Rear View of
Camera
1
2
4
3
4
5
7
6
8
Product LayoutProduct Layout
Product Layout
Product LayoutProduct Layout
Power Indicator LED
1
The LED should be lit when the ON/OFF switch is in the ON position..
2
2.4GHz Audio/Video Antenna (Front )
Transmits and receives Audio/Video signals. Caution: Antenna does not rotate freely 360 degrees. (See
"Orienting Units for Optimal Performance", on page 13)
3

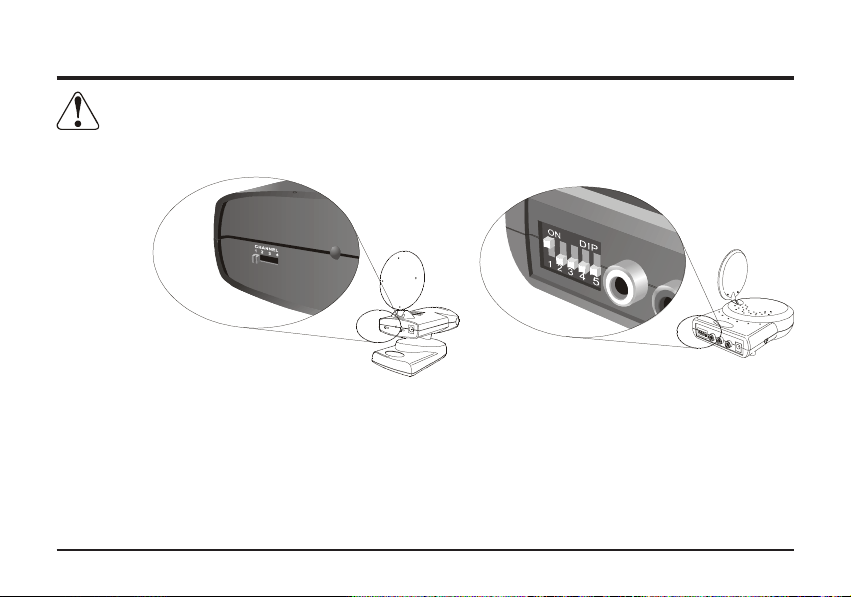

Channel Selection Dipswitches
Select the channel by setting the channel dipswitch to the ON position. The number 5 dipswitch
sets the timer for the auto-sequence function (see "Auto-Sequence Function for Multiple Location
Monitoring", on page 14).
Must select the same channel both on camera and receiver.
4
Left Audio Jack (White)
5
Right Audio Jack (Red)
6
Video Jack (Yellow)
9V Power Adapter Plug
7
8
ON/OFF Switch
5
