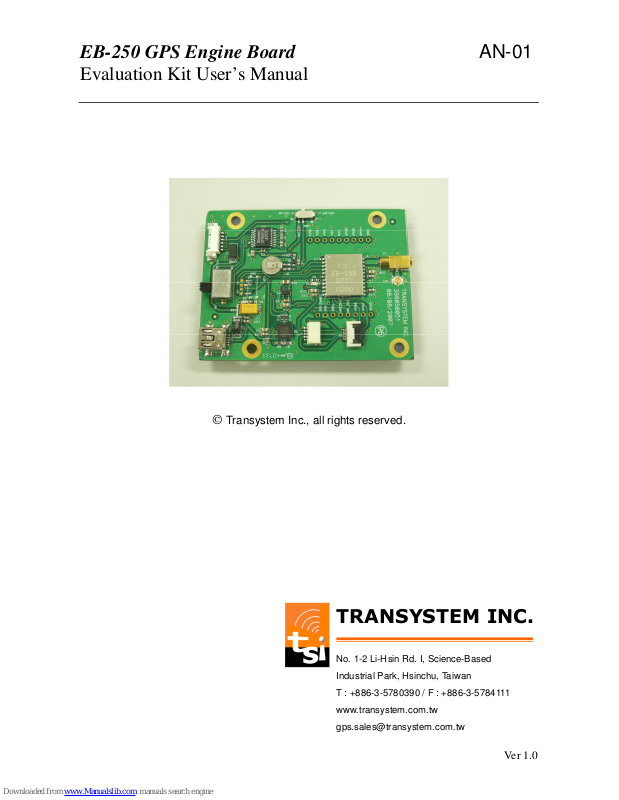

Transystem EB-250 User Manual
EB-250 GPS Engine Board AN-01
Evaluation Kit User’s Manual
Transystem Inc., all rights reserved.
TRANSYSTEM INC.
No. 1-2 Li-Hsin Rd. I, Science-Based
Industrial Park, Hsinchu, Taiwan
T : +886-3-5780390 / F : +886-3-5784111
www.transystem.com.tw
gps.sales@transystem.com.tw
Ver 1.0
EB-250 AN-
01
2
Table of Contents
1 Introduction............................................................................................................................ 3
2 When you open it.................................................................................................................. 3
2.1 Evaluation Board Picture.......................................................................................... 3
2.2 USB Setup ................................................................................................................. 4

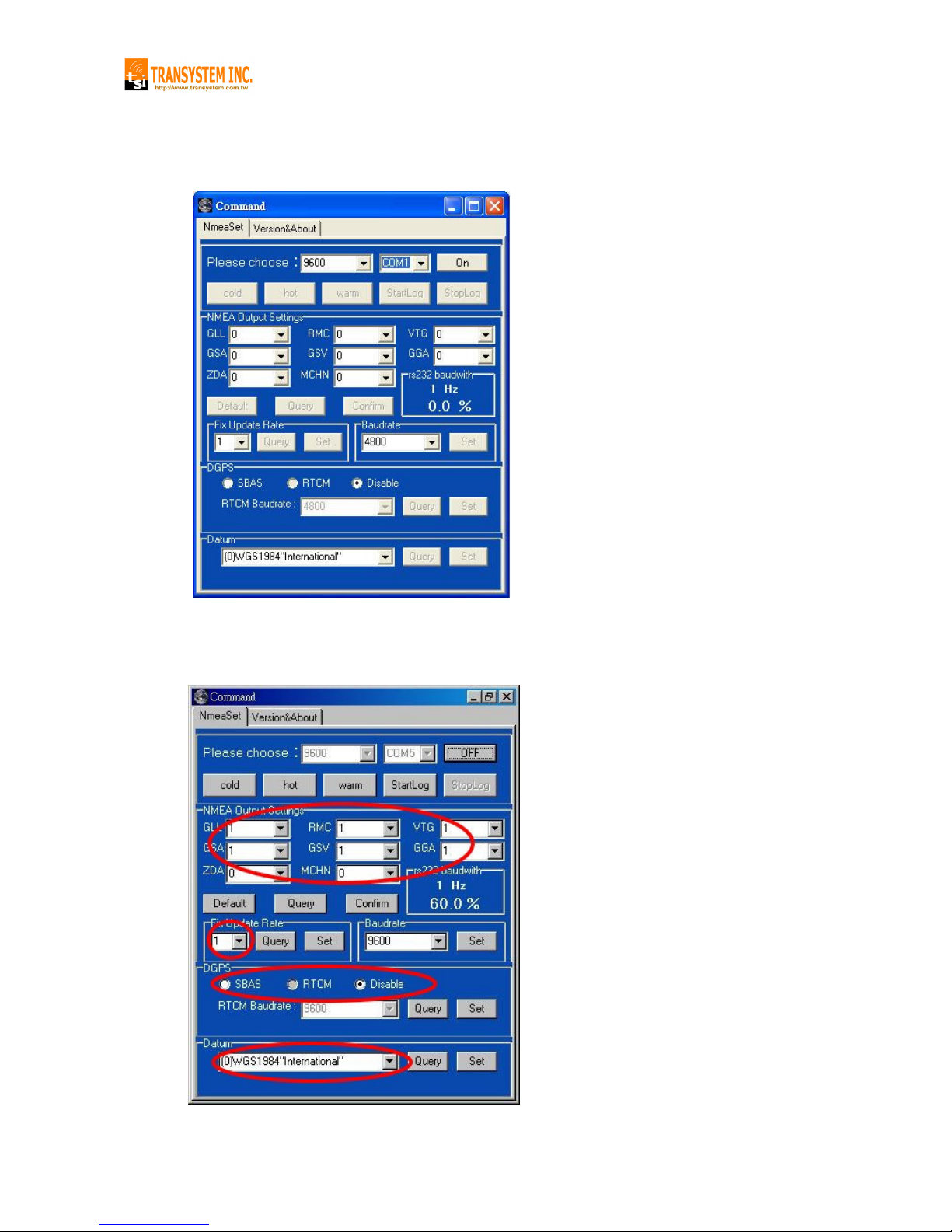

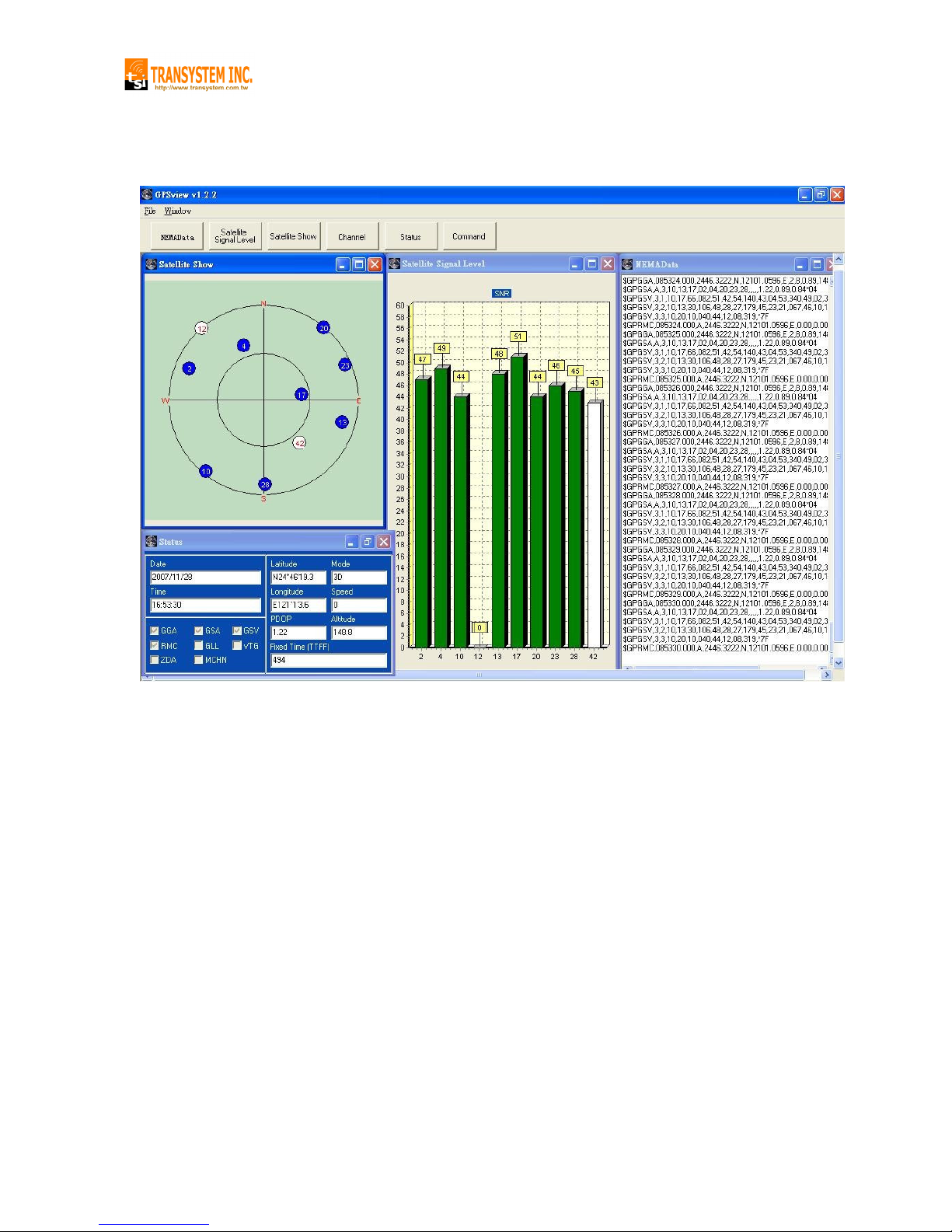

3 GPS Testing Software .......................................................................................................... 4
4. Connector Definition............................................................................................................ 7

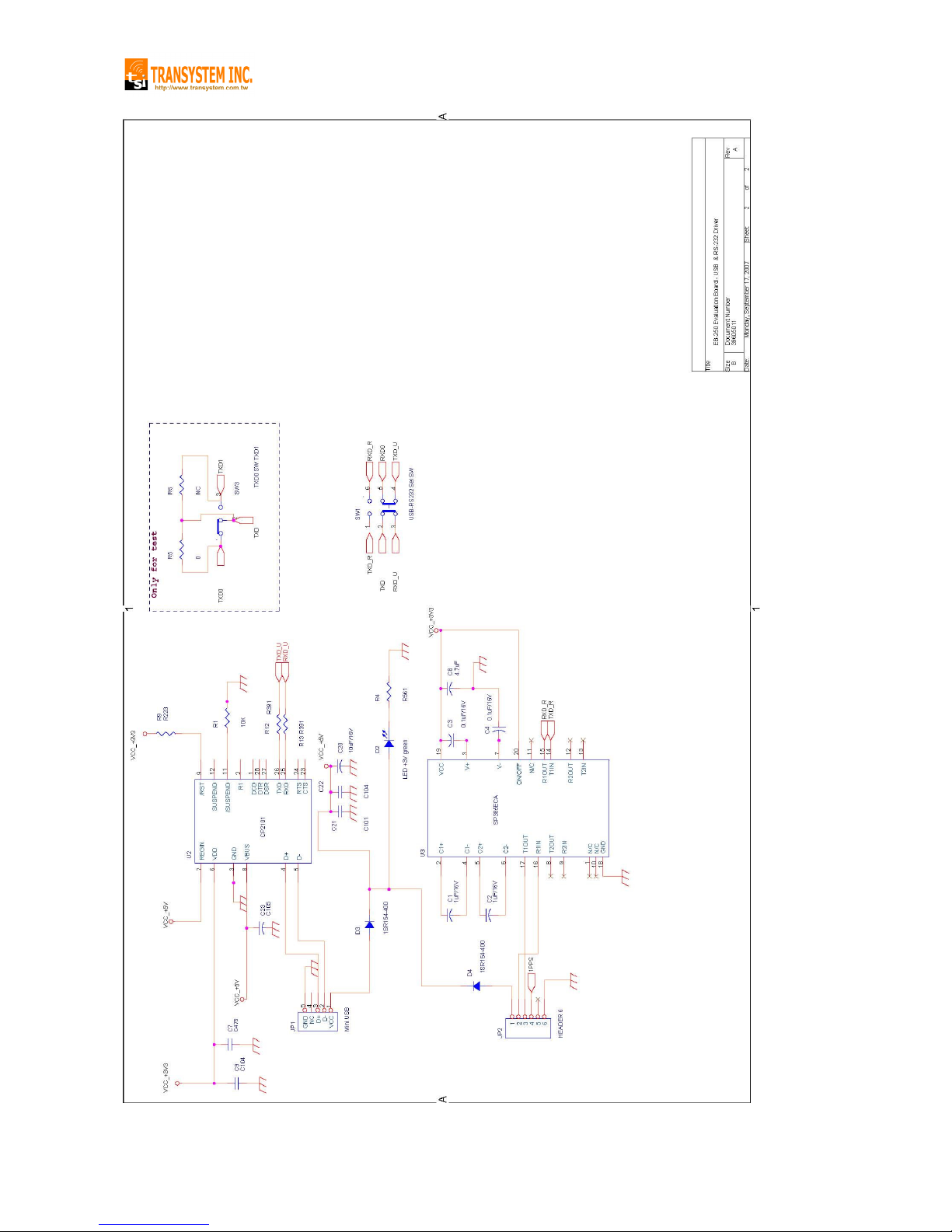

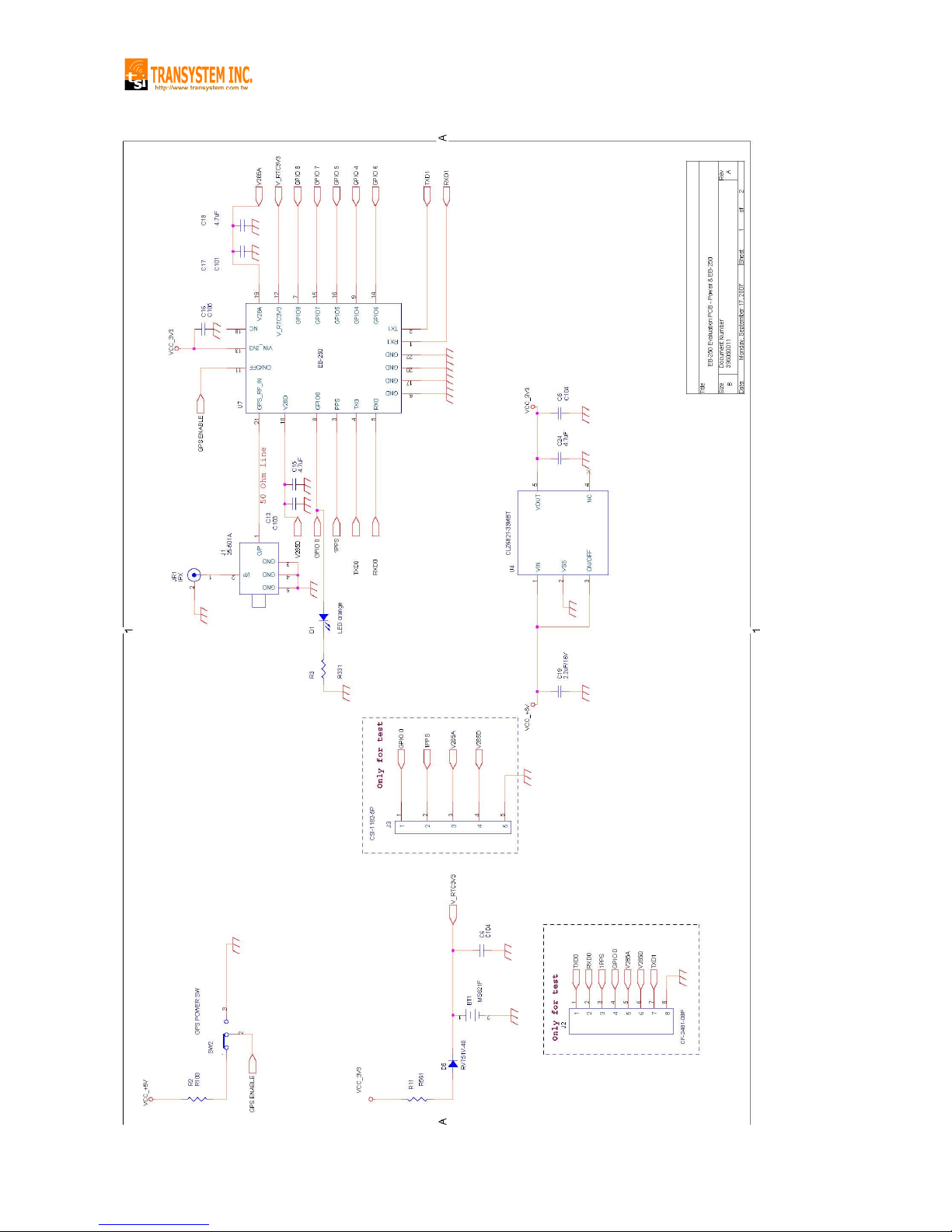

5. Evaluation Board Schematics ............................................................................................ 8
Ver 1.0
EB-250 AN-
01
3
1 Introduction
EB-250 evaluation kit is an user friendly tool for your evaluation of TSI’s EB-250 GPS
engine board. With its miniature size, low power consumption and superior performance,
EB-250 is your ultimate choice for all embedded applications such as :
• Handheld devices (PDA, Smart phone…)
• Automotive and Marine Navigation
• Automotive Navigator Tracking
• Emergency Locator
• Geographic Surveying
• Personal Positioning
• Sporting and Recreation

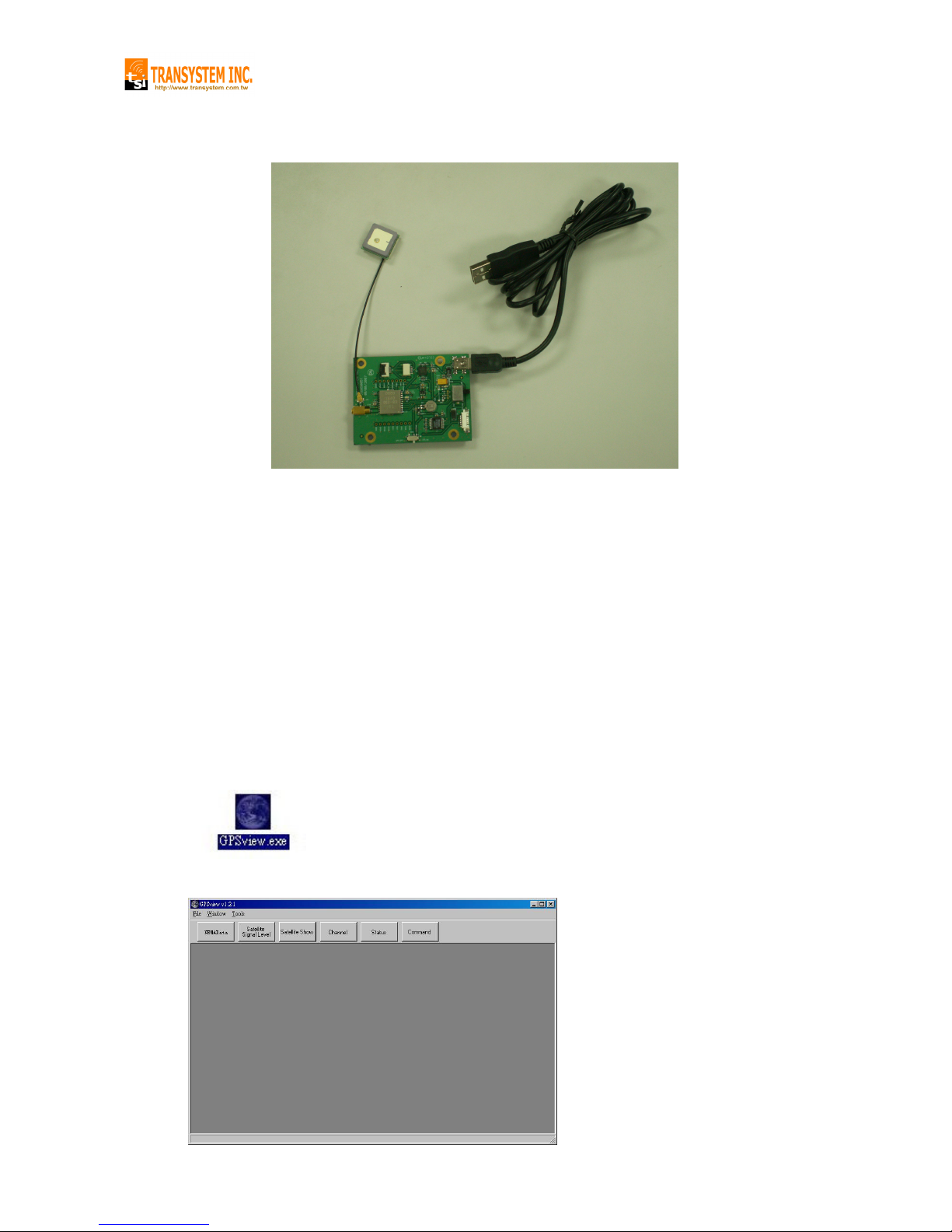

2 When you open it
a. USB Cable x1
b. EB-250 Evaluation Board x1
c. GA-232 Active Antenna x1
(IPX Connector)
d. CD-ROM with technical data
and GPS testing software
2.1 Evaluation Board Picture
a. RF Port 1 JR1 (Ipex)
b. Mini USB Port
c. USB/RS232 Select Switch
d. RS232 Port
e. GPS On/Off Switch
f. Test point for EB-250
signals
g. Aux RF Port 2 J1 (MMCX)
Ver 1.0
