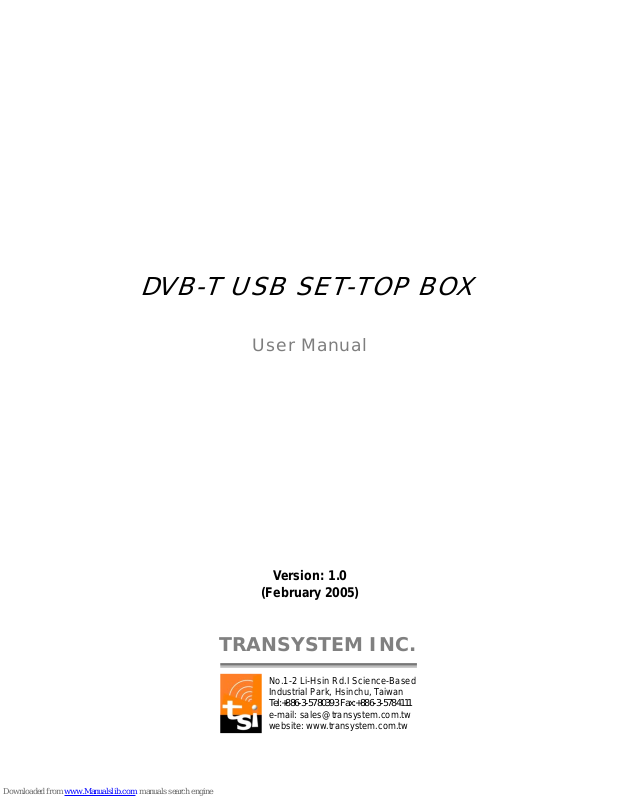

Transystem DVB-USB User Manual
DVB-T USB SET-TOP BOX
User Manual
Version: 1.0
(February 2005)
TRANSYSTEM INC.
No.1-2 Li-Hsin Rd.I Science-Based
Industrial Park, Hsinchu, Taiwan
Tel:+886-3-5780393 Fax:+886-3-5784111
e-mail: sales@transystem.com.tw
website: www.transystem.com.tw
Table of Contents
Chapter 1 DVB-T USB SET-TOP BOX Introduction ...................…..........……......3
1.1 Introduction ........................................... .................. ................... ............…….... 3
1.2 Package Content .......................................... ...................... ....................….….... 3
.
1.3 System requirements ......................................................................…..................3
1.4 Features .....................................................................................................….........4
1.5 Hardware specification
……………………………………………….…….…...4
Chapter 2 Installation Procedure ..................................................…...….….......5
Chapter 3 System Setup .....................................................................……...........12

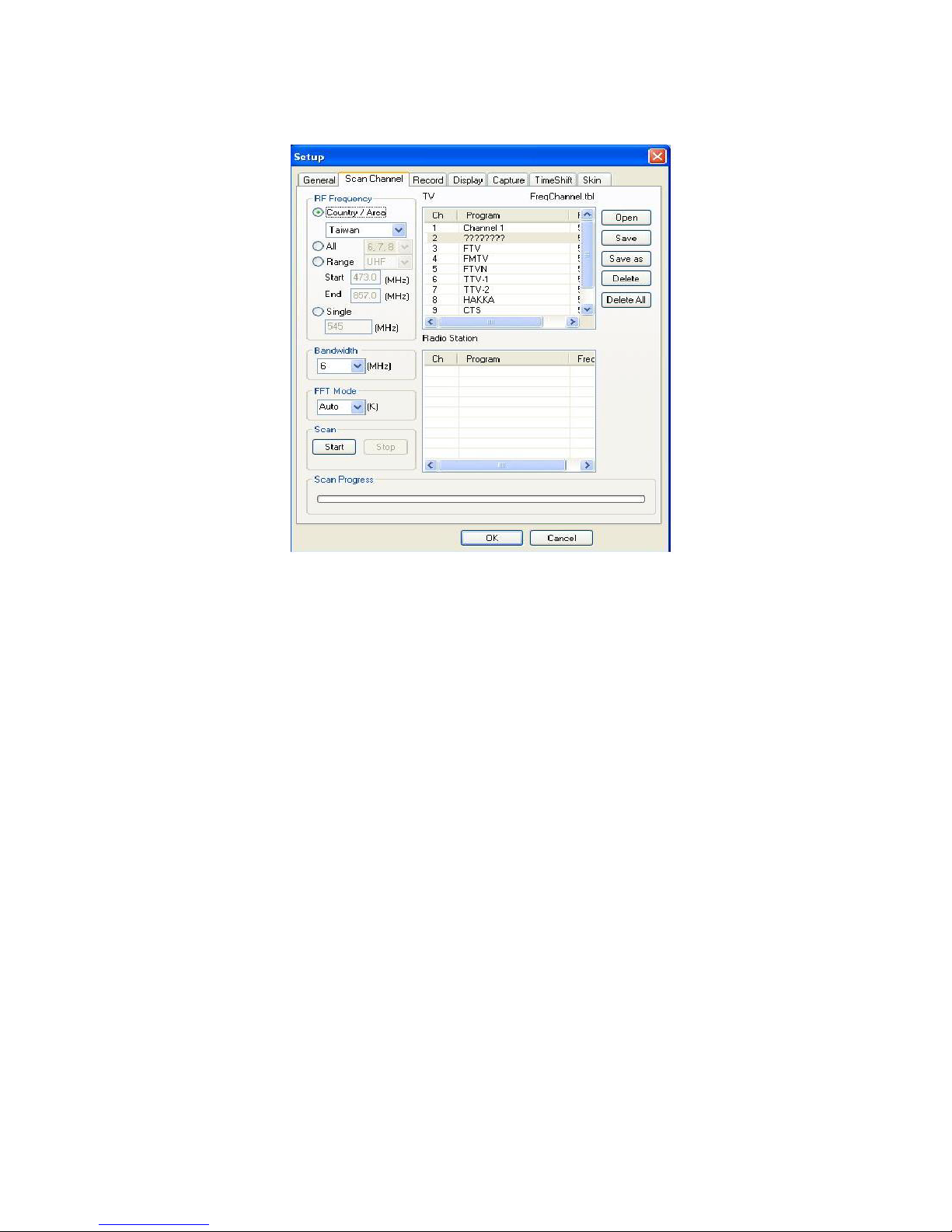

3.1 How to scan ................................................................................…...........…..….12

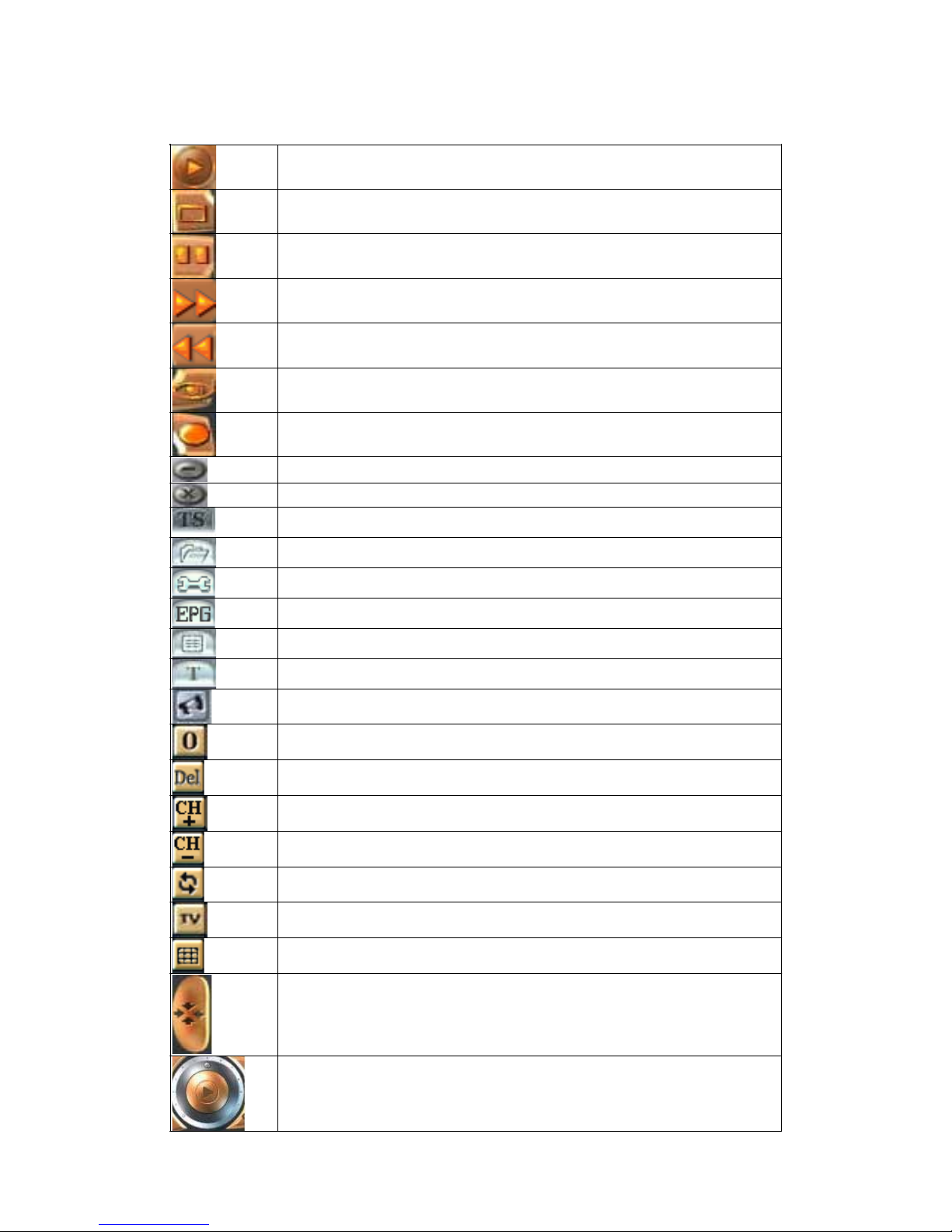

3.2 Control panel introduction
....................................................................……......13

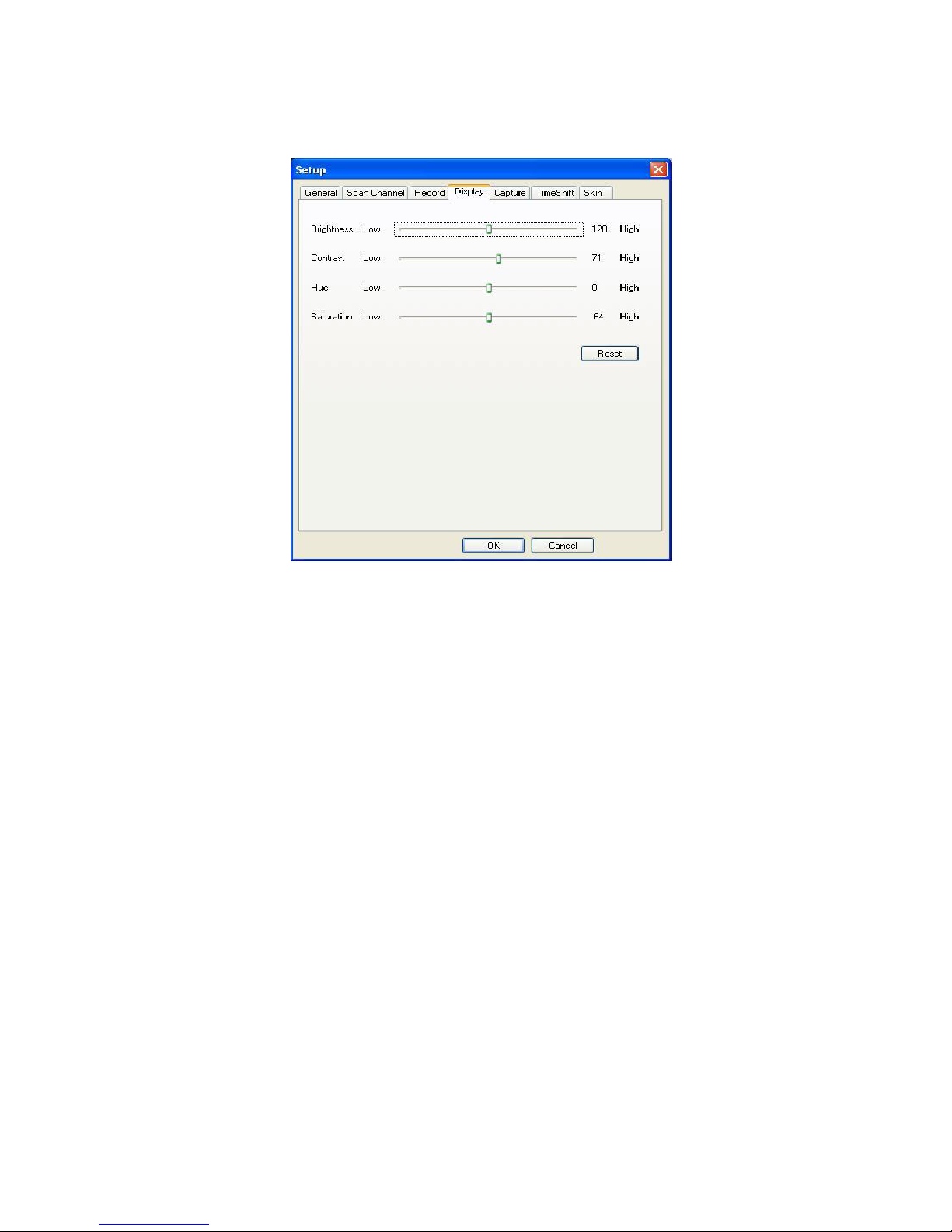

3.3 Functional setting
.................................................................................... .….….15
3.4 Right click menu
...........................................................................................…........20
Chapter 4 Trouble Shooting
.................................................................. . .…...…21
2
Chapter 1. D V B - T U S B SE T - TO P B O X Introduction
1.1 Introduction
DVB-USB is an advanced-designed digital television receiver for PC users,
especially for viewing and recording digital programs. Recordings can be
made while viewing the programs or prescheduled in advance.
DVB-USB enables viewing multiple channels simultaneously , and also allows
you to switch to your favorite channel instantly after browsing through the
channels.
What’s more, the conv enient “TimeShift” function provides a new
television watching experience by allowing you to pause, replay, and even
fast-forward or rewind the ongoing programs.
1.2 Package Content
△
DVB-T USB SET-TOP BOX x 1
△
Quick Installation Guide x 1
△
USB Cable x 1
△
DVB-T Active Antenna x 1
△
Driver CD (Multi-language Software and User’s Manual) x 1
1.3 System Requirements
△
Microsoft Windows 2000/XP
△
Desktop PC or Notebook PC
△
750MHz CPU or above
△
128M RAM or above
△
VGA Card with at the least 16MB Memory
△
Sound Card
△
Free USB Port
△
Microsoft Direct X 9.0b or above
△
Digital Terrestrial TV Antenna
△
64QAM @ USB2.0 only
△
10MB Hard Disk Space for running the software
3
1.4 Features
△
Support DVB Protocol (ETS 300 744)
△
Digital Terrestrial TV and Radio Program Receiving
△
Real Time Digital V ideo Recording (DVR) and Schedu ling R eco rdin g
△
Time-Shifting
△
Electronic Program Guide (EPG)
△
Snapshot
△
Multi Channel Preview
△
Channels Auto Scan 6/7/8 M
△
Teletext *
△
Favorite List
△
MPEG-II Software Decoding
Note: The Digital Radio mentioned here is not the same with DAB
(Digital Audio Broadcasting), it me ans the audio broadcasting by the
DVB-T content provider.
Note:
* Depends on Content Provider
1.5 Hardware Specification
△
Support DVB- T(EN300744)
△
USB 2.0/1.1 interface
△
DC 5V±5% Power Input
△
Tuner 5V±5% Power output
△
USB Bus-Powered, current<500mA @ 5V DC
△
DVB-T IEC connector
△
Green LED: Signal Lock
△
Red LED: Power Indicator
4

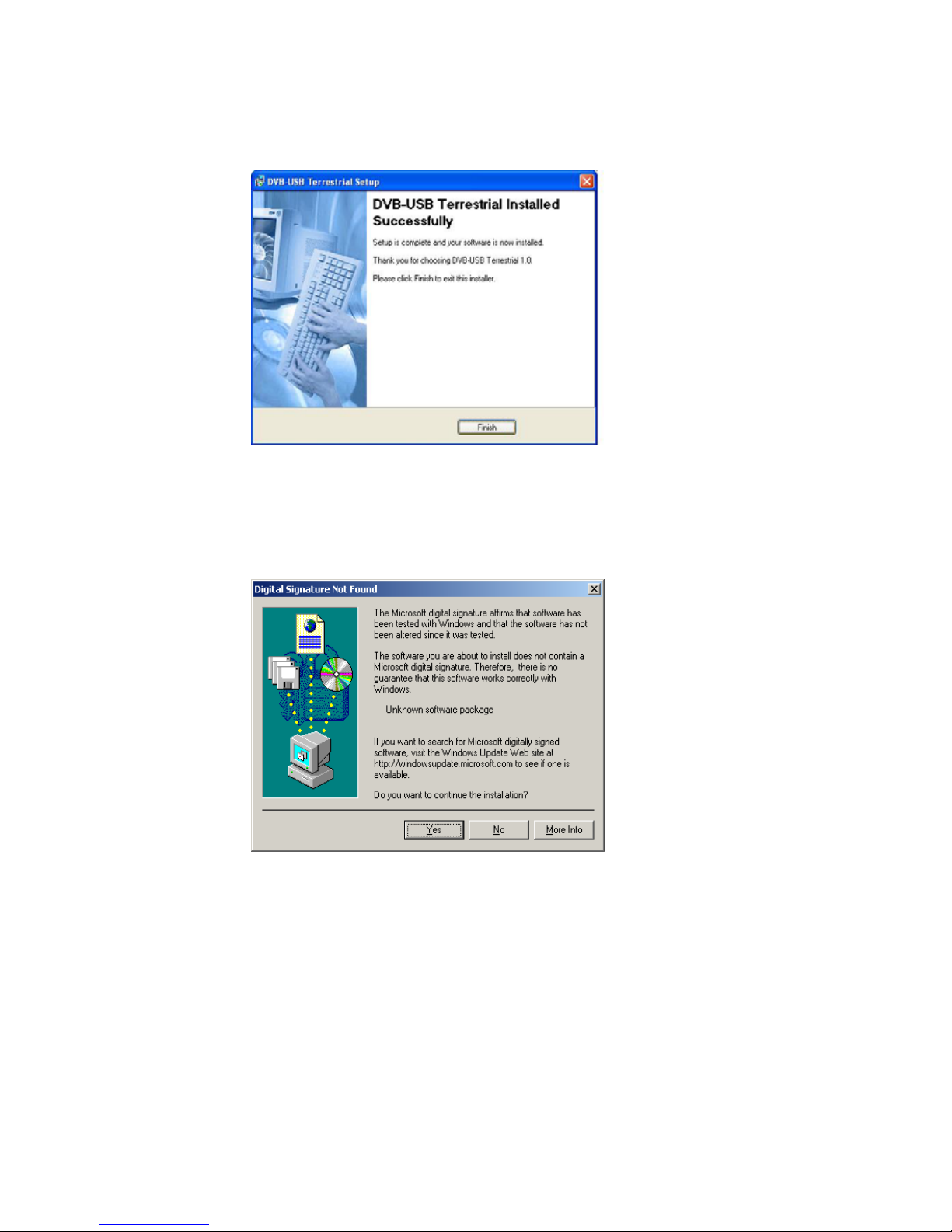

Chapter 2. Installation Procedure
Before you proceed with the installation, it is important that you to know: A
complete installation includes “Driver” and “Application Program”,
both parts can be installed easily from the software CD. Please follow
the instructions.
It is strongly recommended that you use the DVB-T Active
Antenna included in the product packaging to avoid possible
short-circuit and device damage.
Note1: The following installation is operated under Windows
2000. (Procedures are the same in Windows XP)
Note2: Be sure the DVB-T USB SET-TOP BOX is connected to your PC
when you are installing the software.
Note3: After connecting DVB-T SET-TOP BOX to your computer, a
pop-up window
saying “Found New Hardware Wizard” will
appear. Please
click “Cancel” to quit the wizard, the driver
will be installed automatically from CD.
5

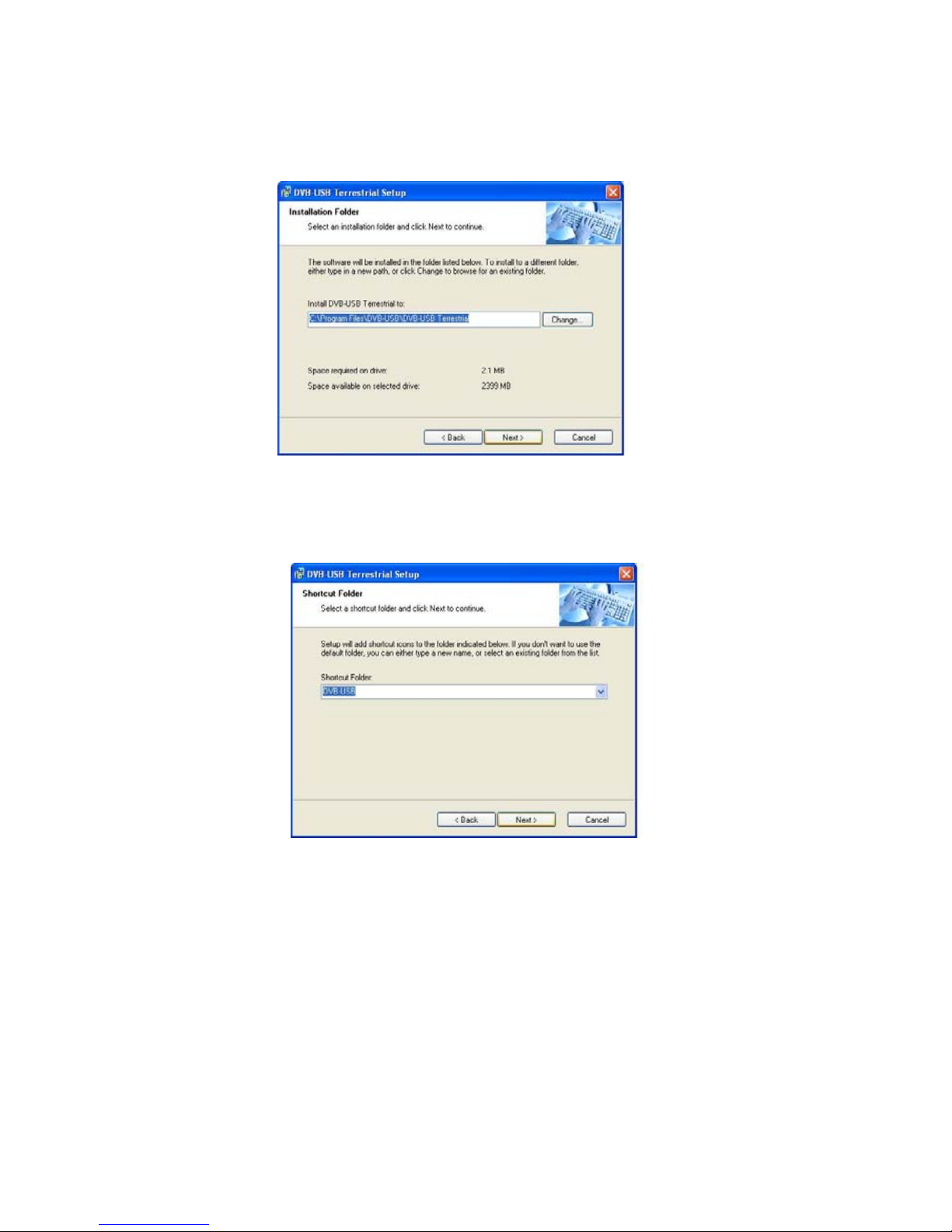

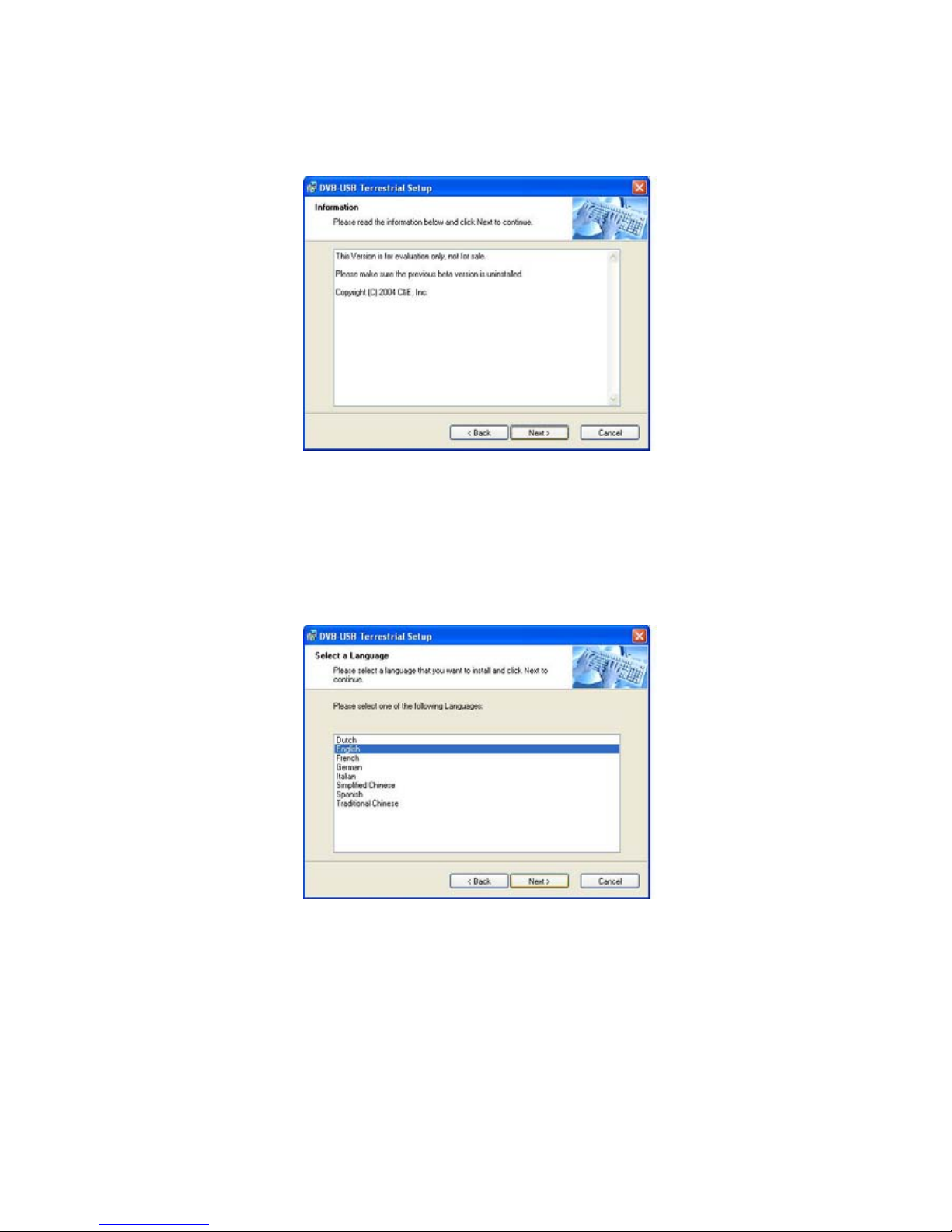

A. Execute the “Setup.exe”
program from the CD. The InstallShield Wizard
will check the operating system version first. Please follow the directions after
it finishes checking.
B. Click “Next”
to continue.
C. Choose “
I agree….
” and click “Next”
to continue.
6
D. Enter your user information and click “Next”
to continue.
E.
Please input 16 serial numbers and click “Next”
to continue.
(Serial number can be found on the software CD label)
7
