Overview
An A
supplier of RF microwave & GPS p
roducts
R
T
TRX-310 is TSI’s latest offering for 2-way wireless
broadband Internet application at UHF band. It
accepts an IF signal of 30~42MHz from cable
modem, upconverts the signal to 704~716MHz and
transmits it back to the MMDS headend site.
With its built-in automatic on/off switch, TRX-310
will enter sleep mode to eliminate the broadband
noise when there is no data packet transmission.
Without exception, TRX-310 embodies the long
term stability and reliability common to all TSI
products.
With the integrated downconverter and
upconverter, TRX-310 provides the best cost /
performance solution for your 2-way MMDS
operation.
Key Features
Application
X--
R
X
• QPSK, 16 QAM Transmission Compatible
• 256 QAM Reception Compatible
• Automatic On/Off switch
• Up to 50Km cell coverage
• Low phase noise
• High frequency stability
• Low power consumption
• Meet FCC spectral mask requirement
• Easy installation
• RoHS compliant
• UHF Band 2 way MMDS CPE Internet access
3
3
1
0
1
0
TRANSYSTEM INC.
+
Rev: 0.9
T
R
T
R
X--
X
3
3
1
0
1
0
Specifications
Downstream
Input frequency 734 ~ 746 MHz
Output frequency 734 ~ 746 MHz
Gain 24 ± 2dB @ 25°C
Noise Figure
Leakage of Tx to IF
Port
Upstream
IF Input Center Freq. 30 ~ 42 MHz
RF Output Frequency 704 ~ 716 MHz
IF Input Signal
Bandwidth
Gain 20 ± 2dB
Linear Output Power +24 dBm typ.
P1dB +27dBm typical
LO Phase Noise
LO Stability ± 10KHz
TX Output Spurious -37dBc max
TX Output Power
Blanking Threshold
TX Switch Latency < 1.2 micro second
5dB typ.
7dB max.
-50dBm min
@O/P=+24dBm
12 MHz max
-85dBc/Hz @ 1KHz
-87 dBc/Hz @ 10 KHz
-95 dBc/Hz @ 100 KHz
-45dBm
Interface
RF Port 75 ohm
RF Connector F-type Female
RF Return Loss 10 dB typ.
IF Port 75 ohm
IF Connector F-type Female
IF Return Loss 10 dB typ.
IF Spurious
Emissions
Power Supply
Voltage +18 to +24 VDC
Power Consumption 8 Watt max.
Environment
Temperature
Humidity 100% waterproof
Physical
Dimensions 175 x 116 x 33 mm
Accessories Options
Power Supply 110V/220V Adapter & Inserter
Typical value @ 25°C, unless otherwise specified.
Specifications are subject to change without prior notice.
©2008 TRANSYSTEM INC. all rights reserved.
No.1-2 Li-Hsin Rd.I, Science-Based Industrial Park,
Taiwan 300, R.O.C.
T: +886-3-5780393 / F: +886-3-5784111
sales@transystem.com.tw
www.transystem.com.tw
≦ -85 dBm 734-746MHz
≦ -50 dBm from 100-
860MHz except above
-30°C～+60°C
Rev: 0.9

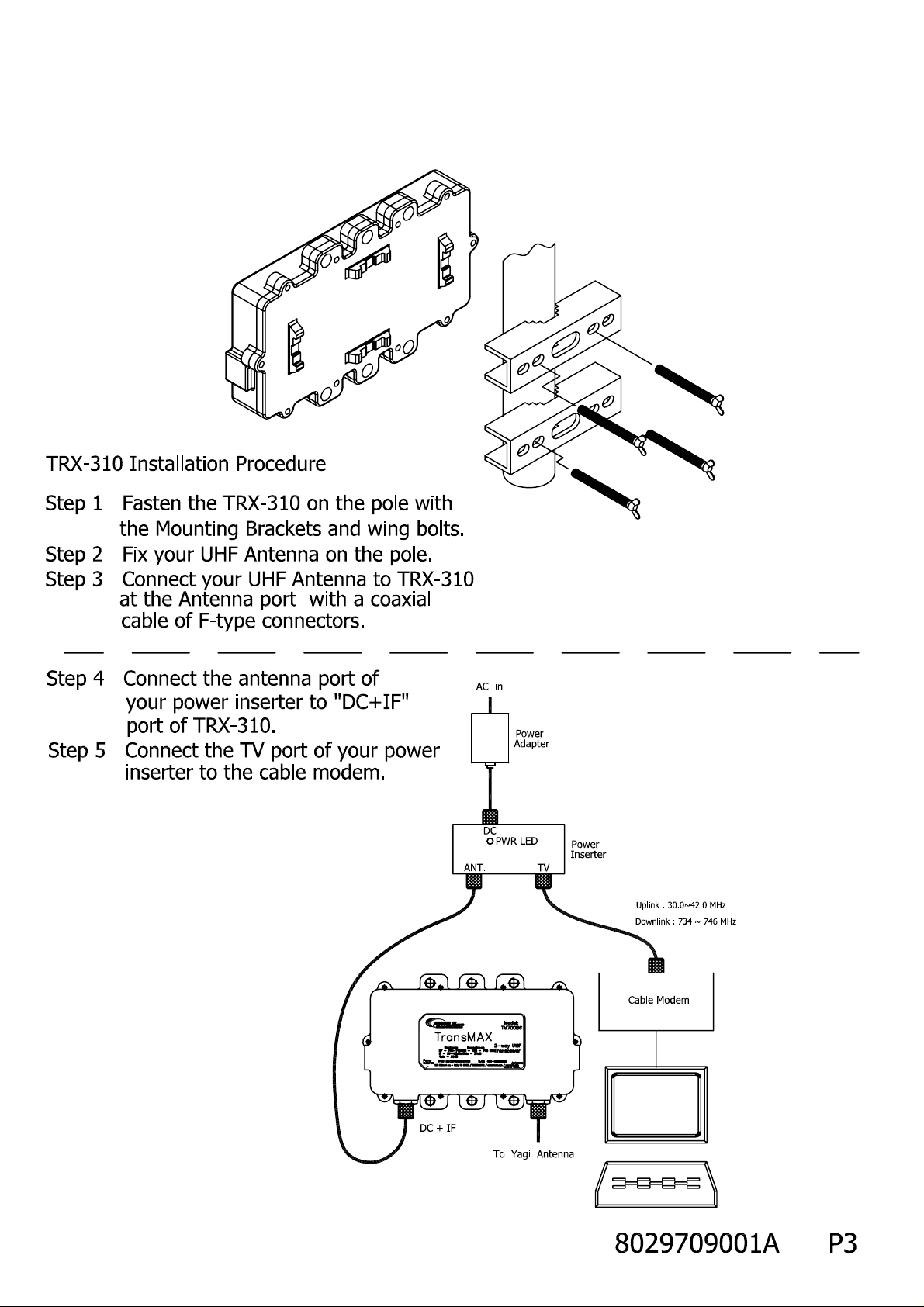

FCC Notices
This device complies with Part 15 of the FCC Rules. Operation is subject to the condition
that this device does not cause harmful interference.
CAUTION: Change or modification not expressly approved by the party responsible for
compliance could void the user’s authority to operate this equipment.
This equipment must be installed and operated in accordance with provided instructions
and the antenna(s) used for this transmitter must be installed to provide a separation
distance of at least 20 cm from all persons and must not be co-located or operating in
conjunction with any other antenna or transmitter. End-users and installers must be
provide with antenna installation instructions and transmitter operating conditions for
satisfying RF exposure compliance.
This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the
user is encouraged to try to correct the interference by one or more of the following
measures:
--Reorient or relocate the receiving antenna.
--Increase the separation between the equipment and receiver.
--Connect the equipment into an outlet on a circuit different from that to which the receiver
is connected.
--Consult the dealer or an experienced radio/TV technician for help.
CAUTION:
Any changes or modifications not expressly approved by the grantee of this device could
void the user's authority to operate the equipment.
