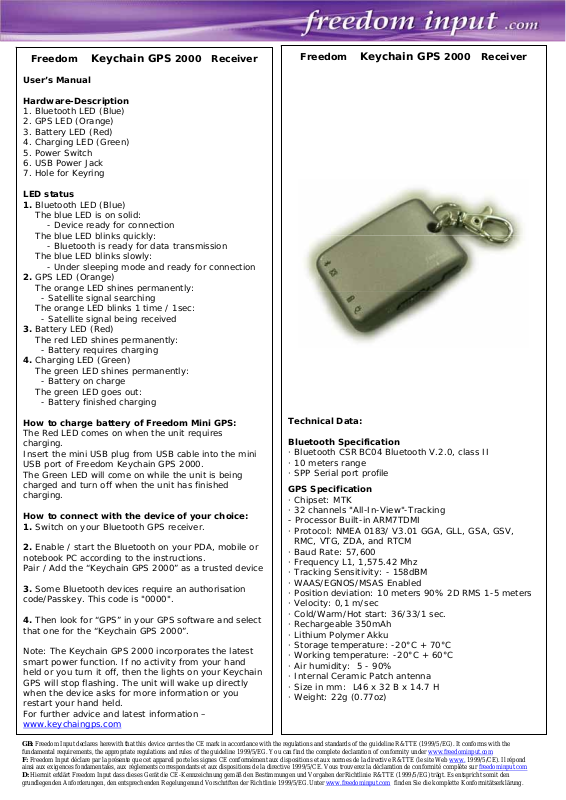

TranSystem 961300101 Users Manual

Freedom Keychain GPS 2000 Receiver

User’s Manual

Hardware-Description

1. Bluetooth LED (Blue)

2. GPS LED (Orange)

3. Battery LED (Red)

4. Charging LED (Green)

5. Power Switch

6. USB Power Jack

7. Hole for Keyring

LED status

1. Bluetooth LED (Blue)

The blue LED is on solid:

- Device ready for connection
The blue LED blinks quickly:

- Bluetooth is ready for data transmission
The blue LED blinks slowly:

- Under sleeping mode and ready for connection

2. GPS LED (Orange)
The orange LED shines permanently:

- Satellite signal searching
The orange LED blinks 1 time / 1sec:

- Satellite signal being received

3. Battery LED (Red)
The red LED shines permanently:

- Battery requires charging

4. Charging LED (Green)
The green LED shines permanently:

- Battery on charge
The green LED goes out:

- Battery finished charging

How to charge battery of Freedom Mini GPS:

The Red LED comes on when the unit requires
charging.
Insert the mini USB plug from USB cable into the mini
USB port of Freedom Keychain GPS 2000.
The Green LED will come on while the unit is being
charged and turn off when the unit has finished
charging.

How to connect with the device of your choice:

1. Switch on your Bluetooth GPS receiver.

2. Enable / start the Bluetooth on your PDA, mobile or

notebook PC according to the instructions.
Pair / Add the “Keychain GPS 2000” as a trusted device

3. Some Bluetooth devices require an authorisation
code/Passkey. This code is "0000".

4. Then look for “GPS” in your GPS software and select
that one for the “Keychain GPS 2000”.

Note: The Keychain GPS 2000 incorporates the latest
smart power function. If no activity from your hand
held or you turn it off, then the lights on your Keychain
GPS will stop flashing. The unit will wake up directly
when the device asks for more information or you
restart your hand held.
For further advice and latest information –

www.keychaingps.com

GB: Freedom Input declares herewith that this device carries the CE mark in accordance with the regulations and standards of the guideline R&TTE (1999/5/EG). It conforms with the
fundamental requirements, the appropriate regulations and rules of the guideline 1999/5/EG. You can find the complete declaration of conformity under www.freedominput.com
F: Freedom Input déclare par la présente que cet appareil porte les signes CE conformément aux dispositions et aux normes de la directive R&TTE (le site Web www. 1999/5/CE). Il répond
ainsi aux exigences fondamentales, aux règlements correspondants et aux dispositions de la directive 1999/5/CE. Vous trouverez la déclaration de conformité complète sur freedominput.com
D: Hiermit erklärt Freedom Input dass dieses Gerät die CE-Kennzeichnung gemäß den Bestimmungen und Vorgaben derRichtlinie R&TTE (1999/5/EG) trägt. Es entspricht somit den
grundlegenden Anforderun gen, den entsprechenden Reg elungenund Vorschriften der Richtlinie 1999/5/EG.Unter www.freedominput.com

Freedom Keychain GPS 2000 Receiver

Technical Data:

Bluetooth Specification

· Bluetooth CSR BC04 Bluetooth V.2.0, class II

· 10 meters range

· SPP Serial port profile

GPS Specification

· Chipset: MTK

· 32 channels "All-In-View"-Tracking

- Processor Built-in ARM7TDMI

· Protocol: NMEA 0183/ V3.01 GGA, GLL, GSA, GSV,
RMC, VTG, ZDA, and RTCM

· Baud Rate: 57,600

· Frequency L1, 1,575.42 Mhz

· Tracking Sensitivity: - 158dBM

· WAAS/EGNOS/MSAS Enabled

· Position deviation: 10 meters 90% 2D RMS 1-5 meters

· Velocity: 0,1 m/sec

· Cold/Warm/Hot start: 36/33/1 sec.

· Rechargeable 350mAh

· Lithium Polymer Akku

· Storage temperature: -20°C + 70°C

· Working temperature: -20°C + 60°C

· Air humidity: 5 - 90%

· Internal Ceramic Patch antenna

· Size in mm: L46 x 32 B x 14.7 H

· Weight: 22g (0.77oz)

finden Sie die komplette Konformitätserklärung.

FCC statement in User's Manual (for class B)

"Federal Communications Commission (FCC) Statement

This Equipment has been tested and found to comply with the limits for a class B digital
device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment ge nerates,
uses and can radiate radio frequency energy and, if not inst alled and used i n accordance with
the instructions, may cause harmful interference to radio communications. However, there is
no guarantee that interference will not occur in a particular installation. If this equipment
does cause harmful interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct the interference by
one or more of the following measures:

- Reorient or relocate the receiving antenna.

- Increase the separation bet ween the equipment and receiver.

- Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.

- Consult the dealer or an experienced radio/TV technician for help.
