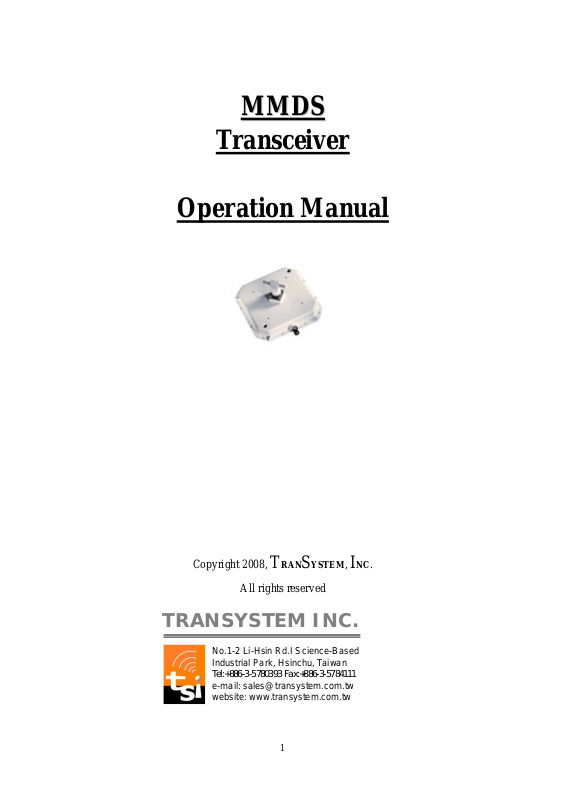

M
M
M
DSS
D
M
Transceiver
Operation Manual
Copyright 2008, TRANSYSTEM, INC.
All rights reserved
TRANSYSTEM INC.
No.1-2 Li-Hsin Rd.I Science-Based
Industrial Park, Hsinchu, Taiwan
Tel:+886-3-5780393 Fax:+886-3-5784111
e-mail: sales@transystem.com.tw
website: www.transystem.com.tw
1
TABLE OF CONTENTS
Chapter 1. General Information 4
1.1 Module Features and Specifications 4
Chapter 2. Installation 5
2.1 Step by Step Installation 5
2.2 Connection to the Power Inserter and Cable Modem 8
2.3 Waterproofing Connections 10
Chapter 3. Accessories 12
3.1 MMDS Antenna 12
2
3
Chapter 2. Installation
2.1 Step by Step Installation
2.1.1 Mounting Bracket Assembly Suite
The following hardwares are suggested for mounting the Transceiver to
the pole. A set of mounting bracket, one L type screw. Please contact TSI
sales department for this accessory.
4

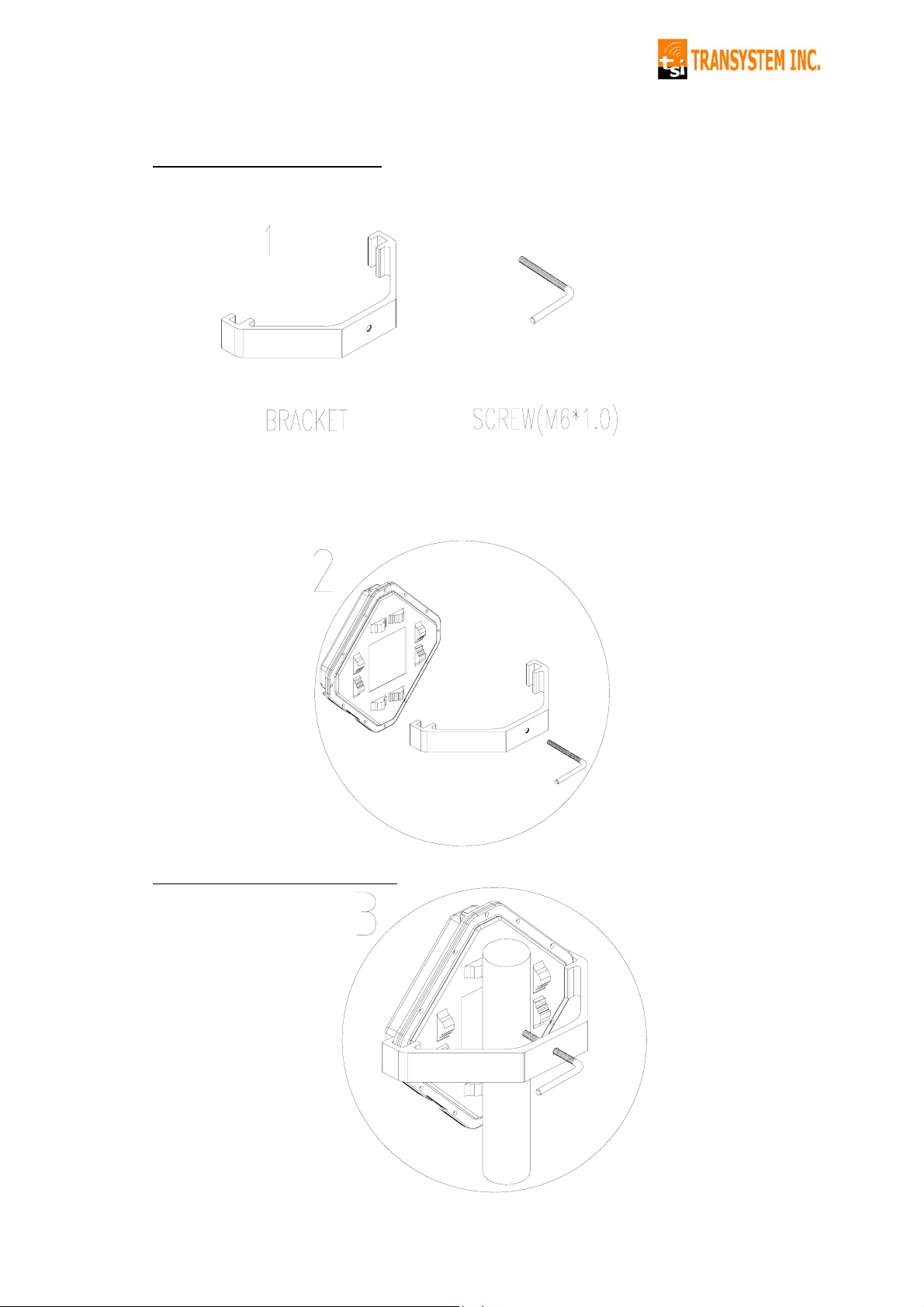

2.1.2 Step by Step Installation
Step 1 – Attach sequence
Left to right: Bracket , Mounting screw.
Step 2 – How to Attach
The concave of Bracket 2 is for holding onto the pole.
Step 3 – Tighten the bracket
5
2.2 Connection to the Power Inserter and Cable Modem
Connections to the Tranceiver are shown in diagram 2.2. Please note:
① The power inserter normally has 3 ports:
DC Connect to wall adapter with RG-59 cable
ANT Connect to the Transeiver
TV Connect to Cable modem
VERY IMPORTANT NOTICE!
a. The power inserter should be correctly connected, or the Transeiver
will not operate.
b. Ensure that all wires and cables are hooked up before plugging into
the AC adapter/power supply (i.e. you must hook up the power supply
last).
② After connection, the F connector of Transceiver must be sealed with an
asphalt sealing tape. (For details, please refer to Section 2.3 Waterproofing
Connections)

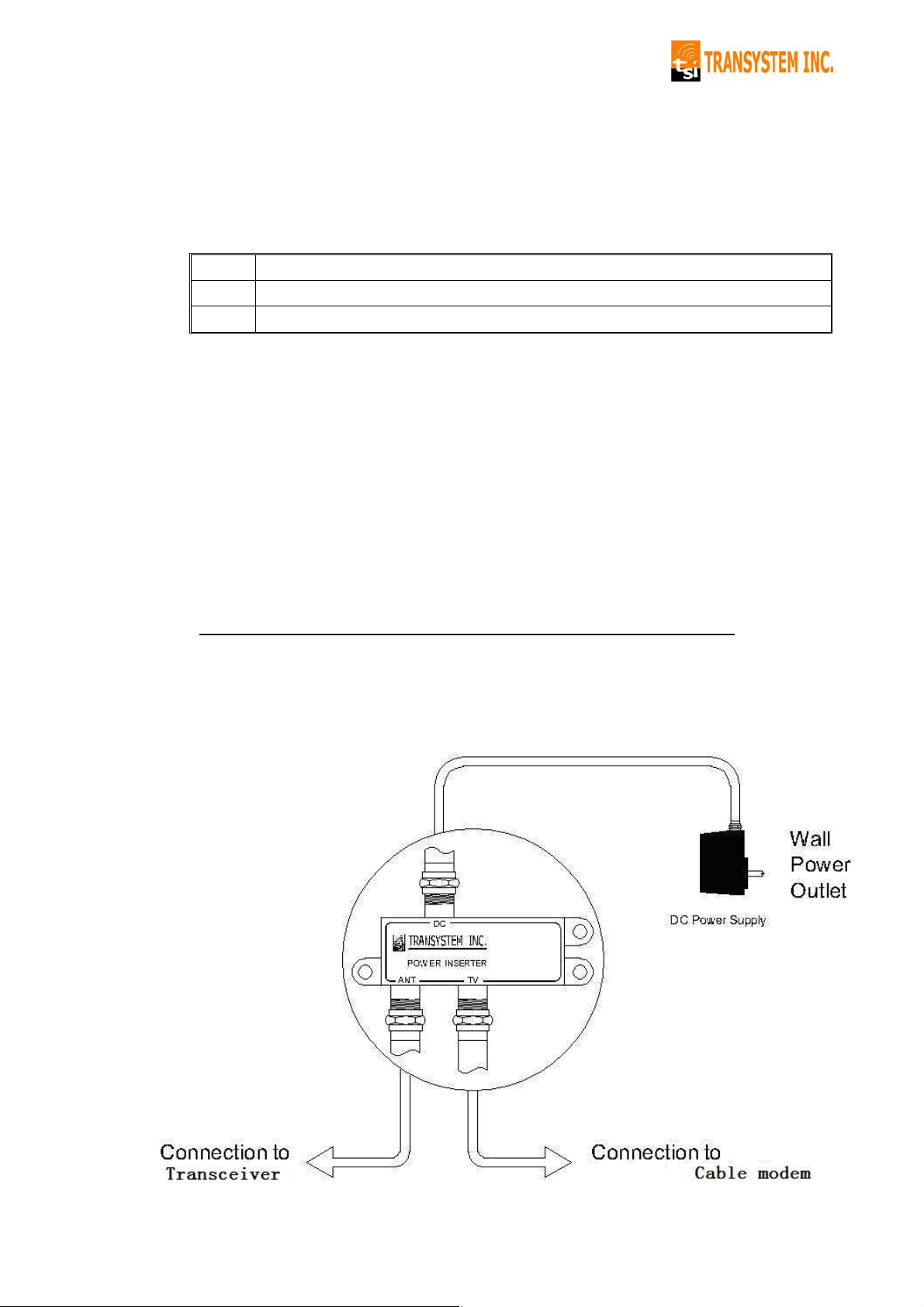

Diagram 2.2: Connection to Cable modem & Power Inserter
6

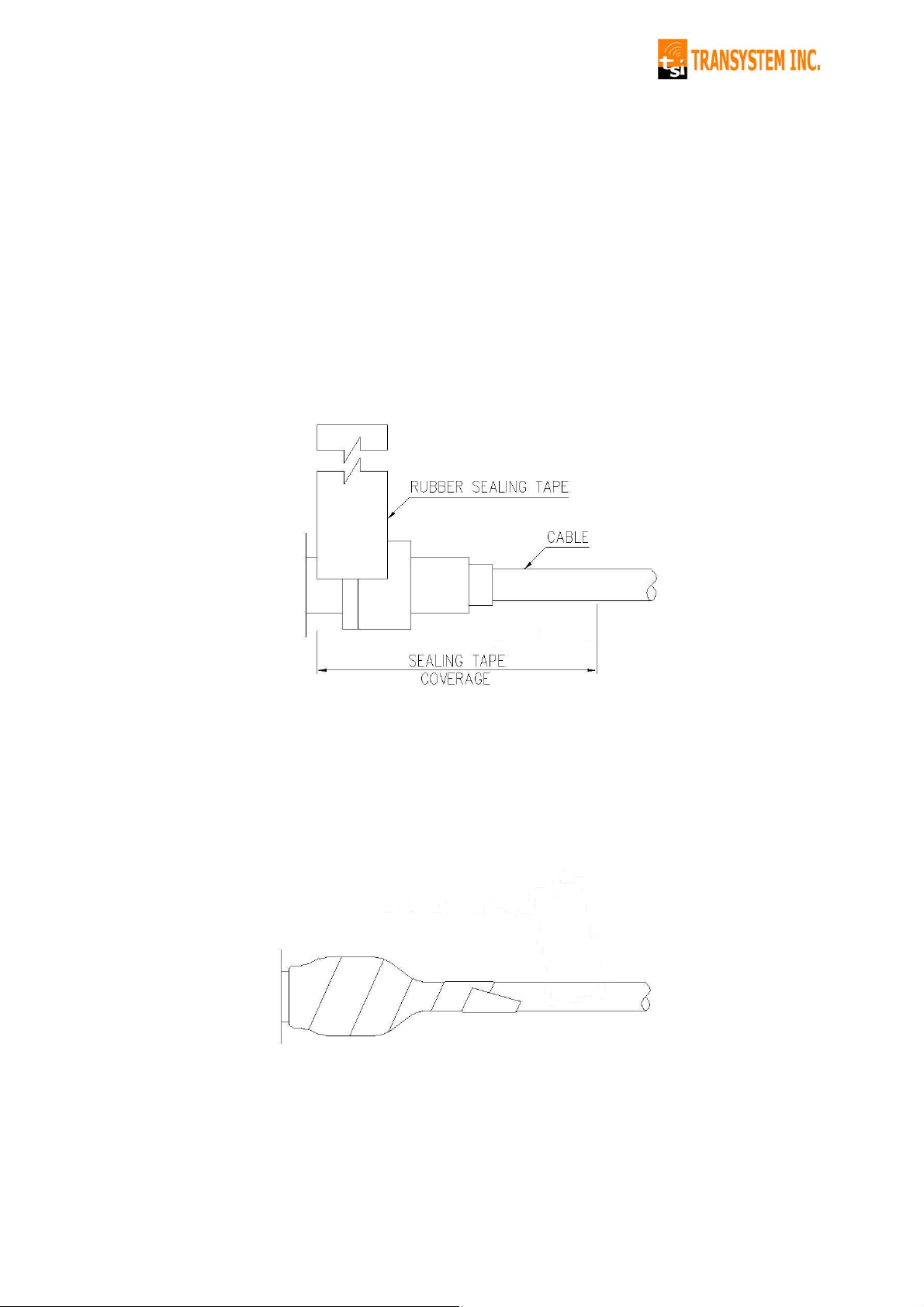

2.3 W aterpr oofin g Connections
Water-proofing is very important during installation of Transceiver. Please
use the included water-proof asphalt tape to seal off the F-connector as
shown below:

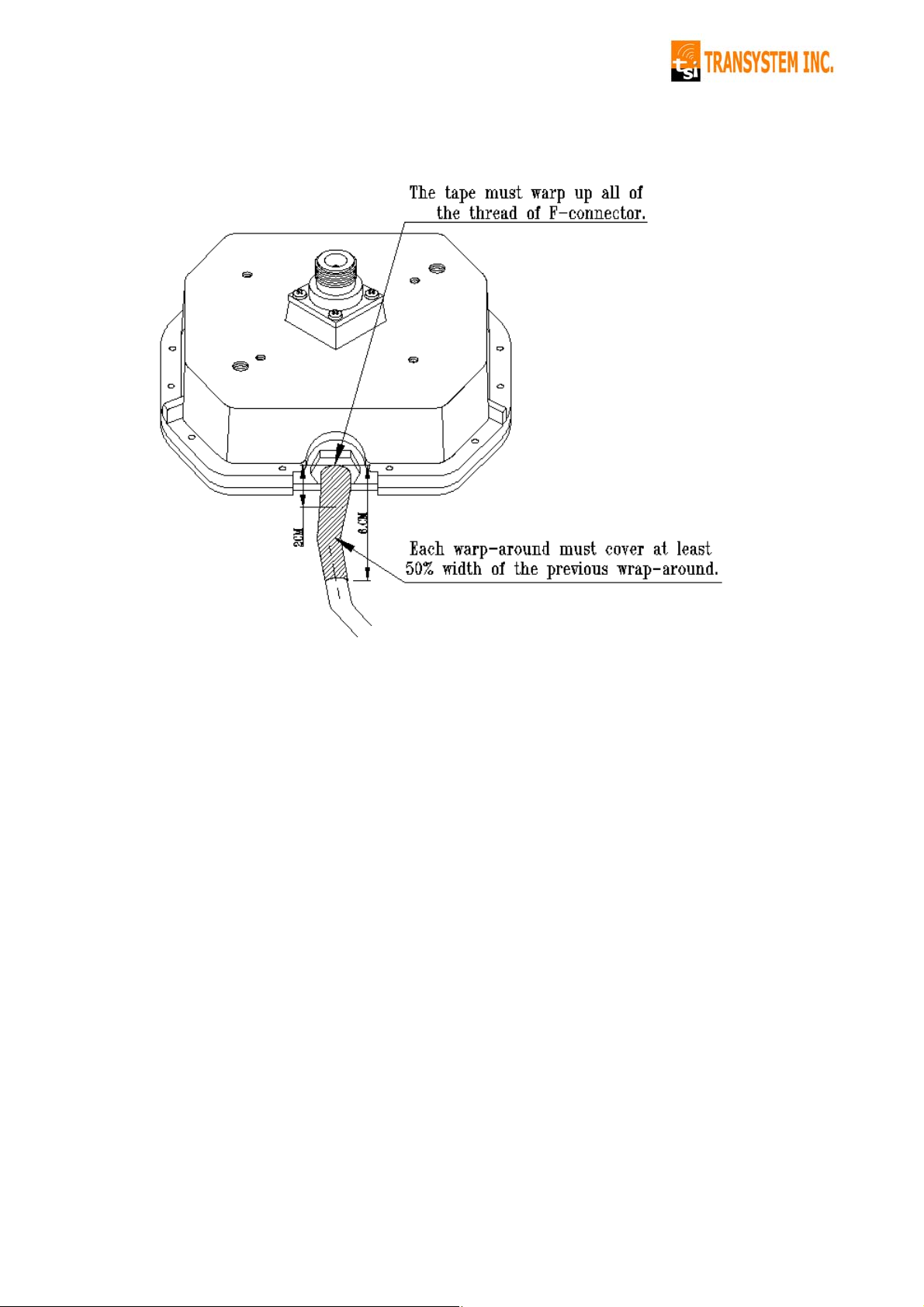

① After you plug in the coaxial cable into the F-connector, use the included
water-proofing asphalt tape to seal off the F-connector from the bottom (i.e.
the part close to Transceiver). Note that the tape must wrap up all the thread
of the F-connector.
② The wrap up of the tape must be tight and sturdy. Each wrap-around must
cover at least 50% width of the previous wrap-around.
7
③ The total width of the wrap-around is about 6cm, which corresponds to 7
to 8 rounds of tapes.
* Warning: If you do not follow the above procedure, the Transceiver could
become malfunctioning due to water leakage.`
8
FCC Notices
This device complies with Part 15 of the FCC Rules. Operation is subject to the condition
that this device does not cause harmful interference.
CAUTION: Change or modification not expressly approved by the party responsible for
compliance could void the user’s authority to operate this equipment.
This equipment must be installed and operated in accordance with provided instructions
and the antenna(s) used for this transmitter must be installed to provide a separation
distance of at least 20 cm from all persons and must not be co-located or operating in
conjunction with any other antenna or transmitter. End-users and installers must be
provide with antenna installation instructions and transmitter operating conditions for
satisfying RF exposure compliance.
This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the
user is encouraged to try to correct the interference by one or more of the following
measures:
--Reorient or relocate the receiving antenna.
--Increase the separation between the equipment and receiver.
--Connect the equipment into an outlet on a circuit different from that to which the receiver
is connected.
--Consult the dealer or an experienced radio/TV technician for help.
CAUTION:
Any changes or modifications not expressly approved by the grantee of this device could
void the user's authority to operate the equipment.
T
Overview
An A
supplier of RF microwave & GPS products
R
T

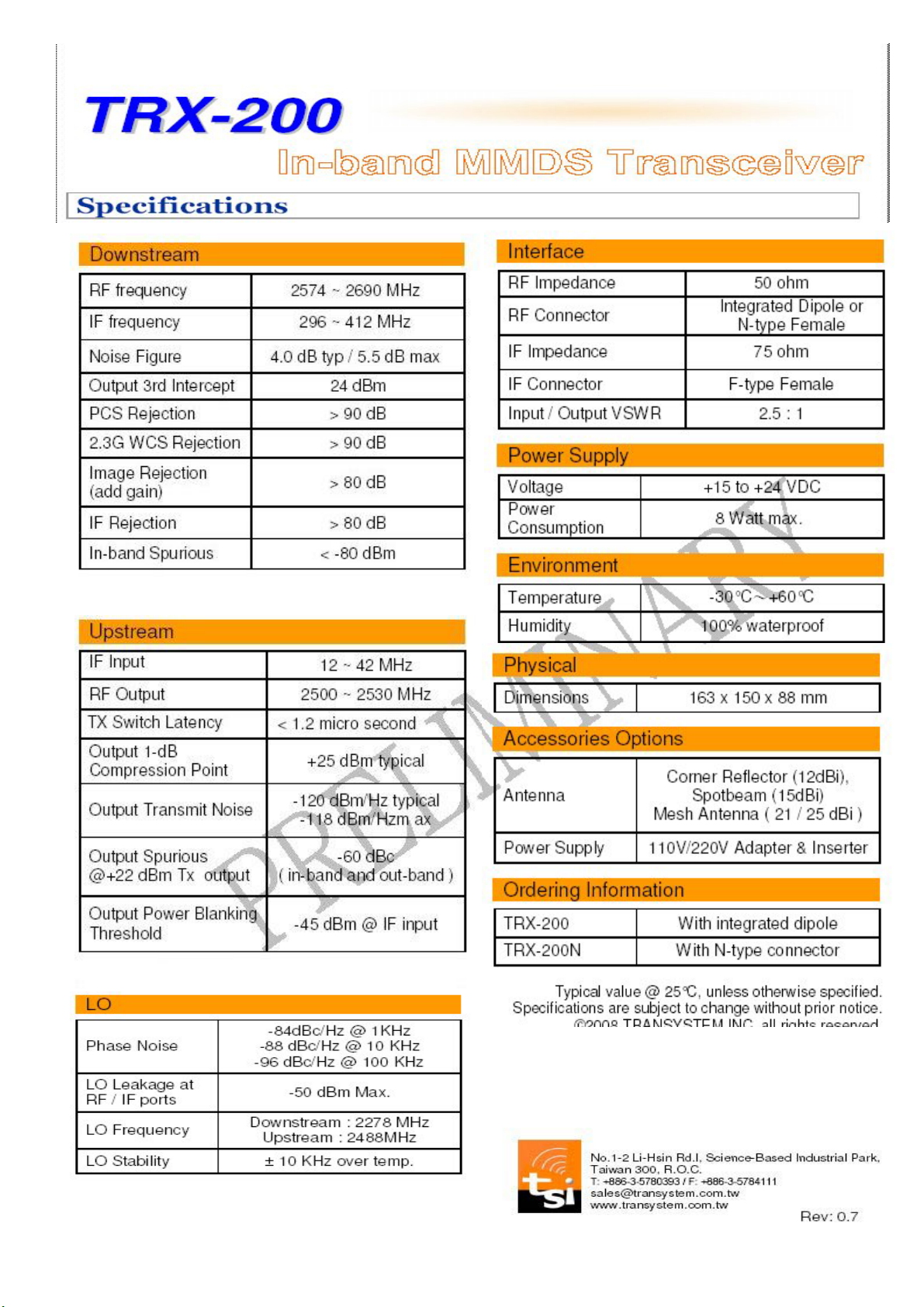

TRX-200 is TSI’s new generation transceiver for
2-way wireless broadband Internet application at
2574-2690 MHz band for down stream. It accepts
an IF signal of 12~42 MHz from cable modem,
upconverts the signal to 2500~2530MHz and
transmits it back to the MMDS headend site.
With its built-in automatic on/off switch, TRX-200
will enter sleep mode to eliminate the broadband
noise when there is no data packet transmission.
Without exception, TRX-200 embodies the long
term stability and reliability common to all TSI
products.
With the integrated downconverter and
upconverter, TRX-200 provides the best cost /
performance solution for your 2-way MMDS
operation.
Key Features
Application
X--
R
X
• QPSK, 16 QAM Transmission Compatible
• 256 QAM Reception Compatible
• Automatic On/Off switch
• Up to 50Km cell coverage
• Integrated dipole
• Easy installation with mesh antenna
• Low phase noise
• High frequency stability
• Low power consumption
• Meet FCC spectral mask requirement
• RoHS compliant
• MMDS CPE Internet access
2
2
0
0
0
0
TRANSYSTEM INC.
+
Rev: 0.7
