Transystem 760 User Manual

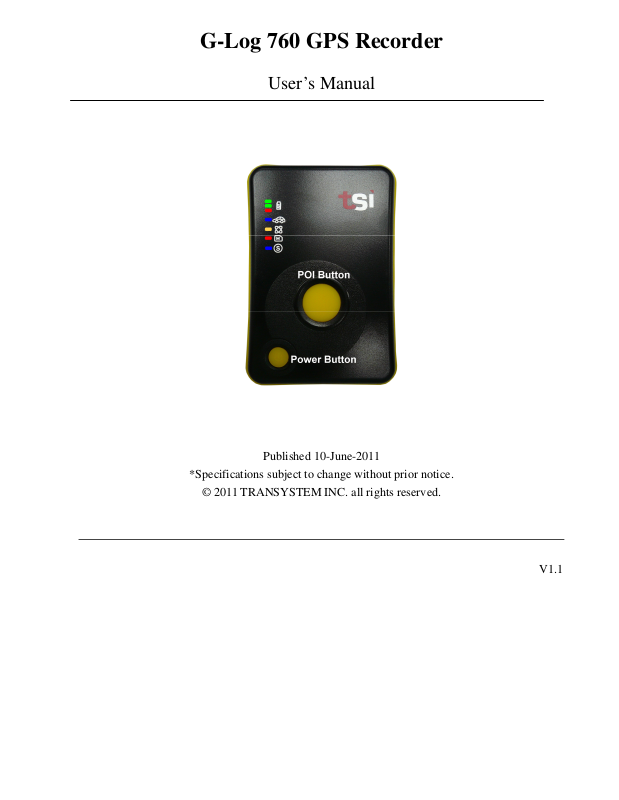

G-Log 760 GPS Recorder
User’s Manual
Published 10-June-2011
*Specifications subject to change without prior notice.
© 2011 TRANSYSTEM INC. all rights reserved.
V1.1
Table of Contents
1. Before you begin ........................................................................................................................ 3
1-1. Note and Warning ............................................................................................................... 3
1-2. Introduction ......................................................................................................................... 4
1-3. Features ............................................................................................................................... 4
1-4. Applications ........................................................................................................................ 4
1-5. Package content .................................................................................................................. 5
2. Getting Started ............................................................................................................................ 6
2-1. Appearance .......................................................................................................................... 6
2-2. Buttons ................................................................................................................................ 7
2-3. LED Display ....................................................................................................................... 7
2-4. Default setting ..................................................................................................................... 8
2-5. POI confirmation ................................................................................................................ 9
2-6 Smart Log ............................................................................................................................. 9
2-7 AGPS .................................................................................................................................... 9
2-8. Getting Started .................................................................................................................. 10
2-9. Helpful Tips .......................................................................................................................11
3. Configure your GPS Recorder ................................................................................................. 12

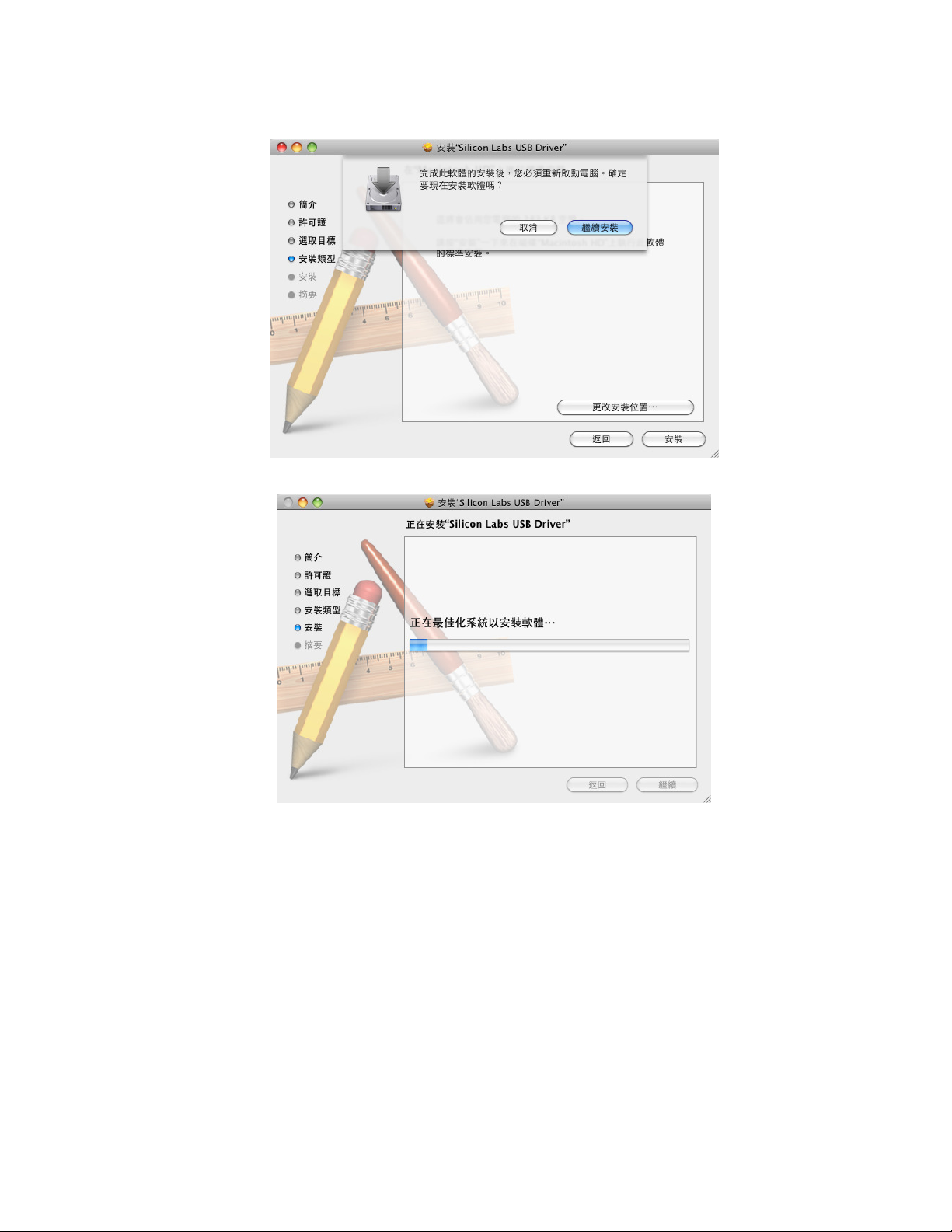

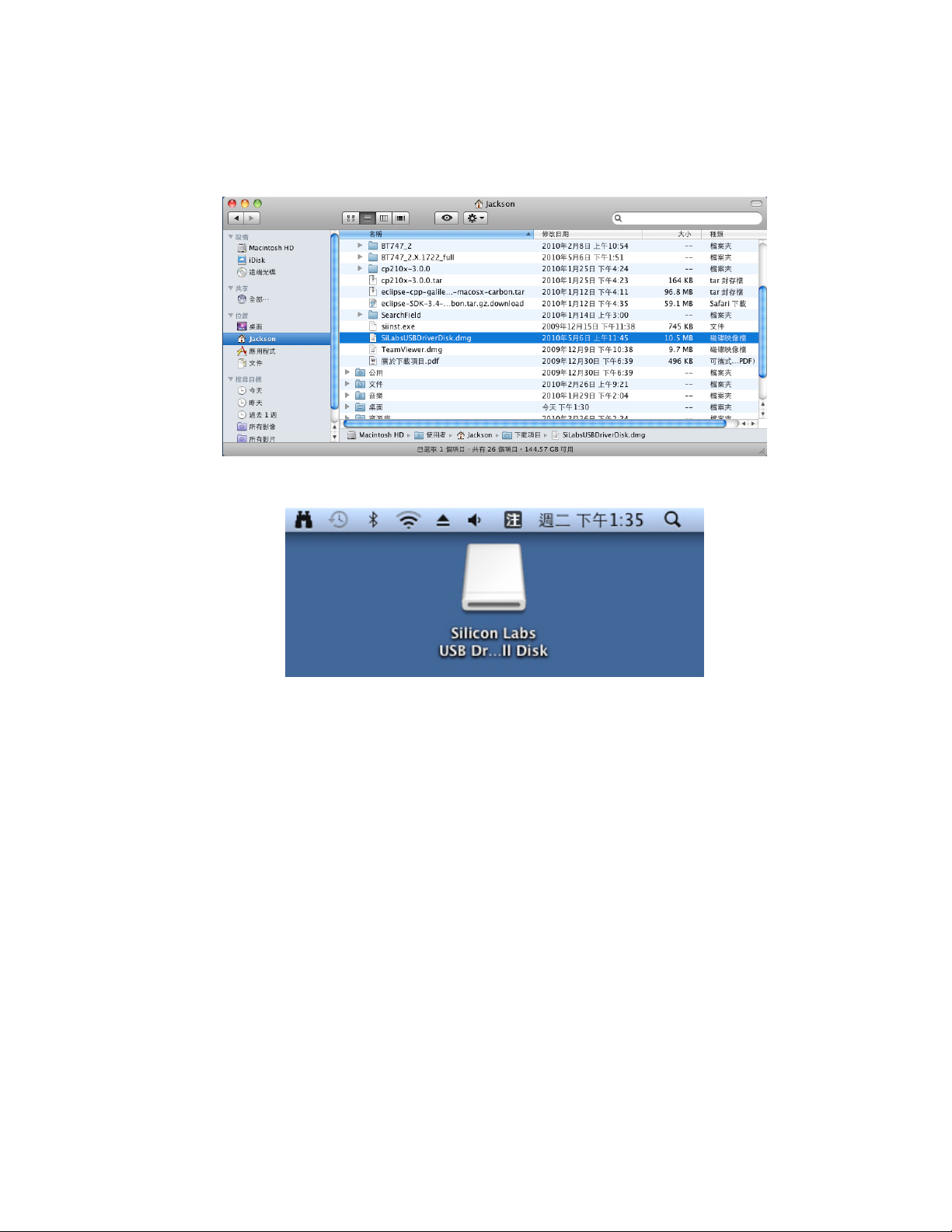

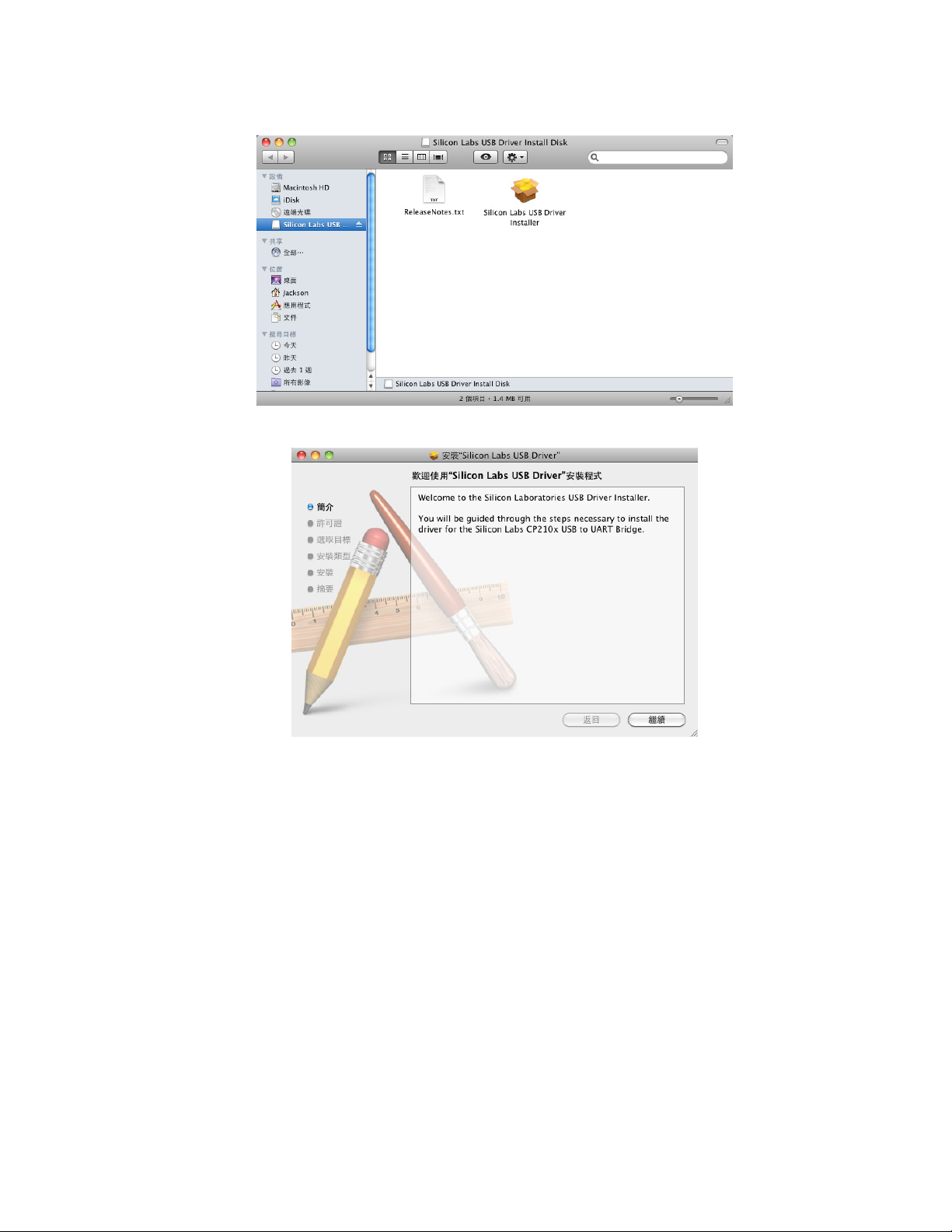

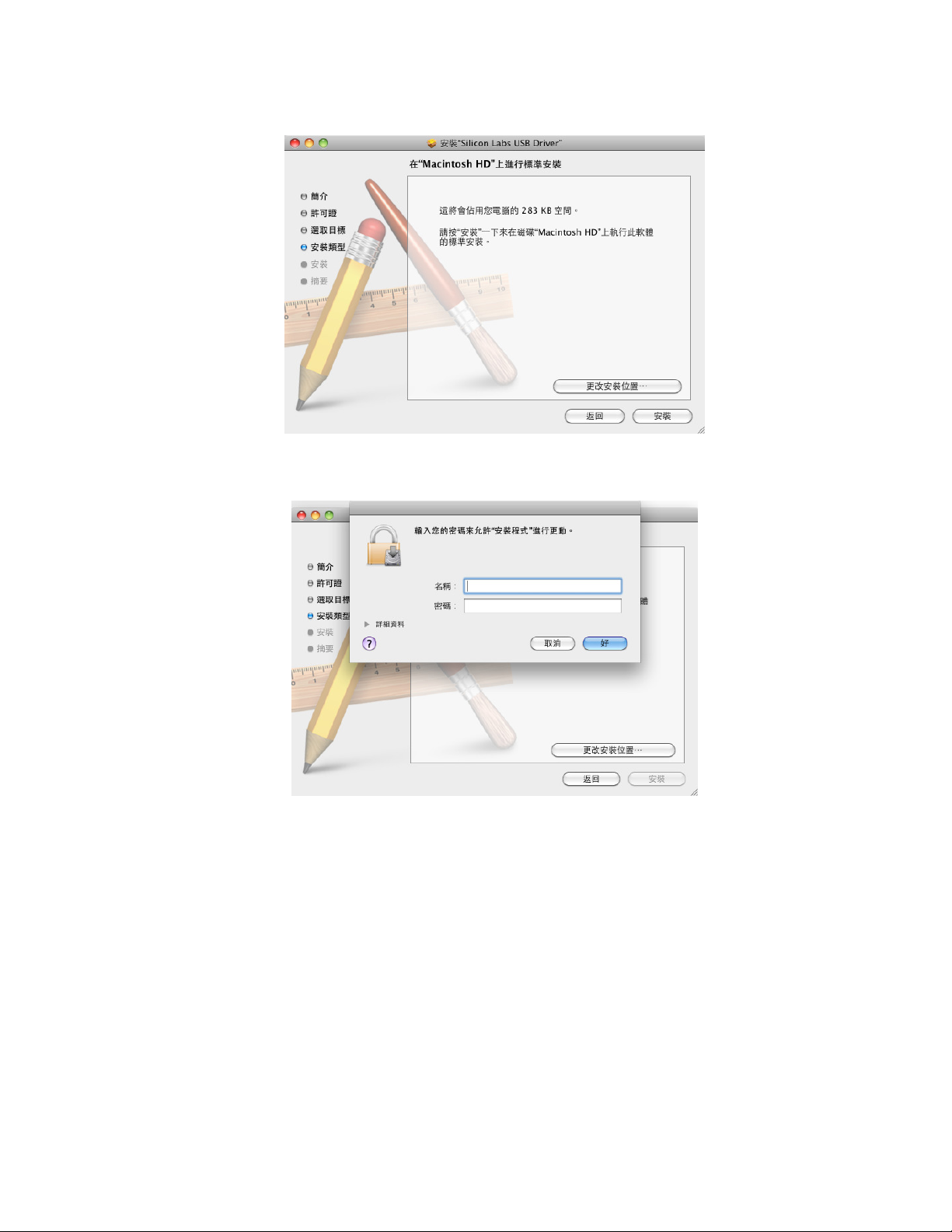

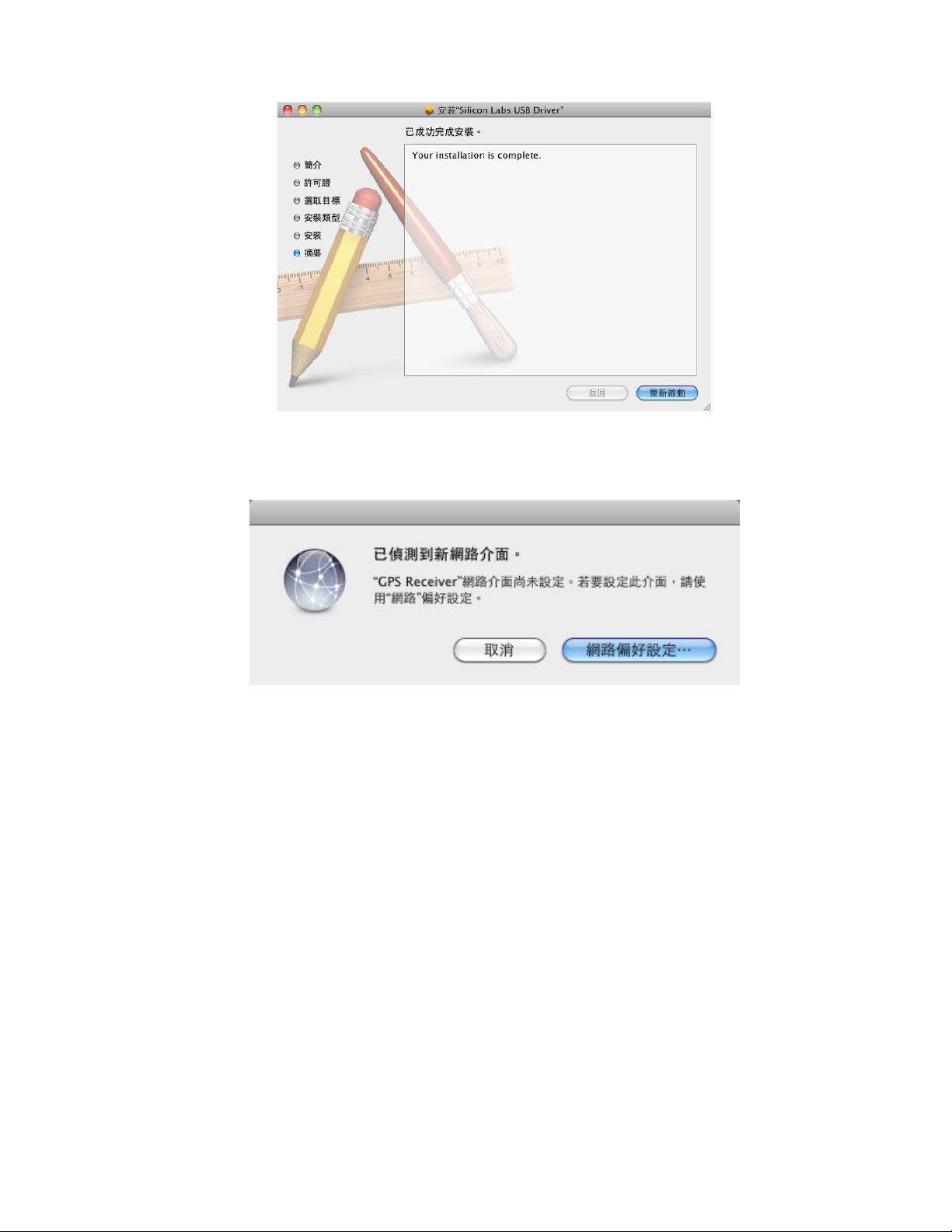

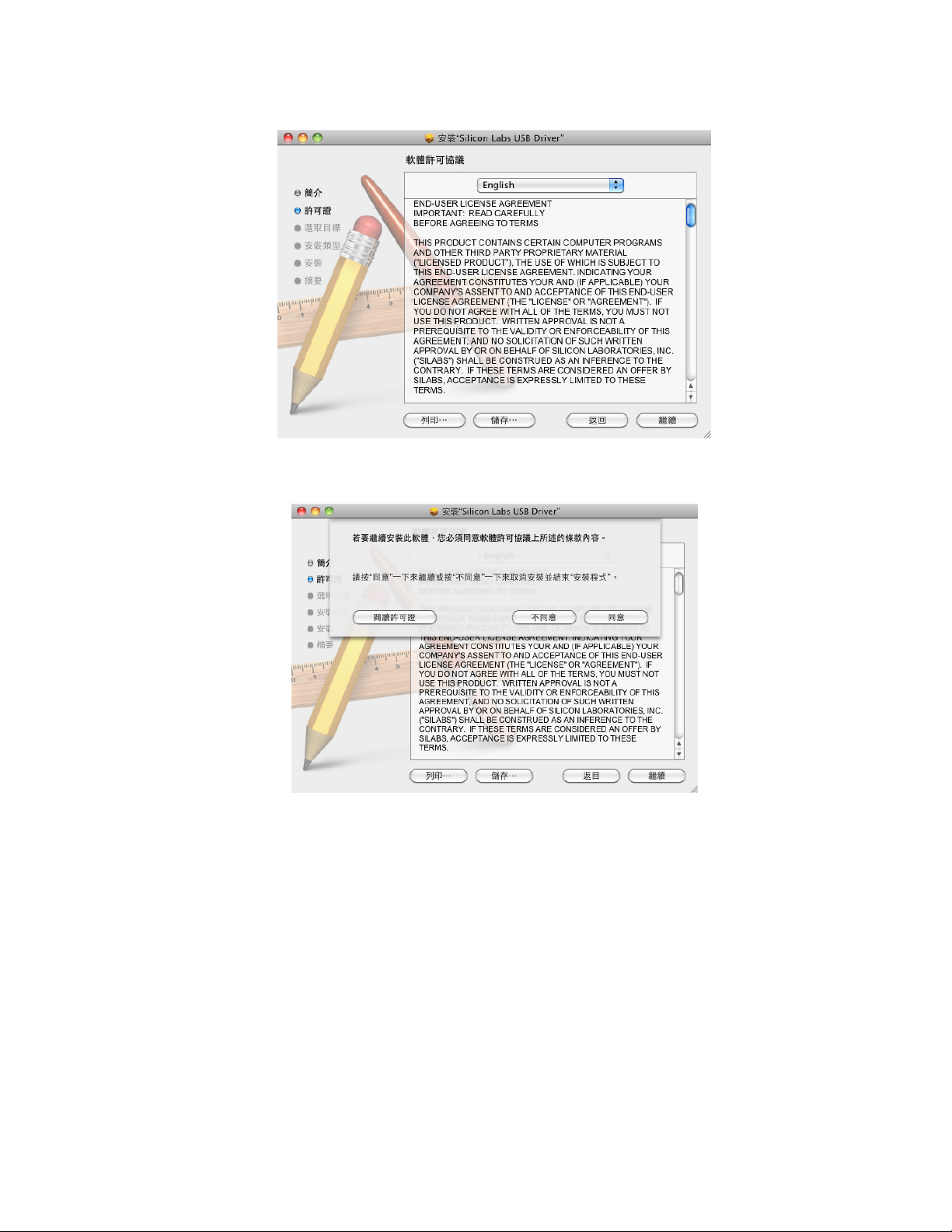

3-1. Driver Installation ............................................................................................................. 12

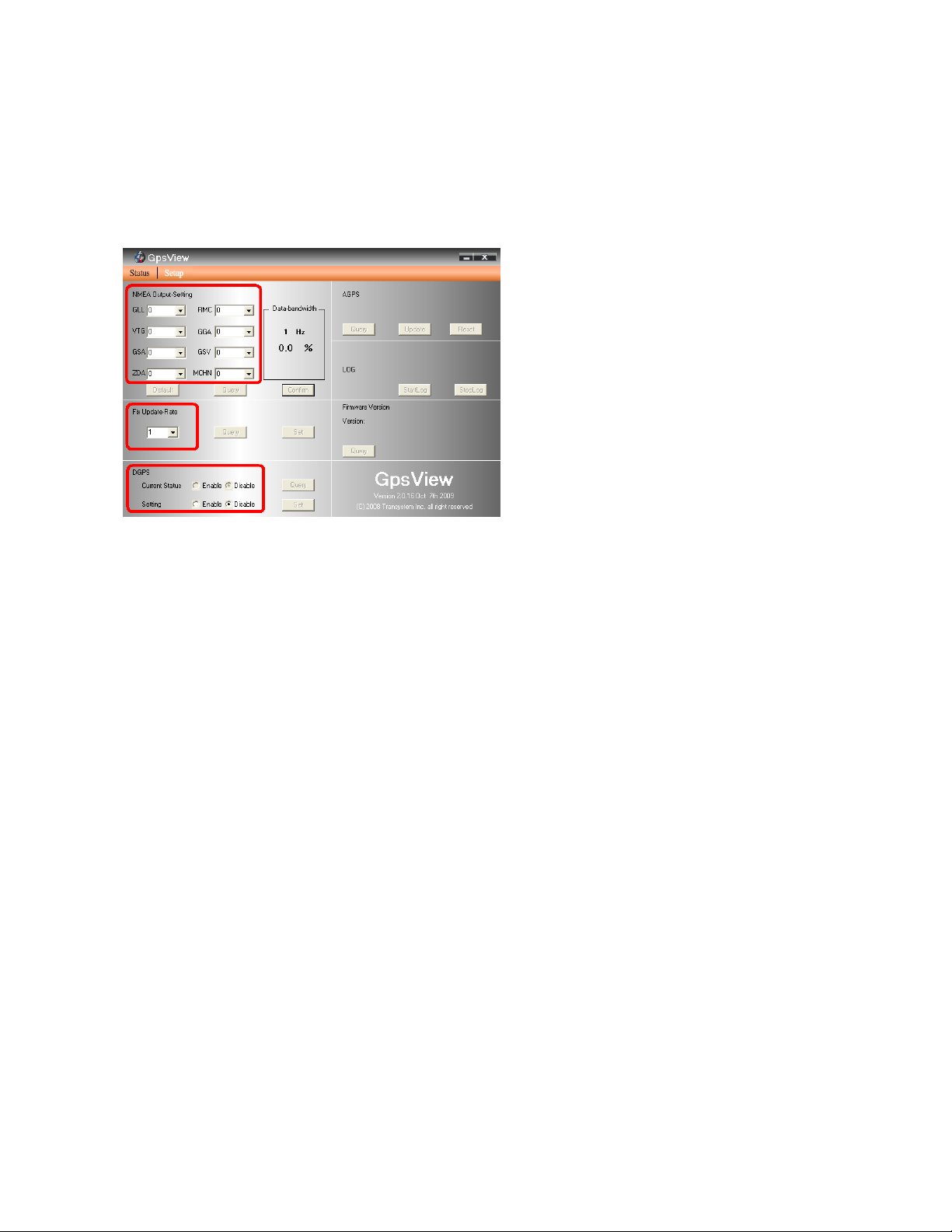

3-2. GpsView software ............................................................................................................. 12

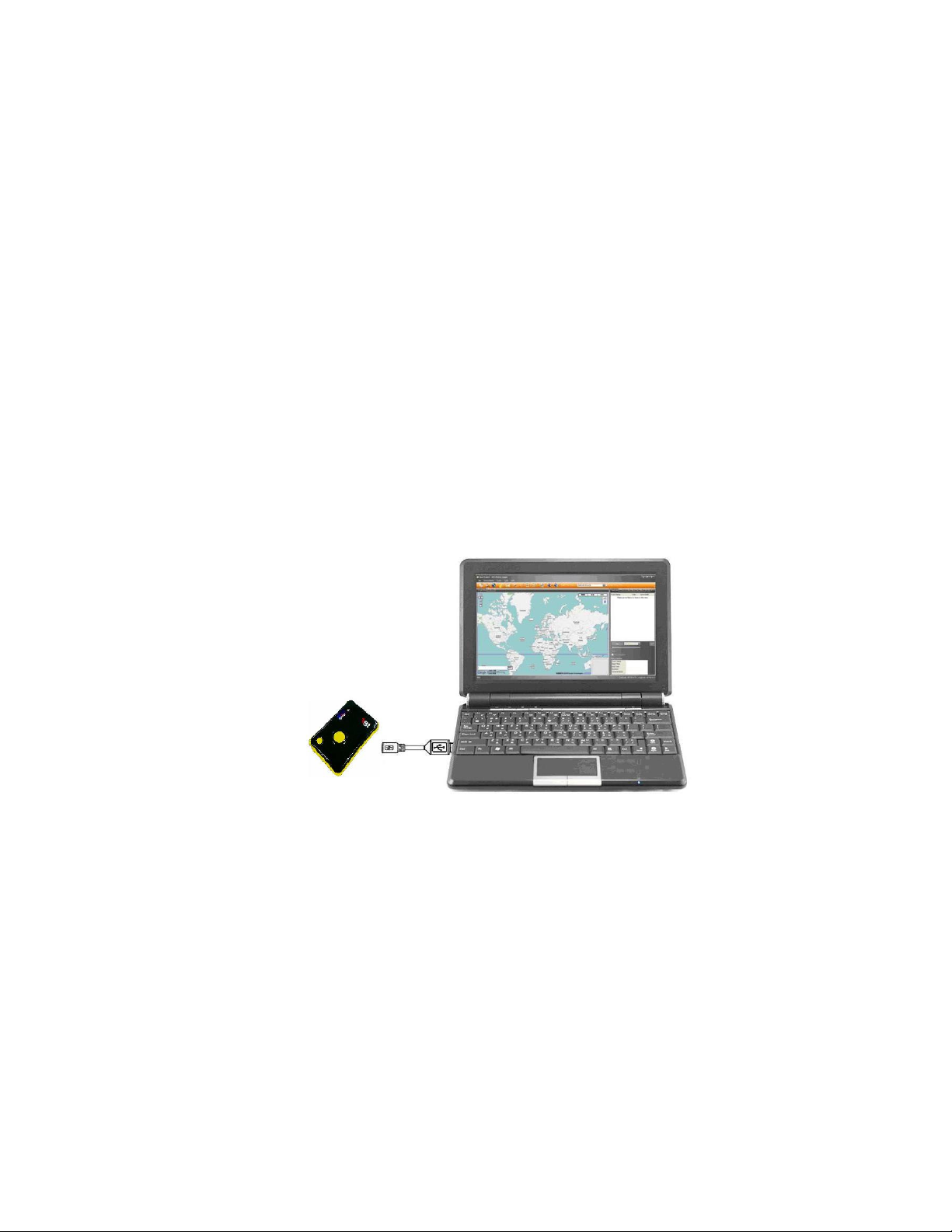

3-2-1. Connect USB cable between GPS and laptop ....................................................... 12

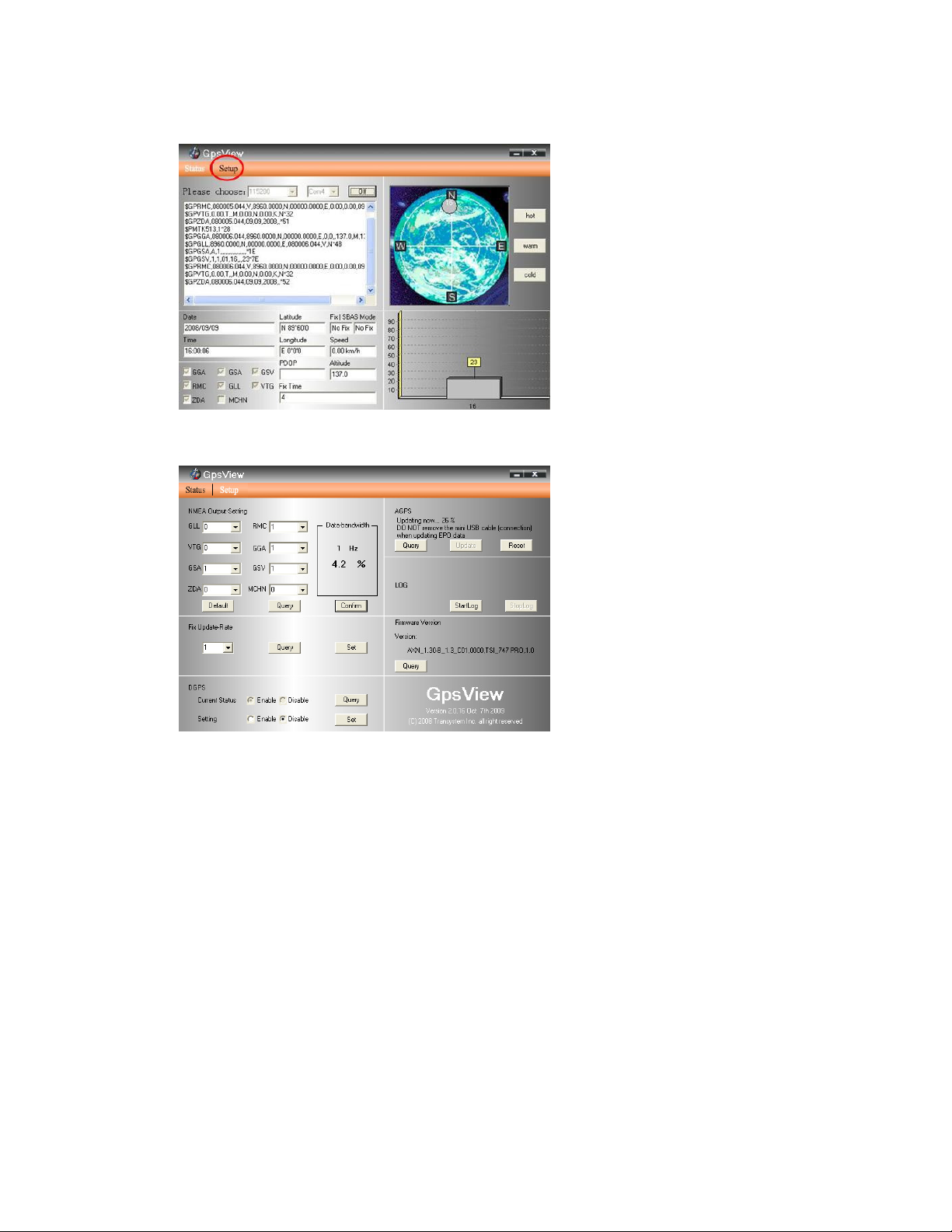

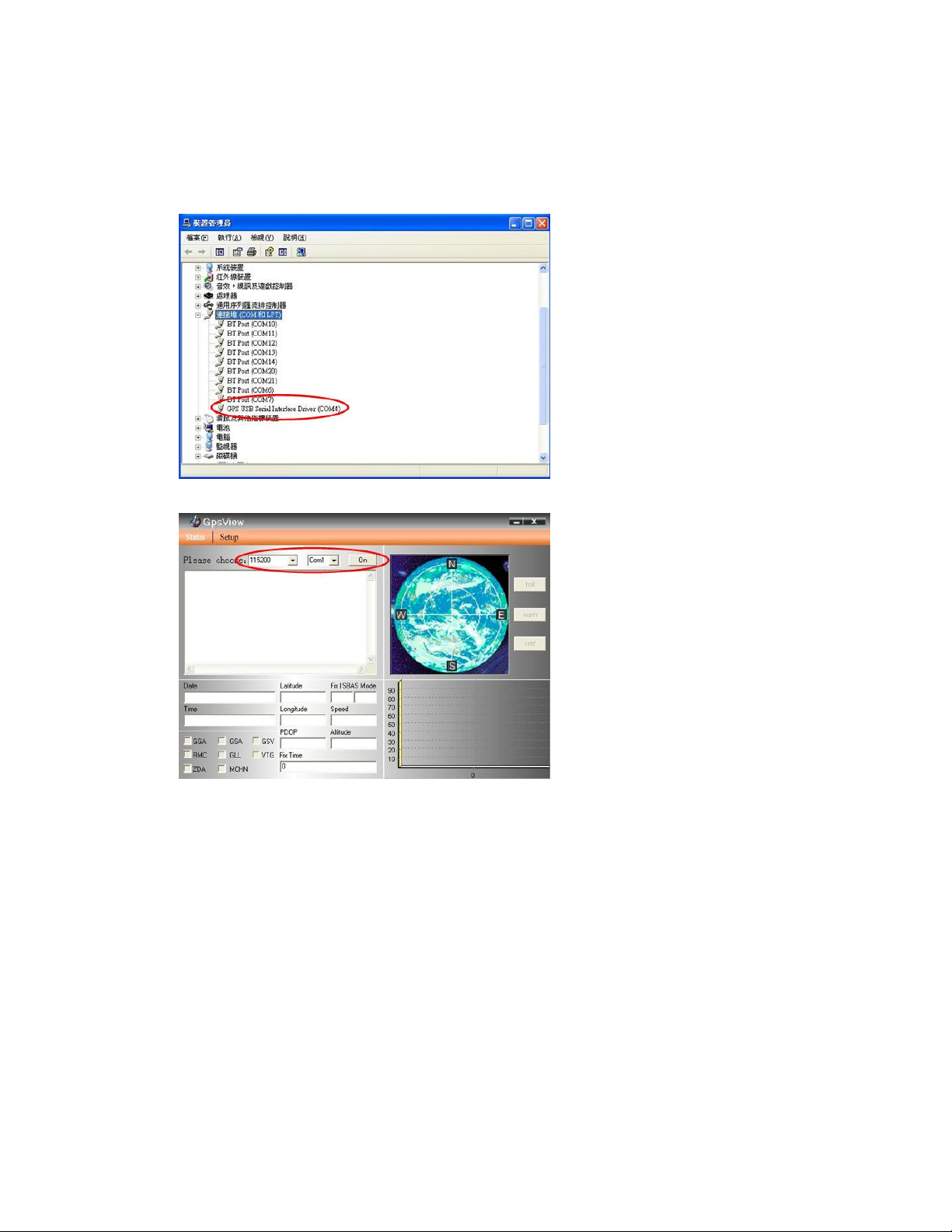

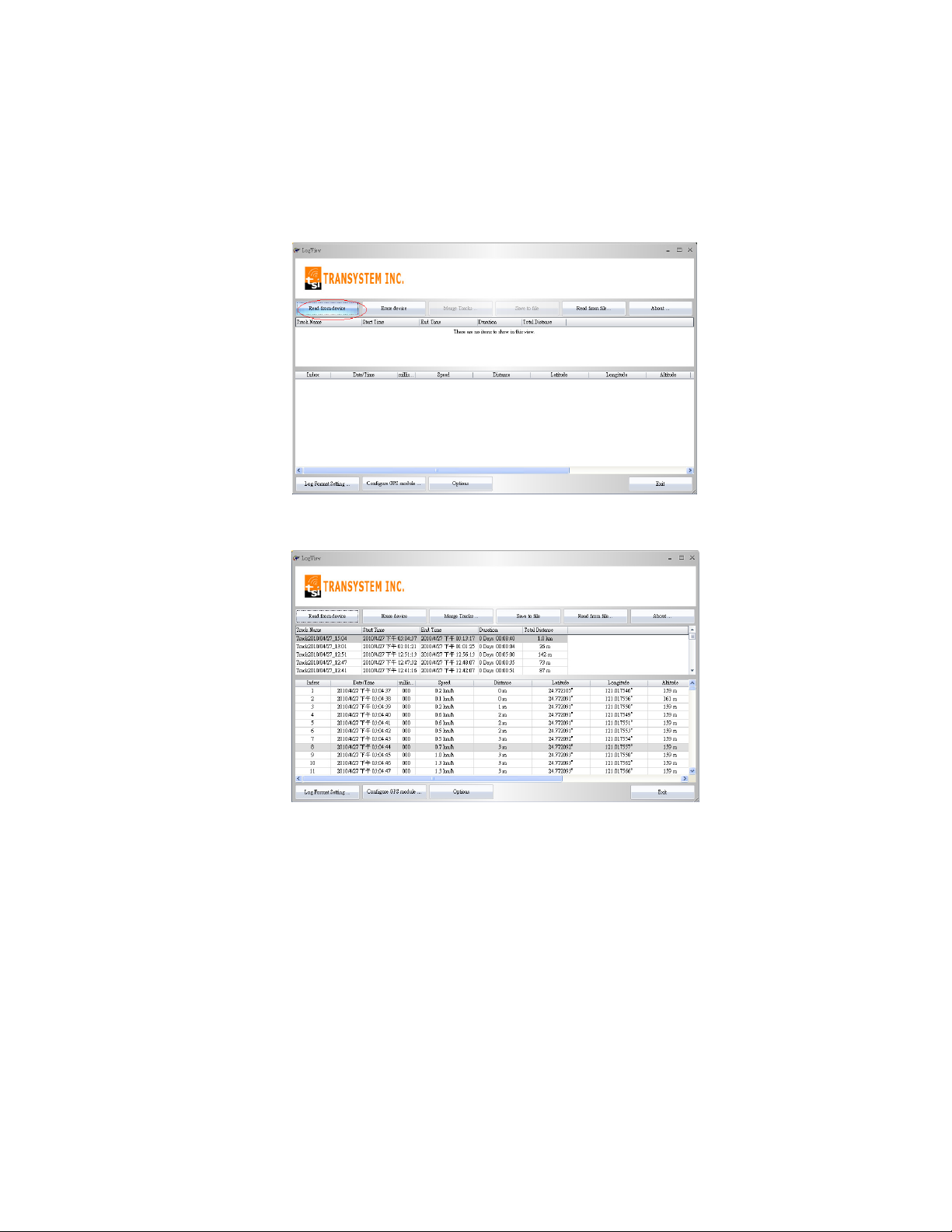

3-2-2. Execute GpsView Program ................................................................................... 13

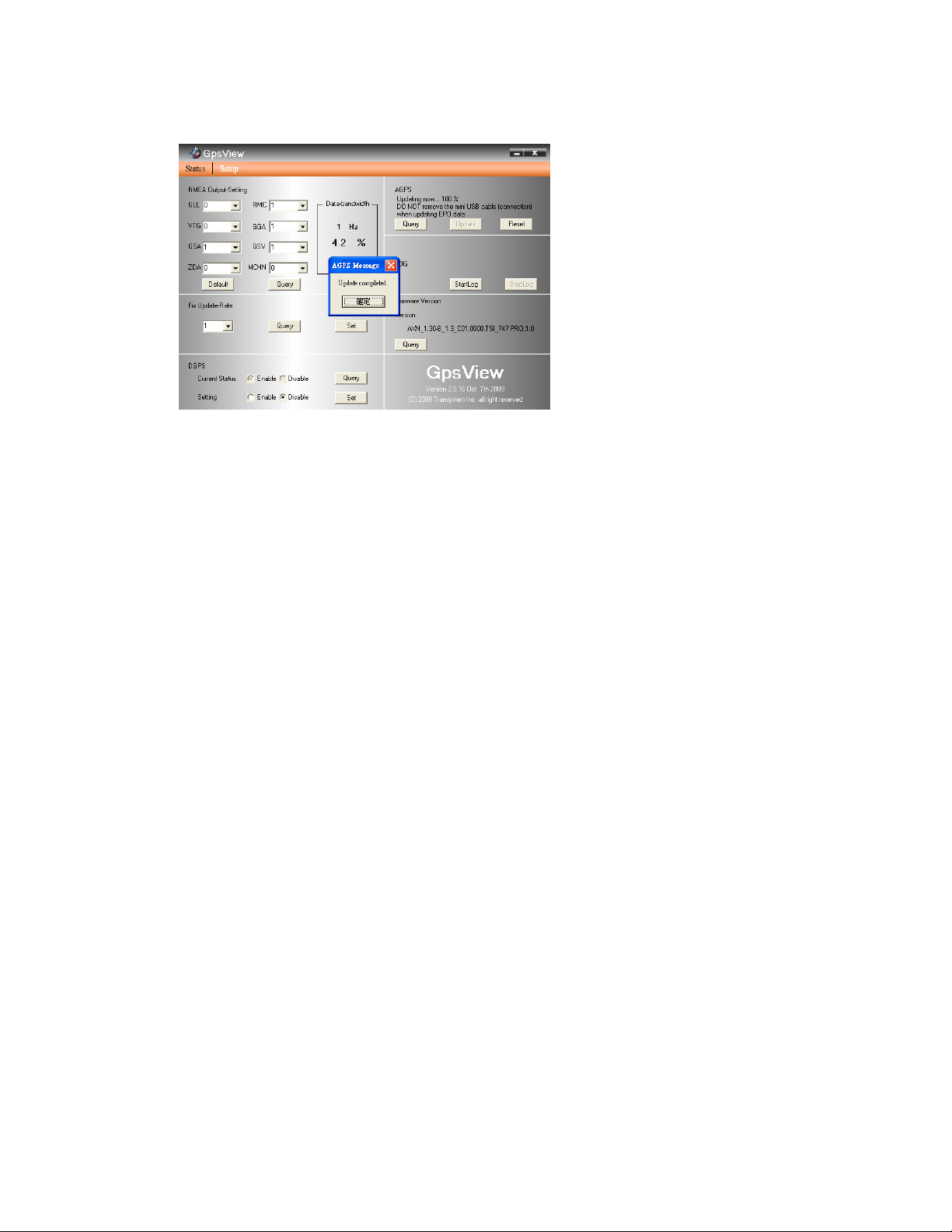

3-2-3. Download AGPS ................................................................................................... 14
Appendix A. Specifications .............................................................................................................. 25

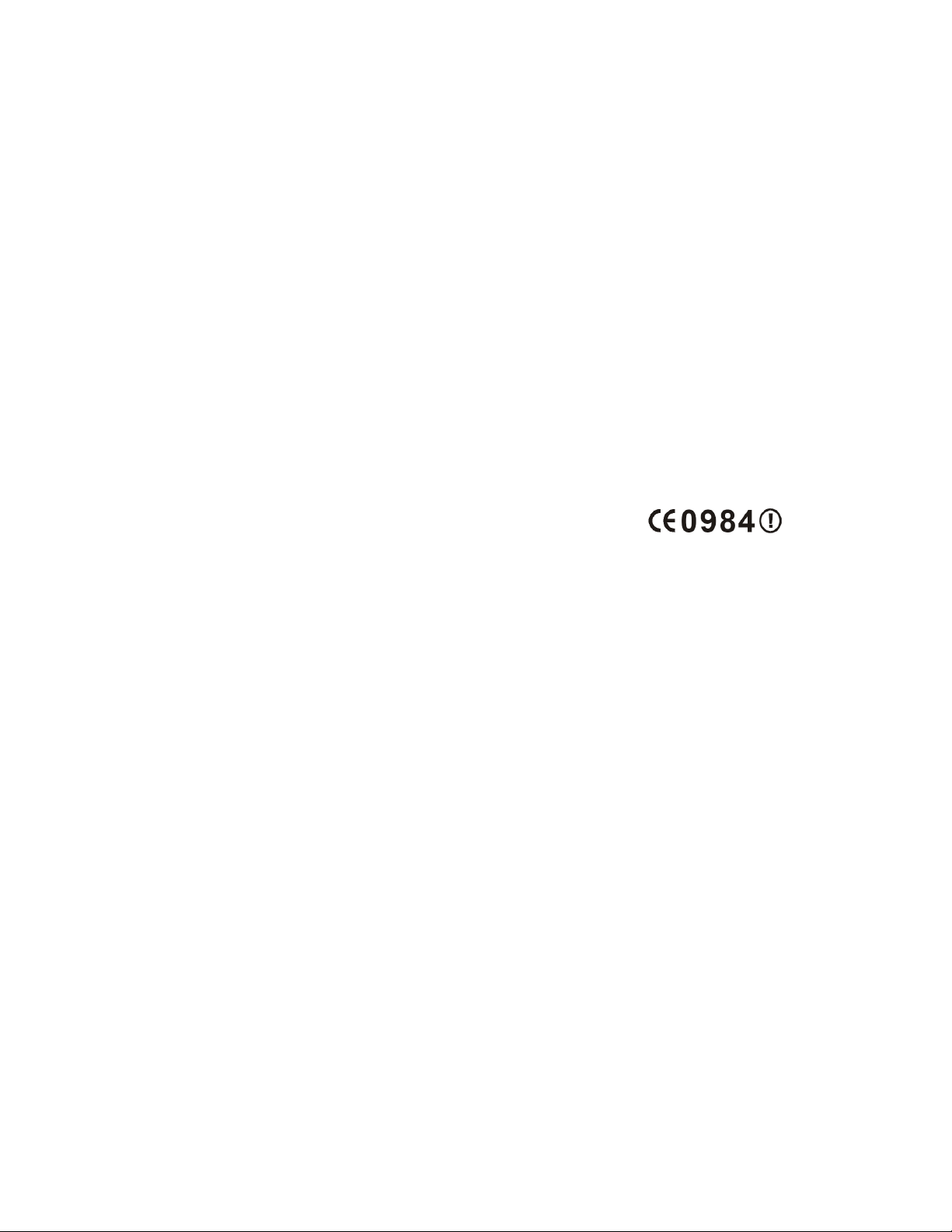

Appendix B. Certification ................................................................................................................ 27
Appendix C. Warranty Information .................................................................................................. 28
2
V1.1
1. Before you begin
1-1. Note and Warning
If G-Log 760 is used in temperature lower than -10°C or higher than 60°C, its Lithium-Ion
battery charging capability will decrease. Please leave your G-Log 760 far from heat or high temperature environment. In addition, do not expose your G-Log 760 in temperature higher than 140°F(60°C). The battery inside G-Log 760 may be overheated and cause very
serious damage. The Lithium-Ion battery inside the G-Log 760 should be recycled.
It is recommended to turn off G-Log 760 while in the hospital. Wireless GPS may interfere
with medical equipments which use radio frequency.
Store your G-Log 760 in dry/cool places if you are not using G-Log 760 for a long period
of time.
Keep G-Log 760 and all accessories out of children’s reach.
The manufacturer assumes no responsibility for any damages and loss resulting from the
use of this manual, or from deletion of data as a result of malfunction, dead battery, or from
misuse of the product in any way.
Use only the supplied and approved accessories. Unauthorized accessories, modifications
or attachments could damage your G-Log 760, and may violate regulations governing radio
devices.
Use a dry, clean soft cloth to clean the unit. Do not use harsh cleaning solvents, chemicals,
or strong detergents.
Do not attempt to open the G-Log 760 by yourself. Unauthorized hacking may damage the
unit, and void your warranty.
3
V1.1
1-2. Introduction
GPS G-Log 760 features commercial grade GPS receiver to help manage your field team effectively.
Its water-proof, durable all-in-one design includes audible feedback and motion sensor to give
maximum battery life.
GPS G-Log 760 allows you to log your route by setting the interval of time/ distance/ speed. Easy to
use and durable button allow field personal to record point of interest by push of a button. Through
user friendly utility, it can display your track on Google Map.
1-3. Features
Durable push button for POI recording
Smart log of time, distance and speed
Log up to 250,000 waypoints
High receiving sensitivity with AGPS capability
IPX3 water-proof
Embedded sensor for smart operation
Smart auto on/off
Vibrator / Buzzer (Factory optional) for POI confirmation
Rechargeable battery
1-4. Applications
Record your travels
Manage trip expense
Manage field team
4
V1.1
Point of interest recording
1-5. Package content
Congratulations on your purchase of GPS G-Log 760 with Lithium-Ion chargeable battery. Before
you start using G-Log 760, please make sure your package includes following items. If any item is
damaged or missing, please contact your local dealer at once.
1. G-Log 760 GPS Recorder ( include Li-Ion battery ) x 1
2. USB cable x 1
3. CD Tool x 1 (user manual, software utility, driver)
4. Quick start guide x 1
* Unit package contents may vary depending on countries without prior notice.
5
V1.1
2. Getting Started
2-1. Appearance
6
5
4
7
3
2
8
1
9
1. Power bottom
2. Push to log (POI) button
3. Smart mode Led (Blue)
4. Memory capacity LED (Red)
5. GPS status LED (Orange)
6. Car mode LED (Blue)
7. Battery status LED (Red/Green)
8. Built-in patch Antenna
9. USB connector & Reset button (with cover)
6
V1.1
Blinking
Low
battery
level
Battery Status /
2-2. Buttons
Name Description
Power Press and hold 3 seconds to turn On and Off your device.
Press to check the battery status when device is power on.
POI Push button to record Point of Interest (POI),
Memory status LED will blink 3 times to confirm button pressed
Mode change Press POI button for 5 seconds to switch between normal and smart mode.
Press POI button for 10 seconds to switch between normal and car mode.
* Vibrating feedback is provided when POI button is pressed.*
Reset Button Push to have device back to normal mode.
Press for 5 seconds to have factory default setting and logged data erased.
Please do not turn off the device when memory red color LED is flashing.
2-3. LED Display
The G-Log 760 GPS Recorder has following LED displays for status update.
Symbol
Function /
Color
Battery Status / Red
Battery Status / Green
Green & Red
GPS Status / Orange
Car mode status / Blue
Status Description
On During power charging via USB port
On / Off
All LED On Fully charged
On Searching for satellite
Blinking GPS fix & start log
On
7
Power gauge when both POI and Power buttons are pressed at the same time
In car mode, device will go into sleep mode when no power supply from USB and device will wake up and start logging when there is power supply from USB.
V1.1
Smart Log mode /
NMEA
Log format
Blinking The device is logging position
Memory capacity / Red
Blue
2-4. Default setting
GGA,GSA,GSV,RMC Date / Time/ Fix valid / Latitude / Longitude / Height/ Speed / Heading / RCR User Name : Empty Auto Gear : OFF (can be turned on/off by software) Log by time : 1 (can be programmed by software)
Normal mode
Smart Mode
Car mode
Log by distance : 0 (can be programmed by software) Log by Speed : 0 (can be programmed by software) Vibration sensor : OFF (can be turned on/off by software) Check password : OFF (can be turned on/off by software)
User Name : Empty Auto Gear : ON (can not be turned off by software) Vibration sensor : ON (can not be turned off by software) Check password : OFF (can be turned on/off by software)
User Name : Empty Auto Gear : OFF (can be turned on/off by software) Log by time : 5 (can be programmed by software) Log by distance : 0 (can be programmed by software) Log by Speed : 0 (can be programmed by software) Vibration sensor : OFF (can not be turned on by software) Check password : OFF (can be turned on/off by software)
Blink 3 times POI button is pressed
On The memory is >80% full
Keep flashing Erasing data
On Smart log mode on/ vibration sensor on
Off Normal mode on/ vibration sensor off
2 sec flashing Sleep mode 1/3 sec
flashing
Reset button pressed to rest the device
Auto gear log time interval default: Speed < 5Km →30 seconds 5Km<speed< 50km →15 seconds
Speed > 50km n → 5 seconds
8
V1.1
2-5. POI confirmation
G-Log 760 uses following methods to confirm press of POI button:
Vibrator (default)
Memory capacity LED blinks 3 times (default)
Sound buzzer alarm (Factory Optional)
2-6 Smart Log
G-Log 760 will go into sleep mode and stop logging position if the on-board vibration sensor
detects no movement for over 3 minutes. This will help save power and memory space you’re your
G-Log 760 stays still.
User can choose to turn On or Off vibration sensor via LogView application program.
Also the logging interval is auto adjusted by current speed:
Speed greater than high limit, log every 5 sec
Speed lower than high limit and higher than lower limit, log every 15 sec
Speed lower than low limit, log every 30 sec
High / Low limit can be set by PC application program (LogView). Default high limit is
50Km/hour and low limit is 5Km/hour.
2-7 AGPS
You can download GPS satellite information from internet to help shorten satellite acquisition time.
This is called Asist GPS. Please follow section 3.2.3 to download AGPS data. Please note, AGPS
9
V1.1
