747Pro GPS Trip Recorder
User’s Manual
Published on 14-July-2010
V1.3
Table of Contents
Chapter 1 Before you begin.....................................................................................................4
1.1 Note and Warning ...................................................................................................... 4
1.2 Introduction................................................................................................................5
1.3 Features....................................................................................................................... 5
1.4 Applications.................................................................................................................5
1.5 Appearance .................................................................................................................6
1.6 Power Switch and Push Button................................................................................. 7
1.7 LED Display ................................................................................................................ 8
1.8 Buzzer Alarm..............................................................................................................9
1.9 Vibration sensor for Smart Log................................................................................9
Chapter 2 Getting Started ..................................................................................................... 10
2.1 Checking the package content................................................................................. 10
2.2 Getting Started..........................................................................................................11
2.3 Helpful Tips...............................................................................................................16
Chapter 3 How to configure your GPS Record?................................................................. 17
3.1 Driver Installation.................................................................................................... 17

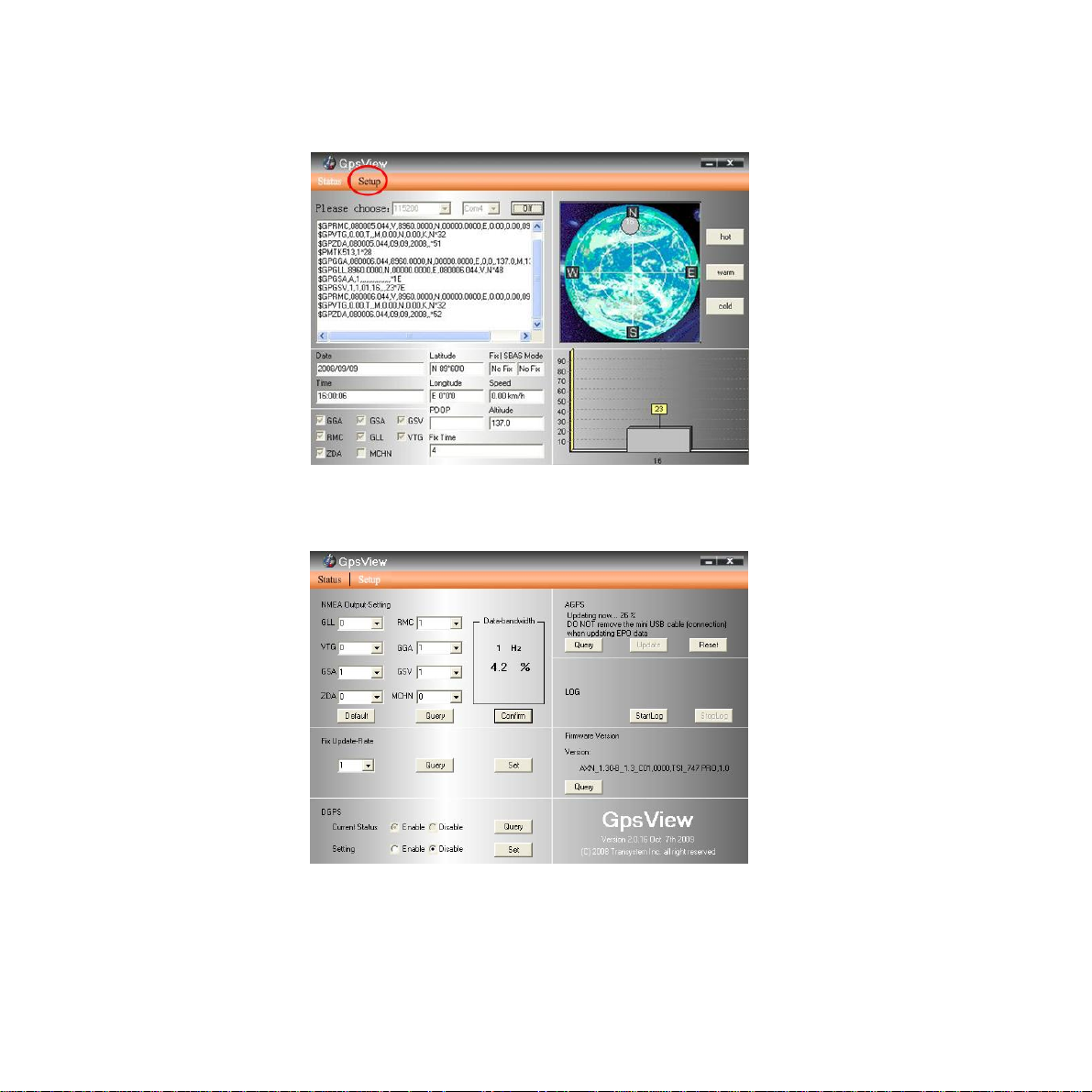

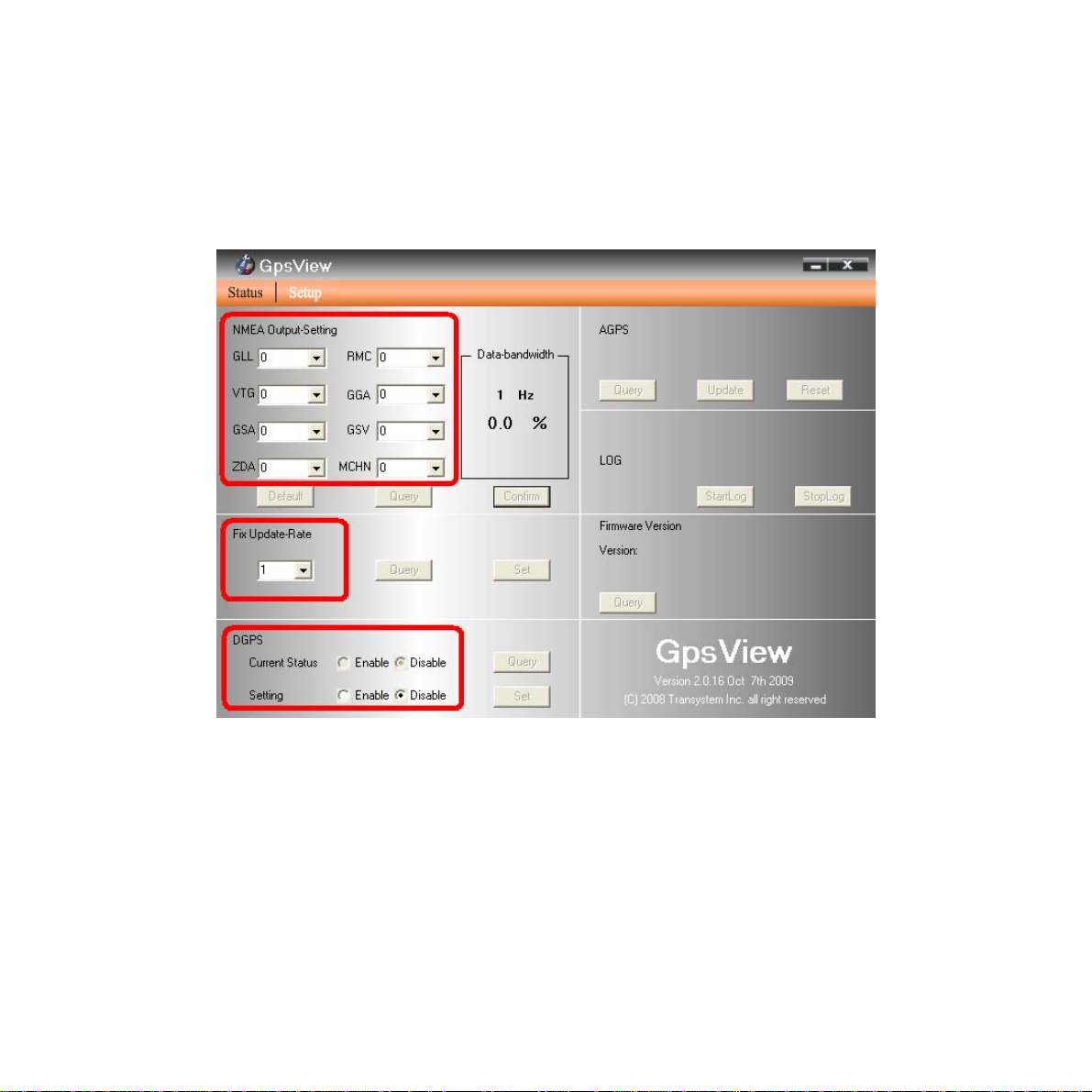

3.2 GpsView software..................................................................................................... 17
3.2.1 Connect USB cable between GPS and laptop...................................... 17
3.2.2 Executing GpsView Program................................................................18
3.2.3 Download AGPS..................................................................................... 19
Chapter 4 Using Photo Tagger software...............................................................................22
4.1 Execute and install software utility Photo Tagger.................................................22
4.2 Google Earth............................................................................................................. 22

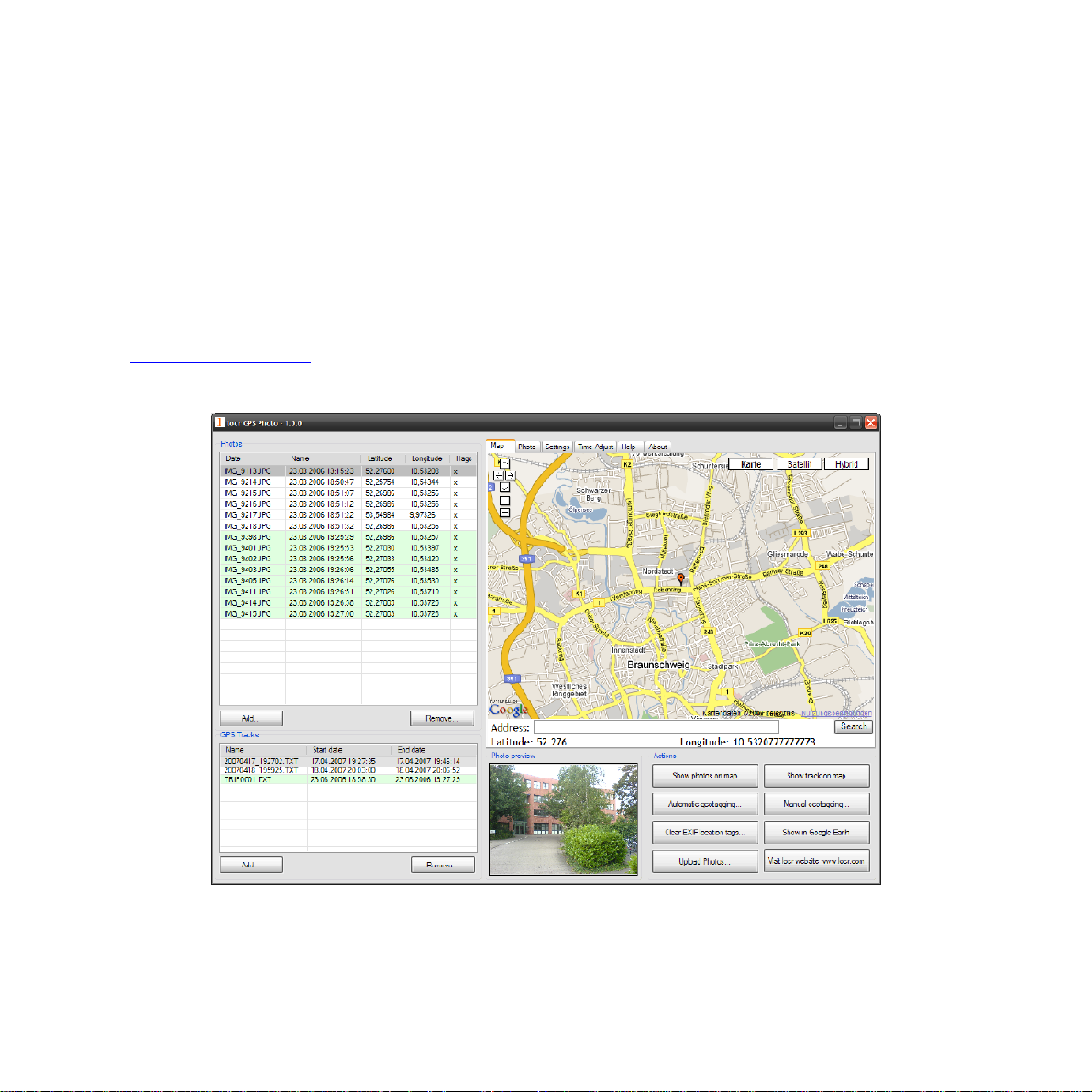

4.3 Software Utility --- GPS Photo Tagger...................................................................22
Appendix.................................................................................................................................23
2
Appendix A. Specifications............................................................................................23
Appendix B. locr GPS Photo.........................................................................................26
Appendix C. Certification..............................................................................................27
Appendix D. Warranty Information.............................................................................29
3
Chapter 1 Before you begin
1.1 Note and Warning
747Pro uses + Lithium-Ion battery. If 747Pro is used in temperature lower than -10 C° or
higher than 60C°, its battery charging capability will decrease. Please leave the 747Pro
far from heat or high temperature environment. In addition, do not expose your 747Pro in
temperature higher than 140 F°/60C°. If you do not follow these rules, the battery inside
747Pro may overheat, explode or burn itself, and this will lead to very serious damage.
The + Lithium-Ion battery inside the 747Pro should be recycled.
- While in the hospital, turning off the 747Pro is recommended. Wireless GPS receiver
may interfere with medical equipments which use radio frequency.
- For a long period not using 747Pro, take out the battery and store it in dry/cool places.
- For safety, keep the 747Pro and all accessories out of children’s reach.
- The manufacturer assumes no responsibility for any damages and loss resulting from the
use of this manual, or from deletion of data as a result of malfunction, dead battery, or
from misuse of the product in any way.
- Use only the supplied and approved accessories. Unauthorized accessories, modifications
or attachments could damage the 747Pro, and may violate regulations governing radio
devices.
- Use a dry, clean soft cloth to clean the unit. Do not use harsh cleaning solvents,
chemicals, or strong detergents.
- Do not attempt to open the 747Pro yourself. Unauthorized hacking may damage the unit,
and void your warranty.
4
1.2 Introduction
This 747Pro logger features an all-in-one, cost-effective portable GPS logging solution.
With its on-board memory, it allows you to log your routes by ways of time/ distance/
speed. Points of interest can also be recorded by a push button. With built-in buzzer alarm,
747Pro will beep to let you know GPS location is fixed or a POI is recorded successfully.
Through user friendly software utility, it shows your track on Google Earth. This recorder is
small and robust, ideal to carry everywhere for applications such as route tracking,
mountain climbing or fleet management.
1.3 Features
1.
z Dual mode : Data record / Navigation
2.
z Push button for POI recording
3.
z Smart log of time, distance and speed
4.
z Log up to 250,000 waypoints
5.
z High receiving sensitivity
6.
z AGPS available
7
z Embedded sensor for smart operation
8
z Fuzzy auto on/off
9.
z Audio alarm
10.
z Rechargeable battery
11.
z Bluetooth V1.2 compliant
12.
z Photo T agger software
1.4 Applications
-
z Record your travels
-
z Manage trip expense
5
-
z Represent one's driving behavior
-
z Point of Interest recording
-
z Geo-photo support
z Show on Google Map & Earth
1.5 Appearance
5
3
6
7
4
1
1. DC jack (mini USB type)
2. Mode switch (Power off/ Navigation/ Navigation&log)
3. Bluetooth status LED (blue)
4. Battery status LED (red/green)
5. GPS status LED (orange) / Push to log LED (Red)
6. Internal GPS antenna
7. Push Button
6
2
1.6 Power Switch and Push Button
Power Switch
Right (Off) Power off
Middle (NAV) Navigation is enabled.
Left (LOG) Both Navigation & LOG are enabled.
Push button
Push Push button to record POI (Points of Interest),
LED will blink 3 times which means the POI is recorded.
Difference between NAV and LOG:
NAV Working as a Bluetooth GPS receiver.
LOG Both of navigation and logging functions are enabled.
7
1.7 LED Display
The 747Pro GPS Trip Recorder has three LED lights, one is Bluetooth Status LED, the 2nd
one is Battery Status LED, the 3rd one is GPS Status LED/ Push to log LED. The status table
of LED shows as follows:
Category SYMBOL COLOR STATUS Function
Bluetooth Status
LED
Blue
Always on:
Slowly
blinking:
Bluetooth on, but not connected to
any Bluetooth devices yet
Sleeping mode (1 time / 5
seconds)
Battery Status LED
GPS Status LED
Quickly
blinking:
Red Blinking: The battery is too low
Green Light On: The battery is charging
Green Light Off The battery is fully charged
Orange
Red
Always on: Acquiring satellites, GPS position
Quickly
Blinking:
Quickly
Blinking:
Slowly
Blinking
Solid on The memory is full and device
Bluetooth is connected and ready
for data transmission (1 time / 2
seconds)
not fixed
GPS position is fixed, Navigation
LED blinks 3 times, Points of
Interest is recorded
The memory space is too low
(20% left now), Blink 1 time /
5sec
stops logging
8
1.8 Buzzer Alarm
747Pro is equipped with a buzzer and it supports the alarm by sound. 747Pro will beep as an
alarm to let you know when the GPS position is fixed, or when you push the POI button or
switch to change to log / navigation mode.
Beep Description
Switch to LOG mode beep (1 sound)
Switch to NAV mode beep (1 sound)
POI recorded beep~beep~beep (continuous 3 sounds)
GPS fix beep~beep (continuous 2 sounds)
NOTE: When you turn off buzzer by PC software, “Switch” beep alarm still work, only “POI
recorded“ and “GPS fix” are disable.
1.9 Vibration sensor for Smart Log
747Pro is equipped with a vibration sensor for smart log function. Which means 747Pro can
auto detect if itself is static or dynamic. Through this way, 747Pro will stop logging when
it detects it is not moving over 5 minutes. And it will wake up and resume to log
automatically when it detects it is moving again.
9
Chapter 2 Getting Started
2.1 Checking the package content
Congratulations on your purchase of the 747Pro with + Lithium-Ion chargeable battery.
Before you start using 747Pro, please make sure if your package includes the following items.
If any item is damaged or missing, please contact your dealer at once.
- 747Pro GPS Trip Recorder x 1
- USB to mini-USB cable x 1
- DC cigarette lighter adapter x 1
- + Lithium-Ion chargeable battery x 1
- CD Tool x 1 (user manual, software utility, driver)
- Quick start guide x 1
*. Unit package contents may vary depending on countries without prior notice.
*. NOTE: The Cigarette Adapter can only be used to charge 747Pro. Please don’t make use of
it with devices other than 747Pro.
10
2.2 Getting Started
Please follow the procedure step by step.

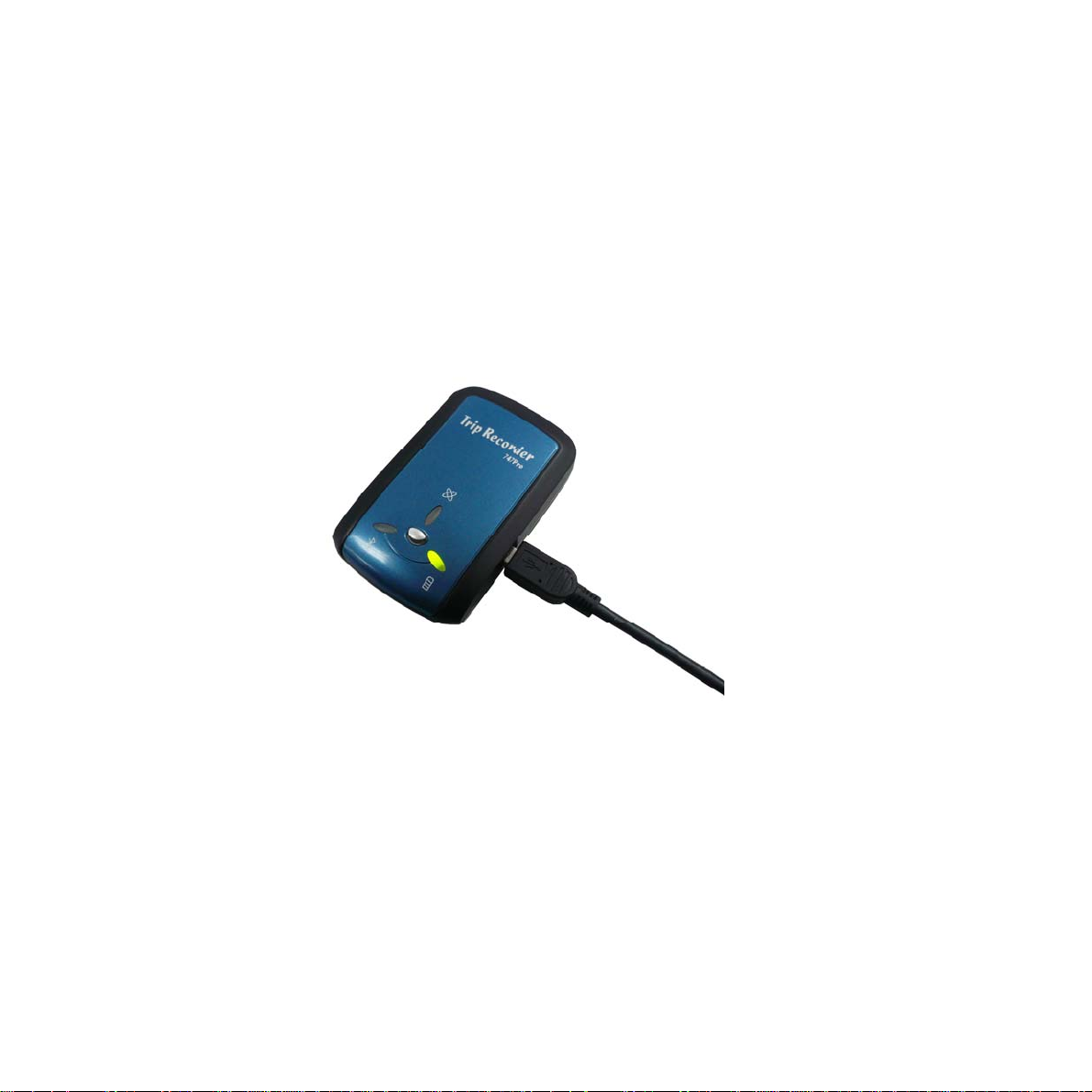

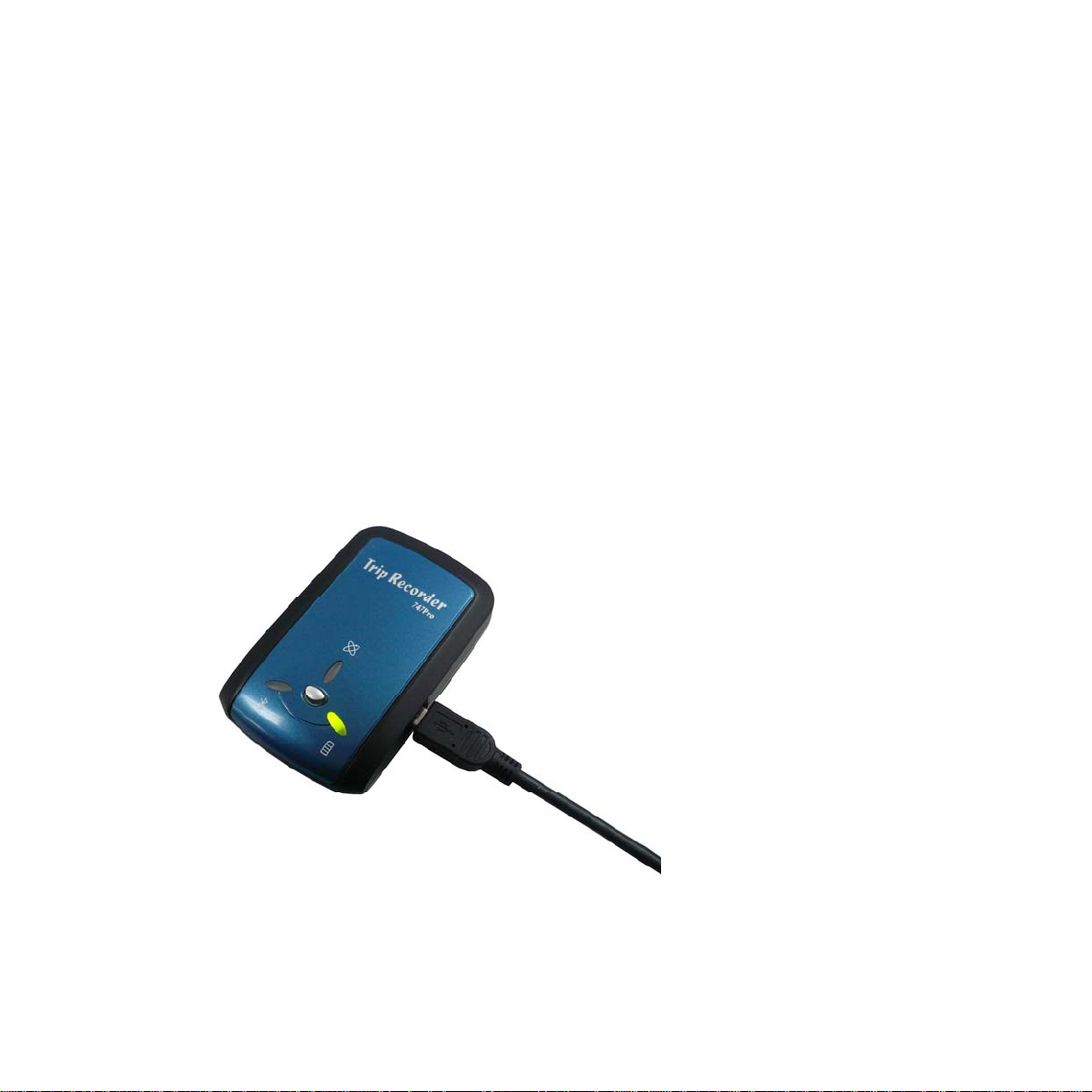

Step 1 Charging Your Battery
To charge your 747Pro, you have to plug your USB cable into the power source. Charging
time is about 3~4 hours and you can charge from PC/ Notebook’s USB HOST or from
cigarette-lighter in car.
For the 1st time you use the 747Pro, please charge battery until it is full. The LED that
represents the battery is the right-most battery icon (shown in below).
- If the LED is red, that means battery power is critically low. Charge immediately.
- If the LED is green, that means battery is charging now.
- If no LED light display that means battery is fully charged.
11

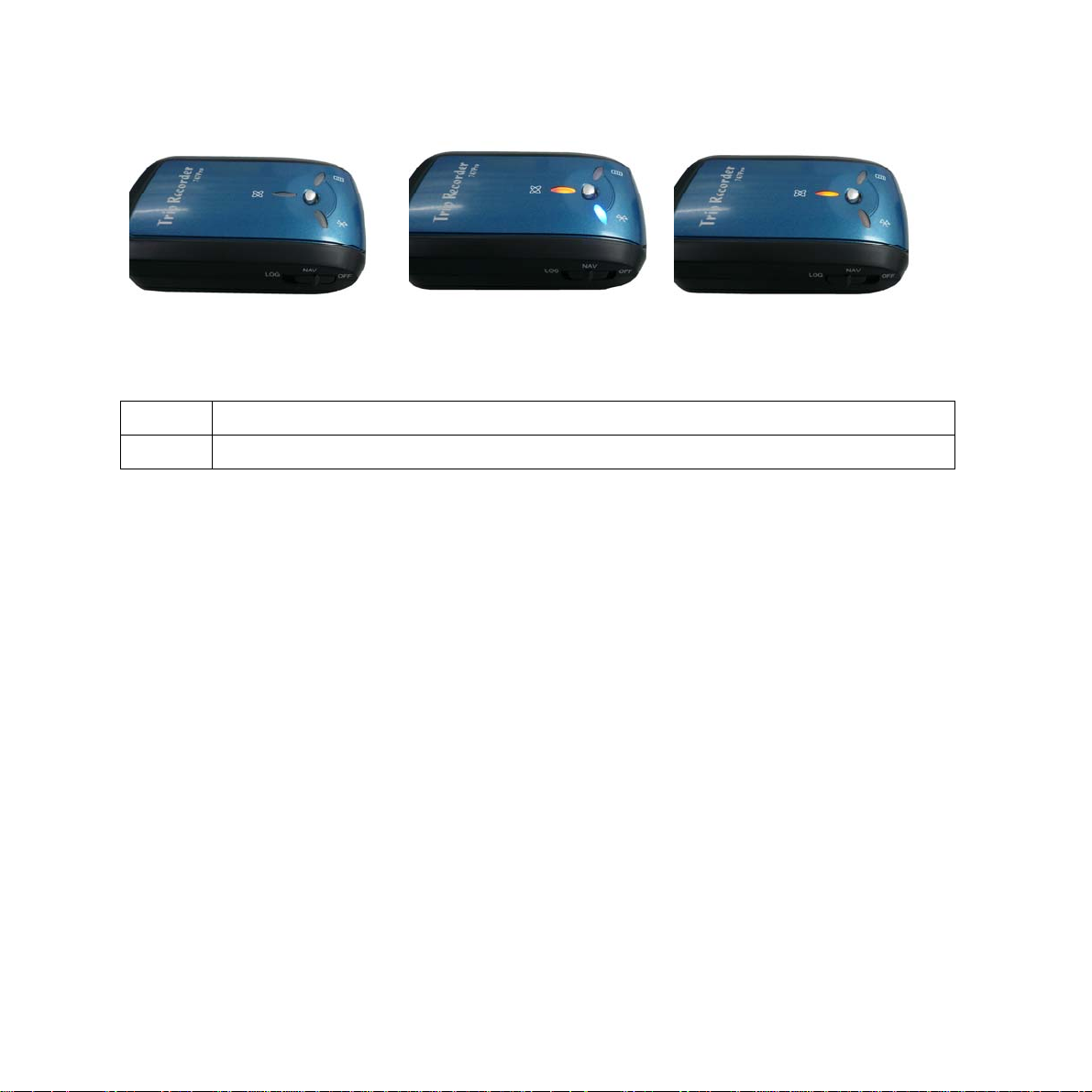

Step 2 Turning on the power switch (NAV/ LOG)
Power off Navigation Data record
Difference between NAV and LOG:
NAV Working as a Bluetooth GPS receiver.
LOG Both of navigation and logging functions are enabled.
Step 3 Connecting your handheld device with 747Pro
Please refer to the user manual of PDA/Smartphone to enable the Bluetooth connectivity. If
the connection between your device and 747Pro is successful, the blue LED of 747Pro will be
blinking.
Below, we provide a common procedure of software installation to set up your PDA. (For
other PDA/Smartphone, the steps may be different. Bluetooth Manager is a popular program
used on Bluetooth device.)
12
-->

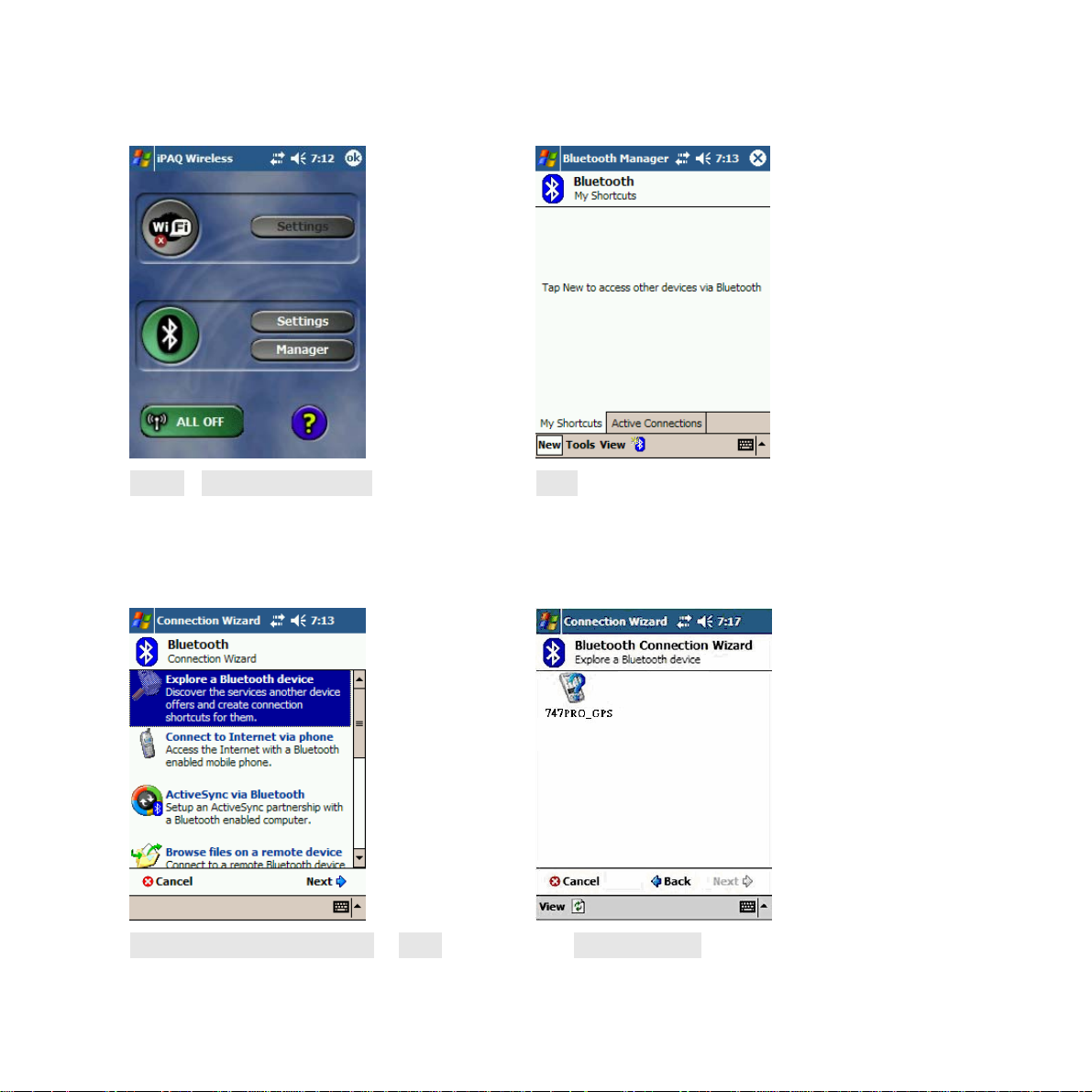

Start -> Bluetooth Manager New
1. Open “Bluetooth Manager” on your pocket pc, and establish a new
connection.
-->
Explore A Bluetooth device ->Next Tap 747PRO_GPS
13

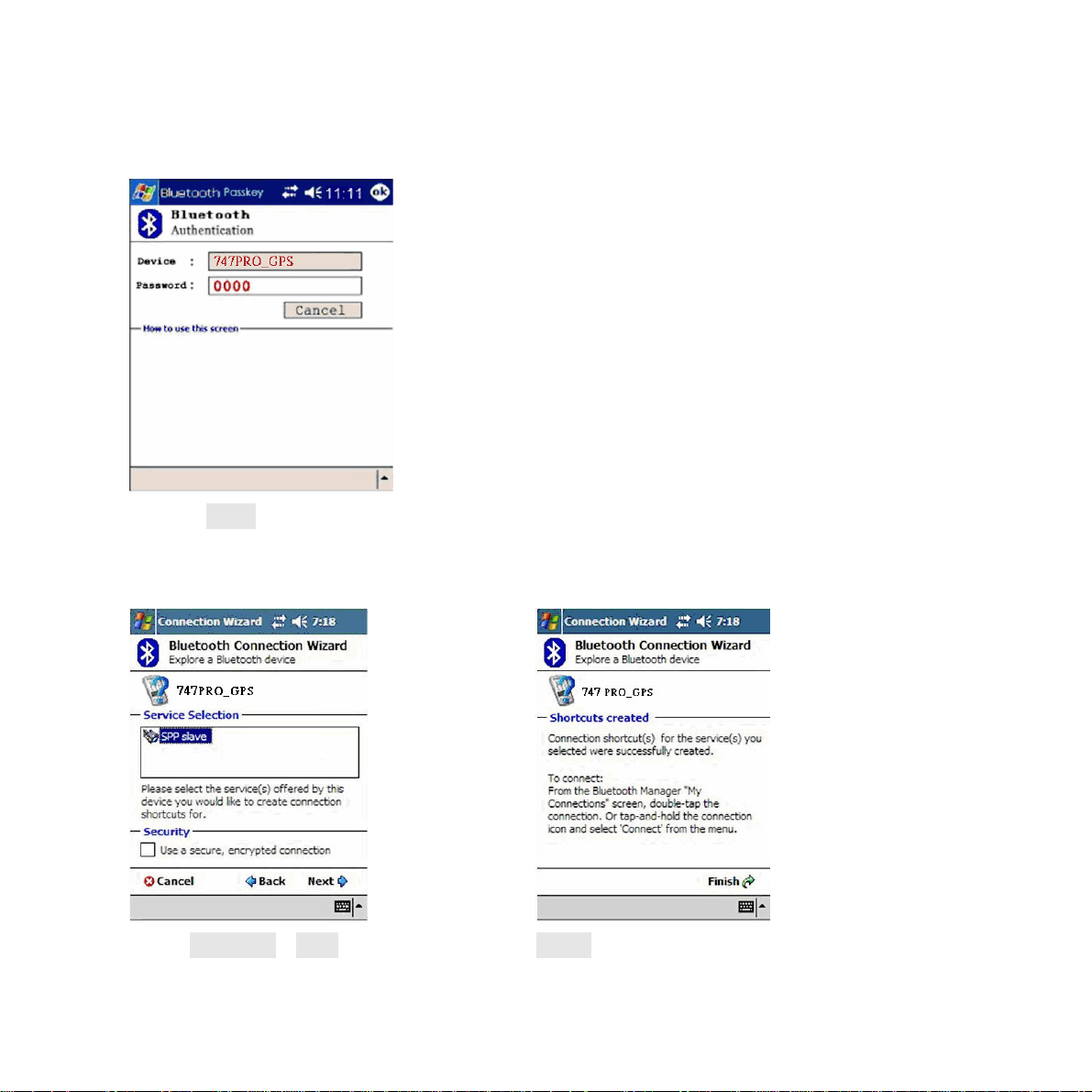

2. Explore a Bluetooth device, and find the “747PRO_GPS”
Passkey 0000 (if your PDA asks for
the passkey)
3. (Optional)
-->
Select SPP slave->Next Finish
14

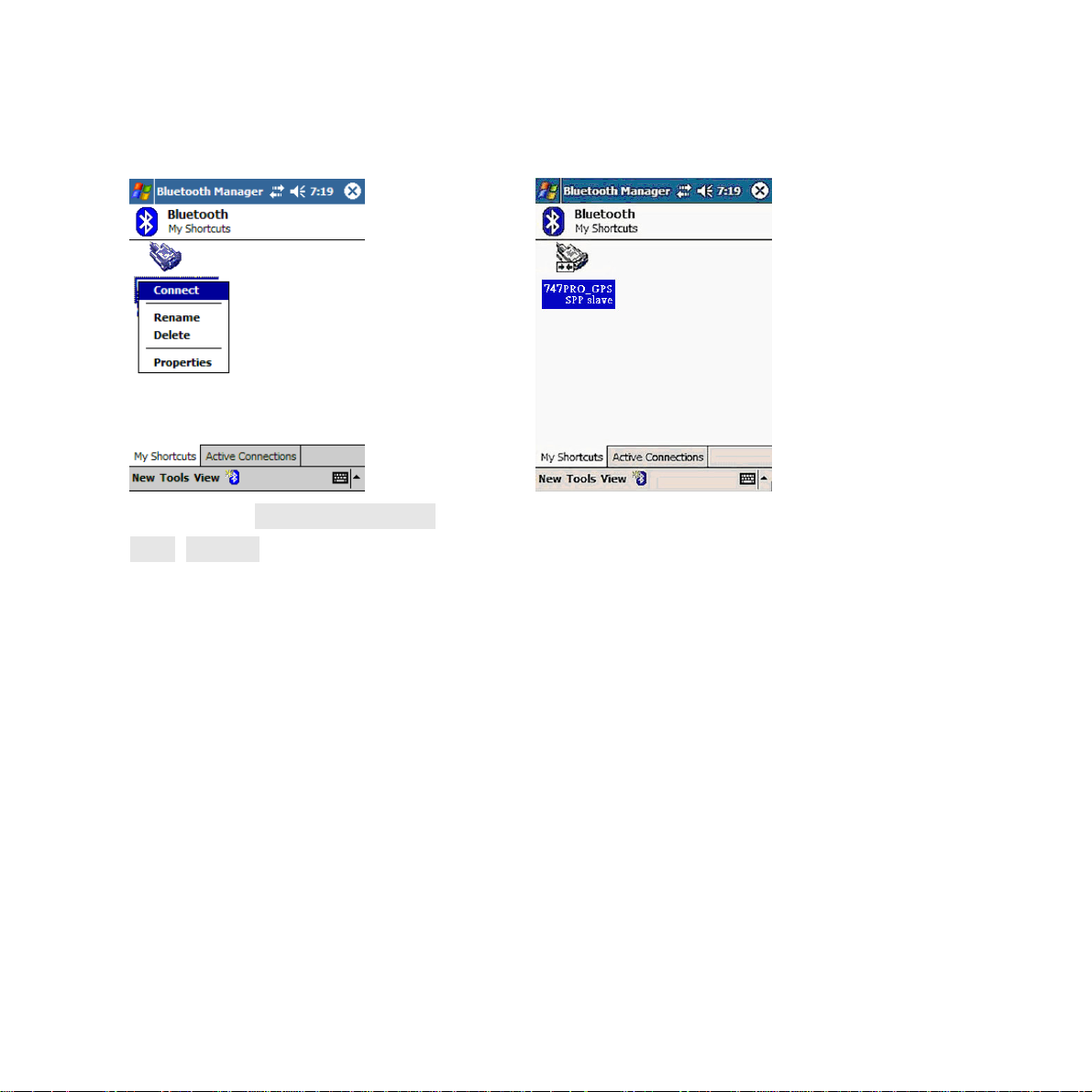

4. Connect to Serial Port Profile (SPP) Slave
-->
Tap and Hold 747PRO_GPS: SPP
slave, Connect
5. Finish Bluetooth Manager Setup
Step 4 Loading your GPS mapping or routing software
You should have mapping software on your PDA/ Smartphone/ laptop or you need to install it
before using the 747Pro for navigation.
Step 5 Starting the application

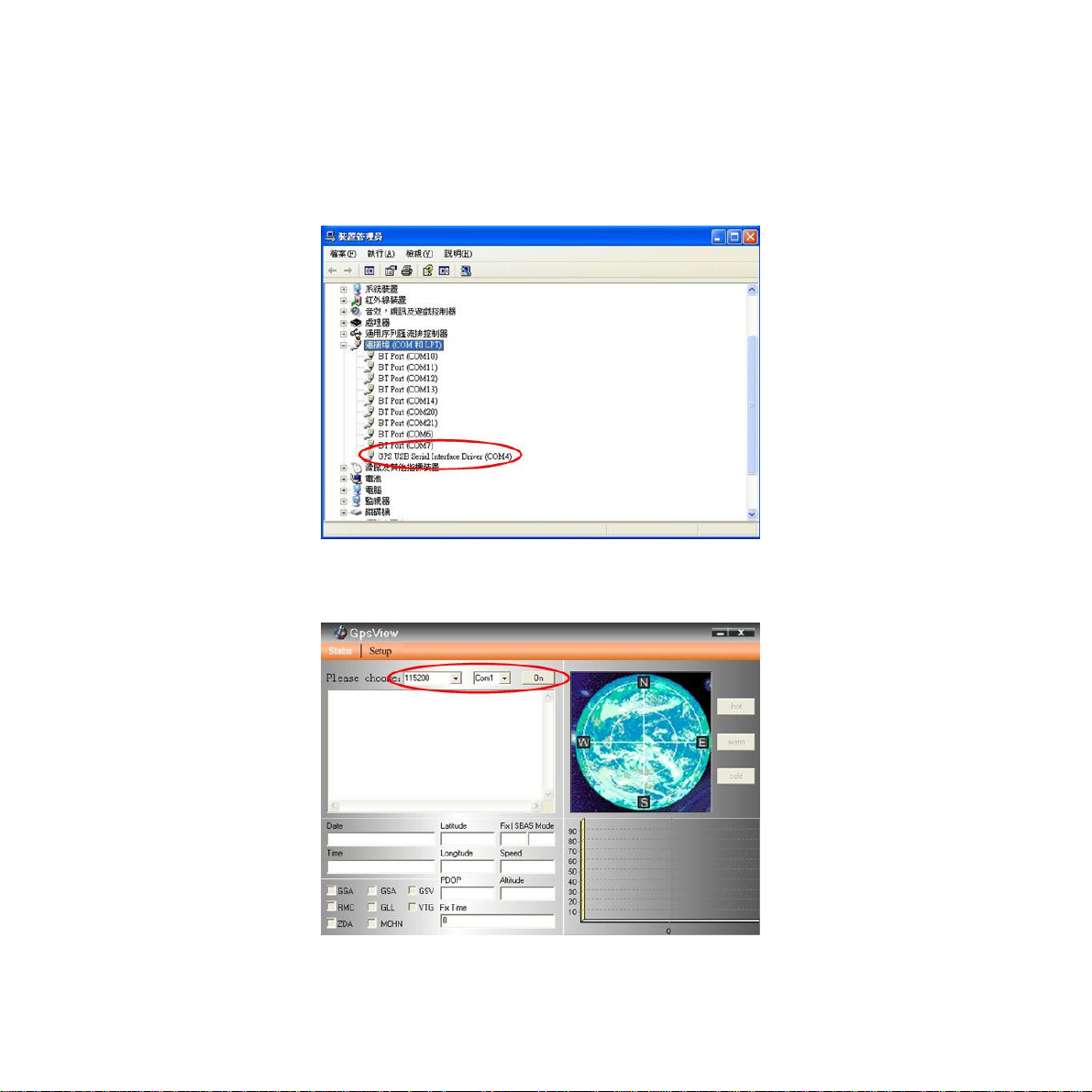

Select the correct COM port & baud rate within the application.
Note: The Bluetooth device in most of the applications has an “auto-detect” feature so that
you do not need to select the Baud Rate.
Done
15
2.3 Helpful Tips
- It’s better to turn off the 747Pro when you don’t use it, or the serial Flash's life can’t last
long.
- Some vehicles having heavy metallic sun protecting coating on windshields may affect
GPS signal receptions
- Driving in and around high buildings may affect GPS signal receptions.
- Driving in tunnels or indoor park may affect signal receptions.
- In general, any GPS receiver performs best in open space where it can see clean sky. Also
weather will affect GPS reception – rain & snow contribute to worse sensitivity.
- Low battery of a PDA/Smartphone or of an 747Pro may affect signal receptions.
- Please check the correct “COM” and “Baudrate” of your PDA.
- 747Pro output data updates every second, therefore the actual position and the position
shown in your map may have slight time delay. This may happen when you drive at
higher speed or make a turn around a corner.
- Note that 747Pro may not work indoors where it can not see the sky.
- For the 1st time you use the 747Pro, it will take 1 to 3 minutes to obtain the satellite
constellation information and fix your position, this is called “Cold Start”. If you replace
the battery, 747Pro will do Cold Start again.
- If your 747Pro can’t fix your position for more than 20 minutes, we suggest you change
to another spot with open space and then try again.
16
Chapter 3 How to configure your GPS Record?
The GpsView program only supports the Microsoft Windows based platform.
3.1 Driver Installation
Before the USB connector plugs in your PC/ Laptop, please have your USB Driver
Installation ready. (Install InstallDriver.exe driver for USB port from CD-ROM.)
3.2 GpsView software
Open the GpsView software, please select correct COM port and Baud Rate (USB / Bluetooth:
115,200bps) to configure GPS.
3.2.1 Connect USB cable between GPS and laptop
To USB port on PC/Laptop
17
3.2.2 Executing GpsView Program
Click “Command” tap. Update Rate 1 ~ 5Hz is user configurable. And still more options for
choice of NMEA output, DGPS…etc. all available through pull-down menus.
18
3.2.3 Download AGPS
1. Start→Control Panel→System→Hardware→Device Management→
Connector（COM and LPT）Check Com port position。
2. Open GpsView.exe→Check Baud Rate and Com port→click On
19
3. Choose Setup
4. Choose Update。
20

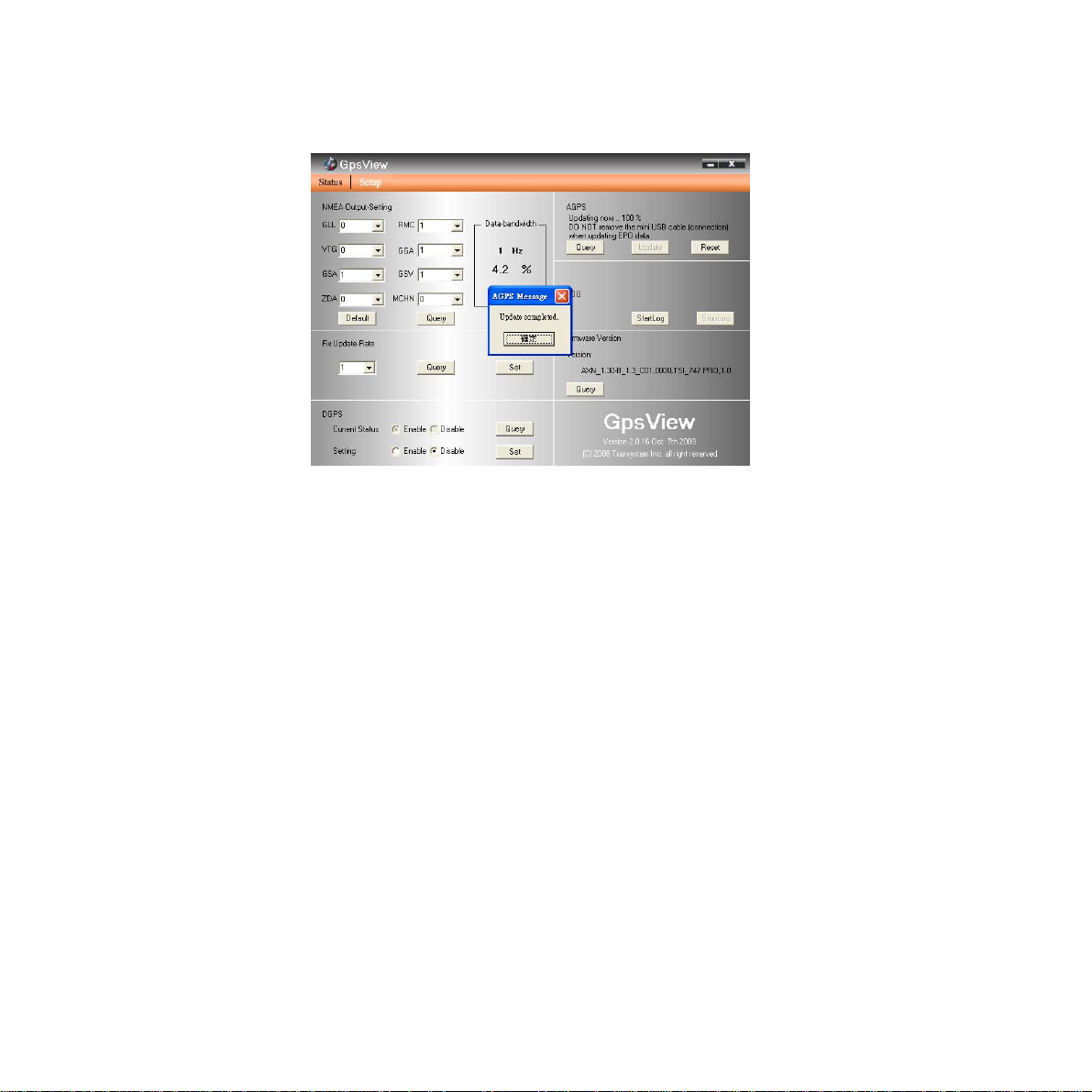

5. When Updating now…100%, click Enter complete。
NOTE: When you use AGPS function, we suggest use GpsView to
download the AGPS data via USB cable.
AGPS has 6 day time limited.
21
Chapter 4 Using Photo Tagger software
4.1 Execute and install software utility Photo Tagger
Complete GPS Photo Tagger and USB drivers installation (Refer to CD)
4.2 Google Earth
If you computer is not yet installed with Google Earth. Google Earth has free download
version, go download it in the internet first. For more information, please visit
http://earth.google.com/.
4.3 Software Utility --- GPS Photo Tagger
For further function to use the Photo Tagger software in detail, please refer to Photo Tagger
user manual:
Photo Tagger software > Help > User Manual
To use a mini-USB cable to connect the 747Pro to your PC, you have to power on the 747Pro
unit. Please keep in mind to switch to LOG mode while using Photo Tagger software.
22
Appendix
Appendix A. Specifications
General
Frequency L1,1575.42MHZ
C/A Code 1.023MHZ
Datum WGS84
Performance Characteristics
Position Accuracy*
<3m CEP(50%) without SA(horizontal)
DGPS (WAAS,EGNOS,MSAS):2.5m
Velocity Accuracy*
DGPS (WAAS,EGNOS,MSAS):0.05m/s
Acceleration*
DGPS (WAAS,EGNOS,MSAS):<4g
Timing Accuracy*
Reacquisition Time*
Hot start*
Warm start*
Cold start*
AGPS*
Sensitivity*
Tracking:-165dBm Max.
Without aid: 3.0m 2D-RMS
Without aid: 0.1m/s
Without aid:<4g
50 ns RMS
<1s
1.5s
34s
35s
<15s
Acquisition:-148dBm Max.
Update*
1Hz
23
Dynamic
Altitude Maximum 18,000m
Velocity Maximum 515m/s
Acceleration Maximum 4g
Power
Input Voltage
Vin : 5.0V±5%
Battery Chargeable + Lithium-Ion battery
Operation time 25 hrs
I/O
Available Baud Rates 115200 bps
Protocols NMEA 0183 v3.01
Environment
Operating
Temperature
Storage Temperature
Charging
-10°C ~ +60°C
-20°C ~ +80°C
0°C ~ +45°C
Bluetooth
Standard Fully compliant with Bluetooth V1.2
Output Power 0dBm (Typical),ClassII
Range Over 10 meters
Bluetooth Profile Serial Port Profile(SPP)
Frequency 2.4G ~ 2.4835GHz ISM Band
Security Yes
USB Bridge
24
Standard Fully compliant with USB2.0
Full – speed 12Mbps
Dimension 46.5 x 72.2 x 20 mm
Data Log
64Mbit
125,000 way points or more
Log GPS data by time interval/ distance/ speed limit.
Log GPS data by button push.
User can configure settings by using utility.
* Citation MTK original chipset spec.
25
Appendix B. locr GPS Photo
With 747Pro and locr GPS Photo software, users are allowed to import geotagging adds
information to photos. The position (latitude/ longitude) then be written into the EXIF header
for the further application. Also, locr GPS Photo can integrated travel log and digital photos
by date/ time to show photos on the map directly.
Please find the installation file for Windows XP/ Vista in CD tool, or go to
http://www.locr.com for further information.
26
Appendix C. Certification
FCC Notices
This device complies with part 15 of the FCC rules. Operation is subject to the following two
conditions:
1. This device may not cause harmful interface, and
2. This device must accept any interference received, including interference that
may cause undesired operation.
FCC RF Exposure requirements:
This device and its antenna(s) must not be co-located or operation in conjunction with any
other antenna or transmitter.
NOTE: THE MANUFACTURER IS NOT RESPONSIBLE FOR ANY RADIO OR TV
INTERFERENCE CAUSED BY UNAUTHOURIZED MODIFICATION TO THIS
EQUIPMENT. SUCH MODIFICATIONS COULD VOID THE USER’S AUTHORITY T O
OPERATE THE EQUIPMENT.
27
CE Notices
Is herewith confirmed to comply with the requirements set out in the Council Directive on the
Approximation of the Laws of the Member States relating to Electromagnetic Compatibility
(89/336/EEC), Low-voltage Directive (73/23/EEC) and the Amendment Directive
(93/68/EEC), the proced ures given in European Council Directive 99/5/EC and 89/3360EEC.
The equipment was passed. The test was performed according to the following European
standards:
- EN 300 328-2 V.1.2.1 (2001-08)
- EN 301 489-1 V.1.4.1 (2002-04) / EN 301 489-17 V.1.2.1 (2002-04)
- EN 50371: 2002
- EN 60950: 2000
28
Appendix D. Warranty Information
Thank you for your purchase of GPS product from the company.
The company warrants this product to be free from defects in materials and workmanship for
one year from the date of purchase. The warranty for accessories is six months. The stamp of
distributor or a copy of the original sales receipt is required as the proof of purchase for
warranty repairs. The company will, as its sole option, repair or replace any components,
which fail in normal use. Such repair or replacement will be made at no char ge to the
customer for parts or labor. The customer is, however, responsible for any transportation
costs.
This warranty does not cover failures due to abuse, misuse, accident or unauthorized
alteration of repairs. The company assumes no responsibility about products which have been
improperly used, abused, damaged due to accident or natural disaster, or damaged due to
unauthorized uninstallation, repair or modification.
29
Loading...
