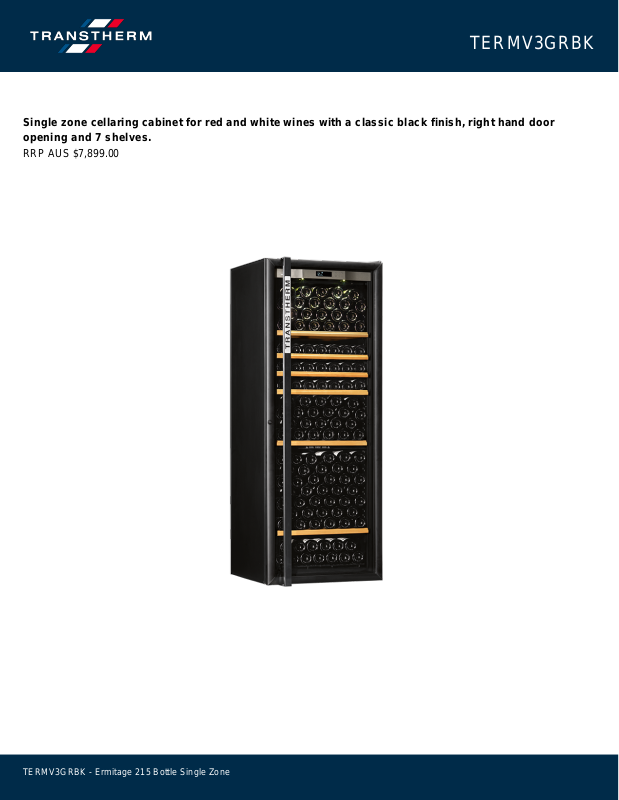

Transtherm TERMV3GRBK Datasheet

Single zone cellaring cabinet for red and white wines with a classic black finish, right hand door
opening and 7 shelves.

RRP AUS $7,899.00

TERMV3GRBK

TERMV3GRBK - Ermitage 215 Bottle Single Zone

Product Details

FEATURES

Double glazed door, with
anti-UV glass

Winter function heating
system

Thermal recycling pump Hygrometry alert

Audio & visual alarm Security Lock LED internal lighting Steel reinforced casing

Made in France

BENEFITS

Stable Temperature
Our wine cabinets maintain a stable temperature to keep your
wine in perfect cellaring conditions. This is thanks to its double
glazed anti-UV doors, insulated side panels and interactions
between a compressor and thermostat.

UV Protected Dark Storage Area
UV rays negatively impact the quality of your wine. Our
cabinets eliminate this treat by incorporating UV treated tinted
glass doors, dark interiors and dimmed internal LED lights.

Vibration Reduction System
To protect the storage life and quality of your wine, our
cabinets have been designed to create a vibration proof
environment by including an externally housed compressor,
rubber shock absorbers and vibration absorbing wooden
shelves.

Humidity above 50%
Our wine cabinets incorporate a Thermal Recycling Pump that
ensures adequate humidity levels are maintained. The Thermal
Recycling Pump works by heating condensed water, which is
then introduced as humid air within the cabinet.

Frequent Air Circulation
Our cabinets include internal and external fans to ensure there
is a slow reticulated air flow throughout the cabinet.

TERMV3GRBK

TERMV3GRBK - Ermitage 215 Bottle Single Zone

Specifications

WINE CELLARS

Domestic Warranty 2

Installation Type Both

Finish Painted Black Aluminium

Door Type Glass Door

Door Construction Double Glazed, UV Treated

Handle Painted Black Aluminium

Fridge door opening Right

Refrigerant R600a

Easy Capacity (Bottles) 215

Max Capacity (Bottles) 215

Main Function Cellar Red & White

Alternate Function None

No of Zones 1

Temperature Range Zone 1
(deg)

8 - 18 Degrees C

DIMENSIONS

Height (mm) 1825

Width (mm) 680

Depth (mm) 690

TERMV3GRBK

TERMV3GRBK - Ermitage 215 Bottle Single Zone

WINE CELLARS

Depth Door Open (mm) 1440

Air space at sides (mm) 10

Air space above cabinet
(mm)

10

Joinery cut out dimension­minimum height (mm)

1860

Joinery cut out dimension­minimum width (mm)

700

Joinery cut out dimension­minimum depth (mm)

740

Weight Unloaded 100

Power Supply 240V / 10AMP

Electricity Consumption
(kWh/Day)

0.8

Ambient Temperature (deg) 0-35

Display Panel LED Digital Display

Castors and Feet 4 Adjustable Feet

Internal Heater Yes

Lock Yes

Alarm Audio & Visual

TERMV3GRBK

TERMV3GRBK - Ermitage 215 Bottle Single Zone

WINE CELLARS

Lighting 2 Dimmed LED

Number of Shelves 7

Shelving Material Steel & PS Shock

Shelving Type 7 Sliding & Adjustable

Shipping Weight (Kg) 102

Pack Dimensions Height
(mm)

1950

Pack Dimension Width
(mm)

760

Pack Dimension Depth
(mm)

730

Type Wine Cabinet

Function Cellar

TERMV3GRBK

TERMV3GRBK - Ermitage 215 Bottle Single Zone
