Transition Networks SCSCF30XX-10X User Manual
* Typical maximum cable distance. Actual distance is dependent upon the physical
characteristics of the network.
Part Number Port One - Copper Port Two - Duplex Fiber-Optic
SCSCF3011-100 75 ohm coax (BNC) ST, 1300 nm multimode
2 km (1.2 miles)*
SCSCF3013-100 75 ohm coax (BNC) SC, 1300 nm multimode
2 km (1.2 miles)*
SCSCF3014-100 75 ohm coax (BNC) SC, 1310 nm singlemode
20 km (12.4 miles)*
SCSCF3015-100 75 ohm coax (BNC) SC, 1310 nm singlemode
40 km (24.8 miles)*
SCSCF3016-100 75 ohm coax (BNC) SC, 1310 nm singlemode
60 km (37.3 miles)*
SCSCF3017-100 75 ohm coax (BNC) SC, 1550 nm singlemode
80 km (49.7 miles)*
SCSCF3018-100 75 ohm coax (BNC) MT-RJ, 1300 nm multimode
2 km (1.2 miles)*
SCSCF3019-100 75 ohm coax (BNC) LC, 1310 nm single mode
20 km (12.4 miles)*
SCSCF3029-100 75 ohm coax (BNC) SC, 1310 mn (TX)/1550 nm (RX)
20 km (12.4 miles)*
SCSCF3029-101 75 ohm coax (BNC) SC, 1550 mn (TX)/1310 nm (RX)
20 km (12.4 miles)*
SCSCF3029-100 and -101 are intended to be installed in the same network where
one is the local converter and the other is the remote converter.
User’s Guide
SCSCF30xx-10x
Stand-Alone Device
• DS3 or T3 / E3
• Coax (BNC) to Fiber
Transition Networks SCSCF30xx-10x series
Devices encode and decode DS3 or E3 coax
copper signals over fiber optic cable to extend
the distance and transmission reliability of highspeed DS3 or E3 data traffic. The SCSCF30xx10x also connects remote locations via T3/E3
cable.
Note: The CCSCF30xx-10x model is the
chassis version of the Device. For more
information, see the CCSCF30xx-10x user’s
guide on-line at www.transition.com.
Installation . . . . . . . . . . . . . . . . . . . . .2
Operation . . . . . . . . . . . . . . . . . . . . . .6
Cable Specifications . . . . . . . . . . . . . .7
Technical Specifications . . . . . . . . . . .8
Troubleshooting . . . . . . . . . . . . . . . . .9
Compliance Information . . . . . . . . .12
2
SCSCF30xx-10x
24-hour Technical Support: 1-800-260-1312 -- International: 00-1-952-941-7600
Part Number Port One - Copper Port Two - Single Fiber Optic
SCSCF3029-102 and -103 are intended to be installed in the same network where
one is the local converter and the other is the remote converter.
*Typical maximum cable distance. Actual distance is dependent upon the physical
characteristics of the network: (TX) = transmit, (RX) = receive.
SCSCF3029-102 75 ohm coax (BNC) SC, 1310 mn (TX)/1550 nm (RX)
40 km (24.8 miles)*
SCSCF3039-100 75 ohm coax (BNC) LC, 1300 mn multimode
2 km (1.2 miles)*
SCSCF3029-103 75 ohm coax (BNC) SC, 1550 mn (TX)/1310 nm (RX)
40 km (24.8 miles)*
Optional Accessories (sold separately)
Part Number Description
SPS-1872-SA Optional External Power Supply; 18-72VDC Stand-Alone
Output: 12.6VDC, 1.0 A
SPS-1872-PS Optional External Power Supply; 18-72VDC Piggy-back;
Output: 12.6VDC, 1.0 A
E-MCR-04 12-Slot Device Rack (includes universal internal power supply) 17 x
15 x 5 in. (432 x 381 x 127 mm)
WMBL Optional Wall Mount Brackets; 4.0 in. (102 mm)
WMBV Optional Vertical Mount Bracket; 5.0 in. (127 mm)
WMBD Optional DIN Rail Mount Bracket; 5.0 in. (127 mm)
WMBD-F Optional DIN Rail Mount Bracket (flat); 3.3in. (84 mm)
Installation
Set the Loop-Back Switch
The loop-back switch is located on the front panel of the Device and is used for
installation and network debugging procedures.
To set the switch, use a small flatblade screwdriver or a
similar device (see the drawing to the right).
CL (Coax loop-back) Enable loop-back on the local coax interface.
-- (Center Position) Normal operation.
FL (Fiber loop-back) Enable loop-back on the local fiber interface.

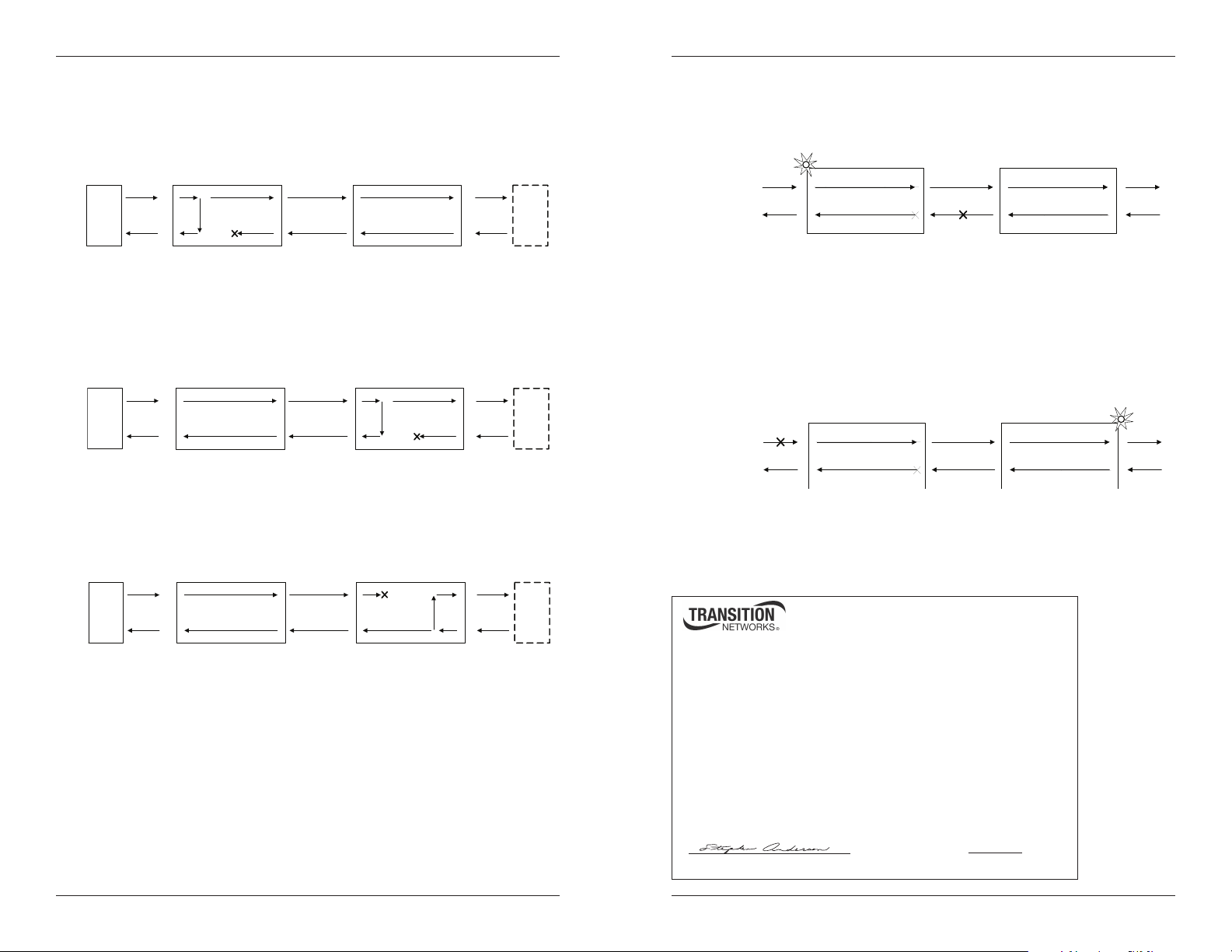

Note: Three loop-back test scenarios are described in detail on page 10.
techsupport@transition.com -- Click the “Transition Now” link for a live Web chat.
3
Switch 2 -- Coax Line Build Out (DS3 only)
up - The DS3 line is set up to operate at distances up to 225
ft. (68.6 m).
down - The DS3 line is set up to operate at distances greater
than 225 ft. (68.6 m).
<225 ft (68.6 m)
>225 ft (68.6 m)
down
up
Installation -- Continued
CAUTION: Wear a grounding device and observe electrostatic discharge
precautions when setting the configuration switches. Failure to observe this caution
could result in damage to, and subsequent failure of, the Device.
Set the Configuration Switches
The configuration switches are located on the side of the Device. Use a small, flatblade screwdriver to set the recessed switches.
Switch 1 -- Select DS3 or E3
up - Supports a DS3 interface.
down - Supports a E3 interface.
DS3
E3
down
up
Switch 3 -- Signal on Loss of Carrier
up - Transmits an alarm indication signal (AIS) on the loss of
the input carrier (unframed).
down - No signal is transmitted on the loss of the input
carrier (unframed).
Transmit alarm
No signal
up
down
Switch 4 -- Alarm Indication Signal (AIS)
up - AIS is defined as a pattern of alternating 1’s and 0’s
(unframed).
down - AIS is defined as a pattern of all 1’s (unframed).
A
larms = 1's and 0'
Alarm = all 1's
up
down
CL FL
4
SCSCF30xx-10x
24-hour Technical Support: 1-800-260-1312 -- International: 00-1-952-941-7600
Installation -- Continued
CAUTION: Wear a grounding device and observe electrostatic discharge precautions
when setting the jumper. Failure to observe this caution could result in damage to, and
subsequent failure of, the Device.
Set the Coax Grounding Jumpers
Note: Modify the settings for J11 and J12 only if necessary.
Jumpers 11 and 12 (located on the circuit board near the coax ports) provide a
grounding feature so that the SCSCF30xx-10x Device complies with the G.703
specification where:
• The output coax port is connected to chassis ground.
• A provision to connect the input coax port to chassis ground is provided.
The factory settings for these two jumpers are:
Jumper 12 (jumpered) = Output coax port is connected to chassis ground.
Jumper 11 (not-jumpered) = Input coax port is not connected to chassis ground.
The jumpers are located on the circuit board inside the Device housing. To set the
jumpers:
1. Using a small screwdriver, remove the four (4) screws that secure the cover
and carefully remove the cover from the Device.
2. Locate the jumper on the circuit board.
3. Using small needle-nosed pliers or similar device, move the jumper to the
desired position. (Refer to the above drawing.)
4. Carefully replace the cover on the Device and replace the four (4) screws that
secure the cover to the Device.
J
techsupport@transition.com -- Click the “Transition Now” link for a live Web chat.
5
Installation -- Continued
Install the Coax Cable
1. Locate or build coax cables with female connectors installed at both ends.
2. Connect the coax cables to the Device as described:
• Connect the female TX cable connector to the male TX port.
• Connect the female RX cable connector to the male RX port.
3. Connect the coax cables to the other device (switch, workstation, etc.) as
described:
• Connect the female TX cable connector to the male RX port.
• Connect the female RX cable connector to the male TX port.
Install the Fiber Cable
1. Locate or build fiber cables with male, two-stranded TX to RX connectors
installed at both ends.
2. Connect the fiber cables to the local SCSCF30xx-10x Device as described:
• Connect the male TX cable connector to the female TX port.
• Connect the male RX cable connector to the female RX port.
3. Connect the fiber cables to the remote SCSCF30xx-10x Device as described:
• Connect the male TX cable connector to the female RX port.
• Connect the male RX cable connector to the female TX port.
11 J12
No Jumper
Jumper
RX
TX
Connect the
coax cable to the
Medi a Conver ter
as show n
Connect the
coax c able to the
other devi ce as
shown
RX
TX
RX
TX
Connect fiber cable
to media converter
as shown.
Connect fiber cable
to other device
(media converter,
hub, etc.) as shown
RX
TX
