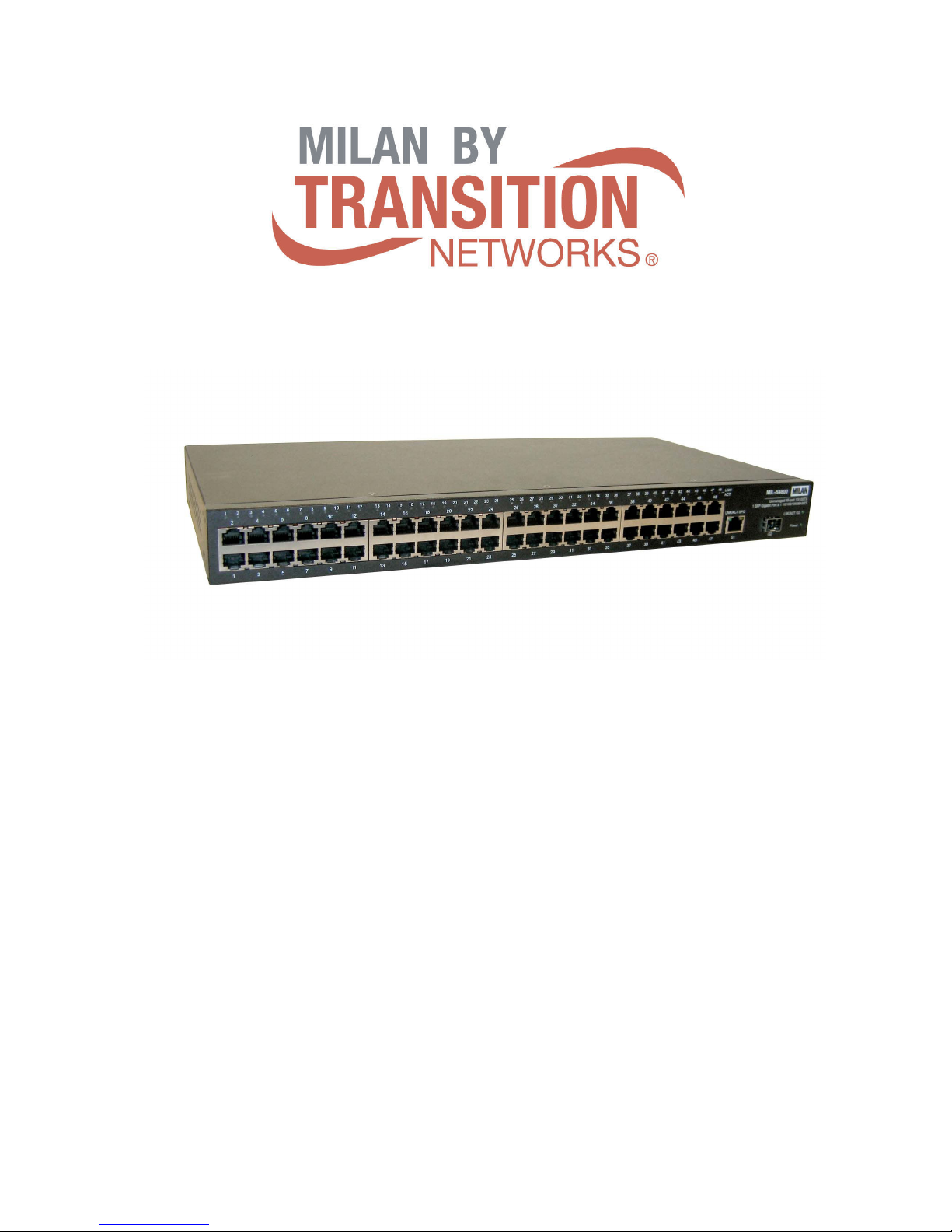

48-port 10/100TX + 1 SFP Gigabit Port and 1
10/100/1000BASET Port
Unmanaged Switch
MIL-S4800
User Manual
Rev. A2
2007-12-28
Regulatory Approval
- FCC Class A
- UL 1950
- CSA C22.2 No. 950
- EN60950
- CE
- EN55022 Class A
- EN55024
Canadian EMI Notice
This Class A digital apparatus meets all the requirements of the Canadian Interference-Causing Equipment Regulations.
Cet appareil numerique de la classe A respecte toutes les exigences du Reglement sur le materiel brouilleur du Canada.
European Notice
Products with the CE Marking comply with both the EMC Directive (89/336/EEC) and the Low Voltage Directive
(73/23/EEC) issued by the Commission of the European Community Compliance with these directives imply conformity to
the following European Norms:
EN55022 (CISPR 22) - Radio Frequency Interference
EN61000-X - Electromagnetic Immunity
EN60950 (IEC950) - Product Safety
Five-Year Limited Warranty
Transition Networks warrants to the original consumer or purchaser that each of it's products,
and all components thereof, will be free from defects in material and/or workmanship for a
period of five years from the original factory shipment date. Any warranty hereunder is
extended to the original consumer or purchaser and is not assignable.
Transition Networks makes no express or implied warranties including, but not limited to, any
implied warranty of merchantability or fitness for a particular purpose, except as expressly set
forth in this warranty. In no event shall Transition Networks be liable for incidental or
consequential damages, costs, or expenses arising out of or in connection with the
performance of the product delivered hereunder. Transition Networks will in no case cover
damages arising out of the product being used in a negligent fashion or manner.
Trademarks
The MiLAN logo and Transition Networks trademarks are registered trademarks of Transition Networks in the United
States and/or other countries.
To Contact Transition Networks
For prompt response when calling for service information, have the following information ready:
- Product serial number and revision
- Date of purchase
- Vendor or place of purchase
You can reach Transition Networks technical support at:
E-mail: support@transition.com
Telephone: +1.800.260.1312 x 200
Fax: +1.952.941.2322
Transition Networks
6475 City West Parkway
Eden Prairie, MN 55344
United States of America
Telephone: +1.800.526.9267
Fax: : +1.952.941.2322
http://www.milan.com
info@ Transition.com
© Copyright 2007 Transition Networks
2
FCC Warning
This Equipment has been tested and found to comply with the limits for a Class- A
digital device, pursuant to Part 15 of the FCC rules. These limits are designed to
provide reasonable protection against harmful interference in a residential
installation. This equipment generates uses and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may
cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television reception, which
can be determined by turning the equipment off and on, the user is encouraged to
try to correct the interference by one or more of the following measures:
Reorient or relocate the receiving antenna
Increase the separation between the equipment and receiver
Connect the equipment into an outlet on a circuit different from that to which
the receiver is connected
Consult the dealer or an experienced radio/TV technician for help
CE Mark Warning
This is a class-A product. In a domestic environment this product may cause radio
interference in which case the user may be required to take adequate measures.
3
Introduction
The MIL-S4800 Switch is a multi-port Switch that can be used to build
high-performance switched workgroup networks. This switch is a
store-and-forward device that offers low latency for high-speed networking and is
targeted at workgroup, department or backbone computing environment. The
MIL-S4800 Switch has 48 auto-sensing 10/100Base-TX RJ-45 ports, 1
10/100/1000T port and 1 SFP port for higher connection speed.
Features
Confirm to IEEE802.3 10BASE-T, 802.3u 100BASE-TX,IEEE 802.3ab
1000Base-T IEEE802.3z Gigabit Fiber
48-port 10/100TX plus 1 10/100/1000T port and 1 SFP port
Switch Fabric up to 20Gbps
Non-Blocking Architecture
IEEE802.3x Flow Control
Flow Control with Full Duplex
Back Pressure with Half Duplex
2 x Gigabit uplink port
19” rack mount design
Package Contents
Unpack the contents of the
checklist below:
MIL-S4800 Switch
and verify them against the
(1) MIL-S4800 Switch
(1) Power Cord
(4) Four Rubber Pads
1
