Transition Networks MIL-L100i User Manual

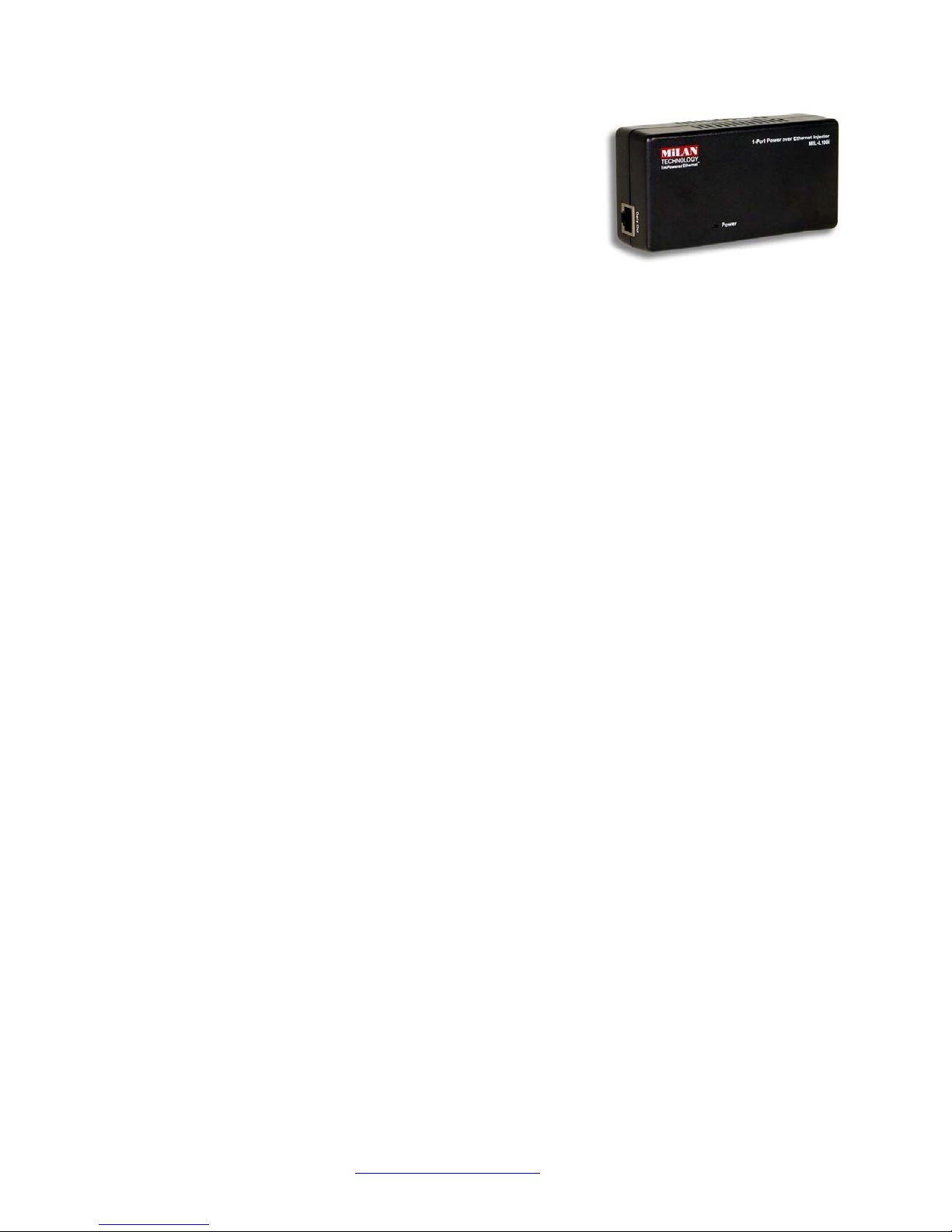

MIL-L100i

Single-Port Power over Ethernet Mid-span Injector

User Guide

 Ensures uninterrupted network operation
 Intelligent endpoint detection process
 Easy, cost-effective installation
 Provides a secure central power location

Contents

1. Introduction ...............................................................................................................................................1

Regulatory Approvals ...............................................................................................................................3

Features....................................................................................................................................................4

Package Contents ....................................................................................................................................4

2. Hardware Description................................................................................................................................5

3. Installation.................................................................................................................................................6

4. Technical Specifications............................................................................................................................7

Contact Us................................................................................................................................................8

Compliance Information............................................................................................................................8

Record of Revisions..................................................................................................................................9

1. Introduction

Thank you for purchasing MILAN by Transition's MIL-L100i Single Port Power over Ethernet (PoE)
Injector. The MIL-L100i provides data and AC power through the Ethernet cable to PoE enabled devices,
such as AP, a network camera, or other equipment supporting IEEE 802.3af. The injector is typically
installed near the Ethernet switch.

MILAN by Transition's new EmPowered Ethernet™ Series Power over Ethernet solutions deliver unified
supply of data, voice, and video as well as electrical power through a single source by sending power
over standard Category 5 and above twisted pair cables. Power over Ethernet simplifies installation and
eliminates the need to run separate power cords and LAN cables to each Access Point or port locations.

Our new PoE products provide organizations with affordable, easy -to-use solutions that enable them to
migrate their network infrastructure to support a growing number of advanced cost-saving, performance
enhancing applications, such as streamlining wireless, VOIP, Network IP camera deployments, and
centralized power backup solutions. Whether on a factory floor or in an enterprise facility, running power
to hard-to-reach locations with our Power over Ethernet solution significantly reduces cabling and outlet
requirements while providing the lowest total cost of ownership.

90000430 Rev. C http://www.transition.com/ Page 1 of 9

Transition Networks MIL-L100i User Guide

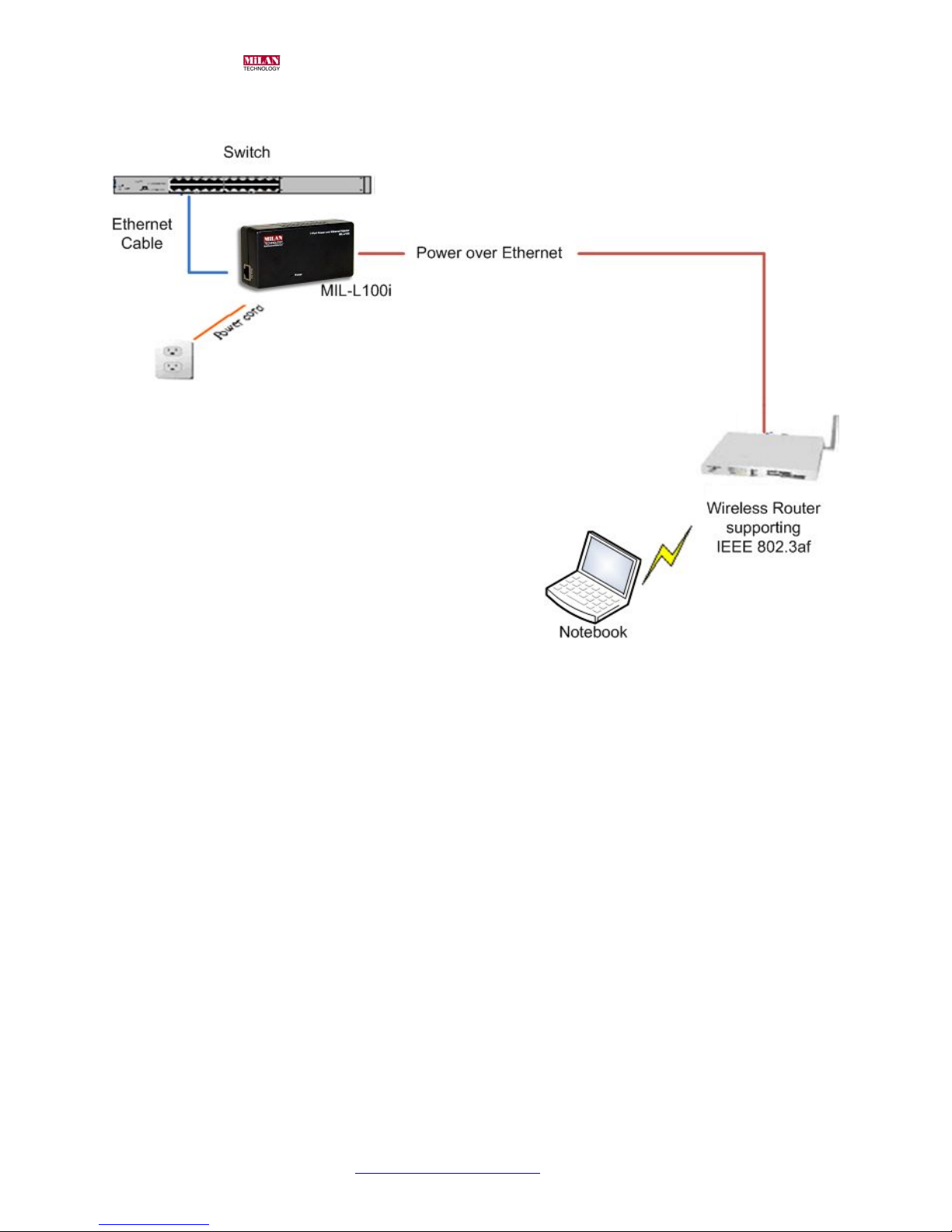

The figure below shows a sample of a Power over Ethernet Injector application.

Figure 1-1. Power over Ethernet Injection Application

90000430 Rev. C http://www.transition.com/ Page 2 of 9

Transition Networks MIL-L100i User Guide

Regulatory Approvals

- FCC Class A

- UL 1950

- CSA C22.2 No. 950

- EN60950

- CE

- EN55022 Class A

- EN55024

Canadian EMI Notice

This Class A digital apparatus meets all the requirements of the Canadian Interferen ce-Causing
Equipment Regulations.
Cet appareil numerique de la classe A respecte toutes les exigences du Reglement sur le materiel
brouilleur du Canada.

European Notice

Products with the CE Marking comply with both the EMC Directive (89/336/EEC) and the Low Voltage
Directive (73/23/EEC) issued by the Commission of the European Community Compliance with these
directives imply conformity to the following European Norms:

EN55022 (CISPR 22) - Radio Frequency Interference
EN61000-X - Electromagnetic Immunity
EN60950 (IEC950) - Product Safety

Five-Year Limited Warranty

Transition Networks warrants to the original consumer or purchaser that each of its products, and all
components thereof, will be free from defects in material and/or workmanship for a period of five years
from the original factory shipment date. Any warranty hereunder is extended to the original consumer or
purchaser and is not assignable.
Transition Networks makes no express or implied warranties including, but not limited to, any implied
warranty of merchantability or fitness for a particular purpose, except as expressly set forth in this
warranty. In no event shall Transition Networks be liable for incidental or consequential damag es, costs,
or expenses arising out of or in connection with the performance of the product delivered hereunder.
Transition Networks will in no case cover damages arising out of the prod uct being used in a negligent
fashion or manner.

Trademarks

The MiLAN logo and MiLAN Technology trademarks are registered trademarks of MiLAN Technology in
the United States and/or other countries.

90000430 Rev. C http://www.transition.com/ Page 3 of 9

Transition Networks MIL-L100i User Guide

Features

 Power Over Ethernet Injector
 IEEE802.3af Compliance
 Remote power feeding
 Short circuit protection
 Mix Ethernet and power into RJ-45 port
 Deliver power up to 100 meters
 Light weight and compact size
 Plug-and-Play

Package Contents

Unpack the contents of the package and verify them against the checklist below.

 One MIL-L100i Power over Ethernet Injector
 Power Cord
 User Manual
 Post Card

If any item is missing or damaged, please contact your local dealer for service.

90000430 Rev. C http://www.transition.com/ Page 4 of 9

Transition Networks MIL-L100i User Guide

2. Hardware Description

The Power over Ethernet Injector has three connection ports and one LED indicator.

 Data In port: RJ-45 Ethernet interface port for data transmitting from the switch to the PoE

Injector.

Figure 2-1. Data In and PowerIn ports

 Power In port: The Power In port is for supplying the power to the Injector.
 Data Out port: RJ-45 Ethernet port with a fixed RJ-45 cable to connect to a PoE Splitter, PD, or

PoE Hub.

90000430 Rev. C http://www.transition.com/ Page 5 of 9

Figure 2-2. Data Out port

Transition Networks MIL-L100i User Guide

3. Installation

To install the Power over Ethernet Injector, please follow these steps.

1. Use RJ-45 cable from the Data in port on the Power over Ethernet Injector to the Ethernet Switch.

2. Use RJ-45 cable from the Data out port on the Power over Ethernet Injector to the network
camera, PD (Such as Router, Access Point, etc.) or PoE Hub.

3. Plug in the power cord of the Power over Ethernet Injector to the appropriate power source.

4. Before starting, make sure all connections are correct.

90000430 Rev. C http://www.transition.com/ Page 6 of 9

Transition Networks MIL-L100i User Guide

4. Technical Specifications

The following table provides the Power over Ethernet Injector technical specifications.

Standard

Connector
Network Cable

LED
Power Input
Output Power
Operating environment
Operating Humidity
Storage Temperature
Dimensions
EMI & Safety

IEEE802.3/3u 10BASE-T/100BASE-TX
IEEE802.3af Power over Ethernet

DC out: Power pin: 4,5(V+), 7,8(V-)
10BASE-T: 2-pair UTP/STP Cat.3, 4,5 cable

EIA/TIA-568 100-ohm (100m)
100BASE-TX: 2-pair UTP/STP Cat.5 cable
EIA/TIA-568 100-ohm (100m)

Green LED indicates PoE Power is now being injected
100~240V, 50~60Hz, 0.25A
48VDC, 0.3A
0 º ~ 40 ºC
90% Humidity (non-condensing)
0 º ~ 70 º C
117mm x 60mm x 35mm (L x W x H)
FCC Class B, CE, UL, cUL, CE/EN60950

90000430 Rev. C http://www.transition.com/ Page 7 of 9

Transition Networks MIL-L100i User Guide

Contact Us

Technical support

Technical support is available 24-hours a day
US and Canada: 1-800-260-1312
International: 00-1-952-941-7600

Transition now

Chat live via the Web with Transition Networks Technical Support.
Log onto www.transition.com

Web-based seminars

Transition Networks provides seminars via live web-based training.
Log onto www.transition.com

E-Mail

Ask a question anytime by sending an e-mail to our technical support staff.

[e-mail]

Address

Transition Networks
10900 Red Circle Drive
Minnetonka, MN 55343, U.S.A.
telephone: [phone]
toll free: 800-526-9267
fax: [phone]

and click the Transition Now link.

and click the Learning Center link.

Compliance Information

FCC regulations

This equipment has been tested and found to comply with the limits for a Class A digital device,
pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection
against harmful interference when the equipment is operated in a commercial environment. This
equipment generates, uses and can radiate radio frequency energy and, if not installed and used in
accordance with the instruction manual, may cause harmful interference to radio communications.
Operation of this equipment in a residential area is likely to cause harmful interference, in which
case the user will be required to correct the interference at the user's own expense.

Canadian regulations

This digital apparatus does not exceed the Class A limits for radio noise for digital apparatus set
out on the radio interference regulations of the Canadian Department of Communications.
Le présent appareil numérique n'émet pas de bruits radioélectriques dépassant les limites
applicables aux appareils numériques de la Class A prescrites dans le Règlement sur le brouillage
radioélectrique édicté par le ministère des Communications du Canada.

90000430 Rev. C http://www.transition.com/ Page 8 of 9

Transition Networks MIL-L100i User Guide

European regulations

Warning

This is a Class A product. In a domestic environment this product may cause radio interference in which
case the user may be required to take adequate measures.

Achtung !

Dieses ist ein Gerät der Funkstörgrenzwertklasse A. In Wohnbereichen können bei Betrieb di eses
Gerätes Rundfunkstörungen auftreten. In diesem Fäll is der Benutzer für Gegenmaßnahmen
verantwortlich.

Attention !

Ceci est un produit de Classe A. Dans un environment domestique, ce produit risque de créer des
interférences radioélectriques, il appartiendra alors à l'utilsateur de prende les measures spécifiques
appropriées.

In accordance with European Union Directive 2002/96/EC of the European Parliament and
of the Council of 27 January 2003, Transition Networks will accept post usage returns of
this product for proper disposal. The contact information for this activity can be found in the
'Contact Us' portion of this document.

CAUTIO
TELEPHONE NETWORK. Failure to observe this caution could result in damage to the
public telephone network.

Der Anschluss dieses Gerätes an ein öffentlickes Telekommunikationsnetz in den EGMitgliedstaaten
verstösst gegen die jeweligen einzelstaatlichen Gesetze zur Anwendung der Richtlinie 91/263/EWG zur
Angleichung der Rechtsvorschriften der Mitgliedstaaten über Telekommunikationsendei nrichtungen
einschliesslich der gegenseitigen Anerkennung ihrer Konformität.

N: RJ connectors are NOT INTENDED FOR CONNECTION TO T HE PUBLIC

Record of Revisions

Rev Date Notes

A 10/01/05 Initial release.
B 02/02/09 Manual update.
C 09/10/12 Warranty period update and format changes.
