IONPS-A

AC Power Module

User Manual

33423.A

IONPS-A, AC Power Module

Table of contents

Cautions and Warnings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3

Definitions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3 Cautions and warnings in this manual . . . . . . . . . . . . . . . . . . . . . . . . .3

Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4

Power Module component identification . . . . . . . . . . . . . . . . . . . . . . .4 Notices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5

Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5

Power Module redundancy . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5 Installing an optional Power Module into the ION chassis . . . . . . . . .6 Connecting external power . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9

Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10

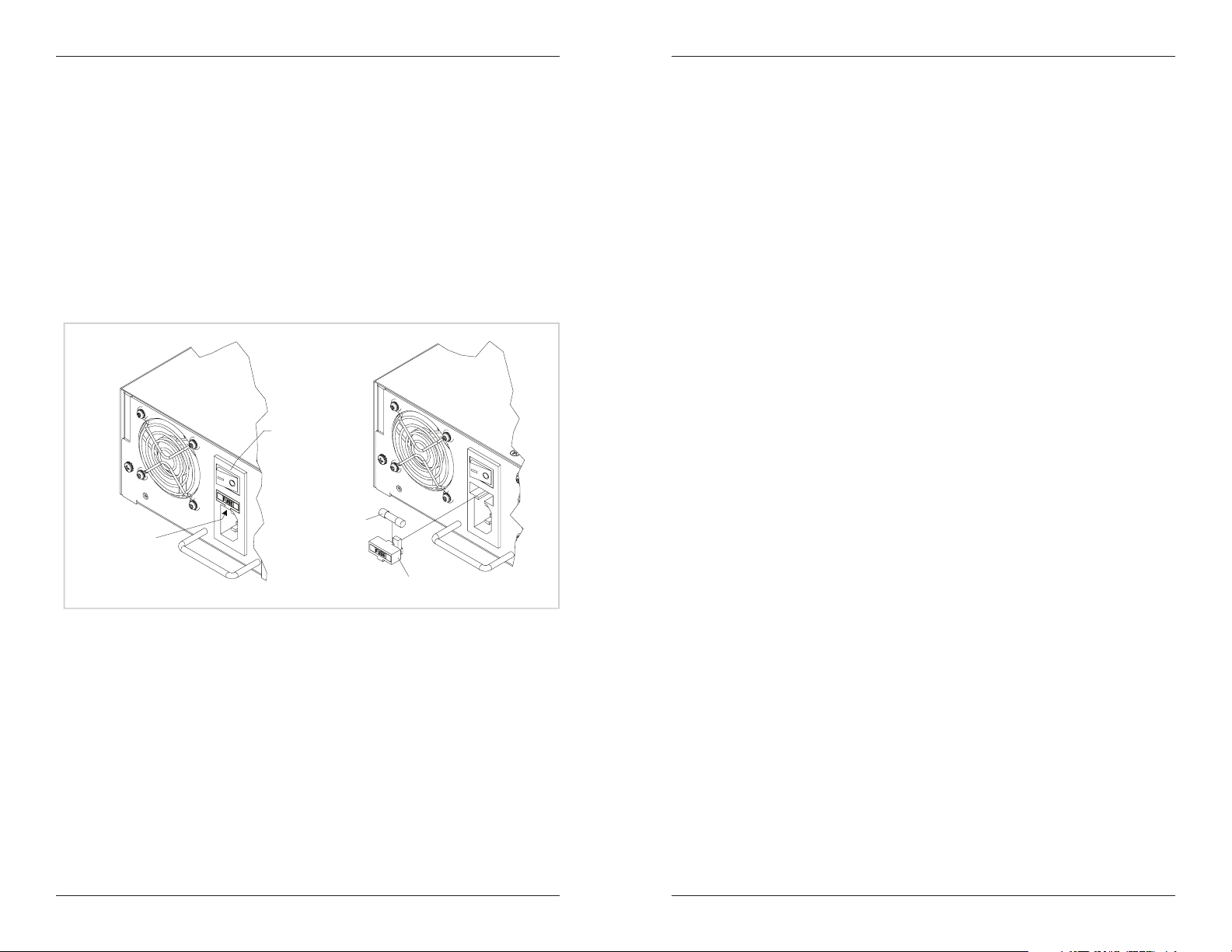

Replacing the Power Module . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10 Replacing the fuse . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12

Technical Specification . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13 Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14 Contact Us . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15 Compliance Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16

Cautions andWarnings

Definitions

Cautions indicate potential damage to equipment.

Warnings indicate a potential hazard or injury to people.

Cautions and warnings in this manual

Cautions and warnings are explained here and placed throughout this manual where appropriate.

CAUTION: While installing or servicing the Power Module, wear a grounding device and observe all electrostatic discharge precautions. Failure to observe this caution could result in damage or failure of the Power Module.

WARNING: Do not connect the Power Module to an external power source before installing it into the chassis. Failure to observe this warning could result in an electrical shock, even death.

WARNING: A readily accessible, suitable National Electrical Code (NEC) or local electrical code approved disconnect device and branch-circuit protector must be part of the building's installed wiring to accommodate permanently connected equipment. Failure to observe this warning could result in an electric shock, even death.

WARNING: Turn the Power Module and external power source OFF and ensure that the Power Module is disconnected from the external power source before performing any maintenance. Failure to observe this warning could result in an electrical shock, even death.

2

Tech Support: 1-800-260-1312 – International: 00-1-952-941-7600 – (24 hours)

techsupport@transition.com – Click the “Transition Now” link for a live Web chat.

3

IONPS-A, AC Power Module

Description

Transition Networks’ IONPS-A, AC Power Module can deliver power or provide optional, redundant AC power to an ION219-A chassis. See the ION219-A chassis manual #33421. You can download the manual @ www.transition.com, then click on Product/Product Finder.

Power Module component identification

See Figure 1:

1Fans (two fans exhaust warm air from the IONPS-A, AC Power Module)

2Power LED (ON green when powered up)

3 ON/OFF switch, when in the ON position power is supplied to the ION chassis

4Fuse (inline AC)

5Handle

6 AC Power Receptacle for an AC power plug

7Dry Contact Relay (optional)

Note: The IONPS-A, AC Power Module has instant failover capability.

1



2



3



4



5



6

1



7

Figure 1: Power Module Components

Description — continued

Notices

The IONPS-A, AC Power Module must be installed by qualified technical personnel only. Transition networks assumes no responsibility for the improper installation, set up, or use of the IONPS-A, AC Power Module.

The information in this user’s guide is subject to change. For the most up-to-date information, see the user’s guide on-line to download the current version of the manual at www.transition.com under Products.

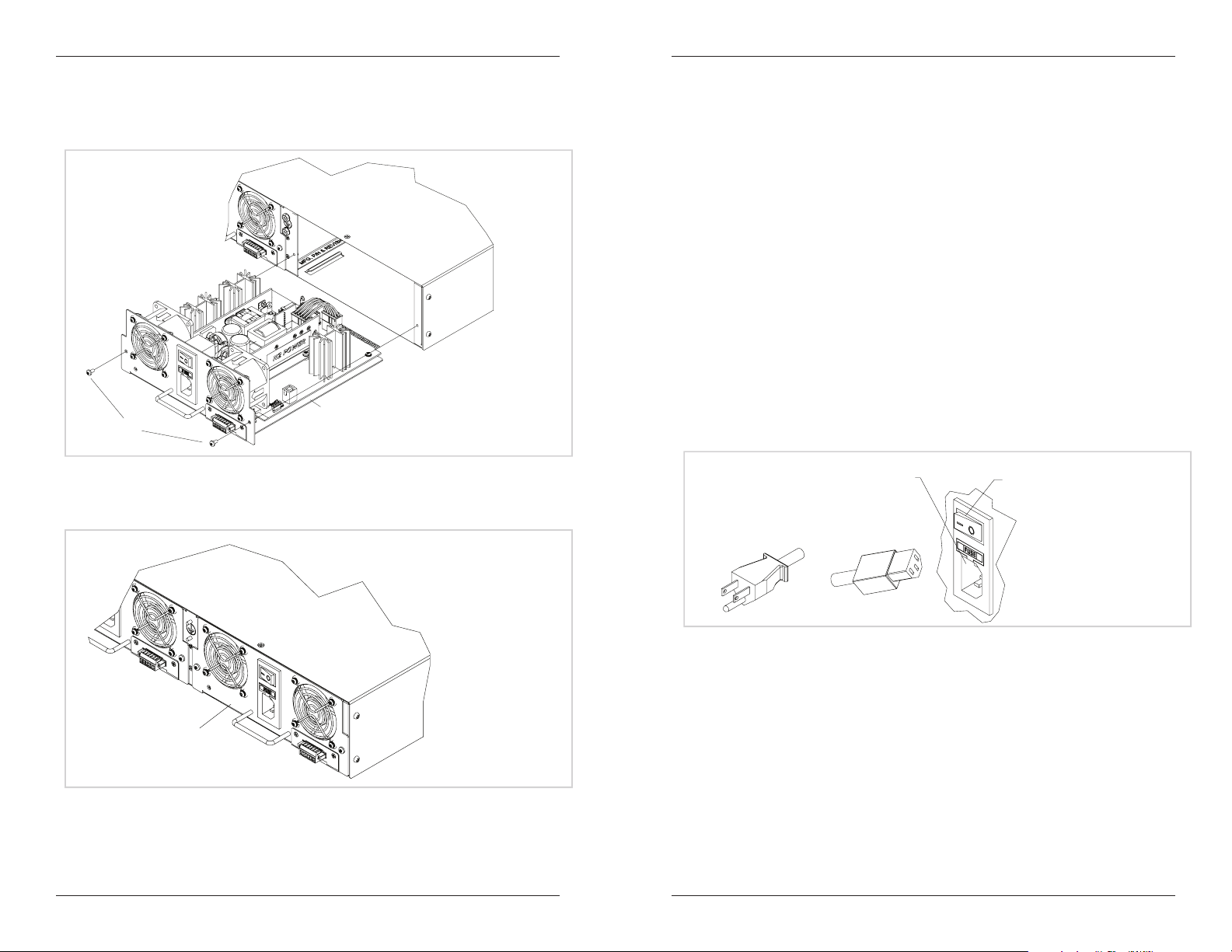

Installation

IMPORTANT

All installation and service must be performed by qualified personnel only.

Read, understand, and follow all CAUTION and WARNING notices, instructions marked on the product, including in this manual.

The IONPS-A, AC Power Module can replace an existing IONPS-A, AC Power Module or it can be installed as the redundant Power Module in an AC powered ION219-A chassis.

CAUTION: While installing or servicing the Power Module, wear a grounding device and observe all electrostatic discharge precautions. Failure to observe this caution could result in damage or failure of the Power Module.

Power module redundancy

The IONPS-A, AC Power Module includes Instant Fail-Over (IFO) circuitry that provides the capability for the primary Power Module to power the chassis backplane while the auxiliary Power Module is in ‘hot’ standby mode. If the IFO circuitry detects the loss of primary power, the auxiliary Power Module instantly provides power to the chassis backplane. When primary power is restored, the IFO circuitry places the auxiliary Power Module in ‘hot’ standby mode. The chassis primary Power Module is located in the left slot of the chassis as viewed from the rear. The chassis auxiliary Power Module is located in the right slot of the chassis as viewed from the rear. A single Power Module placed in either location can power the chassis backplane.

Note: The IONPS-A, AC Power Modules DO NOT load share.

4

Tech Support: 1-800-260-1312 – International: 00-1-952-941-7600 – (24 hours)

techsupport@transition.com – Click the “Transition Now” link for a live Web chat.

5
