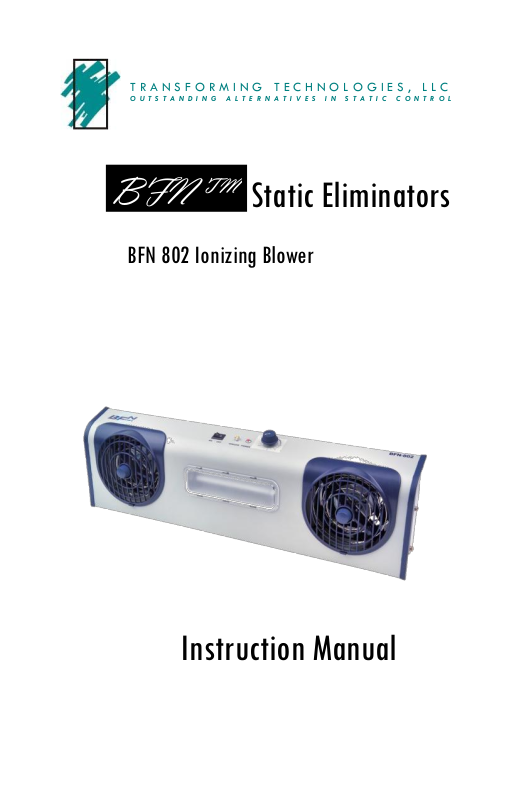

Transforming Technologies BFN 802 User Manual
T R A N S F O R M I N G T E C H N O L O G I E S , L L C
O U T S T A N D I N G A L T E R N A T I V E S I N S T A T I C C O N T R O L
BFN™
Static Eliminators
BFN 802 Ionizing Blower
Instruction Manual
Contents
1. BFN 802
BFN Series 1
Description 2
Features 2
Specification 3
Operating Guide 4
Dis/Assembly 6
Bulb Replacement 8
Periodic Verification 9
2. About
Service/ warranty 10
Transforming
Technologies 10
Description
BFN® Series Ionizers
Dependable, Balanced and Fast. BFN® AC ionizers, from
Transforming Technologies, are built to last. Reliable AC
ionization technology is combined with superior mechanical design to assure years of optimal static neutralizing
performance.
A full 1 year warranty.
CE certification.
All BFN® AC ionizers use titanium alloy emitter points
for long life.
All BFN series AC ionizing blowers are designed for safe
operation under normal use. Safety switches under the
front and rear removable finger guards shut off the unit,
protecting the operator during maintenance.
Do not operate BFN series products in flammable
or explosive environments.
Do not insert foreign objects into the air inlet or
outlet.
Make certain the BFN ionizer is properly grounded
before operation.
Disconnect the BFN ionizer from any power source
before removing the finger guards.
Do not open or attempt to repair any BFN series
product. Breaking the manufacturing seal will void
warranty.
1
Description
Please read these operating instructions thoroughly before operating the BFN 802 unit. All BFN series devices
require a grounded power source for proper operation.
BFN series products are NOT suitable for use in flammable or explosive environments.
BFN 802: AC Overhead Blower Model
The BFN 802, 2 fan overhead ionizing blower, with AC
technology, provides excellent balance and stability for
secure workstation protection. This superior ionizer is
equipped with task lighting, integrated emitter cleaners
and safe, easy maintenance access.
BFN series AC ionizers from Transforming Technologies
create a dense and well-balanced ionization current.
They are unique in their ability to deliver fast decay
times with low offset voltages. Continuous balance and
decay protection is assured by the reliable, stable AC design. An integrated emitter point cleaner, removable
front and rear fan guards, safety switch combine to make
the BFN 802 an effective, user friendly ionizer.
Features
AC ionization output
Task Light
Integrated emitter cleaning device
Variable fan speed Control.
Removable finger guards with auto shut-off sensor
2
