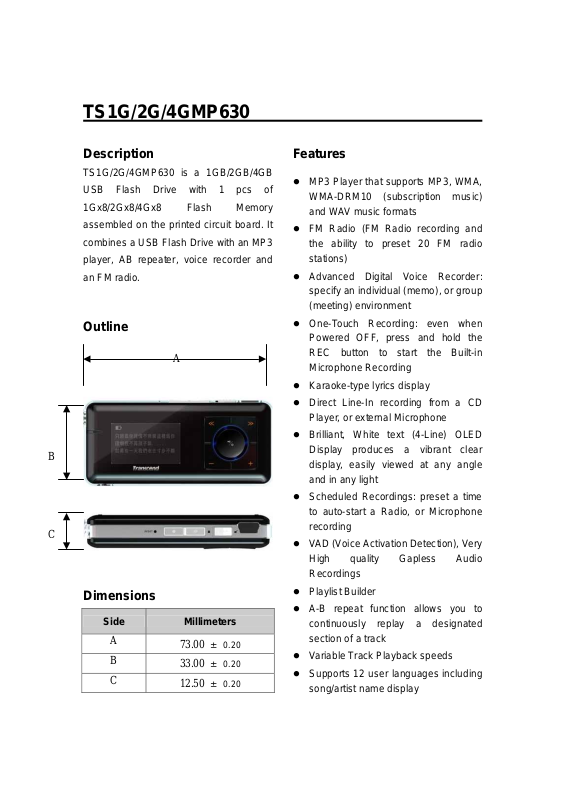

Transcend Information TS1GMP630 User Manual
TS1G/2G/4GMP630
Description
TS1G/2G/4GMP630 is a 1GB/2GB/4GB
USB Flash Drive with 1 pcs of
1Gx8/2Gx8/4Gx8 Flash Memory
assembled on the printed circuit board. It
combines a USB Flash Drive with an MP3
player, AB repeater, voice recorder and
an FM radio.
Outline
Features
MP3 Player that supports MP3, WMA,
WMA-DRM10 (subscription music)
and WAV music formats
FM Radio (FM Radio recording and
the ability to preset 20 FM radio
stations)
Advanced Digital Voice Recorder:
specify an individual (memo), or group
(meeting) environment
One-Touch Recording: even when
Powered OFF, press and hold the
REC button to start the Built-in
Microphone Recording
Karaoke-type lyrics display
Direct Line-In recording from a CD
Player, or external Microphone
Dimensions
Side Millimeters
A
B
C
73.00
33.00
12.50
±
0.20
± 0.20
± 0.20
Brilliant, White text (4-Line) OLED
Display produces a vibrant clear
display, easily viewed at any angle
and in any light
Scheduled Recordings: preset a time
to auto-start a Radio, or Microphone
recording
VAD (Voice Activation Detection), Very
High quality Gapless Audio
Recordings
Playlist Builder
A-B repeat function allows you to
continuously replay a designated
section of a track
Variable Track Playback speeds
Supports 12 user languages including
song/artist name display
USB Flash Drive capabilities for data
transfer and storage, plus additional
software
Sleep Mode, preset the player to
Auto-Power OFF after 15, 30, or 60
minutes
7 Equalizer effects, including a
customizable USER EQ setting
Powered using a rechargeable Li-ion
battery (fully charged battery supports
over 15 hours of continuous operation)
Hi-Speed Mini USB 2.0 port for easy
computer connectivity and fast file
transfers
Block Diagram
With 1 pcs of 1G/2G/4Gx8 Flash Memory
Automatic screen saver runs if the unit
is idle for more than a few seconds,
this acts as a battery saving measure
Real Time Clock (RTC) displays local
and world times
1Gx8
2Gx8
4Gx8
