Page 1
Upflow/ Horizontal
Downflow/Horizontal
Condensing, Direct Vent
Gas-Fired Furnace
XR 95
TUH1B040A9241A, TUH1B060A9361A,
TUH1B080A9421A, TUH1C080A9601A,
TUH1C100A9481A, TUH1D100A9601A,
TUH1D120A9601A, TDH1B040A9241A,
TDH1B065A9421A, TDH1C085A9481A,
TDH1D110A9601A
Single-Stage Fan Assisted
Combustion System
*UH1
UPFLOW
*UH1
UPFLOW/HORIZONTAL
*DH1
DOWNFLOW
*DH1
DOWNFLOW/HORIZONTAL
PUB. NO. 22-1836-07
Page 2
General
Features
Features
NATURAL GAS MODELS
Central Heating furnace designs are
certified to ANSI Z21.47 / CSA 2.3 for
both natural and L.P. gas. Limit setting
and rating data were established and
approved under standard rating conditions using American National Standards
Institute standards.
SAFE OPERATION
The Integrated System Control has solid
state devices, which continuously monitor
for presence of flame, when the system is
in the heating mode of operation. Dual
solenoid combination gas valve and
regulator provide extra safety.
QUICK HEATING
Durable, cycle tested, heavy gauge
aluminized steel heat exchanger
quickly transfers heat to provide warm
conditioned air to the structure. Low
energy power vent blower, to increase
efficiency and provide a positive discharge of gas fumes to the outside.
BURNERS
Multiport Inshot burners will give years of
quiet and efficient service. All models
can be converted to L.P. gas without
changing burners.
INTEGRATED SYSTEM CONTROL
Exclusively designed operational program provides total control of furnace
limit sensors, blowers, gas valve, flame
control and includes self diagnostics for
ease of service. Also contains connection points for E.A.C./humidifier.
AIR DELIVERY
The four speed, direct drive blower
motor, has sufficient airflow for most
heating and cooling requirements, will
switch from heating to cooling speeds on
demand from room thermostat. The
blower door safety switch will prevent or
terminate furnace operation when the
blower door is removed.
STYLING
Heavy gauge steel and “wrap-around”
cabinet construction is used in the
cabinet with baked-on enamel finish for
strength and beauty. The heat exchanger section of the cabinet is completely lined with foil faced fiberglass
insulation. This results in quiet and
efficient operation due to the excellent
acoustical and insulating qualities of
fiberglass. Built-in bottom pan and
alternate bottom, left or right side return
air connection provision.
FEATURES AND
GENERAL OPERATION
The XR 95 High Efficiency Gas Furnaces
employ a Silicon Nitride Hot Surface
Ignition system, which eliminates the
waste of a constant burning pilot. The
integrated system control lights the main
burners upon a demand for heat from the
room thermostat. Complete front service
access.
a. Low energy power venter
b. Vent proving pressure switch.
and Benefits
XR 95 Standard Equipment
• Power supply 115/1/60
• Convertible to horizontal
• Type 29-4C™ stainless steel second-
ary heat exchanger
• Inner blower doors
• Direct drive, 4-speed motors
• Silicon Nitride igniter with adaptive
heat up
• Accessory hook-up capability –
Hum and EAC
• Quiet induced draft blower
• Blower door safety switch
• Dual solenoid combination gas valve &
regulator
• PVC venting – 1 or 2 pipe vent option
• Left/right gas connection
• Selectable cooling fan off delay
eliminates need for BAY24X045 time
delay relay
• Single wire twinning
• Integrated solid state control with selfdiagnostics
• 24 volt fuse
• Manual reset burner box limit
• Optional extended warranties
© 2011 Trane All Rights Reserved 2 22-1836-07
Page 3
Contents
General Features 2
Features and Benefits 2
XR 95 Standard Equipment 2
XR 95 Optional Equipment 4
General Data 5
TUH1B040A9241A 5
TUH1B060A9361A 5
TUH1B080A9421A 5
TUH1C080A9601A 6
TUH1C100A9481A 6
TUH1D100A9601A 6
TUH1D120A9601A 6
TDH1B040A9241A 7
TDH1B065A9421A 7
TDH1C085A9481A 7
TDH1D110A9601A 7
Performance Data 8
Electrical Data 10
Field Wiring 14
Twinning Field Wiring 15
Dimensions 16
22-1836-07 3
Page 4
Features and
Benefits
XR 95 Optional Equipment
Comfort Control, XL803, Programmable 7 Day, 3-Ht, 2-Cl ........................................................................... TCONT803AS32DA [ ]
Comfort Control, XR402, Electric, 3-Ht, 2-Cl (Non-programmable) .............................................................. TCONT402AN32DA [ ]
For additional comfort control choices, see the product catalog or quick select handbook
Propane Conversion Kit ....................................................................................................................................... BAYLPKT210B [ ]
Propane Conversion Kit (stainless steel burners) ................................................................................................ BAYLPSS210B [ ]
Downflow Subbase ................................................................................................................................................ BAYBASE205 [ ]
Filter Access Door Kit .............................................................................................................................................. BAYFLTR206 [ ]
Side Filter Rack ....................................................................................................................................................... BAYFLTR200 [ ]
High Altitude Pressure Switch Kit TUH1B040, TDH1B040, TDH1C085 ......................................................... BAYSWT01AHALTA [ ]
High Altitude Pressure Switch Kit TUH1B060, TUH1D100, TUH1D120 .........................................................BAYSWT04AHALTA [ ]
High Altitude Pressure Switch Kit TUH1B080, TUH1C100, TDH1D110 ......................................................... BAYSWT05AHALTA [ ]
High Altitude Pressure Switch Kit TUH1C080 ............................................................................................... BAYSWT11AHALTA [ ]
High Altitude Pressure Switch Kit TDH1B065................................................................................................BAYSWT12AHALTA [ ]
Concentric Vent Kit ......................................................................................................................................... BAYAIR30AVENTA [ ]
Sidewall Vent Termination Kit .............................................................................................................................. BAYVENT200B [ ]
Manufactured/Mobile Home Kit ...........................................................................................................................BAYMFGH100A [ ]
4 22-1836-07
Page 5
General
Data
Product Specifications 1
MODEL
TYPE
RATINGS
Input BTUH
Capacity BTUH (ICS)
AFUE (ICS)
Temp. rise (Min.-Max.) °F.
BLOWER DRIVE
Diameter - Width (In.)
No. Used
Speeds (No.)
CFM vs. in. w.g.
Motor HP
R.P.M.
Volts / Ph / Hz
COMBUSTION FAN - Type
Drive - No. Speeds
Motor HP - RPM
Volts / Ph / Hz
FLA
FILTER — Furnished?
Type Recommended
Hi Vel. (No.-Size-Thk.)
VENT PIPE DIAMETER — Min (In.)
HEAT EXCHANGER
Type-Fired
Gauge (Fired)
ORIFICES — Main
Nat. Gas. Qty. — Drill Size
L.P. Gas Qty. — Drill Size
GAS VALVE
PILOT SAFETY DEVICE
Type
BURNERS — Type
Number
POWER CONN. — V / Ph / Hz
Ampacity (In Amps)
Max. Overcurrent Protection (Amps)
PIPE CONN. SIZE (IN.)
DIMENSIONS
Crated (In.)
WEIGHT
Shipping (Lbs.) / Net (Lbs)
Notes
1 Central Furnace heating designs are certified to ANSI Z21.47 / CSA 2.3
2 For U.S. applications, above input ratings (BTUH) are up to 2,000 feet, derate 4% per 1,000 feet for elevations above 2,000 feet above sea
3 Based on U.S. government standard tests.
4 The above wiring specifications are in accordance with National Electrical Code; however, installations must comply with local codes.
5 Refer to the Vent Length Table in the Installer's Guide or the Allowable Vent Length label located on the furnace.
6 All *UH1 and *DH1 furnace models have a vent outlet diameter that equals 2".
2
3
56
-Unfired
4
level. For Canadian applications, above input ratings (BTUH) are up to 4,500 feet, derate 4% per 1,000 feet for elevations above 4,500 feet
above sea level.
TUH1B040A9241A
Upflow / Horizontal
40,000
38,000
95.0
30 - 60
DIRECT
9 x 7
1
4
See Fan Performance Table
1/5
1075
115/1/60
Centrifugal
Direct - 1
1/55 - 3000
115/1/60
1.0
No
High Velocity
1 - 17x25 - 1in.
2 Round
Aluminized Steel - Type I
20
2 — 45
2 — 56
Redundant - Single Stage
Hot Surface Ignition
Multiport Inshot
2
115/1/60
5.2
15
1/2
H x W x D
41-3/4 x 19-1/2 x 30-1/2
139 / 129
TUH1B060A9361A
Upflow / Horizontal
60,000
57,000
95.0
30 - 60
DIRECT
10 x 7
1
4
See Fan Performance Table
1/3
1075
115/1/60
Centrifugal
Direct - 1
1/55 - 3450
115/1/60
1.75
No
High Velocity
1 - 17x25 - 1in.
2 Round
Aluminized Steel - Type I
20
3 — 45
3 — 56
Redundant - Single Stage
Hot Surface Ignition
Multiport Inshot
3
115/1/60
9.2
15
1/2
H x W x D
41-3/4 x 19-1/2 x 30-1/2
150 / 140
TUH1B080A9421A
Upflow / Horizontal
80,000
76,000
95.0
35 - 65
DIRECT
11 x 8
1
4
See Fan Performance Table
1/2
1075
115/1/60
Centrifugal
Direct - 1
1/24 - 3450
115/1/60
0.71
No
High Velocity
1 - 17x25 - 1in.
3 Round
Aluminized Steel - Type I
20
4 — 45
4 — 56
Redundant - Single Stage
Hot Surface Ignition
Multiport Inshot
4
115/1/60
10.2
15
1/2
H x W x D
41-3/4 x 19-1/2 x 30-1/2
158 / 148
22-1836-07 5
Page 6
MODEL
TYPE
RATINGS
Input BTUH
Capacity BTUH (ICS)
AFUE (ICS)
Temp. rise (Min.-Max.) °F.
BLOWER DRIVE
Diameter - Width (In.)
No. Used
Speeds (No.)
CFM vs. in. w.g.
Motor HP
R.P.M.
Volts / Ph / Hz
COMBUSTION FAN - Type
Drive - No. Speeds
Motor HP - RPM
Volts / Ph / Hz
FLA
FILTER — Furnished?
Type Recommended
Hi Vel. (No.-Size-Thk.)
VENT PIPE DIAMETER — Min (In.)
HEAT EXCHANGER
Type-Fired
Gauge (Fired)
ORIFICES — Main
Nat. Gas. Qty. — Drill Size
L.P. Gas Qty. — Drill Size
GAS VALVE
PILOT SAFETY DEVICE
Type
BURNERS — Type
Number
POWER CONN. — V / Ph / Hz
Ampacity (In Amps)
Max. Overcurrent Protection (Amps)
PIPE CONN. SIZE (IN.)
DIMENSIONS
Crated (In.)
WEIGHT
Shipping (Lbs.) / Net (Lbs)
2
3
-Unfired
4
TUH1C080A9601A
Upflow / Horizontal
See Fan Performance Table
Centrifugal
1/20 - 3450
High Velocity
1 - 20x25 - 1in.
56
Aluminized Steel - Type I
Redundant - Single Stage
Hot Surface Ignition
Multiport Inshot
H x W x D
41-3/4 x 23 x 30-1/2
80,000
76,000
95.0
30 - 60
DIRECT
11 x 10
1
4
3/4
1100
115/1/60
Direct - 1
115/1/60
0.71
No
3 Round
20
4 — 45
4 — 56
4
115/1/60
13.5
20
1/2
171 / 160
General
Data
Product Specifications 1
TUH1C100A9481A
Upflow / Horizontal
97,000
92,150
95.0
35 - 65
DIRECT
10 x 10
1
4
See Fan Performance Table
1/2
1075
115/1/60
Centrifugal
Direct - 1
1/20 - 3450
115/1/60
0.71
No
High Velocity
1 - 20x25 - 1in.
3 Round
Aluminized Steel - Type I
20
5 — 45
5 — 56
Redundant - Single Stage
Hot Surface Ignition
Multiport Inshot
5
115/1/60
12.5
20
1/2
H x W x D
41-3/4 x 23 x 30-1/2
171 / 160
TUH1D100A9601A
Upflow / Horizontal
97,000
92,150
95.0
35 - 65
DIRECT
11 x 10
1
4
See Fan Performance Table
3/4
1100
115/1/60
Centrifugal
Direct - 1
1/20 - 3450
115/1/60
0.71
No
High Velocity
1 - 24x25 - 1in.
3 Round
Aluminized Steel - Type I
20
5 — 45
5 — 56
Redundant - Single Stage
Hot Surface Ignition
Multiport Inshot
5
115/1/60
12.9
20
1/2
H x W x D
41-3/4 x 26-1/2 x 30-1/2
197 / 185
TUH1D120A9601A
Upflow / Horizontal
110,000
104,500
95.0
40 - 70
DIRECT
11 x 10
1
4
See Fan Performance Table
3/4
1100
115/1/60
Centrifugal
Direct - 1
1/20 - 3450
115/1/60
0.71
No
High Velocity
1 - 24x25 - 1in.
3 Round
Aluminized Steel - Type I
20
6 — 45
6 — 56
Redundant - Single Stage
Hot Surface Ignition
Multiport Inshot
6
115/1/60
12.9
20
1/2
H x W x D
41-3/4 x 26-1/2 x 30-1/2
205 / 193
Notes
1 Central Furnace heating designs are certified to ANSI Z21.47 / CSA 2.3
2 For U.S. applications, above input ratings (BTUH) are up to 2,000 feet, derate 4% per 1,000 feet for elevations above 2,000 feet above sea
level. For Canadian applications, above input ratings (BTUH) are up to 4,500 feet, derate 4% per 1,000 feet for elevations above 4,500
feet above sea level.
3 Based on U.S. government standard tests.
4 The above wiring specifications are in accordance with National Electrical Code; however, installations must comply with local codes.
5 Refer to the Vent Length Table in the Installer's Guide or the Allowable Vent Length label located on the furnace.
6 All *UH1 and *DH1 furnace models have a vent outlet diameter that equals 2".
6 22-1836-07
Page 7
MODEL
TYPE
RATINGS
Input BTUH
Capacity BTUH (ICS)
AFUE (ICS)
Temp. rise (Min.-Max.) °F.
BLOWER DRIVE
Diameter - Width (In.)
No. Used
Speeds (No.)
CFM vs. in. w.g.
Motor HP
R.P.M.
Volts / Ph / Hz
COMBUSTION FAN - Type
Drive - No. Speeds
Motor HP - RPM
Volts / Ph / Hz
FLA
FILTER — Furnished?
Type Recommended
Hi Vel. (No.-Size-Thk.)
VENT PIPE DIAMETER — Min (In.)
HEAT EXCHANGER
Type-Fired
Gauge (Fired)
ORIFICES — Main
Nat. Gas. Qty. — Drill Size
L.P. Gas Qty. — Drill Size
GAS VALVE
PILOT SAFETY DEVICE
Type
BURNERS — Type
Number
POWER CONN. — V / Ph / Hz
Ampacity (In Amps)
Max. Overcurrent Protection (Amps)
PIPE CONN. SIZE (IN.)
DIMENSIONS
Crated (In.)
WEIGHT
Shipping (Lbs.) / Net (Lbs)
2
3
-Unfired
4
TDH1B040A9241A
Downflow / Horizontal
See Fan Performance Table
1/55 - 3000
High Velocity
2 - 14x20 - 1in.
56
Aluminized Steel - Type I
Redundant - Single Stage
Hot Surface Ignition
Multiport Inshot
41-3/4 x 19-1/2 x 30-1/2
40,000
38,000
95.0
30 - 60
DIRECT
10 x 7
1
4
1/5
1080
115/1/60
Centrifugal
Direct - 1
115/1/60
1.14
No
2 Round
20
2 — 45
2 — 56
2
115/1/60
4.8
15
1/2
H x W x D
145 / 135
General
Data
Product Specifications 1
TDH1B065A9421A
Downflow / Horizontal
60,000
57,000
95.0
25 - 55
DIRECT
11 x 8
1
4
See Fan Performance Table
1/2
1075
115/1/60
Centrifugal
Direct - 1
1/25 - 3200
115/1/60
1.35
No
High Velocity
2 - 14x20 - 1in.
2 Round
Aluminized Steel - Type I
20
4 — 48
4 — 56
Redundant - Single Stage
Hot Surface Ignition
Multiport Inshot
4
115/1/60
11.4
15
1/2
H x W x D
41-3/4 x 19-1/2 x 30-1/2
158 / 148
TDH1C085A9481A
Downflow / Horizontal
80,000
76,000
95.0
30 - 60
DIRECT
11 x 10
1
4
See Fan Performance Table
1/2
1075
115/1/60
Centrifugal
Direct - 1
1/20 - 3450
115/1/60
0.71
No
High Velocity
2 - 16x20 - 1in.
2.5 Round
Aluminized Steel - Type I
20
5 — 48
5 — 56
Redundant - Single Stage
Hot Surface Ignition
Multiport Inshot
5
115/1/60
12.5
20
1/2
H x W x D
41-3/4 x 23 x 30-1/2
171 / 160
TDH1D110A9601A
Downflow / Horizontal
110,000
104,500
95.0
35 - 65
DIRECT
11 x 10
1
4
See Fan Performance Table
3/4
1100
115/1/60
Centrifugal
Direct - 1
1/20 - 3450
115/1/60
0.71
No
High Velocity
2 - 16x20 - 1in.
2.5 Round
Aluminized Steel - Type I
20
6 — 48
6 — 56
Redundant - Single Stage
Hot Surface Ignition
Multiport Inshot
6
115/1/60
12.9
20
1/2
H x W x D
41-3/4 x 26-1/2 x 30-1/2
205 / 193
Notes
1 Central Furnace heating designs are certified to ANSI Z21.47 / CSA 2.3
2 For U.S. applications, above input ratings (BTUH) are up to 2,000 feet, derate 4% per 1,000 feet for elevations above 2,000 feet above sea
level. For Canadian applications, above input ratings (BTUH) are up to 4,500 feet, derate 4% per 1,000 feet for elevations above 4,500
feet above sea level.
3 Based on U.S. government standard tests.
4 The above wiring specifications are in accordance with National Electrical Code; however, installations must comply with local codes.
5 Refer to the Vent Length Table in the Installer's Guide or the Allowable Vent Length label located on the furnace.
6 All *UH1 and *DH1 furnace models have a vent outlet diameter that equals 2".
22-1836-07 7
Page 8
Performance
Data
FURNACE AIRFLOW (CFM) VS. EXTERNAL STATIC PRESSURE (in. w.c.)
MODEL SPEED TAP 0.100.200.300.400.500.600.700.800.90
4 -
HIGH - Black
3 -
*UH1B040A9241A
*UH1B060A9361A
*UH1B080A9421A
*UH1C080A9601A
*UH1C100A9481A
*UH1D100A9601A
*UH1D120A9601A
MED.-HIGH - Blue
2 -
MED.-LOW - Yellow
1 -
LOW - Red
4 -
HIGH - Black
3 -
MED.-HIGH - Blue
2 -
MED.-LOW - Yellow
1 -
LOW - Red
4 -
HIGH - Black
3 -
MED.-HIGH - Blue
2 -
MED.-LOW - Yellow
1 -
LOW - Red
4 -
HIGH - Black
3 -
MED.-HIGH - Blue
2 -
MED.-LOW - Yellow
1 -
LOW - Red
4 -
HIGH - Black
3 -
MED.-HIGH - Blue
2 -
MED.-LOW - Yellow
1 -
LOW - Red
4 -
HIGH - Black
3 -
MED.-HIGH - Blue
2 -
MED.-LOW - Yellow
1 -
LOW - Red
4 -
HIGH - Black
3 -
MED.-HIGH - Blue
2 -
MED.-LOW - Yellow
1 -
LOW - Red
*= First letter may be "A" or "T"
1043
940
837
729
1359
1232
1077
926
1646
1366
1175
1004
2235
1921
1618
1334
1982
1892
1759
1593
2339
2045
1719
1436
2380
2042
1695
1402
992
895
798
694
1313
1199
1054
913
1611
1356
1159
994
2194
1904
1604
1331
1912
1832
1712
1557
2287
2021
1703
1430
2334
2029
1690
1404
930
841
752
657
1264
1161
1027
895
1573
1337
1145
997
2152
1888
1591
1327
1836
1765
1660
1521
2235
1996
1693
1430
2287
2016
1684
1406
885
791
705
600
1204
1116
994
871
1530
1311
1130
982
2105
1861
1577
1320
1761
1696
1604
1485
2168
1947
1671
1414
2241
1984
1668
1397
812
726
649
545
1144
1065
953
836
1477
1280
1108
963
2057
1835
1563
1313
1679
1621
1536
1433
2100
1897
1649
1398
2193
1952
1652
1387
740
650
560
478
1079
1004
904
792
1421
1243
1081
943
1987
1797
1539
1290
1593
1538
1465
1370
2021
1836
1607
1372
2118
1892
1627
1358
647
559
438
376
1004
934
845
733
1360
1197
1045
907
1916
1760
1515
1266
1496
1446
1383
1294
1941
1774
1565
1344
2043
1830
1601
1328
518
420
305
220
919
852
768
670
1289
1139
993
866
1836
1698
1466
1229
1389
1342
1275
1182
1858
1701
1498
1287
1956
1771
1545
1285
457
390
279
178
812
744
666
570
1200
1060
929
824
1757
1636
1416
1192
1267
1205
1149
1068
1773
1629
1431
1230
1870
1712
1489
1242
MODEL
*UH1B040A9241A
*UH1B060A9361A
*UH1B080A9421A
*UH1C080A9601A
*UH1C100A9481A
*UH1D100A9601A
*UH1D120A9601A
*= First letter may be "A" or "T"
600 700 800 900 1000 1100 1200 1300 1400 1500 1600 1700 1800 1900 2000 2100 2200 2300 2400
59 50 44 39 35
59 53 48 44 41 38
CFM VS. TEMPERATURE RISE
Cubic Feet Per Minute (CFM)
64 59 54 50 47 44 41
64 59 54 50 47 44 41
68 63 59 55 52 49 46 44
68 63 59 55 52 49 46 44 42 40 38 37
70 66 62 59 56 53 50 48 46 44
8 22-1836-07
Page 9
Performance
Data
FURNACE AIRFLOW (CFM) VS. EXTERNAL STATIC PRESSURE (in. w.c.)
MODEL SPEED TAP 0.100.200.300.400.500.600.700.800.90
4 -
HIGH - Black
3 -
*DH1B040A9241A
*DH1B065A9421A
*DH1C085A9481A
*DH1D110A9601A
MED.-HIGH - Blue
2 -
MED.-LOW - Yellow
1 -
LOW - Red
4 -
HIGH - Black
3 -
MED.-HIGH - Blue
2 -
MED.-LOW - Yellow
1 -
LOW - Red
4 -
HIGH - Black
3 -
MED.-HIGH - Blue
2 -
MED.-LOW - Yellow
1 -
LOW - Red
4 -
HIGH - Black
3 -
MED.-HIGH - Blue
2 -
MED.-LOW - Yellow
1 -
LOW - Red
*= First letter may be "A" or "T"
998
856
753
647
1501
1442
1346
1225
1835
1726
1581
1401
2147
1995
1712
1424
965
832
728
617
1453
1393
1308
1197
1772
1674
1539
1374
2074
1940
1681
1408
922
797
694
581
1402
1341
1263
1160
1709
1622
1498
1346
2000
1885
1649
1392
870
751
650
538
1344
1285
1212
1116
1637
1557
1440
1308
1941
1827
1602
1367
807
695
596
490
1283
1227
1155
1062
1566
1492
1383
1269
1881
1767
1555
1341
735
628
533
435
1216
1166
1092
1001
1485
1416
1321
1209
1807
1699
1505
1296
653
550
460
375
1145
1103
1024
931
1405
1340
1258
1148
1732
1631
1455
1251
561
462
378
308
1068
1037
950
853
1313
1252
1172
1075
1655
1547
1381
1188
459
363
286
235
986
968
869
766
1222
1164
1085
1001
1576
1462
1307
1124
MODEL
*DH1B040A9241A
*DH1B065A9421A
*DH1C085A9481A
*DH1D110A9601A
*= First letter may be "A" or "T"
600 700 800 900 1000 1100 1200 1300 1400 1500 1600 1700 1800 1900 2000 2100 2200 2300 2400
59 50 44 39 35
CFM VS. TEMPERATURE RISE
Cubic Feet Per Minute (CFM)
75 66 59 53 48 44 41 38 35
70 64 59 54 50 47 44 41 39 37
88 81 74
69 65 60 57 54 51 48
46
22-1836-07 9
Page 10

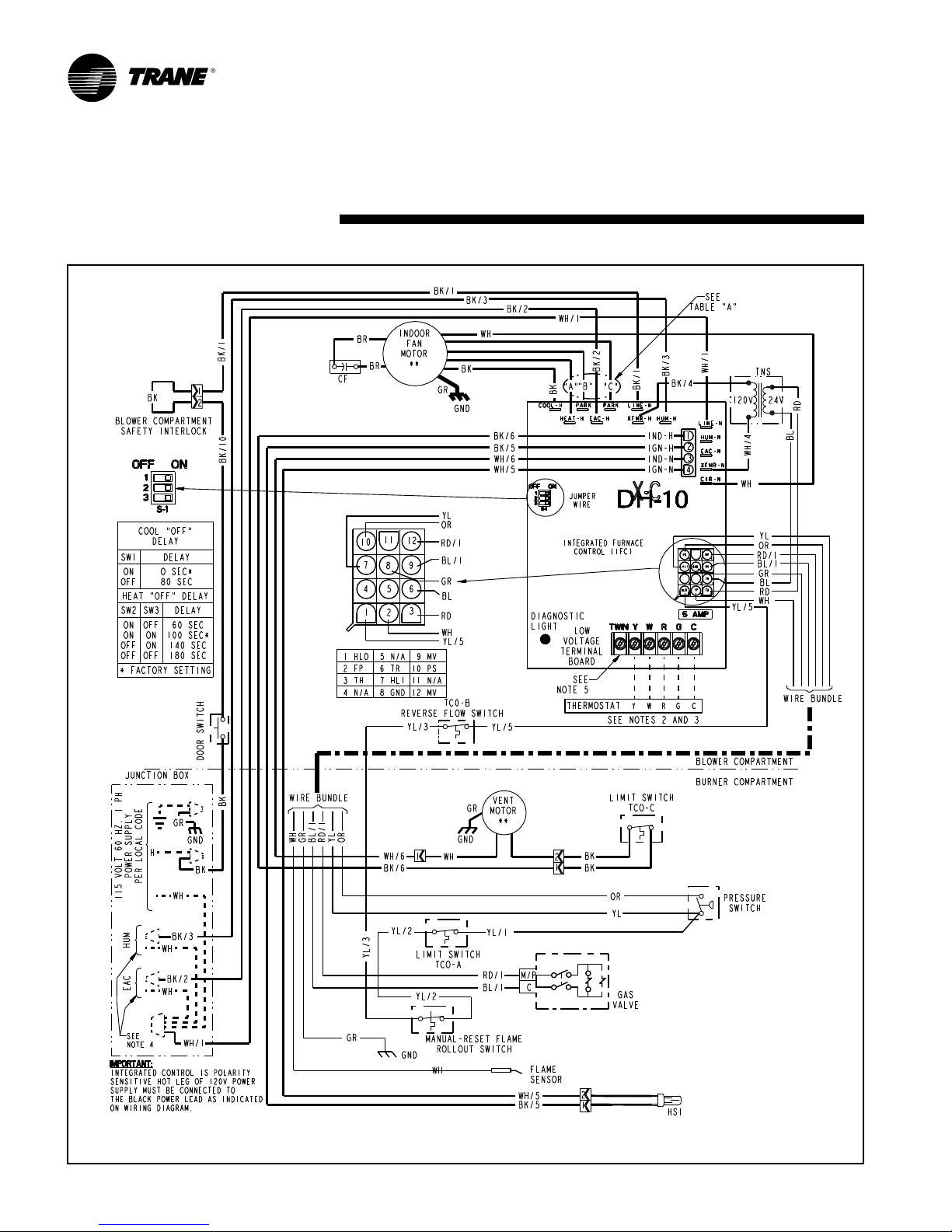

TUH1 Wiring
Electrical
Data
From Dwg. D343498 Rev. 2
10 22-1836-07
Page 11

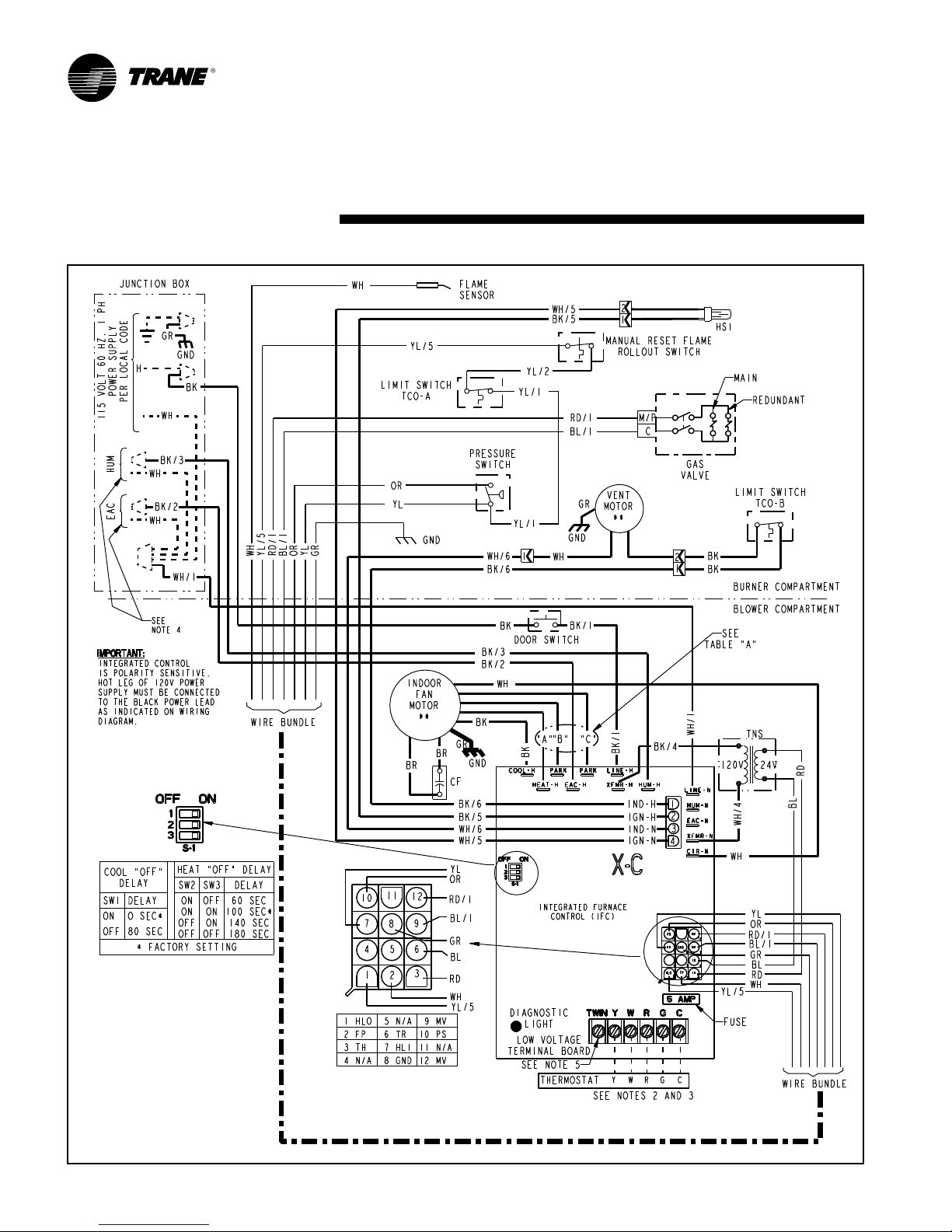

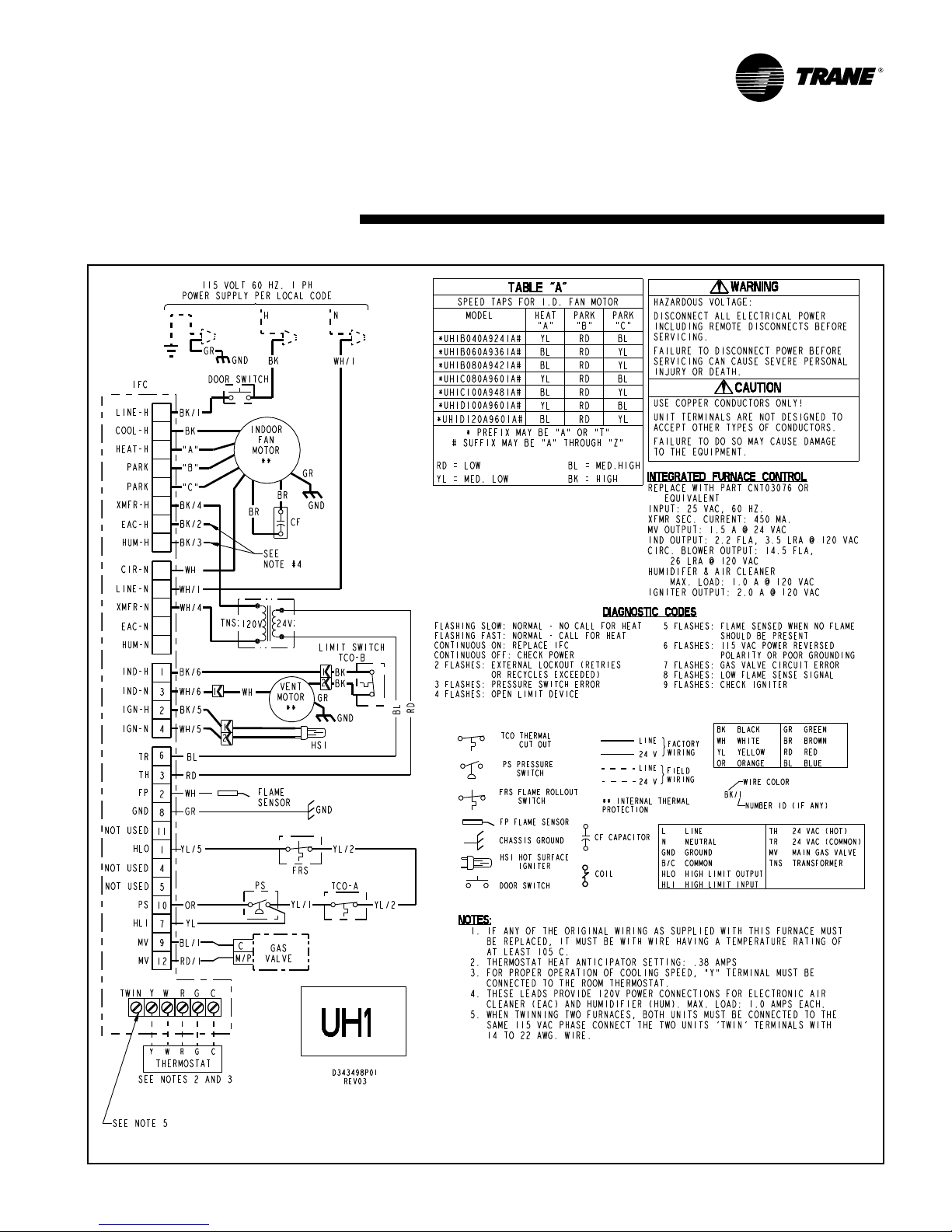

TUH1 Schematic
Electrical
Data
22-1836-07 11
From Dwg. D343498 Rev. 2

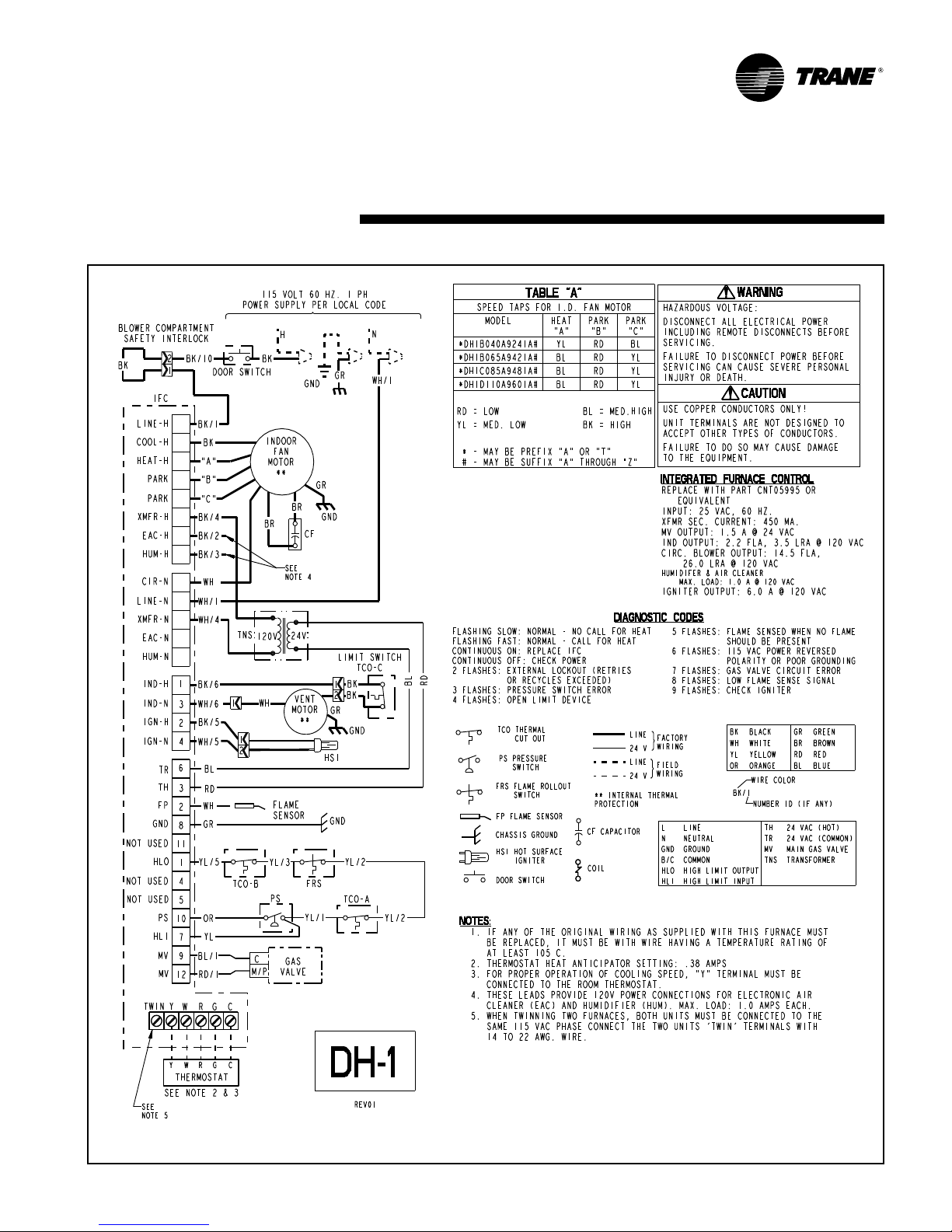

Page 12
Electrical
Data
From Dwg. D343814P01 Rev.0
12 22-1836-07
Page 13
Electrical
Data
22-1836-07 13
From Dwg. D343814P01 Rev.0
Page 14
OUTDOOR UNIT
(NO TRANSFORMER)
Field
Wiring

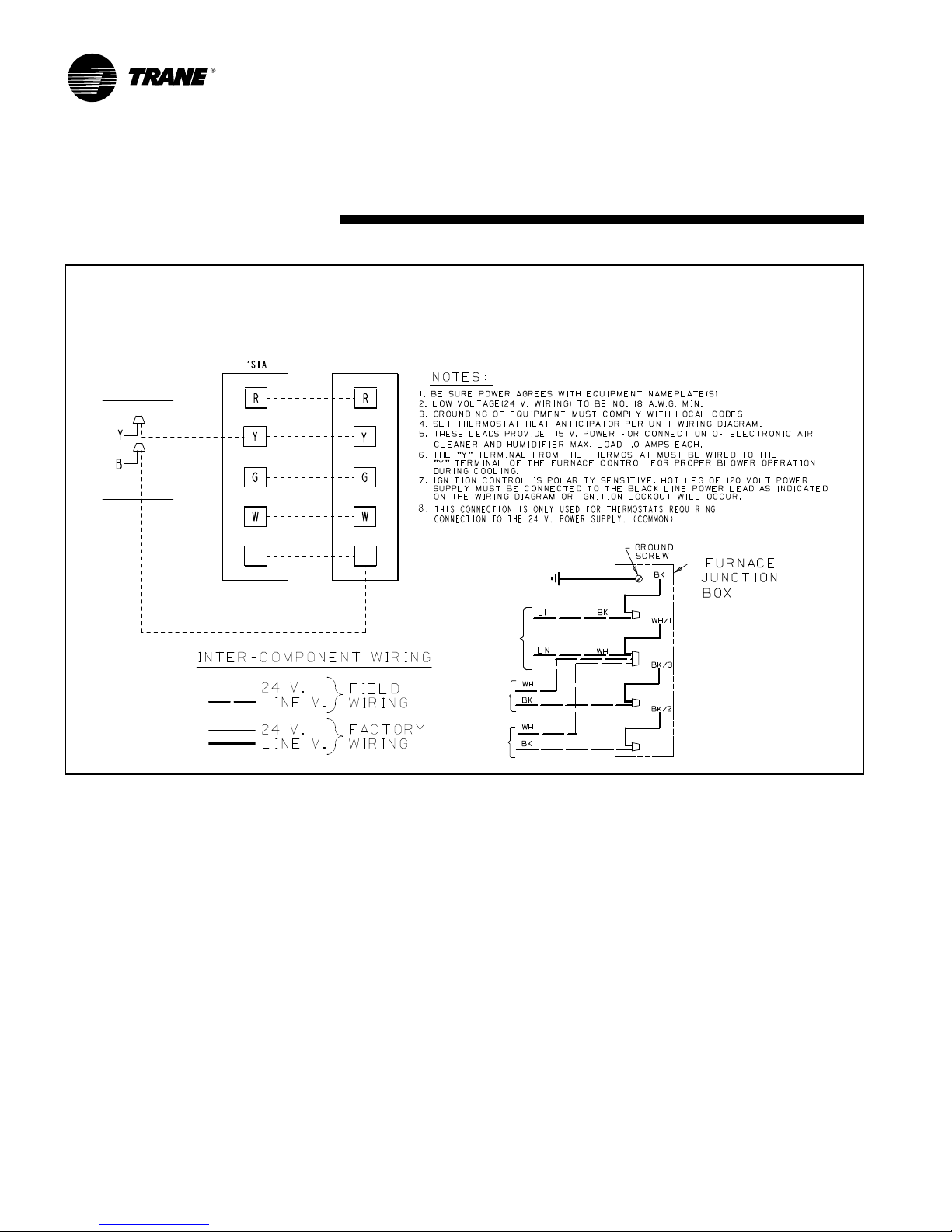

FIELD WIRING DIAGRAM FOR 1 STAGE FURNACE
1 STAGE HEATING, 1 STAGE COOLING
USING A 1 STAGE HEATING, 1 STAGE COOLING THERMOSTAT
(OUTDOOR SECTION WITHOUT TRANSFORMER)
FURNACE
SEE
NOTE 6
SEE
B/C
NOTE 8
B/C
TO 115 V 1 PH.,
60 HZ., POWER
SUPPLY PER
LOCAL CODES
HUM SEE
NOTE 5
EAC SEE
NOTE 5
From drawing B340388 Rv 2
14 22-1836-07
Page 15
Twinning
Field Wiring

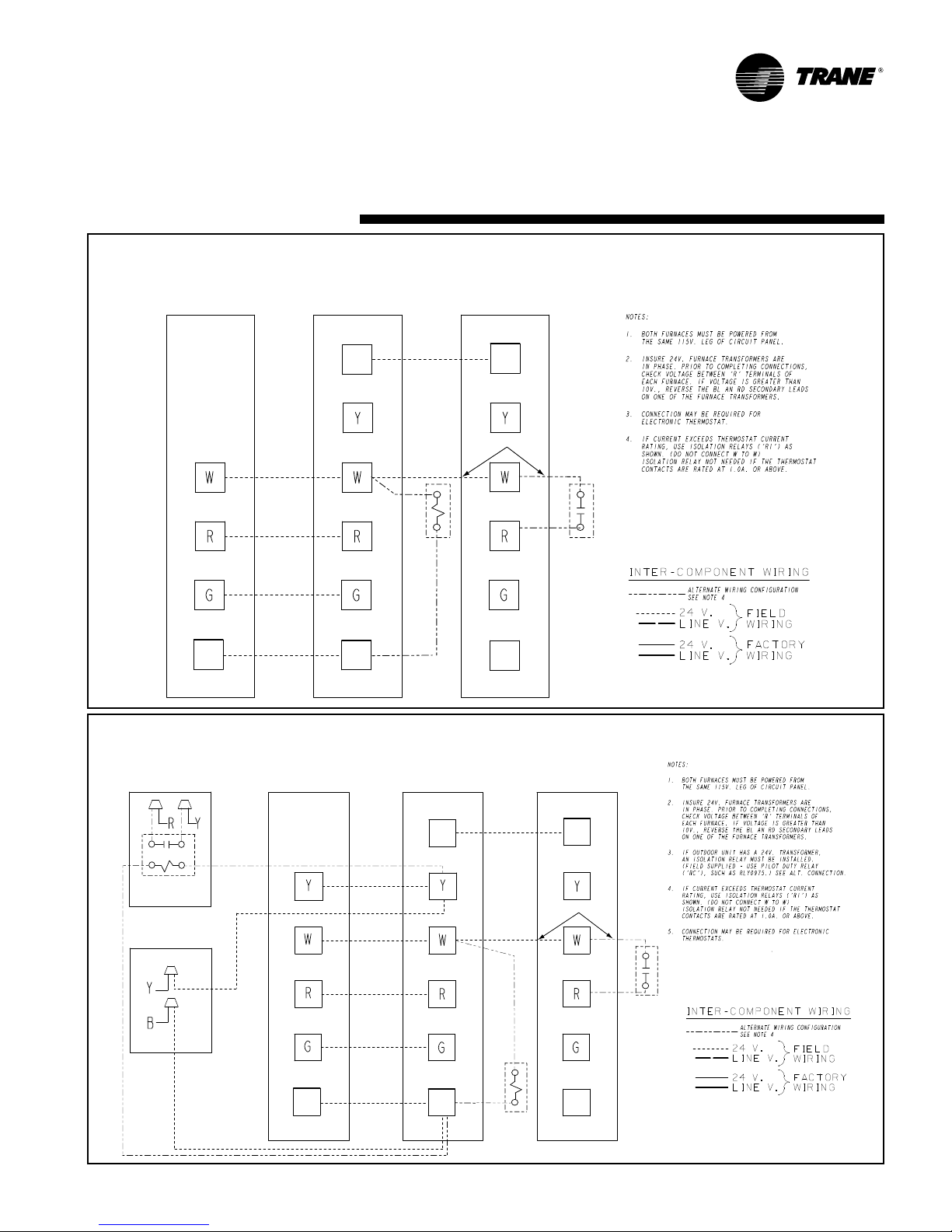

TWINNING CONNECTION DIAGRAM
FOR TWINNING 1 STAGE FURNACES WITH
1 STAGE HEAT
ONLY
THERMOSTAT
(WITH FAN SWITCH) FURNACE NO. 1
SINGLE WIRE TWINNING FEATURE
1 STAGE HEATING ONLY THERMOSTAT
TWIN
ISOLATION RELAY
(FIELD SUPPLIED)
SEE NOTE 4
FURNACE NO. 2
BLOWER OPERATION OF
UNIT NO. 2 IS SYNCRONIZED
WITH UNIT NO. 1 VIA SIGNALS
FROM TWIN CONNECTION.
TWIN
SEE NOTE 4
B/C
OUTDOOR UNIT
(WITH TRANSFORMER)
RC
ISOLATION RELAY
(FIELD SUPPLIED)
SEE NOTE 3
OUTDOOR UNIT
(NO TRANSFORMER)
SEE NOTE 3
1 STAGE
HEATING / COOLING
THERMOSTAT FURNACE NO. 1
B/C
TWINNING CONNECTION DIAGRAM
FOR TWINNING 1 STAGE FURNACES WITH
SINGLE WIRE TWINNING FEATURE
1 STAGE HEAT / 1 STAGE COOL THERMOSTAT
R1
TWIN
B/C
R1
ISOLATION RELAY
SEE NOTE 4
FURNACE NO. 2
BLOWER OPERATION OF
UNIT NO. 2 IS SYNCRONIZED
WITH UNIT NO. 1 VIA SIGNALS
FROM TWIN CONNECTION.
TWIN
SEE NOTE 4
From Dwg. 21B341422 Rev. 3
B/C
22-1836-07 15
SEE NOTE 5
B/C
R1
ISOLATION RELAY
(FIELD SUPPLIED)
SEE NOTE 4
B/C
R1
ISOLATION RELAY
SEE NOTE 4
From Dwg. 21B341423 Rev. 2
Page 16
Dimensions
1. *UH1D120A9601 AND *UH1B080A9421 REQUIRE 3” DIAMETER VENT PIPE.
*UH1C100A9481 & UH1D100A9601 REQUIRES 2-1/2” OR 3”
DIAMETER VENT PIPE.
2. DIAMETER OF VENT PIPE MAY BE LIMITED TO 2-1/2” OR 3”
ON SOME MODELS AT DIFFERENT ALTITUDES. REFER TO THE
VENT LENGTH TABLE FOR PROPER APPLICATION.
From Dwg. C341884
(ALL DIMENSIONS ARE IN INCHES)

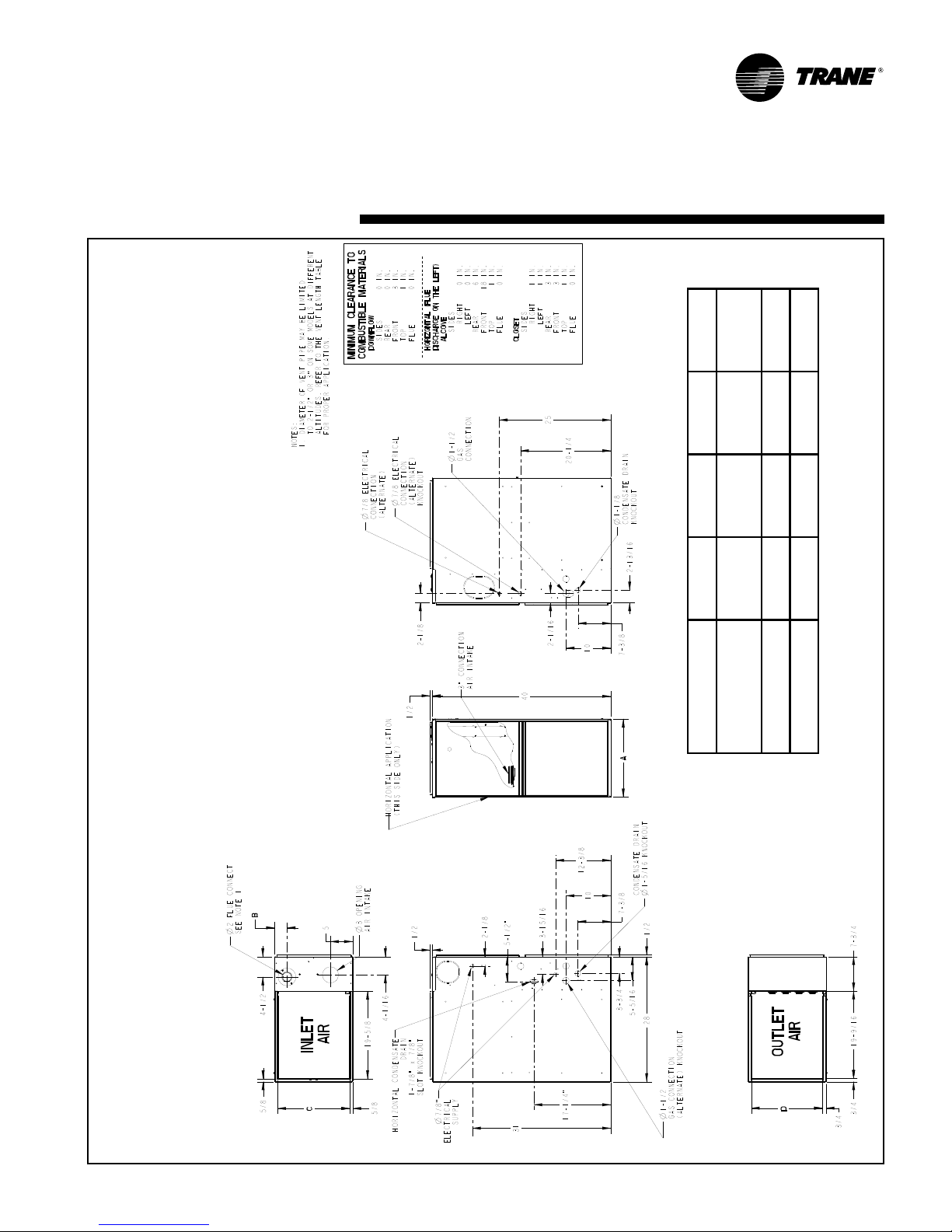

*UH1 OUTLINE DRAWING, UPFLOW / HORIZONTAL
16 22-1836-07
Page 17
Dimensions
From Dwg. C341885 Rev. 7
44 47 447 4
(ALL DIMENSIONS ARE IN INCHES)

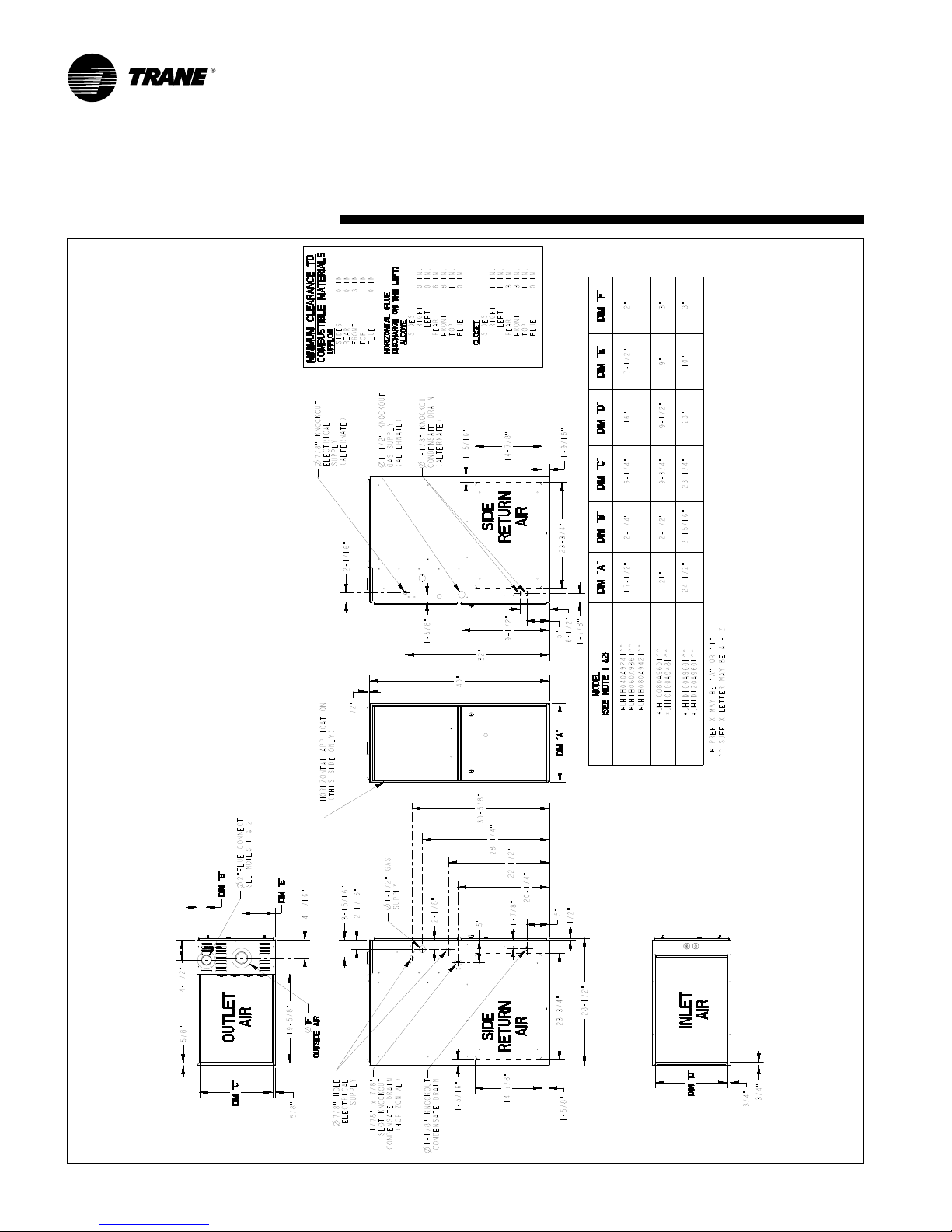

*DH1 OUTLINE DRAWING, DOWNFLOW / HORIZONTAL
12345 3617898 36188 361788 3617838
123456768974
1234568974
123468974 4 4 497 494
123424468964 74 44 47
18
!"#$%8&
22-1836-07 17
Page 18
Trane
6200 Troup Highway
Tyler, TX 75707
www.trane.com
Literature Order Number 22-1836-07
File Number 22-1836-07
Supersedes 22-1836-05
Date 08/11
Trane has a policy of continuous product and product data improvement and it reserves the right to
change design and specifications without notice.
Loading...
