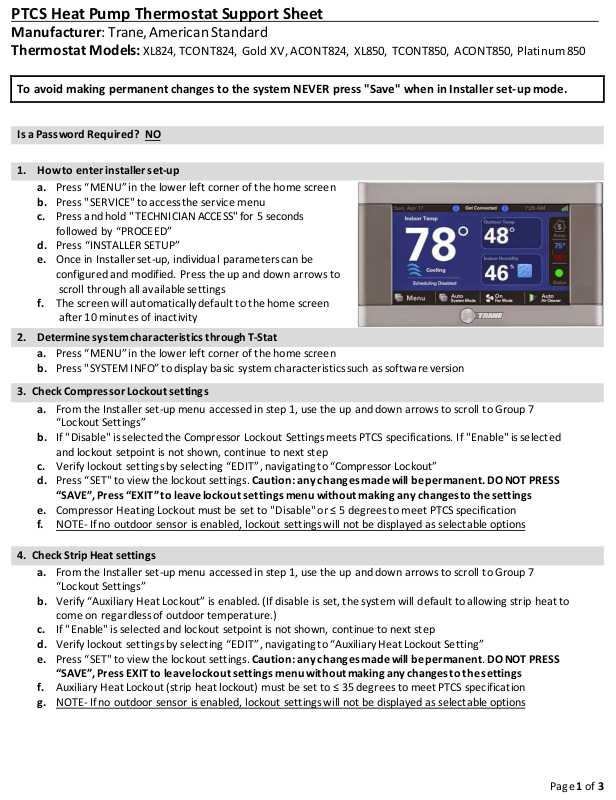

PTCS Heat Pump Thermostat Support Sheet

1. How to ent er installer set -up

a. Press “MENU” in the lower left corner of the home screen

a. Press “MENU” in the lower left corner of the home screen

3. Check Compressor Lockout settings

a. From the I nstaller set-up menu accessed in step 1, use the up and down arrows to scroll to Group 7

a. From the I nstaller set-up menu accessed in step 1, use the up and down arrows to scroll to Group 7

Manufacturer: Trane, American Standard
Thermostat Models:

To avoid making permanent changes to the system NEVER press "Save" when in Installer set-up mode.

Is a Password Required? NO

b. Press "SERVICE" to access the service menu
c. Press and hold "T ECHN ICIAN ACCE SS" for 5 seconds

followed by “PROCEED”

d. Press “INSTALLER SETUP”
e. Once in I nstaller set -up, individual parameters can be

configured and modified. Press the up and down arrows to
scroll through all available settings

f. The screen will automatically default to the home screen

after 10 minutes of inactivity

XL824, TC ONT824, Gold XV , ACON T824, XL850, TCONT850, ACONT850, Pla tinum 850

2. Determine sy stem characteristics through T-Stat

b. Press "SYSTEM I NFO” to display basic system characteristics such as softwar e version

“Lockout Settings”

b. If "Disable" is selected the Compressor Lockout Settings meets PTCS specifications. If "Enable" is selected

and lockout setpoint is not shown, continue to next step

c. Verify lockout settings by selecting “EDI T”, navigating to “Compressor Lockout”
d. Press “SET" to view the lockout settings. Caution : any changes made will be permanent. DO NOT PRES S

“SAVE”, Press “EXIT” to leave lockout settin gs menu without making any changes to the settings
e. Compre ssor Heat ing Lockout must be set to "Disable" or ≤ 5 degrees to meet PTCS specification
f. NOTE- If no outdoor sensor is enabled, lockout settings will not be displayed as selectable options

4. Check Strip Heat settings

“Lockout Settings”
b. Verify “Auxiliar y Heat Lockout” is enabled. (I f disable is set, the system will default to allowing strip heat to

come on regardless of outdoor temperature.)

c. If " Enable" is selected and lockout setpoint is not shown, continue to next step
d. Verify lockout settings by selecting “EDI T”, navigating to “Auxiliary Heat Lockout Setting”
e. Press “SET" to view the lockout settings. Caution: any changes made will be permanent. D O NOT PRES S

“SAVE”, Press EXIT to leave lockout settings menu without making any changes to the settings
f. Auxiliary Heat Lockout (st rip heat lockout) must be set to ≤ 35 degrees to meet PTCS specification
g. NOTE- If no outdoor sensor is enabled, lockout settings will not be displayed as selectable options

Page 1 of 3

PTCS Heat Pump Thermostat Support Sheet

Non-Variable Speed Units

a. Press “MENU” in the lower left corner of the home screen

a. For variable speed systems, this thermostat does not have a test mode that runs compressor and fan at full

a. While in test mode, press and hold the center button, followed by “Cancel”

Manufacturer: Trane, American Standard
Thermostat Models:

XL824, TC ONT824, Gold XV , ACON T824, XL850, TCONT850, ACONT850, Pla tinum 850

5. Acces s Te st Mod e for tes ting sy stem at fu ll c apa city –

b. Press "SERVICE" to access the service menu
c. Press "TEST MODE"
d. Press "SYSTEM" to select the desired system test:

A. Cooling mode: Select "TE ST COOL" followed by “Next” and choose the hig hest stage available. Press

"T EST" to begin testing in the selected mode

B. Heating mode: Select "TE ST COMPR ESSOR H EAT" followed by “Next” and choose the hig hest stage

available. Press the "TEST" button to begin testing in selected mode

C. I f t he " TEST COMPRESSOR HEAT" option is not displayed, return to the home screen and make a large

call for heat of at least 10 degrees. Please Note: if OAT is less than Au xiliary H eat L ock ou t temp erature

setpoint the auxiliary heat may engage

e. Each test will run for a maximum of 60 minutes or until manually terminated
f. Wait at least 10 minutes before taking static pressure readings and inserting flow plate for TrueFlow plate

test. Listen to ensure fan has staged up completely

g. Wait at least 20-25 minutes before doing temp split readings for refrigerant test. The longer the system is

allowed to run, the more likely it will reach a steady state

6. Acces s Te st Mod e for tes ting sy stem at fu ll c apa city – Variable Speed Units (Only 850 series)

capacity for PTCS inspection purposes. To test the system, make a big call (at least 10 degrees) for HEATING
or COOLING depending on the type of test you wish to perform. Please Note: if OAT is less than Au xiliary

Heat Lockout temperature setpoint the auxiliary h eat may engage

b. A call for HEATING or COOLING will typically never force the unit into full compressor and fan speed. Use the

following steps to determine the percent of compressor speed the system is opera ting at :
A. If the Compressor Speed Widget is enabled, the thermostat will display the percent of compressor

speed on the home screen

B. If the Compressor Speed Widget is not displayed on the home screen, from the Service Menu (accessed

in Step 1a-1c) press “System Report”. The percent of compressor speed will be displayed as “%

c. For both methods A and B a bove, let the system run for at least 20 minutes to reach steady state. Supply

d. Multiply nominal capacity by the Compressor Speed Widget value (%) or “% Delivered” from the “System

e. Return temperature settings on the thermostat to where they were when you arrived at the home

Delivered”

static can be monitored for when the fan ramps to maximum speed

Report” to estimate current operating capacity. Use this current operating capacity for airflow CFM/ton
calculations and subsequently for the temp split table. 76% Compressor Speed is usually the maximum
speed achievable

7. Exit Test Mo de

Page 2 of 3

PTCS Heat Pump Thermostat Support Sheet

8. Exit Set-Up Mode

a. From Installer set-up, press "Back" followed by “Home” to return to the home screen

Resources: Trane Customer Support: 1-800-945-5884, Technical Support only available to authorized Trane dealers.

Manufacturer: Trane, American Standard
Thermostat Models:

b. If screen is left untouched for 10 minutes it will return to the home screen by default

To avoid making permanent changes to the system NEVER press "Save" when in Installer set-up mode.

https://www.bayareaservice.com/store/TCONT850Install.pdf

XL824, TC ONT824, Gold XV , ACON T824, XL850, TCONT850, ACONT850, Pla tinum 850
