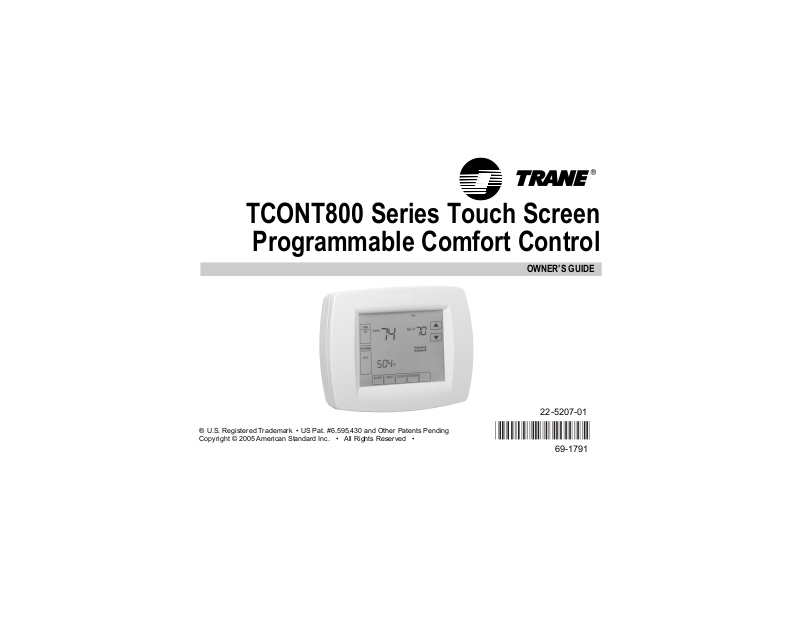

TCONT800 Series Touch Screen
Programmable Comfort Control
® U.S. Registered Trademark • US Pat. #6,595,430 and Other Patents Pending Copyright © 2005 American Standard Inc. • All Rights Reserved •
OWNER’S GUIDE
22-5207-01
69-1791

Contents

Features .......................................................................................................................................... 3
Home Screen ................................................................................................................................. 4
Programming Your Heating and Cooling Schedule ......................................................................... 6
Operating Your Comfort Control...................................................................................................... 16
Replacing Your Batteries................................................................................................................. 23
Cleaning Your Comfort Control Screen........................................................................................... 28
Reading Your Outdoor Temperature (Select Models)...................................................................... 29
Reading Your Remote Indoor Temperature (Select Models)........................................................... 30
Reading Your Inside Humidity Level (Select Models) ..................................................................... 34
Controlling Your Inside Dehumidification Setting (Select Models) .................................................. 35
Advanced Settings .......................................................................................................................... 40
Frequently Asked Questions and Answers ..................................................................................... 47
Limited Five-Year Warranty............................................................................................................. 48
Customer Assistance ...................................................................................................................... 49
IMPORTANT
The comfort control has a touch screen interface. Touch keys appear, as necessary, to complete tasks. Always press the keys with your fingertips. Sharp instruments like a pen or pencil point can damage the comfort control.
2 69-1791

Features

• Large, Clear Display with Backlighting—current temperature, set temperature and time are easy-to-read and all are displayed on the home screen.
• Menu Driven Programming—Guides you through the scheduling process, showing only necessary information and choices on each screen.
• Ability to Select Multiple Days—allows you to easily customize the comfort control for your unique schedule.
• Real-Time Clock—keeps time during power failure; automatically updates for daylight savings.
• Armchair Programming—allows you to remove comfort control from wall to set the schedule (with three AAA batteries installed).
• Precise Temperature Control (+/- 1
• Multiple HOLD options—allows you to modify schedule indefinitely or for a specific time.
• Change Reminders—reminds you to service or replace the air filter, humidifier pad or batteries.
• Programmable Fan—increases air quality when combined with a whole-house air cleaner.
• Outdoor Temperature Indication (Select Models)—shows current outdoor temperature on the display to help you plan outdoor activities.
°
F)—reliable, consistent comfort.
NOTE: The home screen may differ slightly, depending on the heating and/or cooling system you
have and the comfort control settings for your system type.
3 69-1791

Home Screen

SCHEDHOLD
CLOCK
SC
E
O
SYSTEM
g
Schedule
de
S
o
Key Description
SELECTS ON/AUTO/CIRC
SELECTS EM. HEAT/HEAT/OFF/COOL/AUTO
ENTERS SCHEDULING MODE
FAN
Insi
AUT
SYSTEM
SCHED
SETS A PERMANENT HOLD AND
ACTIVATES VACATION HOLD
HOLD
TUE
UP ARROW
et T
Followin
REENMOR
SCREEN
LOCKS OUT THE SCREEN TO ALLOW FOR CLEANING
CLOCK
SETS THE TIME FORWARD OR BACK
RAISES TEMPERATURE SETTING
DOWN ARROW
LOWERS TEMPERATURE SETTING
MORE (SELECT MODELS)
SHOWS ADDITIONAL SYSTEM INFORMATION
M19952
4 69-1791
Display Description
SCHEDHOLD
CLOCK
SC
E
UE
O
SYSTEM
g
Schedule
de
S
o
UE
SHOWS CU
K
E
SHOWS
E
RRENT DAY OF THE WEE
SHOWS FAN SETTING
SHOWS CURRENT SYSTEM POSITION
DISPLAY CURRENT TIME OF DAY,
HOLD TIME REMAINING OR NUMBER
OF VACATION DAYS REMAINING
FAN
SYSTEM
TIME
T
T
Insi
AUT
HEA
INSIDE TEMPERATUR
THE CURRENT INSIDE TEMPERATUR
et T
Followin
REENMOR
SET TO TEMPERATURE
SHOWS THE CURRENT SET TEMPERATURE
FOLLOWING SCHEDULE
SHOWS THE THERMOSTAT IS FOLLOWING THE PROGRAMMED SCHEDULE
M19953
5 69-1791
Programming Your Heating and Cooling Schedule
Your comfort control can control up to four different schedule periods per day:
Wake—Period when you awaken and want your home at a comfortable temperature. Leave—Period when you are away from home and want an energy-saving temperature. Return—Period when you return home and want your home back to a comfortable temperature. Sleep—Period when you are asleep and want an energy-saving temperature.
NOTE: Schedule times are in 15-minute intervals.
Preprogrammed Energy Star Settings
Table 1 shows default program settings. Visit the Energy Star web site at www.energystar.gov for additional education and resources on programmable comfort controls.
6 69-1791
Table 1. Energy Star Default Program Settings.
Setpoints
Schedule Period Time
Wake 6:00AM 70°F (21°C) 78°F (25.5°C) Auto
Leave 8:00AM 62°F (16.5°C) 85°F (29.5°C) Auto
Return 6:00PM 70°F (21°C) 78°F (25.5°C) Auto
Sleep 10:00PM 62°F (16.5°C) 82°F (2°C) Auto
7 69-1791
Fan SettingHeat Cool
22-5207-01
Editing Schedule
1. Press Sched key.
FAN
Inside
AUTO
FRI
Set To
SYSTEM
HEAT
SCHED HOLD CLOCK SCREEN
Following Schedule
AM
PM
M22445
8 69-1791
2. Press Edit key.
SCHED
HOLD
PM
TUE WED THU FRI SAT SUN
MON
OK TO PICK MULTIPLE DAYS SCREEN LOCKED
FAN
Inside
AUTO
Set To
HEAT
SYSTEM
EM HEAT
HEAT
OFF COOL AUTO
DONE
SCHED
EDIT
CANCEL PERIOD
AM
PM
HOLD
CLOCK SCREEN
WAKE
LEAVE RETURN SLEEP CANCEL
Following Schedule
COOL
M22553
9 69-1791
3. It is OK to pick multiple days. Select any combination of days to edit. These days are scheduled with the same times and temperatures. Check marks appear next to days selected.
TUE WED THU FRI SAT SUN
MON
OK TO PICK MULTIPLE DAYS
FAN
ON
AUTO
CIRC
CANCEL PERIOD
HEAT
AM
DONE WAKE LEAVE RETURN SLEEP CANCEL
COOL
M19955
4. Press Wake key. Once pressed, Wake flashes to show it is selected.
5. Press Up and Down keys to modify time and heat and cool temperatures from this screen.
NOTE: The Fan setting can be programmed for On, Auto, or Circ for each period selected. See
Fan Schedule section for more information.
6. Press Leave key and repeat step 5.
7. Press Return key and repeat step 5.
8. Press Sleep key and repeat step 5.
10 69-1791
9. When complete, press Done key. “Saving Changes” appears on the screen to indicate changes are being saved to the day(s) modified.
TUE WED THU FRI
MON
SAVING
CHANGES
M19956
NOTE: To set a Program Schedule for the remaining days of the week, repeat steps 1-9. Example:
If Mon - Fri was selected first, go back and repeat steps 1-9 for Sat and Sun.
10. To exit schedule without saving changes, press Cancel key any time.
11 69-1791

Cancelling a Schedule Period

NOTE: You may want to cancel a period to match your lifestyle; for example, if someone is always
home during the day on Tuesday, you can cancel the Leave and Return periods (the comfort control would then control to the Wake temperature until the Sleep period).
1. Press Sched key.
2. Press Edit key.
3. Select the Day(s) of the week desired.
4. Press schedule period you want to cancel (Wake, Leave, Return or Sleep). Once selected, the
period flashes.
12 69-1791
5. Press Cancel Period key.
SCHED
HOLD
PM
TUE WED THU FRI SAT SUN
MON
OK TO PICK MULTIPLE DAYS SCREEN LOCKED
FAN
Inside
AUTO
Set To
HEAT
SYSTEM
EM HEAT
HEAT
OFF COOL AUTO
DONE
SCHED
CANCEL PERIOD
AM
PM
HOLD
CLOCK SCREEN
WAKE
LEAVE RETURN SLEEP CANCEL
Following
Schedule
COOL
M22446
13 69-1791
22-5207-01
NOTE: Note that the time, temperature(s) and fan setting disappear. The bar above the selected
period is removed, indicating the scheduled period was cancelled.To reinstate a schedule period, press arrow keys to set desired time and temperatures.
TUE WED THU FRI SAT SUN
MON
OK TO PICK MULTIPLE DAYS
FAN
HEAT
COOL
DONE WAKE LEAVE RETURN SLEEP CANCEL
6. Press Done key.
M19957
22-5207-01
14 69-1791

Setting Time

1. Press Clock.
2. Use arrows to set current time.
TUE
AM
DONE CANCEL
3. Press Done key.
IMPORTANT
The current day of the week should already be set correctly. If not, see advanced settings to set the day.
M19958
15 69-1791

Operating Your Comfort Control

Setting Fan and System Keys
SETTING FAN KEY
The Fan key selections vary based on your heating and/or cooling system type. On — fan runs continuously. Use this setting for improved air circulation or for more efficient central air cleaning.
Auto — fan follows fan program schedule. See Fan Schedule section for more information. Circ — fan runs randomly approximately 35% of time. Use this setting for improved air circulation or
for more efficient central air cleaning when you do not want the fan running continuously.
SETTING SYSTEM KEY
The System key selections vary based on your heating and/or cooling system type.
Heat — controls your heating system. Off — both heating and cooling systems are off. Cool — controls your cooling system. Auto (when enabled) — controls both your heating and cooling system based on temperature. Em. Heat (heat pump systems only) — controls emergency heat and auxiliary heat, if needed.
Heat pump is not operational.
22-5207-01
16 69-1791
Setting Temperature Overrides
Your comfort control has three temperature override options: Hold Temperature Until, Permanent Hold and Vacation Hold.
HOLD TEMPERATURE UNTIL (TEMPORARY HOLD)
Holds temperature temporarily until the next scheduled period time or until the time the user sets.
1. Press Up or Down arrow next to the temperature you want to adjust. “Hold Temperature Until” time appears on the screen. The Hold Temperature Until time defaults to the start time of the next scheduled period.
NOTE: The Time Up and Down arrows are shown for approximately seven seconds. Pressing on
the screen time (where the Hold Temperature Until time is shown) allows the arrows to reappear.
2. Press Up or Down arrow next to the Time key to set desired time for the comfort control to resume schedule.
17 69-1791
FAN
AUTO
SYSTEM
HEAT
TUE
Inside
Hold Temperature
Until
Set To
PM
SCHED HOLD CLOCK SCREEN
CANCEL
M19959
3. Press the Cancel or Sched key to cancel “Hold Temperature Until” and resume schedule.
NOTE: Once “Hold Temperature Until” time is reached, the comfort control shows
“Following Schedule” on the screen to indicate that “Temporary Hold” has ended.
PERMANENT HOLD
Permanent Hold changes the temperature setting until Permanent Hold is cancelled.
1. Press Hold key. “Permanent Hold” appears on the screen.
2. Press Up or Down arrow next to the temperature you want to set during “Hold.”
18 69-1791
TUE
FAN
Inside
AUTO
SYSTEM
HEAT
Permanent
Hold
SCHED HOLD CLOCK SCREEN
Set To
AM
CANCEL
M19960
3. Press Cancel key to cancel “Permanent Hold” and resume the schedule.
VACATION HOLD
Changes temperature setting for a designated number of days.
1. Press the Up and Down arrow keys to set the desired temperature while away on vacation. Notice that “Hold Temperature Until” time is shown on the screen. (This is the time the Vacation Hold override expires after the number of days ends.)
2. Press Hold key twice. Screen shows “Hold Temperature Until” one day.
3. Press Up and Down arrow keys to change the number of Days you desire comfort control to
override the schedule.
19 69-1791
NOTE: Days Up and Down arrows appear for approximately seven seconds. Pressing just below
Hold Temperature Until on the screen allows the Days Up and Down arrows to reappear.
THU
FAN
AUTO
SYSTEM
HEAT
Inside
Hold Temperature
Until
Set To
DAYS
SCHED CLOCK SCREEN
CANCEL
M19961
4. To cancel the Vacation Hold override early, press the Cancel key.
NOTE: When the number of days of Vacation Hold expires, the screen shows “Following
Schedule” to indicate that Vacation Hold has ended.
20 69-1791
Fan Schedule
SCHED
HOLD
PM
Press Fan key while in the Scheduling Screen to program the System Fan. Choices available from the Scheduling Screen: Auto (default position)—fan runs with equipment. Programmable for all schedule periods (Wake, Leave, Return and Sleep).
On—fan runs continuously (programmable for all schedule periods). Circ—fan runs randomly for approximately 35% of schedule period (programmable for all schedule
periods).
TUE WED THU FRI SAT SUN
MON
OK TO PICK MULTIPLE DAYS SCREEN LOCKED
FAN
Inside
AUTO
Set To
HEAT
Following
Schedule
COOL
M22447
SCHED
CANCEL
PERIOD
AM
PM
HOLD
CLOCK SCREEN
WAKE
LEAVE RETURN SLEEP CANCEL
SYSTEM
EM HEAT
HEAT
OFF COOL AUTO
DONE
21 69-1791
Fan Status Displayed on Home Screen
If the Fan program is scheduled, Auto is shown and any programmable mode that is set; for example, if during Wake period, Fan is set to Auto, only Auto is shown in the Fan area. However, if during the Wake period, fan is scheduled to On, both Auto and On are shown. Auto indicates fan is running its schedule; On indicates Fan schedule is set to On.
THU
FAN
Inside
ON
AUTO
SYSTEM
HEAT
SCHED HOLD CLOCK SCREEN
Set To
Following Schedule
AM
M19962
Manual Override of Fan Schedule
Auto—fan is automatically following the Fan schedule (choices are Auto, On or Circulate). On—overrides Fan schedule. Fan is continuously On. Circ—overrides Fan schedule. Fan circulates randomly for approximately 35% of time
until the Auto position is selected.
22 69-1791

Replacing Your Batteries

1. When the LO Battery indicator is flashing, replace the batteries promptly with three fresh AAA alkaline batteries
M19963
23 69-1791
2. Remove comfort control from the wallplate by pulling straight out.
WALL
M22651
24 69-1791
3. Remove the old batteries and insert three fresh AAA alkaline batteries, as marked on the
S
+
comfort control.
BACK OF COMFORT CONTROL
BATTERIE
(3)
M22212
25 69-1791
4. Align the screw blocks with the pins on the back of the comfort control.
WALLPLATE
PINS ON
BACK OF
COMFORT
CONTROL
TERMINAL SCREW BLOCK
M22652
5. Push the comfort control straight onto the wallplate until it snaps into place.
26 69-1791
Battery Tips
1. Replace the batteries as soon as LO Batt flashes in the display. The LO Battery indicator flashes in the display one month before the batteries run down completely.
2. Always use fresh AAA alkaline batteries. Non-alkaline batteries do not last as long and can leak, causing comfort control damage.
Battery Power (Optional)
The comfort control is designed to be programmed while relaxing in your favorite chair. Install the three AAA batteries on the back of the control and you are ready to go. When you have completed programming the control, remove the batteries or simply leave them in place.
27 69-1791

Cleaning Your Comfort Control Screen

The comfort control has a touch screen interaction. Follow these steps to clean the screen without making comfort control changes:
1. Press the Screen key. Comfort control locks out all touch keys for 30 seconds for cleaning.
OK TO
CLEAN
SCREEN
M19964
2. Use damp cloth slightly moistened with water and mild dishwasher detergent to clean the screen.
3. Repeat the above steps, as necessary.
IMPORTANT
Do not spray any type of liquid directly on the comfort control itself.
4. Press the Done key to return to the Home Screen and normal operation.
28 69-1791
Reading Your Outdoor Temperature (Select Models)
On
MON
UE
THUSASUN
O
Se
o
If your comfort control has an outdoor sensor, the comfort control displays the outdoor temperature.
VIEW OUTSIDE TEMPERATURE (SELECT MODELS)
The outside temperature is located in the lower right corner of the Home Screen. If it is not on the Home Screen, view the outside temperature by pressing the More key until the outside temperature shows.
T
AUT
SYSTEM
HEAT
SCHED HOLD CLOCK SCREEN MORE
t T
Heat
Following
Schedule
AM
Outside
M19971
29 69-1791
Reading Your Remote Indoor Temperature (Select Models)
On
MON
UE
THUSASUN
O
de
Se
o
If your comfort control has a remote indoor temperature sensor installed, the comfort control displays the inside temperature on the screen from the remote sensor(s). (Then the comfort control internal temperature sensor is not used.)
T
Insi
AUT
SYSTEM
HEAT
SCHED HOLD CLOCK SCREEN MORE
t T
Heat
Following
Schedule
AM
M19974
ONE REMOTE INDOOR SENSOR INSTALLED (SELECT MODELS)
If one remote indoor temperature sensor is used, the screen showing the Inside temperature reading shows the temperature at the indoor remote sensor location.
MULTIPLE REMOTE INDOOR SENSORS INSTALLED (SELECT MODELS)
If more than one remote indoor sensor is used, the screen showing the Inside temperature reading shows the average of all the remote indoor sensors.
30 69-1791
Reminder Timers (Select Models)
MON
UE
THUSASUN
O
Se
o
These reminders notify you when to change your furnace filter, humidifier pad. When the time you set expires, the comfort control flashes “Change” and then ”Filter” or “Change” and “Humidifier Pad” until you reset the timer.
Resetting Expired Timers
When a Timer expires, a Reset key appears on the Home Screen. Press Reset key to reset the Timer. Notice that the “Change” reminder disappears from the comfort control screen. If more than one Timer expires at the same time, press the Reset key to reset all expired Timers.
T
AUT
SYSTEM
RESET
HEAT
PM
SCHED HOLD CLOCK SCREEN MORE
t T
Following Schedule
M19975
31 69-1791
View or Reset Timer Settings Before They Expire
1. Press More key until the Timer you want to modify appears on the screen.
2. Press Edit key to change the Timer reload value. Use Up and Down arrow keys to change the
number of Run Time Days. See Advanced Settings, steps 8 through 10, for approximate calendar days.
3. Press the Done key to go back to viewing the selected timer.
4. Press Reset key to reset the timer to the timer reload value. (This is the Advanced setting you
set or the reload value you selected in step 2.)
5. Press Done or Cancel key to return to the Home Screen.
Screen Locked
You can fully or partially lock out the keys on the touch screen interface. See Advanced Settings for information on turning these features on or off. If the comfort control shows “Screen Locked,” your comfort control screen is either fully or partially locked.
32 69-1791
TUE
FAN
Inside
AUTO
SYSTEM
HEAT
SCHED HOLD CLOCK SCREEN MORE
PM
SCREEN LOCKED
Set To
Following Schedule
M19965
Partially Locked Screen
When partially locked, the screen indicates Screen Locked for 5 to 7 seconds whenever the user attempts to press a key that is locked. Pressing a locked key while Screen Locked is shown flashes Screen Locked on the screen. Pressing an unlocked key while Screen Locked is active removes the screen lock.
In this mode, all keys are locked except the Temperature Up and Down arrow keys: — User can change temperature up or down but cannot change schedule settings. — Temporary temperature change lasts until next scheduled period and that time shows on screen. — To cancel temperature override and begin following schedule, press Cancel key. — To unlock screen, see Advanced Settings section.
33 69-1791
Fully Locked Screen
In this mode, all keys are locked and not functional. To unlock screen, see Advanced Settings section. The screen continuously displays “Screen Locked.”
Reading Your Inside Humidity Level (Select Models)
Select models can sense the humidity level in the home. If your model has this feature, the humidity level in the home is shown in the lower right corner of the Home Screen.
NOTE: If the comfort control has the optional outdoor temperature sensor (select models), the
indoor humidity level is displayed by pressing the More key.
TUE
FAN
Inside
AUTO
SYSTEM
HEAT
PM
SCHED HOLD CLOCK SCREEN MORE
Set To
Following
Schedule
Humidity
M19966
34 69-1791
Controlling Your Inside Dehumidification Setting (Select Models)
Select models read the inside humidity level and set a desired humidity level to help control dehumidification in the home:
1. Press the More key until the inside humidity percent and dehumidification setpoint are shown.
Inside
Humidity
DEHUMIDIFIER
DONE CANCEL
M19967
2. Use Up and Down arrow keys, located to the right of the dehumidifier setpoint, to set your desired humidity level (select models) for dehumidification in the summer.
3. Press Done key to save your changes and return to the Home Screen.
4. Press Cancel key to return to Home Screen without saving any changes.
35 69-1791
Dehumidification Control (Select Models)
If your comfort control has dehumidification control and you set a dehumidification setpoint, the comfort control attempts to control to this dehumidification setpoint by turning on the air conditioner. In extremely high humidity conditions, comfort control keeps the air conditioner running for up to 3°F below your temperature setpoint. It does this when trying to achieve your desired humidity setpoint and balance that with your temperature setpoint.
Temperature Recovery
Your comfort control comes with a feature called Adaptive Intelligent Recovery™, which eliminates all guesswork when setting your schedule. How long does it take the furnace to warm your house in the morning before you get out of bed or how long does it take the air conditioner to cool your house in the afternoon before you return from work? No problem.The comfort control determines that for you.
Simply set your program schedule to the time you want the house to be at your comfort temperature. The comfort control then turns on the heating or cooling at just the right time to have your home reach your scheduled temperature at your scheduled time.
For example—you get out of bed at 6:00 AM and want the temperature to be 70°F. Set the Wake period for 6:00 AM and 70°F. The comfort control then turns on the heat before 6:00 AM to raise the temperature to 70°F by 6:00 AM.
The comfort control alerts you that the heating or cooling system is coming on before a scheduled time by showing “Recovery” on the screen.
36 69-1791
FAN
AUTO
SYSTEM
HEAT
IMPORTANT
It takes about a week for the comfort control to adjust to local weather, your schedule, the construction of your home and your heating and/or cooling system. Your comfort control learns from experience. Each day it checks how closely it reached the recovery time and adjusts the next day’s recovery start time accordingly.
TUE
Inside
SCHED HOLD CLOCK SCREEN MORE
Set To
Following Schedule
Recovery
PM
Humidity
M19968
37 69-1791
Advanced Heat Pump Features (Select Models)
If you have a heat pump heating system, your comfort control can use some special features when used with an Outdoor Temperature Sensor, such as compressor and/or backup heat lockout based on outside temperature. For example, if your backup heat does not turn on above a designated outside temperature, your system uses an advanced heat pump feature.
Setting the Calendar
This comfort control is designed to automatically keep current time and day in memory for up to ten years, under normal use, once the calendar is set. There are two ways to set the calendar for this comfort control:
SETTING CALENDAR AFTER COMFORT CONTROL IS ALREADY FUNCTIONING
See steps 1 through 4, in the Advanced Settings section, to set year, month and day.
SETTING CALENDAR WHEN COMFORT CONTROL IS FIRST POWERED
When this comfort control is first powered, the display is ready to set the calendar.
38 69-1791
E
MON
UE
THUSASUN
E
MON
THUSASUN
CHANGE FILTER UV LAMP HUMIDIFIER PAD
OK TO PICK MULTIPLE DAYS SCREEN LOCKED
US
E
R
U
SET CURRENT DAY SET MONTH
T
DON
E ARROWS TO SET YEAR AND TIM
DON
M22645
39 69-1791
Advanced Settings
E
OFF
COOL
Your comfort control has many advanced settings to match your heating and cooling system. But you can change these settings to match your lifestyle:
1. From the Home Screen, press the System key. Five blank touch keys show on the bottom of the screen between the Done and Cancel keys.
2. Press and hold the center blank key for approximately five seconds, until the screen changes.
TUE
CHANGE FILTER UV LAMP HUMIDIFIER PAD
Inside
Set To
SYSTEM
EM HEAT
DON
Following
Schedule
PM
CANCEL
M22653
40 69-1791
3. Release the center key when the display on your comfort control matches the display below.
DONE
MON
THUSASUN
A
ADVANCE TO NEXT
USER SETUP NUMBER
USER SETUP
CURRENT SETTING
PRESS TO EXIT USER SETUP
CHANGE THE CURRENT SETTING
M22654
41 69-1791
Step 1. User Setup Number 0120: First Two Digits of Current Calendar Year.
To change current setting, press the Up or Down arrow key to the right of the two-digit number in the lower right corner of the screen. Options: 20 — equals years 20xx. 21 — equals years 21xx.
To Change to the next Setup Number, press the Up arrow key to the right of 0120. To go back to the previous Setup Number, press the Down arrow key.
Step 2. User Setup Number 0130: Last Two Digits of Current Calendar Year.
To change Options, press the Up or Down arrow key to the right of the two-digit number in the lower right corner of the screen. Options: 01 through 99 — equals years 2001 through 2099.
To Change to the next Setup Number, press the Up arrow key to the right of 0130.To go back to the previous Setup Number, press the Down arrow key.
Step 3. User Setup Number 0140: Current Calendar Month.
To change Options, press the Up or Down arrow key to the right of number in lower right corner of the screen. Options: 1 through 12 — equals January through December.
To Change to the next Setup Number, press the Up arrow key to the right of 0140. To go back to the previous Setup Number, press the Down arrow key.
42 69-1791
Step 4. User Setup Number 0150: Current Calendar Date.
To change Options, press the Up or Down arrow key to the right of the number in the lower right corner of the screen. Options:1 through 31 — equals 1
To Change to the next Setup Number, press the Up arrow key to the right of 0150. To go back to the previous Setup Number, press the Down arrow key.
st
of a month to 31st of a month.
Step 5. User Setup Number 0160: Schedule Options.
To change Options, press the Up or Down arrow key to the right of the number in the lower right corner of the screen. Options: 0 — nonprogrammable. Comfort control is nonprogrammable. 4 — programmable. Comfort control is fully programmable, allowing all 7 days to be programmed.
To Change to the next Setup Number, press the Up arrow key to the right of 0160.To go back to the previous Setup Number, press the Down arrow key.
Step 6. User Setup Number 0320: Display Temperature Shown in °F or °C.
To change Options, press the Up or Down arrow key to the right of the number in the lower right corner of the screen. Options: 0 — Fahrenheit. 1 — Celsius.
To Change to the next Setup Number, press the Up arrow key to the right of 0320. To go back to the previous Setup Number, press the Down arrow key.
43 69-1791
Step 7. User Setup Number 0330: Daylight Savings On or Off.
To change Options, press the Up or Down arrow key to the right of the number in the lower right corner of the screen. Options: 0 — Off. Time is not automatically adjused for Daylight Savings in Fall and Spring. 1 — On. Time is automatically adjusted for Daylight Savings in Fall and Spring.
To Change to the next Setup Number, press the Up arrow key to the right of 0330.To go back to the previous Setup Number, press the Down arrow key.
Step 8. User Setup Number 0500: Furnace Air Filter Timer.
To change Options, press the Up or Down arrow key to the right of the number in the lower right corner of the screen. Options: 0 — Off. Furnace filter timer is off. 1 — 10 fan run time days (about one month). 2 — 30 fan run time days (about three months). 3 — 60 fan run time days (about six months). 4 — 90 fan run time days (about nine months). 5 — 120 fan run time days (about one year). 6 — 365 fan run time days (about three years).
To Change to the next Setup Number, press the Up arrow key to the right of 0500.To go back to the previous Setup Number, press the Down arrow key.
44 69-1791
Step 9. User Setup Number 0510: Humidifier Pad Timer.
To change Options, press the Up or Down arrow key to the right of the number in lower right corner of the screen. Options: 0 — Off. Humidifier pad timer is off. 1 — 3 months. 2 — 6 months. 3 — 12 months.
To Change to the next Setup Number, press the Up arrow key to the right of 0510. To go back to the previous Setup Number, press the Down arrow key.
Step 10. User Setup Number 0540: Number of Schedule Periods Available to Program.
To change Options, press the Up or Down arrow key to the right of the number in the lower right corner of screen. Options: 2 — two program periods available (Wake and Sleep). 4 — four program periods available (Wake, Leave, Return and Sleep).
To Change to the next Setup Number, press the Up arrow key to the right of 0540. To go back to the previous Setup Number, press the Down arrow key.
45 69-1791
Step 11. User Setup Number 0640: Time Format.
To change Options, press the Up or Down arrow key to the right of the number in the lower right corner of the screen. Options: 12 — 12-hour clock. 24 — 24-hour clock.
To Change to the next Setup Number, press the Up arrow key to the right of 0640. To go back to the previous Setup Number, press the Down arrow key.
Step 12. User Setup Number 0670: Screen Lockout Function.
To change Options, press the Up or Down arrow key to the right of the number in the lower right corner of the screen. Options: 0 — All keys are available. Screen is unlocked. 1 — Screen is partially locked. All key functions are locked except the Temperature Up and Down keys and the Cancel key. Enter Advanced Setup to unlock the screen. 2 — Screen is fully locked. Enter Advanced Settings to unlock the screen.
Step 13. Exit User Setup
Press the Done key to exit Advanced Settings and return to the Home Screen.
46 69-1791

Frequently Asked Questions and Answers

Q: Some or all keys on the display do not work; why? A: Comfort control screen is locked. See Advanced Setting section to unlock keys on the screen.
Q: Comfort control is asking for heating or cooling to come on (screen shows “Heat On” or “Cool
On” in display) but there is no heating or cooling running.
A: Call your local heating and/or cooling contractor to check your heating and/or cooling system.
Q: Under the Fan on the screen, Auto and On or Auto and Circ are shown. What does this mean? A: The Fan is programmed for either On or Circulate. See the Fan Schedule section for more
information.
Q: Why doesn’t the comfort control respond when I touch the keys? A: Check to determine if the screen is in the Locked or Clean mode. See Screen Locked or Cleaning
Comfort Control Screen sections.
47 69-1791
Limited Five-Year Warranty Low Voltage
Room Comfort Controls
This limited warranty is extended by American Standard Inc., to the original purchaser and to any succeeding owner of the real property to which the Comfort Control is originally affixed, and applies to products purchased and retained for use within the USA and Canada.
If any part of your Comfort Control fails because of a manufacturing defect within five years from the date of the original purchase, Warrantor will furnish without charge a new Comfort Control. Any local transportation related service labor and diagnosis calls are not included.
THE LIMITED WARRANTY AND LIABILITY SET FORTH HEREIN ARE IN LIEU OF ALL OTHER WARRANTIES AND LIABILITIES, WHETHER IN CONTRACT OR IN NEGLIGENCE, EXPRESS OR IMPLIED, IN LAW OR IN FACT, INCLUDING IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR PARTICULAR USE, AND IN NO EVENT SHALL WARRANTOR BE LIABLE FOR ANY INCIDENTAL OR CONSEQUENTIAL DAMAGES.
Some states do not allow limitations on how long an implied limited warranty lasts or do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation or exclusion may not apply to you. This limited warranty gives you specific legal rights, and you may also have other rights which vary from state to state.
Parts will be provided by our factory organization through an authorized service organization in your area listed in the yellow pages. If you wish further help or information concerning this limited warranty, contact:
American Standard Inc. Troup Highway Tyler, TX 75711-9010 Attention: Manager, After Sales Support
48 69-1791

Customer Assistance

If, after reading this guide, you have any questions concerning the operation of your comfort control, please call the Thermostat Customer Assistance Helpline at 1-877-880-3381.
For service, contact your local heating and cooling contractor or visit www.trane.com.
49 69-1791
50 69-1791
51 69-1791
22-5207-01
69-1791 G.H. 01-05
American Standard Inc. Troup Highway Tyler, TX 75711-9010
Loading...
Buy Points How it Works FAQ Contact Us Questions and Suggestions Privacy Policy Cookie Policy Terms of Use
