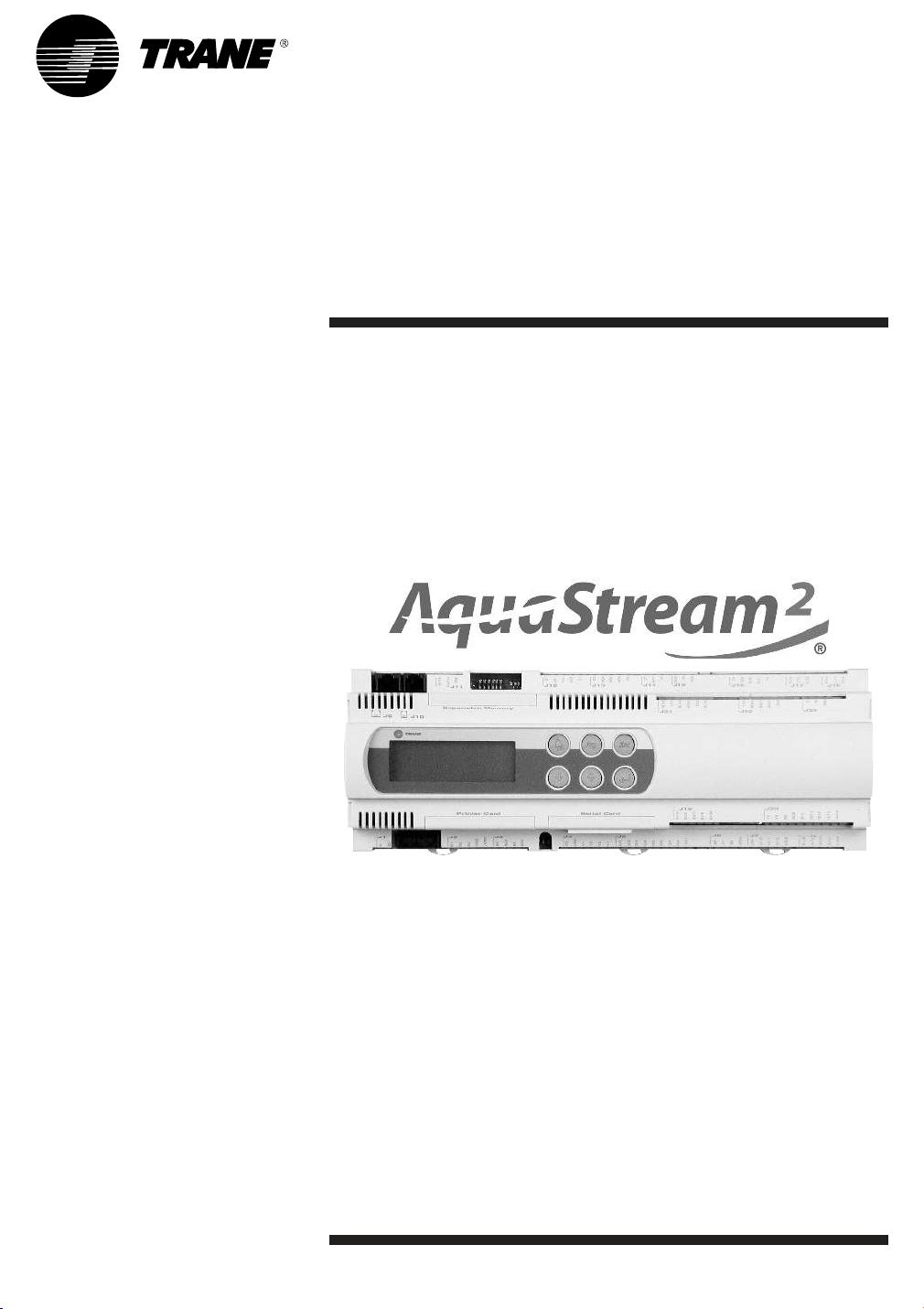

TRACER CH532 Chiller controller User guide
CG-SVU01B-E4
General information
Foreword
These Installation Operation and Maintenance instructions are given as a guide to good practice in the installation, start-up, operation and periodic maintenance by the user of TRACER CH532 chiller controller. They do not contain the full service procedures necessary for the continued successful operation of this equipment. The services of a qualified service technician should be employed, through the medium of a maintenance contract with a reputable service company.
Warranty
Warranty is based on the general terms and conditions of the constructor. The warranty is void if the equipment is modified or repaired without the written approval of the constructor, if the operating limits are exceeded, or if the control system or the electrical wiring is modified. Damage due to misuse, lack of maintenance, or failure to comply with the manufacturer’s instructions, is not covered by the warranty obligation. If the user does not conform to the rules of “Maintenance”, it may entail cancellation of warranty and liabilities by the constructor.
Reception
General information
About this manual
Cautions appear at appropriate places in this instruction manual. Your personal safety and the proper operation of this machine require that you follow them carefully. The constructor assumes no liability for installations or servicing performed by unqualified personnel.
©American Standard Inc. 2004
CG-SVU01B-E4
Contents
Foreword 2
Warranty 2
Reception 2
General information 2
TRACER CH532 Presentation 4
Hardware architecture 5
Starting/stopping the unit 9
Menus 10
Display menu: “Data display” 11
Customer settings menu: “Settings” 12
Clock Setting menu: “Clock” 15
Unit configuration menu: “Configuration” 17
Alarms 22
Lon Talk®option 25
Safety recommendations 32
Maintenance contract 32
Training 32
CG-SVU01B-E4 3
TRACER CH532 Presentation
Esc
Prg
Important note:This document describes all the functions available on TRACER CH532 with software version 2.0 and explains how to program it. Certain parameters must only be modified by qualified personnel. Before changing any parameter, always check that the change does not affect the good and safe operation of the equipment. Operation must always stay in the catalogued limits.
Built-in control terminal features: An LCD display (1), 4 lines x 20 characters with back lighting 6 buttons (2) to (7)
Figure 1 - TRACER CH532 user interface
1 2 3 4
2.
Alarm button:
Used for displaying or manually resetting the alarms. The red LED lights up , when at least one alarm has been detected.
3.
Program button:
Allows the various operating parameters to be set (safety parameters, thresholds).
4.
Escape button:
Allows the return to default display
5.6.
Allows management of currently displayed screen and setting of values of control parameters
Downward and Upward
arrows
Prg Esc
5 6
7 Allows to move from line to line in the currently displayed screen and to confirm the set data.
7
Validation button
4 CG-SVU01B-E4
Hardware architecture
Prg Esc
9
9
10
11
Figure 2 - TRACER CH532 inputs and outputs
CG-SVU01B-E4 5
Hardware architecture
Table 1 - TRACER CH532 General description
Item Description
1 24 V Power supply (G+,GO-) 2 Yellow LED (Power on)
3 Fuse (2A , 5x20) 4 Universal Analog inputs: NTC,0/1V,0/10V,0/20mA, 4/20mA) 5 Passive Analog Inputs (NTC,PT1000 , ON/OFF) 6 Analog Outputs (0/10V) 7 Digital Inputs (24Vac / Vdc) 8 Digital Inputs (230Vac or 24Vac / Vdc) 9 Relays digital output 10 User interface 11 Communication interface
Red LED (Alarm)
6 CG-SVU01B-E4
Hardware architecture
Table 2 - Inputs and output summary list
TRACER CH532 Medium TRACER CH532 Large
AI: Leaving water temperature sensor B3: NTC B3: NTC AI: Entering water temperature sensor B4: NTC B4: NTC AI: Ambient temperature sensor B5: NTC B5: NTC l AI: Suction pressure circuit 1 - LP1 transducer B1: 4..20mA B1: 4..20mA AI: Suction pressure circuit 2 - LP2 transducer B6: 4..20mA AI: Discharge pressure circuit 1 - HP1 transducer B2: 4..20mA B2: 4..20mA AI: Discharge pressure circuit 2 - HP2 transducer B7: 4..20mA AI: External water setpoint reset (option) B8: 0..10V-0..20mA B8: 0..10V-0..20mA AI: Unused B6, B7 B9, B10 DI: Compressor C circuit 1 fault ID1: 24Vac ID1: 24Vac DI: Compressor C circuit 2 fault ID17: 24Vac DI: Compressor A circuit 1 fault ID3: 24Vac ID3: 24Vac DI: Compressor B circuit 1 fault ID4: 24Vac ID4: 24Vac DI: Compressor A circuit 2 fault ID11: 24Vac DI: Compressor B circuit 2 fault ID12: 24Vac DI: High pressure Cut-out circuit 1 - HP1 switch ID14H: 230Vac ID14H: 230Vac DI: High pressure Cut-out circuit 2 - HP2 switch ID15H: 230Vac DI: Auxiliary set point On/Off ID8: 24Vac ID8: 24Vac DI: Fans circuit 1 fault ID5: 24Vac ID5: 24Vac DI: Fans circuit 2 fault ID18: 24Vac DI: Circuit 1 On/Off (or Unit On/Off CH 532 medium) ID13H: 230Vac ID13H: 230Vac DI: Circuit 2 On/Off ID16H: 230Vac DI: Water flow control input ID2: 24Vac ID2: 24Vac DI: Water pump 1 fault ID9: 24Vac ID9: 24Vac DI: Water pump 2 fault ID10: 24Vac ID10: 24Vac DI: Faults external reset ID6: 24Vac ID6: 24Vac DI: Cooling/Heating mode switch ID7: 24Vac ID7: 24Vac DI: Unused ID11, ID12 ­DO: Compressor A circuit 1 output NO7: NO-230Vac NO7: NO-230Vac DO: Compressors B and C circuit 1 output NO8: NO-230Vac NO8: NO-230Vac DO: Compressor A circuit 2 output NO13: NO-230Vac DO: Compressors B and C circuit 2 output NO14: NO-230Vac DO: Fan 1 output Wye (Y) contactor - circuit 1 NO3: NO-230Vac NO3: NO-230Vac DO: Fan 1 output Delta (D) contactor - circuit 1 NO4: NO-230Vac NO4: NO-230Vac DO: Fan 2 output circuit 1 NO5: NO-230Vac NO5: NO-230Vac DO: Fan 3 output circuit 1 NO6: NO-230Vac NO6: NO-230Vac DO: Fan 1 output Wye (Y) contactor - circuit 2 NO15: NO-230Vac DO: Fan 1 output Delta (D) contactor - circuit 2 NO16: NO-230Vac DO: Fan 2 output circuit 2 NO17: NO-230Vac DO: Fan 3 output circuit 2 NO18: NO-230Vac DO: Water pump 1 NO1: NO-230Vac NO1: NO-230Vac DO: Water pump 2 NO2: NO-230Vac NO2: NO-230Vac DO: Antifreeze heater NC12: NO-230Vac NC12: NO-230Vac DO: Circuit 1 fault NO9: NO-230Vac NO9: NO-230Vac DO: Circuit 2 fault NO11: NO-230Vac DO: Unit status or additional heating demand NO10: NO-230Vac NO10: NO-230Vac DO: Unused NO11, NO13 ­AO: Speed inverter - fan circuit 1 - HP1 output Y1: 0..10V Y1: 0..10V AO: Speed inverter - fan circuit 2 - HP2 output Y2: 0..10V AO: 4-way valve circuit 1 Y3: 0..10V + CONVONOFF Y3: 0..10V + CONVONOFF AO: Unused Y4 Y4 AO: 4-way valve circuit 2 Y5: 0..10V + CONVONOFF AO: Unused Y6 AO: Unused Y2 Y2
Legend:
AI: Analog Input DI: Digital Input AO: Analog Output DO: Digital Output CONVONOFF: ON/OFF converter
Single circuit units Dual circuit units
CG-SVU01B-E4 7
Hardware architecture
TRACER CH532 offers customer the
possibility to use inputs or outputs in order to:
- use an external water setpoint reset using an analog input (refer to figure 3)
- use an auxiliary setpoint
- connect a remote on/off of the unit or a circuit
- reset faults
- connect a remote Cooling/Heating switch
- return a circuit fault
Note: External water setpoint
Based on a external signal input, it will be possible to offset the active setpoint from 0°C to 20°C. This function can be used in conjunction with the automatic setpoint reset function.
Figure 3
1
Water setpoint
1. Leaving water temperature setpoint
2. Minimum value
3. Maximum value
4. Reset = 20°C
5. Active setpoint
5
Ambient
temperature
2 3
4
Table 3: Customer Inputs and output summary list
TRACER CH532 Medium TRACER CH532 Large
AI External water setpoint reset (option) B8: 0..10V-0..20mA DI Auxiliary setpoint On/Off ID8: 24Vac DI Circuit 1 On/Off (or Unit On/Off
for single circuit units) ID13H: 230Vac DI Circuit 2 On/Off - ID16H: 230Vac DI Faults external reset ID6: 24Vac DI Cooling/Heating mode switch ID7: 24Vac DO Circuit 1 fault NO9: NO-230Vac DO Circuit 2 fault - NO11: NO-230Vac DO Unit status or additional
heating demand NO10: NO-230Vac
Legend:
AI: Analog Input DI: Digital Input DO: Digital Output
Single circuit units Dual circuit units
8 CG-SVU01B-E4
Starting/stopping the unit
Esc
Esc
Esc
Once the unit is powered on (main disconnect switch closed) TRACER CH532 returns to the following display:
TRACER CH532 V2.0
01/05/04 00:00 Water Temp 20.0°C OFF BY KEYB.
Line 2 gives current date and time Line 3 gives current leaving water temperature Line 4 gives the unit status:
OFF BY KEYB = Local stop UNIT ON = Unit running
Pressing from any screen will return to this screen.
1.Starting the unit:
1. Press
2.Following screen will be displayed:
Status Unit OFF BY KEYB.
Switch on unit ? N
Note: In case of power failure unit
will restart in the state (operating mode, setpoints…) it was in before the power failure and default screen will be displayed.
3.Press
4.Press or to change from “N” to “Y”
5.Press . Following screen will be displayed:
TRACER CH532 V2.0
01/05/04 00:00 Water Temp 20.0°C UNIT ON
2.Stopping the unit
1. Press to exit from any menu and return to default display.
2.Press for 3 seconds unit will stop, and following screen will be displayed:
Unit Switched Off
3. Press to return to default display
CG-SVU01B-E4 9
Menus
Esc
Esc
TRACER CH532 allows the user to access 4 menus to display or adjust operation parameters:
•“Data display” menu - This menu
allows the user to visualize all operation parameters:
- Water and air temperatures
- Refrigerant pressures
- Saturated refrigerant temperatures
- Compressors status
- Compressor running hours
- Number of compressors starts
- Unit operating mode
- Compressors failures counters
•“Settings” menu - This menu is
password protected. It allows access to the settings of:
- Setpoints
- Offset of cooling and heating setpoints
- Unit operation validation
- Customer inputs and outputs
•“Clock” menu - This menu is
password protected. It allows access to the settings of:
- Day of the week, hour, date
- Daily or weekly program
- Hourly zone program
Accessing the menus
From any screen displayed, press
, TRACER CH532 will then
display the following screen:
Data Display Settings Clock Configuration
1. or allow the cursor to move from line to line thus selecting one of the 4 menus.
Note:The selection is displayed in capital characters
2. Once one line is selected,
press to validate the choice.
3. Pressing will exit the menu selection mode and return to default display.
•“Configuration” menu - This menu
is password protected. It allows to adjust or change:
- Unit definition
- Compressors timers
- High pressure control
- Dead band, antifreeze and heater setpoints
- Type of sensors and transducers
- Operation protections
- Cooling mode limitations
- Defrost parameters
- Compressor alarms
10 CG-SVU01B-E4
Display menu: “Data display”
From the menu screen, select “Data
Display” then press
Pressing or will allow navigation from screen 1 to 8 as shown hereafter:
The menu is looped making it possible to scroll from the first item in the menu to the last item.
Lvg Wat Temp 08.0°C Ret Wat Temp 12.0°C Amb Temp 28.0°C Active StP 07.0°C
1.Water and air temperatures Lvg Wat Temp = Leaving water
temperature Ret Wat Temp = Entering water temperature Amb Temp = Ambient air temperature
Active StP = Active water setpoint
HP ckt1 00.0 bar HP ckt2 00.0 bar LP ckt1 00.0 bar LP ckt2 00.0 bar
2. Refrigerant pressures HP ckt1 = Condensing Pressure
circuit 1 HP ckt2 = Condensing Pressure circuit 2 (dual circuit units only) LP ckt1 = Evaporating Pressure circuit 1 LP ckt2 = Evaporating Pressure circuit 2 (dual circuit units only)
3. Refrigerant saturated temperatures
Sat Temp CDS1 00.0°C Sat Temp CDS2 00.0°C Sat Temp EVP1 00.0°C Sat Temp EVP2 00.0°C
Sat Temp CDS1 = Condensing
temperature circuit 1 Sat Temp CDS2 = Condensing temperature circuit 2 (dual circuit units only) Sat Temp EVP1 = Evaporating temperature circuit 1 Sat Temp EVP2 = Evaporating temperature circuit 2 (dual circuit units only)
Legend for screens 4,5 and 6: Cmp A1 = Compressor A/circuit 1 Cmp B1/C1 = Compressor B and
C/circuit 1 Cmp A2 = Compressor A/circuit 2 (dual circuit units only) Cmp B2/C2 = Compressor B and C/circuit 2 (dual circuit units only)
Cmp A1 Off Cmp B1 C1 Off Cmp A2 Off Cmp B2 C2 Off
4. Compressors status
Possible Status:
Off = Compressor stopped On = Compressor running Rec.On = Compressor will start after
anti-short cycle Rec.Off = Compressor will stop after anti-short cycle
Cmp A1 000000 Hrs Cmp B1 C1 000000 Hrs Cmp A2 000000 Hrs Cmp B2 C2 000000 Hrs
6. Number of compressors starts
Cmp A1 000000 Starts Cmp B1 C1 000000 Starts Cmp A2 000000 Starts Cmp B2 C2 000000 Starts
Starts indicates the number of
compressor starts since first start-up.
7. Operating mode
Mode Cooling Stp Local 07.0°C Ckt1 Enable Ckt2 Enable
Mode = Running mode
- Cooling = Cold water production
- Heating = Hot water production
(Reversible chillers only)
Stp Local 07.0°C
- Stp = Current setpoint
- Local = Source of Setpoint Local = Cooling or heating setpoint defined locally Extern = Auxiliary setpoint or operating mode by external contact Auto = setpoint by the automatic reset or the daily/weekly program Remote = Setpoint by supervisor
Ckt1/Ckt 2 = Operational circuits
- Enable = Circuit is operational
- Disable = Circuit is not
operational
8. Compressors failures counters
Nb of CMP faults Cpt A1:0 Cpt A 2:0 Cpt B1:0 Cpt B 2:0 Cpt C1:0 Cpt C 2:0
5. Compressors running time Hrs indicates the number of full
hours compressor has been working since its first start.
CG-SVU01B-E4 11
This menu indicates the number of compressors failure regardless of the history.
Customer settings menu:
5
1
4
2 3
“Settings”
From the menu screen, select
“Settings” then press . Following screen will appear:
User password
0000
Enter password:”000 0” (factory-set)
Press and cursor will move to
first field of password. Pressing
or will change the value from 0
to 9999. Keeping pressure on or
will move the numbers fast.
Press to confirm password.
Pressing will allow navigation from screen 1 to 5 as shown hereafter:
1. Setpoints
Cooling Stp 07.0°C Heating Stp 45.0°C Aux Wat Stp 10.0°C Aux Wat Disable
To access one of the parameters
displayed, press and change
value using or . Confirm the
value by pressing
Cooling StP 07.0°C Heating StP 45.0°C Aux Wat StP 10.0°C Aux Wat Disable
Cooling Stp = Cold water setpoint
(-12 to 20°C - factory setting: 7°C) Heating Stp = Hot water setpoint (20 to 60°C - factory setting: 45°C) Aux Wat Stp = Auxiliary setpoint (-12 to 60°C - factory setting: 10°C) Aux Wat = Auxiliary setpoint from external source:
Enable = Auxiliary setpoint validated Disable = Auxiliary setpoint non-
validated
. Automatic cooling and heating mode setpoints reset
TRACER CH532 offers the possibility to offset cold and/or hot water setpoints according to ambient air temperature. The automatic setpoint reset program will allow you to change the water temperature setpoint (cooling and heating mode) with the ambient temperature. This function can be used in conjunction with the external setpoint reset function.
Figure 4
Ambient
temperature
1. Leaving water temperature setpoint
2. Starting point
3. Ending point
4. Reset delta
5. Active set point
Below the reset starting point, the water temperature setpoint will be the normal setting. Between the starting and ending point the setpoint will vary proportionally with the ambient temperature. After the ending point, the setpoint will stay at its maximum or minimum value.
2.1 Cooling mode setpoint reset
To access one of the parameters
displayed, press and change
value using or . Confirm the
value by pressing
Cold water reset N Start Point 20.0°C End Point 30.0°C Reset Delta 10.0°C
Cold Water Reset: Ambient
temperature based cold water setpoint offset
Y = Enabled N = Disabled (factory setting)
Start Point: Starting point (-15 to 50°C
- factory setting: 20°C) End Point: Ending point (-15 to 60°C
- factory setting: 30°C) Reset Delta: Reset amplitude (-15 to 15°C - factory setting: 10°C)
3. Heating mode setpoint reset (Reversible chillers only)
To access one of the parameters
displayed, press and change
value using or . Confirm the
value by pressing
Hot water reset N Start Point 20.0°C End Point 30.0°C Reset Delta 10.0°C
Hot Water Reset: Ambient
temperature based hot water setpoint offset
Y = Enabled N = Disabled (Factory setting)
Start Point: Starting point
(-15 to 50°C - factory setting: 20°C) End Point: Ending point (-15 to 60°C - factory setting: 30°C) Reset Delta: Reset amplitude (-15 to 15°C - factory setting: 10°C)
12 CG-SVU01B-E4
Customer settings menu: “Settings”
4. Operating mode
To access one of the parameters
displayed, press and change
value using or . Confirm the
value by pressing
Mode Cooling Comp seq Auto Ckt1 Enable Ckt2 Enable
Mode: Operating mode
Cooling: Cold water
production (default factory setting) Heating: Hot water production (Reversible chillers only)
Extern: (external control)
Note: When switching from cooling
to heating mode or from heating to cooling mode, unit will stop for 15 s before restarting. To allow chiller waterflow rate adjustment disable circuit 1 and 2, then start the unit.
Comp seq: Compressor sequencing
1-2: fix order
Single circuit Dual circuit Start order A1,B1 A1, A2, B1, B2 Stop order B1, A1 B2, B1, A2, A1
2-1: fix order
Single circuit Dual circuit Start order B1,A1 A2, A1, B2, B1 Stop order A1, B1 B1, B2, A1, A2
Rotation
Single circuit Dual circuit Start order A1,B1 A1, A2, B1, B2 Stop order A1,B1 A1, A2, B1, B2
Auto (default factory setting)
The Auto sequence intend to have
Ana. Input External setpoint reset
equivalent numbers of starts and stops and an equivalent number of compressor working hours. The compressor start order will prioritize the compressors which have the least number of working hours.
Pump Timer: Time between unit stop
(by keyboard or external contact)
and stop of the pump
(1 to 10 min - factory setting = 1 min)
Ckt1/2: Circuit 1/2 operation
Enable: circuit operational
6. Customer outputs configuration
Disable: circuit non-
operational Note: It is possible to disable both circuit 1 and 2. Water pump will be kept in operation
Alarm Out: MR only State Out: Unit state Pump Timer: 01 min
5. Customer Inputs and Outputs
To access one of the parameters
Default I/O: (NO9 / NO11) This output will be used to give an
displayed, press and change
value using or . Confirm the
value by pressing
information about the circuit status: A configuration parameter will allow to choose between the following three indications concerning this circuit:
Analog Input 0..10V Ana. Input Disable
Analog Input: Signal type
Status output: (NO10)
0..10V (factory setting)
0..1V
0..20mA
4..20mA
Note: the total amplitude
corresponds to reset delta of +20°C between 0%(0V,OA or 4 mA) and 100% (10V,1V, or 20 mA)
Y = Enabled N = Disabled
ALL: All alarms (manual and
automatic reset) ALL But LA: All alarms but without Low Ambient alarm MR only: Manual reset alarms only (factory setting)
Add Heat: indicate an additionnal heat demand Unit State Send data telling that at least one compressor is ON (factory setting)
CG-SVU01B-E4 13
Customer settings menu: “Settings”
7. Remote Mode
To access one of the parameters
displayed, press and change
value using or . Confirm the
value by pressing
Chiller control Mode:
Local: Setpoints are entered on the
module. Orders sent from the BMS are not taken into account.
Remote: Orders sent from the BMS are taken into account.
Local
Remote
14 CG-SV01B-E4
Clock Setting menu: “Clock”
Time
Monday Tuesday Wednesday Thursday Friday Saturday 00:00 02:00 04:00 06:00 08:00 10:00 12:00 14:00 16:00
Example
Operation enable
from Monday to Friday from 8:00 to 18:00
18:00 20:00 22:00
From the menu screen, select
“Clock” then press . Following screen will appear:
User password
0000
Enter default password:”000 0” (factory set)
Press and cursor will move to
first field of password. Pressing
or will increment the value from
0 to 9999. Keeping pressure on
or will move the numbers fast.
Press to confirm password.
Pressing or will allow navigation from screen 1 to 3 as shown hereafter:
1. Clock setting
To access one of the 4 parameters displayed, press and change value
using or . Confirm the value
by pressing
Mon: Weekday
Clock
Mon Hour 00:00 Date 00/00/00
2. ON/OFF program type
When enabled, this program will control the unit operation (On/Off). This program will allow the user to:
- Make a choice between the daily and/or the weekly operation
- Define the operational days and hours
- Define the operating setpoints for each mode (cooling and heating)
The operating mode selected by the operator or by the external control will be taken into account. Example:
To access one of the parameters
displayed, press and change
value using or . Confirm the
value by pressing
Program
On/Off Unit Weekly N Daily N
Weekly: Weekly program
Y: Enabled N: Disabled (factory setting)
Daily: Daily program
Y: Enabled N: Disabled (factory setting)
Mon: Monday (factory setting) Tue:Tuesday Wed: Wednesday Thu: Thursday Fri: Friday Sat: Saturday
Sun: Sunday Hour: Time (hours/minutes) Date: Date setting (day/month/year)
CG-SV01B-E4 15
Time Std setpoint
Zone 1 Zone 2 Zone 3 Zone 4 07:00 08:00 09:00 10:00 11:00 12:00 13:00 14:00 15:00 16:00 17:00
Operating
hours
8:00-18:00
Starting at
10:00
Starting at
11:00
Starting at
13:00
Starting at
16:00
18:00
Setpoint
Std Stp
Stp 1
Stp 2
Stp 3
Stp 4
Clock Setting menu: “Clock”
2.1 Weekly program
To access one of the parameters
displayed, press and change
value using or . Confirm the
value pressing
Program
Weekly Start Mon Stop Fri
Start: Starting day Stop: Ending day
2.2 Daily program
To access one of the parameters
displayed, press and change
value using or . Confirm the
value by pressing
Program
Daily Start 00:00 Stop 00:00
Start: Start time Stop: Stop time
3. Hourly Zone
The Daily/weekly program will allow you to define the cooling mode and heating mode setpoints. It will be possible to define within a day, four operating zones with different setpoint as follows: Example:
To validate hourly zone program,
press and change value using
or . Confirm the value by
pressing
Program
Hourly zone
Disable
Disable: No program Enable: Program used
3.1 Defining Zones
To access one of the parameters
displayed, press and change
value using or . Confirm the
value by pressing
Zone #1 Start 00:00 Cooling Stp 07.0°C Heating Stp 45.0°C
Start: Beginning Time Cooling StP: Cooling mode setpoint
(-20 to 20°C - factory setting: 7°C) Heating StP: Heating mode setpoint
- Reversible chillers only (20 to 60°C factory setting: 45°C)
Press or to reach zones 2,3 and 4. Proceed the same way as above for programming parameters.
16 CG-SV01B-E4
Note:The automatic or external setpoint compensation or the external setpoint will change the standard setpoint only but will not affect the setpoints defined for the hourly zones 1, 2, 3 or 4.
From the menu screen, select “Configuration” then press . Following screen will appear:
User password
0000
Unit configuration menu: “Configuration”
Figure 5 - Single pump operation
Note: figures 5 to 8, Unit Off means
that the unit is stopped by keyboard or by an external contact
Enter default password:”000 0” (factory-set)
Press and cursor will move to
first field of password. Pressing
or will increment the value from
0 to 9999. Keeping pressure on
or will move the numbers fast.
Press to confirm password.
Pressing or will allow navigation from screen 1 to 11 as shown hereafter:
1. Unit definition
To access one of the 4 parameters
displayed, press and change
value using or . Confirm the
value by pressing
Unit type: Chiller Refrg R407C Fans/ckt 3 Water pump Single
Unit Type: Unit type
Chiller: Cooling only Heat pump: Reversible chiller
Refrg: Refrigerant R407C, R134a,
R410A or R22 Fans/ckt: Number of fans per circuit: 1, 2, or 3 Note: Setting number of fans at 0, will stop all the fans, but will allow the compressors to run before being stopped by HP switch.
Water Pump: Water pump type
Single: Single pump control Dual: Dual pump control
Note: Pump operation
The water pumps can be single or dual. A timer is used to delay the pump shut down in normal operating conditions. The timer is reset at each unit start.
CG-SV01B-E4 17
Pump
Figure 6 - Dual pump operation
Unit
Pump 1
Pump 2
When twin pumps are used, a pump switch will occur at each start and also in case of fault on the pump in operation.
Figure 7 - Single pump protection
Pump protection­input
Pump protection­output
On
On
Off
On
Off
On
Off
On
Off
t
t
Unit stopped
(manual reset)
Figure 8 - Dual pump protection
Pump 1
Pump protection input
Pump 2
Pump 1
Operation Enable/Disable
Pump 2
Unit configuration menu: “Configuration”
Fault reset
Message 46* Message 46*
Message 47*
Pump 1
Pump control outputs
Pump 2
* refer to “alarms” section for meaning of message
Unit stopped
(manual reset)
18 CG-SV01B-E4
Unit configuration menu: “Configuration”
2. Compressors timers
To access one of the parameters
displayed, press and change
value using or . Confirm the
value by pressing
ACC 1st Start 2 min ACC On-On 5 min Min On-On 060 s Min Off-Off 015 s
ACC 1st Start: Short cycle
compressor at first start (0 to 60 min
- factory setting: 2min) ACC On-On: Short cycle between 2 starts of the same compressor (2 to 10 min - factory: 5 min) Min On-On: Minimum time to add compressor (5 to 240 s - factory setting: 60s) Min Off-Off: Minimum time to remove compressor (1 to 120 s factory setting 15s)
3. HP Control
To access one of the parameters
displayed, press and change
value using or . Confirm the
value pressing
Fan control 1Speed Fan Ctrl Stp 15.0 b Dead band Fan 06.0 b
Fan Control: Fan type:
1 speed: 1 Speed fan 2 speed: 2 Speed fan Invert: Inverter
Fan Ctrl StP: Fan control setpoint
(10 to 30 bar - factory setting: 15 bar) Dead band Fan: Fans regulation dead band (2 to 8 bar - factory setting: 5 bar)
4. Control dead bands
To access one of the parameters
displayed, press and change
value using or . Confirm the
value by pressing
Dead band Cmp 03.0°C
Antifreeze 02.0°C Heater 03.0°C
Dead band Cmp: Compressors
regulation dead band around water temperature (0.4 to 8.0°C - factory setting: 3.0°C) AntiFreeze: Cold water temperature limit (-15 to 10°C - factory setting: 2°C) Heater: Evaporator heater setpoint according to ambient air temperature (0 to 10°C - factory setting: 3°C)
5. Winter Freeze Protection
CW High Limit 15°C Pmp Cycle OFF 10 min WinFreezeProtPmp Yes Ctrl Pump Required
Chilled water high limit: (15 to 25°C: factory setting 15°C) Water pump cycle OFF: (5 to 15 min: factory setting 10min) Winter Freeeze protection with pump:
➨
➨
No
Heater or Ethylene
Glycol Required
➨
➨
Ctrl Pump Required
Yes
CG-SV01B-E4 19
Unit configuration menu: “Configuration”
6. Sensors and transducers
To access one of the parameters
displayed, press and change
value using or . Confirm the
value by pressing
Temp probe NTC Press probe 4..20mA Min Press 0.0bar Max Press 30.0bar
Temp probe: Sensor type:
NTC (factory setting) PT100
Press probe: Pressure transducer:
0..10V
0..1V
0..20mA
4..20mA (factory setting)
Min Press: Pressure at 0V, 0mA or
4 mA (-1.0 to 0.0 bar - factory setting: 0.0 bar) Max Press: Pressure at 10V, 1V or 20 mA (16 to 50 bar - factory setting: 30bar)
8. Analog Output (for speed inverter) Note:This screen is displayed only if
“Invert” has been selected in the HP control menu (refer to §3) To access one of the parameters
displayed, press and change
value using or . Confirm the
value by pressing
Analog output
Low OV 08.0 bar High 10V 16.0 bar
Low 0V: Minimum fan speed (0
to 10 bar - factory setting: 8 bar) High 10V: Maximum fan speed (11 to 40 bar - factory setting: 16 bar)
7. Operation limits
To access one of the parameters
displayed, press and change
value using or . Confirm the
value by pressing
LP (Sat Temp) -4°C Timer LP 60 s HP Cool Stp 28.0 bar HP Heat Stp 28.0 bar
LP (Sat Temp): Low evaporating
pressure limit (-25 to 0°C - factory setting: -4°C) Timer LP: Low pressure fault timer after compressor start (0 to 300 s ­factory setting: 60s) HP Cool StP: High pressure limit in cooling mode (15 to 40 bar - factory setting: 28 bar) HP Heat StP: High pressure limit in heating mode (15 to 40 bar - factory setting: 28 bar)
20 CG-SV01B-E4
Unit configuration menu: “Configuration”
9. Operating limits (cooling)
Low Amb Cooling On Low Amb Limit -10.0°C CW High Limit On CW High Limit 15.0°C
Low ambient temperature limitation:
On: (factory setting) Low
ambiant limited Off: Low ambient temperature not limited
Low ambient limit: -20 to 20°C: factory setting -10°C
Chilled water high limitation:
On: High water temperature
limited (factory setting) Off: High water temperature not limited
Chilled water high limit: 10 to 20 °C: Factory setting 15°C
10. Defrost demand setpoint
Low Amb Heat -10.0°C StP Min Temp 10.0°C Defrost Max 12.0°C StP Max Temp 22.0°C
Low ambient heating: -20 to 20°C,
factory setting -10°C Setpoint at minimum ambient: 1 to 30°C, (factory setting 10°C) Maximum ambient: -20 to 20°C: (factory setting 12°C) Setpoint at maximum ambient: 1 to 30°C, (factory setting 22°C)
11. Defrost cycle termination
To access one of the parameters
displayed, press and change
value using or . Confirm the
value by pressing
Term Stp 20.0 bar Drying time 12 s Max Defrost 7 min Min cycle 25 min
Term StP: Defrost termination
setpoint (10 to 30bar - factory setting: 20 bar) Drying time: Drying time (5 to 30 seconds - factory setting: 12s) Max Defrost: Maximum defrost time (5 to 30 minutes - factory setting: 7 min) Min cycle: Minimum time between defrost cycle (15 to 60min - factory setting: 25 min)
Note: Dual circuits have two independent refrigerant circuits. Defrost cycle will only occur on the circuit that needs it. The other circuit will continue its normal operation if required.
12. Compressor alarm
To access one of the parameters
displayed, press and change
value using or . Confirm the
value by pressing
Compressor alarm
00000 h
Default parameters?
N
Compressor alarm: Operating hours
for a warning (0 to 999000 hours by 1000 hours)
Setting compressor alarm at 000000 h will disable the function.
Note:Total operating hours = compressor running hours + 3 x compressor starts Default parameters?: Set the default parameters
Y: Reset all parameters N: Keep all parameters
Note: When resetting, all parameters
programmed on site will be definitively lost. Only factory default set parameters will be kept. Full configuration of the unit will have to be checked.
CG-SV01B-E4 21
Alarms
1. Alarms display and Resetting
A fault on a unit will be shown through the user interface or through 2 digital outputs, one for each refrigerant circuit.
The alarms are divided into 3 categories:
- Warning. Shows that something is
wrong on the unit but unit can be kept in operation. A message is displayed on the user interface screen. These messages are not recorded in the history list.
- Fault with automatic reset: when
the cause of the fault disappears, the fault is cancelled and unit operation will return to normal. The messages displayed on the user interface screen disappear but are recorded in the history list of faults. The fault is relayed through the digital output if I/O parameter is set to show a circuit fault.
- Fault with manual reset: when the
cause of the fault disappears, a manual reset is required to restart the unit. The messages displayed on the user interface screen disappear and are recorded in the history list of faults. The fault is relayed through the digital output if I/O parameter is set to show a circuit fault.
2. Alarms history
200 events can be recorded by TRACER CH532. Each record will give the fault description, the reset type, the order and the day and time of occurrence.
Maintaining for 5 seconds give will access to the last event recorded.
Then using allows the user to view the complete history. (refer to table 5 for possible messages)
Should an alarm occur, will be lit in red.
Pressing once will display the alarm message (refer to table 4 for possible messages) When alarm message is displayed
press to reset the default if necessary.
22 CG-SV01B-E4
Alarms
Table 4 - Status, warnings and alarm messages
No Message Reset Type Unit status Description
1 No Alarm - Unit On See unit status on Main display 2 Ext. Ckt1 Stop - Circuit 1 Off Circuit 1 Off by Digital Input (Dual circuit units) 3 Ext. Ckt2 Stop - Circuit 2 Off Circuit 2 Off by Digital Input (Dual circuit units) 4 User Ckt1 Stop - Circuit 1 Off Circuit 1 Disable by Settings (via keyboard) 5 User Ckt2 Stop - Circuit 2 Off Circuit 2 Disable by Settings (via keyboard) 6 Remote Ckt1 Stop - Circuit 1 Off Circuit 1 Disable by Supervision 7 Remote Ckt2 Stop - Circuit 2 Off Circuit 2 Disable by Supervision 8 Clock Unit Stop - Unit Off Unit Off by Program (Hourly, Weekly) 9 Operator Stop - Unit Off Unit Off by Operator (via keyboard) 10 Ckt1 Defrost - Unit On Circuit 1 under defrosting 11 Ckt2 Defrost - Unit On Circuit 2 under defrosting 12 Warning Comp.1 Maintenance Manual Unit On 13 Warning Comp.2 Maintenance Manual Unit On 14 Warning Comp.3 Maintenance Manual Unit On 15 Warning Comp.4 Maintenance Manual Unit On 16 Alarm Air Sensor Auto Unit Off Defective Air sensor ­17 Alarm Ckt 1 Fault Manual Circuit 1 Off Simultaneous manual reset faults CMP A1 and (B1 or C1) 18 Alarm Ckt 2 Fault Manual Circuit 2 Off Simultaneous manual reset faults CMP A2 and (B2 or C2) 19 Alarm Ckt1 HP Limit Auto Unit On Compressor B1C1 Off for high HP ckt1 20 Alarm Ckt1 Limiting Auto Unit On Compressor B1C1 Off for Hot water or low LP ckt1 21 Alarm Ckt2 HP Limit Auto Unit On Compressor B2C2 Off for high HP ckt2 22 Alarm Ckt2 Limiting Auto Unit On Compressor B2C2 Off for Hot water or low LP ckt2 23 Alarm Comp. A1 Fault Auto/Manual CMP A1 Off Manu if CMP A1 failure > 35 min or 6 failures within
24 Alarm Comp. B1 Fault Auto/Manual CMP B1 Off Manu if CMP B1 failure > 35 min or 6 failures within
25 Alarm Comp. C1 Fault Auto/Manual CMP C1 Off Manu if CMP C1 failure > 35 min or 6 failures within
26 Alarm Comp. A2 Fault Auto/Manual CMP A2 Off Manu if CMP A2 failure > 35 min or 6 failures within
27 Alarm Comp. B2 Fault Auto/Manual CMP B2 Off Manu if CMP B2 failure > 35 min or 6 failures within
28 Alarm Comp. C2 Fault Auto/Manual CMP C2 Off Manu if CMP C2 failure > 35 min or 6 failures within
29 Alarm Ext. Setpoint Signal Auto Unit Off Defective device or bad device configuration 30 Alarm Fan Protection 1 Auto Unit On Defective fan on the circuit 1 31 Alarm Fan Protection 2 Auto Unit On Defective fan on the circuit 2 32 Alarm HP Ckt1 Fault Manual Circuit 1 Off High Pressure Cut-Out circuit 1 33 Alarm HP Ckt2 Fault Manual Circuit 2 Off High Pressure Cut-Out circuit 2 34 Alarm HP Sensor Ckt1 Auto Circuit 1 Off Defective pressure sensor HP1 35 Alarm HP Sensor Ckt2 Auto Circuit 2 Off Defective pressure sensor HP2 36 Alarm Low Ambient Auto Unit Off Ambient temperature too low for unit operation 37 Alarm Low Water Temp Manual Unit Off LWT < antifreeze or INT (antifreeze-EWT)<=10°Cxsecond 38 Alarm LP Ckt1 Fault Auto/Manual Circuit 1 Off Suction pressure too low on circuit 1 39 Alarm LP Ckt2 Fault Auto/Manual Circuit 2 Off Suction pressure too low on circuit 2 40 Alarm LP Sensor Ckt1 Auto Circuit 1 Off Defective pressure sensor LP1 41 Alarm LP Sensor Ckt2 Auto Circuit 2 Off Defective pressure sensor LP2 42 Alarm Unit Fault Manual Unit Off All the compressors are defectives 43 Alarm Water Flow (**) Auto Unit Off No water flow. Reset by unit Off/On when pump Off 44 Alarm Water In Sensor Auto Unit On Defective Return water sensor 45 Alarm Water Out Sensor Auto Unit Off Defective Leaving water sensor 46 Alarm Water Pump1 Manual Unit On Defective water pump 1 47 Alarm Water Pump2 Manual Unit On Defective water pump 2
(**) When the unit is shut down after a waterflow alarm for more than 1 minute, it is necessary to switch the unit Off and On again to reset the fault. The
fault will automatically reset if the water pump is still running.
Compressor running hours above the threshold defined in unit configuration.Each compressor start is equal to 3 running hours.
3 hours 30 min
3 hours 30 min
3 hours 30 min
3 hours 30 min
3 hours 30 min
3 hours 30 min
CG-SV01B-E4 23
Alarms
Table 5 - History events record
No Message Reset Type Unit status Description
No History Auto Unit On No alarm was recorded Air Sensor Auto Unit Off
Water In Sensor Auto Unit On
Water Out Sensor Auto Unit Off
Lp Sensor Ckt1 Auto Circuit 1 Off
Hp Sensor Ckt1 Auto Circuit 2 Off
Lp Sensor Ckt2 Auto Circuit 1 Off
Hp Sensor Ckt2 Auto Circuit 2 Off
Fan Protection 1 Auto Unit On A fan on the circuit 1 is faulty Fan Protection 2 Auto Unit On A fan on the circuit 2 is faulty Lp Ckt1 fault Auto or Manual Circuit 1 Off
Lp Ckt2 fault Auto or Manual Circuit 2 Off
Low Water Temp Manual Unit Off LWT < antifreeze or INT (antifreeze-EWT)<=10°Cxsecond Comp. A1 Fault Auto or Manual CMP A1 Off
Comp. B1 Fault Auto or Manual CMP B1 Off
Comp. C1 Fault Auto or Manual CMP C1 Off
Comp. A2 Fault Auto or Manual CMP A2 Off
Comp. B2 Fault Auto or Manual CMP B2 Off
Comp. C2 Fault Auto or Manual CMP C2 Off
Hp Ckt1 Fault Manual Circuit 1 Off High pressure switch Cut-Out circuit 1 Hp Ckt2 Fault Manual Circuit 2 Off High pressure switch Cut-Out circuit 2 Ckt1 Fault Manual Circuit 1 Off Simultaneous faults compressor A1 and (B1 or C1) Ckt2 Fault Manual Circuit 2 Off Simultaneous faults compressor A2 and (B2 or C2) Unit Fault Manual Unit Off Simultaneous faults on all the compressors Ext Setpoint Signal Auto Unit Off
Low Ambient Auto Unit Off Air temperature below the setpoint while unit On Water Pump 1 Manual Unit On Fault on water pump #1 Water Pump 2 Manual Unit On Fault on water pump #2 Water Flow Auto Unit Off
Defrost Ckt1 Auto Unit On Defrost on circuit 1 Defrost Ckt2 Auto Unit On Defrost on circuit 2
Faulty sensor, out of range -30..+80°C (short circuit or open circuit) Faulty sensor, out of range -30..+80°C (short circuit or open circuit) Faulty sensor, out of range -30..+80°C (short circuit or open circuit) Faulty sensor, out of range 0..10V, 0..1V,0..20mA or 4..20mA following configuration Faulty sensor, out of range 0..10V, 0..1V,0..20mA or 4..20mA following configuration Faulty sensor, out of range 0..10V, 0..1V,0..20mA or 4..20mA following configuration Faulty sensor, out of range 0..10V, 0..1V,0..20mA or 4..20mA following configuration
Lp circuit 2 is below the setpoint. Manual reset after 3 faults within 1 hour
Lp circuit 1 is below the setpoint. Manual reset after 3 faults within 1 hour
Manual reset if CMP A1 failure > 35 min or 6 failures within 3 hours 30 min Manual reset if CMP B1 failure > 35 min or 6 failures within 3 hours 30 min Manual reset if CMP C1 failure > 35 min or 6 failures within 3 hours 30 min Manual reset if CMP A2 failure > 35 min or 6 failures within 3 hours 30 min Manual reset if CMP B2 failure > 35 min or 6 failures within 3 hours 30 min Manual reset if CMP C2 failure > 35 min or 6 failures within 3 hours 30 min
Faulty sensor, out of range 0..10V, 0..1V,0..20mA or 4..20mA following configuration
Loss of water flow for more than 4 sec when the system is On. Pump restarts by a manual unit Off and On
24 CG-SV01B-E4
LonTalk®option
1
3
2
4 5
ABGND
Description
The Lon interface uses an Echelon FTT-10 transceiver, which is approved to be used on the TP/FT-10 channel. This channel is characterized by the following main features:
• It consists of up to 60 nodes on a single network segment
• Data rate : 78 125 kbps
• Maximum distance : 1400 meters
• Recommended topology : daisy chain with double end terminator (105 ohms)
For futher details, refer to the official documentation LonWorks®FTT-10A free topology transeiver user’s guide and to the official LonWorks guidelines LonMark®layer 1-6 interoperability guidelines version
3.0.
These documents and additional information are available on the internet site www.lonmark.org
®
Figure 9
1. Connection to the Tracer CH532
2.Terminal block to the LonWorks network (GND,A,B)
3.Service pin
4.Green status LED
5.Red service LED
®
To activate the service pin, simply short circuit the two pins for a moment using the tip of a screwdriver or similar tool. The service pin is available only in the node installation phase. When the pin is activated, the node sends a broadcast message in the LonWorks®containing the necessary information in order to be identified.
CG-SV01B-E4 25
LonTalk®option
Chiller Controller 8040
Mandatory network variables
Optional network variables
nv1
nviChillerEnable snvt_switch
nv2
nv7
nv8
nv3
nv4
nv11
nv12
nv13
nv15
nv16
nviCoolSetpt snvt_temp_p
nviMode Snvt_hvac_mode
nviHeatSetpt snvt_temp_p
nvoOnOff snvt_switch
nvoActiveSetpt snvt_temp_p
nvoLvgCHWTTemp snvt_temp_p
nvoEntCHWTTemp snvt_temp_p
nvoEntCndWTemp snvt_temp_p
nvoAlarmDescr snvt_str_asc
nvoChillerStat snvt_chlr_status
LED meaning and function
Green Status LED LED status Meaning/Function
LED is OFF continuously. • Normal condition
LED is ON. • Broken hardware
· • During the activation of the service pin
LED blinks 1second then always OFF • When receiving a WINK command from the network (1) LED blinks ½ second ON then always OFF • Normal operation (usually after a reset) LED flashes once every second • The node card is not configured
(1) By sending a request, you can request the controller’s green status LED to blink (“wink”), a notification that the controller received the signal and is
communicating.
Red Service LED LED status Meaning/Function
LED is ON for 20 seconds when power is applied to the controller • The controller is in a reset phase LED is OFF continuously • The controller is operating normally
LED is ON during 2 seconds then always OFF • When power is applied to the controller
LED is ON continuously • The controller is not working properly
Object details
Figure 10
• Broken hardware
• No power
• The node is Applicationless
• The node card is in continuous reset
• Broken hardware
• After a reset
• Broken hardware
• Problems of connection with the CH532 module
Note: BAS intergrators requiring .xif file need to contact their local sales representative. Other optional network variables are not supported.
26 CG-SV01B-E4
LonTalk®option
Nv1 0=off
nv2 range -12.2°C 48.8°C nv3 0=chiller off
nv4 range -40°C 93°C nv7 1=heat mode
nv8 range 10°C 93°C nv11 range -40°C 118°C nv12 range -40°C 118°C nv13 range -40°C 118°C nv15 manual reset alarm
nv16 chlr_off=0, chlr_run=2
1=on
1=chiller on
3=cooling mode
auto reset alarm informational warning circuit 1 fans fault circuit 2 fans fault compressor A1 fault compressor B1 fault compressor C1 fault compressor A2 fault compressor B2 fault compressor C2 fault pump 1 fault pump 2 fault
HVAC_HEAT=1, HVAC_COOL=3 Chiller state 0=No alarm, 1=In alarm Run _enable 0=Chiller not allowed to start, 1=Chiller can start Local 0=Values can be changed remotely, 1=Values cannot be changed remotely Limited (Not used) CHW_flow 0=No water flow, 1=Water flow detected CONDW_flow (Not used) All other bits unused
Configuration properties nc73 ChillerEnable (m) nc52 inSendTime (m) nc4 MaxSendTime (m) nc7 CoolSetpt (m) nc74 Mode (o) nc78 HeatSetpt (o) nc48 Heartbeat (o)
(m) = mandatory (o) = optional
CG-SV01B-E4 27
LonTalk®option
Cable characteristics
Level 4 cable may be used with TP/FT-10 channels. The level 4 cable specification used by Echelon and as originally defined by the National Electrical Manufacturers Association (NEMA) differs from the Category 4 specification proposed by the Electronic Industries Association / Telecommunication Industries Association (EIA / TIA). The following specifications can be used by cable suppliers to identify a compliant Level 4 cable.
Specifications apply to shield or unshielded 22AWG (0.65mm2) cable
D-C resistance (ohms/1000 feet at 20°C) maximum for a single copper conductor regardless of whether it is solid or stranded and is or is not metal coated
D-C resistance unbalance (percent) maximum 5 Mutual capacitance of a pair (pF/foot) maximum 17 Pair to ground capacitance unbalance (pF/1000 feet) maximum 1000
772 kHz 102+/- 15%
1.0 MHz 100 +/- 15%
4.0 MHz 100 +/- 15%
8.0 MHz 100 +/- 15%
10.0 MHz 100 +/- 15%
16.0 MHz 100 +/- 15%
20.0 MHz 100 +/- 15%
772 kHz 4.5
1.0 MHz 5.5
4.0 MHz 11
8.0 MHz 15
10.0 MHz 17
16.0 MHz 22
20.0 MHz 24
Characteristic impedance (ohms)
Attenuation (dB/1000 feet at 20°C) maximum
18.0
Worst pair to pair near end crosstalk (dB) minimum. Values are shown for information only. The minimum NEXT coupling loss for any pair combination at room temperature is to be greater than the value determined using the formula NEXT (F MHz)>NEXT (0.772)-15log10(F MHz / 0.772) for all frequencies in the range of 0.772 MHz for a length of 1000 feet.
772 kHz 58
1.0 MHz 56
4.0 MHz 47
8.0 MHz 42
10.0 MHz 41
16.0 MHz 38
20.0 MHz 36
For the TP/FT-10 channel operating in a bus topology , the maximum bus length of level 4 22AWG (0.65 mm2) cabling is 1400 meters with a maximum stub length of 3 meters. It is recommended to use shielded cable if high amplitude modulation noise exist or transient protection is required.
28 CG-SV01B-E4
Notes
CG-SV01B-E4 29
Notes
30 CG-SV01B-E4
Notes
CG-SV01B-E4 31
Safety recommendations
To avoid accidents and damage, the following recommendations should be observed during maintenance and service visits:
1. The maximum allowable pressures for system leak testing on low and high pressure side are given in the chapter “Installation”. Always provide a pressure regulator.
2. Disconnect the main supply before any servicing on the unit.
3. Service work on the refrigeration system and the electrical system should be carried out only by qualified and experienced personnel.
Maintenance contract
It is strongly recommended that you sign a maintenance contract with your local Service Agency. This contract provides regular maintenance of your installation by a specialist in our equipment. Regular maintenance ensures that any malfunction is detected and corrected in good time and minimizes the possibility that serious damage will occur. Finally, regular maintenance ensures the maximum operating life of your equipment. We would remind you that failure to respect these installation and maintenance instructions may result in immediate cancellation of the warranty.
Training
The equipment described in this manual is the result of many years of research and continuous development. To assist you in obtaining the best use of it and maintaining it in perfect operating condition over a long period of time, the manufacturer has at your disposal a refrigeration and air conditioning service school. The principal aim of this is to give operators and technicians a better knowledge of the equipment they are using, or that is under their charge. Emphasis is particularly given to the importance of periodic checks on the unit operating parameters as well as on preventive maintenance, which reduces the cost of owning the unit by avoiding serious and costly breakdown.
The manufacturer has a policy of continuous product improvement, and reserves the right to alter any details of the products at any time without notice.
This publication is a general guide to install, use and properly maintain our products. The information given may be different from the specification for a particular country or for a specific order. In this event, please refer to your nearest office.
www.trane.com
For more information contactyour local district office or e-mail us at comfort@trane.com
For additional information, contact:
Distributor/Installer stamp
Literature Order Number CG-SVU01B-E4
Date 0304
Supersedes CG-SVU01A-E4-0902
Stocking Location Europe
Trane has a policy of continuous product and product data improvement and reserves the right to change design and specifications without notice. Only qualified technicians should perform the installation and servicing of equipment referred to in this publication.
American Standard Europe BVBA Registered Office: 1789 Chaussée de Wavre, 1160 Brussels - Belgium
Loading...
Buy Points How it Works FAQ Contact Us Questions and Suggestions Privacy Policy Cookie Policy Terms of Use
