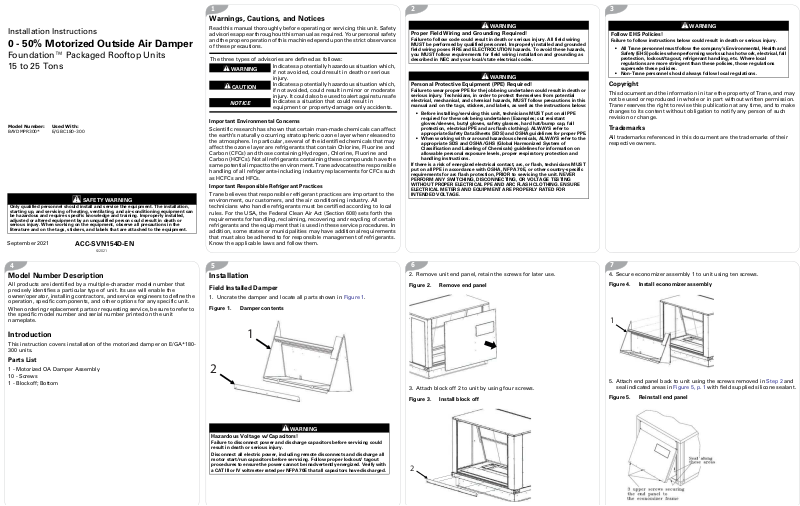

Installation Instructions
2
0 - 50% Motorized Outside Air Damper
Foundation™ Packaged Rooftop Units
15 to 25 Tons
Model Number: Used With:
BAYDMPR300* E/GBC180-300
Only qualified personnel should install and service the equipment. The installation,
starting up, and servicing of heating, ventilating, and air-conditioning equipment can
be hazardous and requires specific knowledge and training. Improperly installed,
adjusted or altered equipment by an unqualified person could result in death or
serious injury. When working on the equipment, observe all precautions in the
literature and on the tags, stickers, and labels that are attached to the equipment.
September 2021
4 5
Model Number Description
All products are identified by a multiple-character model number that
precisely identifies a particular type of unit. Its use will enable the
owner/operator, installing contractors, and service engineersto define the
operation, specific components, and other options for any specific unit.
When ordering replacementparts or requesting service, besure to refer to
the
specific model number and serial number printed on the unit
nameplate.
Introduction
This instruction covers installation of the motorized damper on E/GA*180300 units.
Parts List
1 - Motorized OA Damper Assembly
10 - Screws
1 - Blockoff; Bottom
SAFETY WARNING
ACC-SVN154D-EN
©2021
1
Warnings, Cautions, and Notices
Read thismanual thoroughly before operating orservicing this unit. Safety
advisories appear throughout this manual as required. Your personal safety
and the proper operation of this machine depend uponthe strict observance
of these precautions.
The three types of advisories are defined as follows:
WARNING
CAUTION
NOTICE
Important Environmental Concerns
Scientific research has shown that certain man-made chemicals can affect
the earth’s naturally occurring stratospheric ozone layer when released to
the atmosphere. In particular, several of the identified chemicals that may
affect the ozone layer are refrigerants that contain Chlorine, Fluorine and
Carbon (CFCs) and those containing Hydrogen, Chlorine, Fluorine and
Carbon (HCFCs). Not allrefrigerants containing these compounds havethe
same potential impactto theenvironment. Traneadvocates the responsible
handling of all refrigerants-including industry replacements for CFCs such
as HCFCs and HFCs.
Important Responsible Refrigerant Practices
Trane believes that responsible refrigerant practices are important to the
environment, our customers, and the air conditioning industry. All
technicians who handle refrigerants must be certified according to local
rules. For the USA, the Federal Clean Air Act (Section 608) sets forth the
requirements for handling, reclaiming, recovering and recycling of certain
refrigerants and the equipment that is used in these service procedures. In
addition, some states or municipalities may have additional requirements
that must also be adhered to for responsible management of refrigerants.
Know the applicable laws and follow them.
Indicates apotentially hazardous situation which,
if not avoided, could result in death or serious
injury.
Indicates apotentially hazardous situation which,
if not avoided, could result in minor or moderate
injury. Itcould alsobe used to alertagainst unsafe
Indicates a situation that could result in
equipment or property-damage only accidents.
Installation
Field Installed Damper
1. Uncrate the damper and locate all parts shown in
Figure 1. Damper contents
Figure 1.
1
2
Proper Field Wiring and Grounding Required!
Failure to follow code could result in death or serious injury. All field wiring
MUST be performedby qualified personnel. Improperlyinstalled and grounded
field wiring poses FIREand ELECTROCUTION hazards. To avoid these hazards,
you MUST follow requirements for field wiring installation and grounding as
described in NEC and your local/state electrical codes.
Personal Protective Equipment (PPE) Required!
Failure to wearproper PPE for thejob being undertaken couldresult in death or
serious injury. Technicians, in order to protect themselves from potential
electrical, mechanical, and chemical hazards, MUST follow precautions in this
manual and on the tags, stickers, and labels, as well as the instructions below:
• Before installing/servicing this unit, technicians MUST put on all PPE
required
for the work being undertaken (Examples; cut resistant
gloves/sleeves, butyl gloves, safety glasses, hard hat/bump cap, fall
protection, electrical PPE and arc flash clothing). ALWAYS refer to
appropriate Safety DataSheets (SDS) and OSHAguidelines for proper PPE.
• When working with or around hazardouschemicals, ALWAYS refer to the
appropriate
SDS and OSHA/GHS (Global Harmonized System of
Classification and Labeling of Chemicals) guidelines for information on
allowable personal exposure levels, proper respiratory protection and
handling instructions.
If there is a risk of energized electrical contact, arc, orflash, technicians MUST
put
on all PPE in accordance with OSHA, NFPA 70E, or other country-specific
requirements for arc flash protection, PRIOR to servicing the unit. NEVER
PERFORM ANY SWITCHING, DISCONNECTING, OR VOLTAGE TESTING
WITHOUT PROPER ELECTRICAL PPE AND ARC FLASH CLOTHING. ENSURE
ELECTRICAL METERS AND EQUIPMENT ARE PROPERLY RATED FOR
INTENDED VOLTAGE.
WARNING
WARNING
6 7
2. Remove unit end panel, retain the screws for later use.
Figure 2. Remove end panel
3. Attach block off 2 to unit by using four screws.
Figure 3. Install block off
32
Follow EHS Policies!
Failure to follow instructions below could result in death or serious injury.
• All Trane personnelmust follow the company’sEnvironmental, Health and
Safety (EHS)policies whenperforming worksuch ashot work,electrical, fall
protection, lockout/tagout, refrigerant handling, etc. Where local
regulations are more stringent than these policies, those regulations
supersede these policies.
• Non-Trane personnel should always follow local regulations.
WARNING
Copyright
This document and theinformation in it are the property ofTrane, and may
not be used or reproduced in whole or in part without written permission.
Trane reserves the right to revise this publication at any time, and to make
changes to its content without obligation to notify any person of such
revision or change.
Trademarks
All trademarks referenced in this document are the trademarks of their
respective owners.
4. Secure economizer assembly 1 to unit using ten screws.
Figure 4. Install economizer assembly
1
5. Attach end panel back to unit using the screws removed in Step 2 and
seal indicated areas in
Figure 5. Reinstall end panel
Figure 5, p. 1 with field supplied silicone sealant.
Hazardous Voltage w/Capacitors!
Failure to disconnect power and discharge capacitors before servicing could
result in death or serious injury.
Disconnect all electric power, including remote disconnects and discharge all
motor start/run capacitors before servicing. Follow proper lockout/ tagout
procedures to ensurethe power cannot beinadvertently energized. Verify with
a CATIII or IV voltmeterrated per NFPA 70Ethat all capacitors havedischarged.
WARNING
Page 2
8
Remove screws and lay blockoff
angle aside.
Blockoff Angle
Factory Installed Damper (Field Set-Up)
Downflow Configuration
To position damper for downflow operation,complete the following steps:
Hazardous Voltage!
Failure to disconnect power before servicing could result in death or serious
injury.
Disconnect all electric power, including remote disconnects before servicing.
Follow proper lockout/tagout procedures to ensure the power can not be
inadvertently energized. Verify that no power is present with a voltmeter.
1. Remove filter access panel.
2. Remove the lower screws in the end panel. See
angle aside for
later installation.
WARNING
Figure 6. Lay block off
Figure 6. Remove lower screws
12
Wiring Connections
Locate unitwiring harness plugPPM2A. The plug islocated in the upperleft
section of the return air section. Remove the cap covering the plug, and
connect to the economizer wiring harness.
Figure 9. Electromechanical wiring
9
3. Do not remove the screws in the upper row of the end panel.
4. Grasp the bottom of the end panel and pull the economizer assembly
outward into the operating position. See
5. Remove approximately 3-inches of gasket material from the bottom of
each
assembly to the unit. See
6. With the screws provided,secure each side of theeconomizer assembly
by
corner post and into the engagement hole in the economizer assembly.
Refer to
post
corner
to expose the holes used to attach the economizer
Figure 7.
inserting a screw through the clearance hole in the bottom of the
Figure 7.
Figure 7. Remove gasket material
Figure 6.
7. Install theblockoff angle underneaththe economizer. Theblockoff angle
is designed to close the opening created, between the economizer and
the base, when the economizer assembly is in its operating position.
a. Holding the blockoff angle with the holes at the bottom and the
bottom angle outward, tilt the top forward and insert it into the
opening between the economizer and the unit base.
b. Press the bottom of the blockoff angle against the unit and line up
the
holes. Using the provided screws, secure it into place.
Figure 8. Blockoff installation
1110
8. Proceed to “Minimum Position Setting”.
Minimum Position Setting
Live Electrical Components!
Failure to followall electrical safety precautionswhen exposed to liveelectrical
components could result in death or serious injury.
When it is necessary to work with live electrical components, have a qualified
licensed electrician or
handling live electrical components perform these tasks.
To adjust the minimum position setting and check out the damper, the
power must be connected.
1. Close the unit disconnect and place the zone sensor fan selector in the
fan
“ON” position and the heat/coolselector in the “OFF” position. This
will place the damper in the minimum ventilation position.
2. To adjust the minimum position setting for the required ventilation air,
turn the potentiometer (on the damper motor) clockwise to “open” (to
increase the amount of ventilation) or counterclockwise to “close” (to
decrease theamount of ventilation). Thedamper will open tothis setting
each time the blower circuit is energized.
3. When adjusting minimum position, the damper may move to the new
setting
in severalsmall steps. Once thedamper has remained in position
for 10- 15 seconds without movement,it can be assumed itis at the new
position.
4. Replace the filter access panel. The damper will close when the blower
circuit
is de-energized.
WARNING
other individual who has been properly trained in
Trane and American Standard create comfortable, energy efficient indoor environments for commercial and
residential applications. For more information, please visit trane.com or americanstandardair.com.
Trane and American Standard have a policy of continuous product and product data improvement and reserve the
right to changedesign and specifications without notice. We are committedto using environmentally conscious print
practices.
ACC-SVN154D-EN 11 Sep 2021
Supersedes ACC-SVN154C-EN (Apr 2020)
©2021
