Traceable Traceable 98767-10 Manual

Probe filling Electrolyte

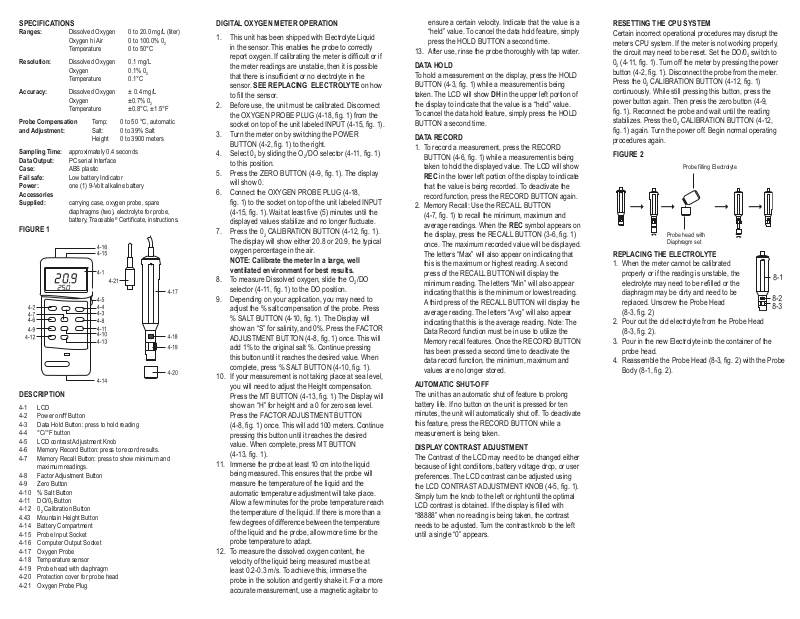

SPECIFICATIONS
Probe head with Diaphragm set
Probe filling Electrolyte
Ranges: Dissolved Oxygen 0 to 20.0 mg/L (liter)
Resolution: Dissolved Oxygen 0.1 mg/L
Accuracy: Dissolved Oxygen ± 0.4 mg/L
Probe Compensation Temp: 0 to 50 °C, automatic and Adjustment:
Sampling Time: approximately 0.4 seconds Data Output: PC serial Interface Case: ABS plastic Fail safe: Low battery Indicator Power: one (1) 9-Volt alkaline battery Accessories Supplied: carrying case, oxygen probe, spare
Oxygen hi Air 0 to 100.0% 0 Temperature 0 to 50°C
Oxygen 0.1% 0 Temperature 0.1°C
Oxygen ±0.7% 0 Temperature ±0.8°C, ±1.5°F
Salt: 0 to 39% Salt
Height 0 to 3900 meters
diaphragms (two), electrolyte for probe, battery, Traceable® Certicate, instructions.
2
2
2
FIGURE 1
DESCRIPTION
4-1 LCD 4-2 Power on/ff Button 4-3 Data Hold Button: press to hold reading 4-4 °C/°F button 4-5 LCD contrast Adjustment Knob 4-6 Memory Record Button: press to record results. 4-7 Memory Recall Button: press to show minimum and
maximum readings. 4-8 Factor Adjustment Button 4-9 Zero Button 4-10 % Salt Button 4-11 DO/02 Button 4-12 02 Calibration Button
4.43 Mountain Height Button 4-14 Battery Compartment 4-15 Probe Input Socket 4-16 Computer Output Socket 4-17 Oxygen Probe 4-18 Temperature sensor 4-19 Probe head with diaphragm 4-20 Protection cover for probe head 4-21 Oxygen Probe Plug
DIGITAL OXYGEN METER OPERATION
1. This unit has been shipped with Electrolyte Liquid in the sensor. This enables the probe to correctly
report oxygen. If calibrating the meter is difcult or if
the meter readings are unstable, then it is possible
that there is insufcient or no electrolyte in the
sensor. SEE REPLACING ELECTROLYTE on how
to ll the sensor.
2. Before use, the unit must be calibrated. Disconnect
the OXYGEN PROBE PLUG (4-18, g. 1) from the socket on top of the unit labeled INPUT (4-15, g. 1).
3. Turn the meter on by switching the POWER
BUTTON (4-2, g. 1) to the right.
4. Select 02 by sliding the O2/DO selector (4-11, g. 1) to this position.
5. Press the ZERO BUTTON (4-9, g. 1). The display will show 0.
6. Connect the OXYGEN PROBE PLUG (4-18,
g. 1) to the socket on top of the unit labeled INPUT (4-15, g. 1). Wait at least ve (5) minutes until the displayed values stabilize and no longer uctuate.
7. Press the 02 CALIBRATION BUTTON (4-12, g. 1). The display will show either 20.8 or 20.9, the typical oxygen percentage in the air.
NOTE: Calibrate the meter In a large, well ventilated environment for best results.
8. To measure Dissolved oxygen, slide the O2/DO
selector (4-11, g. 1) to the DO position.
9. Depending on your application, you may need to adjust the % salt compensation of the probe. Press
% SALT BUTTON (4-10, g. 1). The Display will
show an “S” for salinity, and 0%. Press the FACTOR
ADJUSTMENT BUTTON (4-8, g. 1) once. This will
add 1% to the original salt %. Continue pressing this button until it reaches the desired value. When
complete, press % SALT BUTTON (4-10, g. 1).
10. If your measurement is not taking place at sea level, you will need to adjust the Height compensation.
Press the MT BUTTON (4-13, g. 1) The Display will
show an “H” for height and a 0 for zero sea level. Press the FACTOR ADJUSTMENT BUTTON
(4-8, g. 1) once. This will add 100 meters. Continue
pressing this button until it reaches the desired value. When complete, press MT BUTTON
(4-13, g. 1).
11. Immerse the probe at least 10 cm into the liquid being measured. This ensures that the probe will measure the temperature of the liquid and the automatic temperature adjustment will take place. Allow a few minutes for the probe temperature reach the temperature of the liquid. If there is more than a few degrees of difference between the temperature of the liquid and the probe, allow more time for the probe temperature to adapt.
12. To measure the dissolved oxygen content, the velocity of the liquid being measured must be at least 0.2-0.3 m/s. To achieve this, immerse the probe in the solution and gently shake it. For a more accurate measurement, use a magnetic agitator to
ensure a certain velocity. Indicate that the value is a “held” value. To cancel the data hold feature, simply press the HOLD BUTTON a second time.
13. After use, rinse the probe thoroughly with tap water.
DATA HOLD
To hold a measurement on the display, press the HOLD
BUTTON (4-3, g. 1) while a measurement is being
taken. The LCD will show DH in the upper left portion of the display to indicate that the value is a “held” value. To cancel the data hold feature, simply press the HOLD BUTTON a second time.
DATA RECORD
1. To record a measurement, press the RECORD
BUTTON (4-6, g. 1) while a measurement is being
taken to hold the displayed value. The LCD will show REC in the lower left portion of the display to indicate that the value is being recorded. To deactivate the record function, press the RECORD BUTTON again.
2. Memory Recall: Use the RECALL BUTTON
(4-7, g. 1) to recall the minimum, maximum and
average readings. When the REC symbol appears on
the display, press the RECALL BUTTON (3-6, g. 1)
once. The maximum recorded value will be displayed. The letters “Max” will also appear on indicating that this is the maximum or highest reading. A second press of the RECALL BUTTON will display the minimum reading. The letters “Min” will also appear indicating that this is the minimum or lowest reading. A third press of the RECALL BUTTON will display the average reading. The letters “Avg” will also appear indicating that this is the average reading. Note: The Data Record function must be in use to utilize the Memory recall features. Once the RECORD BUTTON has been pressed a second time to deactivate the data record function, the minimum, maximum and values are no longer stored.
AUTOMATIC SHUT-OFF
The unit has an automatic shut off feature to prolong battery life. If no button on the unit is pressed for ten minutes, the unit will automatically shut off. To deactivate this feature, press the RECORD BUTTON while a measurement is being taken.
DISPLAY CONTRAST ADJUSTMENT
The Contrast of the LCD may need to be changed either because of light conditions, battery voltage drop, or user preferences. The LCD contrast can be adjusted using
the LCD CONTRAST ADJUSTMENT KNOB (4-5, g. 1).
Simply turn the knob to the left or right until the optimal
LCD contrast is obtained. If the display is lled with
“88888” when no reading is being taken, the contrast needs to be adjusted. Turn the contrast knob to the left until a single “0” appears.
RESETTING THE CPU SYSTEM
Certain incorrect operational procedures may disrupt the meters CPU system. If the meter is not working properly, the circuit may need to be reset. Set the DO/0
(4-11, g. 1). Turn off the meter by pressing the power
0
2
button (4-2, g. 1). Disconnect the probe from the meter.
Press the 0 continuously. While still pressing this button, press the
CALIBRATION BUTTON (4-12, g. 1)
2
switch to
2
power button again. Then press the zero button (4-9,
g. 1). Reconnect the probe and wait until the reading
stabilizes. Press the 0
g. 1) again. Turn the power off. Begin normal operating
CALIBRATION BUTTON (4-12,
2
procedures again.
FIGURE 2
Probe head with Diaphragm set
REPLACING THE ELECTROLYTE
1. When the meter cannot be calibrated properly or if the reading is unstable, the
electrolyte may need to be relled or the
diaphragm may be dirty and need to be replaced. Unscrew the Probe Head
(8-3, g. 2)
2. Pour out the old electrolyte from the Probe Head
(8-3, g. 2).
3. Pour in the new Electrolyte into the container of the probe head.
4. Reassemble the Probe Head (8-3, g. 2) with the Probe
Body (8-1, g. 2).
COMPUTER OUTPUT
This unit features computer output. A COMPUTER
OUTPUT SOCKET (4-10, g. 1) is located on the top of
the unit. To utilize this feature, connect the unit to a PC with the Data Acquisition Accessory.
(SEE ACCESSORIES SECTION).
BATTERY LIFE
If the letters “LBT” appear on the left corner of the display, it indicates the battery is low and needs to be replaced. To replace the battery, slide the battery cover located on the back of the unit away from the unit. Remove the old battery and replace it with a new 9-Volt alkaline battery. Use an alkaline battery, NOT a regular or heavy duty battery. Properly connect the battery. Replace the battery cover. Incorrectly installed batteries may damage electronics.
ALL OPERATIONAL DIFFICULTIES
If this oxygen meter does not function properly for any reason, please replace the battery with a new 9-Volt alkaline batteries (see Low Battery section). Low battery power can occasionally cause any number of “apparent”
operational difculties. Replacing the batteries with new fresh batteries will solve most difculties.
TRACEABLE
DIGITAL
OXYGEN METER
INSTRUCTIONS
®
