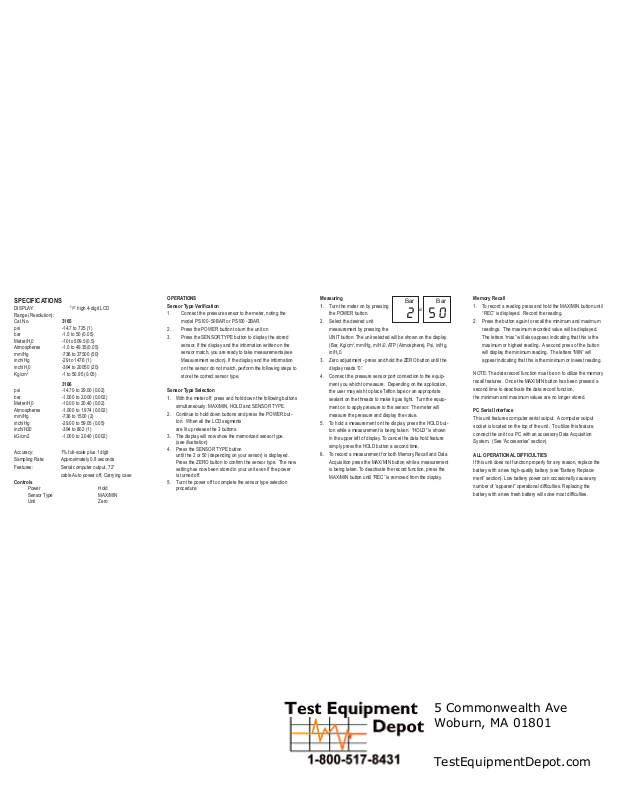

SPECIFICATIONS
DISPLAY:
Range (Resolution):
Cat No. 3165
psi -14.7 to 725 (1)
bar -1.0 to 50 (0.05)
0 -10 to 509.5(0.5)
Meter/H
2
Atmospheres -1.0 to 49.35(0.05)
mm/Hg -736 to 37500 (50)
inch/Hg -29 to 1476 (1)
inch/H
0 -394 to 20050 (20)
2
2
Kg/cm
-1 to 50.95 (0.05)
psi -14.70 to 29.00 (0.02)
bar -1.000 to 2.000 (0.002)
0 -10.00 to 20.40 (0.02)
Meter/H
2
Atmospheres -1.000 to 1.974 (0.002)
mm/Hg -736 to 1500 (2)
inch/Hg -29.00 to 59.05 (0.05)
inch/H20 -394 to 802 (1)
kG/cm2 -1.000 to 2.040 (0.002)
Accuracy: 1% full-scale plus 1 digit
Sampling Rate: Approximately 0.8 seconds
Features: Serial computer output, 72”
Controls
Power Hold
Sensor Type MAX/MIN
Unit Zero
5
/8” high 4-digit LCD
3166
cable Auto power off, Carrying case
OPERATIONS
Sensor Type Verification
1. Connect the pressure sensor to the meter, noting the
model PS100 -50BAR or PS100 -2BAR.
2. Press the POWER button to turn the unit on
3. Press the SENSOR TYPE button to display the stored
sensor. If the display and the information written on the
sensor match, you are ready to take measurements(see
Measurement section). If the display and the information
on the sensor do not match, perform the following steps to
store the correct sensor type.
Sensor Type Selection
1. With the meter off, press and hold down the following buttons
simultaneously: MAX/MIN, HOLD and SENSOR TYPE.
2. Continue to hold down buttons and press the POWER but-
ton. When all the LCD segments
are lit up release the 3 buttons.
3. The display will now show the memorized sensor type.
(see illustration)
4. Press the SENSOR TYPE button
until the 2 or 50 (depending on your sensor) is displayed.
Press the ZERO button to confirm the sensor type. The new
setting has now been stored in your unit even if the power
is turned off.
5. Turn the power off to complete the sensor type selection
procedure.
Measuring
1. Turn the meter on by pressing
the POWER button.
2. Select the desired unit
measurement by pressing the
UNIT button. The unit selected will be shown on the display.
2
, mm/Hg, m/H20, ATP (Atmosphere), Psi, in/Hg,
(Bar, Kg/cm
0.
in/H
2
3. Zero adjustment - press and hold the ZERO button until the
display reads “0”.
4. Connect the pressure sensor port connection to the equipment you which to measure. Depending on the application,
the user may wish to place Teflon tape or an appropriate
sealant on the threads to make it gas tight. Turn the equipment on to apply pressure to the sensor. The meter will
measure the pressure and display the value.
5. To hold a measurement on the display, press the HOLD button while a measurement is being taken. “HOLD” is shown
in the upper left of display. To cancel the data hold feature
simply press the HOLD button a second time.
To record a measurement for both Memory Recall and Data
6.
Acquisition press the MAX/MIN button while a measurement
is being taken. To deactivate the record function, press the
MAX/MIN button until “REC” is removed from the display.
Bar
2
or
50
Bar
Memory Recall
1. To record a reading press and hold the MAX/MIN button until
“REC” is displayed. Record the reading.
2. Press the button again to recall the minimum and maximum
readings. The maximum recorded value will be displayed.
The letters “max” will also appear, indicating that this is the
maximum or highest reading. A second press of the button
will display the minimum reading. The letters “MIN” will
appear indicating that this is the minimum or lowest reading.
NOTE: The data record function must be on to utilize the memory
recall features. Once the MAX/MIN button has been pressed a
second time to deactivate the data record function,
the minimum and maximum values are no longer stored.
PC Serial Interface
This unit features computer serial output. A computer output
socket is located on the top of the unit. To utilize this feature,
connect the unit to a PC with an accessory Data Acquisition
System. (See “Accessories” section)
ALL OPERATIONAL DIFFICULTIES
If this unit does not function properly for any reason, replace the
battery with a new high-quality battery (see “Battery Replacement” section). Low battery power can occasionally cause any
number of “apparent” operational difficulties. Replacing the
battery with a new fresh battery will solve most difficulties.
5 Commonwealth Ave
Woburn, MA 01801
TestEquipmentDepot.com
BATTERY REPLACEMENT
Erratic readings, a faint display, no display or a flashing display
are all indicators that the battery must be replaced. To replace
the battery, use a coin to remove the battery cover located on the
back of the unit. Replace the exhausted battery with a new 9-volt
alkaline battery. Use an alkaline battery, NOT a regular or heavyduty battery. Properly replace the battery and the battery cover.
Replacement battery Cat. No. 1112.
ACCESSORIES
Cat. No.
4138 Easy-Use™ Accessory Adaptor 115 VAC
4136 Data Acquisition System Accessory Powerful
and easy to use computer data capture/data logging
program works with Traceable
computer output. Records interval readings from
1 to 10,000 seconds; displays minimum/maximum
readings; and utilizes an alarm mode that permits
the user to be notified visually, audibly, and by email
when an alarm is triggered. Data is stored to a file
that can be printed in any report or spreadsheet
format. Networking server/client capability allows the
captured data to be monitored on a remote workstation and/or by email. It is designed to work with Win-
®
dows
. Includes a CD, a 6-foot cable (supplied USB
and serial connections) that plugs into instrument and
computer. Accessory extension cables expand cable
length to 300 feet.
®
Instruments with
4325 Data Logger Complete DAS–4™ System captures
and stores up to 8000 bytes (over 1000 readings).
Readings may be taken at intervals from 1 second
to 99 hours. Stored readings may be downloaded to
any PC and viewed. Data file can be read as-is or
imported to spreadsheets, word processors, databases, and statistical programs. Supplied complete
with 36-inch serial cable with D9F computer plug,
disk (DOS and Windows
teries. Size is 5 x 3 x 1 inches, weight is 7 ounces.
3150 Humidity Sponge™ Indicator Desiccant
(40 bags/pack)
3151 Humidity Sponge™ Regenerable Desiccant
(40 bags/pack)
1112 Replacement battery (9V)
®
), and four AA alkaline bat-
TRACEABLE
PRESSURE/
VACUUM
METER
INSTRUCTIONS
®
