TP-Link TX401 Installation Guide

Quick Installation Guide

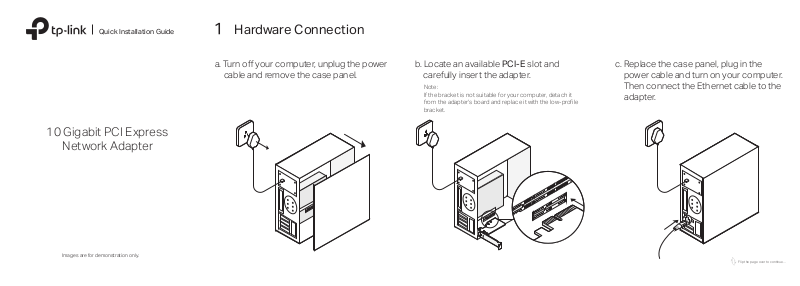

Hardware Connection

10 Gigabit PCI Express

Network Adapter

Images are for demonstration only.

a. Turn o your computer, unplug the power

cable and remove the case panel.

b. Locate an available PCI-E slot and

carefully insert the adapter.

Note:

If the bracket is not suitable for your computer, detach it from the adapter's board and replace it with the low-prole

bracket.

c. Replace the case panel, plug in the

power cable and turn on your computer. Then connect the Ethernet cable to the adapter.

Flip the page over to continue…

Driver Installation

LED Indicator

Troubleshooting

a. Insert the CD and run the Autorun.exe.

Note:

� You can also download the driver or check the new release at

https://www.tp-link.com/download-center

� To install driver on Linux, refer to

https://www.tp-link.com/faq-2868.html

b. Select your adapter and follow the

instructions to complete the installation.

Note:

If you can’t install the driver successfully, disable the antivirus software and rewall, then try again.

LED

10G Link

Link

Note:

If neither LED ashes, check whether the adapter is detected by

the computer or the driver is successfully installed.

Status

Flashing:

The adapter is working at 10 Gbps.

O:

No link or the adapter is working at a dierent

speed.

Flashing:

The adapter is working at 5 Gbps/ 2.5 Gbps/ 1 Gbps/100 Mbps.

O:

No link or the adapter is working at a dierent

speed.

Q1: How can I nd the driver if the CD is lost or

broken?

• You can nd and download the driver at

https://www.tp-link.com/download-center

Q2: How can I nd the hardware version of the

adapter?

• The hardware version (Ver:X.Y) is printed on the product label on the package or the adapter. The number X is the hardware version of the adapter.

• For more detailed instructions, please visit

https://www.tp-link.com/faq-46.html

Q3: What should I do if my computer cannot

nd the new hardware?

• Restart your computer and try again.

• Power o the computer, then reinsert the

adapter or try another PCI-E slot.

• If the problem persists, contact our

Technical Support.

Support

For technical support, replacement services, user guides, and other information, please

visit https://www.tp-link.com/support, or simply scan the QR code.

· Do not attempt to disassemble, repair, or modify the device. If you need service, please contact us.

· Keep the device away from water, re, humidity or hot environments.
