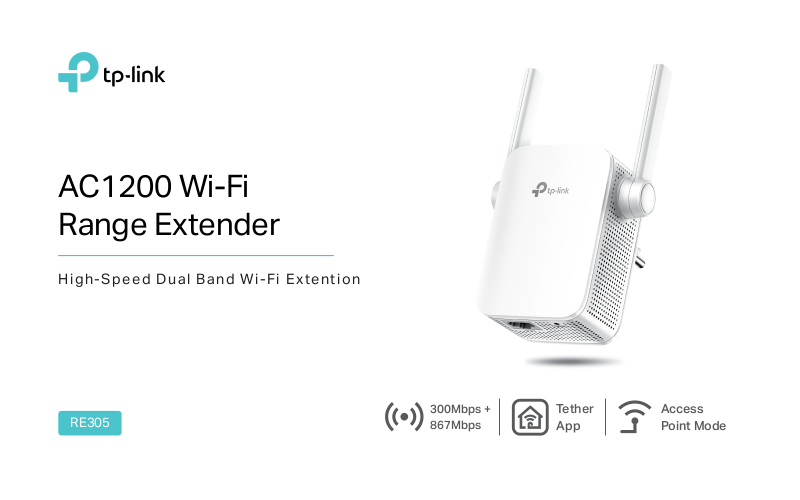

AC1200 Wi-Fi
Range Extender
High-Speed Dual Band Wi-Fi Extention
RE305
300Mbps +
867Mbps
Tether
App
Access
Point Mode
Highlights
Extend Dual Band AC1200 for the Whole Home Perfect Location at a Glimpse
The AC1200 Wi-Fi Range Extender strengthens and expands your router’s
signal into areas the router can’t reach on its own, achieving speeds of
300Mbps on the 2.4GHz band and 867Mbps on the 5GHz band.
An intelligent Signal light helps you quickly nd the best location to place the
range extender.
Existing Router Coverage
Expanded Extender Coverage
Ethernet Cable
RE305
ROUTER
INTERNET
blue
Strong
connection
red
TP-Link AC1200 Wi-Fi Range Extender
Too far away
from the router
RE305
Features
Ease of Use
· Intuitive Web UI – Ensures quick and simple installation without
hassle
· Fast Encryption – One-touch wireless security encryption with
the WPS button
· Hassle-free Management with Tether App – Network
management is made easy with the TP-Link Tether App,
available on any Android or iOS device
Speed
· Ultimate Wireless Speed – Combined wireless speeds of up to
300Mbps (over 2.4GHz) and 867Mbps (over 5GHz)
· Support 802.11 ac – Provides a data transfer rate 3 times
faster than 802.11n for each stream
· High Speed Mode – Uses one dedicated Wi-Fi band to boost
extender performance for extra-demanding online activities
Reliability
· Simultaneous Dual Band – Separate Wi-Fi bands enable more
devices to connect to your network without a drop in
performance
· Reliable Connection – Two adjustable external antennas for
optimal Wi-Fi coverage and reliable wireless connections
TP-Link AC1200 Wi-Fi Range Extender
RE305
Specications
Hardware
· Ethernet Port: 1 10/100Mbps RJ45 Port
· Button: WPS Button, RESET Button
· Antenna: 2 External Antennas
· Power Consumption: 7.2W
· Dimensions (W × D × H):
3.06 x 1.57 x 3.15 in. (77.8 x 40 x 80 mm)
WPS Button
and LEDs
Wireless
· Wireless Standards: IEEE 802.11a/n/ac 5GHz, IEEE
802.11b/g/n 2.4GHz
· Frequency: 2.4GHz and 5GHz
· Signal Rate: 300Mbps at 2.4GHz, 867Mbps at 5GHz
· Transmit Power: ≤15dBm (2.4GHz), ≤17dBm (5GHz)
· Reception Sensitivity:
5GHz:
11a 6Mbps: -92dBm, 11a 54Mbps: -74dBm,
11ac HT20 MCS8: -67dBm, 11ac HT40 MCS9: -62dBm
11ac HT80 MCS9: -58dBm
Others
· Certication
CE, RoHS
· System Requirements
Microsoft Windows 98SE, NT, 2000, XP, Vista™ or
Windows 7, 8, 8.1, 10, MAC OS, NetWare, UNIX or Linux
Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari
4.0, or other Java-enabled browser
· Package Contents
AC1200 Wi-Fi Range Extender RE305
Quick Installation Guide
2.4GHz:
11g 54Mbps: -79dBm, 11n HT20: -77dBm
11n HT40: -74dBm
· Wireless Function: Enable/Disable Wireless Radio
RESET Button
Ethernet Port
For more information, please visit
https://www.tp-link.com/en/products/details/RE305.html
or scan the QR code left
Attention: This device may only be used indoors in all EU member states and EFTA countries.
Specications are subject to change without notice. TP-Link is a registered trademark of TP-Link Technologies Co., Ltd. Other brands and product names are trademarks or registered trademarks of their respective holders. Copyright ©2019 TP-Link Technologies Co., Ltd. All rights reserved.
*Maximum wireless signal rates are the physical rates derived from IEEE Standard 802.11 specications. Actual wireless data throughput and wireless coverage are not guaranteed and will vary as a result of 1) environmental factors, including building materials, physical objects, and obstacles, 2) network
conditions, including local interference, volume and density of trac, product location, network complexity, and network overhead, and 3) client limitations, including rated performance, location, connection quality, and client condition.
· Wireless Security: WEP, WPA/WPA2, WPA/WPA-PSK2
encryptions, Enable/Disable SSID Broadcast
www.tp-link.com
TP-Link AC1200 Wi-Fi Range Extender
RE305
