TP-Link EAP120 User Manual

Download
Business Class Wi-Fi Solution
MODELS: EAP330/EAP320/EAP245/EAP225
EAP220/EAP120/EAP115/EAP110/EAP110-Outdoor/
EAP115-Wall
EAP330 EAP320
EAP245 EAP225 EAP220
EAP115
EAP110EAP120
EAP Controller Software
EAP115-Wall
Auranet Solution
MALL
OFFICE
HOTEL
CAMPUS
………
EAP Controller Software
Business-Class Wi-Fi Solution
Auranet access points provide a business-class wireless network solution that’s exible, manageable,
secure, and easy-to-deploy. The free EAP Controller software allows users to manage hundreds of EAPs
at multiple sites, all from a single location. The ability to control, adjust and visualize the entire network
from any connected PC makes centralized business Wi-Fi management more ecient than ever before.
Auranet EAPs also feature captive portal and advanced RF management functions, which make them
ideal for demanding, high-trac environments such as campuses, hotels, malls and oces.
Free: No Additional Expense
Easy: No Special Training Required
Highlights
Impressive Performance:
Enterprise-class chipsets, 802.11ac Wi-Fi standard,
MIMO Technology, and TurboQAM combine to ensure
outstanding performance and reliability.
Centralized Management:
The Auranet solution supports two low-cost
centralized management methods:
Auranet Controller and easy-to-use Cluster mode.
Extensive Scalability:
With the ability to manage hundreds of access
points at once, simply add more EAPs at any time
to expand the network.
Cost Eciency:
The EAP Controller software is completely free
and eliminates the need for expensive
hardware controllers.
Centralized Management
Two simple and low-cost centralized management methods are available for Auranet EAPs:
multi-function Auranet Controller software and easy-to-use Cluster mode. Switch between them as
required.
1. Advanced EAP Controller Software
Convenient, Eective Management
Manage Multiple Sites from a Single Location
The EAP Controller software allows network administrators to monitor and manage hundreds of Auranet
EAPs at multiple sites, from any connected PC within the network. This dramatically enhances scalability
and makes remote network management more convenient.
Captive Portal - Customizable Guest Authentication
Administrators can control guest access by designing a unique authentication page and establishing a
voucher system to limit the duration of use for each client.
Scheduled Reboot
With the scheduled reboot function, Auranet EAPs can reboot themselves automatically at
specied time to ensure network stability.
Access Control
Access control allows you to maintain a list of blocked IPs, which helps to protect internal
communications and private data on the network.
Real-Time Status Monitoring
Customized Map
The customized map feature makes managing
your EAP network more convenient. You can
upload oor plans and create a clear visual
model that reects your network and its
coverage area.
Access Point
Statistics
The built-in data visualization tools allow you
to analyze network trac statistics for all
connected APs. Graphic representations
make recent client and network trac gures
easier to understand.
Client
Provides a list of all EAPs, arranged by status,
and oers real-time trac data for each EAP,
including the number of connected clients
and the amount of data that each client
consumes.
Lists all clients, including users and guests,
allowing you to view each client’s basic
information and statistics in real time. This
includes data rate, active time, and
download/upload trac.

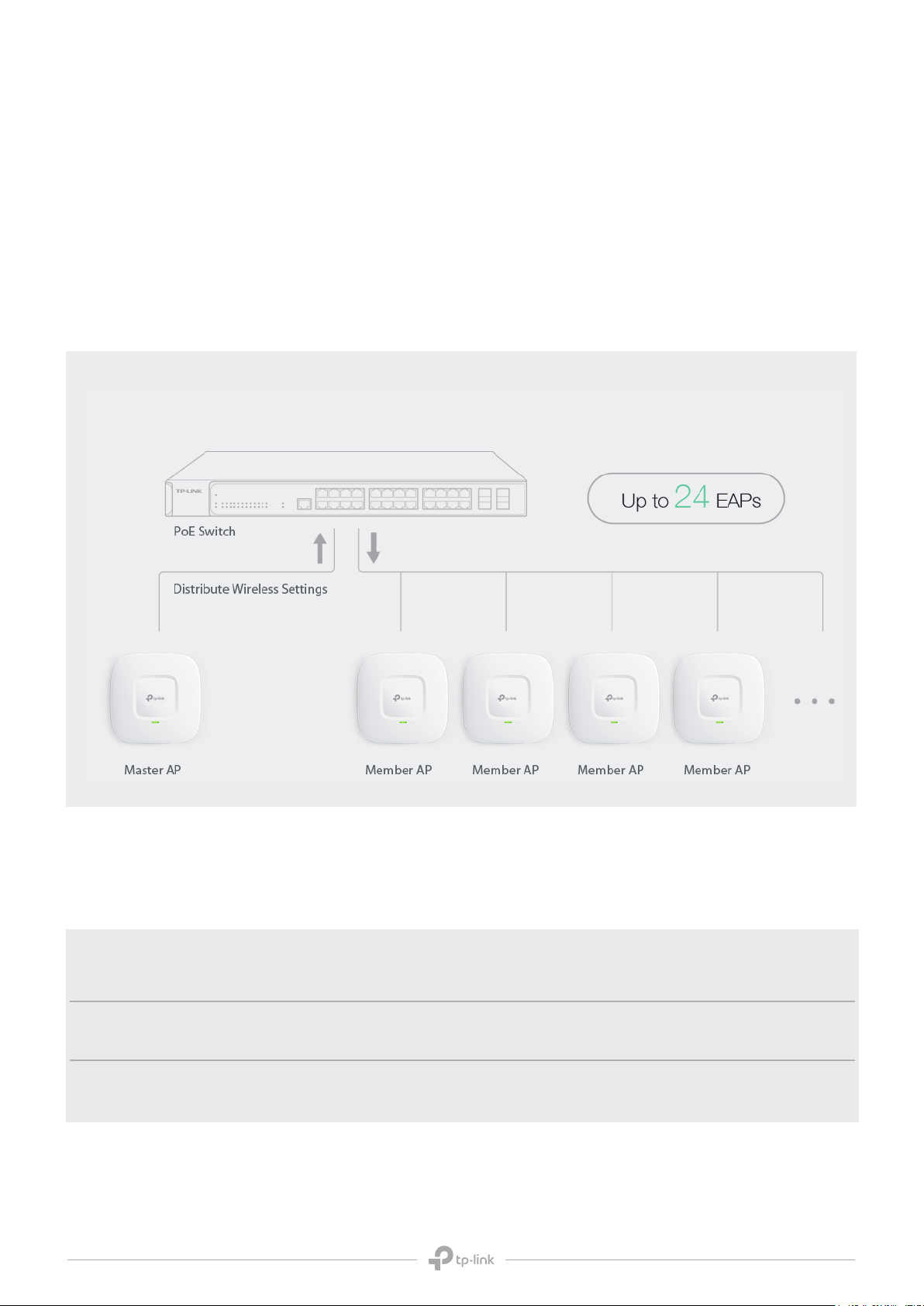

2. Easy-to-Use Cluster Mode*
Cluster mode allows you to manage up to 24 Auranet EAPs at once. A master Auranet EAP is
selected automatically and the network administrator can manage the cluster via an intuitive web
interface. There’s no need to install additional PC software or to purchase an expensive hardware
controller.
Which is the best management method for you?
Need to install
Hardware?
Auranet Controller
Cluster
No Advanced
No No
*Only be supported by EAP115
Need to install
software?
Ye s
Multi
Batch
SSID
Upgrade
√
√ √
√ √
Load Balance
Basic Basic
Captive Portal
Advanced
L3
Management
- - - -
Reboot Schedule
√ √ √
Band Steer
Rate
Limit
Product Features
Easy-Mount Design
The Ceiling Mount EAP's lamp appearance and easy-mount design promote fast installation on
any wall or ceiling surface, and allow it to blend in seamlessly with most interior decorating styles.
The slimline, inconspicuous Wall Plate EAP can be easily installed into any standard EU-type
Ethernet wall box.
PoE Power Supply
With IEEE 802.3af/at PoE or Passive PoE, you can use Ethernet cables to transfer both electrical
power and network data, making deployment more exible and removing the need to install
additional power cabling.
Business-Class Hardware Design
Enterprise-class chipsets oer outstanding performance and support longer running time, higher
client capacity and greater range. Dedicated high-power ampliers, specialized antennas and
professionally designed RF shields ensure excellent wireless performance.
Advanced RF Management
Airtime Fairness, Beamforming, and Band Steering Technologies guarantee optimal RF
performance for business-level applications.
Easy Centralized Management
Congure and monitor hundreds of Auranet EAPs with ease using the EAP Controller software.
Alternatively, Cluster mode provides a convenient management method of managing up to 24
EAPs that’s similar to the way a home router is managed.
Model EAP330 EAP320 EAP245 EAP225
Product
AC1900 Wireless
Dual Band Gigabit
Access Point
AC1200 Wireless
Dual Band Gigabit
Access Point
AC1750 Wireless
Dual Band Gigabit
Access Point
AC1200 Wireless
Dual Band Gigabit
Access Point
Speed
2.4GHz: 600Mbps
5GHz: 1300Mbps
2.4GHz: 300Mbps
5GHz: 867Mbps
2.4GHz: 450Mbps
5GHz: 1300Mbps
2.4GHz: 300Mbps
5GHz: 867Mbps
Ethernet Port 2 Gigabit Ports 1 Gigabit Port 1 Gigabit Port 1 Gigabit Port
PoE 802.3at 802.3at 802.3at 802.3af
Internal Antennas
2.4GHz: 3x6dBi
5GHz: 3x7dBi
2.4GHz: 2x5dBi
5GHz: 2x6dBi
2.4GHz: 3x4dBi
5GHz: 3x4dBi
2.4GHz: 2x4dBi
5GHz: 2x4dBi
Model EAP220 EAP120 EAP115 EAP110
EAP110-
Outdoor
EAP115-Wall
Product
N600 Wireless
Dual Band
Gigabit
Access Point
300Mbps
Wireless
N Gigabit
Access Point
300Mbps
Wireless N
Access Point
300Mbps
Wireless N
Access Point
300Mbps
Wireless
N Outdoor
Access
Point
300Mbps
Wireless N
Wall-Plate
Access Point
Speed
2.4GHz:
300Mbps
5GHz:
300Mbps
2.4GHz:
300Mbps
2.4GHz:
300Mbps
2.4GHz:
300Mbps
2.4GHz:
300Mbps
2.4GHz:
300Mbps
Ethernet Port 1 Gigabit Port 1 Gigabit Port
1 10/100Mbps
Ethernet Port
1 10/100Mbps
Ethernet Port
1 10/100Mbps
Ethernet Port
2 10/100Mbps
Ethernet Ports
PoE 802.3af 802.3af 802.3af Passive PoE Passive PoE 802.3af
Internal Antennas 4x4dBi 2x4dBi 2x3dBi 2x3dBi
2x5dBi
(External
Detachable)
2x1.8dBi
Auranet Business Class Wi-Fi Solution
802.11ac Access Points
802.11n Access Points
Specications
802.11ac Indoor Access Points
Model
Name
LAN Interfaces
Wi-Fi Standards
Maximum Data Rate
Main Design
Internal Antennas
EAP330 EAP320
AC1900 Wireless Dual Band Gigabit Access
Point
Gigabit Ethernet (RJ-45) Port *2 Gigabit Ethernet (RJ-45) Port *1
IEEE 802.11a/b/g/n/ac
Up to 600Mbps (2.4GHz) + 1300Mbps
(5GHz)
2.4GHz: 3 * 6dBi, 5GHz: 3 * 7dBi 2.4GHz: 2 * 5dBi, 5GHz: 2 * 6dBi
AC1200 Wireless Dual Band Gigabit Access
Point
Up to 300 Mbps (2.4GHz) + 867Mbps (5GHz)
Centralized
Management
Security
Wireless
Function
Supported Data
Rates
Physical
Properties
Transmit Power
Power over Ethernet (PoE)
EAP Controller Software •
Web-based Management HTTP/HTTPS
Captive Portal Authentication •
Access Control •
Rogue AP Detection •
Wireless Encryption WEP, WPA/WPA2-Personal/Enterprise Encryption
802.1X Support •
Multiple SSIDs 16 (8 on each radio)
Automatic Channel
Assignment
QoS(WMM) •
Airtime Fairness •
Beamforming •
Band Steering •
Rate Limit •
Load Balance •
Reboot Schedule •
Wireless Schedule •
802.11ac
802.11n 6.5 Mbps to 300 Mbps (MCS0 - MCS15, VHT 20/40)
802.11g 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11b 1, 2, 5.5, 11 Mbps
802.11a 6, 9, 12, 18, 24, 36, 48, 54 Mbps
Power Supply
Maximum Power Consumption 17.7W 14.03W
Mounting Ceiling/Wall mounting (Kits included)
&HUWLƮFDWLRQV CE, RoHS
Dimensions (W x D x H) 8.7 x 7.6 x 1.4in. (220.5 x193.5x 36.5 mm)
Environment
CE: <20dBm (2.4GHz,EIRP), <23dBm (5GHz,EIRP)
IEEE 802.3at
•
5GHz: 6.5 Mbps to 1300Mbps (MCS0­MCS9, NSS = 1 to 3 VHT20/40/80)
2.4GHz(QAM256): 78Mbps to 600Mbps (MCS8-MCS9 VHT20/40, NSS=1 to 3)
PoE (802.3at-compliant, 36-57V 0.7A) or external 12VDC/2.5A power supply
Operating Temperature: 0°C~40°C (32°F~104°F);
Storage Temperature: -40°C~70°C (-40°F~158°F);
Operating Humidity: 10%~90% non-condensing;
Storage Humidity: 5%~90% non-condensing;
5GHz: 6.5 Mbps to 867Mbps (MCS0-MCS9, NSS = 1 to 3 VHT20/40/80)
2.4GHz(QAM256): 78Mbps to 300Mbps (MCS8-MCS9 VHT20/40, NSS=1 to 3)
PoE (802.3at-compliant, 36-57V 0.7A) or external 12VDC/1.5A power supply
802.11ac Indoor Access Points
Model
Name
LAN Interfaces
Wi-Fi Standards
Maximum Data Rate
Main Design
Internal Antennas
EAP245 EAP225
AC1750 Wireless Dual Band Gigabit
Access Point
Gigabit Ethernet (RJ-45)Port*1
IEEE 802.11a/b/g/n/ac
Up to 450 Mbps (2.4GHz) + 1300Mbps
(5GHz)
2.4GHz: 3 * 4dBi, 5GHz: 3 * 4dBi 2.4GHz: 2 * 4dBi, 5GHz: 2 * 4dBi
AC1200 Wireless Dual Band Gigabit
Access Point
Up to 300 Mbps (2.4GHz) + 867Mbps
(5GHz)
Centralized
Management
Security
Wireless
Function
Transmit Power
Power over Ethernet (PoE)
EAP Controller Software •
Captive Portal
Authentication
Access Control •
Rogue AP Detection •
Wireless Encryption WEP, WPA/WPA2-Personal/Enterprise Encryption
802.1X Support •
Multiple SSIDs 16 (8 on each radio)
Automatic Channel
Assignment
QoS(WMM) •
Airtime Fairness -
Beamforming -
Band Steering •
Rate Limit •
Load Balance •
Reboot Schedule •
Wireless Schedule •
CE: <20dBm (2.4GHz,EIRP), <23dBm (5GHz,EIRP)
IEEE 802.3at IEEE 802.3af
•
•
Supported
Data Rates
Physical
Properties
5G:6.5 Mbps to 1300Mbps(MCS0-
802.11ac
802.11n
802.11g 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11b 1, 5.5, 11Mbps
802.11a 6, 9, 12, 18, 24, 36, 48, 54 Mbps
Power Supply
Maximum Power Consumption
Mounting Ceiling/Wall mounting (Kits included)
&HUWLƮFDWLRQV CE, RoHS
Dimensions (W x D x H) 7.1 x 7.1 x 1.9in.(180 x 180 x 47.5mm)
Environment
MCS9,NSS = 1 to 2 VHT20/40/80)
2.4G:78Mbps to 450Mbps (MCS8­MCS9 VHT20/40,NSS=1 to 3)
6.5 Mbps to 450Mbps (MCS0­MCS15,VHT20/40)
PoE (802.3at-compliant, 36-57V 0.4A) or external 12VDC/1.5A power supply
12.7W 10.15W
Operating Temperature: 0°C~40°C (32°F~104°F);
Storage Temperature: -40°C~70°C (-40°F~158°F);
Operating Humidity: 10%~90% non-condensing;
Storage Humidity: 5%~90% non-condensing;
5G:6.5 Mbps to 867Mbps(MCS0­MCS9,NSS = 1 to 2 VHT20/40/80)
2.4G:78Mbps to 300Mbps (MCS8­MCS9 VHT20/40, NSS=1 to 3)
6.5 Mbps to 300 Mbps (MCS0 -
MCS15, VHT 20/40)
PoE (802.3af-compliant, 36-57V 0.4A) or external 12VDC/1.5A power supply
802.11n Indoor Access Points
Model
Name
LAN Interfaces
Wireless Frequency
Wi-Fi Standards
Main Design
Maximum Data Rate
Internal Antennas
EAP220 EAP120
N600 Wireless Dual Band Gigabit
Access Point
Gigabit Ethernet (RJ-45) Port *1
2.4GHz and 5GHz 2.4GHz
IEEE 802.11a/b/g/n IEEE 802.11b/g/n
Up to 300 + 300 Mbps Up to 300 Mbps
4 * 4dBi 2 * 4dBi
300Mbps Wireless N
Gigabit Access Point
Centralized
Management
Security
Wireless
Function
Supported
Data Rates
Physical
Properties
Transmit Power
Power over Ethernet (PoE)
EAP Controller Software •
Captive Portal
Authentication
Access Control •
Rogue AP Detection •
Wireless Encryption WEP, WPA/WPA2-Personal/Enterprise Encryption
802.1X Support •
Multiple SSIDs 16 (8 on each radio) 8
Automatic Channel
Assignment
QoS(WMM) •
Airtime Fairness -
Beamforming -
Band Steering • -
Rate Limit •
Load Balance •
Reboot Schedule •
Wireless Schedule •
802.11n 6.5 Mbps to 300 Mbps (MCS0 - MCS15, VHT 20/40)
802.11g 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11b 1, 2, 5.5, 11 Mbps
802.11a 6, 9, 12, 18, 24, 36, 48, 54 Mbps -
Power Supply PoE or external 12V/1.5A power supply PoE or external 12V/1A power supply
Maximum Power Consumption
Mounting Ceiling/Wall mounting (Kits included)
&HUWLƮFDWLRQV CE, RoHS
Dimensions (W x D x H) 7.1 x 7.1 x 1.9in. (180 x180 x 47.5 mm)
Environment
CE: <20dBm
IEEE 802.3af
•
•
7.95W 4.34W
Operating Temperature: 0°C~40°C (32°F~104°F);
Storage Temperature: -40°C~70°C (-40°F~158°F);
Operating Humidity: 10%~90% non-condensing;
Storage Humidity: 5%~90% non-condensing;
802.11n Indoor Access Points
Model
Name
LAN Interfaces
Wireless Frequency
Wi-Fi Standards
Main Design
Centralized
Management
Security
Wireless
Function
Supported
Data Rates
Physical
Properties
Maximum Data Rate
Internal Antennas
Transmit Power
Power over Ethernet (PoE)
EAP Controller Software •
Cluster • -
Captive Portal
Authentication
Access Control •
Rogue AP Detection •
Wireless Encryption WEP, WPA/WPA2-Personal/Enterprise Encryption
802.1X Support •
Multiple SSIDs 8
Automatic Channel
Assignment
QoS(WMM) •
Airtime Fairness -
Beamforming -
Band Steering -
Rate Limit •
Load Balance •
Reboot Schedule •
Wireless Schedule •
802.11n 6.5 Mbps to 300 Mbps (MCS0 - MCS15, VHT 20/40)
802.11g 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11b 1, 2, 5.5, 11 Mbps
802.11a -
Power Supply
Maximum Power Consumption
Mounting Ceiling/Wall mounting (Kits included)
&HUWLƮFDWLRQV CE, RoHS
Dimensions (W x D x H) 7.1 x 7.1 x 1.9in. (180 x180 x 47.5 mm)
Environment
EAP115 EAP110
300Mbps Wireless N
Access Point
10/100Mbps Ethernet Port*1
2.4GHz
IEEE802.11b/g/n
300 Mbps
2 * 3dBi
CE: <20dBm CE: <20dBm
IEEE 802.3af 24V Passive PoE
•
•
PoE (802.3af-compliant, 36-57V 0.15A) or external 12VDC/1.0A power supply
5W 6.55W
Operating Temperature: 0°C~40°C (32°F~104°F);
Storage Temperature: -40°C~70°C (-40°F~158°F);
Operating Humidity: 10%~90% non-condensing;
Storage Humidity: 5%~90% non-condensing;
300Mbps Wireless N
Access Point
24VDC/1A Passive PoE Supply
802.11n Outdoor Access Points
Model EAP110-Outdoor
Name 300Mbps Wireless N Outdoor Access Point
LAN Interfaces 10/100Mbps Ethernet Port*1
Wireless Frequency 2.4GHz
Wi-Fi Standards IEEE 802.11b/g/n
Main Design
Centralized Management EAP Controller Software •
Security
Wireless Function
Supported Data Rates
Management
Physical Properties
Others
Maximum Data Rate Up to 300Mbps
Antennas 2x5dBi External Waterproof Antennas
Transmit Power CE: <20dBm
Power over Ethernet (PoE) 24V Passive PoE
Captive Portal Authentication •
Access Control •
Wireless MAC Address Filtering •
Wireless Isolation Between Clients •
SSID to VLAN Mapping •
Rogue AP Detection •
WEP Encryption 64/128/152-bit
WPA/WPA2-Personal Encryption •
WPA/WPA2-Enterprise Encryption •
802.1X Support •
Multiple SSIDs 8
Enable/Disable Wireless Radio •
Automatic Channel Assignment •
Transmit Power Control Adjust transmit Power on dBm
QoS(WMM) •
Rate Limit •
Load Balance •
Reboot Schedule •
Wireless Schedule •
Wireless Statistics Based on SSID/AP/Client
802.11n 6.5 Mbps to 300Mbps (MCS0-MCS15,VHT20/40)
802.11g 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11b 1, 5.5, 11 Mbps
802.11a -
LED ON/OFF Control •
Management MAC Access Control •
Web-based Management HTTP/HTTPS
Telnet •
SNMP v1,v2c
System Logging Local/Remote Syslog
Email Alerts •
Power Supply 24V/0.6A Passive PoE
Maximum Power Consumption 6.3W
Button Reset Button
Watch Dog •
Mounting Pole/Wall mounting (Kits included)
&HUWLƮFDWLRQV CE, RoHS
Dimensions (W x D x H) 8.2 × 3.7 × 1.7 in. (209 × 95 × 42.6 mm)
System Requirements Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows 10
Operating Temperature: -30°C~65°C (-22°F~149°F);
Environment
Storage Temperature: -40°C~70°C (-40°F~158°F);
Operating Humidity: 10%~90% non-condensing;
Storage Humidity: 5%~90% non-condensing;
802.11n Wall-Plate Access Points
Model EAP115-Wall
Name 300Mbps Wireless N Wall-Plate Access Point
Main Design
LAN Interfaces 10/100Mbps Ethernet Port *2
Wireless Frequency 2.4GHz
Wi-Fi Standards IEEE 802.11 b/g/n
Maximum Data Rate Up to 300Mbps
Antennas 2*1.8dBi
Transmit Power CE: <15dBm
Power over Ethernet (PoE) IEEE 802.3af
Centralized Management
Cluster -
Max APs in One Cluster -
Web-Based Management HTTP/HTTPS
EAP Controller Software •
Security
Captive Portal Authentication •
Access Control •
Wireless MAC Address Filtering •
Wireless Isolation Between Clients •
SSID to VLAN Mapping •
Rogue AP Detection •
802.1X Support •
Encryption WEP, WPA/WPA2-PSK, WPA/ WPA2-Enterprise
Wireless Function
Multiple SSIDs 8
Automatic Channel Assignment •
Transmit Power Control Adjust transmit Power on dBm
QoS(WMM) •
Airtime Fairness -
Band Steering -
Beamforming -
Rate Limit •
Load Balance •
Reboot Schedule •
Wireless Schedule •
Supported Data Rates
802.11n 6.5Mbps to 300Mbps(MCS0-MCS15, HT20/40)
802.11g 6,9,12,18,24,36,48,54Mbps
802.11b 1,2,5.5,11Mbps
802.11a -
Management
LED ON/OFF Control •
Management MAC Access Control •
Web-based Management •
Telnet •
SNMP v1,v2c
System Logging Local/Remote Syslog
Email Alerts •
Physical Properties
Power Supply IEEE 802.3af PoE
Maximum Power Consumption 2.8W
Mounting Wall Plate Mounting
Others
&HUWLƮFDWLRQV CE, RoHS
Dimensions (W x D x H) 3.4 × 3.4 × 1.2 in. (86.8 × 86.8 × 30.2 mm)
Environment
Operating Temperature: 0°C~40°C (32°F~104°F);
Storage Temperature: -40°C~70°C (-40°F~158°F);
Operating Humidity: 10%~90% non-condensing;
Storage Humidity: 5%~90% non-condensing;
Some models featured in this guide may be unavailable in your country or region. Visit TP-Link website for local sales information.
www.tp-link.com
Specications are subject to change without notice. TP-Link is a registered trademark of TP-Link Technologies Co., Ltd. Other brands and product names are trademarks or registered trademarks of their respective holders. Copyright © 2017 TP-Link Technologies Co., Ltd. All rights reserved.
Loading...
Buy Points How it Works FAQ Contact Us Questions and Suggestions Privacy Policy Cookie Policy Terms of Use
