Page 1
New Password:
Conrm Password:
1

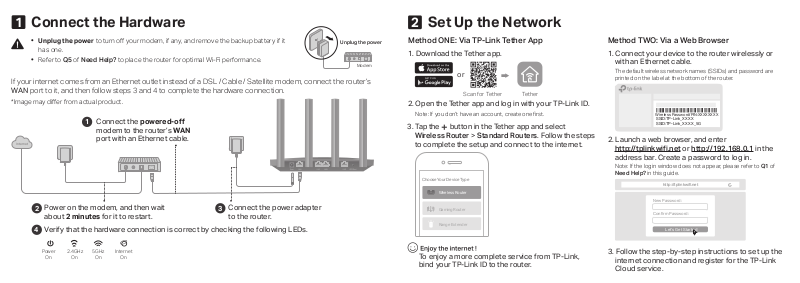

Connect the Hardware
2
Set Up the Network
Unplug the power to turn o your modem, if any, and remove the backup battery if it
has one.
Refer to Q5 of Need Help? to place the router for optimal Wi-Fi performance.
Unplug the power
If your internet comes from an Ethernet outlet instead of a DSL / Cable / Satellite modem, connect the router’s
WAN port to it, and then follow steps 3 and 4 to complete the hardware connection.
*Image may dier from actual product.
Connect the powered-off
1
modem to the router’s WAN
Internet
Power on the modem, and then wait
2
about 2 minutes for it to restart.
Verify that the hardware connection is correct by checking the following LEDs.
4
Power
On
2.4GHzOn5GHz
port with an Ethernet cable.
Internet
On
On
Connect the power adapter
3
to the router.
Modem
Method ONE: Via TP-Link Tether App
1. Download the Tether app.
or
Scan for Tether Tether
2. Open the Tether app and log in with your TP-Link ID.
Note: If you don’t have an account, create one first.
3. Tap the button in the Tether app and select
Wireless Router > Standard Routers. Follow the steps
to complete the setup and connect to the internet.
Choose Your Device Type
Wireless Router
Gaming Router
Range Extender
To enjoy a more complete service from TP-Link,
bind your TP-Link ID to the router.
Method TWO: Via a Web Browser
1. Connect your device to the router wirelessly or
with an Ethernet cable.
The default wireless network names (SSIDs) and password are
printed on the label at the bottom of the router.
Wireless Password/PIN:XXXXXXXX
SSID:TP-Link_XXXX
SSID:TP-Link_XXXX_5G
2. Launch a web browser, and enter
http://tplinkwifi.net or http://192.168.0.1 in the
address bar. Create a password to log in.
Note: If the login window does not appear, please refer to Q1 of
Need Help? in this guide.
http://tplinkwi.net
Let’s Get Started
3. Follow the step-by-step instructions to set up the
internet connection and register for the TP-Link
Cloud service.
Page 2
Button Explanation
WPS/Reset Button
Press the button for 1 second, and immediately press the WPS
button on your client to start the WPS process.
Press and hold the button for about 6 seconds until the Power
LED blinks to reset the router to its factory default settings.
TP-Link Cloud Service
TP-Link Cloud service provides a better way to manage your
cloud devices. You can set up and enjoy cloud functions via
the Tether app or through the web management page at
http://tplinkwi.net.
Remote Management
Easily manage your home network when you are out and about
via the Tether app on your smartphone or tablet.
Timely Upgrade Notications
Keep you informed of the latest rmware updates, ensuring that
your router stays at its best.
One for All
Manage multiple TP-Link Cloud devices, all from a single
TP-Link ID.
Need Help?
Q1. What should I do if I can’t access the web management
page?
•
Reboot your router and try again.
•
If the computer is set to a static IP, change its settings to
obtain an IP address automatically.
•
Verify that http://tplinkwifi.net is correctly entered in the web
browser. Alternatively, enter http://192.168.0.1 or
http://192.168.1.1 in the web browser.
•
Use another web browser and try again.
•
Disable and enable the network adapter in use.
Q2. What should I do if I can’t access the internet?
•
Power off your modem for about 5 minutes, then power it on
and check the internet. If your modem has more than one
Ethernet port, keep other ports unconnected.
•
Check if the internet is working normally by connecting a
computer directly to the modem via an Ethernet cable. If it is
not, contact your internet service provider.
•
Log in to the web management page, and go to the Network
Map page to check whether the internet IP address is valid or
not. If it’s valid, go to Advanced > Network > Internet, click
Advanced Settings, select Use the Following DNS Addresses,
set the primary DNS to 8.8.8.8, and set the secondary DNS to
8.8.4.4. If it is not, check the hardware connection or contact
your internet service provider.
•
For cable modem users, log in to the web management page of
the router and go to Advanced > Network > Internet > MAC
Clone. Select Clone Current Device MAC and click SAV E. Then
reboot both the modem and the router.
Q3. What should I do if I forget my wireless password?
•
If you have not changed the default wireless password, it can
be found on the label at the bottom of the router.
•
Connect a computer directly to the router using an Ethernet
cable. Log in to the router’s web management page at
http://tplinkwi.net, and go to the Wireless page to retrieve
or reset your wireless password.
Q4. What should I do if I forget my web management page
password?
•
If you are using a TP-Link ID to log in, click Forgot
Password? on the login page and then follow the
instructions to reset it.
•
Alternatively, press and hold the Reset button on the back
for about 6 seconds until the Power LED blinks. Then visit
http://tplinkwifi.net to create a new login password.
Q5. How should I position my router for optimal Wi-Fi
performance?
• Don’t place your router in a corner or in a closet.
• Avoid obstacles and high-powered appliances.
• Keep your router in a central location at a certain height.
• Keep the antennas vertical when the router is placed on a
desktop.
• Keep the antennas upright when the router is hanging on a
wall.
To communicate with TP-Link users or engineers, visit
https://community.tp-link.com to join TP-Link Community.
For technical support, replacement services, user guides
and more, please visit https://www.tp-link.com/support
· Keep the device away from water, re, humidity or hot environments.
· Do not attempt to disassemble, repair, or modify the device. If you need
service, please contact us.
· Do not use any other chargers than those recommended.
· Do not use damaged charger or USB cable to charge the device.
· Do not use the device where wireless devices are not allowed.
· Adapter shall be installed near the equipment and shall be easily accessible.
©2023 TP-Link 7106510216 REV1.0.1
Quick Installation Guide
Dual Band Wi-Fi 6 Router
