Page 1
Page 2
Type designation
RS series has several types.
The types are shown on the model label as follows:
MODEL/MODELE(MODEL NAME) SERIES/SERIE
RS SERIES/SERIE
RS2000 SERIES/SERIE
RS2000A SERIES/SERIE
RS2000B SERIES/SERIE
Model label
When calling for service, please note the MODEL and SERIES numbers that are inscribed on the
back of your sewing machine.
MODEL number SERIES number
1
Page 3
CONTENTS
I. Before use .............................................................................................. 3
1. Important safety instructions.......................................................................... 3
2. How to change the power plug ...................................................................... 5
3. Part names .................................................................................................... 6
II. Sewing preparations ............................................................................ 10
1. Connecting the power.................................................................................. 10
2. Taking out the bobbin .................................................................................. 12
3. Winding the lower thread............................................................................. 13
4. Threading the lower thread.......................................................................... 15
5. Threading the upper thread ......................................................................... 16
6. Pulling up the lower thread .......................................................................... 18

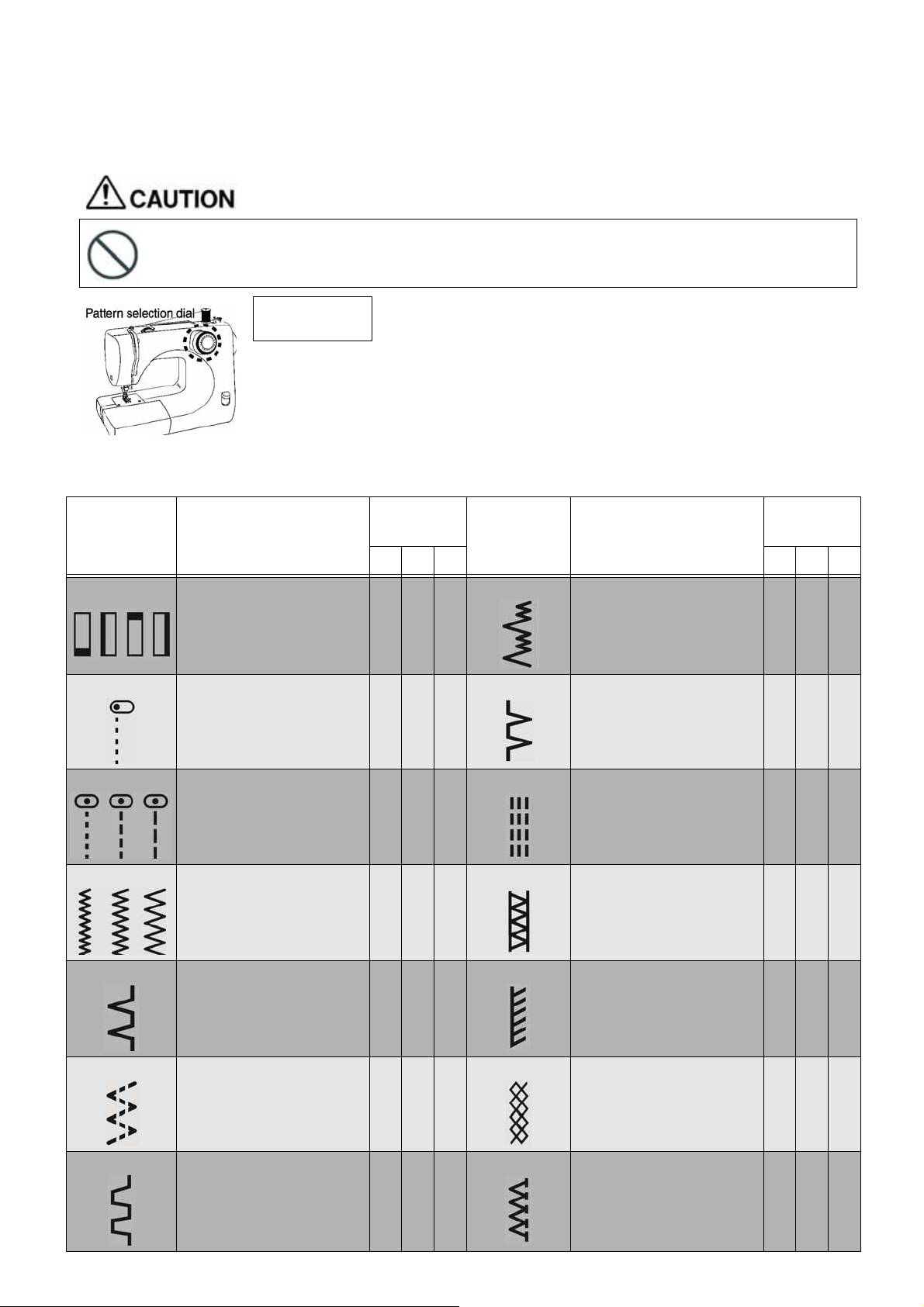

7. Main stitch pattern uses............................................................................... 19
8. Application of each stitch pattern................................................................. 20
9. Changing the presser foot ........................................................................... 21
10. Changing the needle ................................................................................... 23
11. Relationship between the needle, thread and fabric, and adjusting
the sewing machine ..................................................................................... 24
III. Sewing ................................................................................................ 25
1. Straight stitching and reverse sewing.......................................................... 25
2. Zigzag sewing.............................................................................................. 29
3. Adjusting thread tension .............................................................................. 30
4. Overcasting ................................................................................................. 31
5. Blind hem stitching ...................................................................................... 32

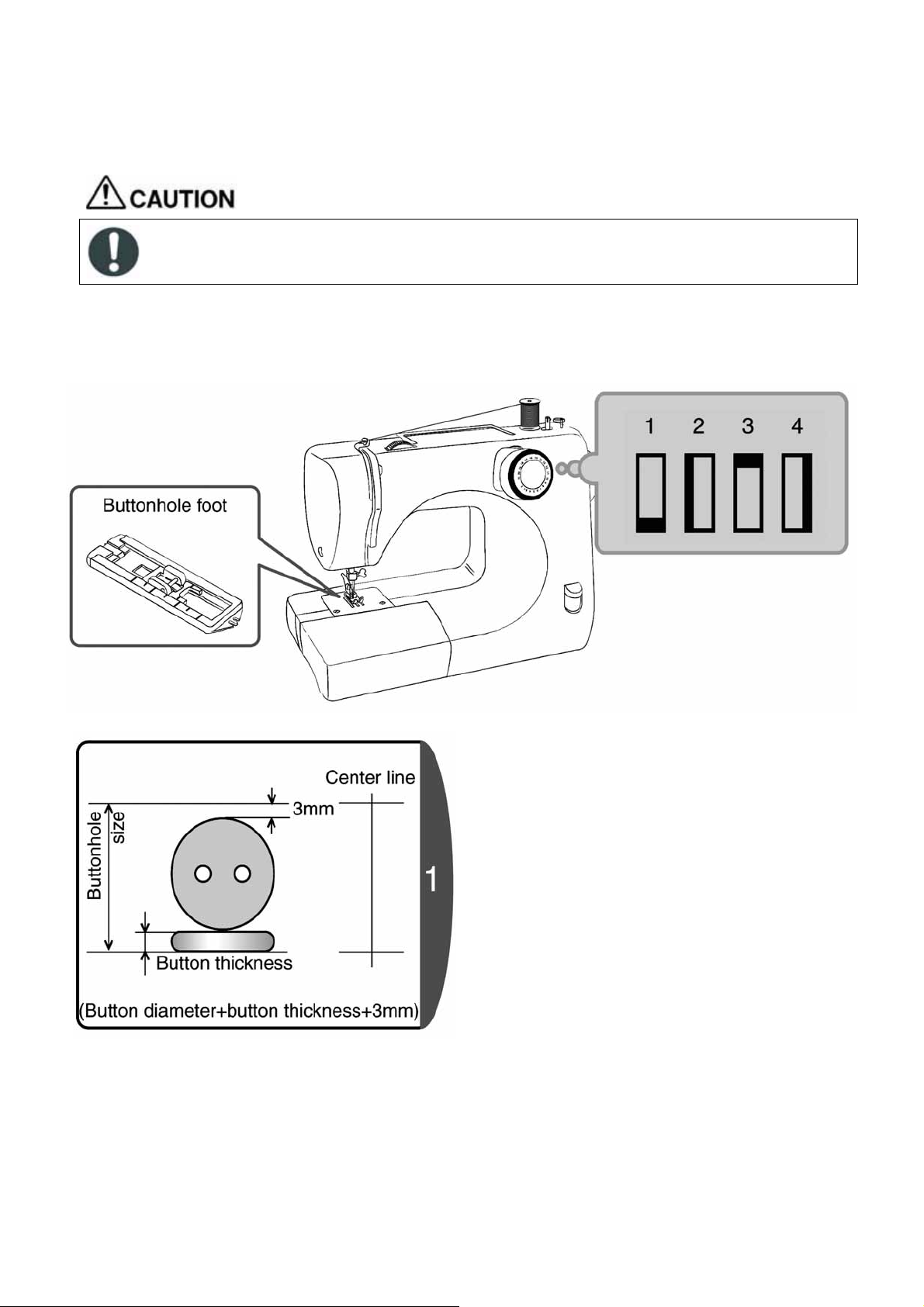

6. Buttonhole ................................................................................................... 34
7. Zipper sewing .............................................................................................. 37
8. Smocking..................................................................................................... 39

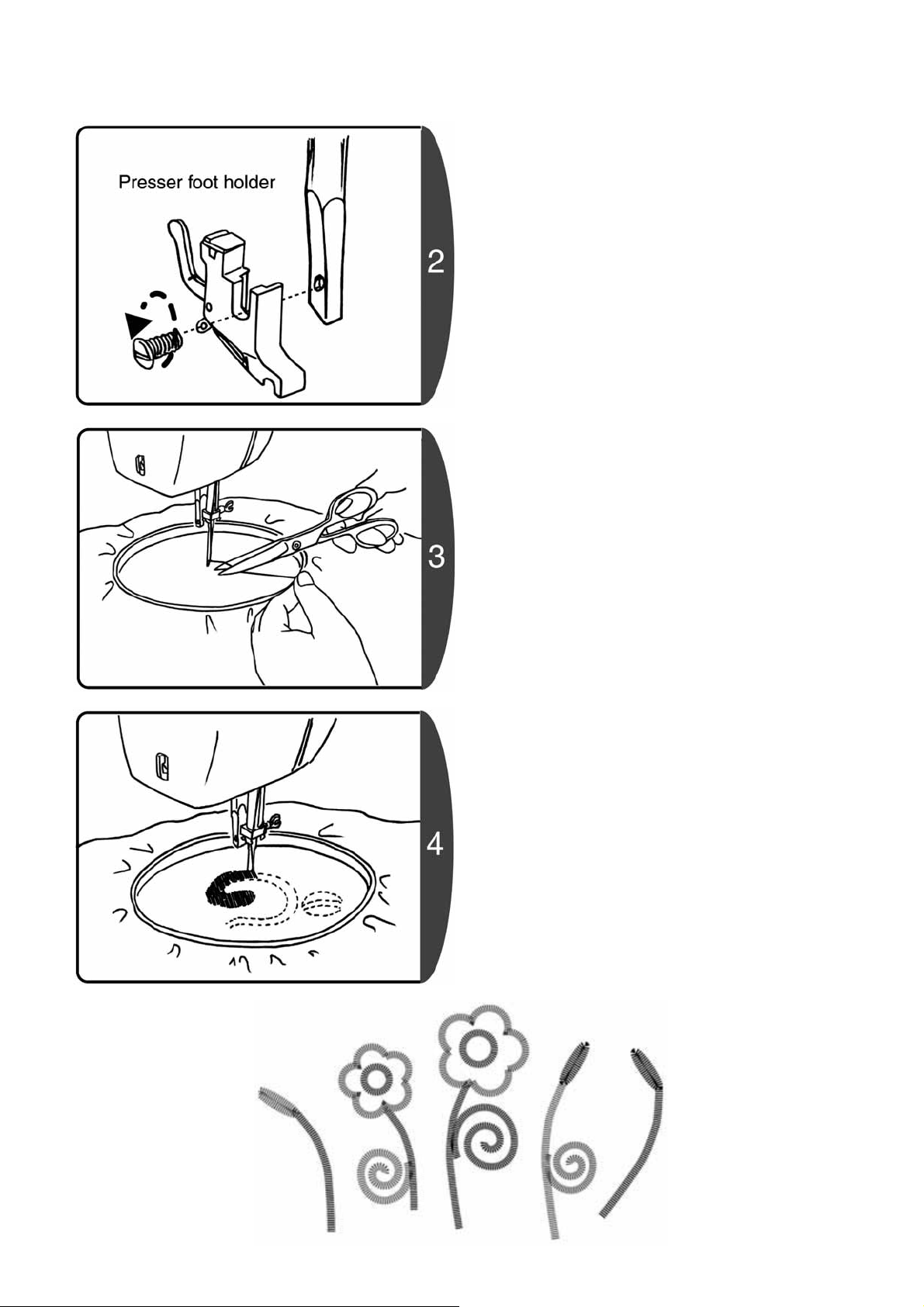

9. Embroidery .................................................................................................. 40
IV. Special specifications ......................................................................... 42
1. Using the needle threader ........................................................................... 42
2. Using the presser foot pressure adjuster..................................................... 44
3. Using the drop feed ..................................................................................... 45
V. Maintenance........................................................................................ 46
1. Feed dog and hook maintenance ................................................................ 46
2. Hook installation .......................................................................................... 48
3. Light bulb replacement ................................................................................ 49
4. Troubleshooting........................................................................................... 50
5. Servicing double-insulated products (230 V-240 V) .................................... 51
VI. Others................................................................................................. 52
1. Specifications .............................................................................................. 52
2. Recycling ..................................................................................................... 52
2
Page 4
I. Before use
Be sure to read this section before use
1. Important safety instructions
These safety instructions are designed to prevent danger or damage arising from the incorrect
operation of the machine. Read carefully and always follow the instructions.
Explanation of " " and " "
An incorrect operation could result in death or serious injury.
An incorrect operation could result in an injury or damage to the machine.
Symbol explanation
Do not touch
Before use
Prohibited actions
Required actions
Remove the power plug from the outlet.
Use an AC 220 to 230 V power source.
Not doing so could cause an electric shock or a fire.
Do not damage the power cord, modify it, bend it
excessively, jerk it or twist it.
Doing so could cause an electric shock or a fire.
If the power cord is damaged, it must be replaced by the
manufacturer or its service agent.
220 to 230 V
Do not operate where aerosol ( spray ) products are being used or where oxygen is
being administered.
Doing so could cause a fire.
Do not use outdoors.
Doing so could cause an electric shock or a fire.
3
Page 5
Before use
When the machine is not in use it should be stored safely, not on the floor as protruding
parts could cause injury if a person fell on the machine.
Not doing so could cause an injury.
Use with the shuttle cover closed.
Not doing so could cause an injury.
Before replacing the needle or presser foot or when threading the upper or lower thread,
remove the power plug from the outlet.
Not doing so could cause an injury.
Do not look away from the needle while operating the sewing
machine.
If the needle breaks it could cause an injury.
Do not touch moving parts such as the needle, take-up lever or
handwheel.
Doing so could cause an injury.
Children should only use the machine under the supervision of a
parent or guardian.
Otherwise they could injure themselves.
Do not use when young children are near the machine.
They could touch the needle and be injured.
Before leaving the sewing machine after using it, remove the power plug from the outlet.
Not doing so could cause an injury.
Before using the sewing machine make sure that the presser foot holder clamp screw,
needle clamp screw and needle plate screw are firmly tightened, and that the presser
foot is properly set in the presser foot holder.
Not doing so could cause an injury.
Sewing without lowering the presser foot.
Do not perform the following actions.
Doing so could cause an injury.
Sewing while the needle is incorrectly installed.
Using a bent needle.
Sewing while jerking the fabric.
Moving the pattern selection dial while sewing.
Do not operate on an unstable surface such as a sofa or a bed.
If the sewing machine falls down, it could cause an injury or damages to the machine.
Do not drop or insert any foreign objects into any openings such as opening space
when you remove the face cover and / or the outer casing space of bobbin case.
Doing so could cause an injury or damages to the machine.
Do not repair, disassemble or modify except what is mentioned in the instruction
manual.
Doing so could cause an electric shock, a fire or an injury.
4
Page 6
Before use
UK ONLY IMPORTANT PLEASE READ CAREFULLY
2. How to change the power plug
When you change the power plug or cord, do not repair, disassemble or modify
except at the authorised dealeror service centre.
Doing so could cause an electric shock or a fire.
If for any reason the power plug for this product is removed it should be immediately
disposed of safety and not stored anywhere where it could be inadvertently used again.
Doing so could cause an electric shock or a fire.
The wires in this mains lead are coloured in accordance with the following code:
BLUE-NEUTRAL
As the colours of the mains lead of this appliance may not correspond with the coloured markings
identifying the terminals in your plug - PROCEED AS FOLLOWS:
The earth plug pin in unnecessary. As the machine is designed under double insulation structure,
the earth wire is removed from the machine. The wire coloured BROWN must be connected to the
terminal marked L or A or coloured RED. The wire coloured BLUE must be connected to the terminal
marked N or coloured BLACK. Neither core is to be connected to the earth terminal of a three-pin plug.
BROWN-LIVE ( OR ACTIVE )
5
Page 7
Before use
使使
使使
3. Part names
Some parts may not apply to your sewing machine.
The MODEL and SERIES numbers are located on the model label on the back of the sewing machine.
Front pattern selection dial type
Part name Detail by use
Upper thread tension dial Refer to P.30 [Adjusting thread tension]
Spool pin Refer to P.13 [Winding the lower thread]
Reverse sewing lever Refer to P.26 [ 侀 Reverse sewing 侀 ]
6
Page 8
Before use
Part name Detail by use
Declutch knob Refer to P.14[Winding the lower thread] 4)
Buttonhole adjustment screw Refer to P.36 [侀Adjustment of buttonhole balance侀]
Presser foot lever Refer to P.16 [Threading the upper thread]
7
Page 9
Before use
使使
使使
Some parts may not apply to your sewing machine.
The MODEL and SERIES numbers are located on the model label on the back of the sewing machine.
Side pattern selection dial type
Part name Detail by use
Upper thread tension dial Refer to P.30 [Adjusting thread tension]
Spool pin Refer to P.13 [Winding the lower thread]
Reverse sewing lever Refer to P.26 [ 侀 Reverse sewing 侀 ]
8
Page 10
Before use
Part name Detail by use
Declutch knob Refer to P.14[Winding the lower thread] 4)
Buttonhole adjustment screw Refer to P.36 [侀 Adjustment of buttonhole balance 侀]
Presser foot lever Refer to P.16 [Threading the upper thread]
9
Page 11
Sewing preparations
使使
使使
II. Sewing preparations
1. Connecting the power
Machine with a power switch
Turn the power switch off when inserting the power plug.
Not doing so could cause an injury.
Hold the power plug when removing it from the outlet.
Not doing so could damage the cord and cause an electric shock, fire or injury.
Do not touch the power plug with wet hands.
Doing so could cause an electric shock.
Prepare the foot controller.
Insert the power cord connector into the terminal box.
Insert the power plug into the outlet.
Press the power switch to [I] (On).
The power is turned on.
10
Page 12
Sewing preparations
使使
使使
侀
侀
Machine without a power switch
RS2000 A/B series only.
Hold the power plug when removing it from the outlet.
Not doing so could damage the cord and cause an electric shock, fire or injury.
Do not touch the power plug with wet hands.
Doing so could cause an electric shock.
Prepare the foot controller.
Insert the power cord connector into the terminal box.
Insert the power plug into the outlet.
The power is turned on at the outlet.
How to operate foot controller
Step on the foot controller to operate the sewing
machine.
The more you press the foot controller, the faster
the machine runs.
Release the foot controller to stop the machine.
11
Page 13
Sewing preparations
2. Taking out the bobbin
Before taking out or setting the bobbin case, remove the power plug from the outlet.
Not doing so could cause an injury.
1. Turn the handwheel to move the needle to the
highest position. Always turn the handwheel
towards yourself. (in the direction of the arrow)
2. Hold the left edge of the extension table and
pull out to the left. (in the direction of the arrow)
Open the shuttle cover.
(Open out in the direction of the arrow.)
Pull up the latch of the bobbin case, and use it to
pull out the case.
Take out the bobbin from the bobbin case.
12
Page 14
3. Winding the lower thread
Before taking out or setting the bobbin case, remove the power plug from the outlet.
Not doing so could cause an injury.
Do not touch the lower thread winding spindle when winding the lower thread.
Not doing so could cause an injury.
Sewing preparations
Attention
Use a TOYOTA-exclusive bobbin.
Remove the sticker. Pull up
the spool pin from the sewing
machine.
1. Turn the pin around and
insert.
2. Insert the thread spool.
13
Support the thread on the
sewing machine with one
hand, using the other hand
pass the thread around the
thread guide as shown in
the diagram.
Page 15
Sewing preparations
1. Move the declutch latch
in the direction
(in the direction of the
arrow)
(This ensures that the
needle does not move.)
2. Pass the thread from the
inside through the bobbin
hole.
3. Set the bobbin on the
thread winding spindle
and move the spindle to
the right (in the direction
of the arrow)
1. Holding the end of the
thread, step on the foot
controller to wind the
thread.
2. After winding it a little,
stop the sewing machine
and cut the thread that
protrudes from the bobbin
hole.Then continue winding the thread.
After the winding has
finished, move the thread
winding spindle back to the
left. (in the direction of the
arrow)
1. Remove the bobbin and cut the thread.
2. Move the declutch latch in the direction
(in the direction of the arrow)
Note : If the declutch is not returned to its original
position, the sewing machine cannot move
and will not sew.
14
Page 16
4. Threading the lower thread
Before setting the bobbin case, remove the power plug from the outlet.
Not doing so could cause an injury.
Sewing preparations
Attention
Use a TOYOTA-exclusive bobbin.
Take out the bobbin case.
(refer to P.12 [Taking out the
bobbin])
The thread must flow off the bobbin in the direction
of the arrow, and then insert the bobbin into the
bobbin case.
Hold the end of the thread in your right hand and
pass it through the groove in the bobbin case.
(Pass the thread from 1 to 2)
Press the bobbin with the finger of your left hand,
and then pass the thread through the tension spring
as shown in the diagram.
(Pull until there is a locking sound.)
Turn the handwheel to move the needle to the
highest position.
Always turn the handwheel towards yourself.
Holding the latch of the bobbin case, insert the
bobbin case into the shuttle race.
The bobbin case finger must slot into the groove.
15
Page 17
Sewing preparations
5. Threading the upper thread
Before threading the upper thread, remove the power plug from the outlet.
Not doing so could cause an injury.
Raise the presser foot lever.
Note: If the presser foot lever is not raised, the
thread cannot be set correctly.
Pull out the spool pin from the main unit.
1. Turn the spool pin over and insert.
2. Insert the thread spool.
16
Page 18
Sewing preparations
Support the thread on the sewing machine with
one hand, using the other hand pass the thread
around the thread guide as shown in the diagram.
Pass the thread between the thread guide plate
and the tension disc.
Pass the thread along the groove of the thread
guide plate.
Turn the handwheel towards yourself until the
take-up lever is visible.
Pass the thread through the take-up lever.
Set the thread on the left side of the needle guide.
Check that the thread is set correctly
Raise the presser foot and pull the upper thread
towards yourself. The thread should come out
smoothly.
Lower the presser foot and pull the upper thread
towards yourself. It should be resistant and difficult to pull.
Pass the thread through the needle eye from the
front.
17
Page 19
Sewing preparations
6. Pulling up the lower thread
Hold the end of the thread, turn the handwheel
towards yourself for one full turn, and stop when
the needle is at its highest position.
Note : Always turn the handwheel towards your-
self. (in the direction of the arrow)
If you turn it in the reverse direction it could
tangle the thread.
Note : If the thread is tight the lower thread will
not come out, so hold the thread loosely.
Pull the upper thread and the loop of the lower
thread will come out.
Pull out this lower thread.
Line up the upper thread and lower thread, and
thread through the groove of the presser foot.
Pull back about 15cm.
18
Page 20
Sewing preparations
7. Main stitch pattern uses
Depending on the model of your sewing machine, some of the stitch patterns are not available.
(refer to P.20)
19
Page 21
Sewing preparations
8. Application of each stitch pattern
Do not turn the pattern selection dial while operating the sewing machine.
Doing so could cause an injury.
Attention
Turn the handwheel towards yourself to raise the needle to the highest position.
Turn the pattern selection dial to choose the pattern.
Stitch Applications
1/2/3/4
Buttonhole ȅ ȅ ȅ
5
Thin fabric straight
stitch
The number of stitch patterns may differ from model to model.
The model number is located on the model label on the back
of the sewing machine. (MODEL ***)
21 Stitch programs --- MODEL XXX21, XXX17, XXX04, 7140, SA45
18 Stitch programs --- MODEL XXX18, CB02, STF91
16 Stitch programs --- MODEL XXX16, CB01, 7120
Stitch
programs
21 18 16 21 18 16
ȅ ȅ ȅ
Stitch Applications
15
Stretch fabric blind
hem stitch
16
Decorative stitch
Overcasting
Stitch
programs
ȅ ȅ ȅ
ȅ ȅ ȅ
6/7/8
9/10/11
12
13
14
Straight stitch
Zipper sewing
Zigzag sewing
Applique
Overcasting
Blind hem stitching ȅ ȅ ȅ
Mending stitch
Thin fabric
overcastting
Fagoting/Casing
Decorative stitch
ȅ ȅ ȅ
ȅ ȅ ȅ
ȅ ȅ ȅ
ȅ ȅ ȅ
17
18
19
20
21
Straight stretch stitch
(secure sewing)
Fagoting ȅ ȅ —
Overcasting
Overlock
Smocking ȅ — —
Decorative stitch
Double overlock
ȅ ȅ —
ȅ — —
ȅ — —
20
Page 22
9. Changing the presser foot
侀
侀
Before changing the presser foot, remove the power plug from the outlet.
Not doing so could cause an injury.
Removal
Sewing preparations
1. Raise the presser foot lever.
2. Turn the handwheel towards yourself to raise
the needle.
Press the presser foot holder lever in the direction
of the arrow to release the presser foot
21
Page 23
Sewing preparations
侀
侀
Installation
Position the presser foot pin directly below the
groove in the presser foot holder.
Lower the presser foot lever to set the presser foot.
22
Page 24
10. Changing the needle
侀
侀
Before changing the needle, remove the power plug from the outlet.
Not doing so could cause an injury.
Broken needles are dangerous. Be sure to dispose of them in a safe place away from
children.
Not doing so could cause an injury.
Sewing preparations
1. Turn the handwheel towards yourself to raise the
end of the needle higher than the needle plate.
2. Hold the needle in one hand, loosen the needle
clamp screw with the accessory needle plate
screw driver, and remove the needle.
Correct needle selection
Note : Do not remove the needle clamp screw.
Loosen the needle clamp screw to remove
the needle.
1. Face the flat surface of the needle to the rear
and insert until it makes contact with the pin.
2. Firmly tighten the needle clamp screw with the
needle plate screw driver.
Note : If a faulty needle is used not only will it impair the sewing
performance, but it could also damage the metal plate or hook,
or break the needle.
* If a stitch is missed or the thread breaks, first try replacing the needle.
23
Page 25
Sewing preparations
11. Relationship between the needle, thread and fabric, and adjusting the
sewing machine
The quality of the sewing finish will improve if the needle and thread are changed to match the type
of fabric. Follow the directions in the table below.
Use a ball point needle for the sewing alignment of stretch fabric.
Please purchase any needles not included as accessories, after checking they are specifi ed as
home-use sewing machine needles.
Refer to P.30 [Adjusting thread tension] for how to adjust thread tension.
Use the same kind of threads for upper/lower thread.
The higher the needle number is, the needle gets thicker. The higher the thread number is, the thread
gets thinner.
24
Page 26
Sewing
侀
侀
侀
侀
III. Sewing
1. Straight stitching and reverse sewing
Reverse sewing is performed at the beginning and end of sewing to prevent the thread from unraveling.
Do not pull the fabric excessively while sewing.
Doing so could break the needle and cause an injury.
Straight stitch
End of sewing
1. Turn the handwheel towards
yourself to raise the needle.
2. Turn the pattern selection
dial to choose the pattern.
Set the fabric and lower the
presser foot lever.
Step on the foot controller
to begin sewing.
After finishing sewing, turn handwheel towards
yourself until the needle is in the highest position.
Raise the presser foot and pull out the fabric to the
rear.
25
Page 27
Sewing
侀
侀
侀
侀
侀
侀
Thread cutter on the needle bar
* The thread cutter may differ from model to model.
Line up two threads and cut with the thread cutter on
the needle bar.
Thread cutter on the face cover
Reverse sewing
* The thread cutter may differ from model to model.
Line up two threads and cut with the thread cutter on
the face cover.
Reverse sewing is performed at the beginning and
end of sewing to prevent the thread from unraveling.
Reverse sewing is performed while lowering the
reverse sewing lever.
26
Stitch 1 to 2 cm from the edge
of the fabric to prevent unraveling at the start of sewing.
Sew 3 to 4 reverse stitches at
the end of sewing.
Note : Remove your finger from
the reverse sewing lever
to return to forward direction sewing.
Page 28
侀
Sewing thick fabric
侀
侀
侀
Sewing
When sewing thick fabric from the edge, the presser
foot may tilt and be unable to feed through the fabric.
Sewing thin fabric
Place fabric or thick paper of the same thickness as
the fabric you wish to sew under the presser foot.
This will enable smooth sewing.
Sewing is easier if thin paper is laid out under the
fabric.
27
Page 29
Sewing
侀
侀
Sewing tube-shaped fabrics
Pull out the extension table (accessory box) in the
direction of the arrow.
Sew tube-shaped fabrics such as trousers or
sleeves.
28
Page 30
2. Zigzag sewing
There are various types of zigzag sewing methods, such as applique and overcastting.
Sewing
Turn the handwheel towards yourself to raise
the needle.
Turn the pattern selection dial to choose the
pattern.
Set the fabric and lower the presser foot.
Step on the foot controller to begin sewing.
29
Page 31
Sewing
侀
侀
侀
侀
3. Adjusting thread tension
Before adjustment, check again that "P.16 [Threading the upper thread]" has been performed correctly.
Adjustment method for upper thread tension
Upper thread is tight Upper thread is loose
Turn down the upper thread
tension dial.
Note : If the tension does not change even when you turn the upper
thread tension dial, reset the upper thread.
Note : If it does not change with the upper thread, adjust the lower
thread.
Adjustment method for lower thread tension
Turn up the upper thread
tension dial.
Adjust by turning
the bobbin case
adjustment screw with
the accessory screw
driver.
Turn right to tighten
the tension
Turn left to loosen the
tension
After adjusting the tension of
the bobbin case, suspend
bobbin, bobbin case, and
shuttle hook all together and
hold the bobbin thread as
illustrated.
(Please refer to P.46)
30
Note:
When the bobbin case tension is
correct: the thread should slide
down with light resistance.
When the bobbin case tension is
too tight: the thread does not
slide down, or the thread jerks.
When the bobbin case tension is
too loose,: the thread easily
slides down with no resistance.
Page 32
4. Overcasting
This is a sewing method that prevents unraveling at the edge of the fabric.
Sewing
Is not available for 16/18 stitch model. (refer to P.20 [Application of each stitch pattern])
Position the fabric so that the right needle entry point
at the edge of the fabric is slightly on the outside.
It is easier to sew accurately if an overcasting foot is
used. (Optional Accessory).
31
Page 33
Sewing
5. Blind hem stitching
In this sewing method the stitch cannot be seen on the right side of the fabric.
Fold back the fabric so that the folded area
protrudes by about 5 to 7mm.
Iron and tack by hand.
Position the fabric so that the needle slightly
catches the fold when the needle moves to the
left.
Lower the presser foot and start sewing.
The part of the stitch that catches the fold will be
visible from the right side of the fabric.
Sew the stitch evenly so that the part of the stitch
that catches the fold is not too large or too small.
After sewing, pull out the tacking, open out the
fabric.
32
Page 34
Sewing
It is easier to sew accurately if a blind stitch foot is used. (Optional Accessory)
33
Page 35
Sewing
6. Buttonhole
Before changing the presser foot, remove the power plug from the outlet.
Not doing so could cause an injury.
Buttonhole sewing to match the size of the button is possible.
For stretch fabric or thin fabric, a fusible interlining on the wrong side of the fabric will reinforce the
fabric and produce a good finish for the buttonhole.
Change to the buttonhole foot.
(refer to P.21 [Changing the presser foot])
Set the buttonhole size and mark a line on the
fabric.
Note : For stretch fabric or thin fabric, insert a
fusible interlining on the wrong side of the
fabric before sewing.
34
Page 36
Sewing
Align the buttonhole foot division line closest to
you with the guide line, and lower the presser foot
to the start line of sewing on the fabric.
Raise the needle to the highest position, set the
pattern dial to "1", and sew 5 to 6 bar-tack stitches.
Raise the needle to the highest position, set the
pattern dial to "2", sew the left side and stop at
the line marked on the fabric.
Raise the needle to the highest position, set the
pattern dial to "3", and sew 5 to 6 bar-tack stitches.
"1" and "3" on the pattern selection dial use the
same dial position.
Raise the needle to the highest position, set the
pattern dial to "4", sew the right side and stop at
the line marked on the fabric.
35
Page 37
Sewing
侀
侀
When using the buttonhole cutter to cut the buttonholes, do not hold the fabric in
front of the cutter.
Doing so could cause an injury to your hand.
Use the buttonhole cutter to cut the center, making
sure not to cut the stitches.
Note : If a marking pin is put in the bar-tack area
it helps to prevent excessive cutting with
the buttonhole cutter.
Adjustment of buttonhole balance
Use the buttonhole adjustment screw to adjust
the balance between the stitches. (rear side)
Adjust by turning with the needle plate screw
driver.
If the stitches are loose on the right side of the
buttonhole, turn slightly in the "-" direction.
If the stitches are loose on the left side of the
buttonhole, turn slightly in the "+" direction.
36
Page 38
7. Zipper sewing
侀
侀
Before changing the presser foot, remove the power plug from the outlet.
Not doing so could cause an injury.
Sewing
Change to the zipper foot. (refer to P.21 [Changing the presser foot])
Sewing the left side of the zipper
1. Set the zipper foot to the right side pin.
2. Align the zipper and the fabric, and tack.
Position the fabric so that the zipper is on the
right side of the presser foot.
37
Page 39
Sewing
侀
侀
Sew until just before the presser foot makes
contact with the slider, and then stop the sewing
machine.
Turn the handwheel towards yourself to lower
the needle into the fabric.
Raise the presser foot lever.
Move the slider to the rear of the presser foot,
and sew the remainder.
Sewing the right side of the zipper
Release the presser foot and set to the left side
pin.
Sew the right side of the zipper using the same
procedures as for the left side.
Note : Sewing in the same direction as the left
side will help prevent sewing misaligment.
38
Page 40
8. Smocking
Sewing
Is not available for 16/18 stitch model. (refer to P.20 [Application of each stitch pattern])
To make the gathering:
Set the pattern selection dial to "8".
Loosen the tension of the upper thread and sew.
After sewing, hold the ends of the lower thread
as shown in the diagram, and pull up the fabric
in the direction of the arrow to make the gathering.
After making the gathering, sew the smocking
between 2 rows of gathering.
After sewing the smocking, pull out the thread
you used to make the gathering.
39
Page 41
Sewing
9. Embroidery
Before setting the darning adapter, remove the power plug from the outlet.
Not doing so could cause an injury.
A free machine embroidery pattern can be created. Trace your design on the material and centre it
in an embroidery hoop. Lay stabilizer underneath thin fabric.
Install a darning adapter and then sew.
For model 7140, DE21 use the drop feed that comes with the sewing machine instead of a darning
adapter. (refer to P.45 [Using the drop feed])
Align the accessory darning adapter with the
insertion holes.
Insert until there is a locking sound to install to
the needle plate.
40
Page 42
Sewing
Loosen the presser foot holder screw with the
needle plate screw driver to release the holder.
Firmly stretch the fabric with the design and set
in the embroidery hoop.
Note : Purchase a commercially available embroi-
dery hoop.
At the start of sewing, prepare by sewing one
stitch, pulling the upper thread, and pulling out
the lower thread above the fabric.
Hold the upper and lower threads then make 2-3
stitches, snip off excess threads.
Sew along the outline of the design so there is no
clearance between stitches.
41
Page 43
Special specifications
IV. Special specifications
1. Using the needle threader
Before using the needle threader, remove the power plug from the outlet.
Not doing so could cause an injury.
Turn the handwheel towards yourself to raise the
needle to the highest position.
(in the direction of the arrow)
Note : Always turn the handwheel towards your-
self. If you turn it in the reverse direction it
could tangle the thread.
Lower the presser foot lever.
Slightly lower the needle threader lever, and set
the thread you are holding in your right hand from
the right side of the hook guide.
Fully press down the needle threader lever to
pass the hook through the needle eye.
Make sure that the hook is in the needle eye.
Note : If the hook is bent and cannot pass through
the needle eye, straighten it with a screw
driver.
42
Page 44
Special specifications
Hold the thread set in the hook guide to the right
side and insert in the needle threader groove.
While raising the needle threader lever, remove
your hand from the thread. The thread is pulled
by the hook and is passed through the eye of the
needle as shown in the diagram.
Pull out the loop of the upper thread to the rear.
Note 1 : If the needle is not set correctly, it is not
possible to pass the thread through the
needle with the needle threader.
Refer to P.23 [Changing the needle].
Note 2 : Needle No. 65/9 cannot be used with this
needle threader.
43
Page 45
Special specifications
侀
侀
侀
侀
2. Using the presser foot pressure adjuster
The presser foot pressure adjuster may differ from model to model.
Push-down type
Rotary type
<Push-down type>
Sewing normal fabric and thick fabric:
For normal straight or zigzag sewing, press
down "A".
Sewing thin fabric:
Push down outer ring "B" to pop out pin "A".
Push down pin "A" about half way.
<Rotary type>
Sewing normal fabric and thick fabric:
Dial: Align "3" with the upper surface of the
face cover.
Sewing thin fabric:
Dial: Align "2" with the upper surface of the
face cover.
44
Page 46
Special specifications
3. Using the drop feed
Before using the drop feed lever, remove the power plug from the outlet.
Not doing so could cause an injury.
The feed dog can be lowered when feeding the fabric freely by hand, for example, when embroidering
or quilting.
Model 7140, DE21 only.
Make sure the needle and the presser foot are both in the raised position.
To lower the feed dog, push the lever back and to the left, to disengage the feed dog.
To raise the feed dog, push the lever to the right to return it to it is normal position, turn the handwheel
one full turn to engage the feed mechanism.
45
Page 47
Maintenance
V. Maintenance
1. Feed dog and hook maintenance
If the sewing machine makes a loud noise or rotates slowly,
the oil could have run out, or there could be thread waste or
dust in the hook or feed dog. Clean and oil the hook and feed
dog.
Before cleaning the hook, remove the power plug from the outlet.
Not doing so could cause an injury.
Attention
Do not use detergent, bleach, benzine, or thinner chemical cloths.
Doing so could cause discoloration or cracking.
Release the presser foot, and use the needle plate
screw driver to release the needle plate.
Remove thread waste and dust with a brush
(Optional accessory).
Remove the bobbin case.
46
Page 48
Maintenance
Open the left and right stoppers to the outside.
(in the direction of the arrow.)
Take out the shuttle hook cover.
Take out the shuttle hook.
Wipe the shuttle race clean with a brush or soft
cloth.
Apply one drop of oil to the shuttle race.
Note 1: If too much oil is applied it could cause
trouble such as dirty thread or bobbins,
or sewing malfunctions.
Keep to this small amount.
Note 2: Use the oil supplied with your machine
or special oil for sewing machines.
Other oils could cause mechanical problems.
47
Page 49
Maintenance
2. Hook installation
The hook is installed by reversing the removal procedures.
Replace the shuttle hook.
Align the projection of the shuttle hook cover with
the depression of the hook, and install the shuttle
hook cover.
Close the left and right stoppers to the inside.
(in the direction of the arrow)
Hold the latch of the bobbin case and insert the
bobbin case into the shuttle race.
The bobbin case finger must slot into the groove.
48
Page 50
3. Light bulb replacement
Light bulb is not equipped with RS2000B series.
Before changing the light bulb, remove the power plug from the outlet and wait until
the bulb cools.
Not doing so could cause a burn or electric shock.
Maintenance
Loosen the screw and take off the face cover.
Turn the light bulb counterclockwise and remove.
Turn the new light bulb clockwise to install.
Note : Use a light bulb with a maximum power of
15W. Always reinstall the face cover after
replacing the light bulb.
49
Page 51
Maintenance
4. Troubleshooting
What is the problem? Check the following possibilities before taking the sewing machine in for repair.
Trouble Cause Countermeasure Page
The power plug is not inserted Connect the power plug correctly 10
Does not rotate
Does not work The declutch knob is in the lower
Loud noise
Slow rotation
Broken needle
The power switch is off Turn the power switch on 10
thread winding position
Thread is tangled in the hook, or there
is a broken needle in the hook
The oil has run out Oil the shuttle race 46
There is thread waste or dust in the
hook or feed dog
The needle is incorrectly installed Install the needle correctly 23
The needle clamp screw is loose Firmly tighten the screw 23
The needle is too fine for the fabric
The tension of the upper thread is too
tight
The fabric is being pulled too strongly Do not pull the fabric strongly 25
The wrong presser foot is being used Use a correct presser foot
The bobbin case is not in the correct
position
Move the declutch knob back to the
original position (needle position)
Clean the hook 46
Remove thread waste or dust 46
Use a needle appropriate to the
fabric
Adjust the thread tension 30
Put the bobbin case in the correct
position
14
24
15
Broken upper
thread
Broken lower
thread
Fabric not fed
through
The upper and lower thread are not
correctly threaded
The thread is tangled in the bobbin
case or hook
The tension of the upper thread is too
tight
The needle is bent
The point of the needle is damaged
The lower thread is not correctly
threaded
There is thread waste in the feed dog
A darning adapter has been installed Remove the darning adapter 40
The pattern selection dial is set to
"1" or "3"
Thread the upper and lower thread
again
Remove thread waste from the feed
dog and hook
Adjust the thread tension 30
Replace with a good needle 23
Thread the lower thread correctly 15
Remove thread waste from the feed
dog and hook
Set a correct pattern
15
16
46
46
50
Page 52
Maintenance
Trouble Cause Countermeasure Page
The needle is not correctly installed Install the needle correctly 23
The needle is bent Replace with a straight needle 23
Missed stitches
The fabric
wrinkles
Too much lower
thread appears
on the right side
of the fabric
Too much upper
thread appears
on the wrong
side of the fabric
The needle and thread are not appropriate for the fabric
The upper thread is not correctly
threaded
The tension of the upper thread is too
tight
The upper and lower thread are not
correctly threaded
The needle is too thick for the fabric
The needle is damaged Replace with a good needle 23
The lower thread is not correctly
threaded
The tension of the upper thread is too
tight
The bobbin is not correctly inserted in
the bobbin case
The upper thread is not correctly
threaded (not inserted in the tension
disc)
The tension of the upper thread is too
loose
The upper thread is not correctly
threaded (not threaded through the
thread guide)
Sew with a needle and thread
appropriate to the fabric
Thread the upper thread correctly 16
Adjust the thread tension 30
Thread the upper and lower thread
again
Use a needle appropriate to the
fabric
Thread the lower thread correctly 15
Adjust the thread tension 30
Correctly insert the bobbin in the
bobbin case
Thread the upper thread correctly 16
Adjust the thread tension 30
Thread the upper thread correctly 16
24
15
16
24
15
Turn the handwheel towards
The needle position is too low
Needle threader
does not work
If the above treatments do not solve the problem, contact the service center as described in your warranty.
Needle No.9 is being used Use needle No.11 through 16 43
The needle is not correctly installed Install the needle correctly 23
The needle is bent Replace with a straight needle 23
The thread is not correctly set in the
needle guide
yourself to raise the needle to the
highest position
Pass the thread through the needle
guide correctly
42
17
5. Servicing double-insulated products (230 V-240 V)
In a double-insulated product, two systems of insulation are provided instead of grounding. No grounding means are provided on a double-insulated product nor should a means for grounding be added to
the product. Servicing a double-insulated product requires extreme care and should only be done by
qualified service personnel with knowledge of the system under his or her responsibility. Replacement
parts for a double-insulated product must be identical to those parts in the product. The symbol is
marked on the double-insulated product.
51
Page 53
Others
VI. Others
1. Specifications
Hook type Vertical, oscillating hook
Needle Home-use sewing machine needle (HA-1)
Bobbin TOYOTA-exclusive plastic bobbin
Maximum stitch length 5 mm
Maximum stitch width 5 mm
Standard needle position Center standard, left standard
Sewing machine weight (main unit) 6.3 kg
Model RS2000-SDU Type
Width: 419 mm
Sewing machine size
Rated voltage 220 to 230 V
Rated frequency 50 Hz
Rated power consumption 70 W
Light bulb 15 W
If you have any queries about this TOYOTA sewing machine, check the warranty for details.
Depth: 166 mm
Height: 293 mm
2. Recycling
DO NOT THROW AWAY!
EU ONLY
We are committed to the protection of the environment. We strive to minimize the environmental
impact of our products by continuously improving product design and our manufacturing methods.
At end of life please dispose of this product in an environmentally responsible way.
The crossed-out wheelie bin symbol featured above and on the product's data-plate means that this
product falls under the scope of the E.U. "Waste Electrical and Electronic Equipment" (WEEE) directive
and "Restriction of the Use of Certain Hazardous Substances in Electrical and Electronic Equipment"
(ROHS) directive and should not be disposed of with your household waste. At end of life, you must ensure that this product is disposed of in accordance with national and local legislation and that it is sorted
as Category 2 "Small Domestic Appliances" WEEE. You may be liable under local and national laws for
improper disposal of this product. Please consult the web, or a competent national or local body, for the
return and collections systems available to you and the locations of your nearest recycling points.
As an individual you can make a positive impact on reuse, recycling and other forms of recovery of
WEEE. This will reduce use of landfill and minimize the environmental impact of the products you use.
Hazardous substances in electronic and electrical products can have a harmful impact on human health
and on the environment.
52
Page 54
Others
53
Page 55
Loading...
