Page 1
2014
Camry Hybrid
Quick Reference Guide
Page 2
2014
Camry Hybrid
This Quick Reference Guide is a summary of basic vehicle
operations. It contains brief descriptions of fundamental operations
so you can locate and use the vehicle’s main equipment quickly
and easily.
The Quick Reference Guide is not intended as a substitute for the
Owner’s Manual located in your vehicle’s glove box. We strongly
encourage you to review the Owner’s Manual and supplementary
manuals so you will have a better understanding of your vehicle’s
capabilities and limitations.
Your dealership and the entire staff of Toyota Motor Sales, U.S.A.,
Inc. wish you many years of satisfied driving in your new Camry
Hybrid.
A word about safe vehicle operations
This Quick Reference Guide is not a full description of
Camry Hybrid operations. Every Camry Hybrid owner should
review the Owner’s Manual that accompanies this vehicle.
Pay special attention to the boxed information highlighted in
color throughout the Owner’s Manual. Each box contains safe
operating instructions to help you avoid injury or equipment
malfunction.
All information in this Quick Reference Guide is current at the
time of printing. Toyota reserves the right to make changes at
any time without notice.
INDEX
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY
FEATURES
Engine maintenance 9
Fuel tank door release and cap 8
Hood release 9
Indicator symbols 4-5
Instrument cluster 4
Instrument panel 2-3
Keyless entry
Light control-Instrument panel 8
Smart Key system
1
6
1,2
7
OVERVIEW
Air Conditioning/Heating 20
Audio 18
Auto lock/unlock
2
11
Bottle holders 22
BSM (Blind Spot Monitor) 16
Clock 21
Cruise control 15
Cup holders 22
Garage door opener (HomeLink
3
®
)
15
Hill-start Assist Control (HAC) 16
Hybrid Synergy Drive System 10
®
iPod
/USB/AUX port 19
1
Lights
& turn signals 13
FEATURES/OPERATIONS
Moonroof 17
Multi-Information Display 17
Parking brake 12
Power outlets-12V DC 21
Seat adjustments-Front 14
Seat heaters 21
Seats-Folding rear seats 14
Seats-Head restraints 14
Steering lock release 11
Steering wheel switches 19
Tilt and telescopic steering wheel 12
Transmission 11
Windows-Power 12
Windshield wipers & washers 13
Door locks 23
Doors-Child safety locks 23
Floor mat installation 27
Seat belts 24
SAFETY AND EMERGENCY FEATURES
Seat belts-Shoulder belt anchor 24
Spare tire & tools 25
Star Safety System
TM
26-27
Trunk-Internal release 24
1
Visit your Toyota dealer for information on customizing this feature.
2
Programmable by customer. Refer to the Owner’s Manual for instructions and
more information.
3
HomeLink® is a registered trademark of Johnson Controls, Inc.
1
Page 3
OVERVIEW
Instrument panel
Steering wheel controls
OVERVIEW
FEATURES/OPERATIONS
Steering wheel audio controls
Telephone controls
1,2,3
Voice command button
1,2,3
1,2,3
Cruise control
“DISP” switch
Headlight and turn signal controls/Headlight, turn signal and front fog
1
light
controls
Wiper and washer controls
Clock
Audio system
1
/Navigation system
1,2
/Display audio system
1,3
“POWER” switch
Tilt and telescopic steering lock release
Air Conditioning controls
Emergency flasher button
Outside rearview mirror
1
/Rear window defogger button
12V DC power outlet
2 3
USB/AUX port
Seat heater controls
1
“EV MODE” switch
“ECO MODE” switch
BSM (Blind Spot Monitor) main switch
1
VSC OFF switch
Headlight leveling dial
1
Coin holder
1
If equipped
2
For details, refer to the “Navigation System Owner’s Manual.”
3
For details, refer to the “Display Audio System Owner’s Manual.”
NOTE: For vehicles equipped with Entune
TM
, please consult the “Navigation
System With Entune Quick Reference Guide” or www.toyota.com/entune.
SAFETY AND EMERGENCY FEATURES
Page 4
OVERVIEW
Instrument cluster
Service indicators and reminders
Hybrid System indicator
Speedometer
Fuel gauge
Average fuel consumption meter
Current fuel consumption gauge
Display change button
Odometer/Trip meter display
Multi-Information Display
Engine coolant temperature display/Instrument panel light control display
Outside temperature display
Shift position display
Instrument panel light control button
Indicator symbols
For details, refer to “Indicators and warning lights,” Section 2-2, 2014 Owner’s
Manual.
Brake system warning (red indicator)
Brake system warning (yellow indicator)
Driver/Front passenger seat belt reminder
(alarm will sound if speed is over 12 mph)
Electric power steering system warning
Charging system warning
1
1
1
1
SRS AIRBAG ON/OFF indicator
Low engine oil pressure warning
Malfunction/Check Engine indicator
1
1
ECO MODE indicator
READY indicator
Low fuel level warning
Open door warning
SRS airbag warning
1
Blind Spot Monitor warning/Blind Spot Monitor outside
rearview mirror indicators
Low Tire Pressure Warning
1
EV indicator
EV drive mode indicator
Theft deterrent/Engine immobilizer system indicator
Headlight low/high beam indicator
Turn signal indicator
Front fog light indicator
Slip indicator
Vehicle Stability Control OFF indicator
Traction Control OFF indicator
1
1
1
Cruise control indicator2/Cruise control SET indicator
Anti-lock Brake System warning
Master warning light
1
1
Shift position indicator
High engine coolant temperature warning
OVERVIEW
FEATURES/OPERATIONS
2
SAFETY AND EMERGENCY FEATURES
1
If indicator does not turn off within a few seconds of starting engine, there may be a
malfunction. Have vehicle inspected by your Toyota dealer.
4 5
2
If this light flashes, refer to “Cruise control,” Section 2-4, 2014 Owner’s Manual.
Page 5
OVERVIEW
Keyless entry
Locking operation
Push
Unlocking operation
Push ONCE: Driver door
TWICE: All doors
NOTE: If a door is not opened within 60 seconds of unlocking, all doors will relock for
safety.
Trunk lid operation
Smart Key system
Start function
Carrying
NOTE: Gear shift lever must be in Park and brake pedal depressed.
Power (without starting Hybrid System)
Without depressing the brake pedal, pressing the “POWER” switch will change the
operation mode in succession from:
ACC
ON
OFF
Accessories such as the radio will operate.
Power ON; the Hybrid System not running.
All systems OFF.
Locking operation
Front door lock
Depress
brake pedal
Push
Unlocking operation
Front door unlock*
Grasp
OVERVIEW
FEATURES/OPERATIONS
Panic button
Touch
Carry remote to lock Carry remote to unlock
Trunk lock/unlock
Push and hold
Push
Carry remote to lock/unlock
Push and hold
6 7
* Driver door unlocking function can be programmed to unlock driver door only, or
all doors. Grasping front passenger door handle will unlock all doors.
NOTE: Doors may also be locked/unlocked using remote.
SAFETY AND EMERGENCY FEATURES
Page 6
OVERVIEW
Hood releaseFuel tank door release and cap
OVERVIEW
Pull up
Pull
Pull up latch and raise hood
Engine maintenance
Turn to open
FEATURES/OPERATIONS
Store
NOTE: Tighten until one click is heard. If the cap is not tightened enough,
Check Engine “
” indicator may illuminate.
Light control-Instrument panel
Brightness
control
8 9
Engine oil filler cap
Engine oil level dipstick
Engine coolant reservoir
Windshield washer fluid tank
NOTE: Regularly scheduled maintenance, including oil changes, will help
extend the life of your vehicle and maintain performance. Please refer
to the “Warranty Maintenance Guide.”
SAFETY AND EMERGENCY FEATURES
Page 7
FEATURES/OPERATIONS
B

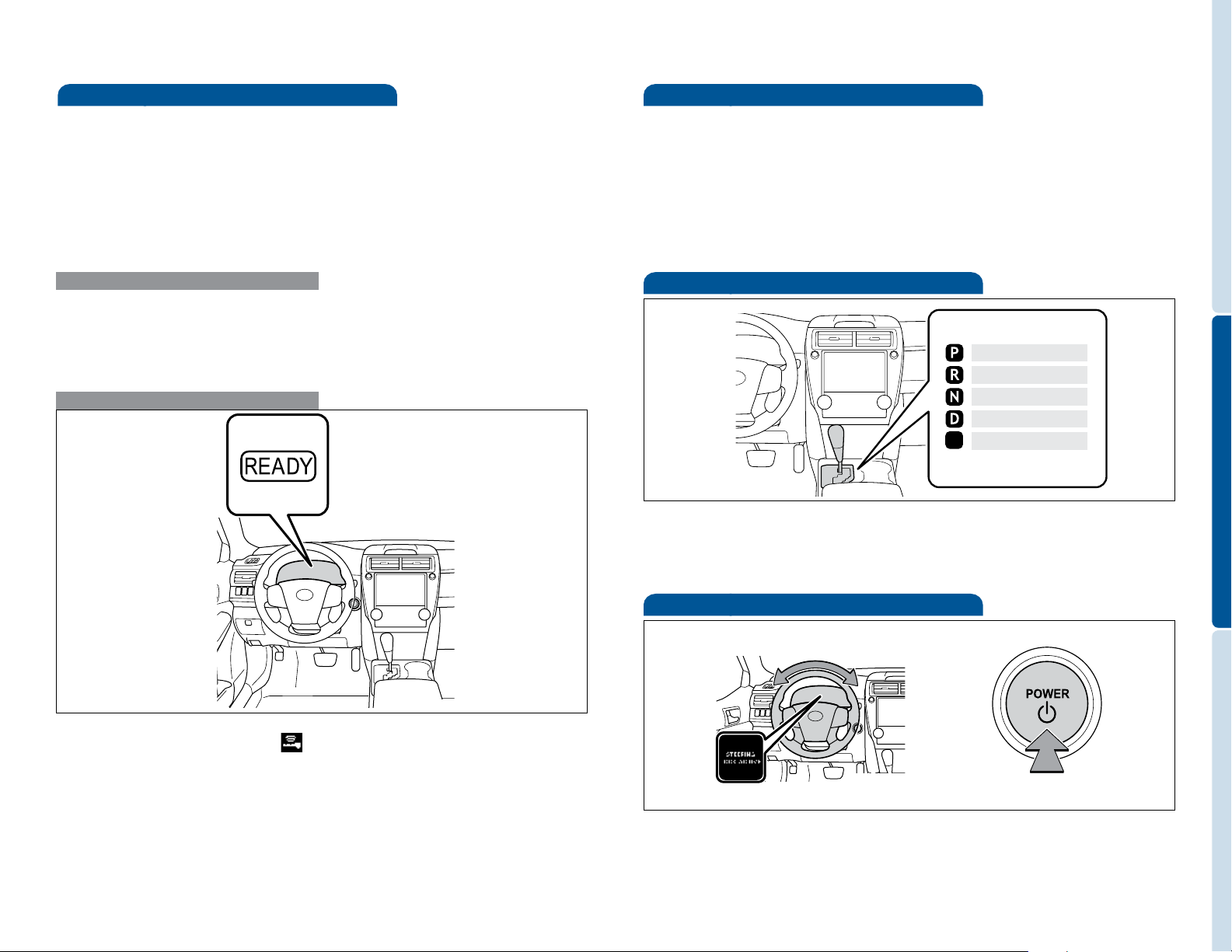

Hybrid Synergy Drive System
The Hybrid Synergy Drive System utilizes a computer-controlled gasoline engine
and electric motor to provide the most efficient combination of power for the
vehicle. To conserve energy, when the brakes are applied the braking force
generates electricity which is then sent to the traction battery. In addition,
the engine shuts off when the vehicle is stopped. The benefits are better fuel
economy, reduced vehicle emissions and improved performance.
NOTE: Fuel consumption and energy information of the Hybrid System are
shown on the Multi-Information Display and/or navigation system
screen (if equipped).
Tips for improved fuel economy
1. Ensure tire pressures are maintained at levels specified in the Owner’s Manual.
2. Link trips to reduce engine cold starts whenever possible.
3. Avoid driving at speeds that are higher than necessary, especially on the highway.
4. When possible, avoid sudden stops to maximize regenerative braking energy.
5. Minimize use of the Air Conditioning.
Starting the Hybrid System
Auto lock/unlock
Automatic door locks can be programmed to operate in four different modes, or
turned OFF.
-Doors lock when shifting from Park.
-Doors lock when the vehicle speed goes above approximately 12 mph.
-Doors unlock when shifting into Park.
-Doors unlock when the “POWER” switch is set from ON to ACC or OFF and driver’s
door is opened.
Refer to the Owner’s Manual for more details.
Transmission
1
Park
Reverse
Neutral
Drive
Engine braking
1
The “POWER” switch must be set at “ON” and the brake pedal depressed to shift
from Park.
2
The engine brake is the equivalent of downshifting. Shift to “B” when engine
braking is desired (i.e. downhill driving, coasting to a stop, etc.).
2
OVERVIEW
FEATURES/OPERATIONS
Steering lock release
Turn
(1) Put the selector lever in “P.”
(2) Depress the brake pedal, and “
” will be displayed on the Multi-Information
Display.
(3) Press the “POWER” switch briefly and firmly.
(4) The “READY” light will blink. After a few seconds, when the light remains
steady and a beep sounds, you may begin driving.
Gently turn wheel while pressing the “POWER” switch. If the lock does not release,
Push
the switch indicator will flash green.
1110
SAFETY AND EMERGENCY FEATURES
Page 8
FEATURES/OPERATIONS

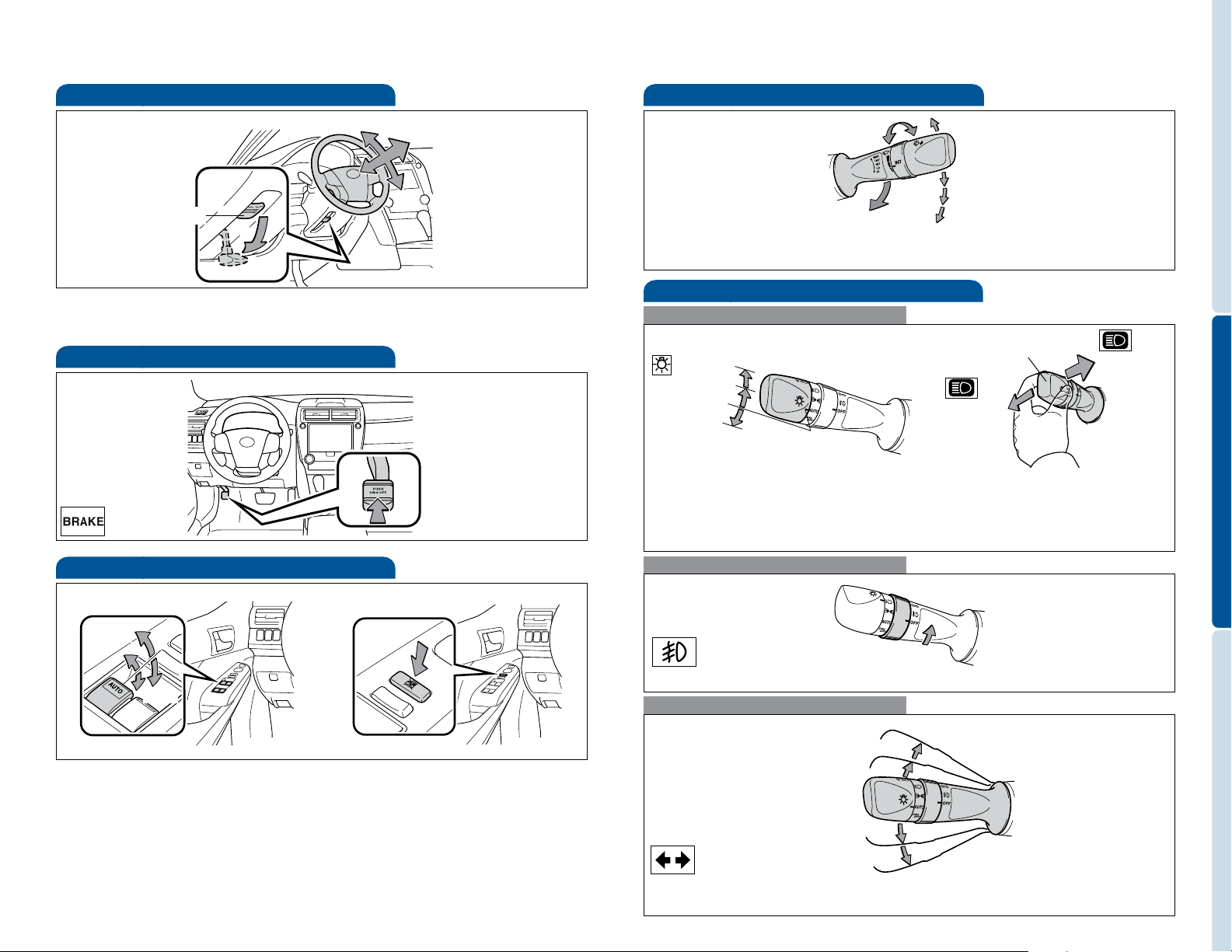

Tilt and telescopic steering wheel
Angle
Length
Lock release lever
Hold wheel, push lever down, set angle and length, and return lever.
NOTE: Do not attempt to adjust while the vehicle is in motion.
Parking brake
Set: Depress
Release: Depress again
Windows-Power
Windshield wipers & washers
Adjust frequency*
Pull to wash and wipe
* Intermittent windshield wiper frequency adjustment
Rotate to increase/decrease wipe frequency.
Single wipe
Interval wipe
Slow
Fast
Lights & turn signals
Headlights
Low beam
Headlights
Parking lights
Auto
DRL OFF
High beam
-Daytime Running Light system (DRL) Automatically turns on the headlights at a
reduced intensity.
-Automatic light cut off system Automatically turns lights off after 30-second
delay, or lock switch on remote may be pushed after locking.
Front fog lights (if equipped)
High beam
flasher
OVERVIEW
FEATURES/OPERATIONS
Driver side
Up
Down
Window lock switch
Automatic operation (driver’s window only) Push the switch completely down
or pull it completely up and release to fully open or close. To stop the window
partway, operate the switch in the opposite direction.
Window lock switch Deactivates all passenger windows. Driver’s window remains
operable.
12 13
Turn
Front fog lights come on only when the headlights are on low beam.
Turn signals
Right turn
Lane change
Lane change
1
The right hand signals will flash three times.
2
The left hand signals will flash three times.
1
2
Left turn
SAFETY AND EMERGENCY FEATURES
Page 9
FEATURES/OPERATIONS
Seat adjustments-Front
Manual seat
Seat position (forward/backward)
Height crank (driver side only)
Seatback angle
Seat position, cushion angle (driver side only) and height (driver side only)
Lumbar support (driver side only)
Power seat
Seats-Head restraints
Lock release button
Cruise control
Turning system ON/OFF
System ON/OFF
Functions
1
Cancel
Set
1
The set speed may also be cancelled by depressing the brake pedal.
2
The set speed may be resumed once vehicle speed exceeds 25 mph.
Decrease speed
Garage door opener (HomeLink®)*
(if equipped)
2
Resume
Increase speed
OVERVIEW
FEATURES/OPERATIONS
Seats-Folding rear seats
Pull
Garage door openers manufactured under license from HomeLink®* can be
programmed to operate garage doors, estate gates, security lighting, etc.
Fold down
Refer to “Garage door opener,” Section 3-5 in the Owner’s Manual for more
details.
For programming assistance, contact HomeLink
http://www.homelink.com.
* HomeLink® is a registered trademark of Johnson Controls, Inc.
14 15
®
at 1-800-355-3515, or visit
SAFETY AND EMERGENCY FEATURES
Page 10
FEATURES/OPERATIONS
STEP
2
BSM (Blind Spot Monitor)(if equipped)
Rear Cross Traffic Alert buzzer
System ON/OFF
The Blind Spot Monitor is a system that has two functions:
• The Blind Spot Monitor function (assists the driver in decision-making when
changing lanes)
• The Rear Cross Traffic Alert function (assists the driver when backing up)
It uses radar sensors to detect vehicles that are traveling in the area that is not
reflected in the outside rearview mirror (the blind spot), and advises the driver of
the vehicles’ existence via the outside rearview mirror indicator.
Refer to the Owner‘s Manual for more details on this system before attempting
to use it.
Multi-Information Display
Push “DISP” to change information in the following:
(1) Cruising range/Average fuel consumption
(2) Average vehicle speed/elapsed time
(3) Eco drive level
(4) Energy monitor
(5) Customization
(6) (off)
Moonroof (if equipped)
Sliding operation
Tilting operation
OVERVIEW
FEATURES/OPERATIONS
Hill-start Assist Control (HAC)
Brake
pedal
HAC helps prevent rolling backwards on an incline. To engage, push further down
on brake pedal while at a complete stop until a beep sounds and slip indicator
illuminates. HAC holds for approximately two seconds after releasing brake pedal.
Refer to the Owner’s Manual for more details.
16 17
Close
Open
Recommended open
position to minimize
wind noise.
Tilt
Close
Push once to open; moonroof will automatically stop at the recommended
position. Push again to open completely.
SAFETY AND EMERGENCY FEATURES
Page 11
FEATURES/OPERATIONS
Audio
Type A
Push to turn
ON/OFF
View CD text
Seek station/
CD track select
Type B *
Push to turn
ON/OFF
Push to display
audio screen
Seek station/
CD track select
1
Eject CD
Eject CD
Mode
Touch screen display
Push to adjust
tone & balance
Station/CD
track scan
Push to skip
up/down folder
Preset buttons - functions in other
modes indicated above number
Turn to tune
radio stations
manually or
select tracks
*2
*3
or files
iPod®/USB/AUX port
iPod®/USB port
By connecting a USB-compatible portable audio device or USB memory to the
USB port, you can listen to music from the portable audio device or USB memory
through the vehicle’s speaker system.
AUX port
By inserting a mini plug into the AUX port, you can listen to music from a portable
audio device through the vehicle’s speaker system while in AUX mode.
Steering wheel switches
OVERVIEW
FEATURES/OPERATIONS
1
Refer to the “Display Audio System Owner’s Manual” for instructions and more
*
information.
*2 Display Audio system
*3 Premium Display Audio system
CD player (Type A)
To scan tracks on a disc Push and hold “SCAN.” Push again to hold selection.
To select a file (MP3/WMA only) Turn or “TUNE.SCROLL.”
To select a folder (MP3/WMA only) Push either side of “TYPE” or “FOLDER.”
Radio (Type A)
To preset stations Tune in the desired station and hold down a preset button until
you hear a beep. Push desired preset button to select.
To scan stations Push and hold “SCAN” to scan preset stations. Push again to hold
selection.
Volume control
v
v
v
“ ” “ ”
v
Use to search within the selected audio medium (radio, CD, iPod, etc.).
“MODE”
Push to turn audio ON and select an audio mode. Push and hold to mute.
1918
SAFETY AND EMERGENCY FEATURES
Page 12
FEATURES/OPERATIONS
Clock
3-5. Other interior features
Seat heaters
∗
Air Conditioning/Heating
Automatic climate control ON
Adjusting the temperature setting will cause the airflow vents, air intake and
fan to adjust automatically.
Temperature selector (driver side)
Temperature selector (passenger side)
“DUAL” button
Indicator ON: Separate temperature settings for driver and passengers.
Indicator OFF: Synchronized temperature settings for driver and passengers.
Air Conditioning ON/OFF
Outside rearview mirror/Rear defogger
Airflow vent
In “
” or “ ” mode, use fresh air (“ ” indicator OFF) to reduce window
fogging.
Windshield airflow/defogger
Fan speed
Recirculate cabin air (fresh air when OFF)
Climate control OFF
Seat heaters (if equipped)
Driver seat
Clock
Refer to the Owner’s Manual for instructions on adjusting time.
Power outlets-12V DC
Instrument panel
Center console (if equipped)
OVERVIEW
Front passenger seat
FEATURES/OPERATIONS
H-Hour set
M-Minute set
SAFETY AND EMERGENCY FEATURES
“POWER” switch must be set at “ACC” or “ON” to use.
2120
Page 13
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
Cup holders
Front
Bottle holders
Rear (if equipped)
Rear doorFront door
Door locks
OVERVIEW
Unlock
Lock
Doors-Child safety locks
Rear door
FEATURES/OPERATIONS
Moving the lever to downward will allow the door to be opened only from the
outside.
2322
SAFETY AND EMERGENCY FEATURES
Page 14
SAFETY AND EMERGENCY FEATURES
Seat belts
Take up slack
Too high
Keep as low on
hips as possible
If belt is fully extended, then retracted even slightly, it cannot be re-extended
beyond that point, unless fully retracted again. This feature is used to help hold
child restraint systems securely.
To find more information about seat belts, and how to install a child restraint
system, refer to the Owner’s Manual.
Seat belts-Shoulder belt anchor
Push up, or squeeze
lock release to lower
Spare tire & tools
Tool location
Jack
Jack handle
Luggage floor cover
Wheel nut wrench
Spare tire
Removing the spare tire
OVERVIEW
FEATURES/OPERATIONS
Trunk-Internal release
Pull up
(1) Remove the tool tray.
(2) Loosen the center fastener that
(1)
secures the spare tire.
(2)
Refer to the Owner’s Manual for tire changing and jack positioning procedures.
2524
SAFETY AND EMERGENCY FEATURES
Page 15
SAFETY AND EMERGENCY FEATURES
Star Safety System
All new Toyota vehicles come standard with the Star Safety SystemTM, which
combines Vehicle Stability Control (VSC), Traction Control (TRAC), Anti-lock
Braking System (ABS), Electronic Brake-force Distribution (EBD), Brake Assist (BA)
and Smart Stop Technology (SST).
TM
Vehicle Stability Control (VSC)
VSC helps prevent loss of traction during cornering by reducing Hybrid System
output and applying brake force to selected wheels.
Toyota’s VSC monitors steering angle and the direction your vehicle is traveling.
When it senses that the front or rear wheels begin to lose traction, VSC reduces
Hybrid System output and applies braking to selected wheels. This helps restore
traction and vehicle control.
Traction Control (TRAC)
VSC helps prevent loss of traction during cornering by reducing Hybrid System
output, and Traction Control helps maintain traction on loose gravel and wet, icy,
or uneven surfaces by applying brake force to the spinning wheel(s).
Toyota’s TRAC sensors are activated when one of the drive wheels starts to slip.
TRAC limits Hybrid System output and applies the brakes to the spinning wheel.
This transfers power to the wheels that still have traction to help keep you on
track.
Anti-Lock Brake System (ABS)
ABS helps prevent brakes from locking up by “pulsing” brake pressure to each
wheel. This limits brake lockup and helps provide directional control for the
current road conditions.
Smart Stop Technology (SST)
Smart Stop Technology automatically reduces driving torque when the accelerator
and brake pedals are pressed simultaneously under certain conditions.
Floor mat installation
There are two types of Toyota floor mats: carpeted and all-weather. Each vehicle
has model-specific floor mats. Installation is easy.
To keep your floor mat properly positioned, follow these steps:
• Only use floor mats designed for your specific model.
• Use only one floor mat at a time, using the retaining hooks to keep the mat in
place.
• Install floor mats right side up.
OVERVIEW
FEATURES/OPERATIONS
Toyota’s ABS sensors detect which wheels are locking up and limits wheel lockup
by “pulsing” each wheel’s brakes independently. Pulsing releases brake pressure
repeatedly for fractions of a second. This helps the tires attain the traction that
current road conditions will allow, helping you to stay in directional control.
Electronic Brake Force Distribution (EBD)
Toyota’s ABS technology has Electronic Brake-force Distribution (EBD) to help
maintain control and balance when braking. Abrupt stops can cause a vehicle
to tilt forward, reducing the braking power of the rear wheels. EBD responds to
sudden stops by redistributing brake force to enhance the braking effectiveness of
all four wheels.
Brake Assist (BA)
Brake Assist is designed to detect sudden or “panic” braking, and then add braking
pressure to help decrease the vehicle’s stopping distance. When there’s only a
split second to react, Brake Assist can add additional brake pressure more quickly
than just the driver alone can.
SAFETY AND EMERGENCY FEATURES
2726
Page 16
NOTES
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
2928
Page 17
00505-QRG14-CAMH
Printed in the USA 8/2013
Loading...
