Pictorial index
For safety
1
and security
Search by illustration
Make sure to read through them
Instrument
2
cluster
Operation of
3
each
component
4
Driving
5
Interior features
Maintenance
6
and care
When trouble
7
arises
Vehicle
8
specifications
9
For owners
How to read the gauges and meters, the variety of
warning lights and indicators, etc.
Opening and closing the doors and windows,
adjustment before driving, etc.
Operations and advice which are necessary for
driving
Usage of the interior features, etc.
Caring for your vehicle and maintenance
procedures
What to do in case of malfunction or emergency
Vehicle specifications, customizable features, etc.
Reporting safety defects for U.S. owners, and seat
belt and SRS airbag instructions for Canadian
owners
Index
Search by symptom
Search alphabetically
2
TABLE OF CONTENTS
For your information....................... 8
Reading this manual....................12
How to search..............................13
Pictorial index .............................. 14
1
For safety and security
1-1. For safe use
Before driving......................24
For safe driving ................... 26
Seat belts............................ 28
SRS airbags........................34
Front passenger
occupant classification
system............................... 46
Safety information
for children........................52
Child restraint systems........53
Installing child
restraints........................... 57
Exhaust gas
precautions ....................... 67
1-2. Theft deterrent system
Engine immobilizer
system............................... 68
Alarm...................................70
Theft prevention labels
(U.S.A.).............................72
Operation of
3
each component
3-1. Key information
Keys.....................................92
3-2. Opening, closing and
locking the doors
Doors...................................97
Trunk .................................103
Smart key system..............108
3-3. Adjusting the seats
Front seats.........................119
Driving position
memory ...........................121
Head restraints..................126
3-4. Adjusting the steering
wheel and mirrors
Steering wheel...................128
Inside rear view mirror.......130
Outside rear view
mirrors.............................132
3-5. Opening, closing the
windows and
moon roof
Power windows..................135
Moon roof ..........................138
2
Instrument cluster
2. Instrument cluster
Warning lights and
indicators........................... 74
Gauges and meters............. 79
Multi-information
display...............................82
Fuel consumption
information........................89
3
4
Driving
4-1. Before driving
Driving the vehicle.............144
Cargo and luggage............ 154
Vehicle load limits ............. 157
Trailer towing..................... 158
Dinghy towing.................... 159
4-2. Driving procedures
Engine (ignition)
switch.............................. 160
Automatic
transmission....................165
Turn signal lever................ 171
Parking brake....................172
4-3. Operating the lights
and wipers
Headlight switch................ 173
Automatic High Beam ....... 176
Windshield wipers
and washer ..................... 180
4-4. Refueling
Opening the fuel
tank cap .......................... 186
4-5. Using the driving
support systems
Toyota Safety Sense P......190
PCS
(Pre-Collision System).....198
LDA
(Lane Departure Alert
with steering control).......211
Dynamic radar cruise
control..............................222
Cruise control ....................235
BSM
(Blind Spot Monitor).........239
• The Blind Spot
Monitor function.............241
• The Rear Cross Traffic
Alert function.................245
Driving mode select
switches...........................248
Driving assist systems.......250
4-6. Driving tips
Winter driving tips..............255
1
2
3
4
5
6
7
8
9
4
TABLE OF CONTENTS
5
Interior features
5-1. Using the air
conditioning system
and defogger
Automatic air
conditioning system ........ 260
Seat heaters/
seat ventilators................269
5-2. Using the interior lights
Interior lights list................ 272
• Personal/interior light
main switch................... 273
• Personal/
interior lights ................. 273
• Ambient lights ............... 274
5-3. Using the storage
features
List of storage features...... 275
• Glove box...................... 276
• Console box..................276
• Cup holders .................. 277
• Auxiliary boxes.............. 278
Trunk features...................283
5-4. Other interior features
Other interior features........285
• Sun visors .....................285
• Vanity mirrors................285
• Clock .............................286
• Outside temperature
display...........................287
• Power outlets ................288
• Armrest..........................290
• Rear sunshade..............291
• Trunk storage
extension.......................292
• Coat hooks....................293
• Assist grips....................293
Garage door opener..........294
Safety Connect..................301
Compass ...........................307
5
6
Maintenance and care
6-1. Maintenance and care
Cleaning and protecting
the vehicle exterior..........312
Cleaning and protecting
the vehicle interior...........316
6-2. Maintenance
Maintenance
requirements................... 319
General maintenance........321
Emission inspection and
maintenance (I/M)
programs.........................325
6-3. Do-it-yourself
maintenance
Do-it-yourself service
precautions ..................... 326
Hood.................................. 328
Positioning a floor jack...... 329
Engine compartment.........330
Tires.................................. 342
Tire inflation pressure........ 352
Wheels.............................. 355
Air conditioning filter..........358
Electronic key battery........360
Checking and replacing
fuses ............................... 362
Light bulbs.........................365
7
When trouble arises
7-1. Essential information
Emergency flashers...........380
If your vehicle has to
be stopped in
an emergency..................381
7-2. Steps to take in an
emergency
If your vehicle needs to
be towed..........................382
If you think something
is wrong...........................386
Fuel pump shut off
system.............................387
If a warning light turns
on or a warning buzzer
sounds.............................388
If a warning message is
displayed.........................396
If you have a flat tire..........397
If the engine will not
start .................................409
If the electronic key
does not operate
properly ...........................411
If the vehicle battery is
discharged.......................414
If your vehicle
overheats.........................418
If the vehicle becomes
stuck................................421
1
2
3
4
5
6
7
8
9
6
TABLE OF CONTENTS
8
Vehicle specifications
8-1. Specifications
Maintenance data
(fuel, oil level, etc.).......... 424
Fuel information ................ 433
Tire information................. 436
8-2. Customization
Customizable features ...... 449
8-3. Items to initialize
Items to initialize................ 457
9
For owners
Reporting safety defects for
U.S. owners .............................460
Seat belt instructions for
Canadian owners
(in French)................................461
SRS airbag instructions for
Canadian owners
(in French)................................463
Index
For vehicles with a audio/navigation system, refer to the “N AVIGATION AND MULTIMEDIA SYSTEM OWNER’S MANUAL” for information regarding the audio/navigation system.
What to do if...
(Troubleshooting) .................... 474
Alphabetical index...................... 478
7
1
2
3
4
5
6
7
8
9
8
For your information
Main Owner’s Manual
Please note that this manual applies to all models and explains all equipment,
including options. Therefore, you may find some explanations for equipment
not installed on your vehicle.
All specifications provided in this manual are current at the time of printing.
However, because of the Toyota policy of continual product improvement, we
reserve the right to make changes at any time without notice.
Depending on specifications, the vehicle shown in the illustrations may differ
from your vehicle in terms of color and equipment.
Noise from under vehicle after turning off the engine
Approximately five hours after the engine is turned off, you may hear sound
coming from under the vehicle for several minutes. This is the sound of a fuel
evaporation leakage check and, it does not indicate a malfunction.
Accessories, spare parts and modification of your Toyota
A wide variety of non-genuine spare parts and accessories for Toyota vehicles are currently available in the market. You should know that Toyota does
not warrant these products and is not responsible for their performance,
repair, or replacement, or for any damage they may cause to, or adverse
effect they may have on, your Toyota vehicle.
This vehicle should not be modified with non-genuine Toyota products. Modification with non-genuine Toyota products could affect its performance, safety
or durability, and may even violate governmental regulations. In addition,
damage or performance problems resulting from the modification may not be
covered under warranty.
Installation of a mobile two-way radio system
The installation of a mobile two-way radio system in your vehicle could affect
electronic systems such as:
● Multiport fuel injection system/sequential multiport fuel injection system
● Dynamic radar cruise control system (if equipped)
● Cruise control system (if equipped)
● Anti-lock brake system
● SRS airbag system
● Seat belt pretensioner system
Be sure to check with your Toyota dealer for precautionary measures or special instructions regarding installation of a mobile two-way radio system.
Vehicle data recordings
Your Toyota is equipped with several sophisticated computers that will record
certain data, such as:
• Engine speed
• Accelerator status
• Brake status
• Vehicle speed
• Shift position
The recorded data varies according to the vehicle grade level and options
with which it is equipped. These computers do not record conversations or
sounds, and only record images outside of the vehicle in certain situations.
● Data Transmission
Your vehicle may transmit the data recorded in these computers to Toyota
without notification to you.
● Data usage
Toyota may use the data recorded in these computers to diagnose malfunctions, conduct research and development, and improve quality.
Toyota will not disclose the recorded data to a third party except:
• With the consent of the vehicle owner or with the consent of the lessee if
the vehicle is leased
• In response to an official request by the police, a court of law or a govern-
ment agency
• For use by Toyota in a law suit
• For research purposes where the data is not tied to a specific vehicle or
vehicle owner
● Usage of data collected through Safety Connect (U.S. mainland only)
If your Toyota has Safety Connect and if you have subscribed to those services, please refer to the Safety Connect Telematics Subscription Service
Agreement for information on data collected and its usage.
● To learn more about the vehicle data collected, used and shared by Toy-
ota, please visit www.toyota.com/privacyvts/
.
9
10
Event data recorder
This vehicle is equipped with an event data recorder (EDR). The main purpose of an EDR is to record, in certain crash or near crash-like situations,
such as an air bag deployment or hitting a road obstacle, data that will assist
in understanding how a vehicle’s systems performed. The EDR is designed to
record data related to vehicle dynamics and safety systems for a short period
of time, typically 30 seconds or less.
The EDR in this vehicle is designed to record such data as:
• How various systems in your vehicle were operating;
• Whether or not the driver and passenger safety belts were buckled/fas-
tened;
• How far (if at all) the driver was depressing the accelerator and/or brake
pedal; and,
• How fast the vehicle was traveling.
These data can help provide a better understanding of the circumstances in
which crashes and injuries occur.
NOTE: EDR data are recorded by your vehicle only if a non-trivial crash situation occurs; no data are recorded by the EDR under normal driving conditions and no personal data (e.g., name, gender, age, and crash location) are
recorded. However, other parties, such as law enforcement, could combine
the EDR data with the type of personally identifying data routinely acquired
during a crash investigation.
To read data recorded by an EDR, special equipment is required, and access
to the vehicle or the EDR is needed. In addition to the vehicle manufacturer,
other parties, such as law enforcement, that have the special equipment, can
read the information if they have access to the vehicle or the EDR.
● Disclosure of the EDR data
Toyota will not disclose the data recorded in an EDR to a third party except
when:
• An agreement from the vehicle’s owner (or the lessee for a leased vehi-
cle) is obtained
• In response to an official request by the police, a court of law or a govern-
ment agency
• For use by Toyota in a lawsuit
However, if necessary, Toyota may:
• Use the data for research on vehicle safety performance
• Disclose the data to a third party for research purposes without disclosing
information about the specific vehicle or vehicle owner
Scrapping of your Toyota
WARNING
The SRS airbag and seat belt pretensioner devices in your Toyota contain
explosive chemicals. If the vehicle is scrapped with the airbags and seat belt
pretensioners left as they are, this may cause an accident such as fire. Be
sure to have the systems of the SRS airbag and seat belt pretensioner
removed and disposed of by a qualified service shop or by your Toyota dealer
before you scrap your vehicle.
Perchlorate Material
Special handling may apply , See www .dtsc. ca.gov/hazardouswaste/perchlorate.
Your vehicle has components that may contain perchlorate. These compo-
nents may include airbag, seat belt pretensioners, and wireless remote control batteries.
■ General precautions while driving
Driving under the influence: Never drive your vehicle when under the influence of alcohol or drugs that have impaired your ability to operate your vehicle. Alcohol and certain drugs delay reaction time, impair judgment and
reduce coordination, which could lead to an accident that could result in
death or serious injury.
Defensive driving: Always drive defensively. Anticipate mistakes that other
drivers or pedestrians might make and be ready to avoid accidents.
Driver distraction: Always give your full attention to driving. Anything that
distracts the driver, such as adjusting controls, talking on a cellular phon e or
reading can result in a collision with resulting death or serious injury to you,
your occupants or others.
■ General precaution regarding children’s safety
Never leave children unattended in the vehicle, and never allow children to
have or use the key.
Children may be able to start the vehicle or shift the vehicle into neutral.
There is also a danger that children may injure themselves by playing with
the windows, the moon roof, or other features of the vehicle. In addition,
heat build-up or extremely cold temperatures inside the vehicle can be fatal
to children.
11
12
1
2
3
Reading this manual
WARNING:
Explains something that, if not obeyed, could cause death or
serious injury to people.
NOTICE:
Explains something that, if not obeyed, could cause damage to
or a malfunction in the vehicle or its equipment.
Indicates operating or working procedures. Follow the steps
in numerical order.
Indicates the action (pushing, turning, etc.) used to
operate switches and other
devices.
Indicates the outcome of an
operation (e.g. a lid opens).
Indicates the component or
position being explained.
Means “Do not”, “Do not do
this”, or “Do not let this happen”.
How to search
■ Searching by name
• Alphabetical index.......P. 478
■ Searching by installation
position
• Pictorial index................P. 14
■ Searching by symptom or
sound
• What to do if...
(Troubleshooting)........P. 474
13
■ Searching by title
• Table of contents.............P. 2
14
Pictorial index
Pictorial index
■
Exterior
Doors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 97
1
Locking/unlocking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 97
Opening/closing the door glasses . . . . . . . . . . . . . . . . . . . . . . P. 135
Locking/unlocking by using the mechanical key . . . . . . . . . . . P. 411
Warning lights/warning messages. . . . . . . . . . . . . . . . . . P. 390, 396
Trunk. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 103
2
Opening from inside. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 103
Opening from outside . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 92, 103
Warning lights/warning messages. . . . . . . . . . . . . . . . . . P. 390, 396
Outside rear view mirrors . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 132
3
Adjusting the mirror angle . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 132
Folding the mirrors. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 132
Driving position memory . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 121
Defogging the mirrors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 264
Pictorial index
101112
13
14
Windshield wipers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 180
4
Precautions against winter season . . . . . . . . . . . . . . . . . . . . . P. 255
Precautions against car wash . . . . . . . . . . . . . . . . . . . . . . . . . P. 314
Fuel filler door . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 186
5
Refueling method. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 186
Fuel type/fuel tank capacity . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 426
Tires . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P. 342
6
Tire size/inflation pressure . . . . . . . . . . . . . . . . . . . . . . . . .P. 431
Winter tires/tire chain . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P. 255
Checking/rotation/tire pressure warning system. . . . . . . . .P. 342
Coping with flat tires . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P. 397
Hood . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 328
7
Opening . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 328
Engine oil. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 426
Coping with overheat. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 418
Light bulbs of the exterior lights for driving
(Replacing method: P. 365, Wattages: P. 432)
15
Headlights/daytime running lights
8
Parking lights
Front turn signal/parking lights
9
Side marker lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 173
Stop/tail lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 173
Rear turn signal lights. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 171
Back-up lights
Shifting the shift lever to R. . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 165
License plate lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 173
*/daytime running lights* . . . . . . . . . . . . . . . P. 173
*. . . . . . . . . . . . . . . . . . . P. 173
* . . . . . . . . . . . . . . . . . . . . . P. 171
*: If equipped
16
Pictorial index
■Instrument panel
Engine switch. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 160
1
Starting the engine/changing the modes . . . . . . . . . . . . . . . . . P. 160
Emergency stop of the engine. . . . . . . . . . . . . . . . . . . . . . . . . P. 381
When the engine will not start . . . . . . . . . . . . . . . . . . . . . . . . . P. 409
Shift lever . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 165
2
Changing the shift position . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 165
When the shift lever does not move . . . . . . . . . . . . . . . . . . . . P. 169
Meters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 79
3
Reading the meters/adjusting the instrument panel light. . . . . . P. 79
Warning lights/indicator lights . . . . . . . . . . . . . . . . . . . . . . . . . . P. 74
When the warning lights come on . . . . . . . . . . . . . . . . . . . . . . P. 388
Pictorial index
101112
Multi-information display . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 82
4
Display. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 82
When the warning messages are displayed . . . . . . . . . . . . . . P. 396
Turn signal lever . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 171
5
Headlight switch. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 173
Headlights/parking lights/tail lights/daytime running lights. . . . P. 173
Windshield wiper and washer switch . . . . . . . . . . . . . . . . . P. 180
6
Usage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 180
Adding washer fluid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 341
Hood lock release lever. . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 328
7
Tilt and telescopic steering lock release lever . . . . . . . . . . P. 128
8
Air conditioning system . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 260
9
Usage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 260
Rear window defogger. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 264
Audio/Navigation system
Glove box . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 276
Clock. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 286
*
17
*:
Refer to “
NAVIGATION AND MULTIM EDIA SYSTEM OWNER’S MANUAL
”.
18
10
111213
■Switches
Pictorial index
Driving position memory switches*
1
Emergency flasher switch . . . . . . . . . . . . . . . . . . . . . . . . . . P. 380
2
Tire pressure warning reset switch. . . . . . . . . . . . . . . . .P. 344
3
Trunk opener main switch . . . . . . . . . . . . . . . . . . . . . . . . . . P. 104
4
1
*
Rear sunshade switch
5
Trunk opener . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 103
6
BSM (Blind Spot Monitor) main switch
7
VSC OFF switch. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 251
8
PCS (Pre-Collision System) switch
9
Outside rear view mirror switches. . . . . . . . . . . . . . . . . . . . P. 132
Window lock switch. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 135
Door lock switches . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 99
Power window switches . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 135
. . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 291
1
. . . . . . . . . . . . . . . . . . P. 121
1
*
. . . . . . . . . . . . . . P. 239
1
*
. . . . . . . . . . . . . . . . . P. 198
Pictorial index
19
Audio remote control switches*
1
Paddle shift switches . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 166
2
2
Telephone switches
3
Talk switch*
4
“DISP” button. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 83
5
Vehicle-to-vehicle distance switch
6
LDA (Lane Departure Alert with steering control)
7
switch
Cruise control switch
8
Cruise control
Dynamic radar cruise control
Back switch
9
2
1
*
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 211
*
*
*
1
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 235
2
2
1
*
. . . . . . . . . . . . . . . . . . P. 228
1
*
. . . . . . . . . . . . . . . . . . . . . . . . P. 222
2
*
:
Refer to “
1
*
: If equipped
NAVIGATION AND MULTIM EDIA SYSTEM OWNER’S MANUAL
”.
20
■Interior
Pictorial index
SRS airbags . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 34
1
Inside lock buttons . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 99
2
Head restraints. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 126
3
Seat belts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 28
4
Assist grips . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 293
5
Armrest. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 290
6
Cup holders . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 277
Power outlet
Front seats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 119
7
Floor mat . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 24
8
Parking brake. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 172
9
Applying/releasing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 172
Precautions against winter season . . . . . . . . . . . . . . . . . . . . . P. 256
Warning light/buzzer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 388
1
*
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 288
Pictorial index
Power outlets . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 288
1
Power outlet
2
Wireless charger switch
Cup holders . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 277
3
Air conditioning controls
4
Rear seat heater switches
5
Console box . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 276
6
Driving mode select switches . . . . . . . . . . . . . . . . . . . . . . . P. 248
7
Seat heater/ventilator switches
8
AUX/USB port
9
1
*
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 288
1
*
. . . . . . . . . . . . . . . . . . . . . . . . . . P. 280
1
*
. . . . . . . . . . . . . . . . . . . . . . . . . . P. 260
1
*
. . . . . . . . . . . . . . . . . . . . . . . . . P. 269
1
*
. . . . . . . . . . . . . . . . . . . . . P. 269
2
*
21
2
*
:
Refer to “
1
*
: If equipped
NAVIGATION AND MULTIM EDIA SYSTEM OWNER’S MANUAL
”.
22
10
11
Pictorial index
Auxiliary box . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 278
1
Moon roof switches
2
“SOS” button
3
Interior lights/personal lights
4
Interior light/ambient lights
5
Sun visors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 285
6
Vanity mirrors. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 285
7
Compass display
8
Compass switch
9
Garage door opener switches
Inside rear view mirror . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 130
*
1
*
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 138
1
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 301
2
*
. . . . . . . . . . . . . . . . . . . . . . P. 273
1
*
switches. . . . . . . . . . . . . . . . P. 273
1
*
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 307
1
*
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 307
1
*
. . . . . . . . . . . . . . . . . . . . . . P. 294
1
*
: If equipped
2
*
: The illustration shows the front, but they are also equipped in the rear.
23
For safety and security
1
1-1. For safe use
Before driving......................24
For safe driving................... 26
Seat belts............................ 28
SRS airbags........................34
Front passenger
occupant classification
system .............................. 46
Safety information for
children ............................. 52
Child restraint systems........ 53
Installing child restraints...... 57
Exhaust gas
precautions....................... 67
1-2. Theft deterrent system
Engine immobilizer
system .............................. 68
Alarm................................... 70
Theft prevention labels
(U.S.A.)............................. 72
24
*
1-1. For safe use
Before driving
Floor mat
Use only floor mats designed specifically for vehicles of the same
model and model year as your vehicle. Fix them securely in place
onto the carpet.
1
Insert the retaining hooks (clips)
into the floor mat eyelets.
2
Turn the upper knob of each
retaining hook (clip) to secure
the floor mats in place.
*: Always align the marks.
The shape of the retaining hooks (clips) may differ from that shown in the
illustration.
1-1. For safe use
WARNING
● Check that the floor mat is securely
fixed in the correct place with all the
provided retaining hooks (clips). Be
especially careful to perform this check
after cleaning the floor.
● With the engine stopped and the shift
lever in P, fully depress each pedal to
the floor to make sure it does not interfere with the floor mat.
Observe the following precautions.
Failure to do so may cause the driver’s floor mat to slip, possibly interfering
with the pedals while driving. An unexpectedly high speed may result or it may
become difficult to stop the vehicle. This could lead to an accident, resulting in
death or serious injury.
■ When installing the driver’s floor mat
● Do not use floor mats designed for other models or different model year
vehicles, even if they are Toyota Genuine floor mats.
● Only use floor mats designed for the driver’s seat.
● Always install the floor mat securely using the retaining hooks (clips) pro-
vided.
● Do not use two or more floor mats on top of each other.
● Do not place the floor mat bottom-side up or upside-down.
■ Before driving
25
1
For safety and security
CTY11AX052
26
1-1. For safe use
For safe driving
For safe driving, adjust the seat and mirror to an appropriate
position before driving.
Correct driving posture
Adjust the angle of the seat-
1
back so that you are sitting
straight up and so that you do
not have to lean forward to
steer. (→P. 119)
Adjust the seat so that you can
2
depress the pedals fully and so
that your arms bend slightly at
the elbow when gripping the
steering wheel. (→P. 119)
Adjust the tilt and telescopic positions of the steering wheel down-
3
ward so the airbag is facing your chest. (→P. 128)
Lock the head restraint in place with the center of the head restraint
4
closest to the top of your ears. (→P. 126)
Wear the seat belt correctly. (→P. 28)
5
Correct use of the seat belts
Make sure that all occupants are wearing their seat belts before driving the vehicle. (→P. 28)
Use a child restraint system appropriate for the child until the child
becomes large enough to properly wear the vehicle’s seat belt.
(→P. 53)
1-1. For safe use
WARNING
Adjusting the mirrors
Make sure that you can see backward clearly by adjusting th e inside
and outside rear view mirrors properly. (→P. 130, 132)
27
Observe the following precautions.
Failure to do so may result in death or serious injury.
● Do not adjust the position of the driver’s seat while driving.
Doing so could cause the driver to lose control of the vehicle.
● Do not place a cushion between the driver or passenger and the seatback.
A cushion may prevent correct posture from being achieved, and reduce
the effectiveness of the seat belt and head restraint.
● Do not place anything under the front seats.
Objects placed under the front seats may become jammed in the seat
tracks and stop the seat from locking in place. This may lead to an accident and the adjustment mechanism may also be damaged.
● Always observe the legal speed limit when driving on public roads.
● When driving over long distances, take regular breaks before you start to
feel tired.
Also, if you feel tired or sleepy while driving, do not force yourself to continue driving and take a break immediately.
1
For safety and security
28
Release button
1-1. For safe use
Seat belts
Make sure that all occupants are wearing their seat belts before
driving the vehicle.
Correct use of the seat belts
● Extend the shoulder belt so that
it comes fully over the shoulder,
but does not come into contact
with the neck or slide off the
shoulder.
● Position the lap belt as low as
possible over the hips.
● Adjust the position of the seatback. Sit up straight and well
back in the seat.
● Do not twist the seat belt.
Fastening and releasing the seat belt
To fasten the seat belt, push the
1
plate into the buckle until a click
sound is heard.
To release the seat belt, press
2
the release button.
1-1. For safe use
Adjusting the seat belt shoulder anchor height (front seats)
Push the seat belt shoulder
1
anchor down while pressing the
release button.
Push the seat belt shoulder
2
anchor up.
Move the height adjuster up and
down as needed until you hear a
click.
Seat belt pretensioners (front seats)
The pretensioners help the seat
belts to quickly restrain the occupants by retracting the seat belts
when the vehicle is subjected to
certain types of severe frontal or
side collision or a vehicle rollover.
The pretensioners do not activate
in the event of a minor frontal
impact, a minor side impact or a
rear impact.
29
1
For safety and security
30
■ Emergency locking retractor (ELR)
The retractor will lock the belt during a sudden stop or on impact. It may also
lock if you lean forward too quickly. A slow, easy motion will allow the belt to
extend so that you can move around fully.

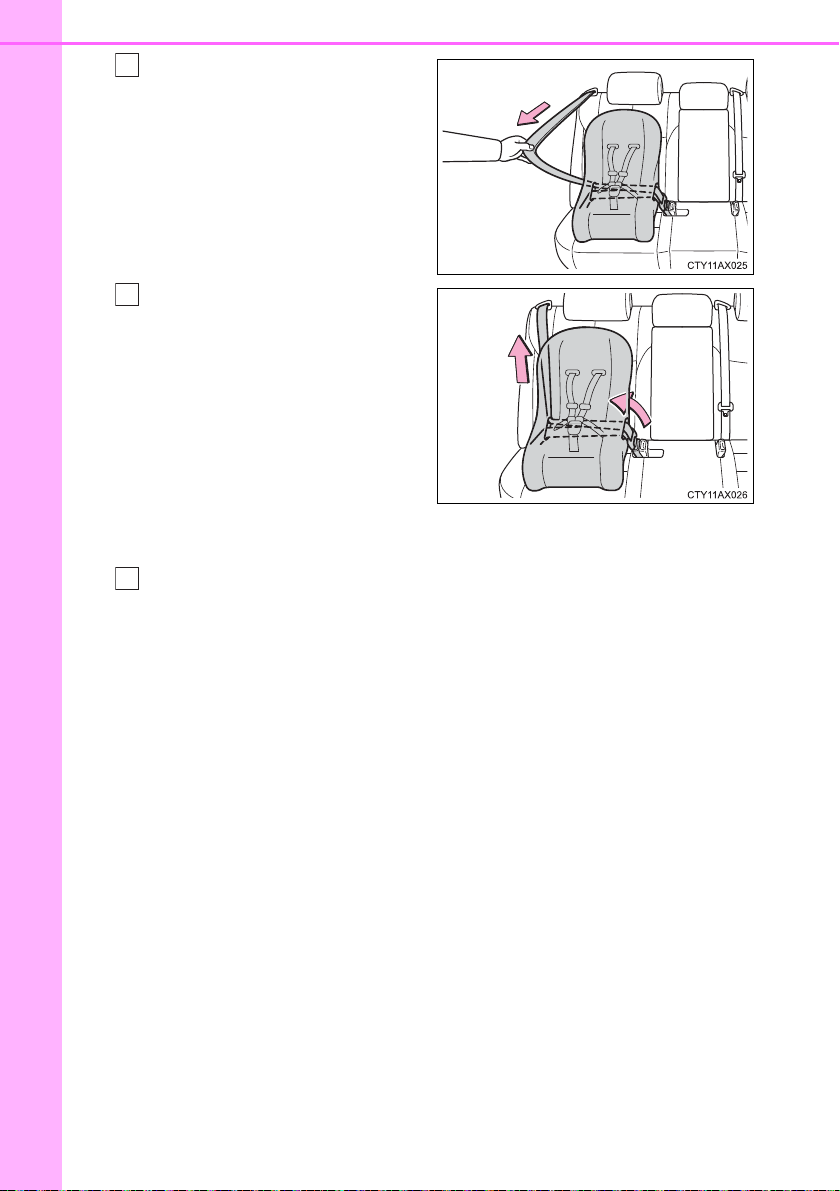

■ Automatic locking retractor (ALR)
When a passenger’s shoulder belt is completely extended and then retracted
even slightly, the belt is locked in that position and cannot be extended. This
feature is used to hold the child restraint system (CRS) firmly. To free the belt
again, fully retract the belt and then pull the belt out once more. (→P. 57)
■ Child seat belt usage
The seat belts of your vehicle were principally designed for persons of adult
size.
● Use a child restraint system appropriate for the child, until the child
● When the child becomes large enough to properly wear the vehicle’s seat
■ Replacing the belt after the pretensioner has been activated
If the vehicle is involved in multiple collisions, the pretensioner will activate for
the first collision, but will not activate for the second or subsequent collisions.
■ Seat belt extender
If your seat belts cannot be fastened
securely because they are not long
enough, a personalized seat belt extender
is available from your Toyota dealer free
of charge.
1-1. For safe use
becomes large enough to properly wear the vehicle’s seat belt. (→P. 53)
belt, follow the instructions regarding seat belt usage. (→P. 28)
1-1. For safe use
WARNING
Obtain medical advice and wear the seat
belt in the proper way. (→P. 28)
Women who are pregnant should position the lap belt as low as possible over
the hips in the same manner as other
occupants, extending the shoulder belt
completely over the shoulder and avoiding belt contact with the rounding of the
abdominal area.
If the seat belt is not worn properly, not
only the pregnant woman, but also the
fetus could suffer death or serious injury
as a result of sudden braking or a collision.
Observe the following precautions to reduce the risk of injury in the event of
sudden braking, sudden swerving or an accident.
Failure to do so may cause death or serious injury.
■ Wearing a seat belt
● Ensure that all passengers wear a seat belt.
● Always wear a seat belt properly.
● Each seat belt should be used by one person only. Do not use a seat belt
for more than one person at once, including children.
● Toyota recommends that children be seated in the rear seat and always
use a seat belt and/or an appropriate child restraint system.
● To achieve a proper seating position, do not recline the seat more than
necessary. The seat belt is most effective when the occupants are sitting
up straight and well back in the seats.
● Do not wear the shoulder belt under your arm.
● Always wear your seat belt low and snug across your hips.
■ Pregnant women
31
1
For safety and security
32
WARNING
■ People suffering illness
■ When children are in the vehicle
■ Seat belt pretensioners (front seats)
■ Adjustable shoulder anchor (front seats)
1-1. For safe use
Obtain medical advice and wear the seat belt in the proper way. (→P. 28)
Do not allow children to play with the seat belt. If the seat belt becomes
twisted around a child’s neck, it may lead to choking or other serious injuries
that could result in death.
If this occurs and the buckle cannot be unfastened, scissors should be used
to cut the belt.
● Do not place anything, such as a cushion, on the front passenger's seat.
Doing so will disperse the passenger's weight, which prevents the sensor
from detecting the passenger's weight properly. As a result, the seat belt
pretensioner for the front passenger's seat may not activate in the event of
a collision.
● If the pretensioner has activated, the SRS warning light will come on. In
that case, the seat belt cannot be used again and must be replaced at
your Toyota dealer.
Always make sure the shoulder belt is positioned across the center of your
shoulder. The belt should be k ept away from your neck, but not falling off
your shoulder. Failure to do so could reduce the amount of protection in an
accident and cause death or serious injuries in the event of a sudden stop,
sudden swerve or accident. (→P. 29)
1-1. For safe use
WARNING
NOTICE
■ Seat belt damage and wear
● Do not damage the seat belts by allowing the belt, plate, or buckle to be
jammed in the door.
● Inspect the seat belt system periodically . Check for cuts, fraying, and loose
parts. Do not use a damaged seat belt until it is replaced. Damaged seat
belts cannot protect an occupant from death or serious injury.
● Ensure that the belt and plate are locked and the belt is not twisted.
If the seat belt does not function correctly, immediately contact your Toyota
dealer.
● Replace the seat assembly, including the belts, if your vehicle has been
involved in a serious accident, even if there is no obvious damage.
● Do not attempt to install, remove, modify, disassemble or dispose of the
seat belts. Have any necessary repairs carried out by your Toyota dealer.
Inappropriate handling may lead to incorrect operation.
■ Using a seat belt extender
● Do not wear the seat belt extender if you can fasten the seat belt without
the extender.
● Do not use the seat belt extender when installing a child restraint system
because the belt will not securely hold the child restraint system, increasing the risk of death or serious injury in the event of an accident.
● The personalized extender may not be safe on another vehicle, when
used by another person, or at a different seating position other than the
one originally intended.
33
1
For safety and security
■ When using a seat belt extender
When releasing the seat belt, press on the buckle release button on the
extender, not on the seat belt.
This helps prevent damage to the vehicle interior and the extender itself.
34
1-1. For safe use
SRS airbags
The SRS airbags inflate when the vehicle is subjected to certain
types of severe impacts that may cause significant injury to the
occupants. They work together with the seat belts to help reduce
the risk of death or serious injury .
◆ SRS front airbags
SRS driver airbag/front passenger airbag
1
Can help protect the head and chest of the driver and front passenger from impact with interior components
SRS knee airbags
2
Can help provide driver and front passenger protection
1-1. For safe use
◆ SRS side and curtain shield airbags
SRS front side airbags
3
Can help protect the torso of the front seat occupants
SRS rear side airbags
Can help protect the torso of occupants in the rear outer seats
SRS curtain shield airbags
4
● Can help protect primarily the head of occupants in the outer
seats
● Can help prevent the occupants from being thrown from the
vehicle in the event of vehicle rollover
35
1
For safety and security
36
10
11
12
13
14
151617
1-1. For safe use
SRS airbag system components
Front impact sensors
1
Knee airbags
2
Side impact sensors (front
3
doors)
Seat belt pretensioners and
4
force limiters
Front passenger airbag
5
Front side airbags
6
Curtain shield airbags
7
“AIR BAG ON” and “AIR BAG
8
OFF” indicator lights
Side impact sensors (front)
9
Rear side airbags
Side impact sensors (rear)
Driver airbag
Driver’s seat belt buckle
switch
SRS warning light
Front passenger’s seat belt
buckle switch
Front passenger occupant
classification system (ECU
and sensors)
Airbag sensor assembly
1-1. For safe use
WARNING
Your vehicle is equipped w ith ADV ANCED AIRBAGS designed based
on the US motor vehicle safety standards (FMVSS208). The airbag
sensor assembly (ECU) controls airbag deployment based on information obtained from the sensors etc. shown in the system comp onents diagram above. This information includes crash severity and
occupant information. As the airbags deploy, a chemical reaction in
the inflators quickly fills the airbags with non-to xic gas to help restrain
the motion of the occupants.
■ SRS airbag precautions
Observe the following precautions regarding the SRS airbags.
Failure to do so may cause death or serious injury.
● The driver and all passengers in the vehicle must wear their seat belts
properly.
The SRS airbags are supplemental devices to be used with the seat belts.
● The SRS driver airbag deploys with considerable force, and can cause
death or serious injury especially if the driver is very close to the airbag.
The National Highway Traffic Safety Administration (NHTSA) advises:
Since the risk zone for the driver’s airbag is the first 2 - 3 in. (50 - 75 mm)
of inflation, placing yourself 10 in. (250 mm) from your driver airbag provides you with a clear margin of safety. This distance is measured from
the center of the steering wheel to your breastbone. If you sit less than 10
in. (250 mm) away now, you can change your driving position in several
ways:
• Move your seat to the rear as far as you can while still reaching the pedals comfortably.
• Slightly recline the back of the seat.
Although vehicle designs vary, many drivers can achieve the 10 in. (250
mm) distance, even with the driver seat all the way forward, simply by
reclining the back of the seat somewhat. If reclining the back of your
seat makes it hard to see the road, raise yourself by using a firm, nonslippery cushion, or raise the seat if your vehicle has that feature.
• If your steering wheel is adjustable, tilt it downward. This points the airbag toward your chest instead of your head and neck.
The seat should be adjusted as recommended by NHTSA above, while
still maintaining control of the foot pedals, steering wheel, and your view
of the instrument panel controls.
37
1
For safety and security
38
WARNING
● If the seat belt extender has been con-
nected to the front seat belt buckles but
the seat belt extender has not also been
fastened to the latch plate of the seat
belt, the SRS front airbags will judge
that the driver and front passenger are
wearing the seat belt even though the
seat belt has not been connected. In
this case, the SRS front airbags may
not activate correctly in a collision,
resulting in death or serious injury in the
event of a collision. Be sure to wear the
seat belt with the seat belt extender.
● Do not sit on the edge of the seat or
lean against the dashboard.
■ SRS airbag precautions
1-1. For safe use
● The SRS front passenger airbag also deploys with considerable force, and
can cause death or serious injury especially if the front passenger is very
close to the airbag. The front passenger seat should be as far from the airbag as possible with the seatback adjusted, so the front passenger sits
upright.
● Improperly seated and/or restrained infants and children can be killed or
seriously injured by a deploying airbag. An infant or child who is too small
to use a seat belt should be properly secured using a child restraint system. Toyota strongly recommends that all infants and children be placed in
the rear seats of the vehicle and properly restrained. The rear seats are
safer for infants and children than the front passenger seat. (→P. 53)
WARNING
■ SRS airbag precautions
● Do not allow a child to stand in front of
the SRS front passenger airbag unit or
sit on the knees of a front passenger.
● Do not allow the front seat occupants to
hold items on their knees.
● Do not lean against the door, the roof
side rail or the front, side and rear pillars.
● Do not allow anyone to kneel on the
passenger seats toward the door or put
their head or hands outside the vehicle.
● Do not attach anything to or lean any-
thing against areas such as the dashboard, steering wheel pad and lower
portion of the instrument panel.
These items can become projectiles
when the SRS driver, front passenger
and knee airbags deploy.
● Do not attach anything to areas such as
a door, windshield glass, side door
glass, front or rear pillar, roof side rail
and assist grip.
1-1. For safe use
39
1
For safety and security
40
WARNING
■ SRS airbag precautions
1-1. For safe use
● Do not hang coat hangers or hard objects on the coat hooks. All of these
items could become projectiles and may cause death or serious injury,
should the SRS curtain shield airbags deploy.
● If a vinyl cover is put on the area where the SRS knee airbag will deploy,
be sure to remove it.
● Do not use seat accessories which cover the parts where the SRS side
airbags inflate as they may interfere with inflation of the airbags. Such
accessories may prevent the side airbags from activating correctly, disable
the system or cause the side airbags to inflate accidentally, resulting in
death or serious injury.
● Do not strike or apply significant levels of force to the area of the SRS air-
bag components.
Doing so can cause the SRS airbags to malfunction.
● Do not touch any of the component parts immediately after the SRS air-
bags have deployed (inflated) as they may be hot.
● If breathing becomes difficult after the SRS airbags have deployed, open a
door or window to allow fresh air in, or leave the vehicle if it is safe to do
so. Wash off any residue as soon as possible to prevent skin irritation.
● If the areas where the SRS airbags are stored, such as the steering wheel
pad and front and rear pillar garnishes are damaged or cracked, have
them replaced by your Toyota dealer.
● Do not place anything, such as a cushion, on the front passenger's seat.
Doing so will disperse the passenger's weight, which prevents the sensor
from detecting the passenger's weight properly. As a result, the SRS front
airbags for the front passenger may not deploy in the event of a collision.
1-1. For safe use
WARNING
■ Modification and disposal of SRS airbag system components
Do not dispose of your vehicle or perform any of the following modifications
without consulting your Toyota dealer. The SRS airbags may malfunction or
deploy (inflate) accidentally, causing death or serious injury.
● Installation, removal, disassembly and repair of the SRS airbags
● Repairs, modifications, removal or replacement of the steering wheel,
instrument panel, dashboard, seats or seat upholstery, front, side and rear
pillars or roof side rails
● Repairs or modifications of the front fender, front bumper, or side of the
occupant compartment
● Installation of a grille guard (bull bars, kangaroo bar, etc.), snow plows,
winches, or roof luggage carrier
● Modifications to the vehicle’s suspension system
● Installation of electronic devices such as mobile two-way radios and CD
players
● Modifications to your vehicle for a person with a physical disability
■ If the SRS airbags deploy (inflate)
● Slight abrasions, burns, bruising etc., may be sustained from SRS airbags,
due to the extremely high speed deployment (inflation) by hot gases.
● A loud noise and white powder w ill be emitted.
● Parts of the airbag module (steering wheel hub, airbag cover and inflator) as
well as the seats, parts of the front and rear pillars, and roof side rails may
be hot for several minutes. The airbag itself may also be hot.
● The windshield may crack.
● For Safety Connect subscribers, if the SRS airbags deploy or in the event of
a severe rear-end collision, the system is designed to send an emergency
call to the response center, notifying them of the vehicle’s location (without
needing to push the “SOS” button) and an agent will attempt to speak with
the occupants to ascertain the level of emergency and assistance required.
If the occupants are unable to communicate, the agent automatically treats
the call as an emergency and helps to dispatch the necessary emergency
services. (→P. 301)
41
1
For safety and security
42
■ SRS airbag deployment conditions (SRS front airbags)
● The SRS front airbags will deploy in the event of an impact that exceeds the
● Depending on the type of collision, it is possible that only the seat belt pre-
● The SRS front airbags for the front passenger will not activate if there is no
■ SRS airbag deployment conditions (SRS side and curtain shield airbags)
● The SRS side and curtain shield airbags will deploy in the event of an
● The SRS curtain shield airbags will deploy in the event of vehicle rollover.
● The SRS side and curtain shield airbags will deploy in the event of a severe
1-1. For safe use
set threshold level (the level of force corresponding to an approximately 12 18 mph [20 - 30 km/h] frontal collision with a fixed wall that does not move or
deform).
However, this threshold velocity will be considerably higher in the following
situations:
• If the vehicle strikes an object, such as a parked vehicle or sign pole,
which can move or deform on impact
• If the vehicle is involved in an underride collision, such as a collision in
which the front of the vehicle “underrides”, or goes under, the bed of a
truck
tensioners will activate.
passenger sitting in the front passenger seat. However, the SRS front airbags for the front passenger may deploy if luggage is put in the seat, even if
the seat is unoccupied. (→P. 46)
impact that exceeds the set threshold level (the level of force corresponding
to the impact force produced by an approximately 3300 lb. [1500 kg] vehicle
colliding with the vehicle cabin from a direction perpendicular to the vehicle
orientation at an approximate speed of 12 - 1 8 m p h [ 2 0 - 3 0 k m / h ] ) .
frontal collision.
1-1. For safe use
43
■ Conditions under which the SRS airbags may deploy (inflate), other than
a collision
The SRS front airbags and SRS side and curtain shield airbags may also
deploy if a serious impact occurs to the underside of your vehicle.
Some examples are shown in the illustration.
● Hitting a curb, edge of pavement or hard
surface
● Falling into or jumping over a deep hole
● Landing hard or falling
The SRS curtain shield airbags may also deploy under the situations shown
in the illustration.
● The angle of vehicle tip-up is marginal.
● The vehicle skids and hits a curb stone.
1
For safety and security
■ Types of collisions that may not deploy the SR S airbags (SRS front air-
bags)
The SRS front airbags do not generally inflate if the vehicle is involved in a
side or rear collision, if it rolls over, or if it is involved in a low-speed frontal
collision. But, whenever a collision of any type causes sufficient forward
deceleration of the vehicle, deployment of the SRS front airbags may occur.
● Collision from the side
● Collision from the rear
● Vehicle rollover
44
■ Types of collisions that may not deploy the SRS airbags (SR S side and
curtain shield airbags)
The SRS side and curtain shield airbags may not activate if the vehicle is
subjected to a collision from the side at certain angles, or a collision to the
side of the vehicle body other than the passenger compartment.
● Collision from the side to the vehicle
● Collision from the side at an angle
The SRS side airbags do not generally inflate if the vehicle is involved in a
rear collision, if it rolls over, or if it is involved in a low-speed side or lowspeed frontal collision.
● Collision from the rear
● Vehicle rollover
1-1. For safe use
body other than the passenger compartment
The SRS curtain shield airbags do not generally inflate if the vehicle is
involved in a rear collision, if it pitches end over end, or if it is involved in a
low-speed side or low-speed frontal collision.
● Collision from the rear
● Pitching end over end
1-1. For safe use
■ When to contact your Toyota dealer
In the following cases, the vehicle will require inspection and/or repair. Contact your Toyota dealer as soon as possible.
● Any of the SRS airbags have been inflated.
● The front of the vehicle is damaged or
deformed, or was involved in an accident that was not severe enough to
cause the SRS front airbags to inflate.
● A portion of a door or its surrounding
area is damaged or deformed, or the
vehicle was involved in an accident that
was not severe enough to cause the
SRS side and curtain shield airbags to
inflate.
● The pad section of the steering wheel,
dashboard near the front passenger airbag or lower portion of the instrument
panel is scratched, cracked, or otherwise damaged.
45
1
For safety and security
● The surface of the seats with the side
airbag is scratched, cracked, or otherwise damaged.
● The portion of the front pillars, rear pil-
lars or roof side rail garnishes (padding)
containing the curtain shield airbags
inside is scratched, cracked, or otherwise damaged.
46
1-1. For safe use
Front passenger occupant classification
system
Y our vehicle is equipped with a front passenger occupant classification system. This system detects the conditions of the front
passenger seat and activates or deactivates the devices for the
front passenger.
SRS warning light
1
Seat belt reminder light
2
“AIR BAG OFF” indicator light
3
“AIR BAG ON” indicator light
4
1-1. For safe use
Condition and operation in the front passenger occupant classification system
■ Adult*
1
47
Indicator/
warning light
Devices
■ Child*
Indicator/
warning light
“AIR BAG ON” and “AIR BAG OFF”
indicator lights
SRS warning light Off
Seat belt reminder light
Front passenger airbag
Side airbag
on the front passenger seat
Curtain shield airbag
in the front passenger side
Front passenger knee airbag
Front passenger’s seat belt pretensioner
4
“AIR BAG ON” and “AIR BAG OFF”
indicator lights
SRS warning light Off
Seat belt reminder light
“AIR BAG ON”
2
Off*
or
2
*
or
3
*
4
3
*
flashing
Activated
“AIR BAG OFF”
or “AIR BAG
ON”
Off*
flashing
1
For safety and security
Devices
Front passenger airbag
Side airbag
on the front passenger seat
Curtain shield airbag
in the front passenger side
Front passenger knee airbag
Front passenger’s seat belt pretensioner Activated
Deactivated or
activated
Activated
Deactivated or
activated
4
*
4
*
48
1-1. For safe use
■ Child restraint system with infant*
“AIR BAG ON” and “AIR BAG OFF”
indicator lights
Indicator/
warning light
Devices
Front passenger’s seat belt pretensioner Activated
■ Unoccupied
“AIR BAG ON” and “AIR BAG OFF”
Indicator/
warning light
SRS warning light Off
Seat belt reminder light
Front passenger airbag Deactivated
Side airbag
on the front passenger seat
Curtain shield airbag
in the front passenger side
Front passenger knee airbag Deactivated
indicator lights
SRS warning light
Seat belt reminder light
5
“AIR BAG
flashing
Activated
“AIR BAG OFF”
OFF”
Off*
Off
2
*
or
6
3
*
Devices
Front passenger airbag Deactivated
Side airbag
on the front passenger seat
Activated
Curtain shield airbag
in the front passenger side
Front passenger knee airbag Deactivated
Front passenger’s seat belt pretensioner Activated
■ There is a malfunction in the system
1-1. For safe use
49
“AIR BAG ON” and “AIR BAG OFF”
indicator lights
Indicator/
warning light
Devices
Front passenger’s seat belt pretensioner Activated
1
*
: The system judges a person of adult size as an adult. When a smaller
adult sits in the front passenger seat, the system may not recognize him/
her as an adult depending on his/her physique and posture.
2
*
: In the event the front passenger is wearing a seat belt.
3
*
: In the event the front passenger does not wear a seat belt
4
*
: For some children, child in seat, child in booster seat or child in convertible
seat, the system may not recognize him/her as a child. Factors which may
affect this can be the physique or posture.
5
*
: Never install a rear-facing child restraint system on the front passenger
seat. A forward-facing child restraint system should only be installed on the
front passenger seat when it is unavoidable. (→P. 53)
6
*
: In case the indicator light is not illuminated, consult this manual on how to
install the child restraint system properly. (→P. 57)
SRS warning light
Seat belt reminder light
Front passenger airbag Deactivated
Side airbag
on the front passenger seat
Curtain shield airbag
in the front passenger side
Front passenger knee airbag Deactivated
“AIR BAG OFF”
On
Activated
1
For safety and security
50
WARNING
■ Front passenger occupant classification system precautions
1-1. For safe use
Observe the following precautions regarding the front passenger occupant
classification system.
Failure to do so may cause death or serious injury.
● Wear the seat belt properly.
● Make sure the front passenger’s seat belt plate has not been left inserted
into the buckle before someone sits in the front passenger seat.
● Make sure the “AIR BAG OFF” indicator light is not illuminated when using
the seat belt extender for the front passenger seat. If the “AIR BAG OFF”
indicator light is illuminated, disconnect the extender tongue from the seat
belt buckle, and reconnect the seat belt. Reconnect the seat belt extender
after making sure the “AIR BAG ON” indicator light is illuminated. If you
use the seat belt extender while the “AIR BAG OFF” indicator light is illuminated, the SRS airbags for the front passenger will not activate correctly,
which could cause death or serious injury in the event of a collision.
● Do not apply a heavy load to the front passenger seat or equipment (e.g.
seatback pockets).
● Do not put weight on the front passenger seat by putting your hands or
feet on the front passenger seat seatback from the rear passenger seat.
● Do not let a rear passenger lift the front passenger seat with their feet or
press on the seatback with their legs.
● Do not put objects under the front passenger seat.
1-1. For safe use
WARNING
■ Front passenger occupant classification system precautions
● Do not recline the front passenger seatback so far that it touches a rear
seat. This may cause the “AIR BAG OFF” indicator light to be illuminated,
which indicates that the SRS airbags for the front passenger will not
deploy in the event of a severe accident. If the seatback touches the rear
seat, return the seatback to a position where it does not touch the rear
seat. Keep the front passenger seatback as upright as possible when the
vehicle is moving. Reclining the seatback excessively may lessen the
effectiveness of the seat belt system.
● If an adult sits in the front passenger seat, the “AIR BAG ON” indicator
light is illuminated. If the “AIR BAG OFF” indicator is illuminated, ask the
passenger to sit up straight, well back in the seat, feet on the floor, and
with the seat belt worn correctly. If the “AIR BAG OFF” indicator still
remains illuminated, either ask the passenger to move to the rear seat, or
if that is not possible, move the front passenger seat fully rearward.
● When it is unavoidable to install a forward-facing child restraint system on
the front passenger seat, install the child restraint system on the front passenger seat in the proper order. (→P. 57)
● Do not modify or remove the front seats.
● Do not kick the front passenger seat or subject it to severe impact. Other-
wise, the SRS warning light may come on to indicate a malfunction of the
detection system. In this case, contact your Toyota dealer immediately.
● Child restraint systems installed on the rear seat should not contact the
front seatbacks.
● Do not use a seat accessory, such as a cushion and seat cover, that cov-
ers the seat cushion surface.
● Do not modify or replace the upholstery of the front seat.
51
1
For safety and security
52
WARNING
1-1. For safe use
Safety information for children
Observe the following precautions when children are in the vehicle.
Use a child restraint system appropriate for the child, until the
child becomes large enough to properly wear the vehicle’s seat
belt.
● It is recommended that children sit in the rear seats to avoid accidental contact with the shift lever, wiper switch etc.
● Use the rear door child-protector lock or the window lock switch to
avoid children opening the door while driving or operating the
power window accidentally.
● Do not let small children operate equipment which may catch or
pinch body parts, such as the power window, hood, trunk, seats etc.
Never leave children unattended in the vehicle, and never allow children to
have or use the key.
Children may be able to start the vehicle or shift the vehicle into neutral.
There is also a danger that children may injure themselves by playing with
the windows, the moon roof or other features of the vehicle. In addition, heat
build-up or extremely cold temperatures inside the vehicle can be fatal to
children.
1-1. For safe use
Child restraint systems
A child restraint system for a small child or baby must itself be
properly restrained on the seat with the LATCH anchors or the
lap portion of the lap/shoulder belt.
The laws of all 50 states of the U.S.A. and Canada now require
the use of child restraint systems.
Points to remember
Studies have shown that installing a child restraint on a rear seat is
much safer than installing one on the front passenger seat.
● Choose a child restraint system that suits your vehicle and is appropriate to the age and size of the child.
● For installation details, follow the instructions provided with t he child
restraint system.
General installation instructions are provided in this manual.
(→P. 57)
53
1
For safety and security
54
1-1. For safe use
Types of child restraints
Child restraint systems are classified into the following 3 types
according to the age and size of the child:
R ear facing ⎯ Infant seat/con-
vertible seat
Booster seat
Forward facing ⎯ Convertible
seat
■ Selecting an appropriate child restraint system
● Use a child restraint system appropriate for the child until the child becomes
large enough to properly wear the vehicle’s seat belt.
● If the child is too large for a child restraint system, sit the child on a rear seat
and use the vehicle’s seat belt. (→P. 28)
1-1. For safe use
WARNING
■ Child restraint precautions
● For effective protection in automobile accidents and sudden stops, a child
must be properly restrained, using a seat belt or child restraint system
depending on the age and size of the child. Holding a child in your arms is
not a substitute for a child restraint system. In an accident, the child can be
crushed against the windshield, or between you and the vehicle’s interior.
● Toyota strongly urges the use of a proper child restraint system that con-
forms to the size of the child, installed on the rear seat. According to accident statistics, the child is safer when properly restrained in the rear seat
than in the front seat.
● Never install a rear-facing child restraint system on the front passenger
seat even if the “AIR BAG OFF” indicator light is illuminated.
In the event of an accident, the force of the rapid inflation of the front passenger airbag can cause death or serious injury to the child if the rear-facing child restraint system is installed on the front passenger seat.
● A forward-facing child restraint system may be installed on the front pas-
senger seat only when it is unavoidable. A child restraint system that
requires a top tether strap should not be used in the front passenger seat
since there is no top tether strap anchor for the front passenger seat.
Adjust the seatback as upright as possible and always move the seat as
far back as possible even if the “AIR BAG OFF” indicator light is illuminated, because the front passenger airbag could inflate with considerable
speed and force. Otherwise, the child may be killed or seriously injured.
● Do not use the seat belt extender when installing a child restraint system
on the front or rear passenger seat. If installing a child restraint system
with the seat belt extender connected to the seat belt, the seat belt will not
securely hold the child restraint system, which could cause death or serious injury to the child or other passengers in the event of an accident.
● Do not allow the child to lean his/her head or any part of his/her body
against the door or the area of the seat, front and rear pillars or roof side
rails from which the SRS side airbags or SRS curtain shield airbags deploy
even if the child is seated in the child restraint system. It is dangerous if
the SRS side airbags and curtain shield airbags inflate, and the impact
could cause death or serious injury to the child.
● Make sure you have complied with all installation instructions provided by
the child restraint manufacturer and that the system is properly secured. If
it is not secured properly, it may cause death or serious injury to the child
in the event of a sudden stop, sudden swerve or accident.
55
1
For safety and security
56
WARNING
■ When children are in the vehicle
■ When the child restraint system is not in use
1-1. For safe use
Do not allow children to play with the seat belt. If the seat belt becomes
twisted around a child’s neck, it may lead to choking or other serious injuries
that could result in death.
If this occurs and the buckle cannot be unfastened, scissors should be used
to cut the belt.
● Keep the child restraint system properly secured on the seat even if it is
not in use. Do not store the child restraint system unsecured in the passenger compartment.
● If it is necessary to detach the child restraint system, remove it from the
vehicle or store it securely in the trunk. This will prevent it from injuring
passengers in the event of a sudden stop, sudden swerve or accident.
1-1. For safe use
CTY11AX014
Installing child restraints
Follow the child restraint system manufacturer’s instructions.
Firmly secure child restraints to the seats using the LATCH
anchors or a seat belt. Attach the top tether strap when installing
a child restraint.
The lap/shoulder belt can be used if your child restraint system
is not compatible with the LATCH (Lower Anchors and Tethers
for Children) system.
Child restraint LATCH anchors
LATCH anchors are provided for
the outboard rear seats. (Buttons
displaying the location of the
anchors are attached to the seats.)
Seat belts equipped with a child
restraint locking mechanism
(ALR/ELR belts except driver’s
seat belt) (→P. 30)
57
1
For safety and security
Anchor brackets (for top tether
strap)
An anchor bracket is provided for
each rear seat.
58
Canada only
1-1. For safe use
Installation with LATCH system
1
Adjust the head restraint to the downmost position. (→P. 126)
2
Widen the gap between the seat cushion and seatback slightly.
3
Rear left seat only: Slide the
rear center seat belt to the side
to prevent it from getting
pinched in the lower anchorage.
Type A
4
Latch the hooks of the lower
straps onto the LATCH
anchors. If the child restraint
has a top tether strap, the top
tether strap should be latched
onto the top tether strap anchor.
For owners in Canada:
The symbol on a child restraint
system indicates the presence
of a lower connector system.
Type B
Canada only
4
Latch the buckles onto the
LATCH anchors. If the child
restraint has a top tether strap,
the top tether strap should be
latched onto the top tether strap
anchor.
For owners in Canada:
The symbol on a child restraint
system indicates the presence
of a lower connector system.
1-1. For safe use
59
1
For safety and security
60
1-1. For safe use
Installing child restraints using a seat belt (child restraint lock
function belt)
■ Rear-facing ⎯ Infant seat/convertible se at
1
Place the child restraint system on the rear seat facing
the rear of the vehicle.
2
Run the seat belt through the
child restraint system and
insert the plate into the
buckle. Make sure that the
belt is not twisted.
3
Fully extend the shoulder belt
and allow it to retract to put it
in lock mode. In lock mode,
the belt cannot be extended.
1-1. For safe use
4
While pushing the child
restraint system down into
the rear seat, allow the
shoulder belt to retract until
the child restraint system is
securely in place.
After the shoulder belt has
retracted to a point where there
is no slack in the belt, pull the
belt to check that it cannot be
extended.
Forward-facing ⎯ Convertible seat
■
1
Adjust the head restraint to the downmost position. (→P. 126)
2
Place the child restraint system on the seat facing the
front of the vehicle.
61
1
For safety and security
3
Run the seat belt through the
child restraint system and
insert the plate into the
buckle. Make sure that the
belt is not twisted.
62
1-1. For safe use
4
Fully extend the shoulder belt
and allow it to retract to put it
in lock mode. In lock mode,
the belt cannot be extended.
5
While pushing the child
restraint system into the rear
seat, allow the shoulder belt
to retract until the child
restraint system is securely
in place.
After the shoulder belt has
retracted to a point where there
is no slack in the belt, pull the
belt to check that it cannot be
extended.
6
If the child restraint has a top tether strap, the top tether strap
should be latched onto the top tether strap anchor. (→P. 64)
■ Booster seat
1
Place the child restraint system on the seat facing the
front of the vehicle.
2
Sit the child in the child
restraint system. Fit the seat
belt to the child restraint system according to the manufacturer’s instructions and
insert the plate into the
buckle. Make sure that the
belt is not twisted.
Check that the shoulder belt is
correctly positioned over the
child’s shoulder and that the lap
belt is as low as possible.
(→P. 28)
1-1. For safe use
63
1
For safety and security
Removing a child restraint installed with a seat belt
Push the buckle release button
and fully retract the seat belt.
64
1-1. For safe use
Child restraint systems with a top tether strap
1
Adjust the head restraint to the downmost position. (→P. 126)
2
Secure the child restraint system using the seat belt or
LATCH anchors.
3
Open the anchor bracket cover,
latch the hook onto the anchor
bracket and tighten the top
tether strap.
Make sure the top tether strap is
securely latched.
■ Laws and regulations pertaining to anchorages
The LATCH system conforms to FMVSS225 or CMVSS210.2.
Child restraint systems conforming to FMVSS213 or CMVSS213 specifications can be used.
This vehicle is designed to conform to the SAE J1819.
1-1. For safe use
WARNING
● If the driver’s seat interferes with the
child restraint system and prevents it
from being attached correctly , attach the
child restraint system to the right-hand
rear seat.
● Adjust the front passenger seat so that
it does not interfere with the child
restraint system.
● Only put a forward-facing child restraint
system on the front seat when unavoidable. When installing a forward-facing
child restraint system on the front passenger seat, move the seat as far back
as possible even if the “AIR BAG OFF”
indicator light is illuminated. Failure to
do so may result in death or serious
injury if the airbags deploy (inflate).
■ When installing a booster seat
To prevent the belt from going into ALR lock mode, do not fully extend the
shoulder belt. ALR mode causes the belt to tighten only. This could cause
injury or discomfort to the child. (→P. 30)
■ When installing a child restraint system
Follow the directions given in the child restraint system installation manual
and fix the child restraint system securely in place.
If the child restraint system is not correctly fixed in place, the child or other
passengers may be seriously injured or even killed in the event of a sudden
braking or an accident.
65
1
For safety and security
66
WARNING
■ When installing a child restraint system
■ Do not use a seat belt extender
■ To correctly attach a child restraint system to the anchors
1-1. For safe use
● When a booster seat is installed, always ensure that the shoulder belt is
positioned across the center of the child’s shoulder. The belt should be
kept away from the child’s neck, but not so that it could fall off the child’s
shoulder. Failing to do so may result in death or serious injury in the event
of an accident or a sudden braking.
● Ensure that the belt and plate are securely locked and the seat belt is not
twisted.
● Shake the child restraint system left and right, and forward and backward
to ensure that it has been securely installed.
● After securing a child restraint system, never adjust the seat.
● Follow all installation instructions provided by the child restraint system
manufacturer.
● When securing some types of child restraint systems in rear seats, it may
not be possible to properly use the seat belts in positions next to the child
restraint without interfering with it or affecting seat belt effectiveness. Be
sure your seat belt fits snugly across your shoulder and low on your hips. If
it does not, or if it interferes with the child restraint, move to a different
position. Failure to do so may result in death or serious injury.
If a seat belt extender is used when installing a child restraint system, the
seat belt will not securely hold the child restraint system, which could cause
death or serious injury to the child or other passengers in the event of a sudden braking, sudden swerving or an accident.
When using the LATCH anchors, be sure that there are no foreign objects
around the anchors and that the seat belt is not caught behind the child
restraint system. Make sure the child restraint system is securely attached,
or it may cause death or serious injury to the child or other passengers in
the event of a sudden braking or an accident.
1-1. For safe use
WARNING
Exhaust gas precautions
Harmful substance to the human body is included in exhaust
gases if inhaled.
67
1
Exhaust gases include harmful carbon monoxide (CO), which is colorless and
odorless. Observe the following precautions.
Failure to do so may cause exhaust gases to enter the vehicle and may lead
to an accident caused by light-headedness, or may lead to death or a serious
health hazard.
■ Important points while driving
● Keep the trunk lid closed.
● If you smell exhaust gases in the vehicle even when the trunk lid is closed,
open the windows and have the vehicle inspected at your Toyota dealer as
soon as possible.
■ When parking
● If the vehicle is in a poorly ventilated area or a closed area, such as a
garage, stop the engine.
● Do not leave the vehicle with the engine on for a long time.
If such a situation cannot be avoided, park the vehicle in an open space
and ensure that exhaust fumes do not enter the vehicle interior.
● Do not leave the engine running in an area with snow build-up, or where it
is snowing. If snowbanks build up around the vehicle while the engine is
running, exhaust gases may collect and enter the vehicle.
■ Exhaust pipe
The exhaust system needs to be checked periodically. If there is a hole or
crack caused by corrosion, damage to a joint or abnormal exhaust noise, be
sure to have the vehicle inspected and repaired by your Toyota dealer.
For safety and security
68
1-2. Theft deterrent system
Engine immobilizer system
The vehicle’s keys have built-in transponder chips that prevent
the engine from starting if a key has not been previously registered in the vehicle’s on-board computer.
Never leave the keys inside the vehicle when you leave the vehicle.
This system is designed to help prevent vehicle theft but does
not guarantee absolute security against all vehicle thefts.
The indicator light flashes after
the engine switch has been turned
off to indicate that the system is
operating.
The indicator light stops flashing
after the engine switch has been
turned to ACCESSORY or IGNITION ON mode to indicate that
the system has been canceled.
■ System maintenance
The vehicle has a maintenance-free type engine immobilizer system.
■ Conditions that may cause the system to malfunction
● If the grip portion of the key is in contact with a metallic object
● If the key is in close proximity to or touching a key to the security system
(key with a built-in transponder chip) of another vehicle
1-2. Theft deterrent system
WARNING
NOTICE
■ Certifications for the engine immobilizer system
For vehicles sold in the U.S.A.
FCC ID: NI4TMIMB-3
This device complies with part 15 of the FCC Rules. Operation is subject to
the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including
interference that may cause undesired operation.
For vehicles sold in Canada
This device complies with Industry Canada licence-exempt RSS standard(s).
Operation is subject to the following two conditions: (1) this device may not
cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device.
■ Certifications for the engine immobilizer system
Changes or modifications not expressly approved by the party responsible
for compliance could void the user’s authority to operate the equipment.
■ To ensure the system operates correctly
Do not modify or remove the system. If modified or removed, the proper
operation of the system cannot be guaranteed.
69
1
For safety and security
70
1-2. Theft deterrent system

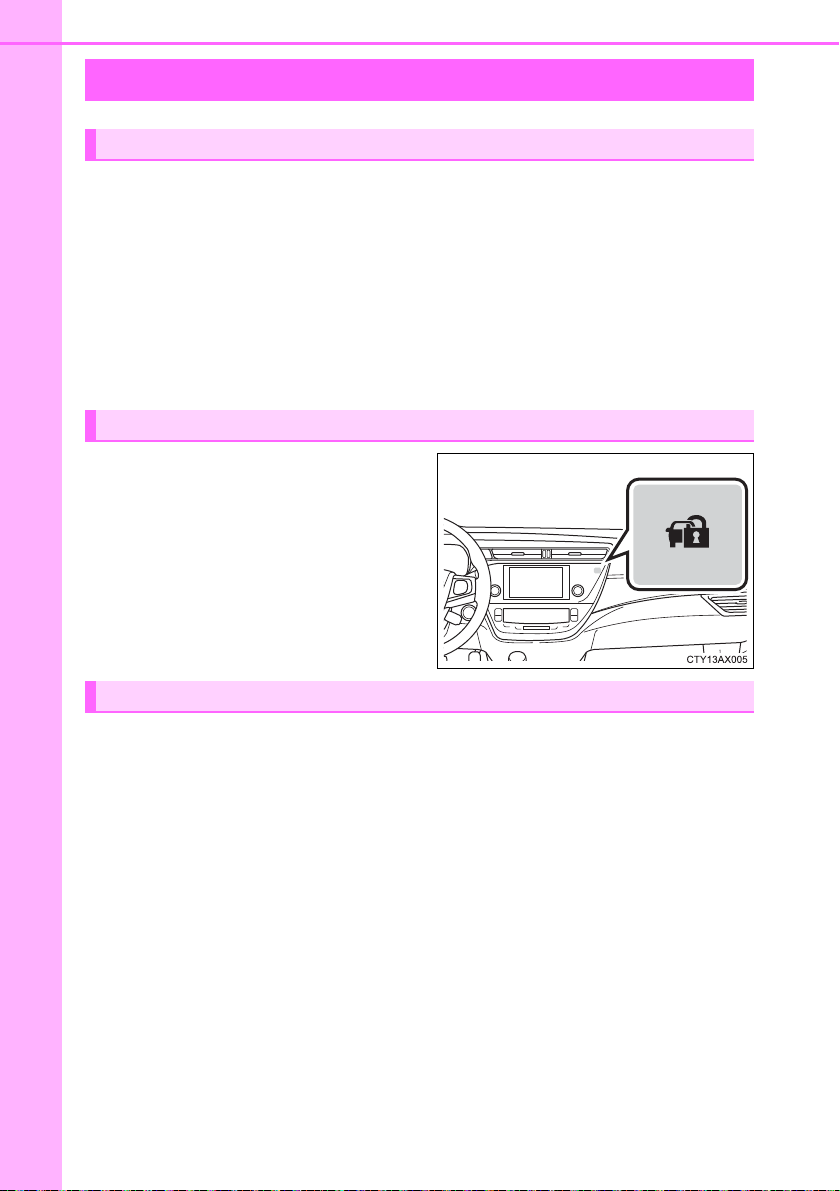

Alarm
The alarm
The alarm uses light and sound to give an alert when an intrusion is
detected.
The alarm is triggered in the following situations when the alarm is
set:
● A locked door or trunk is unlocked or opened in any way oth er th an
using the entry function, wireless remote control or mechanical key.
● The hood is opened.
● Some models: The window is tapped or broken.
Setting the alarm system
Close the doors, trunk and hood,
and lock all the doors. The system
will be set automatically after 30
seconds.
The indicator light changes from
being on to flashing when the system is set.
Deactivating or stopping the alarm
Do one of the following to deactivate or stop the alarms:
● Unlock the doors or open the trunk.
● Turn the engine switch to ACCESSORY or IGNITION ON mode, or
start the engine. (The alarm will be deactivated or stopped after a
few seconds.)
1-2. Theft deterrent system
NOTICE
■ System maintenance
The vehicle has a maintenance-free type alarm system.
■ Items to check before locking the vehicle
To prevent unexpected triggering of the alarm and vehicle theft, make sure of
the following:
● Nobody is in the vehicle.
● The windows and moon roof are closed before the alarm is set.
● No valuables or other personal items are left in the vehicle.
■ Triggering of the alarm
The alarm may be triggered in the following situations:
(Stopping the alarm deactivates the alarm system.)
● A person inside the vehicle opens a
door, the trunk or hood.
● The battery is recharged or replaced
when the vehicle is locked.
71
1
For safety and security
■ Alarm-operated door lock
● When the alarm is operating, the doors are locked automatically to prevent
intruders.
● Do not leave the key inside the vehicle when the alarm is operating, and
make sure the key is not inside the vehicle when recharging or replacing the
battery.
■ To ensure the system operates correctly
Do not modify or remove the system. If modified or removed, the proper
operation of the system cannot be guaranteed.
72
1-2. Theft deterrent system
Theft prevention labels (U.S.A.)
These labels are attached to the
vehicle to reduce vehicle theft by
facilitating the tracing and recovery of parts from stolen vehicles.
Do not remove under penalty of
law.
73
Instrument cluster
2
2. Instrument cluster
Warning lights and
indicators .......................... 74
Gauges and meters ............ 79
Multi-information
display............................... 82
Fuel consumption
information........................ 89
74
2. Instrument cluster
Warning lights and indicators
The warning lights and indicators on the instrument cluster and
center panel inform the driver of the status of the vehicle’s various systems.
For the purpose of explanation, the following illustration displays all warning lights and indicators illuminated.
The units used on the speedometer and some indicators may differ
depending on where the vehicle is sold.
2. Instrument cluster
Warning lights
Warning lights inform the driver of malfunctions in the indicated vehicle’s systems.
75
(U.S.A.)
(Canada)
(U.S.A.)
(Canada)
1
*
Brake system warning
light (→P. 388)
1
*
Brake system warning
light (→P. 388)
1
*
Charging system warning light (→P. 388)
1
*
Malfunction indicator
lamp (→P. 388)
1
*
Malfunction indicator
lamp (→P. 388)
1
*
SRS warning light
(→P. 389)
1
*
Slip indicator (→P. 390)
Open door warning light
(→P. 390)
Low fuel level warning
light (→P. 390)
Seat belt reminder light
(→P. 390)
1
*
Low engine oil pressure
warning light (→P. 388)
Electric power steering
1
*
system warning light
(→P. 389)
2
Instrument cluster
(U.S.A.)
(Canada)
1
*
ABS warning light
(→P. 389)
1
*
ABS warning light
(→P. 389)
1, 2, 3
*
PCS warning light
(→P. 389)
2, 4
*
LDA (Lane Departure
Alert with steering control) indicator (→P. 390)
76
2. Instrument cluster
1
*
Tire pressure warning
light (→P. 391)
1
*
: These lights turn on when the engine switch is turned to IGNITION ON
mode to indicate that a system check is being performed. They will turn off
after the engine is started, or after a few seconds. There may be a malfunction in a system if a light does not come on, or turn off. Have the vehicle inspected by your Toyota dealer.
2
*
: If equipped
3
*
: The light flashes to indicate a malfunction.
4
*
: This light illuminates on the multi-information display.
1
*
Master warning light
(→P. 391)
2. Instrument cluster
AIR BAG
Indicators
The indicators inform the driver of the operating state of the vehicle’s
various systems.
1, 2
*
Turn signal indicator
(→P. 171)
Headlight indicator
(→P. 173)
(U.S.A.)
Tail light indicator
(→P. 173)
(Canada)
Headlight high beam
indicator (→P. 173)
Slip indicator (→P. 251)
1
*
VSC OFF indicator
(→P. 252)
1, 3
*
“AIR BAG ON/OFF” indicator (→P. 46)
5
*
Cruise control “SET”
indicator (→P. 222, 235)
77
2
Instrument cluster
3
*
Security indicator
(→P. 68, 70)
1
*
Eco Driving Indicator
Light (→P. 81)
4
*
Automatic high beam
indicator (→P. 176)
Eco drive mode indicator
(→P. 248)
Sport mode indicator
(→P. 248)
1, 4, 6
*
4, 5
*
Dynamic radar cruise
control indicator
(→P. 222)
4, 5
*
Cruise control indicator
(→P. 235)
PCS warning light
(→P. 202)
LDA (Lane Departure
4, 5
*
Alert with steering control) indicator (→P. 211)
78
WARNING
1
*
2
*
3
*
4
*
5
*
6
*
■ If a safety system warning light does not come on
2. Instrument cluster
: These lights turn on when the engine switch is turned to IGNITION ON
mode to indicate that a system check is being performed. They will turn off
after the engine is started, or after a few seconds. There may be a malfunction in a system if a light does not come on, or turn off. Have the vehi-
cle inspected by your Toyota dealer.
: The light flashes to indicate that the system is operating.
: This light illuminates on the center panel.
: If equipped
: This light illuminates on the multi-information display.
: The light turns on when the system is off.
Should a safety system light such as the ABS and SRS warning light not
come on when you start the engine, this could mean that these systems are
not available to help protect you in an accident, which could result in death
or serious injury. Have the vehicle inspected by your Toyota dealer immediately if this occurs.
2. Instrument cluster
Gauges and meters
The units used on the speedometer may differ depending on where the
vehicle is sold.
Tachometer
1
Displays the engine speed in revolutions per minute
Multi-information display
2
Presents the driver with a variety of driving-related data (→P. 82)
Speedometer
3
Displays the vehicle speed
Fuel gauge
4
Displays the quantity of fuel remaining in the tank
Trip meter reset knob/instrument panel light control knob
5
→P. 80
Odometer and trip meter display
6
Odometer:
Displays the total distance the vehicle has been driven
Trip meter:
Displays the distance the vehicle has been driven since the meter was last
reset. Trip meters “A” and “B” can be used to record and display different
distances independently.
Shift position and shift range
7
Displays the selected shift position or selected shift range (→P. 165)
Engine coolant temperature gauge
8
Displays the engine coolant temperature
79
2
Instrument cluster
80
2. Instrument cluster
Changing the trip meter display
Switches between trip meter “A”
and “B” displays. When the trip
meter is displayed, pressing and
holding the knob will reset the trip
meter.
Instrument panel light control
The brightness of the instrument panel lights can be adjusted.
Darker
1
Brighter
2
2. Instrument cluster
NOTICE
■ Eco-friendly driving
During Eco-friendly acceleration (Eco
driving), Eco Driving Indicator Light will
turn on. If the acceleration exceeds the
Eco driving accelerator upper limit, or the
vehicle is stopped, the light turns off.
Eco Driving Indicator Light will not operate
in the following conditions:
● The shift lever is in anything other than
D.
● The paddle shift switch is used.
● The vehicle is in sport mode.
● The vehicle speed is approximately 80
mph (130 km/h) or higher.
■ The meters and display illuminate when
The engine switch is in IGNITION ON mode.
■ The brightness of the instrument panel lights
● When the headlight switch is turned to on, the brightness will be reduced
slightly unless the control knob is turned fully clockwise.
● When the knob is turned fully clockwise, the display audio/navigation sys-
tem screen will always be in day mode regardless of the headlight switch
position.
■ Customization
The instrument panel light auto dimmer control can be changed.
(Customizable feature: →P. 449)
81
2
Instrument cluster
■ To prevent damage to the engine and its components
● Do not let the indicator needle of the tachometer enter the red zone, which
indicates the maximum engine speed.
● The engine may be overheating if the engine coolant temperature gauge is
in the red zone (H). In this case, immediately stop the vehicle in a safe
place, and check the engine after it has cooled completely. (→P. 418)
82
2. Instrument cluster
Multi-information display
Display contents
The multi-information display presents the driver with a variety of driving-related data.
● Trip information (→P. 83)
Displays the following items:
• Distance to empty
• Average fuel economy
• Current fuel economy
• ECO Drive Level
• Turn-by-turn navigation
(vehicles with a navigation
system)
● Settings (→P. 85)
● Warning messages and reminder messages (→P. 396)
● Automatically displayed when a malfunction occurs in one of the
vehicle’s systems or when a reminder message is required. The
display returns to the previous screen by pressing the “DISP” button. (→P. 83)
● Cruise control display (if equipped) (→P. 235)
● Dynamic radar cruise control display (if equipped) (→P. 222)
● LDA (Lane Departure Alert with steering control) display (if
equipped) (→P. 211)
● PCS (Pre-Collision System) display (if equipped) (→P. 198)
● Tire pressure warning system display (→P. 343)
Trip information
■ Switching the display
Items displayed can be
switched by pressing the
“DISP” button.
2. Instrument cluster
83
2
■ Distance to empty
Displays the estimated maximum distance that can be driven with
the quantity of fuel remaining.
• This distance is computed based on your average fuel consumption. As
a result, the actual distance that can be driven may differ from that displayed.
• When only a small amount of fuel is added to the tank, the display may
not be updated.
When refueling, turn the engine switch off. If the vehicle is refueled without turning the engine switch off, the display may not be updated.
Digital speedometer
■
Displays the current vehicle speed.
■ Average fuel economy
Displays the average fuel consumption since the function was
reset.
• The function can be reset by pressing and holding the “DISP” button
when the average fuel consumption is displayed.
• Use the displayed average fuel consumption as a reference.
■
Current fuel economy
Displays the current rate of fuel consumption.
Instrument cluster
84
■ ECO Drive Level
2. Instrument cluster
Suggests Eco driving level
based on acceleration.
1
All green suggests the status
of the most Eco-friendly driving.
2
All blue suggests the status
of the least Eco-friendly driving.
■ Sway warning (if equipped)
Detects the sway of the vehicle within a lane, which is often associated with a decrease in the driver’s attention level, and displays the
decrease in attention using a segment display.
The fewer segments lit, the more the driver may need to rest.
This display is a part of the LDA (Lane Departure Alert with steering
control) system. The display is enabled when the operating conditions
of the vehicle sway warning are met. (→P. 211)
■
Turn-by-turn na vigation (vehicl es with a navigation system)
Displays information from the navigation system about the next turn
on the guidance route.
Setting up the displays
◆ Customizable items
■ Meter settings
Item Settings Details
2. Instrument cluster
85
Digital Speed
Units (vehicles without a
navigation system)
Turn-by-Turn (vehicles
with a navigation system)
ECO Indicator
■ LDA (Lane Departure Alert with steering control) (if
ON
OFF
English
Metric
ON
OFF
OFF
ON
Select to enable/disable the digital
speedometer.
Select to change the units of measure displayed.
Select to enable/disable the Turnby-turn navigation.
Select to enable/disable the Eco
Driving Indicator Light.
equipped) (→P. 211)
The following LDA system settings can be changed:
Item Settings Details
Steering Assist
ON
OFF
Standard
Sensitivity
High
ON
Alert
OFF
Select to enable/disable steering
wheel assistance.
Select to set the warning sensitivity.
Select to enable/disable the vehicle sway warning.
2
Instrument cluster
Sensitivity
Standard
Low
High
Select to set the vehicle sway
warning sensitivity.
86
2. Instrument cluster
◆ Changing the settings
1
While the vehicle is stopped,
press the “DISP” button until
the “Settings” screen
appears.
2
Press and hold the “DISP”
button while the “Settings”
screen is displayed.
3
Press the “DISP” button to
highlight the desired item.
4
Press and hold the “DISP”
button to change the setting.
2. Instrument cluster
5
To exit the “Settings” screen,
press the “DISP” button
repeatedly until “EXIT” is
highlighted and then press
and hold the “DISP” button.
If the Lane Departure settings
screen is displayed, press the
“DISP” button repeatedly until
“RETURN” is highlighted, then
press and hold the “DISP”
switch to return to the “Settings”
screen.
The display goes back to step .
■ System check display
After turning the engine switch to IGNITION ON mode, “SYSTEM CHECK” is
displayed while system operation is checked.
■ Trip summary display
When the engine is turned off, drive information data since the engine was started
is displayed for 3 seconds.
1
87
2
Instrument cluster
■ Setting display automatic cancelation
In the following situations, setting display in which the settings can be
changed through the “DISP” button will automatically be turned off.
● When a warning message appears while the setting display is displayed
● When the vehicle begins to move while the setting display is displayed
Tire inflation pressure
■
● It may take a few minutes to display the tire infl ation pressure after the
engine switch is turned to IGNITION ON mode. It may also take a few
minutes to display the tire inflation pressure after inflation pressure has
been adjusted
● “---” may be displayed if the tire information can not be determined due to
unfavorable radio wave conditions.
● Tire inflation pressure changes with temperature. The displayed values
may also be different from the valu es measured using a tire pressure
gauge.
88
WARNING
NOTICE
■ Liquid crystal display
Small spots or light spots may appear on the display. This phenomenon is
characteristic of liquid crystal displays, and there is no problem continuing to
use the display.
■ The information display at low temperatures
■ Cautions during setting up the display
2. Instrument cluster
Allow the interior of the vehicle to warm up before using the liquid crystal
information display. At extremely low temperatures, the information display
monitor may respond slowly, and display changes may be delayed.
For example, there is a lag between the driver’s shifting and the new gear
number appearing on the display. This lag could cause the driver to downshift again, causing rapid and excessive engine braking and possibly an
accident resulting in death or injury.
As the engine needs to be running during setting up the display, ensure that
the vehicle is parked in a place with adequate ventilation. In a closed area
such as a garage, exhaust gases including harmful carbon monoxide (CO)
may collect and enter the vehicle. This may lead to death or a serious
health hazard.
■ During setting up the display
To prevent battery discharge, ensure that the engine is running while setting
up the display features.
2. Instrument cluster
Fuel consumption information
Fuel consumption information can be displayed on the audio
system screen.
Audio system
Trip information
Press “APPS” button and select
“Eco” to display the “Trip Information” screen.
If the “Trip Information” screen
does not appear, select “Trip
Information”.
89
2
Instrument cluster
Average vehicle speed
1
Elapsed time
2
Range
3
Previous fuel consumption per
4
minute
Current fuel consumption
5
Reset the trip information data
6
“Past Record” screen appears
7
These images are examples only, and may vary slightly from actual
conditions.
90
2. Instrument cluster
Past record
Press “APPS” button and select “Eco” to display the “Past Record”
screen.
If the “Past Record” screen does not appear, select “Past Record”.
Previous fuel economy record
1
Current fuel economy
2
Best recorded fuel economy
3
Update the past record data
4
Reset the past record data
5
“Trip Information” screen
6
appears
Average recorded fuel economy
7
These images are examples only, and may vary slightly from actual
conditions.
■ Updating the past record data
Selecting “Update” on the “Past Record” screen will update the past record
data.
■ Resetting the data
Selecting “Clear” on the consumption screen will reset the consumption data.
Selecting “Clear” on the “Past Record” screen will reset the past record data.
■ Customization
The touch button sensitivity can be changed.
(Customizable features: →P. 449)
Operation of
each component
91
3
3-1. Key information
Keys.................................... 92
3-2. Opening, closing and
locking the doors
Doors .................................. 97
Trunk.................................103
Smart key system ............. 108
3-3. Adjusting the seats
Front seats........................ 119
Driving position
memory........................... 121
Head restraints.................. 126
3-4. Adjusting the steering
wheel and mirrors
Steering wheel.................. 128
Inside rear view mirror ...... 130
Outside rear view
mirrors............................. 132
3-5. Opening, closing the
windows and
moon roof
Power windows................. 135
Moon roof..........................138
92
3-1. Key information
Keys
The keys
The following keys are provided with the vehicle.
Electronic keys
1
• Operating the smart key system
(→P. 108)
• Operating the wireless remote
control function
Mechanical keys
2
Key number plate
3
Wireless remote control
Locks all the doors (→P. 97)
1
Unlocks all the doors (→P. 97)
2
Pressing the button unlocks the
driver’s door. Pressing the button
again within 5 seconds unlocks the
other doors.
Unlocks the trunk
3
(press and hold) (→P. 103)
Sounds the alarm (press and
4
hold) (→P. 93)
3-1. Key information
Using the mechanical key
To take out the mechanical key,
push the release button and take
the key out.
The mechanical key can only be
inserted in one direction, as the
key only has grooves on one side.
If the key cannot be inserted in a
lock cylinder, turn it over and reattempt to insert it.
After using the mechanical key, store it in the electronic key. Carry the
mechanical key together with the electronic key. If the electronic key battery is depleted or the entry function does not operate properly, you will
need the mechanical key. (→P. 411)
93
3
■ Panic mode
When is pressed for longer than
about one second, an alarm will sound
intermittently and the vehicle lights will
flash to deter any person from trying to
break into or damage your vehicle.
To stop the alarm, press any button on the
electronic key.
■ When required to leave the vehicle’s key with a parking attendant
Turn the trunk opener main switch off, lock the glove box and armrest door as
circumstances demand. (→P. 104, 276, 292)
Remove the mechanical key for your own use and provide the attendant with
the electronic key only.
■ If you lose your mechanical keys
New genuine mechanical keys can be made by your Toyota dealer using the
other mechanical key and the key number stamped on your key number
plate. Keep the plate in a safe place such as your wallet, not in the vehicle.
Operation of each component
94
■ When riding in an aircraft
When bringing an electronic key onto an aircraft, make sure you do not press
any buttons on the electronic key while inside the aircraft cabin. If you are
carrying an electronic key in your bag etc., ensure that the buttons are not
likely to be pressed accidentally. Pressing a button may cause the electronic
key to emit radio waves that could interfere with the operation of the aircraft.
■ Conditions affecting operation
→P. 114
■ Electronic key battery depletion
● The standard battery life is 1 to 2 years.
● If the battery becomes low, an alarm will sound in the cabin when the engine
● As the electronic key always receives radio waves, the battery will become
● To avoid serious deterioration, do not leave the electronic key within 3 ft. (1
■ Replacing the battery
→P. 360
■ Confirmation of the registered key number
The number of keys already registered to the vehicle can be confirmed. Ask
your Toyota dealer for details.
■ If a wrong key is used
The key cylinder rotates freely to isolate inside mechanism.
■ Customization
Settings (e.g. wireless remote control system) can be changed.
(Customizable features: →P. 449)
3-1. Key information
stops.
depleted even if the electronic key is not used. The following symptoms indicate that the electronic key battery may be depleted. Replace the battery
when necessary. (→P. 360)
• The smart key system or the wireless remote control does not operate.
• The detection area becomes smaller.
• The LED indicator on the key surface does not turn on.
m) of the following electrical appliances that produce a magnetic field:
•TVs
• Personal computers
• Cellular phones, cordless phones and battery chargers
• Recharging cellular phones or cordless phones
• Table lamps
• Induction cookers
3-1. Key information
■ Certification for wireless remote control
For vehicles sold in the U.S.A.
FCC ID: HYQ23AAP
FCC ID: HYQ14FBA
NOTE:
This device complies with part 15 of the FCC Rules. Operation is subject to
the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including
interference that may cause undesired operation.
FCC WARNING:
Changes or modifications not expressly approved by the party responsible for
compliance could void the user’s authority to operate the equipment.
For vehicles sold in Canada
NOTE:
This device complies with Industry Canada licence-exempt RSS standard(s).
Operation is subject to the following two conditions:
(1) this device may not cause interference, and
(2) this device must accept any interference, including interference that may
cause undesired operation of the device.
95
3
Operation of each component
96
NOTICE
■ To prevent key damage
■ Carrying the electronic key on your person
■ In case of a smart key system malfunction or other key-related prob-
■ When an electronic key is lost
3-1. Key information
● Do not drop the keys, subject them to strong shocks or bend them.
● Do not expose the keys to high temperatures for long periods of time.
● Do not get the keys wet or wash them in an ultrasonic washer etc.
● Do not attach metallic or magnetic materials to the keys or place the keys
close to such materials.
● Do not disassemble the keys.
● Do not attach a sticker or anything else to the surface of the electronic key.
● Do not place the keys near objects that produce magnetic fields, such as
TVs, audio systems and induction cookers, or medical electrical equipment, such as low-frequency therapy equipment.
Carry the electronic key 3.9 in. (10 cm) or more away from electric appliances that are turned on. Radio waves emitted from electric appliances
within 3.9 in. (10 cm) of the electronic key may interfere with the key, causing the key to not function properly.
lems
Take your vehicle with all the electronic keys provided with your vehicle to
your Toyota dealer.
If the electronic key remains lost, the risk of vehicle theft increases significantly. Visit your Toyota dealer immediately with all remaining electronic
keys that was provided with your vehicle.
3-2. Opening, closing and locking the doors
Doors
Unlocking and locking the doors from the outside
◆ Smart key system
Carry the electronic key to enable this function.
Grip the driver’s door handle
1
to unlock the door. Some
models, grip the passenger’s
door handle to unlock all the
*
doors.
Make sure to touch the sensor
on the back of the handle.
The doors cannot be unlocked
for 3 seconds after the doors are
locked.
*: The door unlock settings can be changed. (→P. 101)
Touch the lock sensor (the indentation o n the upper part of the
2
door handle) to lock all the doors.
Check that the door is securely locked.
97
3
Operation of each component
◆ Wireless remote control
Locks all the doors
1
Check that the door is securely
locked.
Unlocks all the doors
2
Pressing the button unlocks the
driver’s door. Pressing the button again within 5 seconds
unlocks the other doors.
98
■ Operation signals
A buzzer sounds and the emergency flashers flash to indicate that the doors
have been locked/unlocked. (Locked: Once; Unlocked: Twice)
■ Security feature
If a door is not opened within approximately 60 seconds after the vehicle is
unlocked, the security feature automatically locks the vehicle again.
■ When the door cannot be locked by the lock sensor on the upper part of
the door handle
If the door will not lock even when the topside sensor area is touched, try touching
both the topside and underside sensor
areas at the same time.
■ Door lock buzzer
If an attempt to lock the doors is made when a door is not fully closed, a
buzzer sounds continuously for 5 seconds. Fully close the door to stop the
buzzer, and lock the vehicle once more.
■ Alarm
Locking the doors will set the alarm system. (→P. 70)
■ If the smart key system or the wireless remote control does not operate
properly
Use the mechanical key to lock and unlock the doors. (→P. 411)
Replace the battery with a new one if it is depleted. (→P. 360)
3-2. Opening, closing and locking the doors
3-2. Opening, closing and locking the doors
Unlocking and locking the doors from the inside
◆ Door lock switches
Locks all the doors
1
Unlocks all the doors
2
99
◆ Inside lock buttons
Unlocks the door
1
Locks the door
2
The front doors can be opened
by pulling the inside handle
even if the lock buttons are in
the lock position.
3
Operation of each component
100
3-2. Opening, closing and locking the doors
Locking the front doors from the outside without a key
1
Move the inside lock button to the lock position.
2
Close the door.
The door cannot be locked if the engine switch is in ACCESSORY or
IGNITION ON mode, or the electronic key is left inside the vehicle.
The key may not be detected correctly and the door may be locked.
Rear door child-protector lock
The door cannot be opened from
inside the vehicle when the lock is
set.
Unlock
1
Lock
2
These locks can be set to prevent
children from opening the rear
doors. Push down on each rear
door switch to lock both rear doors.
Automatic door locking and unlocking systems
The following functions can be set or ca nceled:
For instructions on customizing, refer to P. 449.
Function Operation
Speed linked door locking
function
Shift position linked door
locking function
Shift position linked door
unlocking function
Driver's door linked door
unlocking function
All doors are automatically locked when vehicle speed is approximately 12 mph (20 km/h)
or higher.
All doors are automatically locked when shifting the shift lever to position other than P.
All doors are automatically unlocked when
shifting the shift lever to P.
All doors are automatically unlocked when
driver’s door is opened.
