Quick Reference Guide

2015

Avalon

This Quick Reference Guide is a summary of basic vehicle operations. It contains brief descriptions of fundamental operations so you can locate and use the vehicle’s main equipment quickly and easily.

The Quick Reference Guide is not intended as a substitute for the Owner’s Manual located in your vehicle’s glove box. We strongly encourage you to review the Owner’s Manual and supplementary manuals so you will have a better understanding of your vehicle’s capabilities and limitations.

Your dealership and the entire staff of Toyota Motor Sales, U.S.A., Inc. wish you many years of satisfied driving in your new Avalon.

A word about safe vehicle operations

This Quick Reference Guide is not a full description of Avalon operations. Every Avalon owner should review the Owner’s Manual that accompanies this vehicle.

Pay special attention to the boxed information highlighted in color throughout the Owner’s Manual. Each box contains safe operating instructions to help you avoid injury or equipment malfunction.

All information in this Quick Reference Guide is current at the time of printing. Toyota reserves the right to make changes at any time without notice.

INDEX

OVERVIEW

FEATURES/OPERATIONS

SAFETY AND EMERGENCY

FEATURES

Visit your Toyota dealer for information on customizing this feature.

Programmable by customer. Refer to the Owner’s Manual for instructions and more information.

HomeLink® is a registered trademark of Gentex Corporation.

Engine maintenance 9 Fuel tank door release and cap 8 Hood release 9 Indicator symbols 4-5 Instrument cluster 4 Instrument panel 2-3

Keyless entry

1,2

Light control-Instrument panel 8

Smart Key system

1,2

Air Conditioning/Heating 18-19 Audio 20

Auto lock/unlock2 10

Automatic Transmission 10

Bluetooth® Device Pairing Section 29-38

BSM (Blind Spot Monitor) 21 Clock 20 Cruise control 16 Cup holders 22 Driving mode select 11 Dynamic radar cruise control 17 Garage door opener (HomeLink®)

iPod®/USB/AUX port 21

Lights1 & turn signals 15

Moonroof 12 Multi-Information Display 13 Parking brake 10 Power outlets-12V DC 14 Seat adjustments-Front 13 Seat ventilators/Heaters 19 Seats-Head restraints 12 Steering lock release 11 Steering wheel switches 20 Tilt and telescopic steering wheel 11 Windows-Power 12 Windshield wipers & washers 14 Wireless charger 22

Door locks 23 Doors-Child safety locks 23 Floor mat installation 27 Seat belts 23 Seat belts-Shoulder belt anchor 24 Spare tire & tools 25 Star Safety System

Tire Pressure Monitoring (warning) System 24 Trunk-Internal release 25

6-7

26-27

OVERVIEW

FEATURES/OPERATIONS

SAFETY AND EMERGENCY FEATURES

OVERVIEW

Instrument panel

Steering wheel controls

Automatic Air Conditioning (Type A)

Automatic Air Conditioning (Type B)

OVERVIEW

FEATURES/OPERATIONS

Driving position memory switches

Headlight and turn signal controls/Headlight, turn signal and front fog

light

controls Wiper and washer controls Emergency flasher button Navigation system

1,2

/Display audio system

1,3

“ENGINE START STOP” button Tilt and telescopic steering lock release Steering wheel audio controls

2,3

Paddle shift switches Telephone controls Voice command button Vehicle-to-vehicle distance button Cruise control/Dynamic radar cruise control

2,3

Air Conditioning controls Clock Outside rearview mirror/Rear window defogger button

2 3

“PCS” off switch

Tire Pressure Monitoring (warning) System reset Trunk opener main switch 12V DC power outlet 12V DC power outlet/Wireless charger switch

USB/AUX port Trunk opener TRAC/VSC OFF switch BSM (Blind Spot Monitor) main switch Rear sunshade switch

If equipped

For details, refer to the “Navigation System Owner’s Manual.”

For details, refer to the “Display Audio System Owner’s Manual.”

NOTE: For additional information regarding the Entune (TM) Audio System, please consult the “Navigation System With Entune Quick Reference Guide” or www.toyota.com/entune.

SAFETY AND EMERGENCY FEATURES

OVERVIEW

Instrument cluster

Tachometer Service indicators and reminders Speedometer Fuel gauge Trip meter reset knob/Instrument panel light control knob Odometer/trip meter Shift position/shift range display Multi-Information Display Engine coolant temperature gauge

Indicator symbols

For details, refer to “Indicators and warning lights,” Section 2, 2015 Owner’s Manual.

Brake system warning

Driver/Front passenger seat belt reminder (alarm will sound if speed is over 12 mph)

Electric power steering system warning

Charging system warning

Low engine oil pressure warning

Malfunction/Check Engine indicator

Low fuel level warning

Open door warning

Airbag SRS warning

Low Tire Pressure Warning

Theft deterrent/Engine immobilizer system indicator

Headlight low/high beam indicator

Automatic high beam indicator

Turn signal indicator

Front fog light indicator

Slip indicator

Vehicle Stability Control OFF indicator

Traction Control OFF indicator

Cruise control indicator2/Cruise control SET indicator

Radar cruise control indicator

Pre-Collision System indicator

Anti-lock Brake System warning

3,4

1,5

ECO drive mode indicator

SPORT mode indicator

Eco Driving Indicator Light

OVERVIEW

FEATURES/OPERATIONS

SAFETY AND EMERGENCY FEATURES

SRS AIR BAG ON/OFF indicator

Master warning light

If indicator does not turn off within a few seconds of starting engine, there may be a

malfunction. Have vehicle inspected by your Toyota dealer.

If this light flashes, refer to “Cruise control,” Section 4-5, 2015 Owner’s Manual.

4 5

If this light flashes, refer to “Dynamic radar cruise control,” Section 4-5, 2015 Owner’s Manual.

The indicator flashes to indicate a malfunction.

The indicator flashes faster than usual to indicate that the system is operating.

OVERVIEW

Keyless entry

Locking operation

Unlocking operation

Power (without starting engine)

Without depressing the brake pedal, pressing the “ENGINE START STOP” switch will change the operation mode in succession from:

OVERVIEW

Push ONCE: Driver door TWICE: All doors

NOTE: If a door is not opened within 60

Push

Trunk lid

Push and hold

seconds of unlocking, all doors will relock for safety.

Panic button

Push and hold

Smart Key system

Start function

Carrying

NOTE: Gear shift lever must be in Park and brake pedal depressed.

Depress brake pedal

Push

ACCESSORY

OFF

Locking operation

Front door lock

Carry remote to lock Carry remote to unlock

Power ON; the engine not running.

All systems OFF.

Accessories such as the radio will operate.

Unlocking operation

Touch

Front door unlock

Grasp

Trunk unlock

Push

Carry remote to unlock

The Smart Key system is only available on driver side door and trunk for the

XLE Avalon. All other models will have the Smart Key system on the front doors and trunk.

Driver door unlocking function can be programmed to unlock driver door

only, or all doors. In some models, grasping front passenger door handle will unlock all doors. Please refer to the Owner’s Manual for more details on how to program the doors.

NOTE: Doors may also be locked/unlocked using remote.

FEATURES/OPERATIONS

SAFETY AND EMERGENCY FEATURES

6 7

OVERVIEW

The fuel tank door locks/unlocks with the vehicle’s doors.

Press

Turn to open

Hood releaseFuel tank door release and cap

Pull up latch and raise hood

Pull

OVERVIEW

Store

NOTE: To close, tighten until one click is heard. If the cap is not tightened enough, Check Engine “

” indicator may illuminate.

Light control-Instrument panel

Brightness control

+ -

Engine maintenance

Engine oil filler cap Engine oil level dipstick Engine coolant reservoir Windshield washer fluid tank

NOTE: Regularly scheduled maintenance, including oil changes, will help

extend the life of your vehicle and maintain performance. Please refer to the “Warranty & Maintenance Guide.”

FEATURES/OPERATIONS

SAFETY AND EMERGENCY FEATURES

8 9

FEATURES/OPERATIONS

Auto lock/unlock

Automatic door locks can be programmed to operate in four different modes, or turned OFF.

-Doors lock when shifting from Park.

-Doors lock when the vehicle speed goes above approximately 12 mph.

-Doors unlock when shifting into Park.

-Doors unlock when the “ENGINE START STOP” switch is set to OFF and driver’s

door is opened.

Refer to the Owner’s Manual for more details.

Automatic Transmission

Park*

Reverse

Neutral

Drive

“S” mode

Shift lever

+ (“S” mode)

- (“S” mode)

Paddle shift switches (if equipped)

- (“S” mode)

+ (“S” mode)

Driving mode select

OVERVIEW

Normal mode

Use for normal driving.

ECO drive mode

Use ECO drive mode to help achieve low fuel consumption during trips that involve frequent accelerating.

SPORT mode

Use SPORT mode when increased acceleration response and precise handling is desired, such as when driving on mountain roads.

FEATURES/OPERATIONS

Steering lock release

Turn

* The “ENGINE START STOP” switch must be IGNITION ON mode and the brake

pedal depressed to shift from Park.

“S” (Sequential) mode

Shift the shift lever to “S” position from “D” position.

+: Upshifting

-: Downshifting

Downshifting increases power going uphill, or provides engine braking downhill. For best fuel economy during normal driving conditions, always drive with the shift lever in the “D” position.

Parking brake

Set: Depress Release: Depress again

Push

Gently turn steering wheel while pressing the “ENGINE START STOP” switch. If the lock does not release, a message informing the driver that the steering wheel is locked will be displayed on the Multi-Information Display.

Tilt and telescopic steering wheel

SAFETY AND EMERGENCY FEATURES

Angle

Lock release lever

Length

Hold wheel, push lever down, set angle and length, and return lever.

NOTE: Do not attempt to adjust while the vehicle is in motion.

1110

FEATURES/OPERATIONS

Windows-Power

Driver side

Down

Automatic operation Push the switch completely down or pull it completely up and release to fully open or close. To stop the window partway, operate the switch in the opposite direction.

Window lock switch Deactivates all passenger windows. Driver remains able to operate all windows.

Window lock switch

Moonroof (if equipped)

Sliding operation Tilting operation

Push once to open partway; again to open completely.

Open

Recommended driving position to minimize wind noise.

Tilt

Seat adjustments-Front

Driver’s seat

Passenger’s seat

Seat position (forward/backward) Seatback angle Seat cushion angle (if equipped) Seat height (if equipped) Lumbar support (if equipped) Seat cushion length (if equipped)

Multi-Information Display

OVERVIEW

FEATURES/OPERATIONS

Push once to open; moonroof will automatically stop at the recommended position. Push again to open completely.

Seats-Head restraints

Lock release button

12 13

SAFETY AND EMERGENCY FEATURES

Push “DISP” to scroll through the following information screens:

(1) Distance to empty (2) Average fuel economy (3) Current fuel economy (4) ECO Drive Level (5) Digital speedometer (6) Settings

FEATURES/OPERATIONS

Windshield wipers & washers

With intermittent wiper

Adjust frequency

Pull to wash and wipe

With AUTO rain-sensing wiper (if equipped)

Adjust sensor sensitivity

Pull to wash and wipe

Intermittent windshield wiper frequency adjustment

Rotate to increase/decrease wipe frequency.

Rain-sensing windshield wiper Rotate to increase/decrease sensor sensitivity.

Single wipe

Interval wipe

Slow

Fast

Single wipe

Auto wipe

Slow

Fast

Power outlets-12V DC

Lights & turn signals

Headlights

Low beam

Headlights

Parking lights

Auto

DRL OFF

High beam

-Daytime Running Light system (DRL) Automatically turns on the headlights to make

vehicle more visible to other drivers. Not for use at night.

-Automatic light cut off system When the headlights are on: Automatically turns lights off

after 30-second delay, or lock switch on remote may be pushed after locking.

When the tail lights are on: Automatically turns lights off when driver’s door is opened.

Automatic high beam (if equipped)

Activate*

* Refer to the Owner’s Manual for details on activating the automatic high beams.

Deactivate

Front fog lights (if equipped)

High beam flasher

OVERVIEW

FEATURES/OPERATIONS

Front console

Center console

The “ENGINE START STOP” switch must be in the ACCESSORY or IGNITION ON mode for use.

14 15

Turn

Front fog lights come on only when the headlights are on low beam.

Turn signals

Right turn

Lane change

The right hand signals will flash three times.

The left hand signals will flash three times.

Left turn

SAFETY AND EMERGENCY FEATURES

FEATURES/OPERATIONS

Garage door opener (HomeLink®)* (if equipped)

Garage door openers manufactured under license from HomeLink®* can be programmed to operate garage doors, estate gates, security lighting, etc.

Refer to “Garage door opener,” Section 5-5 in the Owner’s Manual for more details.

For programming assistance, contact HomeLink

at 1-800-355-3515, or visit

http://www.homelink.com.

* HomeLink® is a registered trademark of Gentex Corporation.

Cruise control

Turning system ON/OFF

System ON/OFF

Functions

Resume Increase speed

Dynamic radar cruise control (if equipped)

Refer to the Owner’s Manual for more details and complete safety precautions before attempting to use “Dynamic radar cruise control.”

Fixed speed mode

(2) Push and hold to change mode

(1) Push System ON/OFF

To set, cancel and resume a speed Refer to “Functions” in the Cruise Control section, and to the Owner’s Manual for more details.

Distance control mode

Push System ON/OFF

The distance control mode will cruise at a set speed, decelerate to maintain a selected distance from a slower vehicle traveling in front of you, and accelerate back up to the selected speed if the vehicle in front changes lanes or speeds up.

To set, cancel and resume a speed Refer to “Functions” in the Cruise Control section, and your Owner’s Manual for more details.

NOTE: Once vehicle speed is set, pushing lever up toward “+ RES” will increase speed by 1 mph, or in 5 mph increments if held. Pushing lever down toward “- SET” will reduce speed in the same way.

LONG MIDDLE SHORT

OVERVIEW

FEATURES/OPERATIONS

SAFETY AND EMERGENCY FEATURES

Set

The set speed may also be cancelled by depressing the brake pedal.

The set speed may be resumed once vehicle speed exceeds 25 mph.

Cancel

Decrease speed

16 17

Push

To change the vehicle-to-vehicle distance

Push the distance button to cycle through the settings, which will change progressively from LONG to MIDDLE to SHORT.

FEATURES/OPERATIONS

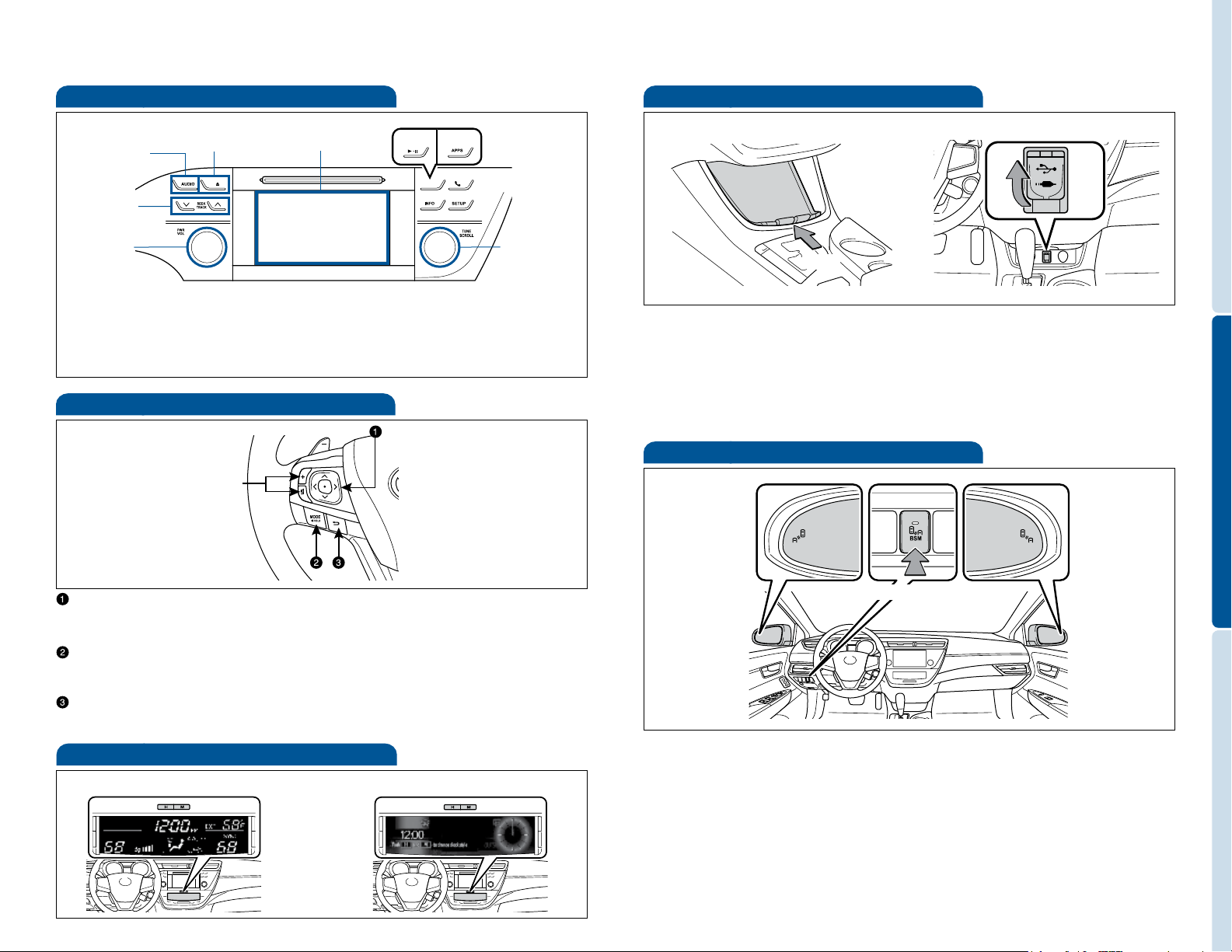

Air Conditioning/Heating

Front control panel

Type A

Type B

Rear control panel (if equipped)

Rear control switch Rear passenger’s temperature control

Seat ventilators/Heaters (if equipped)

With ventilator

Push

OFF

Ventilator

Turn

Heater

Heater only

OVERVIEW

FEATURES/OPERATIONS

Turn

Temperature selector (driver side) Windshield airflow/defogger Outside rearview mirror/Rear defogger Temperature selector (passenger side) Recirculate cabin air (fresh air when OFF) “SYNC” button Indicator ON: Synchronized temperature settings for driver, passengers and rear seat (if equipped). Indicator OFF: Separate temperature settings for driver and passengers. Air Conditioning ON/OFF Fan speed Climate control OFF Automatic climate control ON Adjusting the temperature setting will cause the airflow vents, air intake and fan to adjust automatically. Airflow vent In “

/ ” mode, use fresh air (“ ” indicator ON) to reduce

window fogging.

Push

Push knob to pop the controller out. Turn clockwise for heater, counter-clockwise for ventilator.

1918

SAFETY AND EMERGENCY FEATURES

FEATURES/OPERATIONS

Audio*

Push to display audio screen

Seek station/ CD track select

Push to turn ON/OFF

*1 Refer to the “Display Audio System Owner’s Manual” for instructions and more

*2 Display Audio system *3 Premium Display Audio system

information.

Eject CD

Touch screen display

*2 *3

Turn to tune radio stations manually or select tracks or files

Steering wheel switches

Volume control

iPod®/USB/AUX port

Open

iPod®/USB port

By connecting a USB-compatible portable audio device or USB memory to the USB port, you can listen to music from the portable audio device or USB memory through the vehicle’s speaker system.

AUX port

By inserting a mini plug into the AUX port, you can listen to music from a portable audio device through the vehicle’s speaker system while in AUX mode.

BSM (Blind Spot Monitor)(if equipped)

OVERVIEW

FEATURES/OPERATIONS

vvv

“ ”

Use to search within a selected audio medium (radio, CD, iPod, etc.), or to perform certain telephone operations.

“MODE”

Push to turn audio ON and select an audio mode. Push and hold to turn the audio system OFF.

Back switch

Returns to the previous screen.

Clock

Type A

H-Hour set M-Minute set

Type B

System ON/OFF

SAFETY AND EMERGENCY FEATURES

The Blind Spot Monitor is a system that has two functions:

• The Blind Spot Monitor function (assists the driver in making the decision when

changing lanes)

• The Rear Cross Traffic Alert function (assists the driver when backing up)

The system uses radar sensors to detect vehicles that are traveling in the area that is not reflected in the outside rearview mirror (the blind spot), and advises the driver of the vehicles’ existence via the outside rearview mirror indicator.

Refer to the Owner‘s Manual for more details on this system before attempting to use it.

2120

FEATURES/OPERATIONS

SAFETY AND EMERGENCY FEATURES

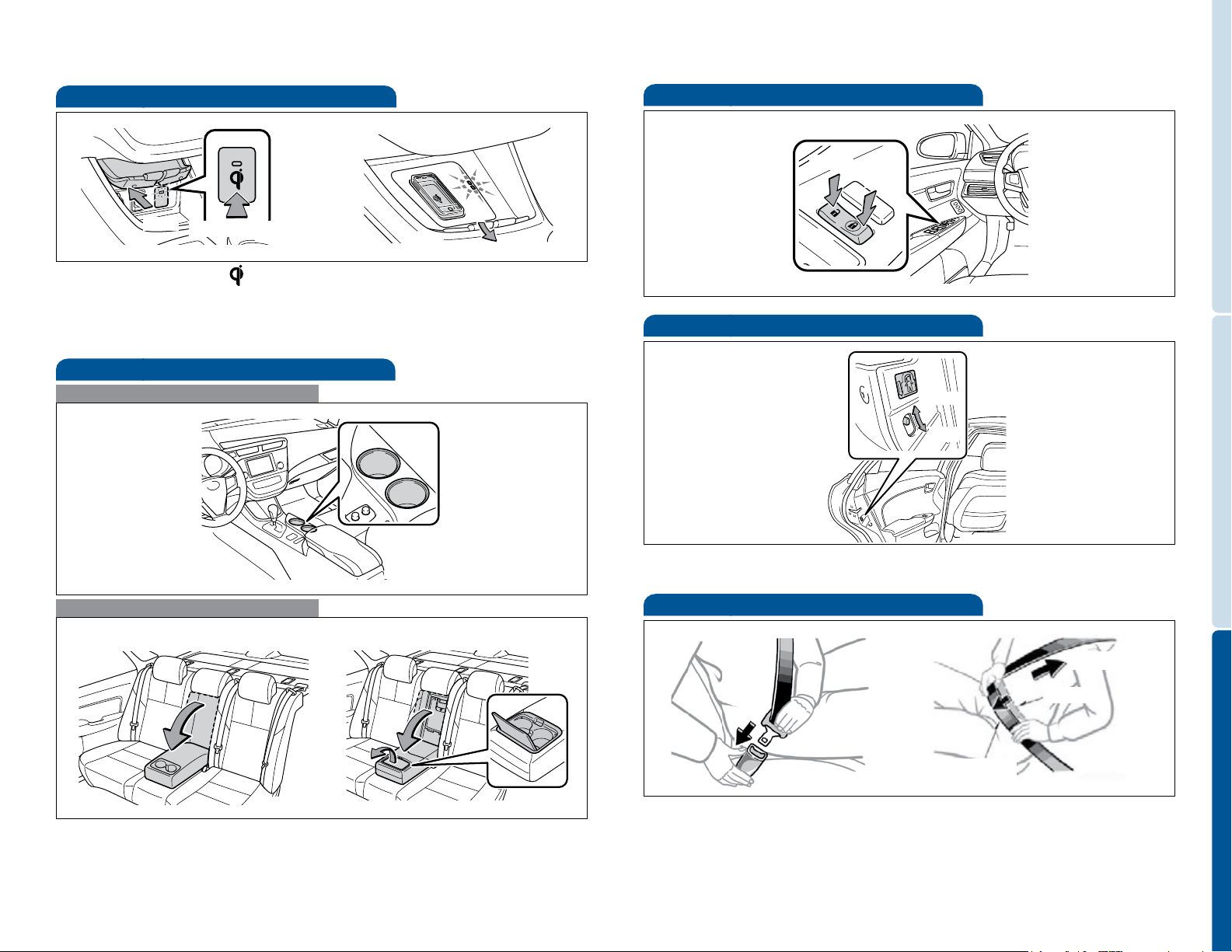

Wireless charger (if equipped)

Open

A mobile device with the “ ” logo can be charged wirelessly. Charging can only be performed with the “ENGINE START STOP” switch in ACCESSORY or IGNITION ON mode. Place a mobile device on the tray. One LED indicator is illuminated while charging and two LED indicators are illuminated when the charging is complete.

System ON/OFF

Cup holders

Front

Door locks

OVERVIEW

Unlock

Lock

Doors-Child safety locks

Rear door

Unlock

FEATURES/OPERATIONS

Lock

Rear

Type A Type B

Moving the lever to the lock position will allow the door to be opened only from the outside.

Seat belts

Take up slack

Too high

SAFETY AND EMERGENCY FEATURES

Keep as low on hips as possible

If belt is fully extended, then retracted even slightly, it cannot be re-extended beyond that point, unless fully retracted again. This feature is used to help hold child restraint systems securely.

To find more information about seat belts, and how to install a child restraint system, refer to the Owner’s Manual.

2322

SAFETY AND EMERGENCY FEATURES

Seat belts-Shoulder belt anchor Spare tire & tools

Tool location

Push up, or squeeze lock release to lower

Tire Pressure Monitoring (warning) System

OVERVIEW

System reset initialization

1. Push and hold “ the indicator blinks three times.

2. Wait a few minutes to allow initialization to complete.

After adjusting tire pressures, or after tires have been rotated or replaced, turn the “ENGINE START STOP” switch to IGNITION ON mode and press and hold the “

SET” button until indicator blinks three times. Let the vehicle sit for a few

minutes to allow initialization to complete.

Refer to the load label on the door jamb or the Owner’s Manual for tire inflation specifications.

If the tire pressure indicator flashes for more than 60 seconds and then remains on, take the vehicle to your local Toyota dealer.

NOTE: The warning light may come on due to temperature changes or changes in tire pressure from natural air leakage. If the system has not been initialized recently, setting the tire pressures to factory specifications should turn off the light.

SET” button until

Luggage floor cover Jack Jack handle Spare tire Tool tray Wheel nut wrench

Removing the spare tire

(1)

(2)

(2) Loosen the center fastener that

(1) Remove the tool tray.

Refer to the Owner’s Manual for tire changing and jack positioning procedures.

secures the spare tire.

Trunk-Internal release

Pull up

FEATURES/OPERATIONS

SAFETY AND EMERGENCY FEATURES

2524

SAFETY AND EMERGENCY FEATURES

Star Safety System

All new Toyota vehicles come standard with the Star Safety SystemTM, which combines Vehicle Stability Control (VSC), Traction Control (TRAC), Anti-lock Braking System (ABS), Electronic Brake-force Distribution (EBD), Brake Assist (BA) and Smart Stop Technology (SST).

Vehicle Stability Control (VSC)

VSC helps prevent loss of traction during cornering by reducing engine power and applying brake force to selected wheels.

Toyota’s VSC monitors steering angle and the direction your vehicle is traveling. When it senses that the front or rear wheels begin to lose traction, VSC reduces engine power and applies braking to selected wheels. This helps restore traction and vehicle control.

Traction Control (TRAC)

VSC helps prevent loss of traction during cornering by reducing engine power, and Traction Control helps maintain traction on loose gravel and wet, icy, or uneven surfaces by applying brake force to the spinning wheel(s).

Toyota’s TRAC sensors are activated when one of the drive wheels starts to slip. TRAC limits engine output and applies the brakes to the spinning wheel. This transfers power to the wheels that still have traction to help keep you on track.

Anti-Lock Brake System (ABS)

ABS helps prevent brakes from locking up by “pulsing” brake pressure to each wheel. This limits brake lockup and helps provide directional control for the current road conditions.

Smart Stop Technology (SST)

Smart Stop Technology automatically reduces driving torque when the accelerator and brake pedals are pressed simultaneously under certain conditions.

SST engages when the accelerator is depressed first and the brakes are applied firmly for longer than one-half second at speeds greater than five miles per hour.

SST doesn’t engage if the brake pedal is depressed before the accelerator pedal, allowing vehicles to start on a steep hill and safely accelerate without rolling backward.

Floor mat installation

There are two types of Toyota floor mats: carpeted and all-weather. Each vehicle has model-specific floor mats. Installation is easy.

To keep your floor mat properly positioned, follow these steps:

• Only use floor mats designed for your specific model.

• Use only one floor mat at a time, using the retaining hooks to keep the mat in

place.

• Install floor mats right side up.

Always align the Δ marks.

OVERVIEW

FEATURES/OPERATIONS

Toyota’s ABS sensors detect which wheels are locking up and limits wheel lockup by “pulsing” each wheel’s brakes independently. Pulsing releases brake pressure repeatedly for fractions of a second. This helps the tires attain the traction that current road conditions will allow, helping you to stay in directional control.

Electronic Brake Force Distribution (EBD)

Toyota’s ABS technology has Electronic Brake-force Distribution (EBD) to help maintain control and balance when braking. Abrupt stops can cause a vehicle to tilt forward, reducing the braking power of the rear wheels. EBD responds to sudden stops by redistributing brake force to enhance the braking effectiveness of all four wheels.

Brake Assist (BA)

Brake Assist is designed to detect sudden or “panic” braking, and then add braking pressure to help decrease the vehicle’s stopping distance. When there’s only a split second to react, Brake Assist can add additional brake pressure more quickly than just the driver alone can.

SAFETY AND EMERGENCY FEATURES

2726

BLUETOOTH® DEVICE PAIRING

SECTION

2928 2928

BLUETOOTH® DEVICE PAIRING

To begin the Bluetooth® Pairing process, press the HOME button on the faceplate of your Toyota Vehicle Entune™ Multimedia Head Unit.

Bluetooth® Pairing for Android® phone and Entune™ touch screen system

Pairing your phone is the first step in connecting with your Toyota for hands-free calling and for audio streaming via Bluetooth. This pairing process is quick and easy: all Android mobile digital devices have Bluetooth integrated; all you have to do is setup the phone and multimedia system to “talk” to each other and form a connection.

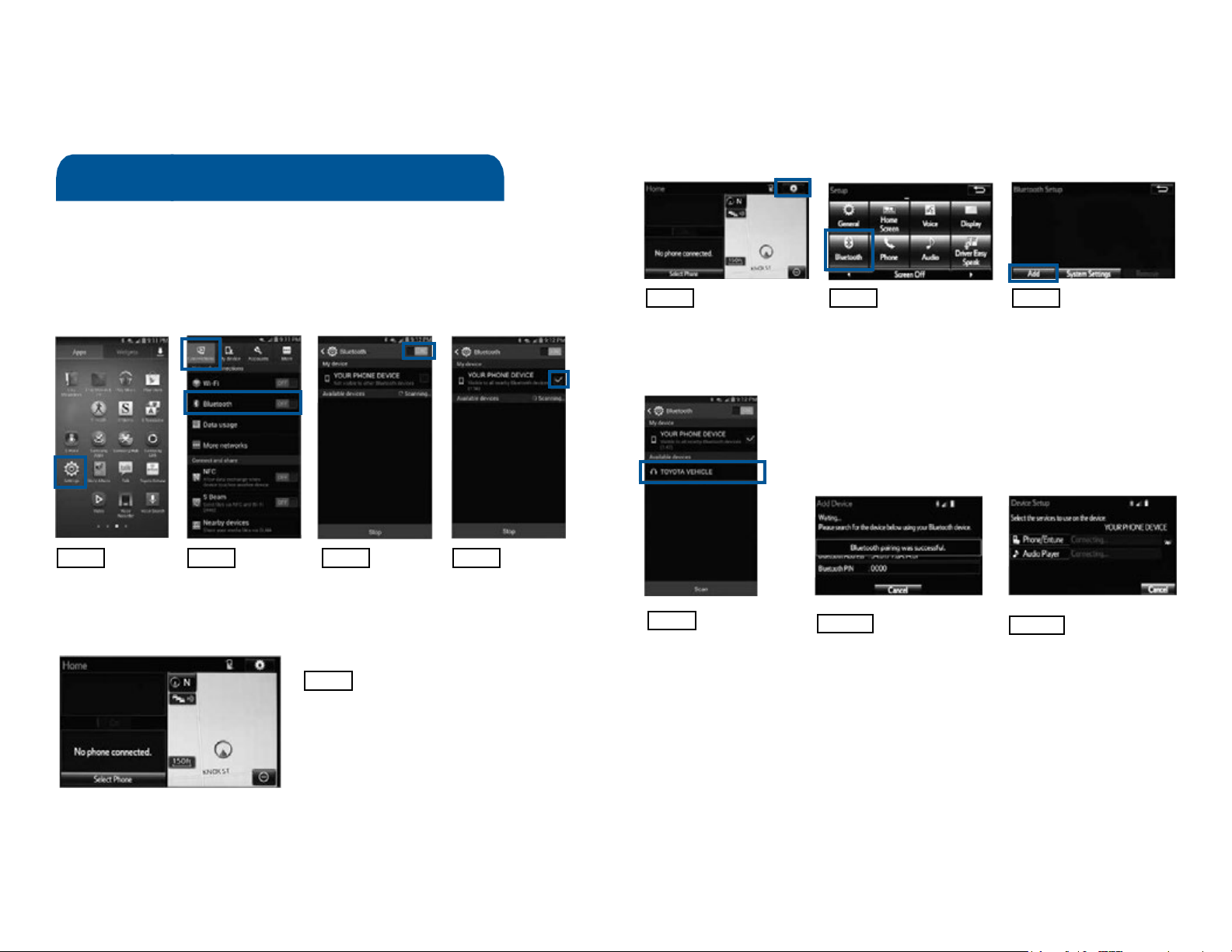

Initiate Bluetooth® on your Android

Initiate Bluetooth® on your Entune™ Multimedia Head Unit

Once you have Bluetooth enabled on your phone and ready to pair, you will need to initiate Bluetooth on your Entune head unit. Please follow the instructions below to pair your Bluetooth enabled phone to your Entune system.

STEP 6

On your Toyota Vehicle Entune Multimedia Head Unit, Select SETUP BUTTON on the Home Screen.

STEP 7

Select BLUETOOTH

STEP 8

Select ADD, to add your phone device

STEP 1 STEP 2 STEP 3 STEP 4

From your APPS SCREEN, select SETTINGS

1 Some Android devices may have slightly different SETTINGS screen layout depending on manufacturer of

device and Android OS version.

Select CONNECTIONS and select BLUETOOTH

Ensure

BLUETOOTH is ON

STEP 5

While your Android device is seeking out Bluetooth devices, proceed to your Entune Multimedia Head Unit on your Toyota vehicle.

Select YOUR PHONE DEVICE to make it discoverable.

Phone will seek out Bluetooth devices while remaining discoverable.

STEP 9

Back on your smartphone, you can now select your TOYOTA VEHICLE in Bluetooth Settings.

You may need to enter the provided Bluetooth PIN on your phone.

STEP 10

Your smartphone is now paired with Entune.

3130 3130

STEP 11

Once paired, Entune will attempt to connect audio and contacts on your phone.

BLUETOOTH® DEVICE PAIRING

Initiate Bluetooth® on your Entune™ Multimedia Head Unit (continued)

STEP 12

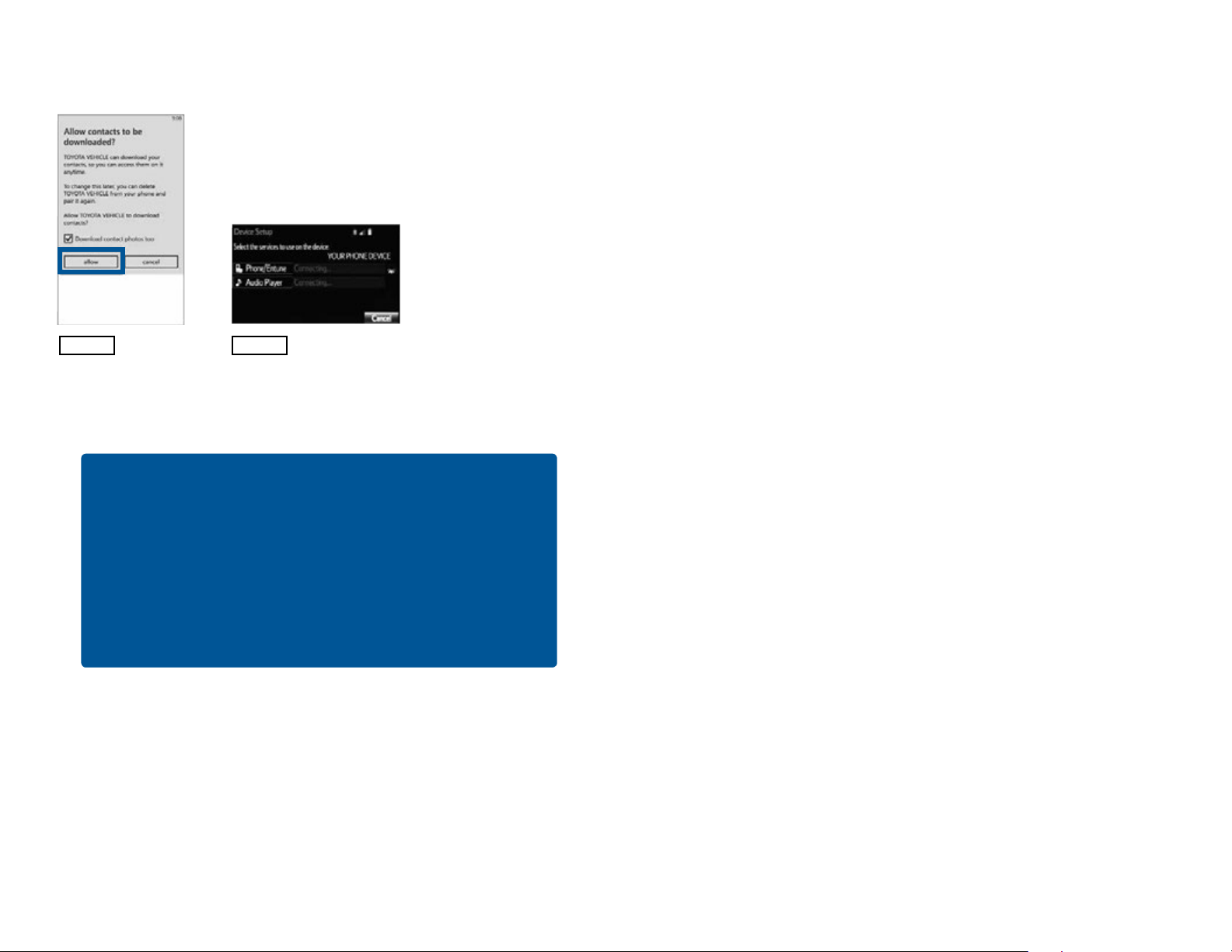

Using your smartphone, you will need to allow Entune access to your messaging and contacts

It is recommended to check the “Don’t ask again” box, so as not to have to press OK every time the phone makes a Bluetooth connection with your Toyota

Additional Resources

If you’re having trouble pairing your phone, Toyota has you covered. You can get more information from the following sources:

STEP 13

A confirmation will appear once your phone has been paired and connected.

Bluetooth® Pairing for iPhone® and Entune™ touch screen system

Pairing your phone is the first step in connecting with your Toyota for hands-free calling and for audio streaming via Bluetooth. This pairing process is quick and easy: all iPhone mobile digital devices have Bluetooth integrated; all you have to do is setup the phone and multimedia system to “talk” to each other and form a connection. Bluetooth Pairing Guide for select 2015 models.

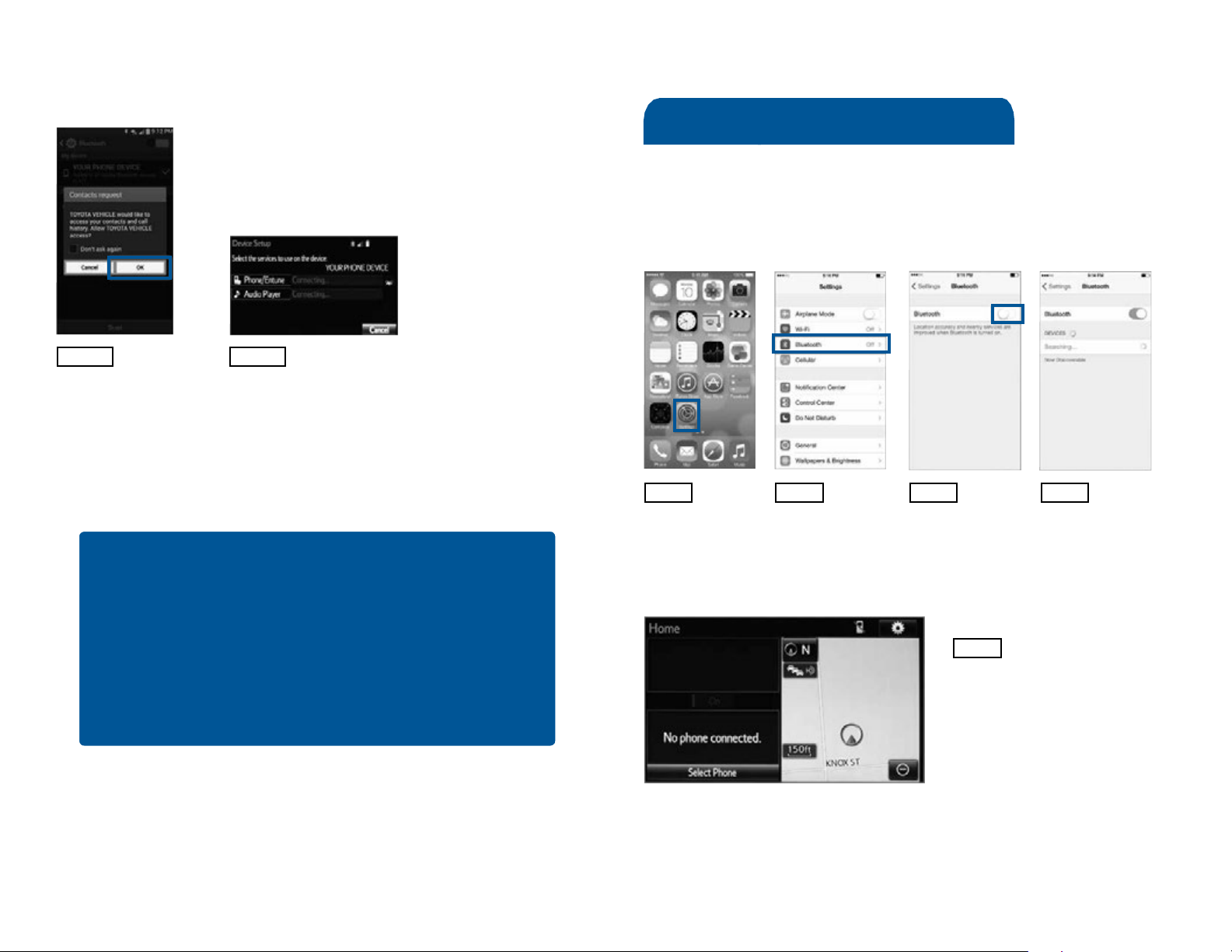

Initiate Bluetooth® on your iPhone

STEP 1 STEP 2 STEP 3 STEP 4

From the HOME SCREEN, select SETTINGS

Select BLUETOOTH

Ensure

BLUETOOTH is ON

Your iPhone will seek out Bluetooth devices while remaining discoverable

Online Pairing Guide:

www.toyota.com/connect

Your Toyota Owner’s Manual

Located in the vehicle glovebox

Toyota Customer Experience Center

(800) 331-4331

Disclosures This brochure is accurate at the time of print; content subject to change based on periodic multimedia software updates.

1. Concentrating on the road should always be your first priority while driving. Do not use the hands-free phone system if it will distract you.

2. The Bluetooth word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Toyota is under license. A compatible Bluetooth enabled phone must first be paired. Phone performance depends on software, coverage & carrier.

4. Apps/services vary by phone/carrier; functionality depends on many factors. Select apps use large amounts of data; you are responsible for charges. Apps & services subject to change. See Toyota.com/entune for details.

5. Bluetooth Pairing Guide for select 2015 models.

STEP 5

While your iPhone device is seeking out Bluetooth devices, proceed to your Entune Multimedia Head Unit on your Toyota vehicle.

CONTINUE ON THE NEXT PAGE...

3332 3332

BLUETOOTH® DEVICE PAIRING

Initiate Bluetooth® on your Entune™ Multimedia Head Unit

STEP 6

Select SETUP BUTTON on the Home Screen.

STEP 9

Back on your smartphone, you can now select your TOYOTA VEHICLE in Bluetooth Settings.

You may need to enter the provided Bluetooth PIN on your phone.

STEP 7

Select BLUETOOTH

STEP 10

Your smartphone is now paired with Entune.

STEP 8

Select ADD, to add your phone device

STEP 11

Once paired, Entune will attempt to connect audio and contacts on your phone.

STEP 12

Using your smartphone, you may need to allow Entune access to your messaging and contacts

Only current iPhone text messages can be viewed on the head unit. iPhone does not allow text message reply.

Additional Resources

STEP 13

A confirmation will appear once your phone has been paired and connected.

If you’re having trouble pairing your phone, Toyota has you covered. You can get more information from the following sources:

Online Pairing Guide:

www.toyota.com/connect

Your Toyota Owner’s Manual

Located in the vehicle glovebox

Toyota Customer Experience Center

(800) 331-4331

Disclosures This brochure is accurate at the time of print; content subject to change based on periodic multimedia software updates.

1. Concentrating on the road should always be your first priority while driving. Do not use the hands-free phone system if it will distract you.

5. Bluetooth Pairing Guide for select 2015 models.

3534 3534

BLUETOOTH® DEVICE PAIRING

Bluetooth® Pairing for Windows Phone® and Entune™ touch screen system

Pairing your phone is the first step in connecting with your Toyota for hands-free calling and for audio streaming via Bluetooth. This pairing process is quick and easy: all Windows Phone mobile digital devices have Bluetooth integrated; all you have to do is setup the phone and multimedia system to “talk” to each other and form a connection. Bluetooth Pairing Guide for select 2015 models.

Initiate Bluetooth® on your Windows Phone

STEP 1 STEP 2 STEP 3 STEP 4

From your APP LIST, select SETTINGS

Select BLUETOOTH

Ensure

BLUETOOTH is ON

Phone will seek out Bluetooth devices while remaining discoverable

Initiate Bluetooth® on your Entune™ Multimedia Head Unit

Once you have Bluetooth® enabled on your phone and ready to pair, you will need to initiate Bluetooth® on your Entune head unit. Please follow the instructions below to pair your Bluetooth enabled phone to your Entune system.

STEP 6

On your Toyota Vehicle Entune Multimedia Head Unit, Select SETUP BUTTON on the Home Screen.

STEP 7

Select BLUETOOTH

STEP 8

Select ADD, to add your phone device

STEP 5

While your iPhone device is seeking out Bluetooth devices, proceed to your Entune Multimedia Head Unit on your Toyota vehicle.

CONTINUE ON THE NEXT PAGE...

STEP 9

Back on your smartphone, you can now select your TOYOTA VEHICLE in Bluetooth Settings.

You may need to enter the provided Bluetooth PIN on your phone.

STEP 10

Your smartphone is now paired with Entune.

3736 3736

STEP 11

Once paired, Entune will attempt to connect audio and contacts on your phone.

BLUETOOTH® DEVICE PAIRING

Initiate Bluetooth® on your Entune™ Multimedia Head Unit (continued)

NOTES

STEP 12

Using your smartphone, you may need to allow Entune access to your contacts

Additional Resources

STEP 13

A confirmation will appear that your phone has been paired and connected.

If you’re having trouble pairing your phone, Toyota has you covered. You can get more information from the following sources:

Online Pairing Guide:

www.toyota.com/connect

Your Toyota Owner’s Manual

Located in the vehicle glovebox

Toyota Customer Experience Center

(800) 331-4331

Disclosures This brochure is accurate at the time of print; content subject to change based on periodic multimedia software updates.

1. Concentrating on the road should always be your first priority while driving. Do not use the hands-free phone system if it will distract you.

5. Bluetooth Pairing Guide for select 2015 models.

3938 3938

NOTES NOTES

4140

MN 00505-QRG15-AVA

Printed in the USA 9/14

Toyota AVALON 2015 Reference Guide

Specifications and Main Features

Frequently Asked Questions

User Manual

OVERVIEW

Instrument panel

Instrument cluster

Indicator symbols

Keyless entry

Smart Key system

Hood releaseFuel tank door release and cap

Light control-Instrument panel

Engine maintenance

FEATURES/OPERATIONS

Auto lock/unlock

Automatic Transmission

Driving mode select

Steering lock release

Parking brake

Tilt and telescopic steering wheel

Windows-Power

Seat adjustments-Front

Multi-Information Display

Seats-Head restraints

Power outlets-12V DC

Cruise control

Air Conditioning/Heating

Steering wheel switches

Clock

SAFETY AND EMERGENCY FEATURES

Cup holders

Door locks

Doors-Child safety locks

Seat belts

Seat belts-Shoulder belt anchor Spare tire & tools

Tire Pressure Monitoring (warning) System

Trunk-Internal release

Star Safety System

Floor mat installation
