AVALON

2011

QUICK REFERENCE

GUIDE

2011

Avalon

This Quick Reference Guide is a summary of basic vehicle operations. It contains brief descriptions of fundamental operations so you can locate and use the vehicle’s main equipment quickly and easily.

The Quick Reference Guide is not intended as a substitute for the Owner’s Manual located in your vehicle’s glove box. We strongly encourage you to review the Owner’s Manual and supplementary manuals so you will have a better understanding of your vehicle’s capabilities and limitations.

Your dealership and the entire staff of Toyota Motor Sales, U.S.A., Inc. wish you many years of satisfied driving in your new Avalon.

A word about safe vehicle operations

This Quick Reference Guide is not a full description of Avalon operations. Every Avalon owner should review the Owner’s Manual that accompanies this vehicle.

Pay special attention to the boxed information highlighted in color throughout the Owner’s Manual. Each box contains safe operating instructions to help you avoid injury or equipment malfunction.

All information in this Quick Reference Guide is current at the time of printing. Toyota reserves the right to make changes at any time without notice.

INDEX

OVERVIEW

FEATURES/OPERATIONS

Engine maintenance 9 Fuel tank door release and cap 8 Hood release 9 Indicator symbols 4-5 Instrument cluster 4 Instrument panel 2-3

Keyless entry

Light control-Instrument panel 8

Smart Key system

Trunk release 8

Air Conditioning/Heating 20 Audio 18-19

Auto lock functions

Automatic Transmission 10 Clock 21 Cruise control 15 Cup holders 22 Door locks 10 Garage door opener (HomeLink®)

Lights1& turn signals 13

Moonroof 17 Multi-information display 17 Parking brake 11 Power outlets 22 Seat adjustments-Front 12 Seat adjustments-Rear 12 Seat ventilators/Heaters 21 Seats-Head restraints 12 Steering lock release 11 Steering wheel switches 19

Sunshade-Rear

Telephone controls (Bluetooth®) 16 Tilt and telescopic steering wheel 11 Windows-Power 14

Windshield wipers & washers

OVERVIEW FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES

SAFETY AND

EMERGENCY FEATURES

Doors-Child safety locks 23 Seat belt comfort guide 24 Seat belts 23 Seat belts-Shoulder belt anchor 23 Spare tire & tools 25 Tire Pressure Monitoring (warning) System 24 Trunk-Internal release 25

Visit your Toyota dealer for information on customizing this feature.

Programmable by customer. Refer to the Owner’s Manual for instructions and

more information.

HomeLink®is a registered trademark of Johnson Controls, Inc.

OVERVIEW

Instrument panel

Steering wheel controls

Steering wheel audio controls Telephone controls

Steering wheel climate controls Ignition switch (standard key) Voice command button

Multi-information display button Driving position memory switches

Headlight, turn signal and front fog light controls “ENGINE START STOP” button (Smart Key)

Wiper and washer controls Clock Emergency flasher button Audio system/Navigation system

1,2

Air Conditioning controls Outside rearview mirror

/Rear window defogger button

Storage compartment

OVERVIEW FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES

Cruise control Tire Pressure Monitoring (warning) System reset Tilt lock release lever Telescopic lock release Power rearview mirror control VSC OFF switch Glass breakage sensor Rear sunshade switch

Trunk opener Fuel filler door opener

If equipped

For details, refer to the “Navigation System Owner’s Manual.”

OVERVIEW

Instrument cluster

Engine coolant temperature Tachometer Service indicator and reminder Speedometer Fuel gauge Odometer/Trip meter and trip meter reset button Odometer/Trip meter display Automatic Transmission shift position indicator Multi-information display

Indicator symbols

For details, refer to “Indicators and warning lights,” Section 2-2, Owner’s Manual.

Brake system warning

Driver seat belt reminder (alarm will sound if speed is over 9 mph)

Front passenger seat belt reminder (alarm will sound if speed is over 9 mph)

Charging system warning

Front passenger occupant classification indicator/ Front passenger airbag ON/OFF indicator

Low engine oil pressure warning

If indicator does not turn off within a few seconds of starting engine, there may

be a malfunction. Have vehicle inspected by your Toyota dealer.

2011

Malfunction/Check Engine indicator

Engine oil replacement reminder

Low fuel level warning

Open door warning

Airbag SRS warning

Tire Pressure Warning

Low windshield washer fluid level warning

Security indicator

Headlight low/high beam indicator

Turn signal indicator

Automatic headlight leveling system warning

Slip indicator

Vehicle Stability Control OFF indicator

Traction Control OFF indicator

Cruise control indicator

Cruise control SET indicator

OVERVIEW FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES

Anti-lock Brake System warning

Smart Key system warning

If this light flashes, refer to “Cruise control,” Section 2-4, 2011 Owner’s Manual.

OVERVIEW

Keyless entry

Locking operation

Without Smart Key system With Smart Key system

Push

Unlocking operation

Without Smart Key system With Smart Key system

Push ONCE: Driver door

TWICE: All doors

NOTE: If a door is not opened within 60 seconds of unlocking, all doors will

relock for safety.

Trunk lid operation

Without Smart Key system With Smart Key system

Panic button

Push and hold

Smart Key system (if equipped)

Start function

Green indicator ON

OVERVIEW FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES

Carrying

Depress brake pedal

Push

NOTE: Gear shift lever must be in Park and brake pedal depressed.

Power (without starting engine)

Without depressing the brake pedal, pressing the “ENGINE START STOP” switch will change the operation mode in succession from:

ACC

OFF

Locking operation

Carry remote to lock

Accessories such as the radio will operate.

Power ON; the engine not running.

All systems OFF.

Unlocking operation

Front door lock

Push

Carry remote to unlock

Front door unlock*

Grasp

Trunk access

Opening trunk

Carry remote to lock/unlock

Push

* Driver door unlocking function can be programmed to unlock driver door

only, or all doors. Grasping passenger door handle will unlock all doors.

NOTE: Doors may also be locked/unlocked using remote.

OVERVIEW

Fuel tank door release and cap

Push

Store

Light control-Instrument panel

Tu rn

NOTE: Tighten until one click is heard. If the cap is not tightened enough, Check Engine “ ” indicator may illuminate.

Brightness control

Trunk release

Trunk opener

Push

Hood release

Pull

Engine maintenance

OVERVIEW FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES

Pull up latch and raise hood

Engine coolant reservoir Power steering fluid reservoir Engine oil filler cap Engine oil level dipstick Windshield washer fluid tank

NOTE: Regularly scheduled maintenance, including oil changes, will

help extend the life of your vehicle and maintain performance. Please refer to the “Warranty Maintenance Guide.”

FEATURES/OPERATIONS

Auto lock functions

Automatic door locks can be programmed to operate in two different modes, or turned OFF.

1. Doors lock: when shifting from Park. Doors unlock: when shifting into Park.

2. Doors lock: when the vehicle speed goes above 12 mph. Doors unlock: when the driver’s door is opened within 10 seconds after turning the “ENGINE START STOP” switch or the engine switch OFF.

Refer to the Owner’s Manual for more details.

Automatic Transmission

+ (“S” mode)

- (“S” mode)

* The “ENGINE START STOP” switch/engine must be “ON” and the brake

pedal depressed to shift from Park.

Park*

Reverse

Neutral

Drive

“S” mode

“D”

“S”

“S” (Sequential) mode

Shift the shift lever to “S” position from “D” position.

+: Upshift (push and release)

-: Downshift (pull and release)

Downshifting increases power going uphill, or provides engine braking downhill. For best fuel economy during normal driving conditions, always drive with the shift lever in the “D” position.

Door locks

Unlock

Lock

Steering lock release

If steering lock does not disengage:

With Smart Key system

Tu rn

Push

Gently turn wheel while pressing the “ENGINE START STOP” switch. If the lock does not release, the switch will flash green.

Without Smart Key system

Tilt and telescopic steering wheel

Angle

Tu rn

OVERVIEW FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES

Tu rn

Length

Lock release lever

Hold wheel, push lever down, set angle and length, and return lever.

NOTE: Do not attempt to adjust while the vehicle is in motion.

Parking brake

Set: Depress Release: Depress again

FEATURES/OPERATIONS

Seats-Head restraints

Seat adjustments-Front

Lock release button

Leg support (if equipped) Seat position, cushion angle (if equipped) and height (if equipped) Seatback angle Lumbar support (if equipped)

Seat adjustments-Rear

Seatback angle lever

Refer to the Owner’s Manual for more details.

Lights & turn signals

Headlights

Parking lights

Auto

DRL OFF

Low beam

High beam

High beam flasher

-Daytime Running Light system (DRL)(if equipped) Automatically turns

on the headlights at a reduced intensity.

-Automatic light cut off system Automatically turns lights off after a

delay of 30 seconds, or the lock switch on remote may be pushed after locking.

Front fog lights

OVERVIEW FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES

Tu rn

Front fog lights come on only when the headlights are on low beam.

Turn signals

Right turn

Lane change

Left turn

FEATURES/OPERATIONS

Windshield wipers & washers

With interval wiper (if equipped)

With AUTO rain-sensing wiper (if equipped)

Adjust frequency*

Pull to wash and wipe

Single wipe

Interval wipe

Slow

Fast

Adjust sensor sensitivity

Pull to wash and wipe

Single wipe

Auto wipe

Slow

Fast

* Intermittent windshield wiper frequency adjustment

Rotate to increase/decrease wipe frequency.

Windows-Power

Driver side

Down

Automatic operation Push the switch completely down or pull it completely up and release to fully open or close. To stop window midway, lightly push the switch in the opposite direction.

Window lock switch Deactivates all passenger windows. Driver’s window remains operable.

Window lock switch

NOTE: If battery is disconnected, the window needs to be reinitialized. Refer to the Owner’s Manual for more details.

Cruise control

Turning system ON/OFF

Functions

Resu me

Cancel

OVERVIEW FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES

System ON/OFF

Increase speed

Set

The set speed may also be cancelled by depressing the brake pedal.

The set speed may be resumed once vehicle speed exceeds 25 mph.

Decrease speed

Garage door opener (HomeLink®)* (if equipped)

Garage door openers manufactured under license from HomeLink®* can be programmed to operate garage doors, estate gates, security lighting, etc.

Refer to “Garage door opener,” Section 3-7 in the Owner’s Manual for more details.

For programming assistance, contact HomeLink visit http://www.homelink.com.

* HomeLink®is a registered trademark of Johnson Controls, Inc.

at 1-800-355-3515, or

FEATURES/OPERATIONS

Telephone controls (Bluetooth®)

Audio unit

Steering wheel telephone switches

Vol ume

End call

Start call

Voice command button

Microphone

Bluetooth®technology allows dialing or receipt of calls without taking hands from the steering wheel or using a cable to connect the compatible telephone and the system.

Refer to “Hands-free system (for cellular phone),” Section 3-4 in the Owner’s Manual for more details, or go to Toyota.com and enter “Bluetooth” in the keyword search.

Sunshade-Rear (if equipped)

When shifting to reverse, sunshade retracts automatically, and then rises again when driving forward.

Push

Moonroof (if equipped)

Sliding operation

Push once to open partway; again to open completely.

Open

Recommended driving position to minimize wind noise.

Tilting operation

Tilt

NOTE: If battery is disconnected, the moonroof needs to be reinitialized. Refer to the Owner’s Manual for more details.

OVERVIEW FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES

Multi-information display

Push “DISP” to change information in the following:

(1) Outside temperature (2) Miles left on remaining fuel (3) Average gas mileage (4) Current gas mileage (5) Average vehicle speed from engine start

Push

FEATURES/OPERATIONS

Audio

Typ e 1

Seek station/ CD track select

Push to turn ON/OFF

Mute/pause

Typ e 2

Eject CD

Station/CD track scan

Push to skip up/down folder and radio category type

Load CD(s)

Mode

Preset button - functions in other modes indicated above number

Push to adjust tone & balance

View CD text

CD PLAYER

To scan tracks on a disc Push “SCAN.” Push again to hold selection. CD changer (Type 1 only)

-To load one disc Push “LOAD” and insert one disc.

-To load multiple discs Push and hold “LOAD” until you hear a beep.

Insert one disc. Shutter will close and then re-open for next disc.

To select a file (MP3/WMA only) Turn “TUNE.SCROLL.” To select a folder (MP3/WMA only) Push either side of “TYPE FLDR.”

RADIO

To preset stations Tune in the desired station and hold down a preset

button until you hear a beep. Push desired preset button to select. To scan stations Push and hold “SCAN” to scan preset stations. Push again to hold selection.

AUX or USB/AUX audio jack

By inserting a mini plug into the AUX or USB/AUX audio jack, you can listen to music from a portable audio device through the vehicle’s speaker system while in AUX or USB/AUX mode.

Steering wheel switches

OVERVIEW FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES

Audio control

Volume control

“ ”

Climate control

Temperature selector

Auto A/C ON

System OFF

Use to search within the selected audio medium (radio, CD, iPod, etc.).

“MODE”

Push to turn audio ON and select an audio mode. Push and hold to turn audio system OFF.

FEATURES/OPERATIONS

Air Conditioning/Heating

Automatic climate control ON “DUAL” button Indicator ON: Separate temperature settings for driver and passenger. Indicator OFF: Synchronize temperature settings for driver and passenger. Temperature selector (passenger side) Air Conditioning ON/OFF Fresh or recirculated cabin air Airflow vent In “ ” mode, use fresh air (“ ” indicator OFF) to reduce window fogging. Fan speed Outside rearview mirror/Rear window defogger Windshield defogger Climate control OFF Temperature selector (driver side)

Seat ventilators/Heaters (if equipped)

With ventilator

Push

OFF

Ventilator

Tu rn

Heater

Heater only

Push

Push knob to pop the controller out. Turn clockwise for heater, counter-clockwise for ventilator.

Clock

H-Hour set M-Minute set :00-Round off minutes

OVERVIEW FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES

Tu rn

FEATURES/OPERATIONS

Power outlets

Auxiliary box

The “ENGINE START STOP” switch/engine switch must be in the “ACC” or “ON” position to be used.

Console box

Cup holders

Front

Rear (type A)

Rear (type B)

SAFETY AND EMERGENCY FEATURES

Doors-Child safety locks

Rear door

Moving the lever to “LOCK” will allow the door to be opened only from the outside.

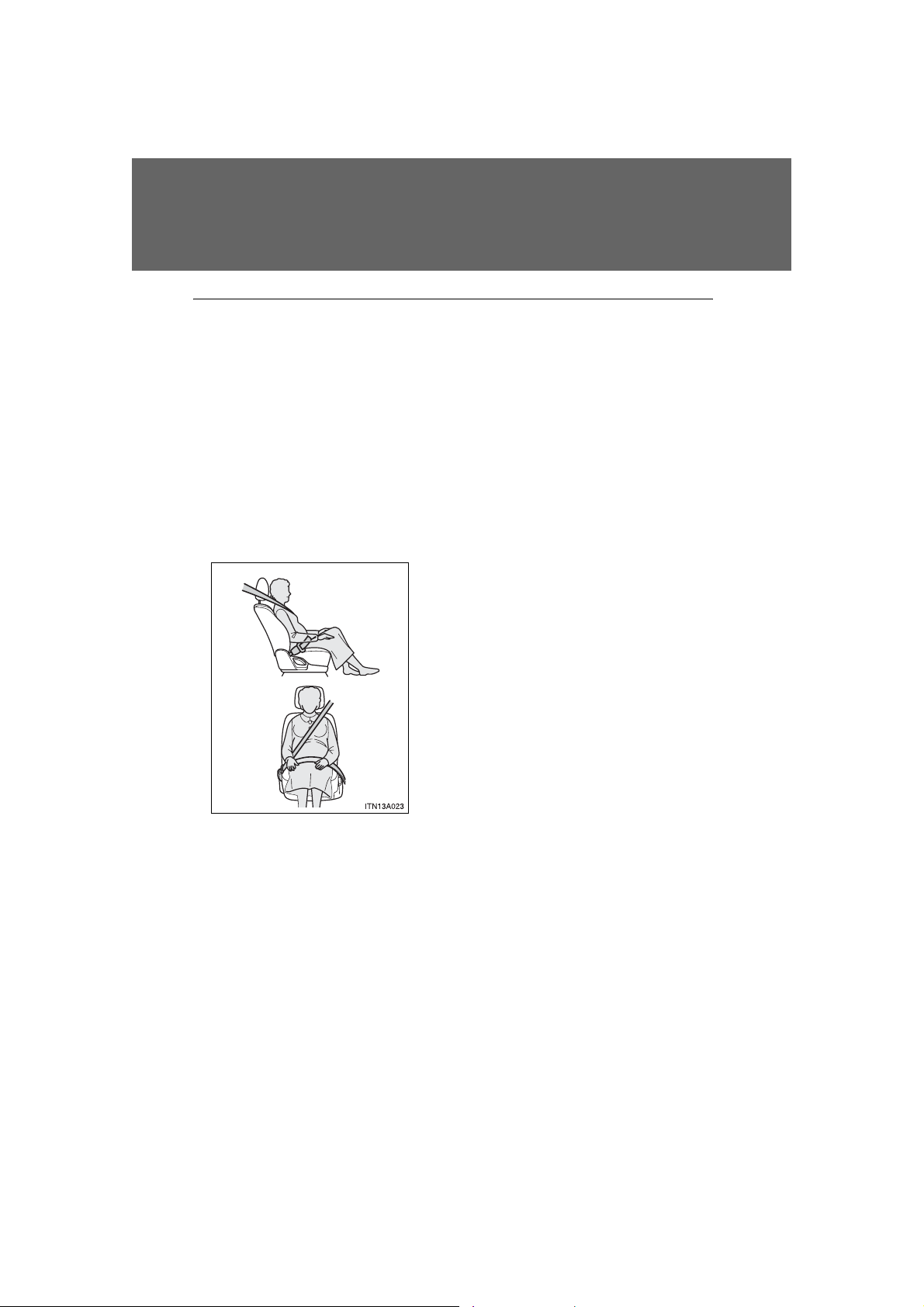

Seat belts

Take up slack

Too high

Keep as low on hips as possible

OVERVIEW FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES

If belt is fully extended, then retracted even slightly, it cannot be re-extended beyond that point, unless fully retracted again. This feature is used to help hold child restraint systems securely.

To find more information about seat belts, and how to install a child restraint system, refer to the Owner's Manual.

Seat belts-Shoulder belt anchor

Push up, or squeeze lock release to lower

SAFETY AND EMERGENCY FEATURES

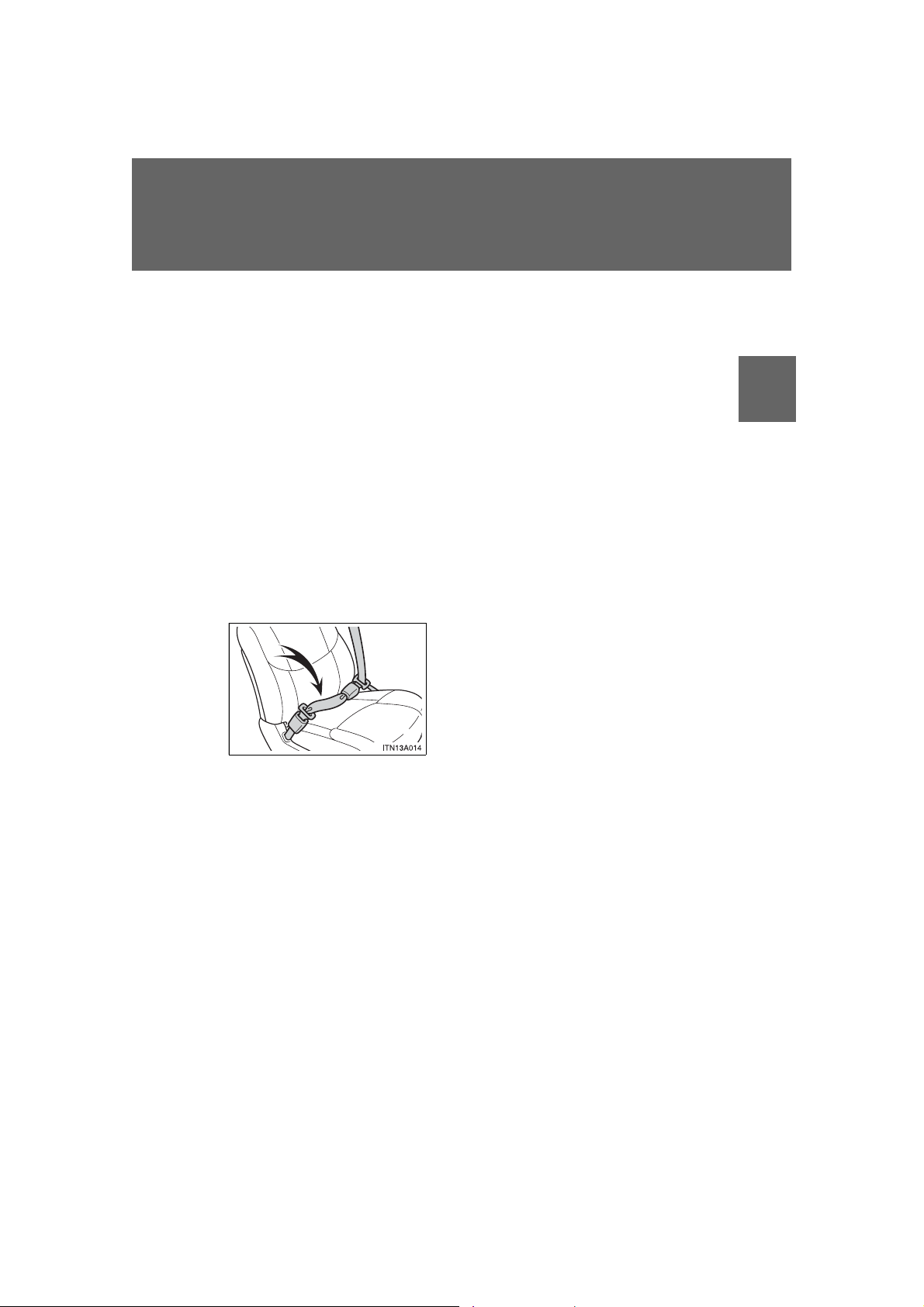

Seat belt comfort guide

Rear seat outside position guides provide added comfort for children who have outgrown child restraints.

Tire Pressure Monitoring (warning) System

System reset initialization

1. Push and hold “ SET” button until the indicator blinks

three times.

2. Wait a few minutes to allow initialization to complete.

After adjusting tire pressures, or after tires have been rotated or replaced, turn the ignition switch to “ON” and press and hold the “ SET” button until indicator blinks three times. Let the vehicle sit for a few minutes to allow initialization to complete.

Refer to the load label on the door jamb or the Owner’s Manual for tire inflation specifications.

If the tire pressure indicator flashes for more than 60 seconds and then remains on, take the vehicle to your local Toyota dealer.

NOTE: The warning light may come on due to temperature changes or changes in tire pressure from natural air leakage. If the system has not been initialized recently, setting the tire pressures to factory specifications should turn off the light.

Trunk-Internal release

Spare tire & tools

Tool location

Spare tire cover

OVERVIEW FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES

Pull

Luggage floor cover

Jack handle

Spare tire

Wheel nut wrench

Jack

Removing the spare tire

(1) (2) (3)

(1) Remove the luggage cover. (2) Loosen and remove the center fastener. (3) Remove the spare tire cover.

Refer to the Owner’s Manual for tire changing and jack positioning procedures.

CUSTOMER EXPERIENCE CENTER

10%

Cert no. SGS-COC-005612

1- 800 - 3 31- 4 331

Printed in U.S. A. 2/10

09-TCS-03785

005 05- QRG11-AVA

TABLE OF CONTENTS Index

Before driving

1-1. Key information

Keys ..................................... 24

1-2. Opening, closing and locking

the doors and trunk

Smart key system................. 26

Wireless remote control ....... 38

Doors.................................... 43

Trunk.................................... 50

1-3. Adjustable components

(seats, steering wheel, mirrors)

Front seats........................... 54

Rear seats............................ 56

Driving position memory

system................................ 58

Head restraints..................... 62

Seat belts............................. 65

Steering wheel ..................... 73

Inside rear view mirror.......... 75

Outside rear view mirrors..... 77

1-4. Opening and closing the

windows and moon roof

Power windows..................... 80

Moon roof ............................. 83

1-5. Refueling

Opening the fuel tank

cap...................................... 87

1-6. Theft deterrent system

Engine immobilizer

system................................ 91

Alarm.................................... 94

Theft prevention labels

(U.S.A.)............................... 98

1-7. Safety information

Correct driving posture......... 99

SRS airbags ....................... 101

Front passenger occupant

classification system......... 114

Child restraint systems....... 120

Installing child restraints..... 125

AVALON_U (OM41428U)

When driving

2-1. Driving procedures

Driving the vehicle............... 138

Engine (ignition) switch

(with smart key

system)............................. 149

Engine (ignition) switch

(without smart key

system)............................. 153

Automatic transmission....... 156

Turn signal lever ................. 161

Parking brake...................... 162

Horn.................................... 163

2-2. Instrument cluster

Gauges and meters ............ 164

Indicators and warning

lights ................................. 167

Multi-information display..... 170

2-3. Operating the lights and

windshield wipers

Headlight switch.................. 173

Fog light switch................... 176

Windshield wipers and

washer.............................. 177

2-4. Using other driving systems

Cruise control..................... 182

Rear view monitor

system.............................. 186

Driving assist systems........ 195

2-5. Driving information

Cargo and luggage............. 200

Vehicle load limits............... 205

Winter driving tips............... 207

Trailer towing...................... 212

Dinghy towing..................... 213

AVALON_U (OM41428U)

TABLE OF CONTENTS Index

Interior features

3-1. Using the air conditioning

system and defogger

Automatic air conditioning

system.............................. 216

Using the steering wheel climate

control switches................ 224

Rear window and outside rear

view mirror defoggers....... 225

3-2. Using the audio system

Audio system type.............. 227

Using the radio................... 231

Using the CD player........... 239

Playing back MP3 and

WMA discs....................... 247

Operating an iPod.............. 255

Operating a USB

memory............................ 262

Optimal use of the audio

system.............................. 270

Using the AUX port ............ 273

Using the steering

switches ........................... 274

3-3. Using the Bluetooth

audio

system

Bluetooth

audio

system.............................. 277

Using the Bluetooth

audio system .................... 280

Operating a Bluetooth

enabled portable

player................................ 287

Setting up a Bluetooth

enabled portable

player................................ 289

Bluetooth

audio system

setup................................. 295

3-4. Using the hands-free system

(for cellular phone)

Hands-free system

(for cellular phone) ........... 296

Using the hands-free

system.............................. 299

Making a phone call............ 308

Setting a cellular phone...... 313

Security and system

setup................................. 320

Using the phone book......... 325

3-5. Using the interior lights

Interior lights list.................. 334

AVALON_U (OM41428U)

3-6. Using the storage features

List of storage features ....... 337

Maintenance and care

3-7. Other interior features

Sun visors........................... 345

Vanity mirrors...................... 346

Clock................................... 347

Ashtrays.............................. 348

Power outlets...................... 349

Seat heaters/ventilators...... 351

Armrest ............................... 353

Rear sunshade.................... 354

Floor mats........................... 356

Trunk features..................... 358

Garage door opener............ 360

Compass............................. 368

4-1. Maintenance and care

Cleaning and protecting

the vehicle exterior........... 374

Cleaning and protecting

the vehicle interior............ 377

4-2. Maintenance

Maintenance

requirements.................... 380

General maintenance......... 383

Emission inspection and

maintenance (I/M)

programs.......................... 386

4-3. Do-it-yourself maintenance

Do-it-yourself service

precautions....................... 387

Hood................................... 391

Positioning a floor jack ....... 392

Engine compartment.......... 394

Tires ................................... 409

Tire inflation pressure......... 418

Wheels ............................... 422

Air conditioning filter........... 425

Key battery......................... 428

Checking and replacing

fuses................................. 432

Headlight aim (with

discharge headlights)....... 441

Light bulbs.......................... 443

AVALON_U (OM41428U)

TABLE OF CONTENTS Index

When trouble arises

5-1. Essential information

Emergency flashers ........... 458

If your vehicle needs

to be towed ...................... 459

If you think something is

wrong ............................... 463

Fuel pump shut off

system.............................. 464

Event data recorder............ 465

5-2. Steps to take in an emergency

If a warning light turns

on or a warning buzzer

sounds... .......................... 467

If you have a flat tire........... 479

If the engine will

not start............................ 489

If the shift lever cannot be

shifted from P................... 491

If you lose your keys .......... 492

If the electronic key does

not operate properly (with

smart key system)............ 493

If the vehicle battery is

discharged ....................... 496

If your vehicle overheats .... 500

If the vehicle becomes

stuck................................. 503

If your vehicle has to be

stopped in an

emergency ....................... 504

Vehicle specifications

6-1. Specifications

Maintenance data

(fuel, oil level, etc.) ........... 508

Fuel information.................. 516

Tire information................... 519

6-2. Customization

Customizable features........ 532

6-3. Initialization

Items to initialize................. 536

For owners

Reporting safety defects

for U.S. owners................. 538

Seat belt instructions

for Canadian owners

(in French)........................ 539

SRS airbag instructions

for Canadian owners

(in French)........................ 542

Index

Abbreviation list ............... 554

Alphabetical index............ 555

AVALON_U (OM41428U)

What to do if...................... 562

AVALON_U (OM41428U)

For your information

Main Owner’s Manual

Please note that this manual applies to all models and explains all equipment, including options. Therefore, you may find some explanations for equipment not installed on your vehicle.

All specifications provided in this manual are current at the time of printing. However, because of the Toyota policy of continual product improvement, we reserve the right to make changes at any time without notice.

Depending on specifications, the vehicle shown in the illustration may differ from your vehicle in terms of equipment.

Noise from under vehicle after turning off the engine

Approximately five hours after the engine is turned off, you may hear sound coming from under the vehicle for several minutes. This is the sound of a fuel evaporation leakage check and, it does not indicate a malfunction.

Accessories, spare parts and modification of your Toy ota

A wide variety of non-genuine spare parts and accessories for Toyota vehicles are currently available in the market. You should know that Toyota does not warrant these products and is not responsible for their performance, repair, or replacement, or for any damage they may cause to, or adverse effect they may have on, your Toyota vehicle.

This vehicle should not be modified with non-genuine Toyota products. Modification with non-genuine Toyota products could affect its performance, safety or durability, and may even violate governmental regulations. In addition, damage or performance problems resulting from the modification may not be covered under warranty.

AVALON_U (OM41428U)

Installation of a mobile two-way radio system

As the installation of a mobile two-way radio system in your vehicle could affect electronic systems such as the multiport fuel injection system/sequential multiport fuel injection system, electronic throttle control system, cruise control system, vehicle stability control system, SRS airbag system and seat belt pretensioner system, be sure to check with your Toyota dealer for precautionary measures or special instructions regarding installation.

Scrapping of your Toyota

The SRS airbag and seat belt pretensioner devices in your Toyota contain explosive chemicals. If the vehicle is scrapped with the airbags and seat belt pretensioners left as they are, this may cause an accident such as fire. Be sure to have the systems of the SRS airbag and seat belt pretensioner removed and disposed of by a qualified service shop or by your Toyota dealer before you scrap your vehicle.

Perchlorate Material

Special handling may apply, See www.dtsc.ca.gov/hazardouswaste/perchlorate. Your vehicle has components that may contain perchlorate. These components may include airbag, seat belt pretensioners, and wireless remote control batteries.

AVALON_U (OM41428U)

CAUTION

n General precautions while driving

Driving under the influence: Never drive your vehicle when under the influence of alcohol or drugs that have impaired your ability to operate your vehicle. Alcohol and certain drugs delay reaction time, impair judgment and reduce coordination, which could lead to an accident that will hurt or kill you, your occupants or others.

Defensive driving: Always drive defensively. Anticipate mistakes that other drivers or pedestrians might make and be ready to avoid accidents.

Driver distraction: Always give your full attention to driving. Anything that distracts the driver, such as adjusting controls, talking on a cellular phone or reading can result in a collision with resulting death or serious injury to you, your occupants or others.

n General precautions regarding children’s safety

Never leave children unattended in the vehicle, and never allow children to have or use the key.

Children may be able to start the vehicle or shift the vehicle into neutral. There is also a danger that children may injure themselves by playing with the cigarette lighter, the windows, the moon roof, or other features of the vehicle. In addition, heat build-up or extremely cold temperatures inside the vehicle can be fatal to children.

AVALON_U (OM41428U)

Symbols used throughout this manual

Cautions & Notices

CAUTION

This is a warning against anything which may cause injury to people if the warning is ignored. You are informed about what you must or must not do in order to reduce the risk of injury to yourself and others.

NOTICE

This is a warning against anything which may cause damage to the vehicle or its equipment if the warning is ignored. You are informed about what you must or must not do in order to avoid or reduce the risk of damage to your Toyota and its equipment.

Symbols used in illustrations

Safety symbol

The symbol of a circle with a slash through it means “Do not”, “Do not do this”, or “Do not let this happen”.

Arrows indicating operations

Indicates the action (pushing, turning, etc.) used to operate switches and other devices.

Indicates the outcome of an operation (e.g. a lid opens).

AVALON_U (OM41428U)

Before driving

When driving

Interior

features

Maintenance

and care

When trouble

arises

Vehicle

specifications

Adjusting and operating features such as door locks, mirrors, and steering column.

Driving, stopping and safe-driving information.

Air conditioning and audio systems, as well as other interior features for a comfortable driving experience.

Cleaning and protecting your vehicle, performing do-ityourself maintenance, and maintenance information.

What to do if the vehicle needs to be towed, gets a flat tire, or is involved in an accident.

Detailed vehicle information.

For owners

Index

AVALON_U (OM41428U)

Reporting safety defects for U.S. owners, and seat belt and SRS airbag instructions for Canadian owners.

Alphabetical listing of information contained in this manual.

Pictorial index

Exterior

Hood

P. 391

Windshield wiper

Moon roof∗

Outside rear view

mirror

P. 177

P. 83

P. 77

AVALON_U (OM41428U)

Side marker light

Turn signal light

Fog light

Headlight (low beam)

P. 173

P. 161

P. 176

P. 173

Headlight (high beam) and daytime running light

P. 173

Rear window defogger

P. 225

Tail/stop light

P. 173

Fuel filler door

Door

Tire

l Rotation l Replacement l Inflation pressure l Information

P. 87

P. 43

P. 409 P. 479 P. 514 P. 519

Tail lights

P. 173

Trunk

Back-up light

Turn signal light

Side marker light

P. 50

P. 161

P. 173

AVALON_U (OM41428U)

∗: If equipped

Pictorial index

Interior

Head restraint Seat belt

P. 65

Power window switch

P. 80

P. 62

Door pocket

Console box

SRS driver airbag

SRS knee airbag

Front passenger

airbag

P. 344

P. 339

P. 101

Storage compartment ∗

P. 342

Armrest

P. 353

Cup holders

AVALON_U (OM41428U)

P. 343

Floor mat

Front seat

SRS side airbag

P. 356

P. 54

P. 101

Inside rear view mirror

P. 75

Personal light

P. 336

SRS curtain shield airbag

Moon roof switch∗

Interior light

Personal light

P. 101

Vanity mirror

Sun visor

P. 336

P. 83 P. 346 P. 345

Garage door opener switches∗

AVALON_U (OM41428U)

Compass∗

P. 360 P. 368

∗: If equipped

Pictorial index

Interior

Door lock switch

P. 44

Window lock switch

Power window switches

P. 80

AVALON_U (OM41428U)

Storage compartment

P. 342

Shift lever

P. 156

Shift lock override button

Cup holders Ashtray∗

P. 491

Seat heater/ventilator switch∗

P. 348

P. 343

P. 351

AVALON_U (OM41428U)

∗: If equipped

Pictorial index

Instrument panel

Gauges and meters Headlight switch

Turn signal lever Fog light switch

P. 176

Driving position memory switches

P. 58

∗

P. 164

P. 173

P. 161

Windshield wipers and washer switch

P. 177

Glove box

P. 338

Parking brake pedal

P. 162

Telescopic lock release

P. 73

lever

AVALON_U (OM41428U)

Horn

Tire pressure warning reset switch

(hidden under panel)

Tilt lock release lever

P. 163

P. 410

P. 73

Audio remote control switches

P. 274

Engine (ignition) switch (vehicles without smart key system)

Climate remote control switches

Talk switch* “DISP” switch

P. 153

P. 224

P. 281

P. 170

Telephone switch∗

Engine (ignition) switch (vehicles with smart key system)

Cruise control switch

P. 281

P. 149

P. 182

AVALON_U (OM41428U)

∗: If equipped

*: Refer to “Navigation System Owner’s Manual”.

Pictorial index

Instrument panel

Air conditioning system

P. 216

Emergency flashers

Clock

Rear window and outside rear view mirror defoggers

P. 347

P. 225

P. 458

Audio system Navigation system

P. 227

AVALON_U (OM41428U)

Outside rear view mirror switches

P. 77

Fuel filler door opener Trunk opener Rear sunshade switch∗ Glass breakage sensor∗

P. 50

P. 87

P. 354

P. 94

VSC off switch

P. 196

AVALON_U (OM41428U)

∗: If equipped

*: Refer to “Navigation System Owner’s Manual”.

1-1. Key information

Keys

The following keys are provided with the vehicle.

Vehicles with smart key system

Electronic keys

• Operating the smart key

• Operating the wireless

Mechanical keys

Key number plate

Vehicles without smart key system

Master keys

Operating the wireless remote

control function (

Key number plate

system (→P. 26)

remote control function (→P. 38)

→P. 38)

Using the mechanical key (vehicles with smart key system)

AVALON_U (OM41428U)

Take out the mechanical key.

After using the mechanical key,

store it in the electronic key. Carry

the mechanical key together with

the electronic key. If the electronic

key battery is depleted or the

smart key system does not oper-

ate properly, you will need the

mechanical key.

1-1. Key information

n When required to leave a key to the vehicle with a parking attendant

(Vehicles with smart key system)

Lock the glove box as circumstances demand. (→P. 338) Remove the mechanical key for your own use and provide the attendant with the electronic key only.

n Key number plate

Keep the plate in a safe place such as your wallet, not in the vehicle. In the event that a key is lost, a new key can be made at your Toyota dealer using the key number plate. (→P. 492)

n When riding in an aircraft

When bringing a key onto an aircraft, make sure you do not press any buttons on the key while inside the aircraft cabin. If you are carrying a key in your bag etc., ensure that the buttons are not likely to be pressed accidentally. Pressing a button may cause the key to emit radio waves that could interfere with the operation of the aircraft.

NOTICE

Before driving

n To prevent key damage

l Do not disassemble the key. l Do not subject the keys to strong shocks, expose them to high tempera-

tures by placing them in direct sunlight, or get them wet.

l Do not expose the keys to electromagnetic materials or attach any mate-

rial that blocks electromagnetic waves to the key surface.

AVALON_U (OM41428U)

1-2. Opening, closing and locking the doors and trunk

Smart key system

The following operations can be performed simply by carrying the electronic key on your person, for example in your pocket. (The driver should always carry the electronic key.)

∗

Electronic key

Locks and unlocks the doors (→P. 27) Unlocks the trunk (→P. 27) Starts and stops the engine (→P. 149)

∗: If equipped

AVALON_U (OM41428U)

1-2. Opening, closing and locking the doors and trunk

Unlocking and locking the doors

Grip the handle to unlock the

door.

Make sure to touch the sensor on the back of the handle.

The door cannot be unlocked for 3 seconds after the door is locked.

Press the lock button to lock the

door.

Before driving

Unlocking the trunk

Press the button to unlock the

trunk.

AVALON_U (OM41428U)

1-2. Opening, closing and locking the doors and trunk

Antenna location and effective range

n Antenna location

Antennas outside cabin

Antenna outside trunk

Antenna inside trunk

Antennas inside cabin

AVALON_U (OM41428U)

1-2. Opening, closing and locking the doors and trunk

n Effective range (areas within which the electronic key is

detected)

When locking or unlocking the doors

The system can be operated when the electronic key is within about 3 ft. (1 m) of an outside door handles. (Only the doors detecting the key can be operated.)

When starting the engine or changing “ENGINE START STOP” switch modes

The system can be operated when the electronic key is inside the vehicle.

When unlocking the trunk

Before driving

The system can be operated when the electronic key is within about 3 ft. (1 m) of the trunk release button.

AVALON_U (OM41428U)

1-2. Opening, closing and locking the doors and trunk

n Operation signals

A buzzer sounds and the emergency flashers flash to indicate that the doors have been locked/unlocked. (Locked: Once; Unlocked: Twice)

n Conditions affecting operation

The smart key system uses weak radio waves. In the following situations, the communication between the electronic key and the vehicle may be affected, preventing the smart key system and wireless remote control from operating properly. (Way of coping:

l When the electronic key battery is depleted l Near a TV tower , electric power plant, gas st ation, radio station, large dis-

play, airport or other facility that generates strong radio waves or electrical noise

l When carrying a portable radio, cellular phone, cordless phone or other

wireless communication devices

l When the electronic key has come into contact with, or is covered by a

metallic object

l When multiple electronic keys are in the vicinity l When carrying or using the electronic key together with the following

devices that emit radio waves

• Another vehicle’s electronic key

• A wireless key that emits radio waves

• Personal computer

l If window tint with a metallic content or metallic objects are attached to

the rear window

→P. 493)

AVALON_U (OM41428U)

1-2. Opening, closing and locking the doors and trunk

n Switching the door unlock function

It is possible to set which doors the entry function unlocks.

Turn the “ENGINE START STOP” switch off. When the indicator on the key surface is turned off, push and hold

, , or for approximately 5 seconds while pushing the button on the key.

The setting changes each time an operation is performed, as shown below. (Wait for at least 5 seconds after each operation to continue an operation.)

Relevant doors Unlocking doors Beep

Hold the driver’s door handle to unlock only the driver’s door

Beeps twice

Hold a passenger’s door handle to unlock all the doors

Hold a door handle to unlock all doors

Beeps twice

Unlock the doors using the wireless remote control and open one of the doors. If a door is not opened within 60 second after is pressed, the doors will be locked again and the alarm will automatically be set. In case that the alarm is triggered, immediately stop the alarm. (→P. 94)

Before driving

AVALON_U (OM41428U)

1-2. Opening, closing and locking the doors and trunk

n Battery-saving function

In the following circumstances, the entry function is disabled in order to prevent the vehicle and electronic key batteries from discharging.

l When the entry function has not been used for 2 weeks or more l When the electronic key has been left within approximately 3 ft. (1 m) of

the vehicle for 10 minutes or more

The system will resume operation when...

l The vehicle is locked using the door handle lock switch l The vehicle is locked/unlocked using the wireless remote control function

(→P. 38) or the mechanical key (→P. 493)

n Electronic key battery depletion

l The standard battery life is 1 to 2 years. (The battery becomes depleted

even if the electronic key is not used.) If the smart key system or the wireless remote control function does not operate, or the detection area becomes smaller, the battery may be depleted. Replace the battery when necessary. (→P. 428)

l If the battery becomes low, an alarm will sound in the cabin when the

engine stops. (→P. 34)

l To avoid serious deterioration, do not leave the electronic key within 3 ft.

(1 m) of the following electrical appliances that produce a magnetic field.

•TVs

• Personal computers

• Recharging cellular phones or cordless phones

• Table lamps

n To operate the system properly

Make sure to carry the electronic key when operating the system. Do not get the electronic key too close to the vehicle when operating the system from the outside of the vehicle.

Depending on the position and holding condition of the electronic key, the key may not be detected correctly and the system may not operate properly. (The alarm may go off accidentally, or the door lock prevention may not function.)

AVALON_U (OM41428U)

1-2. Opening, closing and locking the doors and trunk

n Note for the smart key system

l Even when the electronic key is within the effective range (detection

areas), the system may not operate properly in the following cases.

• T he electronic key is too close to the window or outside door handle, near the ground, or in a high place when the doors are locked or unlocked.

• T he electronic key is near the ground or in a high place, or too close to the rear bumper center when the trunk is unlocked.

• The electronic key is on the instrument panel, rear package tray or floor, or in the glove box when the engine is started or “ENGINE START STOP” switch modes are changed.

l As long as the electronic key is within the effective range, the doors may

be locked or unlocked by anyone.

l Even if the electronic key is not inside the vehicle, it may be possible to

start the engine if the electronic key is near the window.

l The doors may unlock if a large amount of water splashes on the door

handle, such as in the rain or in a car wash when the electronic key is within the effective range. (The doors will automatically be locked after approximately 60 seconds if the doors are not opened and closed.)

l Gripping the door handle when wearing a glove may not unlock the door. l If the wireless remote control is used to lock the doors when the elec-

tronic key is near the vehicle, there is a possibility that the door may not be unlocked by the entry function. (Use the wireless remote control to unlock the doors.)

l A sudden approach to the effective range or door handle operation may

prevent the doors from being unlocked. In this case, return the door handle to the original position and check that the doors unlock before pulling the door handle again.

n When the vehicle is not driven for extended periods

To prevent theft of the vehicle, do not leave the electronic key within 6 ft. (2 m) of the vehicle.

Before driving

AVALON_U (OM41428U)

1-2. Opening, closing and locking the doors and trunk

n Security feature

If a door is not opened within approximately 60 seconds after the vehicle is unlocked, the theft deterrent system automatically locks the vehicle again.

n Alarms and warning indicators

A combination of exterior and interior alarms are used to prevent theft of the vehicle and unforeseeable accidents resulting from erroneous operation. Take appropriate measures according to which warning light comes on. (→P. 467)

The following table describes circumstances and correction procedures when only alarms are sounded.

Alarm Situation Correction procedure

Exterior alarm sounds once for 2 seconds

Exterior alarm sounds once for 10 seconds

Tried to lock the doors using the entry function while the electronic key is still inside the passenger compartment

Tried to exit the vehicle with the electronic key and lock the doors without first turning the “ENGINE START STOP” switch OFF

Closed the trunk while the electronic key is still inside and all doors are locked

Tried to lock the vehicle using the entry function while a door is open

Retrieve the electronic key from the passenger compartment and lock the doors again.

Turn the “ENGINE START STOP” switch OFF and lock the doors again.

Retrieve the electronic key from the trunk and close the trunk lid.

Close all of the doors and lock the doors again.

AVALON_U (OM41428U)

1-2. Opening, closing and locking the doors and trunk

Alarm Situation Correction procedure

Interior alarm sounds once

Interior alarm sounds continuously

The electronic key battery is low.

Tried to open the door and exit the vehicle without shifting the shift lever to “P”

Replace the battery. (→P. 428)

Shift the shift lever to “P”.

Turned the “ENGINE START STOP” switch to

Interior alarm rings continuously

ACCESSORY mode while the driver’s door is open (Opened the driver’s door when the “ENGINE ST ART STOP” switch is in ACCESSORY mode.)

Turn the “ENGINE START STOP” switch OFF and close the driver’s door.

Turned the “ENGINE ST ART STOP” switch OFF while the driver’s door is

Close the driver’s door.

open

n If the smart key system does not operate properly

l Locking and unlocking the doors: Use the mechanical key. (→P. 493) l Starting the engine: →P. 494

n When the electronic key battery is fully depleted

→P. 428

Before driving

AVALON_U (OM41428U)

1-2. Opening, closing and locking the doors and trunk

n Customization that can be configured at Toyota dealer

Settings (e.g. smart key system) can be changed. (Customizable features →P. 532)

n Certification for the smart key system

For vehicles sold in the U.S.A.

FCC ID: HYQ14AAB FCC ID: HYQ13BZH FCC ID: HYQ14ABK FCC ID: HYQ13BZW

NOTE: This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

FCC WARNING: Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.

FCC ID: NI4TMLF-1 NOTE:

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

FCC WARNING: Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.

AVALON_U (OM41428U)

1-2. Opening, closing and locking the doors and trunk

CAUTION

n Caution regarding interference with electronic devices

l People with implanted pacemakers or cardiac defibrillators should keep

away from the smart key system antennas. (→P. 28) The radio waves may affect the operation of such devices. If necessary, the entry function can be disabled. Ask your Toyota dealer for details, such as the frequency of radio waves and timing of emitting the radio waves. Then, consult your doctor to see if you should disable the entry function.

l Users of any electrical medical device other than implanted pacemakers

and implanted cardiac defibrillators should consult the manufacturer of the device for information about its operation under the influence of radio waves. Radio waves could have unexpected effects on the operation of such medical devices.

Ask your Toyota dealer for details for disabling the entry function.

Before driving

AVALON_U (OM41428U)

1-2. Opening, closing and locking the doors and trunk

Wireless remote control

The wireless remote control can be used to lock and unlock the vehicle and the trunk from outside the vehicle.

Vehicles with smart key system

Locks all doors Unlocks all doors

Pressing the button unlocks the driver’s door. Pressing the button again within 3 seconds unlocks the other doors.

Unlocks the trunk (push and hold)

Sounds alarm (push and hold) (→P. 97)

AVALON_U (OM41428U)

1-2. Opening, closing and locking the doors and trunk

Vehicles without smart key system

Locks all doors Sounds alarm

(push and hold) (→P. 97) Unlocks all doors

Pressing the button unlocks the driver’s door. Pressing the button again within 3 seconds unlocks the other doors.

Unlocks the trunk (push and hold)

n Operation indicator

Doors: A buzzer sounds and the emergency flashers flash to indicate that

the doors have been locked/unlocked. (Locked: Once; Unlocked: Twice)

Trunk:A buzzer sounds to indicate that the trunk has been unlocked.

n Door lock buzzer (vehicles with smart key system)

If a door is not fully closed, a buzzer sounds continuously for 10 seconds if an attempt to lock the door is made. Fully close the door to stop the buzzer, and lock the vehicle once more.

Before driving

AVALON_U (OM41428U)

1-2. Opening, closing and locking the doors and trunk

n Security feature

→P. 34

n When the key battery is fully depleted

→P. 428

n Conditions affecting operation

Vehicles with smart key system

→P. 30

Vehicles without smart key system

The wireless remote control function may not operate normally in the following situations.

lNear a TV tower, radio station, electric power plant, airport or other

facility that generates strong radio waves

lWhen carrying a portable radio, cellular phone or other wireless com-

munication device

lWhen multiple wireless keys are in the vicinity lWhen the wireless key has come into contact with, or is covered by a

metallic object

lWhen a wireless key (that emits radio waves) is being used nearby lWhen the wireless key has been left near an electrical appliance such

as a personal computer

n Customization that can be configured at Toyota dealer

Settings (e.g. 2-step unlocking function, trunk unlocking function) can be changed. (Customizable features →P. 532)

AVALON_U (OM41428U)

1-2. Opening, closing and locking the doors and trunk

n Certification for wireless remote control

For vehicles sold in the U.S.A.

FCC ID: HYQ14AAB FCC ID: HYQ13BZH FCC ID: HYQ14ABK FCC ID: HYQ13BZW FCC ID: NI4TMLF-1

FCC WARNING: Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.

For vehicles sold in Jordan. Type Approval Number: TRC/LPD/2009/4 NOTE:

This device complies with the specifications mentioned in test reports No. (20071409200), (20071409300), and (20071409500) issued by Telefication B.V./The Netherlands.

TRC WARNING: This Certificate does not apply to any modified or changed product nor does it authorize its holder to enter the subject equipment into Jordan without having a special permissions. If this occurs Jordan TRC has the right to impose any penalties stipulated in Jordan’s Telecommunications Law No. 13 of 1995 and its amendments and regulations of the Telecommunication Regulatory Commission.

Before driving

AVALON_U (OM41428U)

1-2. Opening, closing and locking the doors and trunk

For vehicles sold in the U.S.A.

NOTE: This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

NOTICE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

l Reorient or relocate the receiving antenna. l Increase the separation between the equipment and receiver. l Connect the equipment into an outlet on a circuit different from that to

which the receiver is connected.

l Consult the dealer or an experienced radio/TV technician for help.

FCC WARNING: Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.

For vehicles sold in Canada

NOTE: Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device.

AVALON_U (OM41428U)

1-2. Opening, closing and locking the doors and trunk

Doors

The vehicle can be locked and unlocked using the entry function, wireless remote control or door lock switch.

n Entry system (vehicles with smart key system)

→P. 27

n Wireless remote control

→P. 38

n Key

Vehicles with smart key system

The doors can also be locked and unlocked with the mechanical

key. (→P. 493)

Vehicles without smart key system

Locks all doors Unlocks all doors

Turning the key unlocks the driver’s door. Turning the key again unlocks the other doors.

Before driving

AVALON_U (OM41428U)

1-2. Opening, closing and locking the doors and trunk

n Door lock switch

Locks all doors Unlocks all doors

n Inside lock button

Locks the door Unlocks the door

The front doors can be opened by pulling the inside handles even if the lock buttons are in the lock position.

AVALON_U (OM41428U)

1-2. Opening, closing and locking the doors and trunk

Locking the front doors from the outside without a key

Move the inside lock button to the lock position. Close the door.

Vehicles with smart key system

The door cannot be locked if the “ENGINE START STOP” switch is

in the ACCESSORY or IGNITION ON mode, or the electronic key

is left inside the vehicle.

The key may not be detected correctly and the door may be locked.

Vehicles without smart key system

The door cannot be locked if either front door is open and the key

is in the engine switch.

Rear door child-protector lock

The door cannot be opened from inside the vehicle when the locks are set.

These locks can be set to prevent children from opening the rear doors. Push down rear door switches to lock the rear doors.

Before driving

AVALON_U (OM41428U)

1-2. Opening, closing and locking the doors and trunk

Automatic door locking and unlocking systems

The following functions can be set or canceled:

Function Operation

Shift position linked door locking function

Shift position linked door unlocking function

Speed linked door lo cking function

Driver’s door linked door unlocking function

Shifting the shift lever out of “P” locks all doors.

Shifting the shift lever to “P” unlocks all doors.

All doors are locked when the vehicle speed is approximately 12 mph (20 km/h) or higher.

Vehicles wit h sm art key system

All doors are unlocked when the driver’s door is opened within 10 seconds after turning the “ENGINE START STOP” switch OFF.

Vehicles without smart key system

All doors are unlocked when the driver’s door is opened within 10 seconds after turning the engine switch to the “LOCK” position.

AVALON_U (OM41428U)

1-2. Opening, closing and locking the doors and trunk

n Setting and canceling the functions

To switch between setting and canceling, follow the procedure

below:

Vehicles with smart key system: Close all the doors and turn the “ENGINE START STOP” switch to IGNITION ON mode. (Perform within 10 seconds.) Vehicles without smart key system: Close all the doors and turn the engine switch to the “ON” position. (Perform within 10 seconds.)

Shift the shift lever to “P” or “N”, press and hold the driver’s door lock switch (

or ) for about 5

seconds then release.

The shift lever and switch positions corresponding to the desired function to be set are shown as follows.

Use the same procedure to cancel the function.

Before driving

AVALON_U (OM41428U)

1-2. Opening, closing and locking the doors and trunk

Function

Shift position linked door locking function

Shift position linked door unlocking function

Speed linked door lo cking function

Driver’s door linked door unlocking function

Shift lever

position

“P”

“N”

Switch position

When the setting or canceling operation is complete, all doors are locked and then unlocked.

AVALON_U (OM41428U)

1-2. Opening, closing and locking the doors and trunk

n Customization that can be configured at Toyota dealer

Settings (e.g. unlocking function using a key) can be changed. (Customizable features →P. 532)

CAUTION

n To prevent an accident

Observe the following precautions while driving the vehicle. Failing to do so may result in a door opening and an occupant falling out, resulting in death or serious injury.

l Always use a seat belt. l Always lock all doors. l Ensure that all doors are properly closed. l Do not pull the inside handle of the doors while driving. l Set the rear door child-protector when children are seated in the rear seat.

Before driving

AVALON_U (OM41428U)

1-2. Opening, closing and locking the doors and trunk

Trunk

The trunk can be opened using the trunk opener, smart key system or wireless remote control.

n Opening the trunk from inside the vehicle

Push the opener switch.

n Opening the trunk from outside the vehicle

Entry system (vehicles with smart key system) →P. 27

Wireless remote control →P. 38

AVALON_U (OM41428U)

1-2. Opening, closing and locking the doors and trunk

n Internal trunk release lever

The trunk lid can be opened by pulling down on the glow-in-the-dark lever located on the inside of trunk lid.

The lever will continue to glow for some time after the trunk lid is closed.

CAUTION

n Caution while driving

l Keep the trunk lid closed while driving.

If the trunk lid is left open, it may hit near-by objects while driving or luggage in the trunk may be unexpectedly thrown out, causing an accident. In addition, exhaust gases may enter the vehicle, causing death or a serious health hazard. Make sure to close the trunk lid before driving.

l Before driving the vehicle, make sure that the trunk lid is fully closed. If the

trunk lid is not fully closed, it may open unexpectedly while driving, causing an accident.

l Never let anyone sit in the trunk. In the event of sudden braking or a colli-

sion, they are susceptible to death or serious injury.

Before driving

AVALON_U (OM41428U)

1-2. Opening, closing and locking the doors and trunk

CAUTION

n When children are in the vehicle

Observe the following precautions. Failure to do so may result in death or serious injury.

l Do not allow children to enter the trunk.

If a child is accidentally locked in the trunk, they could overheat or suffocate.

l Do not allow a child to open or close the trunk lid.

Doing so may cause the trunk lid operate unexpectedly, or cause the child’s hands, head, or neck to be caught by the closing trunk lid.

n Using the trunk

Observe the following precautions. Failure to do so may cause parts of the body to be caught, resulting in serious injury.

l Remove any heavy loads, such as snow and ice, from the trunk lid before

opening it. Failure to do so may cause the trunk lid to fall closed again after it is opened.

l When opening or closing the trunk lid, thoroughly check to make sure the

surrounding area is safe.

l If anyone is in the vicinity, make sure they are safe and let them know that

the trunk is about to open or close.

l Use caution when opening or closing the trunk lid in windy weather as it

may move abruptly in strong wind.

AVALON_U (OM41428U)

CAUTION

1-2. Opening, closing and locking the doors and trunk

l The trunk lid may fall if it is not opened

fully. It is more difficult to open or close the trunk lid on an incline than on a level surface, so beware of the trunk lid unexpectedly opening or closing by itself. Make sure that the trunk lid is fully open and secure before using the trunk.

l When closing the trunk lid, take extra

care to prevent your fingers etc. from being caught.

l When closing the trunk lid, make sure

to press it lightly on its outer surface. If the trunk handle is used to fully close the trunk lid, it may result in hands or arms being caught.

Before driving

l Do not attach any accessories other than genuine Toyota parts to the trunk

lid. Such additional weight on the trunk lid may cause the lid to fall closed again after it is opened.

AVALON_U (OM41428U)

1-3. Adjustable components (seats, steering wheel, mirrors)

Front seats

Seat leg support switch* Seat position fore/aft switch

Seat cushion (front) angle

switch

Vertical height switch* Seatback angle switch Lumbar support switch

: if equipped

Active head restraint

When a front seatback receives a strong impact during a rearend collision, the head restraint moves slightly forward and upward to provide support for the occupants head.

AVALON_U (OM41428U)

1-3. Adjustable components (seats, steering wheel, mirrors)

n Active head restraint

Even small forces applied to the seatback may cause the head restraint to move. Pushing up a locked head restraint forcibly may cause the head restraint inner structure to appear. This does not indicate a problem.

Inner

structure

During rear-end collision

CAUTION

n Reclining adjustment

Do not recline the seat more than necessary when the vehicle is in motion, to reduce the risk of sliding under the lap belt. If the seat is too reclined, during an accident the lap belt may slide past the hips and apply restraint forces directly to the abdomen or your neck may contact the shoulder belt, increasing the risk of death or serious injury.

Before driving

AVALON_U (OM41428U)

1-3. Adjustable components (seats, steering wheel, mirrors)

Rear seats

To adjust the seat back angle, pull the lock release lever.

n Keep the flap area clear

Flap area

Do not place objects on the flap area. If objects are left in the gap, the reclining seatback will not lock properly, and may move unexpectedly.

AVALON_U (OM41428U)

1-3. Adjustable components (seats, steering wheel, mirrors)

CAUTION

n Reclining adjustment

Do not recline the seat more than necessary when the vehicle is in motion, to reduce the risk of sliding under the lap belt.

If the seat is too reclined, during an accident the lap belt may slide past the hips and apply restraint forces directly to the abdomen or your neck may contact the shoulder belt, increasing the risk of death or serious injury.

Before driving

AVALON_U (OM41428U)

1-3. Adjustable components (seats, steering wheel, mirrors)

Driving position memory system

Your preferred driving position (the position of the driver’s seat and outside rear view mirrors) can be entered into the computer’s memory and recalled with the touch of a button. It is also possible to set this function to activate automatically when the doors are unlocked. Two different driving positions can be entered into memory.

∗

n Entering a position to memory

Vehicles with smart key system: Turn the “ENGINE START STOP” switch to IGNITION ON mode. Vehicles without smart key system: Turn the engine switch to the “ON” position.

Adjust the driver’s seat and outside rear view mirrors to the desired positions.

Push the “SET” button, then within 3 seconds, push button “1” or “2” until the signal beeps.

If the selected button has already been preset, the previously recorded position will be overwritten.

∗: If equipped

AVALON_U (OM41428U)

1-3. Adjustable components (seats, steering wheel, mirrors)

n Recalling the memorized position

Vehicles with smart key system: Turn the “ENGINE START STOP” switch to IGNITION ON mode. Vehicles without smart key system: Turn the engine switch to the “ON” position.

Push button “1” or “2” to recall the memorized position.

Before driving

AVALON_U (OM41428U)

1-3. Adjustable components (seats, steering wheel, mirrors)

Linking driving position memory with door unlock operation (vehicles with smart key system)

Memorized driving positions can be recalled when you unlock the driver’s door using the entry function or wireless remote control and open the driver’s door.

n Setting the linked door unlock operation

Set the driving positions into the memory system using the “1” or “2” buttons. (→P. 58)

Turn the “ENGINE START STOP” switch OFF, then close the driver’s door.

Push the “1” or “2” button on the driver’s side and the button on the wireless remote control at the same time for about 1 second until you hear a beep.

Open one of the doors.

If a door is not opened within 60 seconds after is pressed, the doors will be locked again and the alarm will automatically be set. In case that the alarm is triggered, immediately stop the alarm. (→P. 94)

AVALON_U (OM41428U)

1-3. Adjustable components (seats, steering wheel, mirrors)

n Canceling the linked door unlock operation

Close the driver’s door with the “ENGINE START STOP” switch OFF.

Push the “SET” button and the button on the wireless remote control at the same time for about 1 second until you hear 2 beeps.

n Retained accessory power

Memorized positions can be activated up to 180 seconds after the driver’s door is opened and another 60 seconds after it is closed again, even if the “ENGINE START STOP” switch or the engine switch is OFF.

n If any position memory button is pushed while the adjustments are

being made

The operation will stop. To reactivate the system, push the desired button (“1” or “2”) again.

n If the battery is disconnected

The memorized positions must be reset because the computer’s memory is erased when the battery is disconnected.

Before driving

CAUTION

n Seat adjustment caution

Take care during seat adjustment that the seat does not strike the rear passenger.

If this happens, you can stop the movement by pressing another seat position memory button.

AVALON_U (OM41428U)

1-3. Adjustable components (seats, steering wheel, mirrors)

Head restraints

Head restraints are provided for all seats.

Front seats

Up Down

Push and hold the lock release button when lowering the head restraint.

Lock release button

Rear seats

Up Down

Push and hold the lock release button when lowering the head restraint.

AVALON_U (OM41428U)

1-3. Adjustable components (seats, steering wheel, mirrors)

n Removing the head restraints

n Installing the head restraints

Pull the head restraint up while pushing the lock release button.

Align the head restraint with the installation holes and push it down to the lock position.

Press and hold the lock release button when lowering the head restraint.

Before driving

n Adjusting the height of the head restraints

Make sure that the head restraints are adjusted so that the center of the head restraint is closest to the top of your ears.

n Adjusting the center rear seat head restraint

Always raise the head restraint one level from the stowed position when using.

AVALON_U (OM41428U)

1-3. Adjustable components (seats, steering wheel, mirrors)

CAUTION

n Head restraint precautions

Observe the following precautions regarding the head restraints. Failure to do so may result in death or serious injury.

l Use the head restraints designed for each respective seat. l Adjust the head restraints to the correct position at all times. l After adjusting the head restraints, push down on them and make sure

they are locked in position.

l Do not drive with the head restraints removed.

AVALON_U (OM41428U)

1-3. Adjustable components (seats, steering wheel, mirrors)

Seat belts

Make sure that all occupants are wearing their seat belts before driving the vehicle.

n Correct use of the seat belts

Extend the shoulder belt so that it comes fully over the shoulder, but does not come into contact with the neck or slide off the shoulder.

Position the lap belt as low as possible over the hips.

Adjust the position of the seatback. Sit up straight and well back in the seat.

Do not twist the seat belt.

n Fastening and releasing the seat belt

Before driving

Release button

Fastening the belt

Push the tab into the buckle until a clicking sound is heard.

Releasing the belt

Press the release button.

AVALON_U (OM41428U)

1-3. Adjustable components (seats, steering wheel, mirrors)

n Adjusting the height of the belt (front seats)

Down Up

Move the height adjuster up and down as needed until you hear a click.

Seat belt comfort guide (outside rear seats)

If the shoulder belt sits close to a person’s neck, use the seat belt comfort guide.

Pull the comfort guide from the pocket.

AVALON_U (OM41428U)

Slide the belt past the slot of the guide.

The elastic must be behind the seat belt.

1-3. Adjustable components (seats, steering wheel, mirrors)

Buckle, position and release the seat belt.

Seat belt pretensioners (front seats)

The pretensioner helps the seat belt to quickly restrain the occupant by retracting the seat belt when the vehicle is subjected to certain types of severe frontal collision.

Before driving

The pretensioner may not activate in the event of a minor frontal impact, a side impact or a rear impact.

AVALON_U (OM41428U)

1-3. Adjustable components (seats, steering wheel, mirrors)

n Emergency locking retractor (ELR)

The retractor will lock the belt during a sudden stop or on impact. It may also lock if you lean forward too quickly. A slow, easy motion will allow the belt to extend, and you can move around fully.

n Automatic locking retractor (ALR)

When a passenger’s shoulder belt is completely extended and then retracted even slightly, the belt is locked in that position and cannot be extended. This feature is used to hold the child restraint system (CRS) firmly . To free the belt again, fully retract the belt and then pull the belt out once more. (→P. 128)

n Pregnant women

Obtain medical advice and wear the seat belt in the proper way. (→P. 65)

Women who are pregnant should position the lap belt as low as possible over the hips in the same manner as other occupants. Extend the shoulder belt completely over the shoulder and position the belt across the chest. Avoid belt contact over the rounding of the abdominal area.

If the seat belt is not worn properly, not only a pregnant woman, but also the fetus could suffer death or serious injury as a result of sudden braking or a collision.

AVALON_U (OM41428U)

1-3. Adjustable components (seats, steering wheel, mirrors)

n People suffering illness

Obtain medical advice and wear the seat belt in the proper way. (→P. 65)

n Child seat belt usage

The seat belts of your vehicle were principally designed for persons of adult size.

l Use a child restraint system appropriately for the child, until the child

becomes large enough to properly wear the vehicle’s seat belt. (→P. 120)

l When the child becomes large enough to properly wear the vehicle’s

seat belt, follow the instructions on P. 65 regarding seat belt usage.

n Replacing the belt after the pretensioner has been activated

If the vehicle is involved in multiple collisions, the pretensioner will activate for the first collision, but will not activate for the second or subsequent collisions.

n Seat belt extender

If your seat belts cannot be fastened securely because they are not long enough, a personalized seat belt extender is available from your Toyota dealer free of charge.

Before driving

AVALON_U (OM41428U)

1-3. Adjustable components (seats, steering wheel, mirrors)

CAUTION

Observe the following precautions to reduce the risk of injury in the event of sudden braking, sudden swerving or an accident. Failing to do so may cause death or serious injury.

n Wearing a seat belt

l Ensure that all passengers wear a seat belt. l Always wear a seat belt properly. l Each seat belt should be used by one person only. Do not use a seat belt

for more than one person at the same time, including children.

l Toyota recommends that children should be seated in the rear seat and

always use a seat belt and/or an appropriate child restraint system.

l Do not recline the seat any more than necessary to achieve a prop er seat-

ing position. The seat belt is most effective when the occupants are sitting up straight and well back in the seats.

l Do not wear the shoulder belt under your arm. l Always wear your seat belt low and snug across your hips.

n Adjustable shoulder anchor

Always make sure the shoulder belt is positioned across the center of your shoulder. The belt should be kept away from your neck, but not falling off your shoulder. Failure to do so could reduce the amount of protection in an accident and cause death or serious injuries in the event of a sudden stop, sudden swerve or accident. (→P. 66)

AVALON_U (OM41428U)

1-3. Adjustable components (seats, steering wheel, mirrors)

CAUTION

n Seat belt pretensioners

l Do not place anything, such as a cushion, on the front passenger’s seat.

Doing so will disperse the passenger’s weight, which prevents the sensor from detecting the passenger’s weight properly. As a result, the seat belt pretensioner for the front passenger’s seat may not activate in the event of a collision.

l If the pretensioner has activated, the SRS warning light will come on. In

that case, the seat belt cannot be used again and must be replaced at your Toyota dealer.

n Child restraint lock function belt

Do not allow children to play with the child restraint lock function belt.

n Seat belt damage and wear

l Do not damage the seat belts by allowing the belt, plate or buckle to be

jammed in the door.

l Inspect the seat belt system periodically. Check for cuts, fraying, and loose

parts. Do not use a damaged seat belt until it is replaced. Damaged seat belts cannot protect an occupant from injury.

l Ensure that the belt and tab are locked and the belt is not twisted. If the

seat belt does not function correctly, immediately contact your Toyota dealer.

l Replace the seat assembly, including the belts, if your vehicle has been

involved in a serious accident, even if there is no obvious damage.

l Do not attempt to install, remove, modify, disassemble or dispose of a seat

belt. Have any necessary repairs carried out by your Toyota dealer. Inappropriate handling of the pretensioner may cause it to activate or operate improperly and may cause death or serious injury.

Before driving

AVALON_U (OM41428U)

1-3. Adjustable components (seats, steering wheel, mirrors)

CAUTION

n Using a seat belt comfort guide

l Make sure the belt is not twisted and that it lies flat. The elastic cord must

be behind the belt and the guide must be on the front.

l To reduce the chance of injury in case of a sudden stop, sudden swerve or

accident while driving, remove and store the comfort guide in its pocket when it is not in use.

l Always make sure the shoulder belt is positioned across the center of the

shoulder. The belt should be kept away from the neck, and should not fall off the shoulder. Failure to observe these precautions could reduce the effectiveness of the seat belt in an accident, causing death or serious injury.

n Using a seat belt extender

l Do not wear the seat belt extender, if you can fasten the seat belt without

the extender.

l Do not use the seat belt extender when installing a child restraint system,

because the belt will not securely hold the child restraint system, increasing the risk of death or injury in the event of a collision.

l The personalized extender may not be safe on another vehicle, when

used by another person, or at a different seating position other than the one originally intended.

NOTICE

n When using a seat belt extender

When releasing the seat belt, press on the buckle release button on the extender, not on the seat belt. This helps prevent damage to the vehicle interior and the extender itself.

AVALON_U (OM41428U)

1-3. Adjustable components (seats, steering wheel, mirrors)

Steering wheel

The steering wheel can be adjusted to a comfortable position.

n To change the angle

n To change the column length

Hold the steering wheel, press the tilt lock release lever, and adjust to the ideal position by moving the steering wheel vertically.

When the steering wheel is in a low position, it will spring up as you release the lock release lever.

Hold the steering wheel and press the telescopic lock release lever, and adjust to the ideal position by moving the steering wheel horizontally.

After adjustment, pull the lever up to secure the steering wheel.

Before driving

AVALON_U (OM41428U)

TOYOTA Avalon 2011 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

QUICK REFERENCE

TABLE OF CONTENTS Index

TABLE OF CONTENTS
