Pictorial index
For safety
1
and security
Search by illustration
Make sure to read through them
Instrument
2
cluster
Operation of
3
each
component
4
Driving
5
Interior features
Maintenance
6
and care
When trouble
7
arises
Vehicle
8
specifications
9
For owners
How to read the gauges and meters, the variety of
warning lights and indicators, etc.
Opening and closing the doors and windows,
adjustment before driving, etc.
Operations and advice which are necessary for
driving
Usage of the interior features, etc.
Caring for your vehicle and maintenance
procedures
What to do in case of malfunction or emergency
Vehicle specifications, customizable features, etc.
Reporting safety defects for U.S. owners, and seat
belt and SRS airbag instructions for Canadian
owners
4RUNNER (U)
Index
Search by symptom
Search alphabetically
2
TABLE OF CONTENTS
For your information....................... 8
Reading this manual.................... 12
How to search.............................. 13
Pictorial index .............................. 14
1
For safety and security
1-1. For safe use
Before driving...................... 26
For safe driving ................... 28
Seat belts ............................ 30
SRS airbags........................ 35
Front passenger occupant
classification system ......... 46
Safety information for
children ............................. 52
Child restraint systems........ 53
Installing child restraints...... 57
Exhaust gas precautions..... 69
1-2. Emergency assistance
Safety Connect.................... 70
1-3. Theft deterrent system
Engine immobilizer
system............................... 76
Alarm................................... 79
2
Instrument cluster
2. Instrument cluster

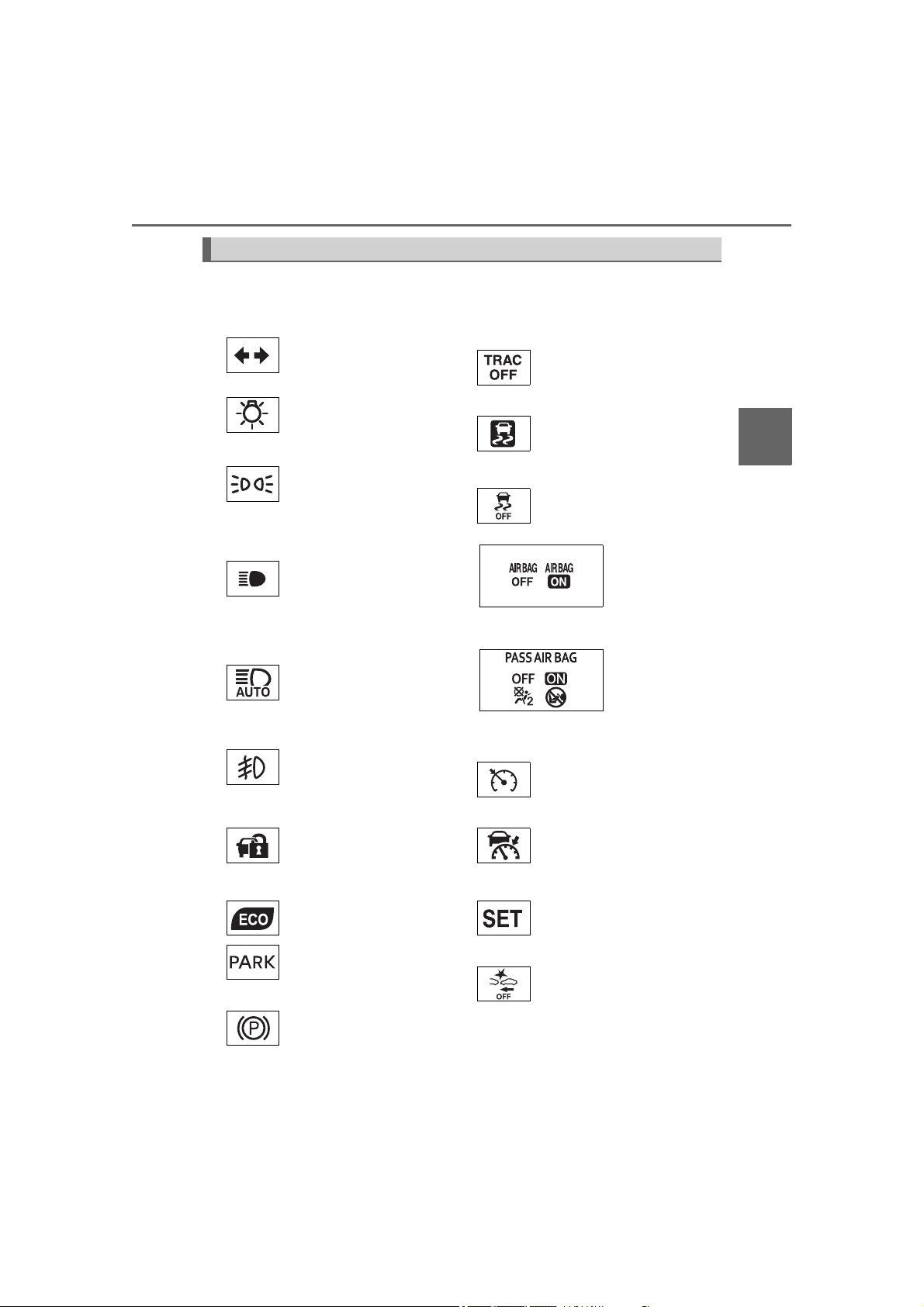

Warning lights and
indicators........................... 82
Gauges and meters............. 88
Multi-information display ..... 90
Operation of
3
each component
3-1. Key information
Keys...................................102
Side doors .........................110
3-2. Opening, closing and
locking the doors
Smart key system..............118
Automatic running
boards .............................128
Back door ..........................131
3-3. Adjusting the seats
Front seats.........................136
Rear seats ......................... 139
Driving position
memory ...........................149
Head restraints .................. 153
3-4. Adjusting the steering
wheel and mirrors
Steering wheel................... 156
Inside rear view mirror.......158
Outside rear view
mirrors ............................. 160
3-5. Opening, closing the
windows and
moon roof
Power windows..................162
Power back window...........166
Moon roof ..........................170
4RUNNER (U)
3
4
Driving
4-1. Before driving
Driving the vehicle............. 176
Cargo and luggage............ 186
Vehicle load limits ............. 191
Trailer towing..................... 192
Dinghy towing.................... 208
4-2. Driving procedures
Engine (ignition) switch
(vehicles without a
smart key system)........... 209
Engine (ignition) switch
(vehicles with a
smart key system)........... 212
Automatic transmission..... 218
Turn signal lever................ 223
Parking brake.................... 224
4-3. Operating the lights
and wipers
Headlight switch................ 225
Automatic High Beam ....... 231
Fog light switch ................. 235
Windshield wipers and
washer ............................ 237
Rear window wiper and
washer ............................ 240
4-4. Refueling
Opening the fuel tank
cap .................................. 243
4-5. Using the driving
support systems
Toyota Safety Sense P......246
PCS
(Pre-Collision System)..... 254
LDA
(Lane Departure Alert).....265
Dynamic radar cruise
control..............................273
Intuitive parking assist ....... 286
Four-wheel drive system
(part-time 4WD
models)............................293
Four-wheel drive system
(full-time 4WD
models)............................297
Active traction control
system .............................301
AUTO LSD system ............ 303
Rear differential lock
system .............................305
Downhill assist control
system .............................308
Crawl Control.....................311
Multi-terrain Select.............314
Driving assist systems .......321
4-6. Driving tips
Winter driving tips..............330
Off-road precautions..........334
1
2
3
4
5
6
7
8
9
4RUNNER (U)
4
TABLE OF CONTENTS
5
Interior features
5-1. Using the
air conditioning system
and defogger
Manual air conditioning
system............................. 340
Automatic air conditioning
system............................. 346
Seat heaters/
seat ventilators................ 353
5-2. Using the interior lights
Interior lights list ................ 355
• Interior lights ................. 356
• Personal lights .............. 356
5-3. Using the storage
features
List of storage features...... 358
• Glove box...................... 359
• Console box.................. 359
• Cup holders .................. 360
• Auxiliary box ................. 362
• Coin holder/
tissue pocket/
pen holder..................... 363
• Bottle holders................ 364
Luggage compartment
features ........................... 365
5-4. Other interior features
Other interior features........370
• Sun visors .....................370
• Vanity mirrors................370
• Clock ............................. 371
• Power outlets
(120 V AC) ....................372
• Power outlets ................376
• USB charging ports.......379
• Armrest..........................381
• Assist grips.................... 381
Garage door opener .......... 382
4RUNNER (U)
5
6
Maintenance and care
6-1. Maintenance and care
Cleaning and protecting
the vehicle exterior.......... 390
Cleaning and protecting
the vehicle interior........... 393
6-2. Maintenance
Maintenance
requirements ................... 396
General maintenance........ 398
Emission inspection and
maintenance (I/M)
programs......................... 401
6-3. Do-it-yourself
maintenance
Do-it-yourself service
precautions ..................... 402
Hood.................................. 405
Engine compartment......... 406
Tires .................................. 420
Tire inflation pressure........ 434
Wheels .............................. 437
Air conditioning filter.......... 440
Wireless remote control/
electronic key battery ...... 442
Checking and replacing
fuses ............................... 445
Light bulbs......................... 448
7
When trouble arises
7-1. Essential information
Emergency flashers...........464
If your vehicle has
to be stopped in
an emergency..................465
If the vehicle is trapped
in rising water .................. 467
7-2. Steps to take in
an emergency
If your vehicle needs
to be towed......................468
If you think something
is wrong ...........................475
Fuel pump shut off
system .............................476
If a warning light turns
on or a warning buzzer
sounds.............................477
If a warning message
is displayed......................487
If you have a flat tire .......... 492
If the engine will not
start .................................507
If you cannot operate
back door opener ............509
If the electronic key
does not operate
properly ...........................510
If the vehicle battery
is discharged ................... 513
If your vehicle
overheats.........................517
If the vehicle becomes
stuck ................................520
1
2
3
4
5
6
7
8
9
4RUNNER (U)
6
TABLE OF CONTENTS
8
Vehicle specifications
8-1. Specifications
Maintenance data
(fuel, oil level, etc.) .......... 522
Fuel information ................ 532
Tire information ................. 535
8-2. Customization
Customizable features ...... 547
8-3. Items to initialize
Items to initialize................ 560
9
For owners
Reporting safety defects for
U.S. owners .............................562
Seat belt instructions for
Canadian owners
(in French)................................563
SRS airbag instructions for
Canadian owners
(in French)................................565
4RUNNER (U)
Index
For vehicles with a audio/navigation system, refer to the “NAVIGATION
AND MULTIMEDIA SYSTEM OWNER’S MANUAL” for information regarding the audio/navigation system.
What to do if...
(Troubleshooting) .................... 576
Alphabetical index...................... 581
7
1
2
3
4
5
6
7
8
9
4RUNNER (U)
8
For your information
Main Owner’s Manual
Please note that this manual applies to all models and explains all equipment,
including options. Therefore, you may find some explanations for equipment
not installed on your vehicle.
All specifications provided in this manual are current at the time of printing.
However, because of the Toyota policy of continual product improvement, we
reserve the right to make changes at any time without notice.
Depending on specifications, the vehicle shown in the illustrations may differ
from your vehicle in terms of color and equipment.
Noise from under vehicle after turning off the engine
Approximately five hours after the engine is turned off, you may hear sound
coming from under the vehicle for several minutes. This is the sound of a fuel
evaporation leakage check and, it does not indicate a malfunction.
Accessories, spare parts and modification of your Toyota
A wide variety of non-genuine spare parts and accessories for Toyota vehicles are currently available in the market. You should know that Toyota does
not warrant these products and is not responsible for their performance,
repair, or replacement, or for any damage they may cause to, or adverse
effect they may have on, your Toyota vehicle.
This vehicle should not be modified with non-genuine Toyota products. Modification with non-genuine Toyota products could affect its performance, safety
or durability, and may even violate governmental regulations. In addition,
damage or performance problems resulting from the modification may not be
covered under warranty.
Installation of a mobile two-way radio system
The installation of a mobile two-way radio system in your vehicle could affect
electronic systems such as:
● Multiport fuel injection system/sequential multiport fuel injection system
● Toyota Safety Sense P
● Cruise control system
● Anti-lock brake system
● SRS airbag system
● Seat belt pretensioner system
Be sure to check with your Toyota dealer for precautionary measures or special instructions regarding installation of a mobile two-way radio system.
4RUNNER (U)
Vehicle data recording
The vehicle is equipped with sophisticated computers that will record certain
data, such as:
• Engine speed/Electric motor speed (traction motor speed)
• Accelerator status
• Brake status
• Vehicle speed
• Operation status of the driving assist systems
• Images from the cameras
Your vehicle is equipped with cameras. Contact your Toyota dealer for the
location of recording cameras.
The recorded data varies according to the vehicle grade level and options
with which it is equipped.
These computers do not record conversations or sounds, and only record
images outside of the vehicle in certain situations.
● Data Transmission
Your vehicle may transmit the data recorded in these computers to Toyota
without notification to you.
● Data usage
Toyota may use the data recorded in this computer to diagnose malfunctions, conduct research and development, and improve quality.
Toyota will not disclose the recorded data to a third party except:
• With the consent of the vehicle owner or with the consent of the lessee if
the vehicle is leased
• In response to an official request by the police, a court of law or a government agency
• For use by Toyota in a lawsuit
• For research purposes where the data is not tied to a specific vehicle or
vehicle owner
● Recorded image information can be erased by your Toyota dealer.
The image recording function can be disabled. However, if the function is
disabled, data from when the system operates will not be available.
● To learn more about the vehicle data collected, used and shared by
Toyota, please visit www.toyota.com/privacyvts/
.
9
4RUNNER (U)
10
Usage of data collected through Safety Connect (U.S. mainland
only)
If your Toyota has Safety Connect and if you have subscribed to those services, please refer to the Safety Connect Telematics Subscription Service
Agreement for information on data collected and its usage.
To learn more about the vehicle data collected, used and shared by Toyota,
please visit www.toyota.com/privacyvts/
.
Event data recorder
This vehicle is equipped with an event data recorder (EDR). The main purpose of an EDR is to record, in certain crash or near crash-like situations,
such as an air bag deployment or hitting a road obstacle, data that will assist
in understanding how a vehicle’s systems performed. The EDR is designed to
record data related to vehicle dynamics and safety systems for a short period
of time, typically 30 seconds or less.
The EDR in this vehicle is designed to record such data as:
• How various systems in your vehicle were operating;
• Whether or not the driver and passenger safety belts were buckled/fastened;
• How far (if at all) the driver was depressing the accelerator and/or brake
pedal; and,
• How fast the vehicle was traveling.
These data can help provide a better understanding of the circumstances in
which crashes and injuries occur.
NOTE: EDR data are recorded by your vehicle only if a non-trivial crash situation occurs; no data are recorded by the EDR under normal driving conditions and no personal data (e.g., name, gender, age, and crash location) are
recorded. However, other parties, such as law enforcement, could combine
the EDR data with the type of personally identifying data routinely acquired
during a crash investigation.
To read data recorded by an EDR, special equipment is required, and access
to the vehicle or the EDR is needed. In addition to the vehicle manufacturer,
other parties, such as law enforcement, that have the special equipment, can
read the information if they have access to the vehicle or the EDR.
● Disclosure of the EDR data
Toyota will not disclose the data recorded in an EDR to a third party except
when:
• An agreement from the vehicle’s owner (or the lessee for a leased vehicle) is obtained
• In response to an official request by the police, a court of law or a government agency
• For use by Toyota in a lawsuit
However, if necessary, Toyota may:
• Use the data for research on vehicle safety performance
• Disclose the data to a third party for research purposes without disclosing
information about the specific vehicle or vehicle owner
4RUNNER (U)
Scrapping of your Toyota
WARNING
The SRS airbag and seat belt pretensioner devices in your Toyota contain
explosive chemicals. If the vehicle is scrapped with the airbags and seat belt
pretensioners left as they are, this may cause an accident such as fire. Be
sure to have the systems of the SRS airbag and seat belt pretensioner
removed and disposed of by a qualified service shop or by your Toyota dealer
before you scrap your vehicle.
Perchlorate Material
Special handling may apply, See www.dtsc.ca.gov/hazardouswaste/perchlorate.
Your vehicle has components that may contain perchlorate. These compo-
nents may include airbag, seat belt pretensioners, and wireless remote control batteries.
■ General precautions while driving
Driving under the influence: Never drive your vehicle when under the influence of alcohol or drugs that have impaired your ability to operate your vehicle. Alcohol and certain drugs delay reaction time, impair judgment and
reduce coordination, which could lead to an accident that could result in
death or serious injury.
Defensive driving: Always drive defensively. Anticipate mistakes that other
drivers or pedestrians might make and be ready to avoid accidents.
Driver distraction: Always give your full attention to driving. Anything that
distracts the driver, such as adjusting controls, talking on a cellular phone or
reading can result in a collision with resulting death or serious injury to you,
your occupants or others.
■ General precaution regarding children’s safety
Never leave children unattended in the vehicle, and never allow children to
have or use the key.
Children may be able to start the vehicle or shift the vehicle into neutral.
There is also a danger that children may injure themselves by playing with
the windows, the moon roof, or other features of the vehicle. In addition,
heat build-up or extremely cold temperatures inside the vehicle can be fatal
to children.
11
4RUNNER (U)
12
1
2
3
Reading this manual
WARNING:
Explains something that, if not obeyed, could cause death or
serious injury to people.
NOTICE:
Explains something that, if not obeyed, could cause damage to
or a malfunction in the vehicle or its equipment.
Indicates operating or working procedures. Follow the steps
in numerical order.
Indicates the action (pushing, turning, etc.) used to
operate switches and other
devices.
Indicates the outcome of an
operation (e.g. a lid opens).
Indicates the component or
position being explained.
Means “Do not”, “Do not do
this”, or “Do not let this happen”.
4RUNNER (U)
How to search
Searching by name
■
• Alphabetical index .......P. 581
■ Searching by installation
position
• Pictorial index................P. 14
■ Searching by symptom or
sound
• What to do if...
(Troubleshooting)........P. 576
13
■ Searching by title
4RUNNER (U)
• Table of contents .............P. 2
14
Pictorial index
Pictorial index
Exterior
■
Side doors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 110
1
Locking/unlocking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 110
Opening/closing the door glasses . . . . . . . . . . . . . . . . . . . . . . P. 162
Locking/unlocking by using the mechanical key
Warning lights/warning messages . . . . . . . . . . . . . . . . . . P. 479, 487
Back door . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 131
2
Locking/unlocking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 131
Opening/closing the door glasses . . . . . . . . . . . . . . . . . . . . . . P. 166
Warning lights/warning messages . . . . . . . . . . . . . . . . . . P. 479, 487
Outside rear view mirrors . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 160
3
Adjusting the mirror angle . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 160
Folding the mirrors. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 160
Defogging the mirrors . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 342, 348
Windshield wipers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 237
4
Precautions against winter season . . . . . . . . . . . . . . . . . . . . . P. 330
Fuel filler door . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 243
5
Refueling method. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 243
Fuel type/fuel tank capacity . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 524
* . . . . . . . . . . P. 510
4RUNNER (U)
Pictorial index
10
111213
14
15
Tires . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 420
6
Tire size/inflation pressure . . . . . . . . . . . . . . . . . . . . . . . . . P. 530
Winter tires/tire chain . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 330
Checking/rotation/tire pressure warning system . . . . . . . . . P. 420
Coping with flat tires . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 492
Hood . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 405
7
Opening . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 405
Engine oil . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 525
Coping with overheat . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 517
Light bulbs of the exterior lights for driving
(Replacing method: P. 448, Wattages: P. 531)
Headlights/daytime running lights. . . . . . . . . . . . . . . . . . . . P. 225
8
Front side marker lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 225
9
Front turn signal/parking lights . . . . . . . . . . . . . . . . . . . . . . P. 225
Fog lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 235
Turn signal lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 223
Stop/tail lights/rear side marker lights . . . . . . . . . . . . . . . . P. 225
License plate lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 225
Back-up lights
Shifting the shift lever to R. . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 218
15
*: Vehicles with a smart key system
4RUNNER (U)
16
Pictorial index
■Instrument panel
Engine switch. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 209, 212
1
Starting the engine/changing the modes . . . . . . . . . . . . . P. 209, 212
Emergency stop of the engine . . . . . . . . . . . . . . . . . . . . . . . . . P. 465
When the engine will not start . . . . . . . . . . . . . . . . . . . . . . . . . P. 507
Warning messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 487
Shift lever . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 218
2
Changing the shift position . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 218
Precautions against towing . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 468
When the shift lever does not move . . . . . . . . . . . . . . . . . . . . P. 221
Meters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 88
3
Reading the meters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 88
Warning lights/indicator lights . . . . . . . . . . . . . . . . . . . . . . . . . . P. 82
When the warning lights come on . . . . . . . . . . . . . . . . . . . . . . P. 477
4RUNNER (U)
Pictorial index
10
11
12
13
Multi-information display . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 90
4
Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 90
When the warning messages are displayed . . . . . . . . . . . . . . P. 487
Parking brake . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 224
5
Applying/releasing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 224
Precautions against winter season . . . . . . . . . . . . . . . . . . . . . P. 331
Warning buzzer/message . . . . . . . . . . . . . . . . . . . . . . . . P. 477, 487
Turn signal lever . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 223
6
Headlight switch. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 225
Headlights/parking lights/tail lights/daytime running lights. . . . P. 225
Fog lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 235
Windshield wiper and washer switch . . . . . . . . . . . . . . . . . P. 237
7
Usage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 237
Adding washer fluid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 418
Emergency flasher switch . . . . . . . . . . . . . . . . . . . . . . . . . . P. 464
8
Hood lock release lever. . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 405
9
Tilt and telescopic steering lock release lever . . . . . . . . . . P. 156
Air conditioning system . . . . . . . . . . . . . . . . . . . . . . . . P. 340, 346
Usage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 340, 346
Rear window defogger. . . . . . . . . . . . . . . . . . . . . . . . . . . P. 342, 348
Audio/Navigation system
Clock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 371
*
17
*: Refer to “NAVIGATION AND MULTIMEDIA SYSTEM OWNER’S MANUAL”.
4RUNNER (U)
18
10
■Switches
Pictorial index
Outside rear view mirror switches . . . . . . . . . . . . . . . . . . . . P. 160
1
Instrument panel light control dial. . . . . . . . . . . . . . . . . . . . . P. 89
2
Automatic High Beam switch . . . . . . . . . . . . . . . . . . . . . . . . P. 231
3
Windshield wiper de-icer switch
4
Automatic running boards switch
5
Power outlet main switch
6
Window lock switch. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 162
7
Door lock switches . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 113
8
Power window switches . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 162
9
Driving position memory switches
*
1
*
. . . . . . . . . . . . . . . . P. 342, 349
1
*
. . . . . . . . . . . . . . . . . . P. 128
1
. . . . . . . . . . . . . . . . . . . . . . . . . P. 372
1
*
. . . . . . . . . . . . . . . . . . P. 149
4RUNNER (U)
Pictorial index
2
USB port
1
Seat heater/ventilator switches*1. . . . . . . . . . . . . . . . . . . . . P. 353
2
Power outlets . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 376
3
Front-wheel drive control lever
4
Front-wheel drive control switch
5
Four-wheel drive control switch
USB charging ports . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 379
6
Power back window switch . . . . . . . . . . . . . . . . . . . . . . . . . P. 166
7
Seat heater switches
8
*
1
*
. . . . . . . . . . . . . . . . . . . . . P. 293
1
*
. . . . . . . . . . . . . . . . . . . P. 293
1
*
. . . . . . . . . . . . . . . . . . . . P. 297
1
*
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 353
19
4RUNNER (U)
2
*
:
Refer to “
1
*
: If equipped
NAVIGATION AND MULTIMEDIA SYSTEM OWNER’S MANUAL
”.
20
Pictorial index
Audio remote control switches
1
Talk switch*
2
Meter control switches . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 91
3
Cruise control switch
4
Dynamic radar cruise control . . . . . . . . . . . . . . . . . . . . . . . . . . P. 273
LDA (Lane Departure Alert) switch. . . . . . . . . . . . . . . . . . . . P. 265
5
Vehicle-to-vehicle distance switch. . . . . . . . . . . . . . . . . . . . P. 280
6
Telephone switches
7
*
*
4RUNNER (U)
■Interior
10
11
12
Pictorial index
21
SRS airbags . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 35
1
Floor mat . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 26
2
Front seats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 136
3
Rear seats. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 139
4
Head restraints. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 153
5
Seat belts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 30
6
Console box/tissue pocket . . . . . . . . . . . . . . . . . . . . . . P. 359, 363
7
Inside lock buttons . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 113
8
Cup holders . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 360
9
Bottle holders. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 364
Armrest/cup holders . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 360, 381
Power window switches . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 162
*
: Refer to “NAVIGATION AND MULTIMEDIA SYSTEM OWNER’S MANUAL”.
4RUNNER (U)
22
10111213141516
17
Pictorial index
Inside rear view mirror . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 158
1
Sun visors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 370
2
Vanity mirrors. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 370
3
Interior light
4
Personal lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 356
5
Moon roof switches
6
“SOS” button
7
Garage door opener switches
8
Microphone
9
Assist grips . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 381
Active traction control switch
VSC off switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 323
DAC switch
Rear differential lock switch
Crawl Control switch
Multi-terrain Select switch
Auxiliary box
2
*
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 356
1
*
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 170
1
*
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 70
1
*
. . . . . . . . . . . . . . . . . . . . . . P. 382
3
*
1
*
. . . . . . . . . . . . . . . . . . . . . . P. 301
1
*
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 308
1
*
. . . . . . . . . . . . . . . . . . . . . . . P. 305
1
*
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 311
1
*
. . . . . . . . . . . . . . . . . . . . . . . . . P. 314
1
*
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 362
4RUNNER (U)
Pictorial index
10
11
Back door handles. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 132
1
Luggage compartment lights . . . . . . . . . . . . . . . . . . . . . . . . P. 133
2
Back door strap . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 132
3
Child restraint anchor brackets . . . . . . . . . . . . . . . . . . . . . . . P. 57
4
Power outlets . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 376
5
1
*
Power outlets (120 V AC)
6
1
*
Slide deck
7
Storage compartment
8
Jack. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 492
9
Tool bag . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 492
Cargo net hooks/Grocery bag hooks. . . . . . . . . . . . . . P. 366, 368
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 368
. . . . . . . . . . . . . . . . . . . . . . . . . . P. 372
1
*
. . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 367
23
4RUNNER (U)
1
*
: If equipped
2
*
: The illustration shows the front, but they are also equipped in the rear.
3
*
: Refer to “NAVIGATION AND MULTIMEDIA SYSTEM OWNER’S MANUAL”.
24
Pictorial index
4RUNNER (U)
25
For safety and security
1
1-1. For safe use
Before driving...................... 26
For safe driving ................... 28
Seat belts ............................ 30
SRS airbags........................ 35
Front passenger occupant
classification system ......... 46
Safety information for
children ............................. 52
Child restraint systems........ 53
Installing child restraints...... 57
Exhaust gas precautions..... 69
1-2. Emergency assistance
Safety Connect ................... 70
1-3. Theft deterrent system
Engine immobilizer
system .............................. 76
Alarm................................... 79
4RUNNER (U)
26
*
1-1. For safe use
Before driving
Floor mat
Use only floor mats designed specifically for vehicles of the same
model and model year as your vehicle. Fix them securely in place
onto the carpet.
1
Insert the retaining hooks (clips)
into the floor mat eyelets.
2
Turn the upper knob of each
retaining hook (clip) to secure
the floor mats in place.
*: Always align the marks.
4RUNNER (U)
The shape of the retaining hooks (clips) may differ from that shown in the
illustration.
1-1. For safe use
WARNING
● Check that the floor mat is securely
fixed in the correct place with all the
provided retaining hooks (clips). Be
especially careful to perform this check
after cleaning the floor.
● With the engine stopped and the shift
lever in P, fully depress each pedal to
the floor to make sure it does not interfere with the floor mat.
Observe the following precautions.
Failure to do so may cause the driver’s floor mat to slip, possibly interfering
with the pedals while driving. An unexpectedly high speed may result or it may
become difficult to stop the vehicle. This could lead to an accident, resulting in
death or serious injury.
■ When installing the driver’s floor mat
● Do not use floor mats designed for other models or different model year
vehicles, even if they are Toyota Genuine floor mats.
● Only use floor mats designed for the driver’s seat.
● Always install the floor mat securely using the retaining hooks (clips) pro-
vided.
● Do not use two or more floor mats on top of each other.
● Do not place the floor mat bottom-side up or upside-down.
■ Before driving
27
1
For safety and security
4RUNNER (U)
28
1-1. For safe use
For safe driving
For safe driving, adjust the seat and mirror to an appropriate
position before driving.
Correct driving posture
Adjust the angle of the seat-
1
back so that you are sitting
straight up and so that you do
not have to lean forward to
steer. (P. 1 36)
Adjust the seat so that you can
2
depress the pedals fully and so
that your arms bend slightly at
the elbow when gripping the
steering wheel. (P. 136)
Adjust the tilt and telescopic positions of the steering wheel down-
3
ward so the airbag is facing your chest. (P. 156)
Lock the head restraint in place with the center of the head restraint
4
closest to the top of your ears. (P. 1 5 3)
Wear the seat belt correctly. (P. 3 0 )
5
Correct use of the seat belts
Make sure that all occupants are wearing their seat belts before driving the vehicle. (P. 3 0)
Use a child restraint system appropriate for the child until the child
becomes large enough to properly wear the vehicle’s seat belt.
(P. 53)
4RUNNER (U)
1-1. For safe use
WARNING
Adjusting the mirrors
Make sure that you can see backward clearly by adjusting the inside
and outside rear view mirrors properly. (P. 158, 160)
29
Observe the following precautions.
Failure to do so may result in death or serious injury.
● Do not adjust the position of the driver’s seat while driving.
Doing so could cause the driver to lose control of the vehicle.
● Do not place a cushion between the driver or passenger and the seatback.
A cushion may prevent correct posture from being achieved, and reduce
the effectiveness of the seat belt and head restraint.
● Do not place anything under the front seats.
Objects placed under the front seats may become jammed in the seat
tracks and stop the seat from locking in place. This may lead to an accident and the adjustment mechanism may also be damaged.
● Always observe the legal speed limit when driving on public roads.
● When driving over long distances, take regular breaks before you start to
feel tired.
Also, if you feel tired or sleepy while driving, do not force yourself to continue driving and take a break immediately.
1
For safety and security
4RUNNER (U)
30
Release button
1-1. For safe use
Seat belts
Make sure that all occupants are wearing their seat belts before
driving the vehicle.
Correct use of the seat belts
● Extend the shoulder belt so that
it comes fully over the shoulder,
but does not come into contact
with the neck or slide off the
shoulder.
● Position the lap belt as low as
possible over the hips.
● Adjust the position of the seatback. Sit up straight and well
back in the seat.
● Do not twist the seat belt.
Fastening and releasing the seat belt
To fasten the seat belt, push the
1
plate into the buckle until a click
sound is heard.
To release the seat belt, press
2
the release button.
Adjusting the seat belt shoulder anchor height (front seats)
Push the seat belt shoulder
1
anchor down while pressing the
release button.
Push the seat belt shoulder
2
anchor up.
Move the height adjuster up and
down as needed until you hear a
click.
4RUNNER (U)
1-1. For safe use
Seat belt pretensioners (front seats)
The pretensioners help the seat
belts to quickly restrain the occupants by retracting the seat belts
when the vehicle is subjected to
certain types of severe frontal or
side collision or a vehicle rollover.
The pretensioners do not activate
in the event of a minor frontal
impact, a minor side impact or a
rear impact.
■ Emergency locking retractor (ELR)
The retractor will lock the belt during a sudden stop or on impact. It may also
lock if you lean forward too quickly. A slow, easy motion will allow the belt to
extend so that you can move around fully.
■ Automatic locking retractor (ALR)
When a passenger’s shoulder belt is completely extended and then retracted
even slightly, the belt is locked in that position and cannot be extended. This
feature is used to hold the child restraint system (CRS) firmly. To free the belt
again, fully retract the belt and then pull the belt out once more. (P. 57)
■ Child seat belt usage
The seat belts of your vehicle were principally designed for persons of adult
size.
● Use a child restraint system appropriate for the child, until the child
becomes large enough to properly wear the vehicle’s seat belt. (P. 53)
● When the child becomes large enough to properly wear the vehicle’s seat
belt, follow the instructions regarding seat belt usage. (P. 30)
■ Replacing the belt after the pretensioner has been activated
If the vehicle is involved in multiple collisions, the pretensioner will activate for
the first collision, but will not activate for the second or subsequent collisions.
■ Seat belt extender
If your seat belts cannot be fastened
securely because they are not long
enough, a personalized seat belt extender
is available from your Toyota dealer free
of charge.
31
1
For safety and security
4RUNNER (U)
32
WARNING
Obtain medical advice and wear the seat
belt in the proper way. (P. 30)
Women who are pregnant should position the lap belt as low as possible over
the hips in the same manner as other
occupants, extending the shoulder belt
completely over the shoulder and avoiding belt contact with the rounding of the
abdominal area.
If the seat belt is not worn properly, not
only the pregnant woman, but also the
fetus could suffer death or serious injury
as a result of sudden braking or a collision.
Observe the following precautions to reduce the risk of injury in the event of
sudden braking, sudden swerving or an accident.
Failure to do so may cause death or serious injury.
■ Wearing a seat belt
■ Pregnant women
1-1. For safe use
● Ensure that all passengers wear a seat belt.
● Always wear a seat belt properly.
● Each seat belt should be used by one person only. Do not use a seat belt
for more than one person at once, including children.
● Toyota recommends that children be seated in the rear seat and always
use a seat belt and/or an appropriate child restraint system.
● To achieve a proper seating position, do not recline the seat more than
necessary. The seat belt is most effective when the occupants are sitting
up straight and well back in the seats.
● Do not wear the shoulder belt under your arm.
● Always wear your seat belt low and snug across your hips.
4RUNNER (U)
1-1. For safe use
WARNING
■ People suffering illness
Obtain medical advice and wear the seat belt in the proper way. (P. 30)
■ When children are in the vehicle
Do not allow children to play with the seat belt. If the seat belt becomes
twisted around a child’s neck, it may lead to choking or other serious injuries
that could result in death.
If this occurs and the buckle cannot be unfastened, scissors should be used
to cut the belt.
■ Seat belt pretensioners
● Do not place anything, such as a cushion, on the front passenger's seat.
Doing so will disperse the passenger's weight, which prevents the sensor
from detecting the passenger's weight properly. As a result, the seat belt
pretensioner for the front passenger's seat may not activate in the event of
a collision.
● If the pretensioner has activated, the SRS warning light will come on. In
that case, the seat belt cannot be used again and must be replaced at
your Toyota dealer.
■ Adjustable shoulder anchor
Always make sure the shoulder belt is positioned across the center of your
shoulder. The belt should be kept away from your neck, but not falling off
your shoulder. Failure to do so could reduce the amount of protection in an
accident and cause death or serious injuries in the event of a sudden stop,
sudden swerve or accident. (P. 30)
33
1
For safety and security
4RUNNER (U)
34
WARNING
NOTICE
■ Seat belt damage and wear
■ Using a seat belt extender
1-1. For safe use
● Do not damage the seat belts by allowing the belt, plate, or buckle to be
jammed in the door.
● Inspect the seat belt system periodically. Check for cuts, fraying, and loose
parts. Do not use a damaged seat belt until it is replaced. Damaged seat
belts cannot protect an occupant from death or serious injury.
● Ensure that the belt and plate are locked and the belt is not twisted.
If the seat belt does not function correctly, immediately contact your Toyota
dealer.
● Replace the seat assembly, including the belts, if your vehicle has been
involved in a serious accident, even if there is no obvious damage.
● Do not attempt to install, remove, modify, disassemble or dispose of the
seat belts. Have any necessary repairs carried out by your Toyota dealer.
Inappropriate handling may lead to incorrect operation.
● Do not wear the seat belt extender if you can fasten the seat belt without
the extender.
● Do not use the seat belt extender when installing a child restraint system
because the belt will not securely hold the child restraint system, increasing the risk of death or serious injury in the event of an accident.
● The personalized extender may not be safe on another vehicle, when
used by another person, or at a different seating position other than the
one originally intended.
■ When using a seat belt extender
When releasing the seat belt, press on the buckle release button on the
extender, not on the seat belt.
This helps prevent damage to the vehicle interior and the extender itself.
4RUNNER (U)
1-1. For safe use
SRS airbags
The SRS airbags inflate when the vehicle is subjected to certain
types of severe impacts that may cause significant injury to the
occupants. They work together with the seat belts to help reduce
the risk of death or serious injury.
35
1
For safety and security
◆ SRS front airbags
1
2
◆ SRS side and curtain shield airbags
3
4
4RUNNER (U)
SRS driver airbag/front passenger airbag
Can help protect the head and chest of the driver and front passenger from impact with interior components
SRS knee airbags
Can help provide driver and front passenger protection
SRS side airbags
Can help protect the torso of the front seat occupants
SRS curtain shield airbags
● Can help protect primarily the head of occupants in the outer
seats
● Can help prevent the occupants from being thrown from the
vehicle in the event of vehicle rollover
36
101112
13
14
15
16
1-1. For safe use
SRS airbag system components
Side airbags
1
“AIR BAG ON” and “AIR BAG
2
OFF” indicator lights
Curtain shield airbags
3
Front passenger airbag
4
Knee airbags
5
Side impact sensors (front
6
door)
Seat belt pretensioners and
7
force limiters
Front impact sensors
8
Airbag sensor assembly
9
Front passenger’s seat belt
buckle switch
Front passenger occupant
classification system (ECU
and sensors)
Side impact sensors (rear)
SRS warning light
Safing sensor (rear)
Driver airbag
Driver’s seat belt buckle
switch
4RUNNER (U)
1-1. For safe use
WARNING
Your vehicle is equipped with ADVANCED AIRBAGS designed based
on the US motor vehicle safety standards (FMVSS208). The airbag
sensor assembly (ECU) controls airbag deployment based on information obtained from the sensors etc. shown in the system components diagram above. This information includes crash severity and
occupant information. As the airbags deploy, a chemical reaction in
the inflators quickly fills the airbags with non-toxic gas to help restrain
the motion of the occupants.
■ SRS airbag precautions
Observe the following precautions regarding the SRS airbags.
Failure to do so may cause death or serious injury.
● The driver and all passengers in the vehicle must wear their seat belts
properly.
The SRS airbags are supplemental devices to be used with the seat belts.
● The SRS driver airbag deploys with considerable force, and can cause
death or serious injury especially if the driver is very close to the airbag.
The National Highway Traffic Safety Administration (NHTSA) advises:
Since the risk zone for the driver’s airbag is the first 2 - 3 in. (50 - 75 mm)
of inflation, placing yourself 10 in. (250 mm) from your driver airbag provides you with a clear margin of safety. This distance is measured from
the center of the steering wheel to your breastbone. If you sit less than 10
in. (250 mm) away now, you can change your driving position in several
ways:
• Move your seat to the rear as far as you can while still reaching the pedals comfortably.
• Slightly recline the back of the seat.
Although vehicle designs vary, many drivers can achieve the 10 in. (250
mm) distance, even with the driver seat all the way forward, simply by
reclining the back of the seat somewhat. If reclining the back of your
seat makes it hard to see the road, raise yourself by using a firm, nonslippery cushion, or raise the seat if your vehicle has that feature.
• If your steering wheel is adjustable, tilt it downward. This points the airbag toward your chest instead of your head and neck.
The seat should be adjusted as recommended by NHTSA above, while
still maintaining control of the foot pedals, steering wheel, and your view
of the instrument panel controls.
37
1
For safety and security
4RUNNER (U)
38
WARNING
● If the seat belt extender has been con-
nected to the front seat belt buckles but
the seat belt extender has not also been
fastened to the latch plate of the seat
belt, the SRS front airbags will judge
that the driver and front passenger are
wearing the seat belt even though the
seat belt has not been connected. In
this case, the SRS front airbags may
not activate correctly in a collision,
resulting in death or serious injury in the
event of a collision. Be sure to wear the
seat belt with the seat belt extender.
● Do not sit on the edge of the seat or
lean against the dashboard.
■ SRS airbag precautions
1-1. For safe use
● The SRS front passenger airbag also deploys with considerable force, and
can cause death or serious injury especially if the front passenger is very
close to the airbag. The front passenger seat should be as far from the airbag as possible with the seatback adjusted, so the front passenger sits
upright.
● Improperly seated and/or restrained infants and children can be killed or
seriously injured by a deploying airbag. An infant or child who is too small
to use a seat belt should be properly secured using a child restraint system. Toyota strongly recommends that all infants and children be placed in
the rear seats of the vehicle and properly restrained. The rear seats are
safer for infants and children than the front passenger seat. (P. 53)
4RUNNER (U)
WARNING
■ SRS airbag precautions
● Do not allow a child to stand in front of
the SRS front passenger airbag unit or
sit on the knees of a front passenger.
● Do not allow the front seat occupants to
hold items on their knees.
● Do not lean against the door, the roof
side rail or the front, side and rear pillars.
● Do not allow anyone to kneel on the
passenger seats toward the door or put
their head or hands outside the vehicle.
● Do not attach anything to or lean any-
thing against areas such as the dashboard, steering wheel pad and lower
portion of the instrument panel.
These items can become projectiles
when the SRS driver, front passenger
and knee airbags deploy.
● Do not attach anything to areas such as
a door, windshield glass, side door
glass, front or rear pillar, roof side rail
and assist grip.
1-1. For safe use
39
1
For safety and security
4RUNNER (U)
40
WARNING
● Vehicles without a smart key system:
Do not attach any heavy, sharp or hard
objects such as keys and accessories
to the key. The objects may restrict the
SRS knee airbag inflation or be thrust
into the driver's seat area by the force of
the deploying airbag, thus causing a
danger.
■ SRS airbag precautions
1-1. For safe use
● Do not hang coat hangers or other hard objects on the coat hooks. All of
these items could become projectiles and may cause death or serious
injury, should the SRS curtain shield airbags deploy.
● If a vinyl cover is put on the area where the SRS knee airbag will deploy,
be sure to remove it.
● Do not use seat accessories which cover the parts where the SRS side
airbags inflate as they may interfere with inflation of the airbags. Such
accessories may prevent the side airbags from activating correctly, disable
the system or cause the side airbags to inflate accidentally, resulting in
death or serious injury.
● Do not strike or apply significant levels of force to the area of the SRS air-
bag components.
Doing so can cause the SRS airbags to malfunction.
● Do not touch any of the component parts immediately after the SRS air-
bags have deployed (inflated) as they may be hot.
● If breathing becomes difficult after the SRS airbags have deployed, open a
door or window to allow fresh air in, or leave the vehicle if it is safe to do
so. Wash off any residue as soon as possible to prevent skin irritation.
● If the areas where the SRS airbags are stored, such as the steering wheel
pad and front and rear pillar garnishes, are damaged or cracked, have
them replaced by your Toyota dealer.
● Do not place anything, such as a cushion, on the front passenger's seat.
Doing so will disperse the passenger's weight, which prevents the sensor
from detecting the passenger's weight properly. As a result, the SRS front
airbags for the front passenger may not deploy in the event of a collision.
4RUNNER (U)
1-1. For safe use
WARNING
■ Modification and disposal of SRS airbag system components
Do not dispose of your vehicle or perform any of the following modifications
without consulting your Toyota dealer. The SRS airbags may malfunction or
deploy (inflate) accidentally, causing death or serious injury.
● Installation, removal, disassembly and repair of the SRS airbags
● Repairs, modifications, removal or replacement of the steering wheel,
instrument panel, dashboard, seats or seat upholstery, front, side and rear
pillars or roof side rails
● Repairs or modifications of the front fender, front bumper, or side of the
occupant compartment
● Installation of a grill guard (bull bars, kangaroo bar etc.), snow plows,
winches or roof luggage carrier.
● Modifications to the vehicle’s suspension system
● Installation of electronic devices such as mobile two-way radios and CD
players
● Modifications to your vehicle for a person with a physical disability
■ If the SRS airbags deploy (inflate)
● Slight abrasions, burns, bruising etc., may be sustained from SRS airbags,
due to the extremely high speed deployment (inflation) by hot gases.
● A loud noise and white powder will be emitted.
● Parts of the airbag module (steering wheel hub, airbag cover and inflator) as
well as the front seats, parts of the front and rear pillars, and roof side rails
may be hot for several minutes. The airbag itself may also be hot.
● The windshield may crack.
● Fuel supply to the engine will be stopped. (P. 476)
● For Safety Connect subscribers, if any of the following situations occur, the
system is designed to send an emergency call to the response center, notifying them of the vehicle's location (without needing to push the “SOS” button) and an agent will attempt to speak with the occupants to ascertain the
level of emergency and assistance required. If the occupants are unable to
communicate, the agent automatically treats the call as an emergency and
helps to dispatch the necessary emergency services. (P. 70)
• An SRS airbag is deployed.
• A seat belt pretensioner is activated.
• The vehicle is involved in a severe rear-end collision.
• The vehicle is involved in a rollover accident.
41
1
For safety and security
4RUNNER (U)
42
■ SRS airbag deployment conditions (SRS front airbags)
● The SRS front airbags will deploy in the event of an impact that exceeds the
● Depending on the type of collision, it is possible that only the seat belt pre-
● The SRS front airbags for the front passenger will not activate if there is no
■ SRS airbag deployment conditions (SRS side and curtain shield airbags)
● The SRS side and curtain shield airbags will deploy in the event of an
● Both SRS curtain shield airbags will deploy in the event of vehicle rollover.
● All SRS side and curtain shield airbags will deploy in the event of a severe
1-1. For safe use
set threshold level (the level of force corresponding to an approximately 12 18 mph [20 - 30 km/h] frontal collision with a fixed wall that does not move or
deform).
However, this threshold velocity will be considerably higher in the following
situations:
• If the vehicle strikes an object, such as a parked vehicle or sign pole,
which can move or deform on impact
• If the vehicle is involved in an underride collision, such as a collision in
which the front of the vehicle “underrides”, or goes under, the bed of a
truck
tensioners will activate.
passenger sitting in the front passenger seat. However, the SRS front airbags for the front passenger may deploy if luggage is put in the seat, even if
the seat is unoccupied.
impact that exceeds the set threshold level (the level of force corresponding
to the impact force produced by an approximately 3300 lb. [1500 kg] vehicle
colliding with the vehicle cabin from a direction perpendicular to the vehicle
orientation at an approximate speed of 12 - 18 mph [20 - 30 km/h]).
frontal collision.
4RUNNER (U)
1-1. For safe use
43
■ Conditions under which the SRS airbags may deploy (inflate), other than
a collision
The SRS front airbags, SRS side and curtain shield airbags may also deploy
if a serious impact occurs to the underside of your vehicle. Some examples
are shown in the illustration.
● Hitting a curb, edge of pavement or hard
surface
● Falling into or jumping over a deep hole
● Landing hard or falling
The SRS curtain shield airbags may also deploy under the situations shown
in the illustration.
● The angle of vehicle tip-up is marginal.
● The vehicle skids and hits a curb stone.
1
For safety and security
■ Types of collisions that may not deploy the SRS airbags (SRS front air-
bags)
The SRS front airbags do not generally inflate if the vehicle is involved in a
side or rear collision, if it rolls over, or if it is involved in a low-speed frontal
collision. But, whenever a collision of any type causes sufficient forward
deceleration of the vehicle, deployment of the SRS front airbags may occur.
● Collision from the side
● Collision from the rear
● Vehicle rollover
4RUNNER (U)
44
■ Types of collisions that may not deploy the SRS airbags (SRS side and
curtain shield airbags)
The SRS side and curtain shield airbags may not activate if the vehicle is
subjected to a collision from the side at certain angles, or a collision to the
side of the vehicle body other than the passenger compartment.
● Collision from the side to the vehicle
● Collision from the side at an angle
The SRS side airbags do not generally inflate if the vehicle is involved in a
rear collision, if it rolls over, or if it is involved in a low-speed side or lowspeed frontal collision.
● Collision from the rear
● Vehicle rollover
1-1. For safe use
body other than the passenger compartment
The SRS curtain shield airbags do not generally inflate if the vehicle is
involved in a rear collision, if it pitches end over end, or if it is involved in a
low-speed side or low-speed frontal collision.
● Collision from the rear
● Pitching end over end
4RUNNER (U)
1-1. For safe use
■ When to contact your Toyota dealer
In the following cases, the vehicle will require inspection and/or repair. Contact your Toyota dealer as soon as possible.
● Any of the SRS airbags have been inflated.
● The front of the vehicle is damaged or
deformed, or was involved in an accident that was not severe enough to
cause the SRS front airbags to inflate.
● A portion of a door or its surrounding
area is damaged or deformed, or the
vehicle was involved in an accident that
was not severe enough to cause the
SRS side and curtain shield airbags to
inflate.
● The pad section of the steering wheel,
dashboard near the front passenger airbag or lower portion of the instrument
panel is scratched, cracked, or otherwise damaged.
45
1
For safety and security
● The surface of the seats with the SRS
side airbag is scratched, cracked, or otherwise damaged.
● The portion of the front pillars, rear pil-
lars or roof side rail garnishes (padding)
containing the SRS curtain shield airbags inside is scratched, cracked, or
otherwise damaged.
4RUNNER (U)
46
U.S.A.
Canada
1-1. For safe use
Front passenger occupant classification
system
Your vehicle is equipped with a front passenger occupant classification system. This system detects the conditions of the front
passenger seat and activates or deactivates the front passenger
airbag, front passenger knee airbag, and front passenger's seat
belt pretensioner.
SRS warning light
1
Seat belt reminder light
2
“AIR BAG OFF” indicator light
3
“AIR BAG ON” indicator light
4
4RUNNER (U)
1-1. For safe use
Condition and operation in the front passenger occupant classification system
Adult*
■
1
47
Indicator/
warning light
Devices
■ Child*
Indicator/
warning light
Devices
“AIR BAG ON” and “AIR BAG OFF”
indicator lights
SRS warning light Off
Seat belt reminder light
Front passenger airbag
Front passenger's seat belt pretensioner
4
or child restraint system*
“AIR BAG ON” and “AIR BAG OFF”
indicator lights
SRS warning light Off
Seat belt reminder light Flashing*
Front passenger airbag
Front passenger knee airbag
“AIR BAG ON”
1
2
Off*
flashing
or
3
*
For safety and security
ActivatedFront passenger knee airbag
5
“AIR BAG
OFF”
6
*
3
Deactivated
4RUNNER (U)
Front passenger's seat belt pretensioner Activated
48
■
Unoccupied
1-1. For safe use
Indicator/
warning light
Devices
“AIR BAG ON” and “AIR BAG OFF”
indicator lights
SRS warning light
Seat belt reminder light
Front passenger airbag
Front passenger knee airbag
Front passenger's seat belt pretensioner
Not illuminated
Off
Deactivated
Activated*
deactivated
7
or
*
8
4RUNNER (U)
■
There is a malfunction in the system
1-1. For safe use
49
“AIR BAG ON” and “AIR BAG OFF”
indicator lights
Indicator/
warning light
Devices
Front passenger's seat belt pretensioner Activated
1
*
: The system judges a person of adult size as an adult. When a smaller
adult sits in the front passenger seat, the system may recognize him/her
as a child depending on his/her physique and posture.
2
*
: In the event the front passenger is wearing a seat belt.
3
*
: In the event the front passenger does not wear a seat belt.
4
*
: When a larger child who has outgrown a child restraint system sits in the
front passenger seat, the system may recognize him/her as an adult
depending on his/her physique or posture.
5
*
: Never install a rear-facing child restraint system on the front passenger
seat. A forward-facing child restraint system should only be installed on
the front passenger seat when it is unavoidable.
(P. 53)
6
*
: In case the indicator light is not illuminated, consult this manual on how
to install the child restraint system properly. (P. 57)
7
*
: In the event of a side collision.
8
*
: In the event of a frontal collision or rollover.
SRS warning light On
Seat belt reminder light On or flashing
Front passenger airbag
Front passenger knee airbag
“AIR BAG OFF”
Deactivated
1
For safety and security
4RUNNER (U)
50
WARNING
■ Front passenger occupant classification system precautions
1-1. For safe use
Observe the following precautions regarding the front passenger occupant
classification system.
Failure to do so may cause death or serious injury.
● Wear the seat belt properly.
● Make sure the front passenger’s seat belt plate has not been left inserted
into the buckle before someone sits in the front passenger seat.
● Make sure the “AIR BAG OFF” indicator light is not illuminated when using
the seat belt extender for the front passenger seat. If the “AIR BAG OFF”
indicator light is illuminated, disconnect the extender tongue from the seat
belt buckle, and reconnect the seat belt. Reconnect the seat belt extender
after making sure the “AIR BAG ON” indicator light is illuminated. If you
use the seat belt extender while the “AIR BAG OFF” indicator light is illuminated, the SRS airbags for the front passenger will not activate, which
could cause death or serious injury in the event of a collision.
● Do not apply a heavy load to the front passenger seat or equipment.
● Do not put weight on the front passenger seat by putting your hands or
feet on the front passenger seat seatback from the rear passenger seat.
● Do not let a rear passenger lift the front passenger seat with their feet or
press on the seatback with their legs.
● Do not put objects under the front passenger seat.
4RUNNER (U)
1-1. For safe use
WARNING
■ Front passenger occupant classification system precautions
● Do not recline the front passenger seatback so far that it touches a rear
seat. This may cause the “AIR BAG OFF” indicator light to be illuminated,
which indicates that the SRS airbags for the front passenger will not
deploy in the event of a severe accident. If the seatback touches the rear
seat, return the seatback to a position where it does not touch the rear
seat. Keep the front passenger seatback as upright as possible when the
vehicle is moving. Reclining the seatback excessively may lessen the
effectiveness of the seat belt system.
● If an adult sits in the front passenger seat, the “AIR BAG ON” indicator
light is illuminated. If the “AIR BAG OFF” indicator is illuminated, ask the
passenger to sit up straight, well back in the seat, feet on the floor, and
with the seat belt worn correctly. If the “AIR BAG OFF” indicator still
remains illuminated, either ask the passenger to move to the rear seat, or
if that is not possible, move the front passenger seat fully rearward.
● When it is unavoidable to install a forward-facing child restraint system on
the front passenger seat, install the child restraint system on the front passenger seat in the proper order. (P. 57)
● Do not modify or remove the front seats.
● Do not kick the front passenger seat or subject it to severe impact. Other-
wise, the SRS warning light may come on to indicate a malfunction of the
front passenger occupant classification system. In this case, contact your
Toyota dealer immediately.
● Child restraint systems installed on the second seat should not contact the
front seatbacks.
● Do not use a seat accessory, such as a cushion and seat cover, that cov-
ers the seat cushion surface.
● Do not modify or replace the upholstery of the front seat.
51
1
For safety and security
4RUNNER (U)
52
WARNING
1-1. For safe use
Safety information for children
Observe the following precautions when children are in the vehicle.
Use a child restraint system appropriate for the child, until the
child becomes large enough to properly wear the vehicle’s seat
belt.
● It is recommended that children sit in the rear seats to avoid accidental contact with the shift lever, wiper switch etc.
● Use the rear door child-protector lock or the window lock switch to
avoid children opening the door while driving or operating the
power window accidentally.
● Do not let small children operate equipment which may catch or
pinch body parts, such as the power window, hood, back door,
seats etc.
Never leave children unattended in the vehicle, and never allow children to
have or use the key.
Children may be able to start the vehicle or shift the vehicle into neutral.
There is also a danger that children may injure themselves by playing with
the windows, the moon roof or other features of the vehicle. In addition, heat
build-up or extremely cold temperatures inside the vehicle can be fatal to
children.
4RUNNER (U)
1-1. For safe use
Child restraint systems
A child restraint system for a small child or baby must itself be
properly restrained on the seat with the LATCH anchors or the
lap portion of the lap/shoulder belt.
The laws of all 50 states of the U.S.A. and Canada now require
the use of child restraint systems.
Points to remember
Studies have shown that installing a child restraint on a rear seat is
much safer than installing one on the front passenger seat.
● Choose a child restraint system that suits your vehicle and is appropriate to the age and size of the child.
● For installation details, follow the instructions provided with the child
restraint system.
General installation instructions are provided in this manual.
(P. 57)
53
1
For safety and security
4RUNNER (U)
54
1-1. For safe use
Types of child restraints
Child restraint systems are classified into the following 3 types
according to the age and size of the child:
Rear facing Infant seat/con-
vertible seat
Booster seat
Forward facing Convertible
seat
■ Selecting an appropriate child restraint system
● Use a child restraint system appropriate for the child until the child becomes
large enough to properly wear the vehicle’s seat belt.
● If the child is too large for a child restraint system, sit the child on a rear seat
and use the vehicle’s seat belt. (P. 30)
4RUNNER (U)
1-1. For safe use
WARNING
■ Child restraint precautions
● For effective protection in automobile accidents and sudden stops, a child
must be properly restrained, using a seat belt or child restraint system
depending on the age and size of the child. Holding a child in your arms is
not a substitute for a child restraint system. In an accident, the child can be
crushed against the windshield, or between you and the vehicle’s interior.
● Toyota strongly urges the use of a proper child restraint system that con-
forms to the size of the child, installed on the rear seat. According to accident statistics, the child is safer when properly restrained in the rear seat
than in the front seat.
● Never install a rear-facing child restraint system on the front passenger
seat even if the “AIR BAG OFF” indicator light is illuminated.
In the event of an accident, the force of the rapid inflation of the front passenger airbag can cause death or serious injury to the child if the rear-facing child restraint system is installed on the front passenger seat.
● A forward-facing child restraint system may be installed on the front pas-
senger seat only when it is unavoidable. A child restraint system that
requires a top tether strap should not be used in the front passenger seat
since there is no top tether strap anchor for the front passenger seat.
Adjust the seatback as upright as possible and always move the seat as
far back as possible even if the “AIR BAG OFF” indicator light is illuminated, because the front passenger airbag could inflate with considerable
speed and force. Otherwise, the child may be killed or seriously injured.
● Do not use the seat belt extender when installing a child restraint system
on the front or rear passenger seat. If installing a child restraint system
with the seat belt extender connected to the seat belt, the seat belt will not
securely hold the child restraint system, which could cause death or serious injury to the child or other passengers in the event of an accident.
● Do not allow the child to lean his/her head or any part of his/her body
against the door or the area of the seat, front and rear pillars or roof side
rails from which the SRS side airbags or SRS curtain shield airbags deploy
even if the child is seated in the child restraint system. It is dangerous if
the SRS side airbags and curtain shield airbags inflate, and the impact
could cause death or serious injury to the child.
● Make sure you have complied with all installation instructions provided by
the child restraint manufacturer and that the system is properly secured. If
it is not secured properly, it may cause death or serious injury to the child
in the event of a sudden stop, sudden swerve or accident.
55
1
For safety and security
4RUNNER (U)
56
WARNING
■ When children are in the vehicle
■ When the child restraint system is not in use
1-1. For safe use
Do not allow children to play with the seat belt. If the seat belt becomes
twisted around a child’s neck, it may lead to choking or other serious injuries
that could result in death.
If this occurs and the buckle cannot be unfastened, scissors should be used
to cut the belt.
● Keep the child restraint system properly secured on the seat even if it is
not in use. Do not store the child restraint system unsecured in the passenger compartment.
● If it is necessary to detach the child restraint system, remove it from the
vehicle or store it securely in the luggage compartment. This will prevent it
from injuring passengers in the event of a sudden stop, sudden swerve or
accident.
4RUNNER (U)
1-1. For safe use
Installing child restraints
Follow the child restraint system manufacturer’s instructions.
Firmly secure child restraints to the seats using the LATCH
(Lower Anchors and Tethers for Children) anchors or a seat belt.
Attach the top tether strap when installing a child restraint.
The lap/shoulder belt can be used if your child restraint system
is not compatible with the LATCH system.
Vehicles without third row seats
Child restraint LATCH anchors
LATCH anchors are provided for
the outboard rear seats. (Buttons
displaying the location of the
anchors are attached to the seats.)
Vehicles with third row seats
57
1
For safety and security
Child restraint LATCH anchors
LATCH anchors are provided for
the outboard second row seats.
(Buttons displaying the location of
the anchors are attached to the
seats.)
Seat belts equipped with a child
restraint locking mechanism
(ALR/ELR belts except driver’s
seat belt) (P. 31)
4RUNNER (U)
58
Vehicles without third row seats
1-1. For safe use
Anchor brackets (for top tether
strap)
An anchor bracket is provided for
each rear seat.
Vehicles with third row seats
Anchor brackets (for top tether
strap)
An anchor bracket is provided for
each second row seat.
4RUNNER (U)
1-1. For safe use
Canada only
Installation with LATCH system (rear/second row seats only)
Installing on the rear seats (vehicles without third row seats)
■
1
Fold the seatback while pulling the seatback angle
adjustment lever. Return the
seatback and secure it at the
first lock position. (P. 13 9)
Type A
2
Latch the hooks of the lower
straps onto the LATCH
anchors. If the child restraint
has a top tether strap, the top
tether strap should be
latched onto the top tether
strap anchor.
For owners in Canada:
The symbol on a child
restraint system indicates the
presence of a lower connector system.
59
1
For safety and security
4RUNNER (U)
60
Canada only
1-1. For safe use
Type B
2
Latch the buckles onto the
LATCH anchors. If the child
restraint has a top tether
strap, the top tether strap
should be latched onto the
top tether strap anchor.
For owners in Canada:
The symbol on a child
restraint system indicates the
presence of a lower connector system.
■ Installing on the second row seats (vehicles with third row
seats)
1
Fold the seatback while pulling the seatback angle
adjustment lever. Return the
seatback and secure it at the
first lock position. (P. 13 9)
2
Flip the cover.
4RUNNER (U)
Type A
Canada only
Canada only
3
Latch the hooks of the lower
straps onto the LATCH
anchors. If the child restraint
has a top tether strap, the top
tether strap should be
latched onto the top tether
strap anchor.
For owners in Canada:
The symbol on a child
restraint system indicates the
presence of a lower connector system.
Type B
3
Latch the buckles onto the
LATCH anchors. If the child
restraint has a top tether
strap, the top tether strap
should be latched onto the
top tether strap anchor.
For owners in Canada:
The symbol on a child
restraint system indicates the
presence of a lower connector system.
1-1. For safe use
61
1
For safety and security
4RUNNER (U)
62
1-1. For safe use
Installing child restraints using a seat belt (child restraint lock
function belt)
Rear-facing Infant seat/convertible seat
■
1
Place the child restraint system on the rear seat facing
the rear of the vehicle.
2
Run the seat belt through the
child restraint system and
insert the plate into the
buckle. Make sure that the
belt is not twisted.
3
Fully extend the shoulder belt
and allow it to retract to put it
in lock mode. In lock mode,
the belt cannot be extended.
4RUNNER (U)
4
While pushing the child
restraint system down into
the rear seat, allow the
shoulder belt to retract until
the child restraint system is
securely in place.
After the shoulder belt has
retracted to a point where there
is no slack in the belt, pull the
belt to check that it cannot be
extended.
Forward-facing Convertible seat
■
1
Place the child restraint system on the seat facing the
front of the vehicle.
1-1. For safe use
63
1
For safety and security
2
Run the seat belt through the
child restraint system and
insert the plate into the
buckle. Make sure that the
belt is not twisted.
4RUNNER (U)
64
1-1. For safe use
3
Fully extend the shoulder belt
and allow it to retract to put it
in lock mode. In lock mode,
the belt cannot be extended.
4
While pushing the child
restraint system into the rear
seat, allow the shoulder belt
to retract until the child
restraint system is securely
in place.
After the shoulder belt has
retracted to a point where there
is no slack in the belt, pull the
belt to check that it cannot be
extended.
5
If the child restraint has a top tether strap, the top tether strap
should be latched onto the top tether strap anchor. (P. 66)
4RUNNER (U)
1-1. For safe use
■
Booster seat
1
Place the child restraint system on the seat facing the
front of the vehicle.
2
Sit the child in the child
restraint system. Fit the seat
belt to the child restraint system according to the manufacturer’s instructions and
insert the plate into the
buckle. Make sure that the
belt is not twisted.
Check that the shoulder belt is correctly positioned over the child’s
shoulder and that the lap belt is as low as possible. (P. 30)
65
1
For safety and security
Removing a child restraint installed with a seat belt
Push the buckle release button
and fully retract the seat belt.
4RUNNER (U)
66
1-1. For safe use
Child restraint systems with a top tether strap
1
Secure the child restraint system using the seat belt or the
lower anchors, and remove the
head restraint.
2
Open the anchor bracket cover,
latch the hook onto the anchor
bracket and tighten the top
tether strap.
Make sure the top tether strap is
securely latched.
3
Replace the head restraint.
4RUNNER (U)
1-1. For safe use
WARNING
● If the driver’s seat interferes with the
child restraint system and prevents it
from being attached correctly, attach the
child restraint system to the right-hand
rear seat.
● Adjust the front passenger seat so that
it does not interfere with the child
restraint system.
● Only put a forward-facing child restraint
system on the front seat when unavoidable. When installing a forward-facing
child restraint system on the front passenger seat, move the seat as far back
as possible even if the “AIR BAG OFF”
indicator light is illuminated. Failure to
do so may result in death or serious
injury if the airbags deploy (inflate).
■ Laws and regulations pertaining to anchorages
The LATCH system conforms to FMVSS225 or CMVSS210.2.
Child restraint systems conforming to FMVSS213 or CMVSS213 specifications can be used.
This vehicle is designed to conform to the SAE J1819.
■ When installing a booster seat
To prevent the belt from going into ALR lock mode, do not fully extend the
shoulder belt. ALR mode causes the belt to tighten only. This could cause
injury or discomfort to the child. (P. 31)
■ When installing a child restraint system
Follow the directions given in the child restraint system installation manual
and fix the child restraint system securely in place.
If the child restraint system is not correctly fixed in place, the child or other
passengers may be seriously injured or even killed in the event of a sudden
braking or an accident.
67
1
For safety and security
4RUNNER (U)
68
WARNING
■ When installing a child restraint system
■ Do not use a seat belt extender
■ To correctly attach a child restraint system to the anchors
1-1. For safe use
● Vehicles with third row seats: When using the LATCH anchors for a child
restraint system, move the seat as far back as possible, with the seatback
close to the child restraint system.
● When a booster seat is installed, always ensure that the shoulder belt is
positioned across the center of the child’s shoulder. The belt should be
kept away from the child’s neck, but not so that it could fall off the child’s
shoulder. Failing to do so may result in death or serious injury in the event
of an accident or a sudden braking.
● Ensure that the belt and plate are securely locked and the seat belt is not
twisted.
● Shake the child restraint system left and right, and forward and backward
to ensure that it has been securely installed.
● After securing a child restraint system, never adjust the seat.
● Follow all installation instructions provided by the child restraint system
manufacturer.
● When securing some types of child restraint systems in second or third
row seats, it may not be possible to properly use the seat belts in positions
next to the child restraint without interfering with it or affecting seat belt
effectiveness. Be sure your seat belt fits snugly across your shoulder and
low on your hips. If it does not, or if it interferes with the child restraint,
move to a different position. Failure to do so may result in death or serious
injury.
If a seat belt extender is used when installing a child restraint system, the
seat belt will not securely hold the child restraint system, which could cause
death or serious injury to the child or other passengers in the event of a sudden braking, sudden swerving or an accident.
When using the LATCH anchors, be sure that there are no foreign objects
around the anchors and that the seat belt is not caught behind the child
restraint system. Make sure the child restraint system is securely attached,
or it may cause death or serious injury to the child or other passengers in
the event of a sudden braking or an accident.
4RUNNER (U)
1-1. For safe use
WARNING
Exhaust gas precautions
Harmful substance to the human body is included in exhaust
gases if inhale.
69
1
Exhaust gases include harmful carbon monoxide (CO), which is colorless and
odorless. Observe the following precautions.
Failure to do so may cause exhaust gases enter the vehicle and may lead to
an accident caused by light-headedness, or may lead to death or a serious
health hazard.
■ Important points while driving
● Keep the back door closed.
● If you smell exhaust gases in the vehicle even when the back door is
closed, open the windows and have the vehicle inspected at your Toyota
dealer as soon as possible.
■ When parking
● If the vehicle is in a poorly ventilated area or a closed area, such as a
garage, stop the engine.
● Do not leave the vehicle with the engine on for a long time.
If such a situation cannot be avoided, park the vehicle in an open space
and ensure that exhaust fumes do not enter the vehicle interior.
● Do not leave the engine running in an area with snow build-up, or where it
is snowing. If snowbanks build up around the vehicle while the engine is
running, exhaust gases may collect and enter the vehicle.
■ Exhaust pipe
The exhaust system needs to be checked periodically. If there is a hole or
crack caused by corrosion, damage to a joint or abnormal exhaust noise, be
sure to have the vehicle inspected and repaired by your Toyota dealer.
For safety and security
4RUNNER (U)
70
1-2. Emergency assistance
Safety Connect
Safety Connect is a subscription-based telematics service that
uses Global Positioning System (GPS) data and embedded cellular technology to provide safety and security features to subscribers. Safety Connect is supported by Toyota’s designated
response center, which operates 24 hours per day, 7 days per
week.
Safety Connect service is available by subscription on select,
telematics hardware-equipped vehicles.
By using the Safety Connect service, you are agreeing to be
bound by the Telematics Subscription Service Agreement and
its Terms and Conditions, as in effect and amended from time to
time, a current copy of which is available at Toyota.com in the
United States, Toyotapr.com in Puerto Rico and Toyota.ca in
Canada. All use of the Safety Connect service is subject to such
then-applicable Terms and Conditions.
■ System components
Microphone
1
“SOS” button
2
LED light indicators
3
4RUNNER (U)
: If equipped
1-2. Emergency assistance
■
Services
Subscribers have the following Safety Connect services available:
● Automatic Collision Notification
*
Helps drivers receive necessary response from emergency service providers. (P. 73 )
*: U.S. Patent No. 7,508,298 B2
● Stolen Vehicle Location
Helps drivers in the event of vehicle theft. (P. 73)
● Emergency Assistance Button (“SOS”)
Connects drivers to response-center support. (P. 7 3 )
● Enhanced Roadside Assistance
Provides drivers various on-road assistance. (P. 7 4 )
■ Subscription
After you have signed the Telematics Subscription Service Agreement and are enrolled, you can begin receiving services.
A variety of subscription terms are available for purchase. Contact
your Toyota dealer, call the following appropriate Customer Experience Center or push the “SOS” button in your vehicle for further
subscription details.
• The United States
1-800-331-4331
• Canada
1-888-869-6828
• Puerto Rico
1-877-855-8377
71
1
For safety and security
4RUNNER (U)
72
1-2. Emergency assistance
■ Safety Connect Services Information
● Phone calls using the vehicles Bluetooth
when Safety Connect is active and in use.
● Safety Connect is available beginning Fall 2009 on select Toyota models (in
the contiguous United States only). Contact with the Safety Connect
response center is dependent upon the telematics device being in operative
condition, cellular connection availability, and GPS satellite signal reception,
which can limit the ability to reach the response center or receive emergency service support. Enrollment and Telematics Subscription Service
Agreement required. A variety of subscription terms is available; charges
vary by subscription term selected and location.
● Automatic Collision Notification, Emergency Assistance and Stolen Vehicle
Location are available in the United States, including Hawaii and Alaska,
Puerto Rico and Canada, and Enhanced Roadside Assistance are available
in the United States, Puerto Rico and Canada.
● Automatic Collision Notification, Emergency Assistance, Stolen Vehicle and
Enhanced Road Assistance are not available in the U.S. Virgin Islands.
For vehicles first sold in the U.S. Virgin Islands, no Safety Connect services
will function in or outside the U.S. Virgin Islands.
● Safety Connect services are not subject to section 255 of the Telecommuni-
cations Act and the device is not TTY compatible.
■ Languages
The Safety Connect response center will offer support in multiple languages.
The Safety Connect system will offer voice prompts in English, Spanish, and
French. Please indicate your language of choice when enrolling.
■ When contacting the response center
You may be unable to contact the response center if the network is busy.
®
technology will not be possible
Safety Connect LED light Indicators
When the engine switch is turned to the “ON” position (vehicles without a smart key system) or the engine switch is turned to IGNITION
ON mode (vehicles with a smart key system), the red indicator light
comes on for 2 seconds then turns off. Afterward, the green indicator
light comes on, indicating that the service is active.
The following indicator light patterns indicate specific system usage
conditions:
● Green indicator light on = Active service
● Green indicator light flashing = Safety Connect call in process
● Red indicator light (except at vehicle start-up) = System malfunction
(contact your Toyota dealer)
● No indicator light (off) = Safety Connect service not active
4RUNNER (U)
1-2. Emergency assistance
Safety Connect services
Automatic Collision Notification
■
In case of either airbag deployment or severe rear-end collision, the
system is designed to automatically call the response center. The
responding agent receives the vehicle’s location and attempts to
speak with the vehicle occupants to assess the level of emergency.
If the occupants are unable to communicate, the agent automatically treats the call as an emergency, contacts the nearest emergency services provider to describe the situation, and requests that
assistance be sent to the location.
■ Stolen Vehicle Location
If your vehicle is stolen, Safety Connect can work with local authorities to assist them in locating and recovering the vehicle. After filing
a police report, call the Customer Experience Center at 1-800-3314331 in the United States, 1-877-855-8377 in Puerto Rico or 1-888869-6828 in Canada, and follow the prompts for Safety Connect to
initiate this service.
In addition to assisting law enforcement with recovery of a stolen
vehicle, Safety-Connect-equipped vehicle location data may, under
certain circumstances, be shared with third parties to locate your
vehicle. Further information is available at Toyota.com in the United
States, Toyotapr.com in Puerto Rico and Toyota.ca in Canada.
■ Emergency Assistance Button (“SOS”)
In the event of an emergency on the road, push the “SOS” button to
reach the Safety Connect response center. The answering agent
will determine your vehicle’s location, assess the emergency, and
dispatch the necessary assistance required.
If you accidentally press the “SOS” button, tell the response-center
agent that you are not experiencing an emergency.
73
1
For safety and security
4RUNNER (U)
74
■
1-2. Emergency assistance
Enhanced Roadside Assistance
Enhanced Roadside Assistance adds GPS data to the already
included warranty-based Toyota roadside service.
Subscribers can press the “SOS” button to reach a Safety Connect
response-center agent, who can help with a wide range of needs,
such as: towing, flat tire, fuel delivery, etc. For a description of the
Enhanced Roadside Assistance services and their limitations,
please see the Safety Connect Terms and Conditions, which are
available at Toyota.com in the United States, Toyotapr.com in
Puerto Rico and Toyota.ca in Canada.
Safety information for Safety Connect
Important! Read this information before using Safety Connect.
■ Exposure to radio frequency signals
The Safety Connect system installed in your vehicle is a low-power
radio transmitter and receiver. It receives and also sends out radio
frequency (RF) signals.
In August 1996, the Federal Communications Commission (FCC)
adopted RF exposure guidelines with safety levels for mobile wireless phones. Those guidelines are consistent with the safety standards previously set by the following U.S. and international
standards bodies.
● ANSI (American National Standards Institute) C95.1 [1992]
● NCRP (National Council on Radiation Protection and Measure-
ment) Report 86 [1986]
● ICNIRP (International Commission on Non-Ionizing Radiation
Protection) [1996]
Those standards were based on comprehensive and periodic evaluations of the relevant scientific literature. Over 120 scientists, engineers, and physicians from universities, and government health
agencies and industries reviewed the available body of research to
develop the ANSI Standard (C95.1).
The design of Safety Connect complies with the FCC guidelines in
addition to those standards.
4RUNNER (U)
■ Certification for Safety Connect
1-2. Emergency assistance
75
1
For safety and security
4RUNNER (U)
76
1-3. Theft deterrent system
Engine immobilizer system
The vehicle’s keys have built-in transponder chips that prevent
the engine from starting if a key has not been previously registered in the vehicle’s on-board computer.
Never leave the keys inside the vehicle when you leave the vehicle.
This system is designed to help prevent vehicle theft but does
not guarantee absolute security against all vehicle thefts.
Vehicles without a smart key system
The indicator light flashes after
the key has been removed from
the engine switch to indicate that
the system is operating.
The indicator light stops flashing
after the registered key has been
inserted into the engine switch to
indicate that the system has been
canceled.
Vehicles with a smart key system
The indicator light flashes after the engine switch has been turned off
to indicate that the system is operating.
The indicator light stops flashing after the engine switch has been
turned to ACCESSORY or IGNITION ON mode to indicate that the
system has been canceled.
■ System maintenance
The vehicle has a maintenance-free type engine immobilizer system.
■ Conditions that may cause the system to malfunction
● If the grip portion of the key is in contact with a metallic object
● If the key is in close proximity to or touching a key to the security system
(key with a built-in transponder chip) of another vehicle
4RUNNER (U)
1-3. Theft deterrent system
77
■ Certifications for the engine immobilizer system (vehicles without a
smart key system)
For vehicles sold in the U.S.A.
For vehicles sold in Canada
1
For safety and security
4RUNNER (U)
78
WARNING
NOTICE
1-3. Theft deterrent system
■ Certifications for the engine immobilizer system (vehicles with a smart
key system)
For vehicles sold in the U.S.A.
For vehicles sold in Canada
■ Certifications for the engine immobilizer system
Changes or modifications not expressly approved by the party responsible
for compliance could void the user’s authority to operate the equipment.
■ To ensure the system operates correctly
Do not modify or remove the system. If modified or removed, the proper
operation of the system cannot be guaranteed.
4RUNNER (U)
1-3. Theft deterrent system
79
Alarm
The alarm
The alarm uses light and sound to give an alert when an intrusion is
detected.
The alarm is triggered in the following situations when the alarm is
set:
● A locked door is unlocked or opened in any way other than using
the entry function, wireless remote control or mechanical key. (The
doors will lock again automatically.)
● The hood is opened.
● The battery is reconnected.
Setting the alarm system
Close the doors and hood, and
lock all the doors. The system will
be set automatically after 30 seconds.
The indicator light changes from
being on to flashing when the system is set.
1
For safety and security
Deactivating or stopping the alarm
Do one of the following to deactivate or stopping the alarms:
● Unlock the doors.
● Vehicles without a smart key system: Turn the engine switch to
“ACC” or “ON” position, or start the engine. (The alarm will be deactivated or stopped after a few seconds.)
● Vehicles with a smart key system: Turn the engine switch is in
ACCESSORY or IGNITION ON mode, or start the engine. (The
alarm will be deactivated or stopped after a few seconds.)
4RUNNER (U)
: If equipped
80
NOTICE
■ System maintenance
The vehicle has a maintenance-free type alarm system.
■ Items to check before locking the vehicle
To prevent unexpected triggering of the alarm and vehicle theft, make sure of
the following:
● Nobody is in the vehicle.
● The windows and moon roof are closed before the alarm is set.
● No valuables or other personal items are left in the vehicle.
■ Triggering of the alarm
The alarm may be triggered in the following situations:
(Stopping the alarm deactivates the alarm system.)
● A person inside the vehicle opens a door
● The battery is recharged or replaced
1-3. Theft deterrent system
or the hood.
when the vehicle is locked.
■ Alarm-operated door lock
● When the alarm is operating, the doors are locked automatically to prevent
intruders.
● Do not leave the key inside the vehicle when the alarm is operating, and
make sure the key is not inside the vehicle when recharging or replacing the
battery.
■ To ensure the system operates correctly
Do not modify or remove the system. If modified or removed, the proper
operation of the system cannot be guaranteed.
4RUNNER (U)
81
Instrument cluster
2
2. Instrument cluster
Warning lights and
indicators .......................... 82
Gauges and meters ............ 88
Multi-information display ..... 90
4RUNNER (U)
82
2. Instrument cluster
Warning lights and indicators
The warning lights and indicators on the instrument cluster and
center panel inform the driver of the status of the vehicle’s various systems.
For the purpose of explanation, the following illustration displays all warning lights and indicators illuminated.
The units used on the speedometer and some indicators may differ
depending on where the vehicle is sold.
4RUNNER (U)
2. Instrument cluster
Warning lights
Warning lights inform the driver of malfunctions in the indicated vehicle’s systems.
83
(U.S.A.)
(Canada)
(U.S.A.)
(Canada)
1
*
Brake system warning
light (P. 477)
1
*
Brake system warning
light (P. 477)
5
*
High coolant temperature warning light
(P. 477)
1
*
Charging system warning light (P. 477)
1
*
Malfunction indicator
lamp (P. 478)
1
*
Malfunction indicator
lamp (P. 478)
1
*
SRS warning light
(P. 478)
(if equipped)
(if equipped)
(if equipped)
(if equipped)
2, 4, 5
*
(if equipped)
1
*
Slip indicator (P. 478)
3
*
Four-wheel drive indicator light (P. 479)
3
*
Low speed four-wheel
drive indicator light
(P. 479)
3
*
Rear differential lock
indicator light (P. 478)
3
*
Center differential lock
indicator light (P. 479)
Multi-terrain Select indicator light (P. 479)
Brake Override System/
5
*
Drive-Start Control/
warning light (P. 480)
2
Instrument cluster
(U.S.A.)
(Canada)
4RUNNER (U)
1
*
ABS warning light
(P. 478)
1
*
ABS warning light
(P. 478)
Parking brake indicator
(P. 480)
(U.S.A.)
Parking brake indicator
(P. 480)
(Canada)
84
2. Instrument cluster
1, 6
*
PCS warning light
(P. 480)
5
*
LDA indicator (P. 481)
(Amber)
Open door warning light
(P. 479)
Low fuel level warning
light (P. 480)
(if equipped)
Seat belt reminder light
(P. 480)
(if equipped)
5
*
Low engine oil pressure
warning light (P. 477)
(if equipped)
1
*
: These lights turn on when the engine switch is turned to IGNITION ON
1
*
Power steering warning
light (P. 479)
1
*
Master warning light
(P. 487)
1
*
Tire pressure warning
light (P. 481)
Unengaged “Park” warning light (P. 479)
1
*
KDSS warning light
(P. 479)
1, 2
*
Automatic running
boards indicator light
(P. 479)
mode (vehicles with a smart key system) or the engine switch is turned to
the “ON” position (vehicles without a smart key system) to indicate that a
system check is being performed. They will turn off after the engine is
started, or after a few seconds. There may be a malfunction in a system if
the lights do not come on, or do not turn off. Have the vehicle inspected by
your Toyota dealer.
2
*
: This light flashes to indicate a malfunction.
3
*
: This light flashes rapidly to indicate a malfunction.
4
*
: This light flashes continuously to indicate a malfunction.
5
*
: This light illuminates on the multi-information display.
6
*
: This light flashes or illuminates to indicate a malfunction.
4RUNNER (U)
2. Instrument cluster
“AIR BAG
ON/OFF”
indicator
(P. 46)
*
1, 4
(U.S.A.)
“AIR BAG
ON/OFF”
indicator
(P. 46)
*
1, 4
(Canada)
Indicators
The indicators inform the driver of the operating state of the vehicle’s
various systems.
1
*
“TRAC OFF” indicator
(P. 323)
1, 2
*
Slip indicator (P. 322)
(U.S.A.)
Turn signal indicator
(P. 223)
Headlight indicator
(P. 225)
85
2
(Canada)
1, 3
*
Tail light indicator
(P. 225)
Headlight high beam
indicator (P. 228)
Automatic High Beam
indicator (P. 231)
Front fog light indicator
(P. 235)
4
*
Security indicator
(P. 76, 79)
Eco Driving Indicator
Light (P. 97)
1
*
VSC OFF indicator
(P. 323)
5
*
Cruise control indicator
(P. 273)
5
*
Dynamic radar cruise
control indicator
(P. 273)
5
*
Cruise control set indicator (P. 273)
Instrument cluster
4RUNNER (U)
(U.S.A.)
(Canada)
Parking brake indicator
(P. 224)
Parking brake indicator
(P. 224)
1, 6
*
PCS warning light
(P. 254)
86
(if equipped)
(if equipped)
(if equipped)
(if equipped)
2. Instrument cluster
5
*
LDA indicator (P. 265)
(Green)
2, 5
*
LDA indicator (P. 265)
(Amber)
Four-wheel drive indicator (P. 293)
1
*
Downhill assist control
system indicator
(P. 308)
Low speed four-wheel
drive indicator
(P. 293, 297)
Rear differential lock
indicator (P. 305)
(if equipped)
1
*
(if equipped)
5
*
(if equipped)
5
*
(if equipped)
(if equipped)
1, 2
*
(if equipped)
“A-TRAC” indicator
(P. 301)
“AUTO LSD” indicator
(P. 303)
Multi-terrain Select indicator (P. 314)
Crawl Control indicator
(P. 3 11 )
Intuitive parking assist
indicator (P. 286)
Automatic running
boards indicator
(P. 128)
Center differential lock
indicator (P. 297)
(if equipped)
1
*
: These lights turn on when the engine switch is turned to the “ON” position
(vehicles without a smart key system) or the engine switch is turned to
IGNITION ON mode (vehicles with a smart key system) to indicate that a
system check is being performed. They will turn off after the engine is
started, or after a few seconds. There may be a malfunction in a system if
the lights do not come on, or do not turn off. Have the vehicle inspected by
your Toyota dealer.
2
*
: This light flashes to indicate that the system is operating.
3
*
: This light does not turn on when the system is disabled.
4
*
: This light illuminates on the center panel.
5
*
: This light illuminates on the multi-information display.
6
*
: This light turns on when the system is off.
4RUNNER (U)
2. Instrument cluster
WARNING
■ If a safety system warning light does not come on
Should a safety system light such as the ABS and SRS warning light not
come on when you start the engine, this could mean that these systems are
not available to help protect you in an accident, which could result in death
or serious injury. Have the vehicle inspected by your Toyota dealer immediately if this occurs.
87
2
Instrument cluster
4RUNNER (U)
88
2. Instrument cluster
Gauges and meters
The displayed content may differ depending on the type of
meter.
Tachometer
1
Displays the engine speed in revolutions per minute
Engine coolant temperature gauge
2
Displays the engine coolant temperature
Multi-information display
3
Presents the driver with a variety of vehicle data (P. 90)
Fuel gauge
4
Displays the quantity of fuel remaining in the tank
Speedometer
5
Displays the vehicle speed
Odometer/trip meter display change button
6
Switches the trip information.
Odometer/trip meter display
7
Shift position and shift range
8
Displays the selected shift position or selected shift range (P. 218)
4RUNNER (U)
Changing the display
NOTICE
Switches between odometer and
trip meter displays. When the trip
meter is displayed, pressing and
holding the button will reset the
trip meter.
2. Instrument cluster
89
2
Instrument panel light control
The brightness of the instrument panel lights can be adjusted.
Brighter
1
Darker
2
■ The meters and display illuminate when
Vehicles without a smart key system
The engine switch is in the “ON” position.
Vehicles with a smart key system
The engine switch is in IGNITION ON mode.
■ The brightness of the instrument panel lights
When the headlight switch is turned to on, the brightness will be reduced
slightly unless the control dial is turned fully upward.
Instrument cluster
■ To prevent damage to the engine and its components
● Do not let the indicator needle of the tachometer enter the red zone, which
indicates the maximum engine speed.
● The engine may be overheating if the engine coolant temperature gauge is
in the red zone (H). In this case, immediately stop the vehicle in a safe
place, and check the engine after it has cooled completely. (P. 517)
4RUNNER (U)
90
2. Instrument cluster
Multi-information display
Summary of functions
The multi-information display presents the driver with a variety of driving related data, such as the current outside temperature. The multiinformation display can also be used to change the display settings
and other settings.
Shift position and shift range (
1
Menu icon display area
2
Displays the following items.
When a menu icon is not selected, the outside temperature is displayed.
• Menu icons (P. 92)
• Outside temperature (P. 97)
Content display area
3
A variety of information can be displayed by selecting a menu icon. Additionally, warning or pop-up display will be displayed in some situations.
• Menu icon content (P. 92)
• Warning message (P. 487)
Odometer and trip meter (P. 88)
4
Indicators (P. 82)
5
Meter control switches (P. 91)
6
P. 218)
4RUNNER (U)
2. Instrument cluster
Operating the meter control switches
The multi-information display is operated using the meter control
switches.
91
Scroll screens
1
displayed content
*, change the
* and move
the cursor
Press: Enter/Set
2
Press and hold:
Reset/Display the next screen
Press: Displays the screen reg-
3
istered as the top screen
When no screen has been registered, the drive information screen
will be displayed.
Press and hold: Registers the
currently displayed screen as
the top screen
When the confirmation screen is displayed, select yes to register the
screen. If the selected screen cannot be registered, a registration failure
message will be shown.
Return to the previous screen
4
Call sending/receiving display
5
Linked with the hands-free system, sending or receiving call is displayed.
For details regarding the hands-free system, refer to the “Navigation system owner's manual”.
*: When the screen can be scrolled or different content can be displayed, a
mark, such as an arrow, will be displayed to suggest which switch to operate.
2
Instrument cluster
4RUNNER (U)
92
Menu icons
2. Instrument cluster
Drive information
Select to display various drive data. (P. 93)
Vehicle information display
Select to display the vehicle information. (P. 95)
Navigation system-linked display (if equipped)
Select to display the following navigation system-linked information.
• Route guidance
• Compass display (north-up display/heading-up display)
Audio system-linked display (if equipped)
Select to enable selection of an audio source or track on the display
using the meter control switches.
Driving assist system information
Select to display the operational status of the following systems:
• Dynamic radar cruise control (P. 273)
• LDA (Lane Departure Alert) (P. 265)
Warning message display
Select to display warning messages and measures to be taken if a
malfunction is detected. (P. 487)
• When there are no current warning messages, “No Messages” is
displayed.
• When there are multiple warning messages, or can be
used to switch the displayed warning message.
Settings display
Select to change the meter display settings and the operation settings of some vehicle functions. (P. 95)
4RUNNER (U)
2. Instrument cluster
Drive information
Items displayed can be switched by pressing or up and down.
■ After Start
93
Average fuel economy
1
Displays the average fuel consumption since the engine was
started.
Average vehicle speed
2
Displays the average vehicle
speed since the engine was
started.
Elapsed time
3
Displays the elapsed time since the engine was started.
*
*: Use the displayed average fuel economy as a reference.
After Reset
■
Current fuel economy
1
Displays the current rate of fuel
consumption.
Average fuel economy*
2
Displays the average fuel consumption since the function was
reset.
Average speed*
3
Displays the average vehicle
speed since the function was
reset.
Elapsed time*
4
Displays the elapsed time since the function was reset.
1
*
: Use the displayed average fuel economy as a reference.
2
*
: Pressing and holding will reset.
2
2
1,2
2
Instrument cluster
4RUNNER (U)
94
■
■
2. Instrument cluster
After Refuel
1,2
Range
1
Displays the driving range with
remaining fuel.
Average fuel economy*
2
Displays the average fuel consumption since the vehicle was
refueled.
1
*
: This distance is computed
based on your average fuel consumption. As a result, the actual
distance that can be driven may
differ from that displayed.
2
*
: When only a small amount of fuel is added to the tank, the display may
not be updated. When refueling, turn the engine switch off. If the vehicle
is refueled without turning the engine switch off, the display may not be
updated.
3
*
: Use the displayed average fuel economy as a reference.
*
2,3
Eco Indicator (Eco Driving Indicator Zone Display)
P. 9 7
■ Speed
Displays the vehicle speed.
■ Vehicle sway warning
Detects the sway of the vehicle within a lane, which is often associated with a decrease in the driver’s attention level, and displays the
decrease in attention using a bar display.
The shorter the bar length, the more the driver may need to rest.
This display is a part of the LDA (Lane Departure Alert) system. The display is enabled when the operating conditions of the vehicle sway warning function are met. (P. 265)
■
Blank screen (display off)
Drive information is not displayed.
4RUNNER (U)
2. Instrument cluster
Vehicle information
Items displayed can be switched by pressing or up and down.
■ Steering angle
Displays the direction of the front tires.
The tire direction is displayed in 3 stages for both left and right, in accordance with the angle of the tire.
If a battery terminal is disconnected and reconnected, the display may
be disabled temporarily. After driving the vehicle for a while, the display
will be enabled.
■
Tire inflation pressure
Displays inflation pressure of each tire.
The inflation pressure of the spare tire will be displayed. (if equipped)
Settings display
The settings of some features can be changed by using the meter
control switches.
■ Setting procedure
1
On the setting screen, choose the desired item using or ,
95
2
Instrument cluster
and then press .
• For functions that can be enabled or disabled, the function switches
between on and off each time is pressed.
• For functions that allow to select operation contents, display contents, etc., the setting screen is displayed.
2
Select the desired setting by operating or , and then
press .
To stop the selection, press to return to the previous screen.
4RUNNER (U)
96
■
2. Instrument cluster
Setting items
● LDA (Lane Departure Alert)
Select to set up LDA. (P. 558)
• Alert sensitivity
• Sway warning
• Sway sensitivity
● PCS (Pre-Collision System)
Select to set the following items. (P. 257)
• PCS on/off
• PCS sensitivity
● Intuitive parking assist (if equipped)
Select to set the Intuitive parking assist on/off
● Vehicle settings
“TPWS” (Tire Pressure Warning System) (P. 423)
• “Set Pressure”
Select to initialize the tire pressure warning system.
• “Change Wheel Set”
Select to register the ID codes of the tire pressure sensors to
the tire pressure warning system.3
● Meter settings (P. 55 7)
Select to set the following items.
• Language
Select to change the language on the display.
•Units
Select to change the unit for measure.
• Eco Driving Indicator Light
Select to activate/deactivate the Eco Driving Indicator Light.
P. 9 7)
(
4RUNNER (U)
• switch settings
You can register 1 screen as the top screen. To register, press
and hold while the desired screen is displayed.
• Pop-up display
Select to set the pop-up displays (P. 98), which may appear
in some situations, on/off.
• Initialization
Select to reset the meter display settings.
2. Instrument cluster
Other contents
Multi-terrain Select display* (if equipped)
■
P. 3 14
■ Crawl Control display* (if equipped)
P. 3 11
■ Outside temperature display
Displays the outside temperature
The temperature range that can be displayed is from -40 °F (-40 °C) to
122 °F (50 °C).
When the outside temperature drops below 37 °F (3 °C), will
flash approximately 10 seconds, then stay on.
Customization
■
Settings (e.g. available language) can be changed.
(Customizable features: P. 547)
*: Automatically displayed when the system is used
■ Eco Driving Indicator
1
Eco Driving Indicator Light
2
Eco Driving Indicator Zone Display
Suggests the Zone of Eco driving with
current Eco driving ratio based on
acceleration.
3
Eco driving ratio based on acceleration
If the acceleration exceeds Zone of Eco
driving, the right side of Eco Driving
Indicator Zone Display will illuminate.
4
Zone of Eco driving
Eco Driving Indicator will not operate
under the following conditions:
• The shift lever is in any position other
than D.
• The vehicle speed is approximately
80 mph (130 km/h) or higher.
• The Crawl Control is operating. (if
equipped) (P. 3 11 )
97
2
Instrument cluster
4RUNNER (U)
98
■ Pop-Up display
The pop-up display is displayed on the multi-information display according to
the operating conditions of the following functions:
● Route guidance display of the navigation system-linked system (if equipped)
● Incoming call display of the hands-free phone system
The pop-up display function can be disabled.
■ Tire inflation pressure
● It may take a few minutes to display the tire inflation pressure after the
● “---” may be displayed if the tire information cannot be determined due to
● Tire inflation pressure changes with temperature. The displayed values may
■ Outside temperature display
In the following situations, the correct outside temperature may not be displayed, or the display may take longer than normal to change:
● When the vehicle is stopped, or moving at low speeds (less than 12 mph [20
● When the outside temperature has changed suddenly (at the entrance/exit
● When “--” or “E” is displayed, the system may be malfunctioning. Take your
■ Liquid crystal display
Small spots or light spots may appear on the display. This phenomenon is
characteristic of liquid crystal displays, and there is no problem continuing to
use the display.
2. Instrument cluster
engine switch is turned to IGNITION ON mode. It may also take a few minutes to display the tire inflation pressure after inflation pressure has been
adjusted.
unfavorable radio wave conditions.
also be different from the values measured using a tire pressure gauge.
km/h])
of a garage, tunnel, etc.)
vehicle to Toyota dealer.
4RUNNER (U)
2. Instrument cluster
WARNING
NOTICE
■ Caution for use while driving
For safety, avoid operating the meter control switches while driving as much
as possible, and do not look continuously at the multi-information display
while driving. Stop the vehicle and operate the meter control switches. Failure to do so may cause a steering wheel operation error, resulting in an
unexpected accident.
■ Cautions while setting up the display
As the engine needs to be running during setting up the display, ensure that
the vehicle is parked in a place with adequate ventilation. In a closed area
such as a garage, exhaust gases including harmful carbon monoxide (CO)
may collect and enter the vehicle. This may lead to death or a serious
health hazard.
■ The multi-information display at low temperatures
Allow the interior of the vehicle to warm up before using the multi-information display. At extremely low temperatures, the multi-information display
monitor may respond slowly, and display changes may be delayed.
For example, there is a lag between the driver’s shifting and the new gear
number appearing on the display. This lag could cause the driver to downshift again, causing rapid and excessive engine braking and possibly an
accident resulting in death or serious injury.
99
2
Instrument cluster
■ While setting up the display
To prevent battery discharge, ensure that the engine is running while setting
up the display features.
4RUNNER (U)
