Touchstone TV Lift
2
Table of Contents
About Your TouchStone Elevate TV Lift Cabinet.................................................................................................. 3
Safety............................................................................................................................................................................ 4
Lift Components & TV Installation Hardware........................................................................................................5
Components .............................................................................................................................................................. 5
Hardware................................................................................................................................................................... 5
Tools ......................................................................................................................................................................... 5
Installing Adjustable Feet.......................................................................................................................................... 6
Assembling Your Whisper Lift II.............................................................................................................................. 7
Assembling Lift Mounting Supports ........................................................................................................................ 7
Mounting and Installing the TV................................................................................................................................9
Attaching TV Mounting Brackets to Flat Panel TV.................................................................................................9
Installing Crossbrackets on TV Lift........................................................................................................................ 11
Fasten Lift To Elevate Cabinet............................................................................................................................... 13
Hookup Lift Control Box and Power Supply ......................................................................................................... 14
Installing TV on Lift...............................................................................................................................................15
Setting Height of Adjustable Roller Assembly....................................................................................................... 16
Operating the Touchstone Whisper Lift II............................................................................................................. 17
Operating Lift with Wireless Remote..................................................................................................................... 17
Operating Lift with Wired Remote......................................................................................................................... 17

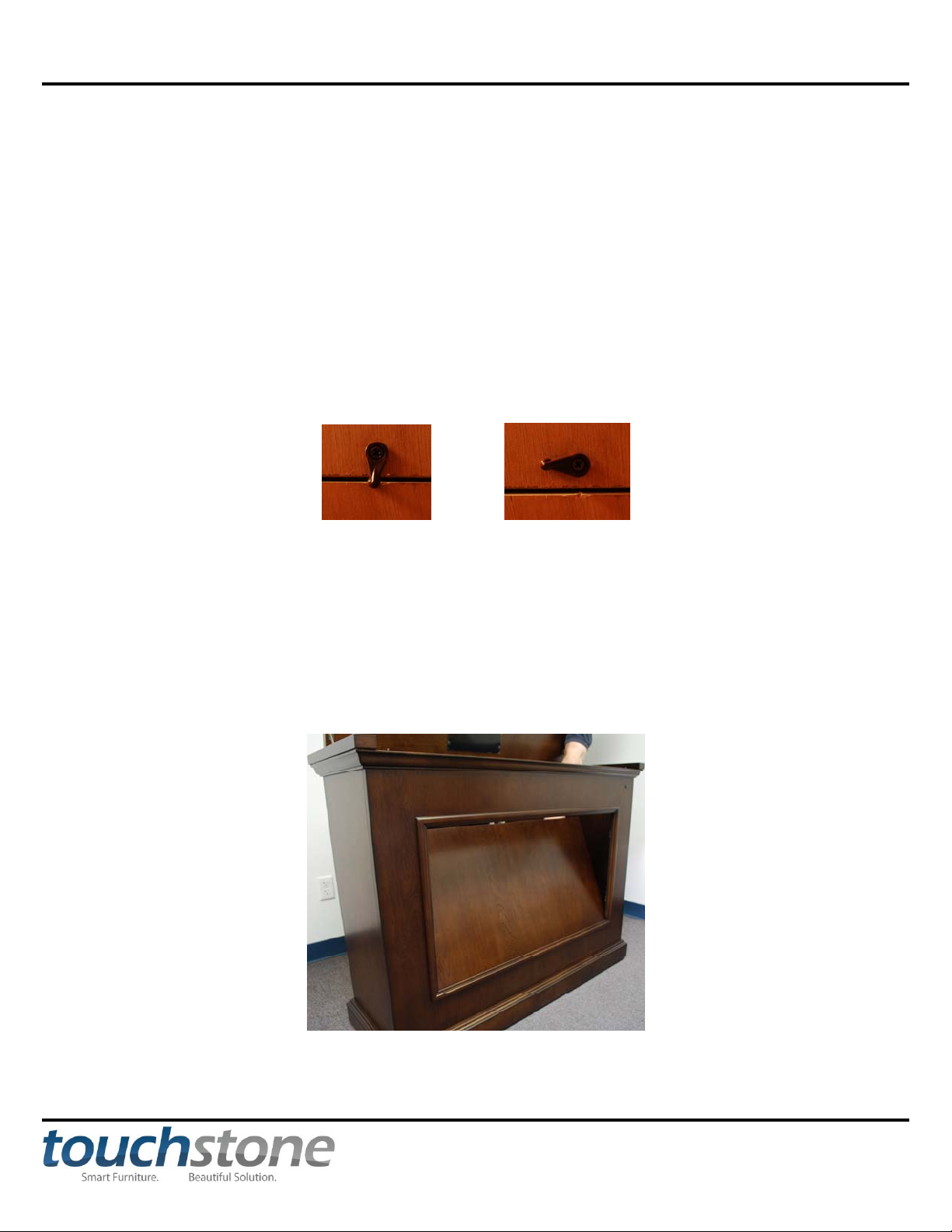

Removing Front Access Panel................................................................................................................................ 18
Whisper Lift II Accessories...................................................................................................................................... 19

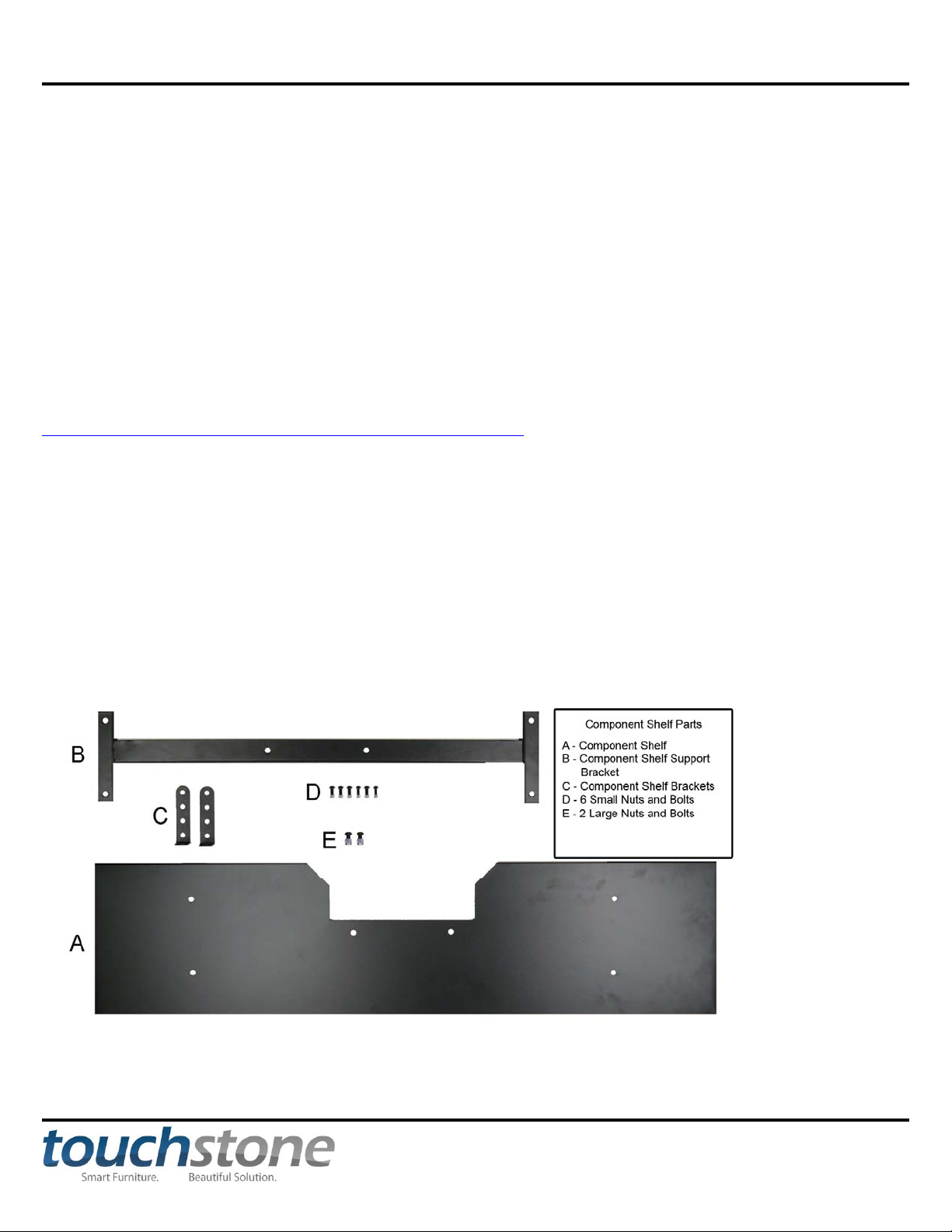

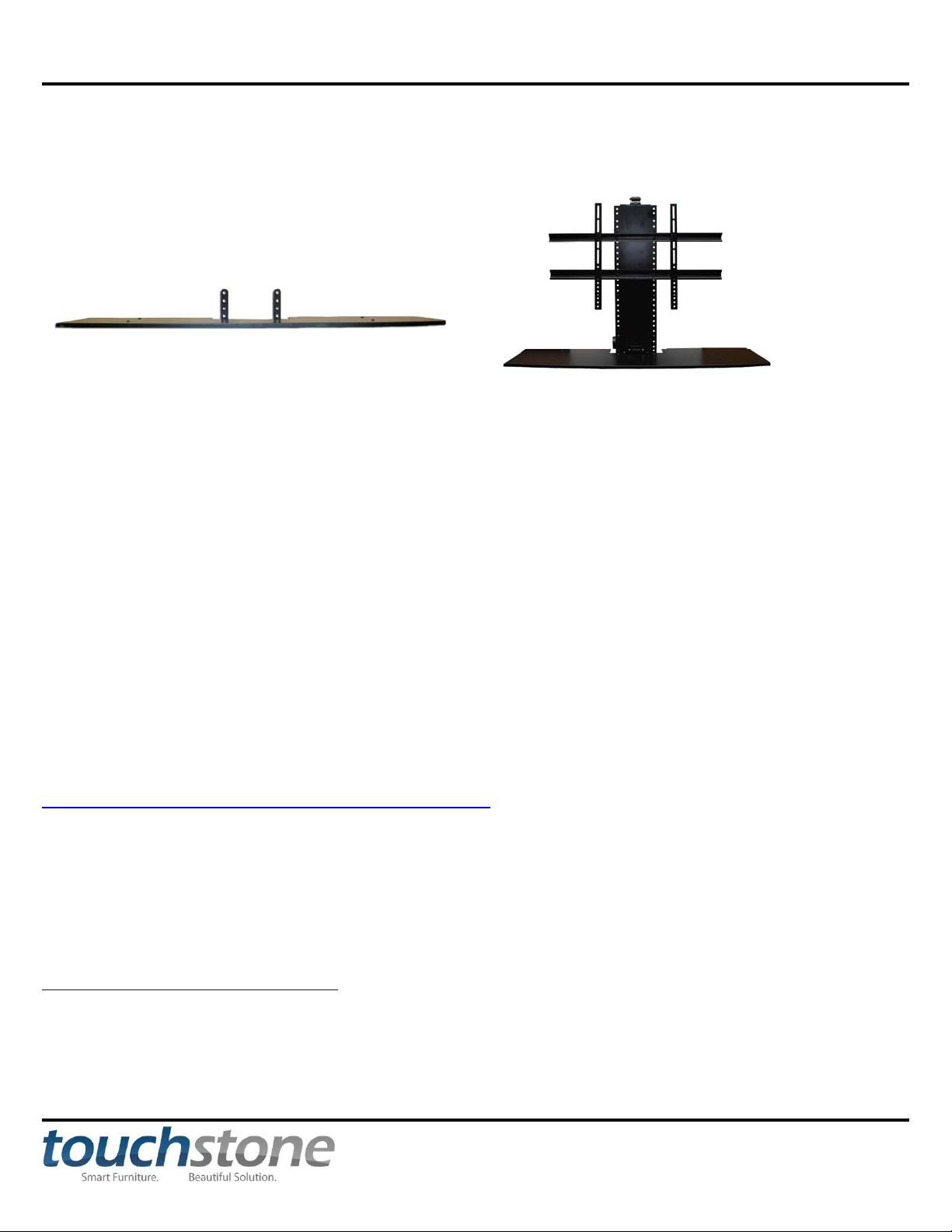

Component Shelf (optional).................................................................................................................................... 19

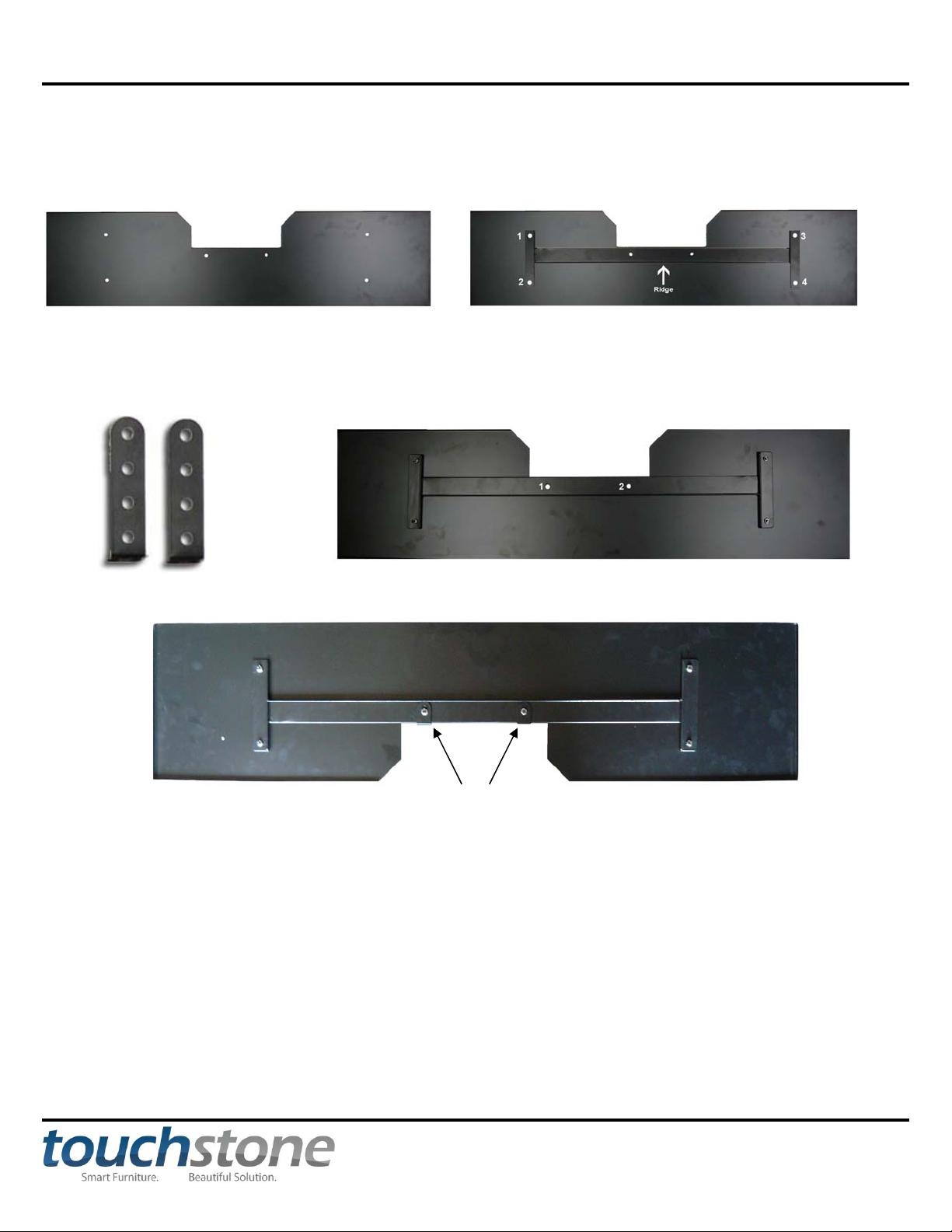

Assembling Component Shelf................................................................................................................................ 19
Infrared Repeater Kit (optional).............................................................................................................................. 21
Technical Support..................................................................................................................................................... 21
Touchstone Home Products Limited Warranty..................................................................................................... 22
Warranty Coverage................................................................................................................................................. 22
Warranty Registration............................................................................................................................................. 22
www.touchstonehomeproducts.com 800.215.1990
Page 3
Touchstone TV Lift
About Your TouchStone Elevate TV Lift Cabinet
Congratulations on the purchase of your Touchstone Elevate TV Lift Cabinet. Touchstone Home Products takes
pride in the quality of our cabinet craftsmanship and the smooth functionality of our TV lift mechanism. Please
take a few minutes to learn about the features of your TV lift cabinet to insure you get the optimum use and
performance from your new purchase.
Cabinet Features
- The Elevate TV Lift Cabinet features Touchstone’s new Whisper Lift II technology in a fully finished wood
cabinet that fully cycles up or down in under 30 seconds at the push of a button.
- Easily conceal your cables with the Elevate. Cables can be neatly tucked away by feeding them through an
opening in the bottom of the cabinet.
- Cable boxes and other media components can be controlled with our IR Repeater kit, which installs easily in a
pre-drilled hole in the front of the cabinet and extends your remote control range. See Installing Components
section for more information.
3
www.touchstonehomeproducts.com 800.215.1990
Page 4
Touchstone TV Lift
4
Safety
Installing your Flat Screen TV in your Touchstone Elevate TV lift cabinet is fast and easy. Operating your lift is
very straightforward. However, to avoid the risk of personal injury and to insure optimum performance of your TV
lift mechanism, please pay particular attention to the warnings and safety notices throughout this manual.
IMPORTANT SAFETY and PRE-INSTALLATION INSTRUCTIONS
1. Please adhere to the proper installation procedure as detailed in the installation instructions.
2. Safety precaution measures must be practiced at all times during installation of this product.
3. The entire installation instructions should be fully read and understood before beginning installation.
4. At least two people should be available to mount the TV on the lift mechanism. Please take care when
handling your flat screen TV as injury and damage can result from dropping or mishandling of the TV.
5. Plasma screen TV’s should remain upright at all times. Never place screen face down on the floor. This
could cause damage to the TV.
6. The stand on your flat screen TV is removable! Please remove the stand prior to installing the TV on the
lift mechanism. Consult your TV’s owner’s manual for instructions for removing the stand.
7. Carefully measure all dimensions of your LCD, PLASMA, or LED TV before proceeding. Then consult the
Mounting and Installing the TV section of this manual for maximum TV size.
IMPORTANT!: After installing your TV, you may find there is room in the bottom of the cabinet to install
a small cable/satellite TV box. Once the TV is mounted, remove the front panel on the Elevate TV Lift
Cabinet and completely lower the lift. Carefully inspect the space between the bottom of the TV and the
bottom of the cabinet to see if your component will fit in the bottom of the cabinet. Consult the Mounting
and Installing the TV section of this manual for more information.
8. All cords connecting components to the TV should be a minimum of 72” (6 feet) in length when installing
component inside of cabinet or a minimum of 144” (12 feet) in length when installing component outside of
cabinet (length of cable will depend on placement of your comonent).
9. WARNING!: TV Lift Mechanism contains moving parts. Please keep hands, arms, and fingers away from
the lift and cabinet lid opening when the lift is in motion. Cables should be wire-tied or secured neatly so
lift does not contact them during operation.
Contact Touchstone Customer Service at 1-800-215-1990 for any questions regarding the operation of your TV lift
cabinet. We are also available on the web at www.touchstonehomeproducts.com
www.touchstonehomeproducts.com 800.215.1990
Page 5
Touchstone TV Lift
Lift Components & TV Installation Hardware
Components
5
Hardware
- 8 Lift Mounting Screws (included)
- 2 long bolts for attaching lift to back of cabinet
- 6 short bolts for attaching lift to floor of cabinet
- TV Mounting Screws
-> Please consult your TV manufacturer for the size and length of the mounting screw for your TV.
Included is a basic set of mounting screws that accommodates most LCD/Plasma TVs. Depending on your
television, the screws included in the kit may not fit your television. If that is the case, these screws can be
purchased at most hardware/home improvement stores.
- 4 Adjustable Feet
Tools
In order to assemble the Whisper Lift II, you will need the following tools:
- Philips-head screwdriver
- size 4 metric hex wrench
- size 5 metric hex wrench
- adjustable wrench
www.touchstonehomeproducts.com 800.215.1990
Page 6
Touchstone TV Lift
6
Installing Adjustable Feet
The hardware pack included with your Elevate TV Lift Cabinet will come with 4 adjustable feet. To install the feet,
turn the cabinet over and follow the instructions below:
1. On the bottom of the cabinet locate the 4 holes on the bottom of the cabinet for the feet
2. Install the 4 adjustable feet in each hole in the bottom of the cabinet.
3. Adjust feet to desired height and turn cabinet upright when complete.
www.touchstonehomeproducts.com 800.215.1990
Page 7
Touchstone TV Lift
Assembling Your Whisper Lift II
Assembling Lift Mounting Supports
Tools Needed:
- adjustable wrench
Parts Needed During This Step:
- TV Lift
- Lift Mount Brackets
- 2 large lock nuts
Instructions:
1. Locate the Lift Mount Bolts on the back of the lift.
7
www.touchstonehomeproducts.com 800.215.1990
Page 8
Touchstone TV Lift

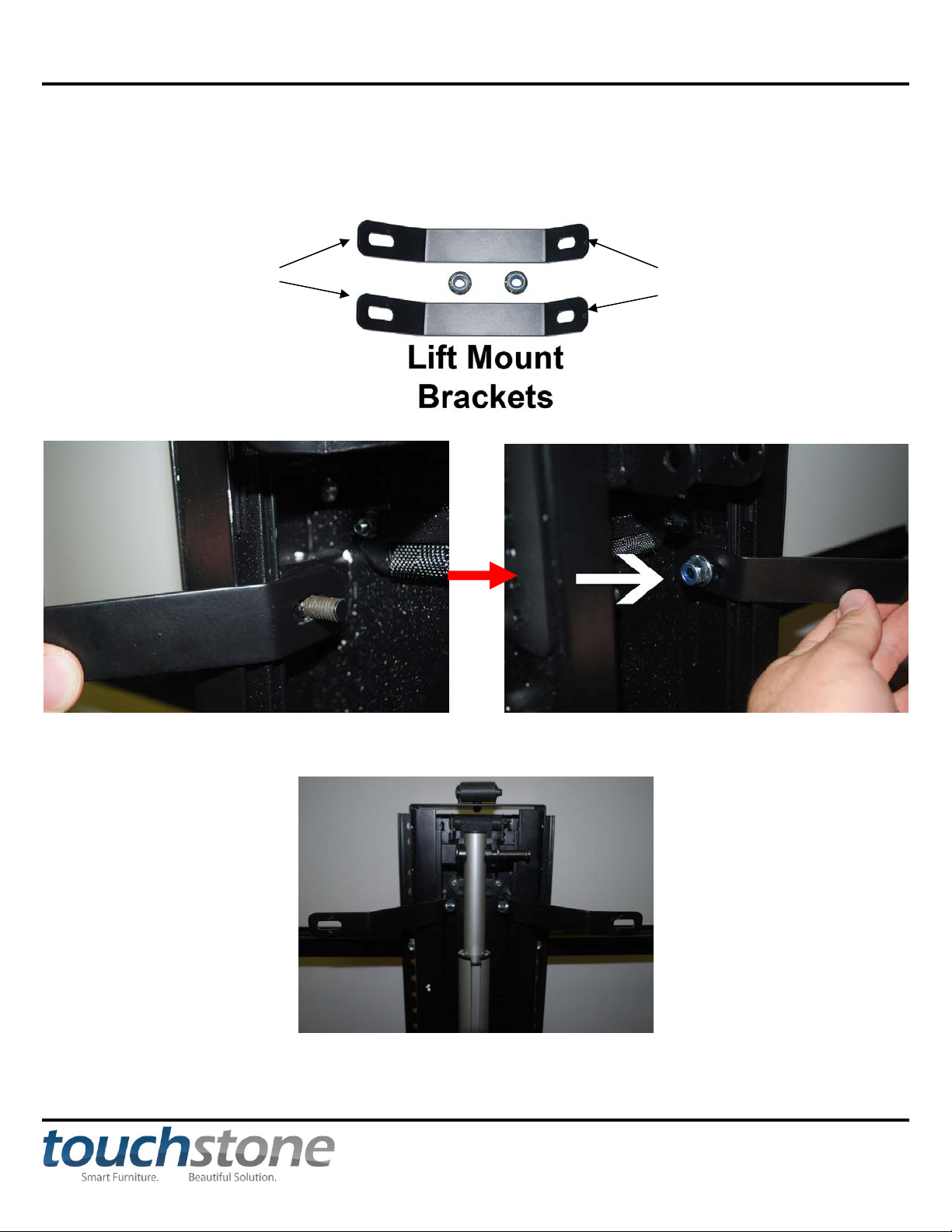

Assembling Lift Mounting Supports- cont
2. Place the long end of the lift mounting brackets over each bolt and fasten bracket to bolt with lock nut with an
adjustable wrench. When complete, the distance between the holes on the mounting bracket should be approx 9”.
8
Long Side
3. The picture below shows the lift with both lift mounts attached to the lift.
Short Side
www.touchstonehomeproducts.com 800.215.1990
Page 9
Touchstone TV Lift
9
Mounting and Installing the TV
IMPORTANT: Prior to installing the TV onto the lift, please ensure the following:
- If you have not done so already, remove the stand from your flat screen TV.
- TV weight needs to be under 100lbs.
- TV has VESA compliant mounting pattern.
Attaching TV Mounting Brackets to Flat Panel TV
Tools Required
- Phillips head screwdriver
Parts Required
- TV mounting brackets
- TV mounting screws
***Note: Touchstone Home Products includes a screw pack containing some of the most popular sizes of
mounting screws, used by most TVs on the market. Due to the amount of TVs in the marketplace and no standard
for mounting screw size, Touchstone Home Products cannot guarantee that the screws required for your TV are
included in the screw pack. Please consult your TV manufacturer for the size of the mounting holes in the back of
your TV and use the appropriate size screws. Touchstone Home Products assumes no liability for damage to a TV.
Instructions
1. Remove stand from TV. Consult TV manual for instructions on removing the stand from the TV.

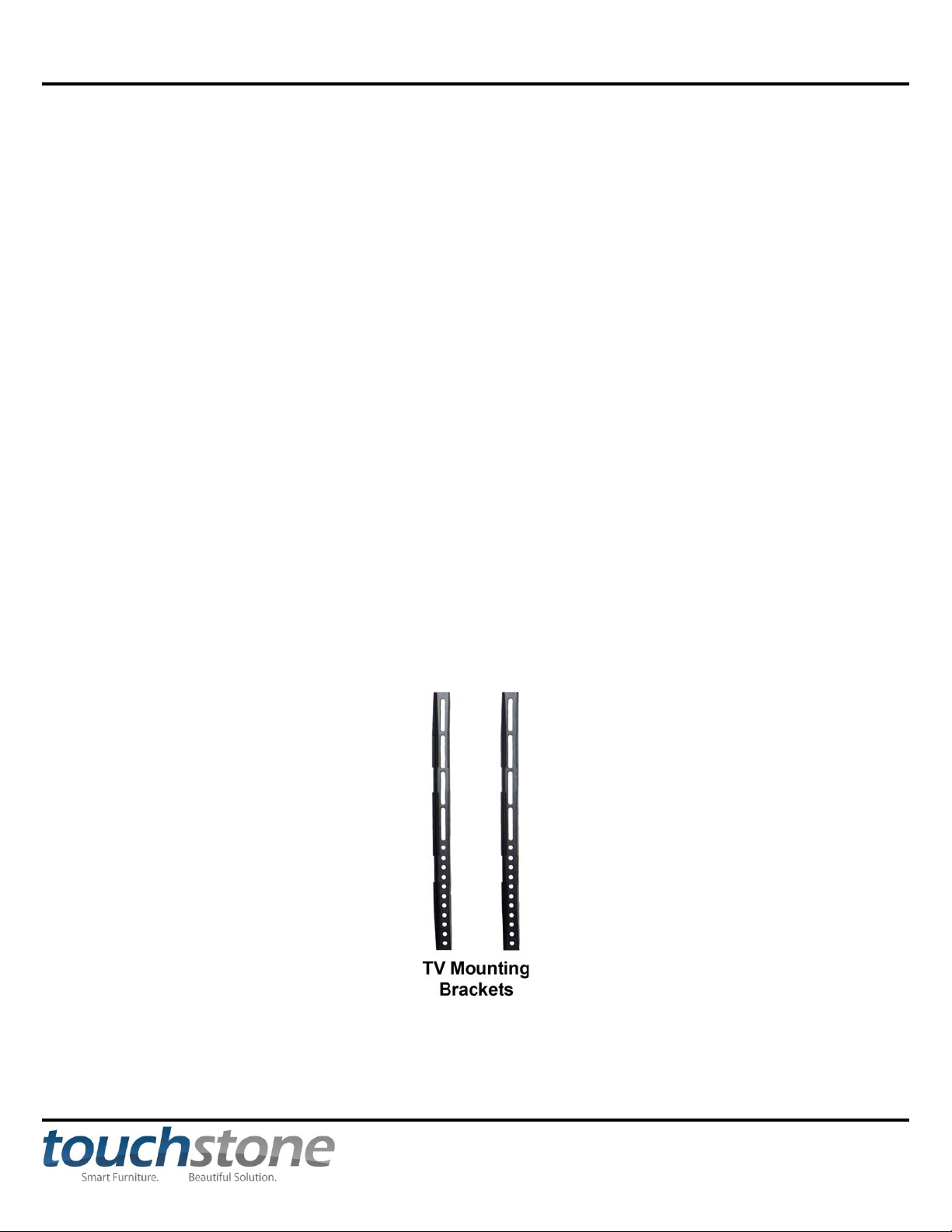

2. Located the TV mounting brackets. They are pictured below.
www.touchstonehomeproducts.com 800.215.1990
Page 10
Touchstone TV Lift
10
Attaching TV Mounting Brackets to Flat Panel TV- cont

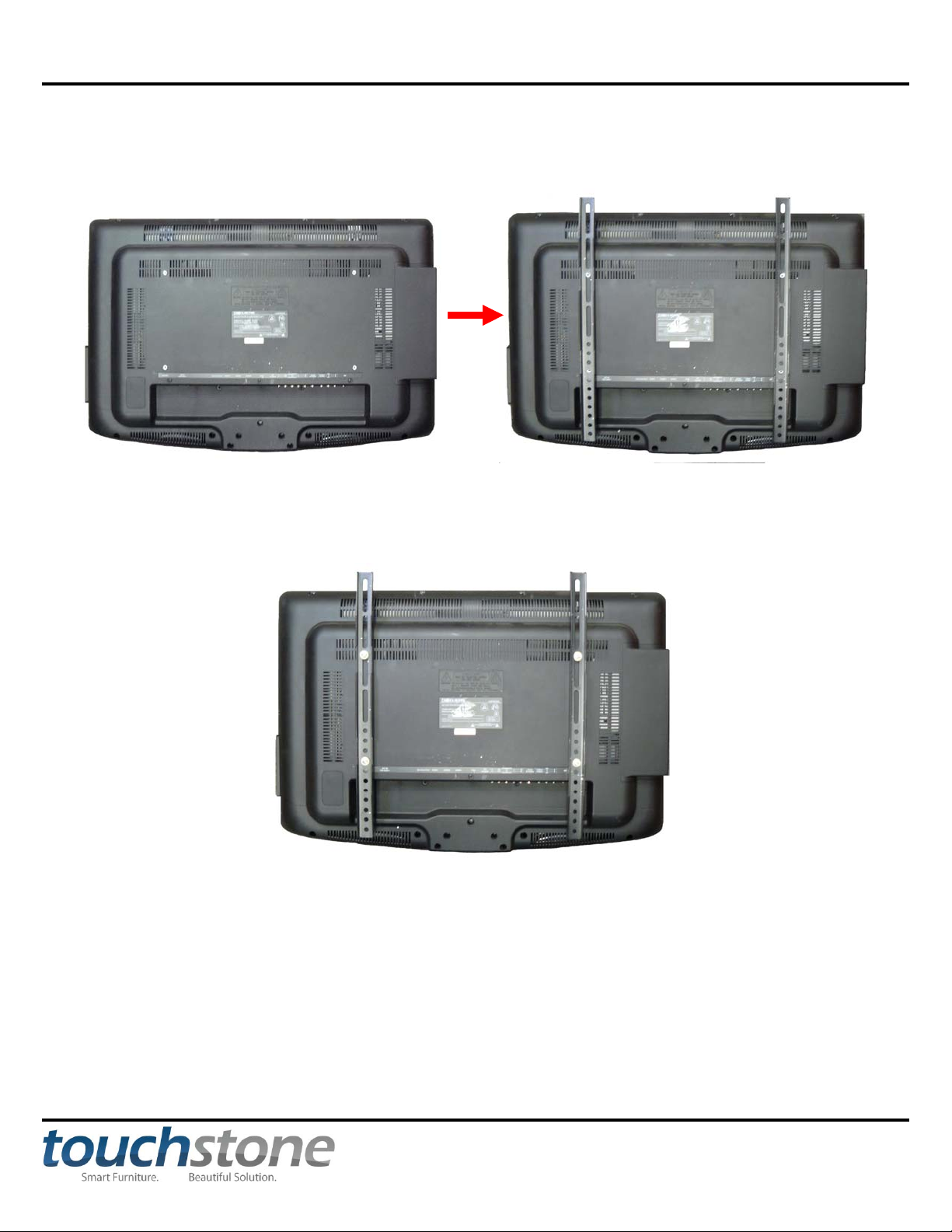

3. Align TV mounting brackets so that brackets are centered on the back of the TV. Place the TV mounting bracket
so that the slotted holes are toward the top of the TV, while the round holes are toward the bottom of the TV.
3. Attach TV mounting brackets to back of TV. Consult your TV owner’s manual for the proper size mounting
screw.
www.touchstonehomeproducts.com 800.215.1990
Page 11
Touchstone TV Lift
11
Installing Crossbrackets on TV Lift
Tools Needed:
- adjustable wrench
- size 5 metric hex wrench
Parts Needed During This Step:
- TV Lift
- 2 cross brackets
- 4 large hex screws- size 5
- 4 large lock nuts
Instructions:
1. Gather the 2 long crossbrackets, 4 large hex screws, and 4 large lock nuts.
2. Mount the top crossbracket in the 6th set of holes from the top of the lift. Use 2 large hex screws and 2 lock nuts
to secure the crossbracket to the lift.
www.touchstonehomeproducts.com 800.215.1990
Page 12
Touchstone TV Lift
12

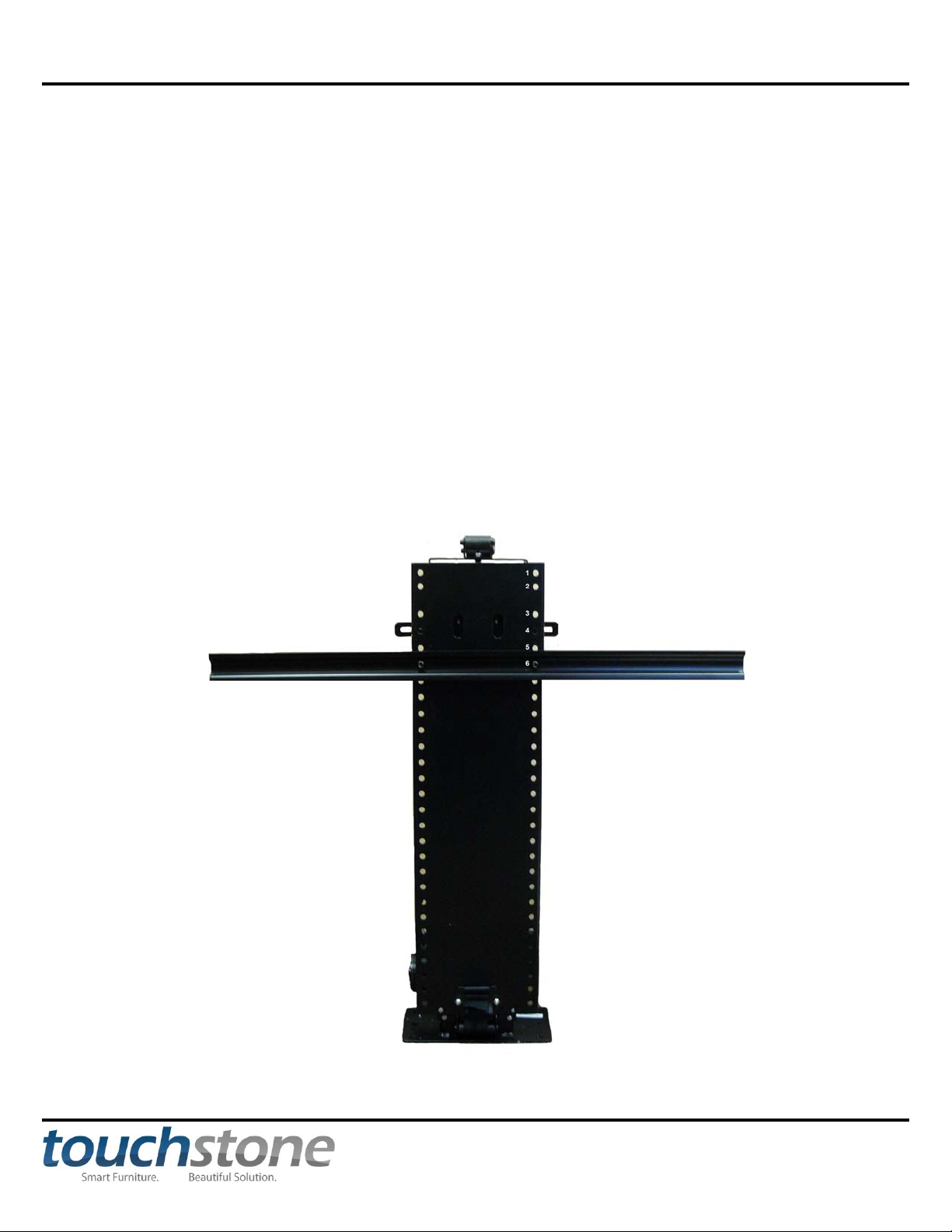

Installing Crossbrackets on TV Lift – cont

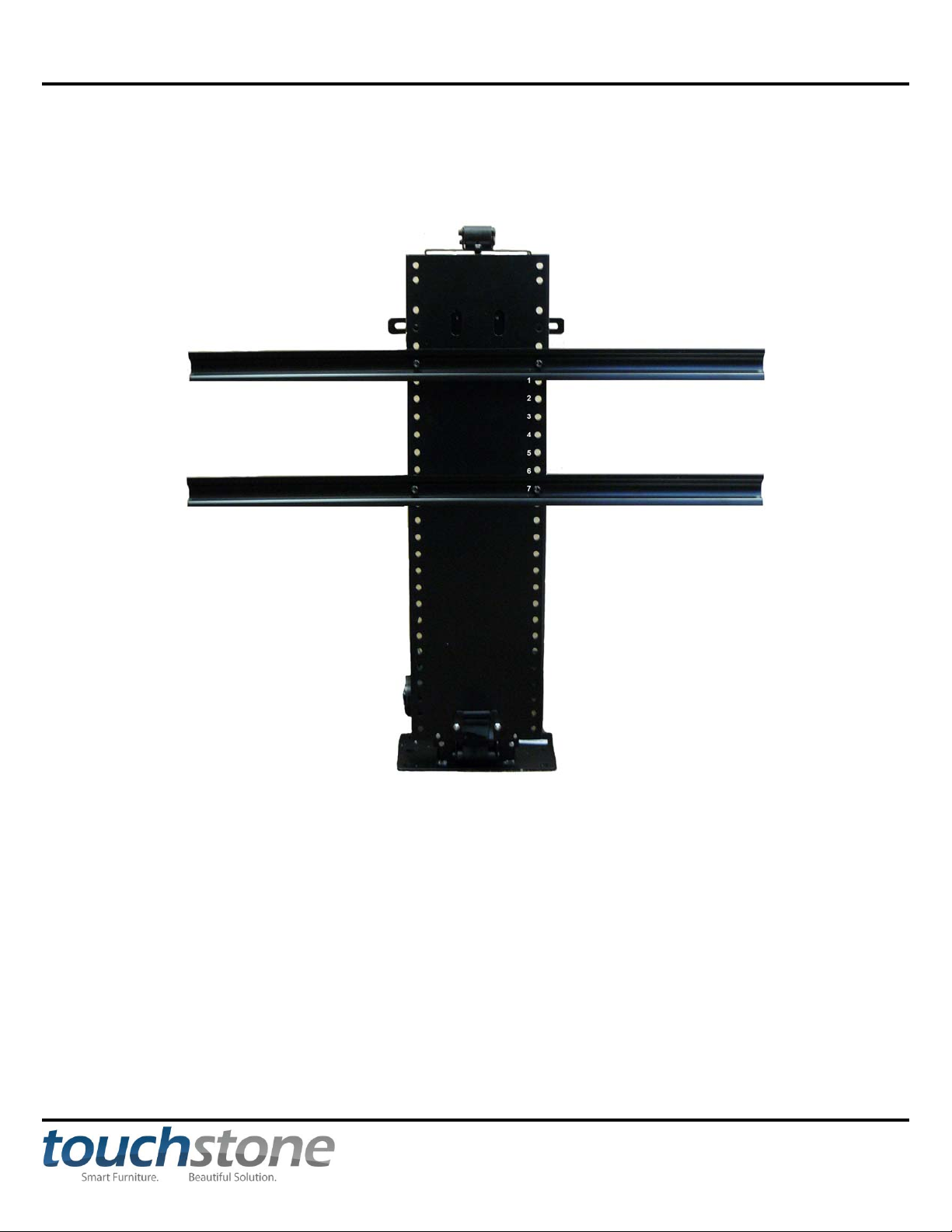

3. Mount the bottom crossbracket 7 holes down from the top crossbracket. Use the remaining 2 large hex screws
and 2 lock nuts to secure the crossbracket to the lift.
**NOTE: Make sure that the brackets are secured tightly to the lift prior to operation.
www.touchstonehomeproducts.com 800.215.1990
Page 13
Touchstone TV Lift
13
Fasten Lift To Elevate Cabinet
Tools Needed:
- Hex wrench (provided)
Parts Needed During This Step:
- 8 hex bolts (provided)
Instructions:
1. Open cabinet lid and place lift in cabinet.

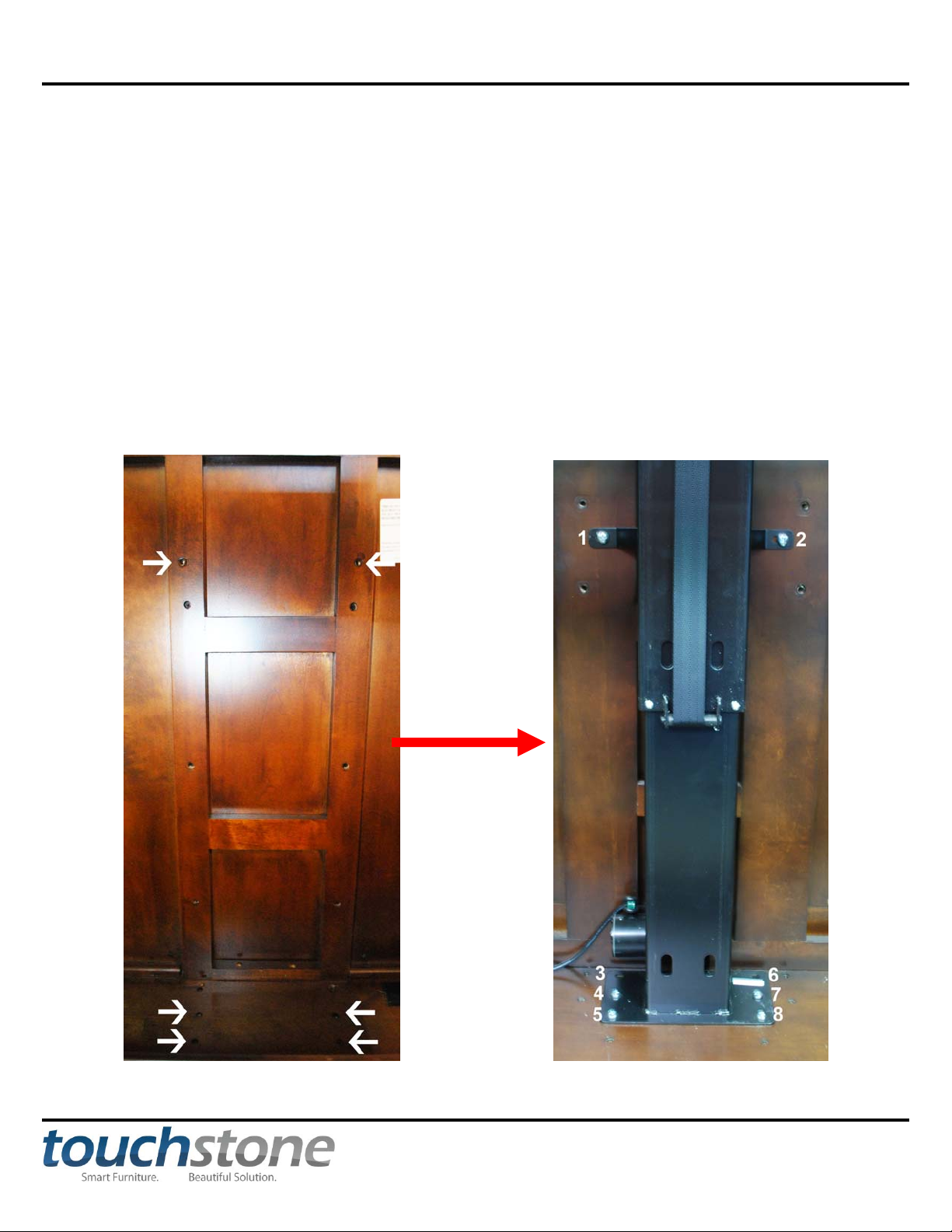

2. Align lift with mounting holes on floor and back wall of cabinet (fig A). Use the 2 long hex bolts to attach the
lift to holes 1 and 2.
3. Using the hex bolts provided, attach the lift to the cabinet, making sure the screws are tight and secure (fig B).
Use the 6 short hex bolts to attach the bottom of the lift to holes 3-8.
(fig A) (fig B)
www.touchstonehomeproducts.com 800.215.1990
Page 14
Touchstone TV Lift

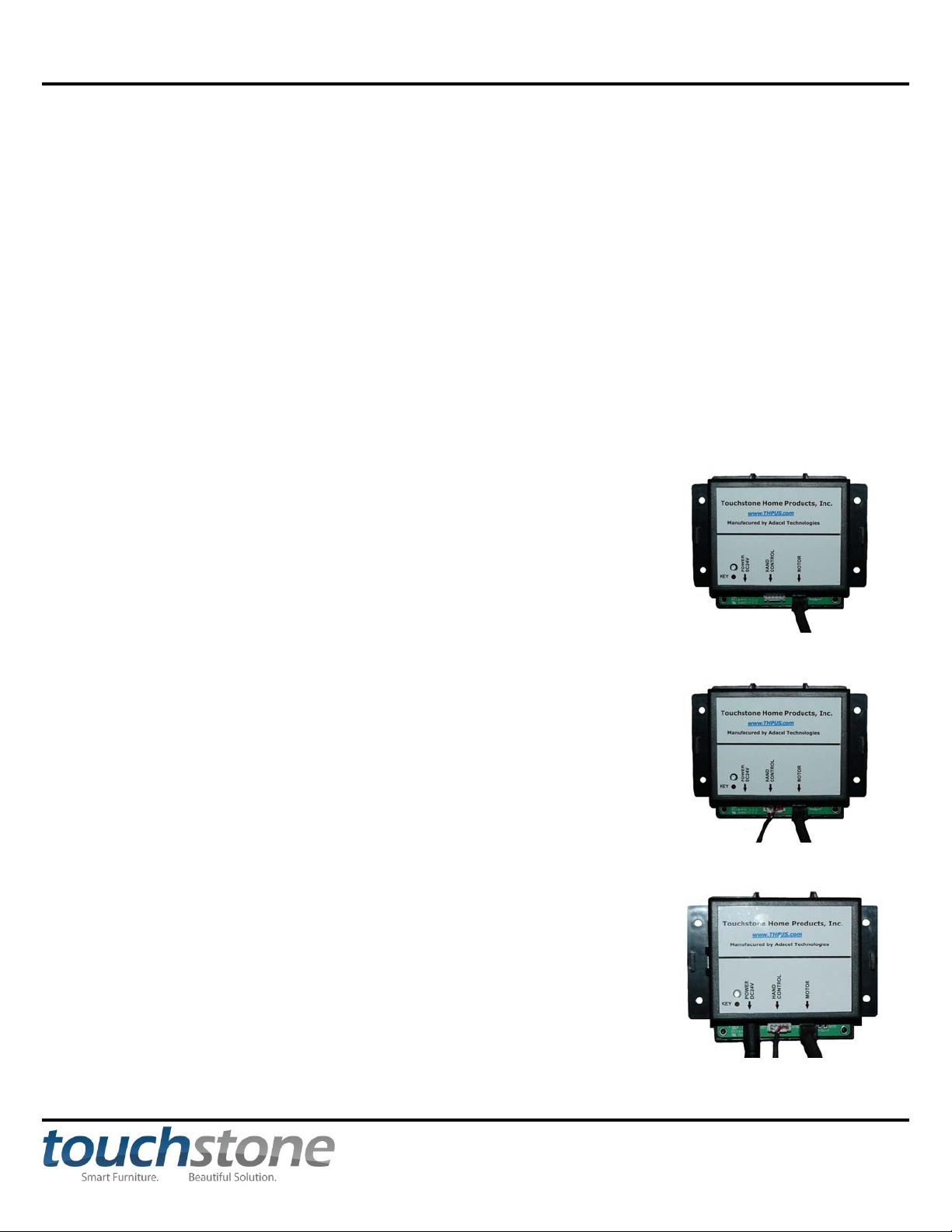

Hookup Lift Control Box and Power Supply
Tools Needed:
none
Parts Needed During This Step:
- Control box
- Power supply
- Wired remote
Instructions:
Installing Control Box
1. Remove the backing from the Velcro on the back of the control box.
2. Place control box in the location of your choosing on the floor of cabinet.
Attach Lift Cable into Control Box
1. Attach the lift cable to the Motor port on the control box.
Install Wired Remote
1. Remove the backing from the Velcro attached to the wired remote
2. Place the wired remove in a location of your choosing on the wall on the inside
of the cabinet
3. Attach the cable for the wired remote to the control box.
Install Power Cable
1. Remove the backing from the Velcro attached to the power supply.
2. Place the power supply in a location of your choosing on the floor
of the cabinet.
3. Attach the cable from the power supply to the power port on the control
box and plug the power cable into the wall outlet.
14
www.touchstonehomeproducts.com 800.215.1990
Page 15
Touchstone TV Lift

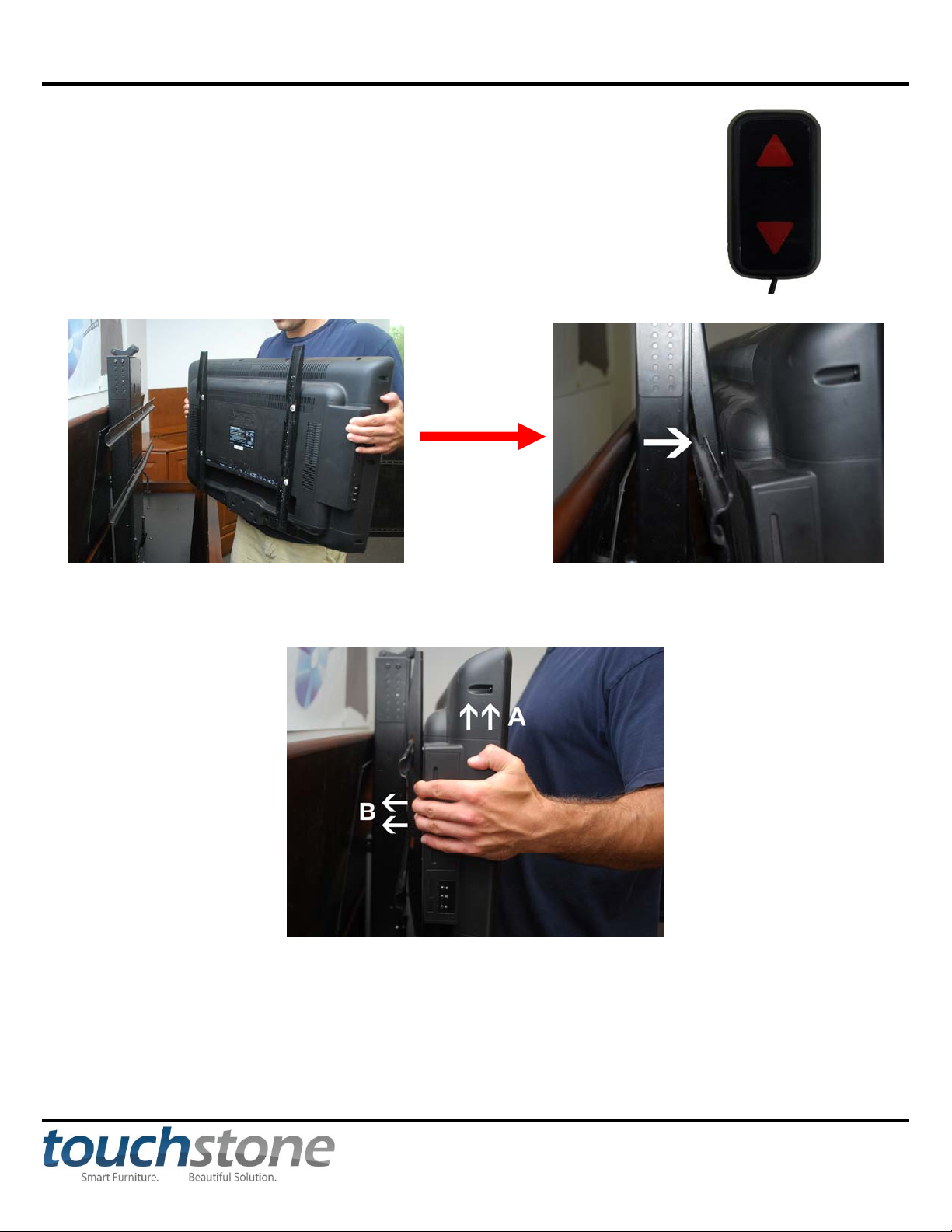

Installing TV on Lift
1. Using the internal wired control, move the lift to the up position. The UP button
is the button opposite of the cable side of the wired remote.
2. Hang TV on top crossbracket.
15
UP
DOWN
3 With TV hanging on top crossbracket, slightly raise the TV (A) and push it back toward the lift (B) so that the
bottom crossbracket is centered between the bottom set of hooks on the back of the TV mounting brackets.
4. Move the TV down slightly to fully attach TV to crossbrackets. The TV will hang on the top crossbracket and
the upper set of hooks on the bottom of the TV mounting brackets will lock the TV in place from moving while on
the lift.
www.touchstonehomeproducts.com 800.215.1990
Page 16
Touchstone TV Lift
16

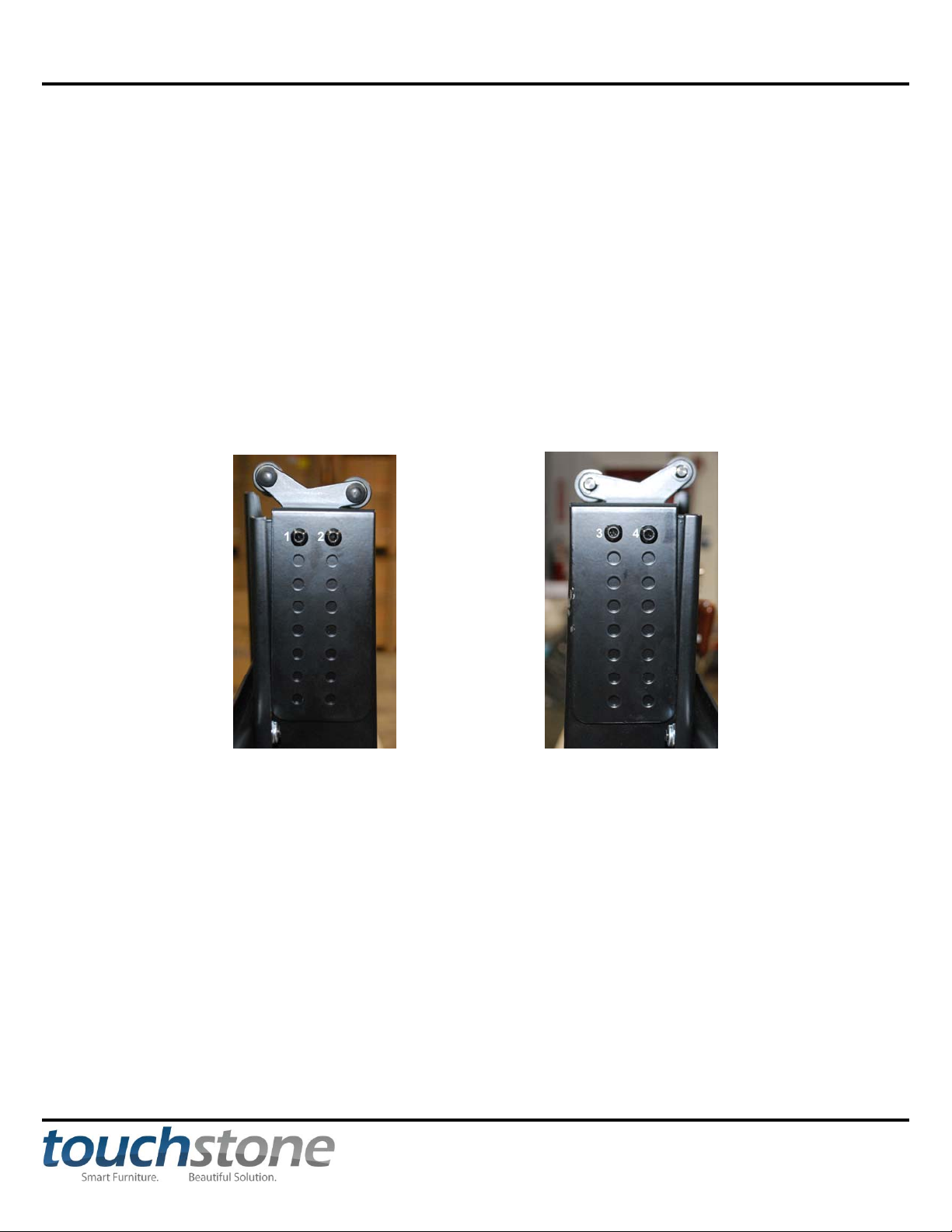

Setting Height of Adjustable Roller Assembly
Each Whisper Lift II comes with an adjustable roller assembly that allows you to set the maximum height of the
lift.
Tools Needed:
- adjustable wrench or 4mm socket wrench
- size 4 metric hex wrench
Instructions:
1. Raise the lift to a height that is comfortable for you to work at.
2. The adjustable roller is held in place by 2 4mm hex screws on either side of the lift. Using the size 4 metric hex
wrench and adjustable wrench/socket wrench, remove all 4 screws holding the adjustable roller in place.
3. Raise the adjustable roller to the desired level and refasten the adjustable roller to the lift using the screws/nuts
removed in step 2.
4. Adjust height of adjustable roller as needed so that the lid of the cabinet closes flush.
www.touchstonehomeproducts.com 800.215.1990
Page 17
Touchstone TV Lift
17
Operating the Touchstone Whisper Lift II
Operating Lift with Wireless Remote
The remote control for your Touchstone Whisper Lift II is controlled via radio frequency. You do not need to point
the remote control directly at the cabinet to operate the lift.
Button Function
A LIFT DOWN
B STOP LIFT
C LIFT UP
Operating Lift with Wired Remote
A wired control is included with your Touchstone Whisper Lift II, which can be mounted inside of the cabinet and
control the lift should you misplace the wireless remote control.
UP
DOWN
www.touchstonehomeproducts.com 800.215.1990
Page 18
Touchstone TV Lift
Removing Front Access Panel
The front access panel can easily be removed for access to the inside of the unit.
1. Raise lid and brace the lid so that it stays open
***CAUTION: Lid will not stay up on its own. Brace the lid by placing something between the lid hinge
and the cabinet to stop the lid from falling or have another person hold the lid while you work inside of
the cabinet.
2. Locate the panel clips on the inside front panel of the cabinet. Turn the clips to the open position so that
they are either facing the left or the right.
Panel Clip
18
Closed Position Open Position
***CAUTION: Once all of the clips are turned to the UNLOCKED position, the panel may fall in towards
the center of the cabinet. Please be sure to brace the panel so that it does not fall into the cabinet and
damage the TV or any components installed inside of the cabinet.
3. Remove panel by tilting panel towards inside of unit and lifting out through the top of the unit.
www.touchstonehomeproducts.com 800.215.1990
Page 19
Touchstone TV Lift
19
Whisper Lift II Accessories
Component Shelf (optional)
The add-on component shelf is the perfect solution for adding extra storage space for your cable box, DVD player,
game system and other components onto the Whisper Lift II TV lift mechanism.
The new component shelf attaches in just minutes by simply securing two screws onto the Whisper Lift II mounting
system.
The add-on component shelf measures 40" W x 9" D with an area of 16" W x 9" D on both the left and right side
and includes all the necessary hardware and instructions to help guide you through installation quickly and easily.
For more information on the Touchstone Whisper Lift II Component Shelf, please visit
http://www.touchstonehomeproducts.com/component-shelf.html
215-1990 for more information and pricing.
Assembling Component Shelf
Tools Needed:
- adjustable wrench
- size 5 metric hex wrench
- size 4 metric hex wrench
Component Shelf Parts
or call our Customer Service Department at 1-800-
www.touchstonehomeproducts.com 800.215.1990
Page 20
Touchstone TV Lift
20
Instructions:
1. Using 4 small nuts and bolts (D), attach the shelf support (B) to the underside of the component shelf (A). Orient
the shelf support so that the ridge near the center of the shelf, away from the cutout in the shelf.
2. Using the 2 remaining small nuts and bolts (D), attach the shelf brackets (C) to the lift. The shorter end of the
shelf bracket attaches underneath of the shelf.
Shelf Brackets
Shelf Brackets
www.touchstonehomeproducts.com 800.215.1990
Page 21
Touchstone TV Lift
21
Assembling Component Shelf – cont.
3. When completed, attach the component shelf to the lift using the 2 large hex bolts (E) and nuts provided.
Assembled Component
Shelf
Component Shelf
Attached to Lift
***CAUTION: After attaching the component shelf to the lift, please check to ensure that the
component shelf clears the front of the cabinet when lowered. Do not attempt to lower lift if it appears
the shelf will hit the front of the cabinet. If the shelf does not clear the front of the cabinet, revert back
to the Installing Lift In Elevate Cabinet section and check to make sure the shelf and lift are aligned.
Infrared Repeater Kit (optional)
We have conveniently predrilled a hole in the upper right-hand corner of the front panel of the Elevate TV cabinet
that will allow for the mounting of the Touchstone Infrared Repeater Kit (part number 70012). The Touchstone
Infrared Repeater allows the customer to install a small satellite TV/cable box in the bottom of the cabinet. The
Touchstone Infrared Repeater allows the user to change the channel on their box without having direct line of sight
to the component.
For more information on the Touchstone Infrared Repeater Kit, please visit
http://www.touchstonehomeproducts.com/irrepeaterkit.html or call our Customer Service Department at 1-800-215-
1990 for more information and pricing.
Technical Support
Should you have any problems with your Touchstone Home Products Elevate TV Lift Cabinet, our technical
support staff is here to support. Our technical support reps are available Monday to Friday from 8:00am to 5:00pm
EST for phone assistance at 1-800-215-1990. We also can be reached via email at
[email protected] 24hrs per day.
www.touchstonehomeproducts.com 800.215.1990
Page 22
Touchstone TV Lift
22
Touchstone Home Products Limited Warranty
Warranty Coverage
Touchstone Home Products, Inc warrants the lift mechanism and control box units to be free of defects in material
and workmanship for one year. Touchstone will repair or replace any lift mechanism and/or control box unit that is
defective or becomes defective during normal use within one year after the date of purchase.
Touchstone does not warrant its products against damage caused by third parties.
The warranty does not cover paint scratches, cosmetic blemishes, or other normal wear and tear associated with the
cabinet.
Extended warranty coverage for the lift mechanism is available by contacting Touchstone directly at 1-800-215-
1990.
Warranty Registration
To register your Touchstone TV Lift cabinet, please go to our website at
http://www.touchstonehomeproducts.com/warranty-registration.html
Prior to registering, make note of your cabinet serial number which can be found on the 3x3 white rectangular label
affixed prominently on the inside of the cabinet under the lid. The bottom line set of numbers on this label is the
cabinet serial number.
Cabinet Serial Number
www.touchstonehomeproducts.com 800.215.1990
Loading...
