TOTOLINK ND300V2 User Manual
User Manual
TOTOLINK Wireless-N Router
Content
Package List .................................................................................................................................. - 2 -
Introduction ................................................................................................................................... - 2 -
Section 1: Product Overview........................................................................................................ - 3 -
1.1 Product Features ................................................................................................................... - 3 -
1.2 Specifications......................................................................................................................... - 3 -
Section 2: Hardware installation .................................................................................................. - 5 -
2.1 Panel layout ........................................................................................................................... - 5 -
2.1.1 Front panel ...................................................................................................................... - 5 -
2.1.2 Back panel....................................................................................................................... - 5 -
2.2 System Requirements............................................................................................................ - 6 -
2.3 Installation Environment......................................................................................................... - 6 -
2.4 Hardware Installation Steps ................................................................................................... - 6 -
Section 3:Quick Installation Guide ..............................................................................................- 7 -
3.1 TCP/IP configuration.............................................................................................................. - 7 -

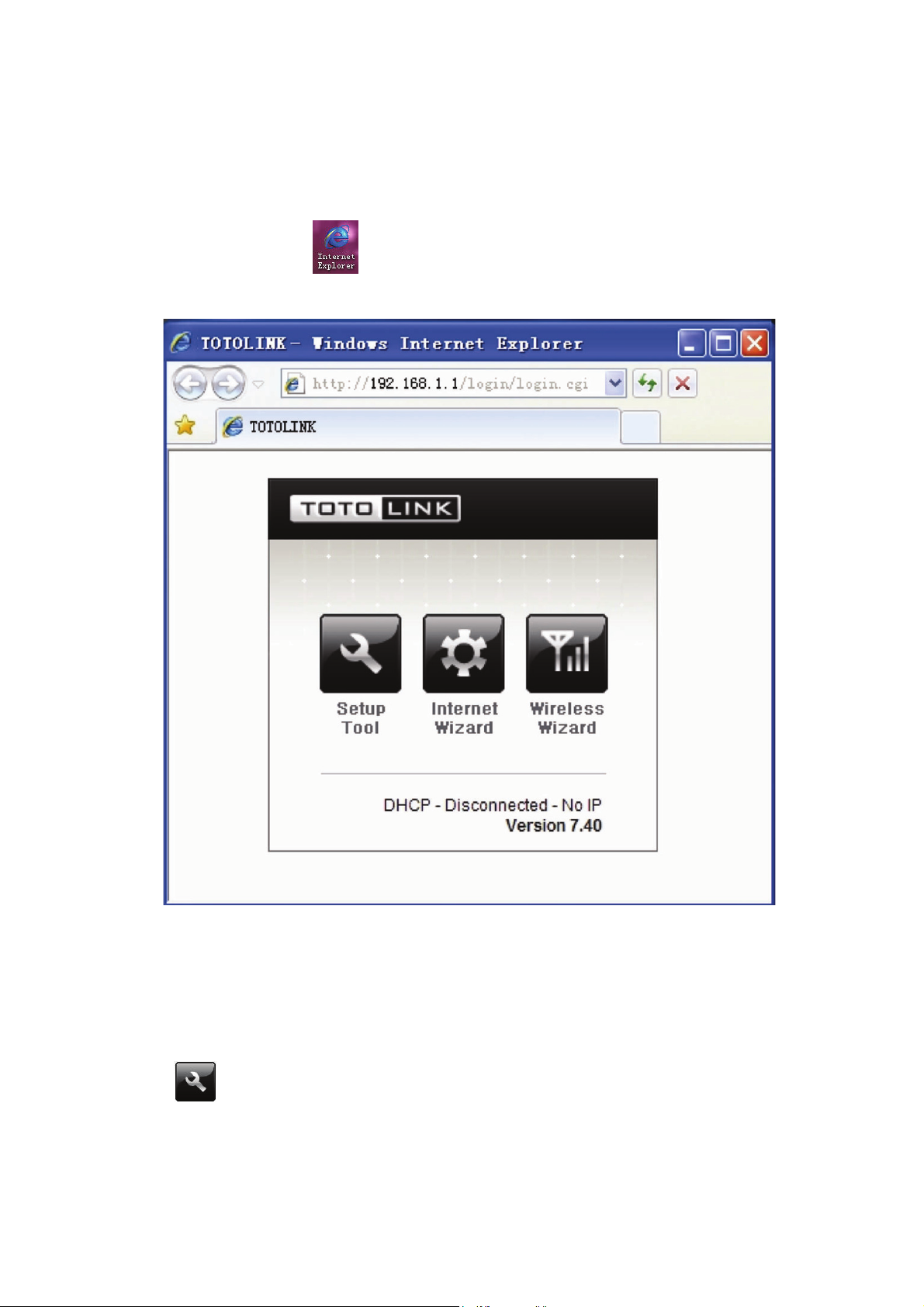

3.2 Quick Installation Guide ......................................................................................................... - 9 -

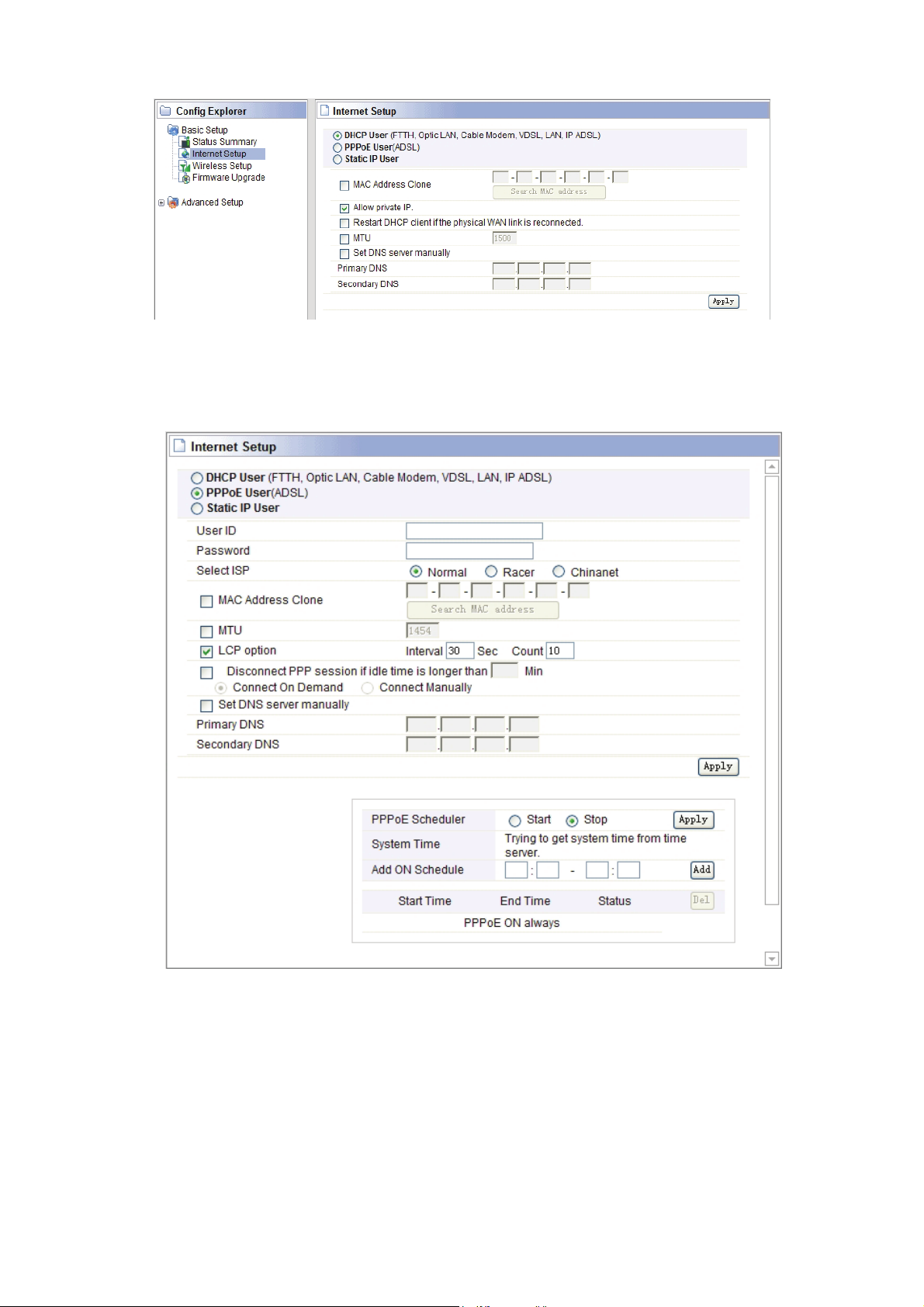

3.2.1 Internet setup ................................................................................................................ - 10 -
3.2.2 Wireless setup............................................................................................................... - 12 -
3.2.3 Firmware upgrade ......................................................................................................... - 13 -
Section 4: Advanced Setup ........................................................................................................ - 14 -
4.1 Network................................................................................................................................ - 14 -
4.2 Wireless ............................................................................................................................... - 15 -
4.2.1 Wireless Status.............................................................................................................. - 15 -
4.2.2 Wireless setup............................................................................................................... - 16 -
4.2.3 MAC Authentication....................................................................................................... - 17 -
4.2.4 WDS Setup.................................................................................................................... - 17 -
4.2.5 WPS Setup.................................................................................................................... - 17 -
4.2.6 Advanced Setup ............................................................................................................ - 18 -
4.3 NAT/Routing......................................................................................................................... - 18 -
4.3.1 Port Forwarding..........................................................................................................
4.3.2 DMZ Host ...................................................................................................................... - 19 -

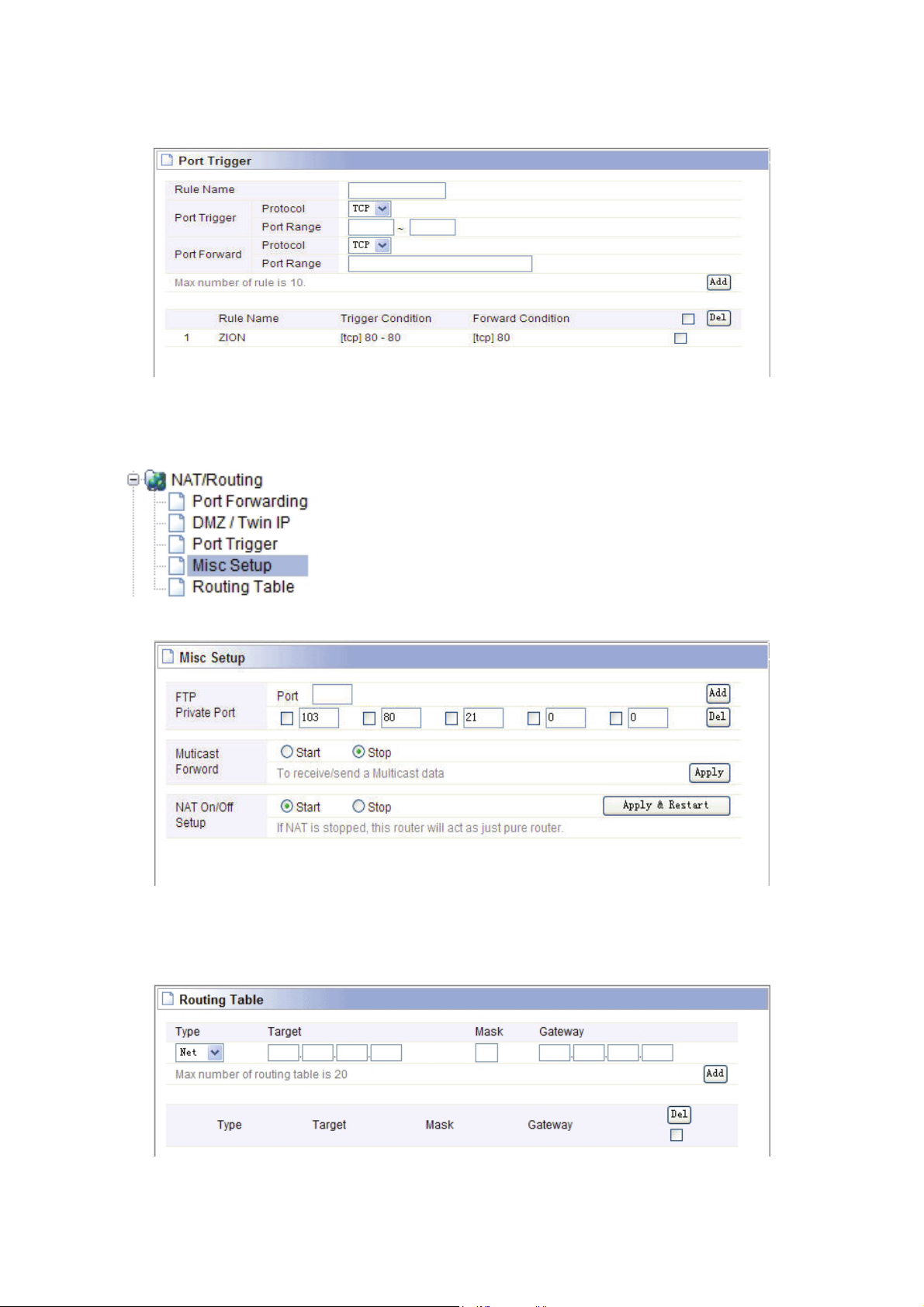

4.3.3 Port Trigger.................................................................................................................... - 20 -
4.3.4 Misc Setup..................................................................................................................... - 20 -
4.3.5 Routing Table ................................................................................................................ - 20 -
4.4 Firewall ................................................................................................................................ - 21 -
4.4.1 Internet Access Control ................................................................................................. - 21 -
4.4.2 Net Detector .................................................................................................................. - 21 -
... - 18 -
4.4.3 Mgmt Access List .......................................................................................................... - 22 -
4.4.4 Misc Setup..................................................................................................................... - 22 -
4.5 Utility .................................................................................................................................... - 23 -
4.5.1 VPN Setup..................................................................................................................... - 23 -
4.5.2 DDNS ............................................................................................................................ - 23 -
4.5.3 WOL .............................................................................................................................. - 24 -
4.5.4 Host Scan...................................................................................................................... - 24 -
4.6 Traffic................................................................................................................................... - 24 -
4.6.1 QoS Setup..................................................................................................................... - 25 -
4.6.2 Connection Info ............................................................................................................. - 25 -

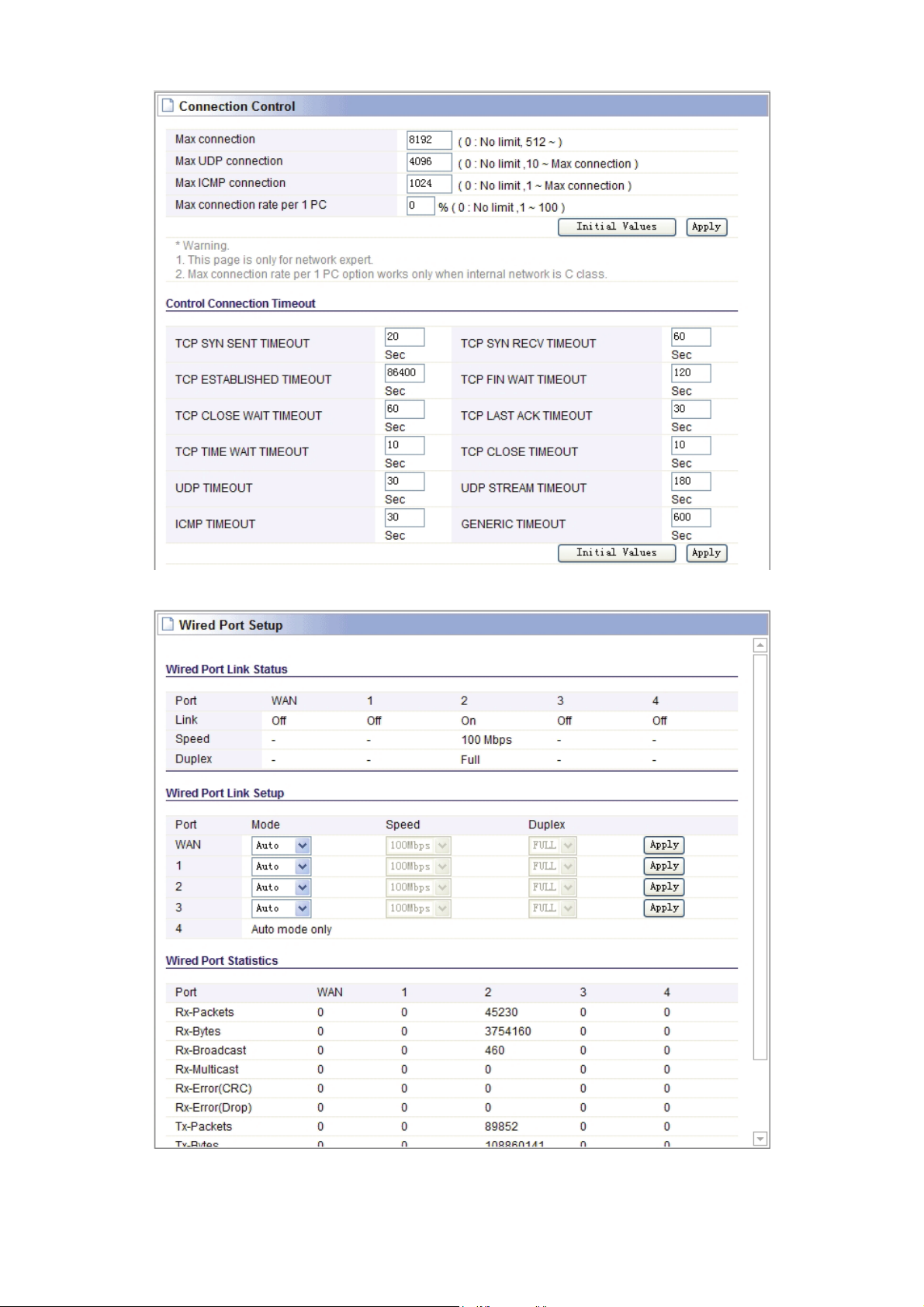

4.6.3 Connection Control........................................................................................................ - 25 -
4.6.4 Wired Port Setup ........................................................................................................... - 26 -
4.6.5 Port Rate Control........................................................................................................... - 27 -
4.6.6 Switch Setup ................................................................................................................. - 27 -
4.7 System................................................................................................................................. - 27 -
4.7.1 System Log ................................................................................................................... - 27 -
4.7.2 Admin Setup .................................................................................................................. - 28 -
4.7.3 System Time.................................................................................................................. - 29 -
4.7.4 Config Backup/Restore.................................................................................................. - 29 -
4.7.5 Misc Setup..................................................................................................................... - 29 -
1
PPaacckkaaggee LLiisstt
Open the box carefully, check the contents listed below:
◆ Wireless Broadband Router
◆ Power adapter
◆ CD
◆ Quick Installation Guide
◆ UTP cable
Note: If any of the listed contents are damaged or missing, please contact the retailer
from whom you purchased the wireless router for assistance.
IInnttrroodduuccttiioonn
Thank you for purchasing TOTOLINK Wireless-N Broadband Router! It is a hybrid design
product which combines Ethernet technology and wireless access into a single
stand-alone unit. The device allows you to take advantages of both mobility and fast
connection.
TOTOLINK not only complies with all the mainstream features of a wireless broadband
router, but also allows you to surf on the Internetmore secure and stable. It complies with
IEEE 802.11n (Draft 2.0) standards, supports up to 150Mbps / 300Mbps (1Tx-1Rx /
2Tx-2Rx) wireless transmission speed, adopting MIMO technology to ensure a good
performance, stability and coverage to bring you an enjoyable new experience.
TOTOLINK wireless router provides multiple security protection, which can protect the
wireless access security effectively. It supports SSID broadcasting, 64/128 bits WEP
encryption and built-in firewall function.
TOTOLINK wireless router is easy to install and configure with user friendly interface. For
better use of the router functions, please read this user manual carefully.
- 2 -
SSeeccttiioonn 11:: PPrroodduucctt OOvveerrvviieeww
1.1 Product Features
Complies with IEEE 802.11n; 802.11g; 802.11b standard for 2.4GHz Wireless LAN.
Supports PPPoE, Dynamic IP, and static IP broadband connection.
Supports UPnP, DDNS, static routing, VPN Pass-through.
Wi-Fi protected security(WPS), set your security at a push button.
Supports virtual server, special application and DMZ host.
Supports SSID broadcast control and MAC access control list.
Supports 64/128bit WEP, 128bit WPA standard (TKIP/AES), supports MIC, IV
Expansion, Shared Key Authentication and IEEE 802.1X.
Built-in fire wall, supports IP, MAC and URL filtering.
Built-in DHCP server with automatic dynamic IP address distribution.
Supports configuration file backup and restore.
Supports VPN Server (PPTP) & QoS bandwidth control.
Supports Remote and Web management.
1.2 Specifications
Standards
Protocol
Port LAN
Port WAN
Wireless parameter
RF Frequency
Data Rate
IEEE802.11n current draft, IEEE 802.11g, IEEE 802.11b, IEEE 802.3,
IEEE 802.3u, IEEE 802.3x
CSMA/CA, CSMA/CD, TCP/IP, ICMP, NAT, PPPoE, DHCP, PPTP, UDP, NAT,
DN, DDNS, VPN
4*100M/1000M BaseTX (Auto MDI/MDIX)
1*100M/1000M BaseTX (Auto MDI/MDIX)
2.4~2.4835GHz
11n: 300/270/243/216/162/108/81/54/27Mbps
135/121.5/108/81/54/40.5/27/13.5Mbps
130/117/104/78/52/39/26/13Mbps
72/65/58.5/52/39/26/19.5/13/6.5Mbps
11g: 54/48/36/24/18/12/9/6M（auto-negotiation）
11b: 11/5.5/2/1M（auto-negotiation）
- 3 -
Wireless Transmit
Power
Receiver Sensitivity
Channels
WLAN Modulation
Scheme
Antenna Type
Wireless Operation
Mode
Wireless Security
LED
Media
Management type
Operating
Temperature
Storage
Humidity
Power External
20dBm(MAX)
270M: -65dBm@10% PER
135M: -65dBm@10% PER
54M: -68dBm@10% PER
11M: -85dBm@8% PER
6M: -88dBm@10% PER
1M: -90dBm@8% PER
1-11 (North America);
1-13 (General Europe)
BPSK, QPSK, CCK and OFDM (BPSK/QPSK/16-QAM/ 64-QAM)
2.4GHz omni antenna
Wireless Bridge /Client/ WAN /WDS
WEP 64/128 bit; MAC based Association; SSID broadcast disable; Wi-Fi
Protection Access (TBD), WPA, WPA2, WPS
1*Power, 1*CPU Status,
1*Wireless, 1*WAN, 4*LAN
100BASE-TX: UTP/STP
Local/Remote Web-based configuration
0 ~ 55℃
-20 ~ 65℃
5 ~ 95% non-condensing
Input 110V/240V
Output DC: 5V, 2.5A (N300RG);
5V, 1A (N150RA, N150RT,N300RT);
9V, 0.8A (N300R).
- 4 -
SSeeccttiioonn 22:: HHaarrddwwaarree iinnssttaallllaattiioonn
2.1 Panel layout
2.1.1 Front panel
LED indicators:
Led Name Action Description
Power
CPU
WLAN
WAN /
LAN 1, 2, 3, 4
Off
On
Off
Flashing
Off
Flashing
Off
On
Flashing
Power off
power on
the router has a hardware error
the router is working properly
wireless function is disabled
wireless function is enabled
there is no device connected to the corresponding port
there is a device connected to the corresponding port
there is an active device connected to the corresponding port
2.1.2 Back panel
- 5 -
DC IN
Plug in the DC power jack.
Note: Please use the original power adapter to prevent the unsuitable
power adapter damage to your router.
WAN port
LAN port
RST
RST/WPS
WPS
Antenna Interface
WAN port (RJ-45). Connect xDSL Modem / Cable Modem or Ethernet
4 RJ-45 ports. PC and hub / switch connect to LAN port through cable
Press this button for five seconds, the system will be restored to the factory
default settings.
When your wireless LAN adapter connected with the wireless router, press
this button in the router, and press the “WPS” button in your wireless LAN
adapter within two minutes, it will generate a secret key automatically
between your LAN adapter and router, on the premise that the LAN adapter
with WPS function.
Fixed or detachable omni antenna adjust to different models
2.2 System Requirements
¾ Broadband Internet access service (DSL/Cable/Ethernet)
¾ One DSL/Cable modem that has an RJ-45 connector (you do not need it if you
connect the router to Ethernet)
¾ Each PC on the LAN needs a working Ethernet Adapter and an Ethernet cable with
RJ45 connectors
¾ TCP/IP protocol must be installed on each PC
¾ Web browser, such as Microsoft Internet Explorer 5.0 or later, Netscape Navigator 6.0
or later
2.3 Installation Environment
¾ Not in direct sunlight or near a heater or heating vent
¾ Not cluttered or crowded. There should be at least 2 inches (5cm) of clear space on
all sides of the router
¾ Well ventilated (especially if it is in a closet)
¾ Operating temperature: 0℃~40℃
¾ Operating Humidity: 5%~90%RH, Non-condensing
2.4 Hardware Installation Steps
Before you install the router, you should connect your PC to the Internet through your
broadband service successfully. If there is any problem, please contact your ISP. After
that, please install the router according to the following steps. Don't forget to pull out the
power plug and keep your hands dry.
1. Power off your PC(s), Cable/DSL modem, and the router.
2. Locate an optimum location for the router. The best place is usually near the center of
the area in which your PC(s) will wirelessly connect. The place must comply with the
- 6 -
Installation Environment Requirements.
3. Adjust the direction of the antenna. Normally, upright is a good direction.
4. Connect the PC(s) and each Switch/Hub on your LAN to the LAN Ports in the router.
5. Connect the DSL/Cable Modem to the WAN port on the router.
6. Connect the DC power adapter to the power port (DC IN) in the router, and plug the
power plug in the electrical outlet. The router will begin to work automatically.
7. Power on your PC(s) and Cable/DSL modem.
SSeeccttiioonn 33::QQuuiicckk IInnssttaallllaattiioonn GGuuiiddee
After connecting the wireless router into your network, you should configure it. This
chapter describes how to configure the basic functions of your wireless router. These
procedures only take you a few minutes. You can access the Internet via the router
immediately after successfully configured.
3.1 TCP/IP configuration
The default IP address of the wireless router is 192.168.1.1, and the default Subnet Mask
is 255.255.255.0. These values can be seen from the LAN. They can be changed as you
desire, as an example we use the default values for description in this guide.
Connect the local PC to the LAN ports in the router. There are two methods to configure
the IP address for your PC.
Configure the IP address manually
1) Set up the TCP/IP Protocol for your PC(s).
2) Configure the network parameters. The IP address is 192.168.1.xxx ("xxx" is from 2
to 254), Subnet Mask is 255.255.255.0, and Gateway is 192.168.1.1 (The router's
default IP address)
Obtain an IP address automatically
1) Set up the TCP/IP Protocol in "Obtain an IP address automatically" mode on your
PC(s).
2) Power off the router and PC(s). Then turn on the router, and restart the PC(s). The
built-in DHCP server will assign IP address for the PC(s).
Now, you can run the Ping command in the command prompt to verify the network
connection between your PC(s) and the router. Open a command prompt, and type ping
192.168.1.1, and then press “enter”.
A. Click “Start” -> “Run”
B. Type the command “cmd”, and then click "OK"
- 7 -
C. Type “ipconfig” and press “enter”
D. If the result displayed is similar to that shown in the below figure, the connection
between your PC and the router has been established, or else please repeat the
above steps and restart the PC.
IP address from 192.168.1.2 to 192.168.1.254
Subnet mask is 255.255.255.0 ;
Default gateway is 192.168.1.1 ;
E. Enter the command “ping 192.168.1.1”, and then press ”enter”
If you can see similar result displayed “Reply from 192.168.1.1：bytes=32 time<1ms
TTL=255”, it means the user's PC has been connected with the router.
- 8 -
Loading...
