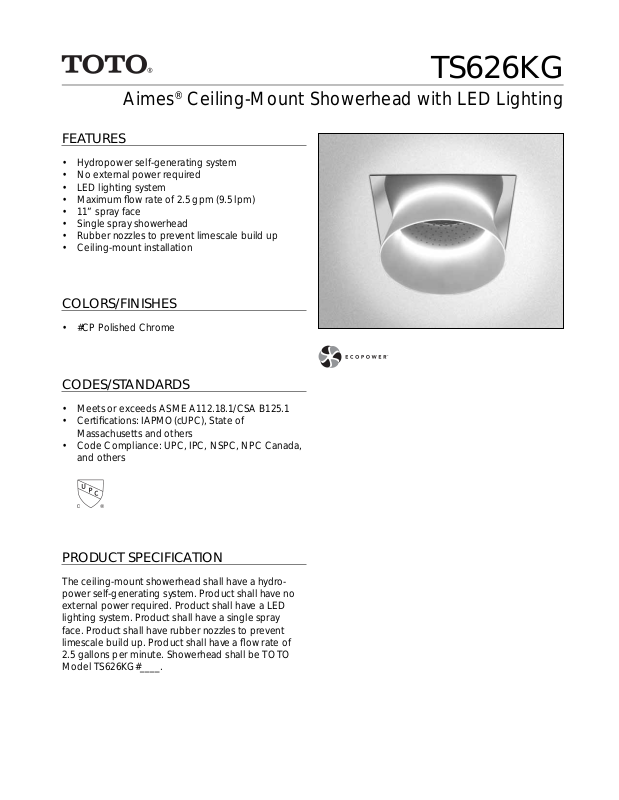

Toto TS626KGCP Specifications

Aimes® Ceiling-Mount Showerhead with LED Lighting

FEATURES

• Hydropower self-generating system

• No external power required

• LED lighting system

• Maximum ﬂ ow rate of 2.5 gpm (9.5 lpm)

• 11” spray face

• Single spray showerhead

• Rubber nozzles to prevent limescale build up

• Ceiling-mount installation

COLORS/FINISHES

• #CP Polished Chrome

TS626KG

CODES/STANDARDS

• Meets or exceeds ASME A112.18.1/CSA B125.1

• Certiﬁ cations: IAPMO(cUPC), State of Massachusetts and others

• Code Compliance: UPC, IPC, NSPC, NPC Canada, and others

PRODUCT SPECIFICATION

The ceiling-mount showerhead shall have a hydropower self-generating system. Product shall have no external power required. Product shall have a LED lighting system. Product shall have a single spray face. Product shall have rubber nozzles to prevent limescale build up. Product shall have a ﬂ ow rate of

2.5 gallons per minute. Showerhead shall be TOTO

Model TS626KG#____.

TS626KG

Aimes® Ceiling-Mount Showerhead with LED Lighting

SPECIFICATIONS

• Warranty Lifetime Limited Warranty (Residential Use) One Year (Commercial Use)

• Material Bronze and Epoxy Resin

• Shipping Weight 28.2 lbs.

• Shipping Dimensions 17-1/2"L x 17-3/4"W x 14"H

• Maximum Flow Rate 2.5 gpm (9.5 lpm)

0 100 200 300 400 500

3.0

2.5

2.0

1.5

1.0

Flow rate (gpm)

0.5

0.0

0.0 20.0 40.0 60.0 80.0

Pressure (kPa)

Pressure (psi)

11. 4

9.5

Flow rate (lpm)

7.6

5.7

3.8

1.9

0.0

Ph: (888) 295-8134 | Fax: (800) 699-4889 | www.totousa.com

These dimensions and speciﬁ cations are subject to change without notice

#SS-00589, v.01
