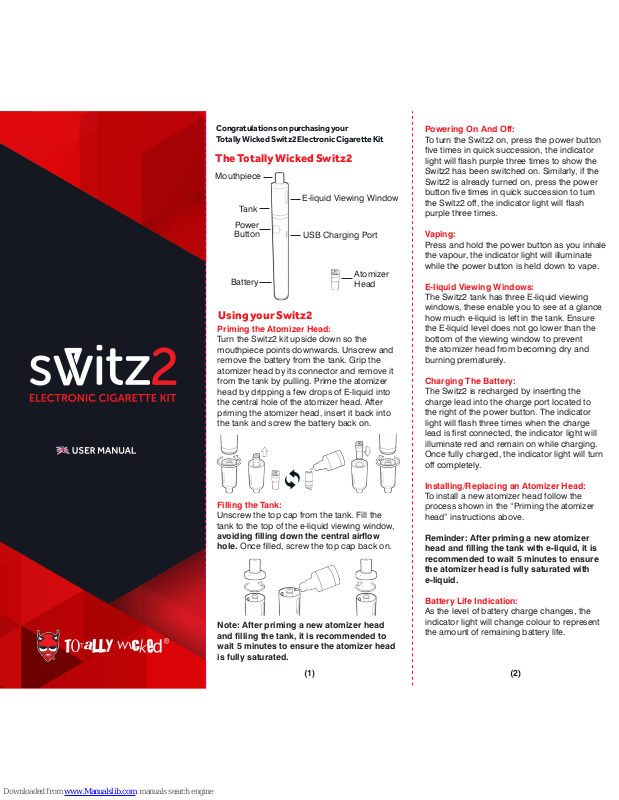

Totally Wicked switz2 User Manual

Congratulations on purchasing your
Totally Wicked Switz2 Electronic Cigarette Kit

The Totally Wicked Switz2

Using your Switz2

Priming the Atomizer Head:

Turn the Switz2 kit upside down so the
mouthpiece points downwards. Unscrew and
remove the battery from the tank. Grip the
atomizer head by its connector and remove it
from the tank by pulling. Prime the atomizer
head by dripping a few drops of E-liquid into
the central hole of the atomizer head. After
priming the atomizer head, insert it back into
the tank and screw the battery back on.

Filling the Tank:

Unscrew the top cap from the tank. Fill the
tank to the top of the e-liquid viewing window,

avoiding filling down the central airflow
hole. Once filled, screw the top cap back on.

Powering On And Off:

To turn the Switz2 on, press the power button
five times in quick succession, the indicator
light will flash purple three times to show the
Switz2 has been switched on. Similarly, if the
Switz2 is already turned on, press the power
button five times in quick succession to turn
the Switz2 off, the indicator light will flash
purple three times.

Vaping:

Press and hold the power button as you inhale
the vapour, the indicator light will illuminate
while the power button is held down to vape.

E-liquid Viewing Windows:

The Switz2 tank has three E-liquid viewing
windows, these enable you to see at a glance
how much e-liquid is left in the tank. Ensure
the E-liquid level does not go lower than the
bottom of the viewing window to prevent
the atomizer head from becoming dry and
burning prematurely.

Charging The Battery:

The Switz2 is recharged by inserting the
charge lead into the charge port located to
the right of the power button. The indicator
light will flash three times when the charge
lead is first connected, the indicator light will
illuminate red and remain on while charging.
Once fully charged, the indicator light will turn
off completely.

Installing/Replacing an Atomizer Head:

To install a new atomizer head follow the
process shown in the “Priming the atomizer
head” instructions above.

Reminder: After priming a new atomizer
head and filling the tank with e-liquid, it is
recommended to wait 5 minutes to ensure
the atomizer head is fully saturated with
e-liquid.

Battery Life Indication:

As the level of battery charge changes, the
indicator light will change colour to represent
the amount of remaining battery life.

Mouthpiece

Tank

E-liquid Viewing Window

Power
Button

USB Charging Port

Battery

Atomizer
Head

Note: After priming a new atomizer head
and filling the tank, it is recommended to
wait 5 minutes to ensure the atomizer head
is fully saturated.

(1) (2)

When battery charge remaining is above 30%
the indicator light will glow blue when the
power button is pressed.

When battery charge is between 6% and 30%
the indicator light will glow purple when the
power button is pressed.

If battery charge drops below 6% the indicator
light will glow red when the power button is
pressed.

When the battery is completely exhausted
the indicator light will flash red 8 times and
the device will go into sleep mode until it is
recharged.

Short Circuit Protection:

If an atomizer short circuit occurs the indicator
light will glow red and flash five times in
succession whenever the power button is
pressed. If an atomizer short circuit error
occurs, replacing the atomizer head should
allow normal operation to resume.

Atomizer Head Protection:

If the power button is held down for longer
than ten seconds while vaping, the indicator
light will flash eight times and the Switz2 will
stop producing vapour.

1 x Switz2 Battery
1 x Switz2 Tank
1 x 1.5ohm SW2 Atomizer Head (fitted)
1 x 1.5ohm SW2 Atomizer Head (spare)
1 x USB Charge Lead
1 x User Manual

Kit Contents

Specications

Dimensions: 16.5mm (diameter) 120.5 mm

(length)

Battery: 800mAh Integrated Battery
Max Charging Current: 850mA
Tank Capacity: 1.8ml
Atomizer Type: SW2 Atomizer Heads
Maximum Filling Nozzle Diameter: 4mm

Additional product information

There are no reported medical side effects
with this product. If you believe you
experience a side effect, please contact the
manufacturer.

Product Storage and Battery
Precautions

• Store the Switz2 and its accessories away
from children when not in use.

• Ensure the Switz2 is powered off when not
in use.

• Avoid accidentally pressing the Switz2
power button when not in use.

• Please only use the charging cable
provided.

• Please dispose of dead batteries in
accordance with your country’s appropriate
legislation.

• Do not charge the batteries in a damp
environment.

• Do not use the device when temperatures
are outside the range of -10°C - 60°C.

• Do not charge the battery when
temperatures are outside the range of
0°C – 45°C.

• Do not attempt to repair a faulty Switz2 as
these are sealed units with no serviceable
parts. Attempted repairs will void the
warranty.

Warranty

The Switz2 components have a 28 day parts
warranty, with the exception of Atomizer
Heads, which are consumable items and
covered by a “dead on arrival” warranty only.
The USB cable supplied has a 12-month
warranty. If any parts are found to be faulty
within this time please contact our customer
service team, whose details are on the back
page of this booklet and we will arrange for a
replacement. We may require the goods to be
returned for further investigation.

Manufactured in China under the authority of
Pillbox38 UK Ltd, Stancliffe Street, Blackburn,
Lancashire, BB2 2QR.
