CONGRATULATIONS ON PURCHASING YOUR

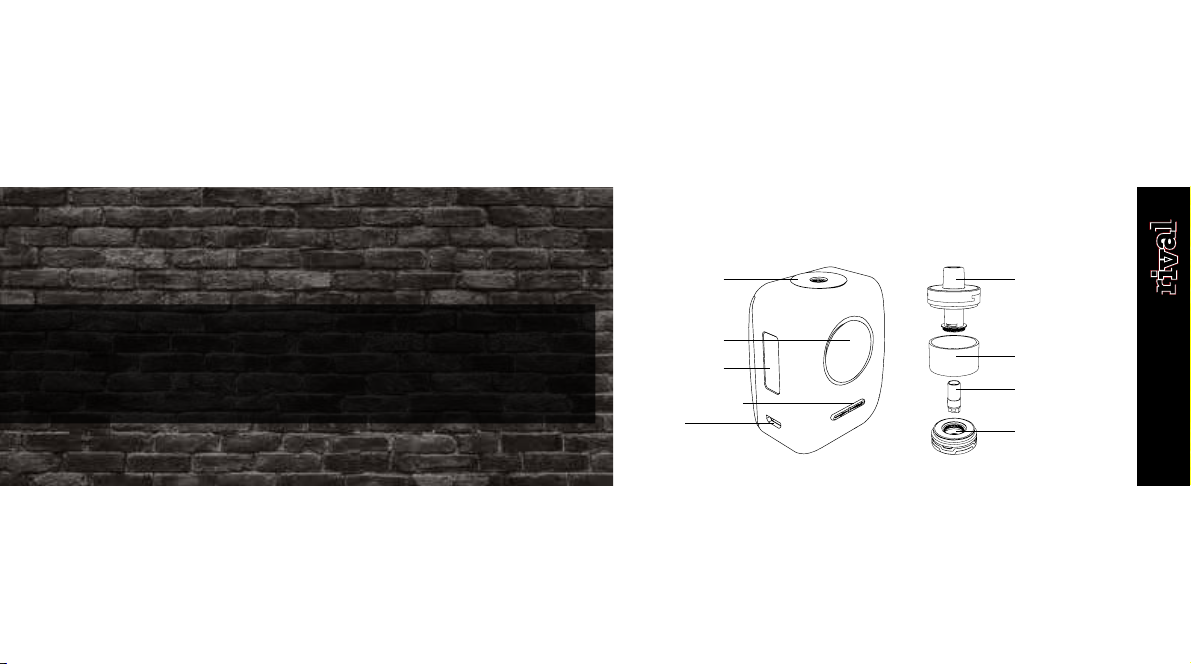

THE TOTALLY WICKED RIVAL

Tank connection Mouthpiece

Tank glass

Atomizer head

Tank base

Display screen

USB port

Adjustment buttons

Power button

• Prime the atomizer head.

• Fill the tank.

• Switch the Rival on (5 clicks of the power button).

• The Rival will automatically set to 15 watts.

• Press and hold the power button and inhale.

• Charge the battery (possibly not shipped with a full charge).

Detailed descriptions of these steps and more
are given in the following pages of this manual.

If you are familiar with
using e-cigarettes,
follow the quick start
guide to be vaping in
minutes.

4 5

PRIMING THE ATOMIZER HEAD PRIMING THE ATOMIZER HEAD

It is important to “prime” a new atomizer
head before first use. Failure to do so
can cause the atomizer coil to overheat,
resulting in a burnt taste and sometimes
irreversible damage to the atomizer head
requiring early replacement.

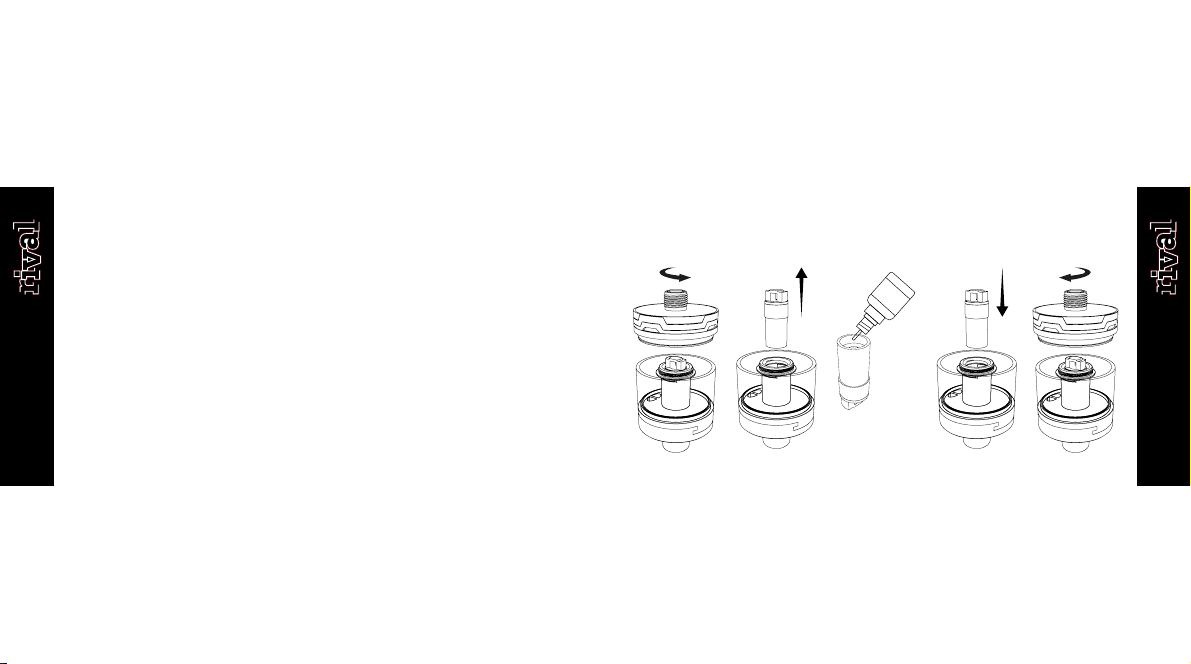

Unscrew and remove the tank from the
battery and invert. Unscrew the base of
the tank, grip the atomizer head by its
connector, and remove it from the tank

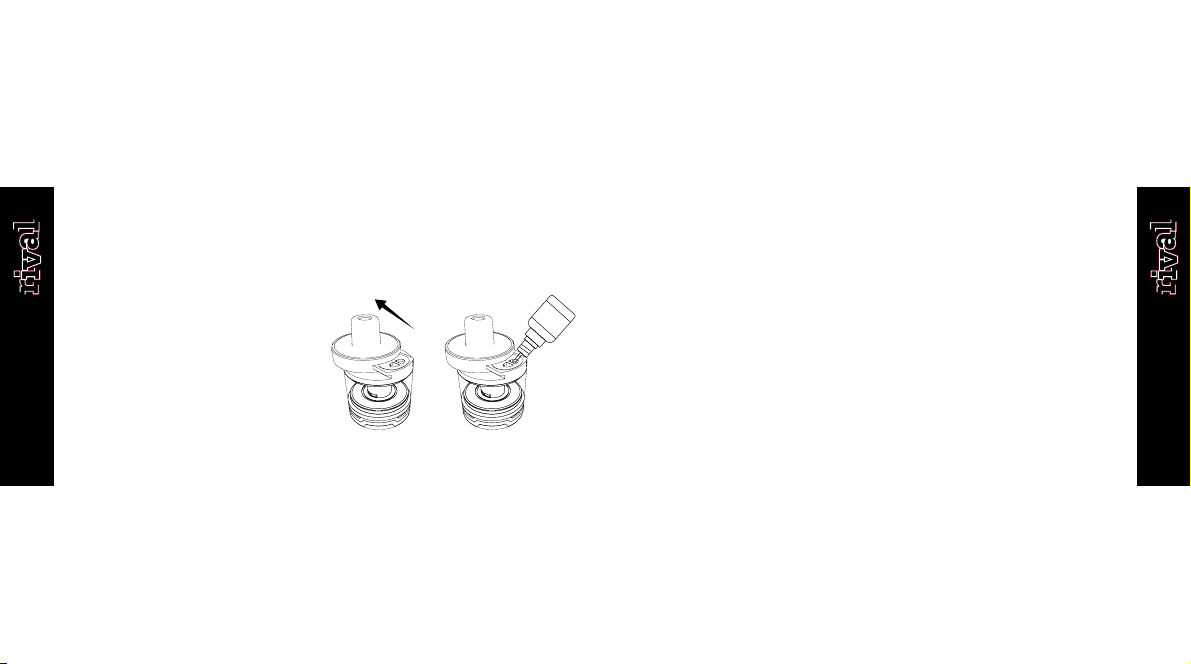

by pulling straight out. Prime the atomizer
head by dripping a few drops of E-liquid

into the central hole of the atomizer head.
After priming the atomizer head, insert it
back into the tank, screw the base back on,
and screw the tank back onto the battery.

6 7

FILLING THE TANK USING YOUR RIVAL

Slide the top cap open by pushing firmly
in the direction indicated by the arrow on
the top cap to expose the fill hole. Insert
the filling nozzle into the fill hole and fill the
tank, being careful to leave an air gap of
approximately 2mm. Slide the top cap shut
after filling.

Note: After priming a new atomizer
head and filling the tank with e-liquid,
it is recommended to wait 5 minutes
to ensure the atomizer head is fully
saturated with e-liquid.

Atomizer Head Lifespan

Atomizer heads do not last forever and
need to be periodically replaced. The
lifespan of an atomizer head can vary
from several days up to several weeks.
Factors affecting lifespan include wattage,
vaping style, flavour and type of e-liquid.
Indicators that the atomizer head may
require replacement include a slight burnt
taste, general loss of vapour production or
a reduction in flavour intensity.

Switching On and Off

Switch the Rival on by quickly pressing
the power button five times, the screen
will display “RIVAL BY TOTALLY WICKED”
indicating the Rival has been switched
on. Quickly press the power button five
times to switch the Rival off, the screen
will display “SLEEP MODE” indicating the
device has been switched off.

8 9

USING YOUR RIVAL USING YOUR RIVAL

Setting the Wattage

The Rival has adjustable wattage that can
be set from 1 – 60 watts. Use the left or
right adjustment buttons to increase or
decrease the wattage on the battery. The
fitted atomizer head can be used from 8-16
watts. For the best balance of flavour and
vapour production we suggest a starting
point of 8 watts, which you can then adjust
in small increments to find your favourite
setting.

Vaping

Press and hold the power button as you
inhale the vapour, the LED surrounding the
button will light up while the power button
is held down.

Adjusting Airflow

If you find the air flow too airy or too tight
while vaping, rotate the airflow control ring
located on the tank base. Experiment by
rotating the air flow control ring to find your
preferred setting.

E-liquid Level

To prevent the atomizer head from
becoming dry and burning prematurely,
ensure the amount of e-liquid inside the
Rival tank does not drop below the fluid
feed holes located on the sides of the
atomizer head.

Charging the Battery

The Totally Wicked Rival is charged by
connecting the charge port on the battery
to a USB port or suitable wall adaptor with
the supplied charging lead. The battery
icon will begin to flash onscreen for 15
seconds, after which the screen will switch
off. The LED surrounding the button will
start to flash in 5 second intervals with a 1
second break between flashes. Once fully
charged the LED surrounding the button
will stay illuminated until taken off charge.

10 11

USING YOUR RIVAL ONSCREEN MESSAGES

Battery Life Indicator

In addition to the on screen battery life
indicator, battery life is also indicated by
the colour of the LED that is illuminated
around the power button, as described in
the following table.

Replacing the Atomizer Head

To install a new atomizer head follow the
process shown in the “Priming the atomizer
head”.

Reminder: After priming a new atomizer
head and filling the tank with e-liquid,
it is recommended to wait 5 minutes
to ensure the atomizer head is fully
saturated with e-liquid.

Atomizer Head Protection

If the power button is held down for longer
than 10 seconds while vaping, the screen
will display “OVER TIME” and the Rival
will not continue to power the atomizer
or produce any vapour. Releasing the
power button will allow normal operation
to resume.

Low Battery

If “LOW BATTERY” is displayed onscreen,
this indicates the Rival has insufficient
battery voltage to deliver the currently
selected wattage; the LED surrounding the
button will flash 4 times. Charge the battery
using the steps outlined in “Charging
the Battery” to allow normal operation to
resume.

Battery Level LED Condition

100%-60% Glows WHITE for 3 seconds

59%-21% Glows BLUE for 3 seconds

20%-0% Glows RED for 3 seconds

12 13

ADDITIONAL SETTINGS PROTECTIONS

Locked Mode

Locked mode prevents accidental firing
of the Rival. If Locked mode is enabled,
the screen will display “Locked” whenever
any button is pressed. Pressing any button
on the Rival won’t have any effect until
“Locked Mode” is disabled.

To turn “Locked Mode” on/off, ensure the
Rival is switched on, then press and hold
down both adjustment buttons at the same
time; the screen will display “Locked” when
enabled. Repeat the process to disable

locked mode; the screen will display
“Unlocked” when disabled.

Automatic Wattage

The Totally Wicked Rival is equipped with
an “automatic wattage” feature. This feature
allows the device to automatically set the
wattage when connecting a new atomizer.
For example, when using the 1.5ohm
atomizer which comes fitted in the tank,
the Rival will automatically set the power
to 15W.

Short Circuit Protection

If an atomizer short circuit occurs, the
screen will display “SHORT”, the Rival
will not provide power to the atomizer
or produce any vapour and the LED
surrounding the button will flash red 4
times. Replacing the atomizer head should
allow normal operation to resume. To
replace the atomizer head follow the steps
outlined in “Replacing the atomizer head”.

No Atomizer Detected Protection

If no atomizer is detected, the screen
will display “No Atomizer” and the Rival
will not provide power to the atomizer or
produce any vapour, the LED surrounding
the button will flash blue 4 times. Ensure
the atomizer head is fully pushed into the
base of the tank, then fit the tank back onto
the battery. If the “No Atomizer” message
continues, replacing the atomizer head
should allow normal operation to resume.
Follow the steps outlined in “Replacing the
atomizer head”.

14 15

CLEANING AND MAINTENANCE SPECIFICATIONS

The Totally Wicked Rival battery can be
cleaned by wiping down with tissue or a
dry cloth. The Rival tank can be cleaned by
removing it from the battery, unscrewing
the tank base from the glass section of the
tank then removing the atomizer head.
The entire Rival tank and base can now be
cleaned under hot running water. Allow the
tank to fully dry before refitting the atomizer
head into the tank base. Reassemble the
tank.

Note: Do not attempt to clean the
atomizer head with water. Do not
submerge the Rival battery unit in water
or allow it to get wet.

Additional Product Information

There are no reported medical side effects
with this product. If you believe you
experience a side effect, please contact the
manufacturer.

Rival Battery

Dimensions: 66mm (height) x 50.7mm
(width) x 31mm (depth)
Weight: 143g
Battery Capacity: 3200mAh
Wattage Range: 1 – 60W
Voltage Range: 1.0 – 8.5V
Maximum Charge Current: 2.0A
Maximum Tank Diameter: 25mm
Thread Type: Spring Loaded 510
Connection
Atomizer Resistance Compatibility:

0.15ohm – 3.0ohm

Rival Tank

Dimensions: 22mm (diameter) x 34mm
(height)
Weight: 33g
Tank Capacity: 2.0ml
Atomizer Type: SW
Thread Type: 510 Connection
Atomizer Head Resistance:1.5ohm
Airflow Type: Bottom – Bottom, adjustable
Maximum Refill Nozzle Diameter: 3.7mm

16 17

PRODUCT STORAGE AND BATTERY PRECAUTIONS WARRANTY KIT CONTENTS

• Store the Rival e-cigarette and its accessories away from children whilst not in use.

• Please only use the charging cable provided.

• Please dispose of dead batteries in accordance with your country’s appropriate legislation.

• Do not charge the battery in a damp environment, or in temperatures under 0°C or above
45°C.

• Do not use the device in temperatures under -10°C or above 60°C.

• Do not carry batteries in a pocket or bag with other metallic objects.

• Do not attempt to repair a faulty Rival battery as these are sealed units with no serviceable
parts. Attempted repairs will void the warranty.

Totally Wicked Rival components have a
28-day parts warranty with the exception
of atomizer heads which are consumable
items and are covered by our ‘Dead on
Arrival’ warranty only. The USB cable
supplied has a 12-month warranty. If any
parts are found to be faulty within this
time please contact our customer service
team, whose details are on the back page
of this booklet and we will arrange for a
replacement. We may require the goods to
be returned for further investigation.

1 x Rival battery
1 x Rival tank
1 x Spare glass
1 x SW 1.5ohm atomizer head (fitted)
1 x SW 0.8ohm atomizer head (spare)
1 x User manual
1 x Spare parts set

18 19
