Totally Wicked PSYCHE User Manual

ELECTRONIC CIGARETTE KIT

USER MANUAL

CONGRATULATIONS
ON PURCHASING YOUR

TOTALLY WICKED
PSYCHE
ELECTRONIC
CIGARETTE KIT

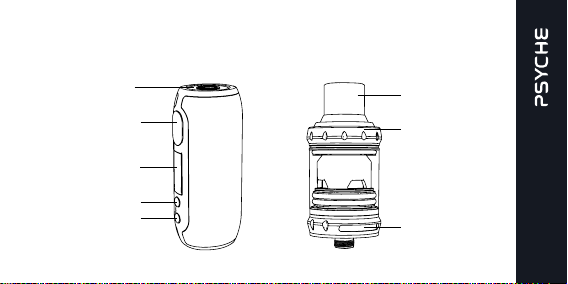

THE TOTALLY WICKED PSYCHE

TANK
CONNECTION

POWER
BUTTON

DISPLAY
SCREEN

+ BUTTON

- BUTTON

MOUTHPIECE

TOP CAP

AIRFLOW
CONTROL

3

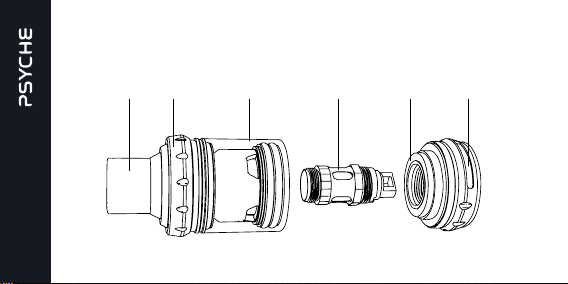

THE TOTALLY WICKED PSYCHE

MOUTHPIECE

TOP CAP

ACRYLIC SLEEVE

ATOMIZER HEAD

TANK BASE

AIRFLOW

CONTROL RING

4

QUICK START GUIDE

If you are familiar with using e-cigarettes, follow the quick start guide below to be
vaping in minutes:

• Prime the atomizer head.

• Fill the tank.

• Switch the Psyche on (5 clicks of the power button).

• Set the Psyche to 15 watts.

• Press and hold the power button and inhale.

• Charge the battery (possibly not shipped with a full charge).

Detailed descriptions of these steps and more are given in the full user guide.

5

USING YOUR PSYCHE

Priming the Atomizer Head

Note: It is important to “prime” a new atomizer head before first use. Failure to
do so can cause the atomizer coil to overheat, leading to an unpleasant taste
and sometimes irreversible damage to the atomizer head.

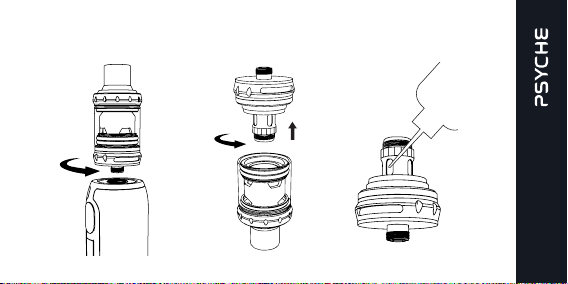

Remove the Rialto tank from the Psyche by unscrewing. Invert the Rialto tank and
unscrew the base. Drip a few drops of e-liquid on each of the four e-liquid inlets
on the sides of the atomizer head, and into its central hole to fully wet the wicking
material.

6

USING YOUR PSYCHE

7

USING YOUR PSYCHE

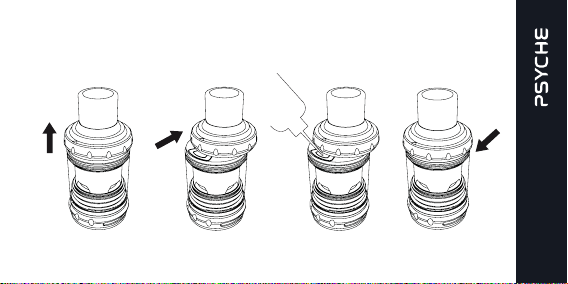

Filling the tank

Lift up the top section of the tank up and slide in the direction indicated by the arrow.
Insert the e-liquid filling nozzle into the fill hole and fill the tank, being careful to leave
an air gap of approximately 2mm. Slide the top of the tank back into place until there
is an audible click as it drops back into its original position.

Note: After priming a new atomizer head and filling the tank, it is recommended
to wait 5 minutes to ensure the atomizer head is fully saturated with e-liquid.

8

USING YOUR PSYCHE

9

USING YOUR PSYCHE

Power on and off

Press the power button 5 times in quick
succession to turn the Psyche on. To
turn the device off, again press the
power button 5 times repeatedly.

Vaping

Press and hold the power button as you
inhale the vapour. A puff timer will be
displayed on screen.

10

Charging the battery

To charge the battery, connect the
supplied charge lead into a suitable
USB connection port, the battery icon
on screen will begin to flash with a bolt
icon until fully charged.

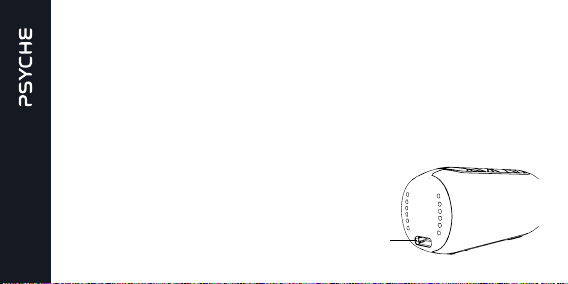

CHARGING PORT

USING YOUR PSYCHE

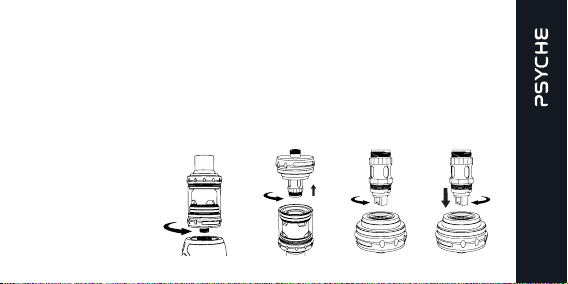

Changing the atomizer head

To change the atomizer head in the Rialto tank, remove the Rialto tank from the
Psyche by unscrewing. Unscrew the base of the tank. Remove the atomizer head
from the base by unscrewing, and insert a new atomizer head. After fitting a new
atomizer head, remember that it will need priming as described in the section
“Priming the Atomizer Head”.

11

USING YOUR PSYCHE

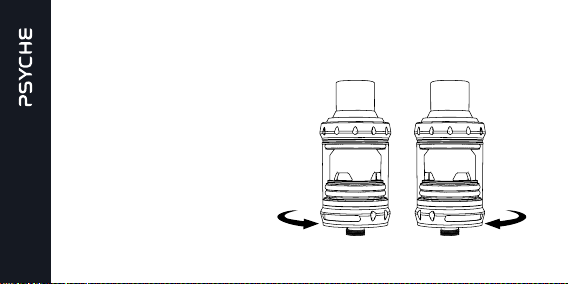

Adjustment of airflow:

To adjust the airflow to your personal
preference, rotate the airflow control
ring located at the bottom of the tank.
The more area exposed behind the
slots in the airflow ring, the more
open the air draw will be.

12

USING YOUR PSYCHE

Setting the wattage:

The Psyche has adjustable wattage
that can be set from 1 – 80 watts. Use
the adjustment buttons to increase
or decrease the wattage on the
battery. The fitted atomizer head can
be used from 15 to 30 watts. For the
best balance of flavour and vapour
production we suggest a starting point
of 15 watts, which you can then adjust
in small increments to find your favourite
setting.

Wattage adjustment lock:

The Psyche’s wattage adjustment can
be locked to prevent the wattage from
accidentally being altered during use.
While the Psyche is powered on, press
the up and down adjustment buttons
simultaneously for 3 seconds. The
screen will display “Lock”. Repeating
this process will return the device to
normal operation, and the screen will
display “UnLock”.

13

USING YOUR PSYCHE

Rotating the display:

Pressing the up and down buttons simultaneously for 3 seconds when the Psyche is
powered off will rotate the screen display through 180°. This can be helpful if you are
left-handed.

Short circuit protection

If a short circuit occurs whilst the power button is pressed, the screen will display
“ATOMIZER SHORT”. Replacing the atomizer head should allow normal operation to
resume. Follow the steps outlined in “Changing the Atomizer Head”.

Atomizer protection

If the power button is held down for longer than 10 seconds, the device will stop

14

USING YOUR PSYCHE

producing any vapour. A message will appear on screen stating “Over 10s” and the
device will power off. 5 clicks of the power button will turn the device back on
and allow normal operation to resume.

Note: It is possible to change the maximum vaping time between 5, 10 and 15
seconds, or to turn this function off entirely. See “Advanced Functions” for more
information.

Dry Burn Protection

The Psyche features automatic Dry Burn Protection (DBP) technology, which
prevents atomizer heads from prematurely burning when the e-liquid level is low.
This technology is only active with the ML-S 0.6ohm atomizer head.

15

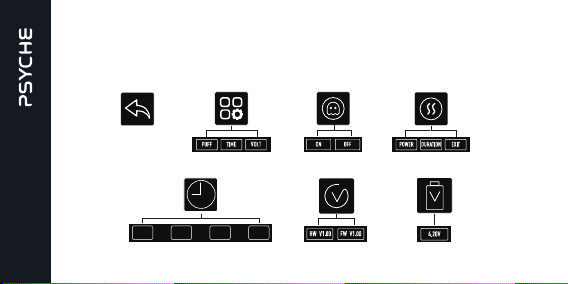

ADVANCED FUNCTIONSADVANCED FUNCTIONS

16

RETURN

5S 10S 15S Off

DISPLAY

VAPING TIMEOUT

STEALTH

VERSION

PREHEAT

BATTERY VOLTAGE

ADVANCED FUNCTIONS

The Psyche has a number of advanced functions that can be activated, adjusted
or turned off entirely. They are functions that you do not necessarily need, and are
consequently held in a hidden menu. If you are not the sort of person that wants to
worry about this sort of detail, you can ignore them and use the standard factory
settings. However, if you are the sort of person that wants to fully customise your
vaping experience, read on!
To enter the advanced function menu press the power button and the up button
simultaneously for 3 seconds. You can then use the up and down buttons to scroll
along the display and access each function. The first function shown is the Return
symbol. Pressing the power button with this symbol highlighted, or simply waiting 10
seconds while taking no action, will exit the menu and return the Psyche to normal
operation.

17

ADVANCED FUNCTIONS

Display information:

The Psyche can display a choice of a puff counter, total vaping time or voltage output
beneath the atomizer resistance reading. Use the up and down buttons to select
the Display icon, then press the power button. You can then use the up and down
buttons to choose your preferred display information, and select it by pressing the
power button. Should you wish to reset the puff counter or the total vaping time,
pressing the up button for 3 seconds will set the selected counter to zero. Pressing
the power button will return the Psyche to the advanced menu.

18

ADVANCED FUNCTIONS

Stealth mode:

The Psyche is equipped with provision for “stealth mode”, where normal use will not
activate the screen, but a short press of the power button will allow the display to
function normally. Pressing the power button when the Stealth icon is highlighted
allows stealth mode to be turned on or off, using up and down buttons to highlight,
and power button to select.

19

ADVANCED FUNCTIONS

Preheat

The Psyche’s preheat function allows the atomizer head to heat up quickly by
providing additional power for a short period as the power button is pressed. To set
the preheat, access the menu by holding the up adjustment button and power button
simultaneously. Pressing the power button when the Preheat icon is highlighted
allows you to choose your preferred pre-heat power (Pwr) and heating duration
(Dura) up to 2 seconds. Use these setting cautiously, as preheat power much higher
than you are normally using can cause damage to your atomizer head. Setting the
preheat duration to zero (this is the default setting) disables the preheat function.
Preheat power is initially set at 30W.

20

ADVANCED FUNCTIONS

Vaping timeout:

The maximum vaping time on the Totally Wicked Psyche can be changed between
5, 10 or 15 seconds, and can also be turned off. Selecting the Vaping timeout icon
allows settings to be selected.

Version:

Selecting the Version icon allows the current hardware and firmware versions to be
displayed.

Battery Voltage:

Selecting the Battery Voltage icon allows the current internal battery cell voltage to
be displayed.

21

KIT CONTENTS

1 x Psyche battery
1 x Rialto tank
1 x ML-S 0.6ohm atomizer head (fitted)
1 x ML-S 0.6ohm atomizer head (spare)
1 x USB-C cable
1 x User manual
Spare parts

22

ADDITIONAL PRODUCT
INFORMATION

There are no reported medical side
effects with this product. If you believe
you experience a side effect, please
contact the manufacturer.

SPECIFICATIONS

Psyche Battery

Dimensions: 133mm (length) x 36mm
(width) x 30.3mm (depth)

Weight: 187g
Battery capacity: 3000mAh
Output modes: Wattage Mode
Max charging current: 2.0A
Wattage range: 1 – 80W
Screen size: 0.86in

Tank/Battery connection: 510

connection

Rialto Tank

Maximum tank diameter: 26mm
Tank capacity: 2ml
Filling method: Sliding top fill with

locking mechanism

Airflow type: Bottom adjustable
Atomizer head resistance
compatibility: 0.05 – 3.0ohm
Max refill nozzle diameter: 3.2mm

23

PRODUCT STORAGE AND BATTERY PRECAUTIONS

• Store the Psyche and its accessories away from children when not in use.

• Ensure the Psyche is powered off when not in use.

• Avoid accidentally pressing the Psyche power button when not in use.

• Please only use the charging cable provided.

• Please dispose of dead batteries in accordance with your country’s appropriate
legislation.

• Do not charge the batteries in a damp environment.

• Do not use the device when temperatures are outside the range -10 - 60°0C.

• Do not charge the battery when temperatures are outside the range 0 - 45°C.

• Do not attempt to repair a faulty Psyche as these are sealed units with no
serviceable parts. Attempted repairs will void the warranty.

24

WARRANTY

The Psyche components have a 28-day parts warranty, with the exception of Atomizer
Heads, which are consumable items and covered by “dead on arrival” warranty only.
The USB cable supplied has a 12-month warranty. If any parts are found to be faulty
within this time please contact our customer service team, whose details are on the
back page of this booklet and we will arrange for a replacement. We may require the
goods to be returned for further investigation.

25

Manufactured in China under the authority of Pillbox38 UK Ltd,
