ELECTRONIC PIPE
USER MANUAL
Page 2
3
TOTALLY WICKED PIPE X
ELECTRONIC CIGARETTE
CONGRATULATIONS ON PURCHASING YOUR
THE TOTALLY WICKED PIPE X
Tank
Atomizer head
Battery cap
Battery
Pipe X body
Tank base
Mouthpiece
• Prime the atomizer head.
• Fill the tank.
• Insert the battery (NEGATIVE SIDE DOWN AND TOUCHING
THE SPRING)
• Inhale
• Charge the battery (possibly not shipped with a full charge).
Detailed descriptions of these steps and more
are given in the following pages of this manual.
If you are familiar with
using e-cigarettes,
follow the quick start
guide to be vaping in
minutes.
Page 3
4 5

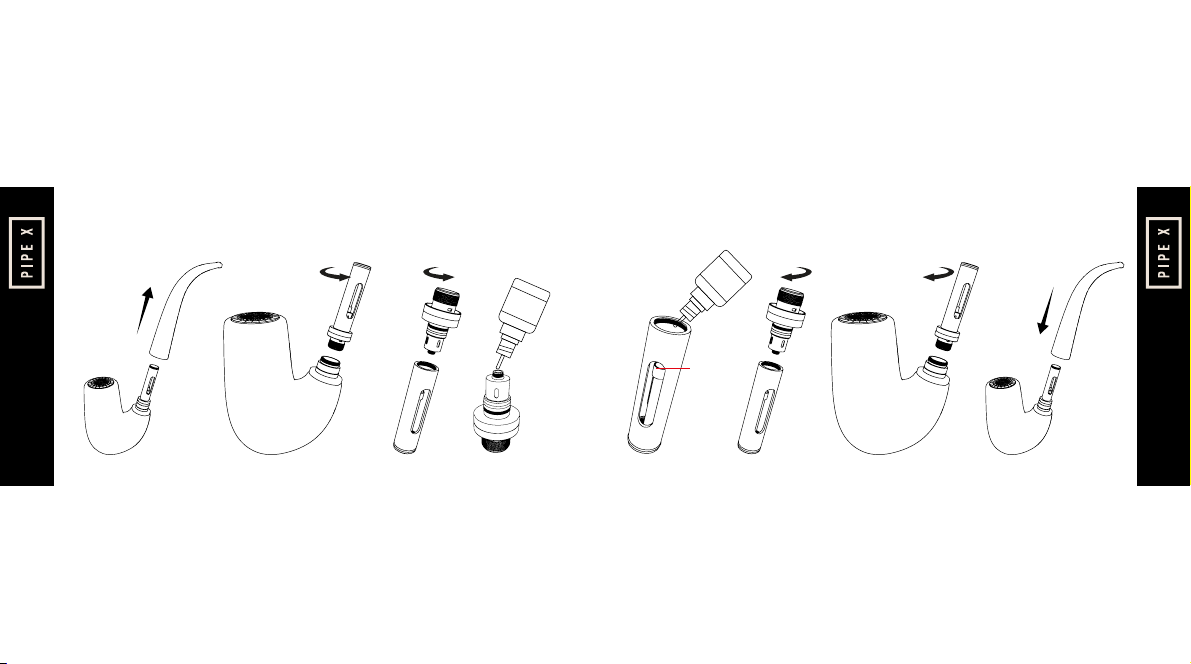

PRIMING AND FILLING
MAX FILL
Page 4
6 7
PRIMING AND FILLING
It is important to “prime” a new atomizer
head before first use. Failure to do so
can cause the atomizer coil to overheat,
resulting in a burnt taste and sometimes
irreversible damage to the atomizer head
requiring early replacement.
Remove the mouthpiece by pulling straight
off, and unscrew and remove the tank
assembly from the pipe body. Unscrew
the tank base to reveal the atomizer head.
Prime the atomizer head by dripping a
few drops of e-liquid on the side e-liquid
inlets of the atomizer head. Fill the tank to
just below the height of the central air tube
as shown in the diagram. Avoid allowing
liquid into the central air hole. Screw the
tank base back into the tank, then screw
the tank back on to the pipe body. Refit
the mouthpiece by pushing firmly over
the tank, being careful to ensure correct
orientation of the alignment tab.
Note: After priming a new atomizer head
and filling the tank with e-liquid, it is
recommended to wait 5 minutes to ensure
the atomizer head is fully saturated with
e-liquid.

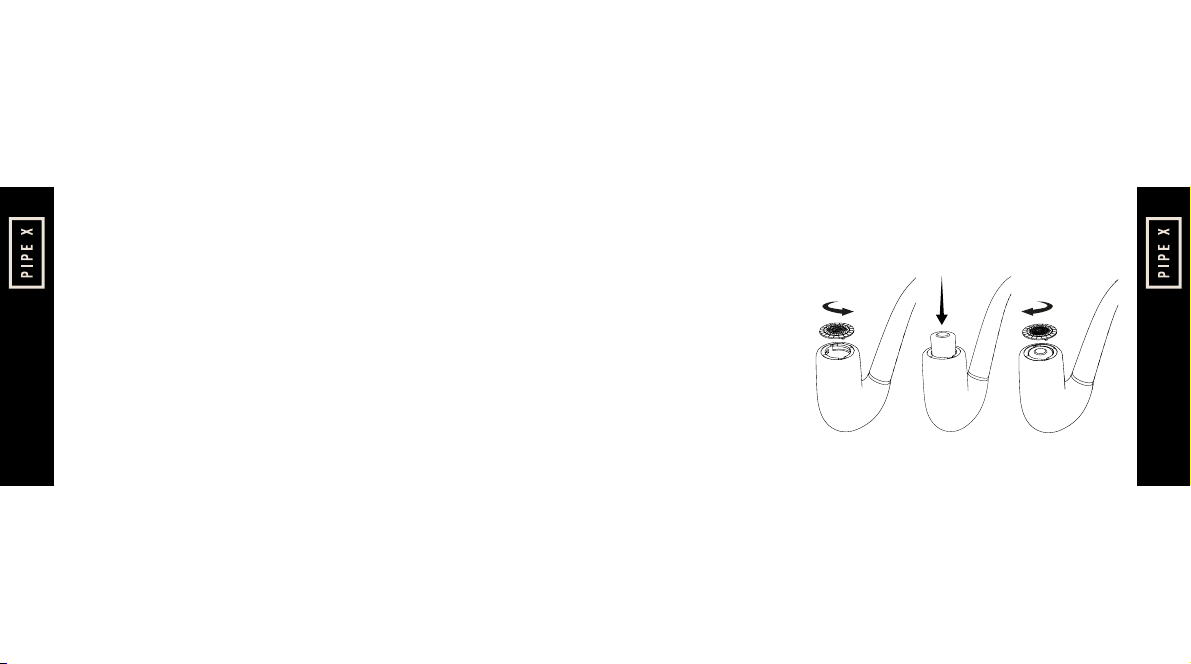

FITTING THE BATTERY
To fit the battery, invert the
Pipe X and turn the battery
cap anti-clockwise until it
falls free. Insert the battery
into its housing negative
side first, push the top cap
down so that its tabs align
with the cut outs in the Pipe
X body, and holding down,
rotate through one quarter
turn clockwise. The LEDs
will flash 3 times to indicate
successful insertion.
Page 5
8 9
USING YOUR TOTALLY WICKED PIPE X
Vaping
Draw gently but firmly on the Pipe X mouthpiece so
that the LED lights up.

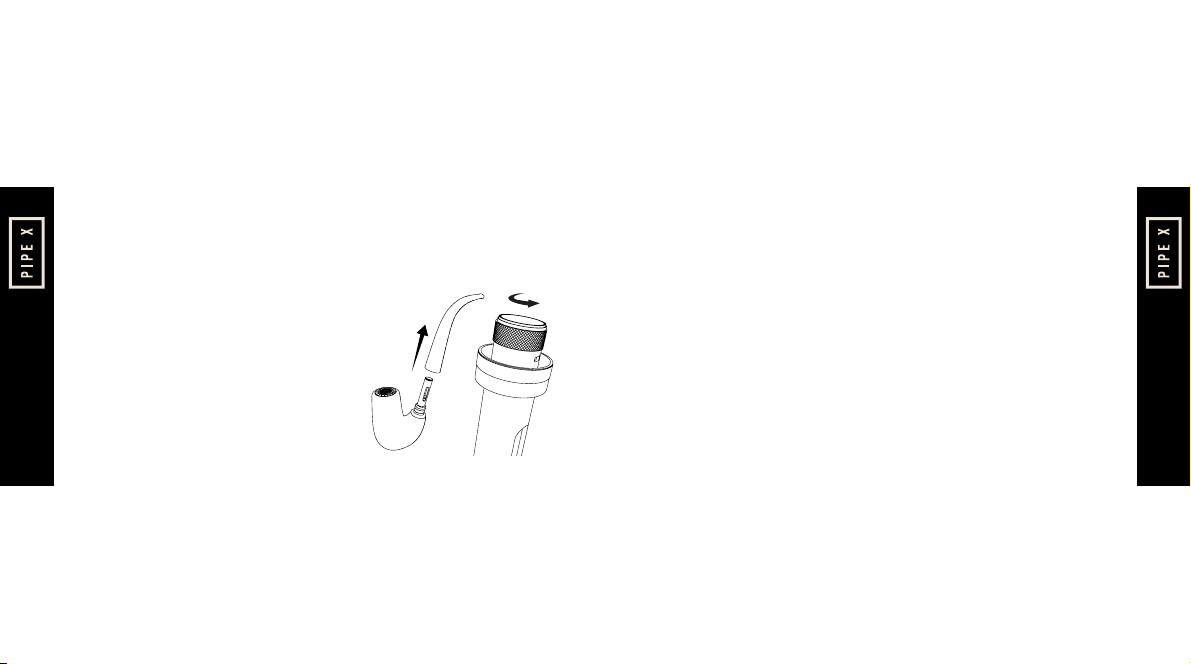

Adjusting Airflow
If you find the air flow too airy or too tight while
vaping, remove the mouthpiece from the Pipe X and
unscrew the tank assembly. Located at the bottom of
the base is an adjustable airflow ring. Rotate the air
flow control ring clockwise to open, and anticlockwise
to close, until you find your preferred setting. Airflow
adjustment can be checked by drawing on the tank
assembly while it is removed from the Pipe X.
USING YOUR TOTALLY WICKED PIPE X
E-liquid Level
To prevent the atomizer head from
becoming dry and burning prematurely,
ensure the amount of E-liquid inside the
Pipe X does not drop below the fluid feed
holes located on the sides of the atomizer
head. The mouthpiece must be removed
to make the fluid level visible through the
glass windows of the tank.
Low Battery
When the Pipe X reaches a voltage of 3.4V,
the LED will flash 10 times. This indicates
the Pipe X has insufficient battery voltage to
deliver power. Charge the battery using the
steps outlined in “Charging the Battery” to
allow normal operation to resume.
Charging The Battery
The Totally Wicked Pipe X is charged
using an appropriate 18650 Li Ion battery
charger. Follow the instructions included
with the charger.
Page 6
10 11
USING YOUR TOTALLY WICKED PIPE X
Changing The Atomizer Head
To install a new atomizer head follow the
process shown in “Priming and Filling”, and
unscrew the atomizer from the tank base.
Replace only with the appropriate Totally
Wicked PX atomizer head.
Reminder: After priming a new atomizer
head and filling the tank with e-liquid,
it is recommended to wait 5 minutes
to ensure the atomizer head is fully
saturated with e-liquid.
Atomizer Head Lifespan
Atomizer heads do not last forever and
need to be periodically replaced. The
lifespan of an atomizer head can vary
from several days up to several weeks.
Factors affecting lifespan include wattage,
vaping style, flavour and type of E-liquid.
Indicators that the atomizer head may
require replacement include a slight burnt
taste, general loss of vapour production or
a reduction in flavour intensity.
PROTECTIONS
Short Circuit Protection
If an atomizer short circuit occurs, the
LED will flash 4 times, the Pipe X will not
provide power to the atomizer or produce
any vapour. Replacing the atomizer head
should allow normal operation to resume.
To replace the atomizer head follow the
steps outlined in Changing The Atomizer
Head.
No Atomizer Detected Protection
If no atomizer is detected, the LED will flash
5 times and the Pipe X will not provide
power to the atomizer or produce any
vapour Ensure the atomizer head is fully
screwed into the base of the tank, then fit
the tank back onto the battery. If the “No
Atomizer” sequence continues, replacing
the atomizer head should allow normal
operation to resume. Follow the steps
outlined in Changing The Atomizer Head.
Page 7
12 13
PROTECTIONS
Atomizer Head Protection
After 10 seconds of continuous operation,
power to the atomizer will be cut off and
the LED will flash 10 times. The device will
resume normal operation on the next use.
Cleaning And Maintenance
The Totally Wicked Pipe X body,
mouthpiece and tank connection threads
can be cleaned by wiping down with tissue
or a dry cloth. The Pipe X mouthpiece,
tank and base can be cleaned under warm
running water when disassembled. Allow
the tank to fully dry before refitting the
atomizer head.
Note: Do not attempt to clean the atomizer
head with water. Do not submerge the Pipe
X body in water or allow it to get wet.
1 x Pipe X
1 x PX 0.7ohm atomizer head (fitted)
1 x PX 0.7ohm atomizer head (spare)
1 x Leather Pipe X stand
1 x User manual
Spare parts
Dimensions: 158mm (height) x 45mm
(width) x 120mm (depth)
Weight: 223g with battery fitted
Battery Capacity: Single 18650
Thread Type: Proprietary connection
Atomizer activation: Automatic
KIT CONTENTS SPECIFICATIONS
Page 8
14 15
• Store the Pipe X e-cigarette and its accessories away from children whilst not in use.
• Please dispose of dead batteries in accordance with your country’s appropriate legislation.
• Do not charge the battery in a damp environment, or in temperatures under 0°C or above
45°C.
• Do not use the device in temperatures under -10°C or above 60°C.
• Do not carry batteries in a pocket or bag with other metallic objects.
• Do not attempt to repair a faulty Pipe X body or its battery, as these are sealed units with
no serviceable parts. Attempted repairs will void the warranty.
Totally Wicked Pipe X components have a
28-day parts warranty with the exception
of atomizer heads which are consumable
items and are covered by our ‘Dead on
Arrival’ warranty only. If any parts are found
to be faulty within this time please contact
our customer service team, whose details
are on the back page of this booklet and
we will arrange for a replacement. We may
require the goods to be returned for further
investigation.
Additional product information
There are no reported medical side effects
with this product. If you believe you
experience a side effect, please contact the
manufacturer.
PRODUCT STORAGE AND BATTERY PRECAUTIONS WARRANTY
Page 9
ELECTRONIC PIPE
Manufactured in China
under the authority
of Pillbox38 UK Ltd,
Stancliffe Street,
Blackburn, Lancashire,
BB2 2QR.
Tel 01254 692244
www.totallywicked.co.uk
Tel 1(888) 761-9425
www.totallywicked.com
Tel 0941-78447082
www.totallywicked.de
