USER MANUAL

CONGRATULATIONS
ON PURCHASING YOUR

TOTALLY WICKED
ORBIS
ELECTRONIC
CIGARETTE KIT

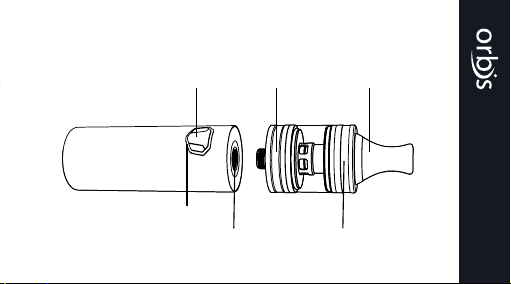

TOTALLY WICKED ORBIS

TANK

CONNECTION

POWER

BUTTON

MOUTHPIECE

AIRFLOW

CONTROL

TOP CAP

INDICATOR

LIGHT

3

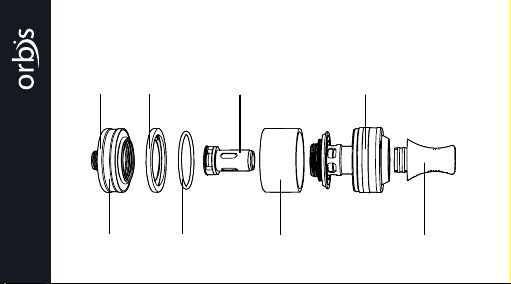

TOTALLY WICKED ORBIS

TOP CAP

AIRFLOW

CONTROL

MOUTHPIECE

GLASS

RETAINING

RING

TANK

GLASS

TANK
BASE

RETAINING
RING SEAL

ATOMIZER

HEAD

4

QUICK START GUIDE

If you are familiar with using e-cigarettes, follow the quick start guide
below to be vaping in minutes:

• Prime the atomizer head

• Fill the tank

• Switch the Orbis on (5 clicks of the power button)

• Press the power button and inhale

• Charge the battery (possibly not shipped with a full charge)

Detailed descriptions of these steps and more are given in the full user
guide

5

USING YOUR ORBIS

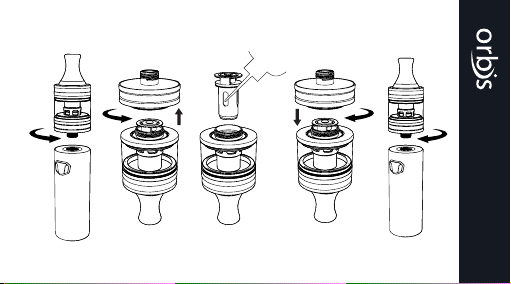

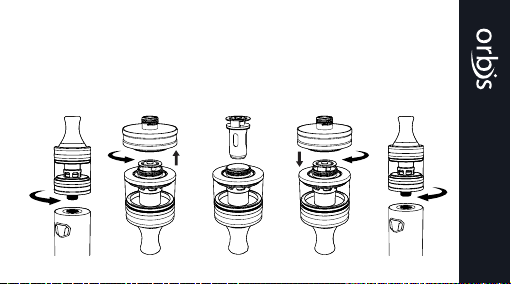

Priming the Atomizer Head
It is important to “prime” a new atomizer head before first use. Failure
to do so can damage the atomizer head.

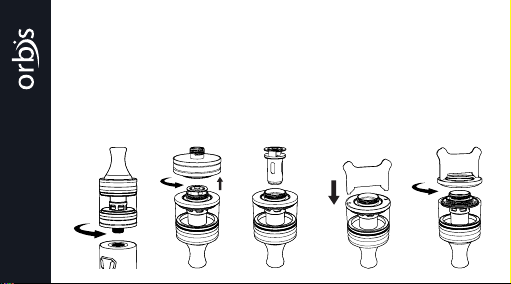

Grip the airflow control and unscrew the tank from the battery. Holding the
tank’s glass tube, unscrew the base from the tank. Remove the atomizer
head by pulling straight out, drip a few drops of e-liquid onto the cotton
wick through the openings on the sides of the atomizer head, and re-insert
into the tank. Screw the base back onto the tank and refit to the battery.

Note: After priming a new atomizer head and filling the tank, it is
recommended to wait 5 minutes before vaping to ensure the atomizer
head is fully saturated.

6

7

USING YOUR ORBIS

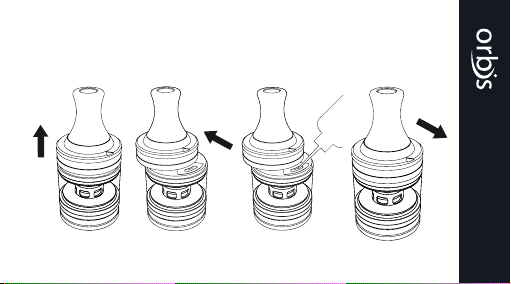

Filling the Tank

Pull the top of the tank upwards and slide the top cap open by pushing
firmly in the direction indicated by the arrow on the top of the tank. Insert
the filling nozzle of your e-liquid bottle through the slit in the silicone filling
seal, and fill the tank, being careful not to overfill. Slide the top cap shut
after filling.

Note: To avoid leaking, ensure an air gap of around 2mm remains
above the e-liquid after filling.

8

USING YOUR ORBIS

9

USING YOUR ORBIS

Atomizer Head Lifespan:

Atomizer heads do not last forever and need to be replaced periodically.
Lifespan is generally from a few days to several weeks, depending on
power used, vaping style, flavour and type of e-liquid. A slight burnt taste,
general loss of vapour production, or a reduction in flavour intensity can all
be indicators that the atomizer head requires replacement.

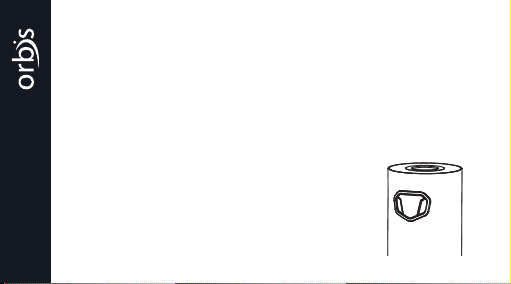

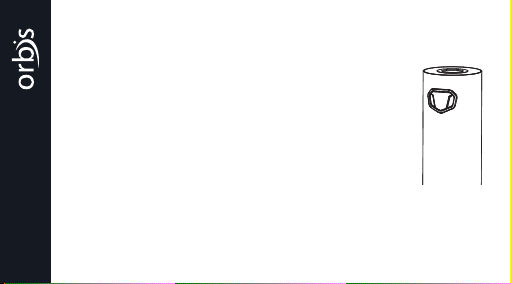

Switching On and Off:

To switch the Orbis on or off, quickly press the power
button five times. The indicator light will flash five times
when switched on or off.

10

USING YOUR ORBIS

Vaping:

Press and hold the power button as you gently inhale the vapour, releasing
the power button when you have finished inhaling. The indicator light will
illuminate while the power button is held down, with its colour showing
battery condition. See Battery Life Indication to see what each colour
means.

Adjusting Airflow:

If you find airflow too airy or too tight, rotate the airflow control to expose
less or more of the slit or holes at each end of the adjuster travel. The
holes will give a finer adjustment, while the slit allows more open airflow.
Experiment to find your preference.

11

USING YOUR ORBIS

Changing Output Modes:

The Orbis battery has 3 different power modes: High, Medium
and Low. To switch between the power modes, press the power
button three times in quick succession; the indicator light will
illuminate Green for high power mode, Blue for medium power
mode and Red for low power mode. To check which mode
is active, press the power button twice, and the indicator will
illuminate to show the current mode momentarily.

E-liquid Level:

To prevent the atomizer head from becoming dry and burning prematurely,
ensure the tank remains at least ¼ full.

12

USING YOUR ORBIS

Battery Life Indication:

When the power button is pressed in normal use, the indicator light will
display the colours below, dependent on the device’s level of charge.

Light Condition Battery Percentage

Green 100% – 60%

Blue 59% – 20%

Red

≤

19%

13

USING YOUR ORBIS

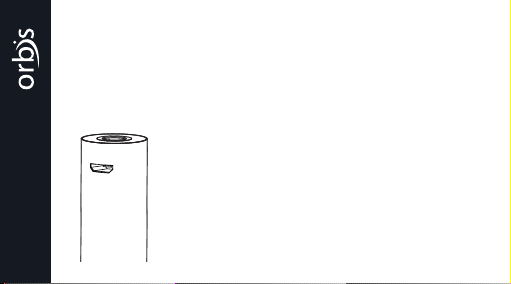

Charging the Battery

Insert the supplied charge cable into the Orbis charging port, and connect
the other end of the charge cable to a USB port or suitable wall adaptor.
The indicator light will illuminate red while charging. When fully charged,

14

the indicator light will switch off. The Orbis can be used
normally while charging.

Replacing the Atomizer Head

Unscrew the tank from the battery, remove the base
of the tank by unscrewing. Pull out the old atomizer
head and replace with a new one after following the
instructions in Priming the Atomizer Head. Screw
the base back onto the tank and refit to the battery.

USING YOUR ORBIS

Note: After priming a new atomizer head and filling the tank, it is
recommended to wait 5 minutes before vaping to ensure the atomizer
head is fully saturated.

15

USING YOUR ORBIS

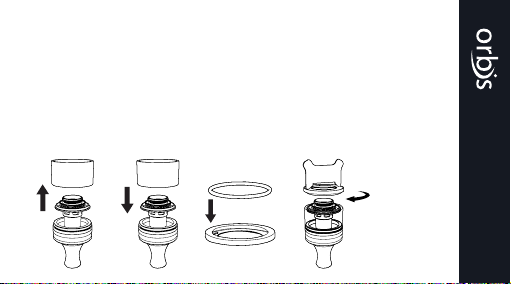

Replacing the Tank Glass

The tank glass for the Orbis can be replaced using the special spanner
provided in the kit. To change the glass, remove the tank from the battery
and unscrew the base. Remove the atomizer head from the tank and insert
the prongs of the spanner in the two small holes now exposed.

16

USING YOUR ORBIS

Holding the tank, turn the tool anti clockwise until the retaining ring is
completely unscrewed, and remove the glass, taking care not to lose the
retaining ring seal. Replace the glass section, ensure the retaining ring seal
is correctly seated in the groove in the glass retaining ring, and refit the
glass retaining ring, tightening with the spanner. Refit the atomizer head
and tank base.

17

PROTECTIONS

Atomizer Head Protection

If the power button is held down for longer than 15 seconds while vaping,
the indicator light will flash 10 times and the Orbis will refuse to power or
produce any vapour. Releasing the power button allows normal operation
to resume.

Low Voltage Protection

If battery voltage drops to 3.3 volts, the indicator light will flash 20 times
and the Orbis switch off. Charge the Orbis using the procedure outlined in

Charging the Battery to allow normal operation to resume.

Incompatible Atomizer Head Resistance

If the atomizer head resistance is below 0.3ohm, the indicator light will

18

PROTECTIONS

quickly flash 5 times when pressing the power button. If the atomizer
head resistance exceeds 3.0ohm, the indicator light will flash slowly when
pressing the power button. Replacing the atomizer head with one of a
compatible resistance above 0.3ohm and below 3.0ohm will allow normal
operation to resume.

Short Circuit Protection

If an atomizer short circuit occurs, the indicator light will flash 5 times and
the Orbis will switch off. Replace the atomizer head by following the steps in

Replacing the Atomizer Head, then follow the procedure in Charging The
Battery to restore power and allow normal operation to resume.

19

KIT CONTENTS

1 x Orbis battery
1 x Orbis tank
1 x GT-M 0.6ohm

1 x GT-M 0.6ohm

1 x USB cable
1 x User manual
Spare parts

20

atomizer head (fitted)

atomizer head (spare)

ADDITIONAL PRODUCT
INFORMATION

There are no reported medical
side effects with this product. If
you believe you experience a
side effect, please contact the
manufacturer.

SPECIFICATIONS

Dimensions: 22mm (diameter) x 104mm (length)
Battery capacity: 1100mAh
Max charging current: 1.0A
Tank capacity: 2ml
Atomizer head type: GT atomizer heads
Maximum power: 25W
Maximum filling nozzle diameter: 3.0mm

21

PRODUCT STORAGE AND BATTERY PRECAUTIONS

• Store the Orbis kit and its accessories away from children when not in
use.

• Please only use the charging cable provided.

• Please dispose of dead batteries in accordance with your country’s
appropriate legislation.

• Do not charge the battery in a damp environment, or in temperatures
under 0°C or above 45°C.

• Do not use the device in temperatures under -10°C or above 60°C.

• Do not carry batteries in a pocket or bag with other metallic objects.

• Do not attempt to repair a faulty Orbis battery as these are sealed units
with no serviceable parts. Attempted repairs will void the warranty.

22

WARRANTY

The Orbis kit components have a six month parts warranty, with the
exception of Atomizer Heads, which are consumable items and covered by
“dead on arrival” warranty only. The USB cable supplied has a 12 month
warranty. If any parts are found to be faulty within this time please contact
our customer service team, whose details are on the back page of this
booklet and we will arrange for a replacement. We may require the goods
to be returned for further investigation.

23
