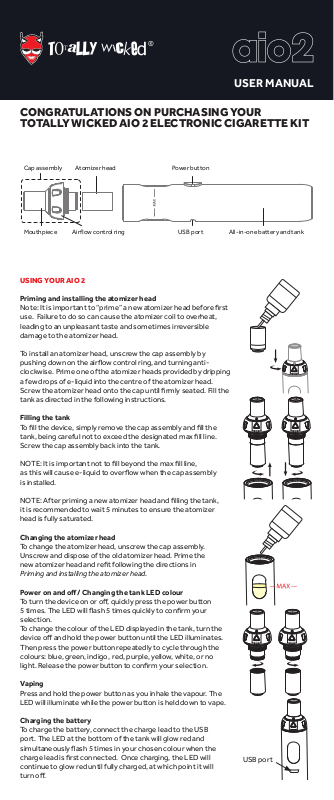

Totally wicked AIO 2 User Manual
USER MANUAL
CONGRATULATIONS ON PURCHASING YOUR
TOTALLY WICKED AIO 2 ELECTRONIC CIGARETTE KIT
Cap assembly
Mouthpiece
USING YOUR AIO 2
Priming and installing the atomizer head
Note: It is important to “prime” a new atomizer head before rst
use. Failure to do so can cause the atomizer coil to overheat,
leading to an unpleasant taste and sometimes irreversible
damage to the atomizer head.
To install an atomizer head, unscrew the cap assembly by
pushing down on the airow control ring, and turning anti-
clockwise. Prime one of the atomizer heads provided by dripping
a few drops of e-liquid into the centre of the atomizer head.
Screw the atomizer head onto the cap until rmly seated. Fill the
tank as directed in the following instructions.
Filling the tank
To ll the device, simply remove the cap assembly and ll the
tank, being careful not to exceed the designated max ll line.
Screw the cap assembly back into the tank.
NOTE: It is important not to ll beyond the max ll line,
as this will cause e-liquid to overow when the cap assembly
is installed.
NOTE: After priming a new atomizer head and lling the tank,
it is recommended to wait 5 minutes to ensure the atomizer
head is fully saturated.
Changing the atomizer head
To change the atomizer head, unscrew the cap assembly.
Unscrew and dispose of the old atomizer head. Prime the
new atomizer head and ret following the directions in
Priming and installing the atomizer head.
Power on and o / Changing the tank LED colour
To turn the device on or o, quickly press the power button
5 times. The LED will ash 5 times quickly to conrm your
selection.
To change the colour of the LED displayed in the tank, turn the
device o and hold the power button until the LED illuminates.
Then press the power button repeatedly to cycle through the
colours: blue, green, indigo, red, purple, yellow, white, or no
light. Release the power button to conrm your selection.
Vaping
Press and hold the power button as you inhale the vapour. The
LED will illuminate while the power button is held down to vape.
Charging the battery
To charge the battery, connect the charge lead to the USB
port. The LED at the bottom of the tank will glow red and
simultaneously ash 5 times in your chosen colour when the
charge lead is rst connected. Once charging, the LED will
continue to glow red until fully charged, at which point it will
turn o.
Atomizer head Power button
USB port All-in-one battery and tankAirflow control ring
USB port
Battery level indication
Approximately one second after the
power button is released, the LED
will relight to show the battery’s
approximate remaining charge as
detailed in the table.
Battery Percentage LED Condition
100-60% Continuously lit
59 – 30% Flashes slowly
29 – 10% Flashes moderately
9 – 0% Flashes quickly
Adjustment of airow:
Adjust the airow by turning the airow control ring. When the triangle indentation on the
ring is aligned with the indentation just below the mouthpiece, the airow is fully open.
Rotating the ring either clockwise or anti-clockwise by 90° will minimise the airow. To
nd your preferred airow adjust the ring between 0 - 90°.
PROTECTIONS
Short circuit protection
If a short circuit occurs before the power
button is pressed, the LED will ash 5
times. If a short circuit occurs while the
power button is pressed, the LED will ash
3 times. Replacing the atomizer head
should allow normal operation to resume.
Follow the steps outlined in Changing the
atomizer head.
Atomizer protection
If the power button is held down for
longer than 15 seconds, the device will
stop producing any vapour and the power
LED will ash 10 times. After releasing
the power button normal operation will
resume.
Low voltage protection
If the battery voltage drops below 3.3V,
the LED will ash 20 times and the device
will power o. Charge the device via USB
to power it back on.
KIT CONTENTS
1 x Totally Wicked AIO 2
2 x BF SS316 1.5ohm atomizer head
1 x USB cable
1 x User manual
Spare parts
Specications:
Dimensions: 119.0mm (length) x 19.0mm
(diameter)
Weight: 71g
Battery capacity: 1500mAh
Output modes: Direct output
Tank/Battery connection: All in one
Tank capacity: 2.0ml
Filling method: Screw top ll with child-
lock
Airow type: Top adjustable
Atomizer head resistance compatibility:
0.3 – 3.0ohm
Max rell nozzle diameter: 12mm
ADDITIONAL PRODUCT INFORMATION
There are no reported medical side eects
with this product. If you believe you
experience a side eect, please contact
the manufacturer.
PRODUCT STORAGE AND BATTERY
PRECAUTIONS
• Store the AIO 2 and its accessories away
from children when not in use.
• Ensure the AIO 2 is powered o when
not in use.
• Avoid accidentally pressing the AIO 2
power button when not in use.
• Please only use the charging cable
provided.
• Please dispose of dead batteries
in accordance with your country’s
appropriate legislation.
• Do not charge the batteries in a damp
environment.
• Do not use the device when
temperatures are outside the range
-10 - 60°C.
• Do not charge the battery when
temperatures are outside the range
0 - 45°C.
• Do not attempt to repair a faulty AIO
2 as these are sealed units with no
serviceable parts. Attempted repairs will
void the warranty.
WARRANTY
The AIO 2 components have a 28-day
parts warranty, with the exception of
Atomizer Heads, which are consumable
items and covered by “dead on arrival”
warranty only. The USB cable supplied
has a 12-month warranty. If any parts
are found to be faulty within this time
please contact our customer service
team, whose details are on the back page
of this booklet and we will arrange for a
replacement. We may require the goods to
be returned for further investigation.
Manufactured in China under the authority
of Pillbox38 UK Ltd, Stanclie Street,
Blackburn, Lancashire, BB2 2QR.
Tel 01254 692244 www.totallywicked.co.uk
Tel 1(888) 761-9425 www.totallywicked.com
Tel 0941-78447082 www.totallywicked.de
