Total Control DMS-OUT Owner's Manual
Universal Remote Control
DMS-OUT
Owner’s Manual
www.UniversalRemote.com
Universal Remote Control
DMS-OUT Owner’s Manual
Overview
The DMS-OUT allows 3rd party devices access to the streaming sources in
the DMS Audio Network. For example, this device is the perfect solution for
adding any new/existing 3rd party AVR, soundbar, or other audio device to
the DMS Audio Network.
Online Help:
www.urccontrolroom.com
For software downloads, training materials, and frequently asked questions.
Contact Support:
Total Control is a URC product sold through Authorized Dealers, for
questions or assistance contact you Custom Installer/Programmer (write in
the company name, email, and contact info):
or URC Technical Support at: techsupport@universalremote.com
Universal Remote Control, Inc.
500 Mamaroneck Ave
Harrison, New York 10528
Toll Free: (800) 901-0800
Main: (914) 835-4484
Table of Contents
Features and Benefits.........................................1
Parts & Pieces......................................................1
Requirements......................................................1
Rear Panel............................................................2
Top Panel & LED States......................................4
Bottom Panel.......................................................5
Wiring the DMS-OUT..........................................6
Page 1
Features and Benefits
The DMS-OUT is loaded with features to provide the perfect audio experience. Enjoy features such as:
● 3rd Party Audio Device Integration
DMS-OUT grants 3rd party devices the ability to use sources that are available in the DMS Audio Stream.
● Audio Sensing Capability
The DMS-OUT, similar to the URC Audio Sensor (SEN-AUD), can detect an audio signal which can then trigger n activity (macro).
● Flexible Power Source
Use the supplied 5V DC power adapter or take advantage of the DMS-OUT’s PoE (Power Over Ethernet) capability using a CAT 5/6 wiring.
DMS-OUT Owner’s Manual
Parts & Pieces
Contained within the DMS-OUT box:
1. DMS-OUT Preamplifier Device
2. 5v DC Power Adapter
3. Wall Mount and 4x Screws
Requirements
As with all Total Control products, the DMS-OUT is not a
plug-and-play device. It requires programming by a
certified Total Control installer in order to work properly.
Be sure the system contains the following:
● MFS-8 or MFSPOE-8
● MRX-10 or MRX-8 Master System Controller
● URC User Interface (TRC-1080, TKP-7000, etc.)
Page 2
DMS-OUT Owner’s Manual
Rear Panel:
5V DC Input:
Provides power to the DMS-OUT. PoE may be used
as a substitute.
Analog Input:
Standard RCA (analog) connector.
Digital Input - Optical:
This input uses standard S/PDIF OPTICAL TOSLINK
connector.
Note: The DMS-OUT converts Dolby Digital 5.1/DTS 5.1
to a DMS Stream.
Page 3
LAN Port:
This 10/100 Ethernet port supports PoE and sends
the URC Audio stream through the local network,
this is also how the DMS-OUT receives commands
and sends audio.
Note: The DMS-OUT does not support Wi-Fi
Digital Input - Coax:
Standard RCA (analog) connector, this receives
bitstreams of audio data.
Note: The DMS-OUT converts Dolby Digital 5.1/DTS 5.1
to a DMS Stream.
DMS-OUT Owner’s Manual
Page 4
DMS-OUT Owner’s Manual

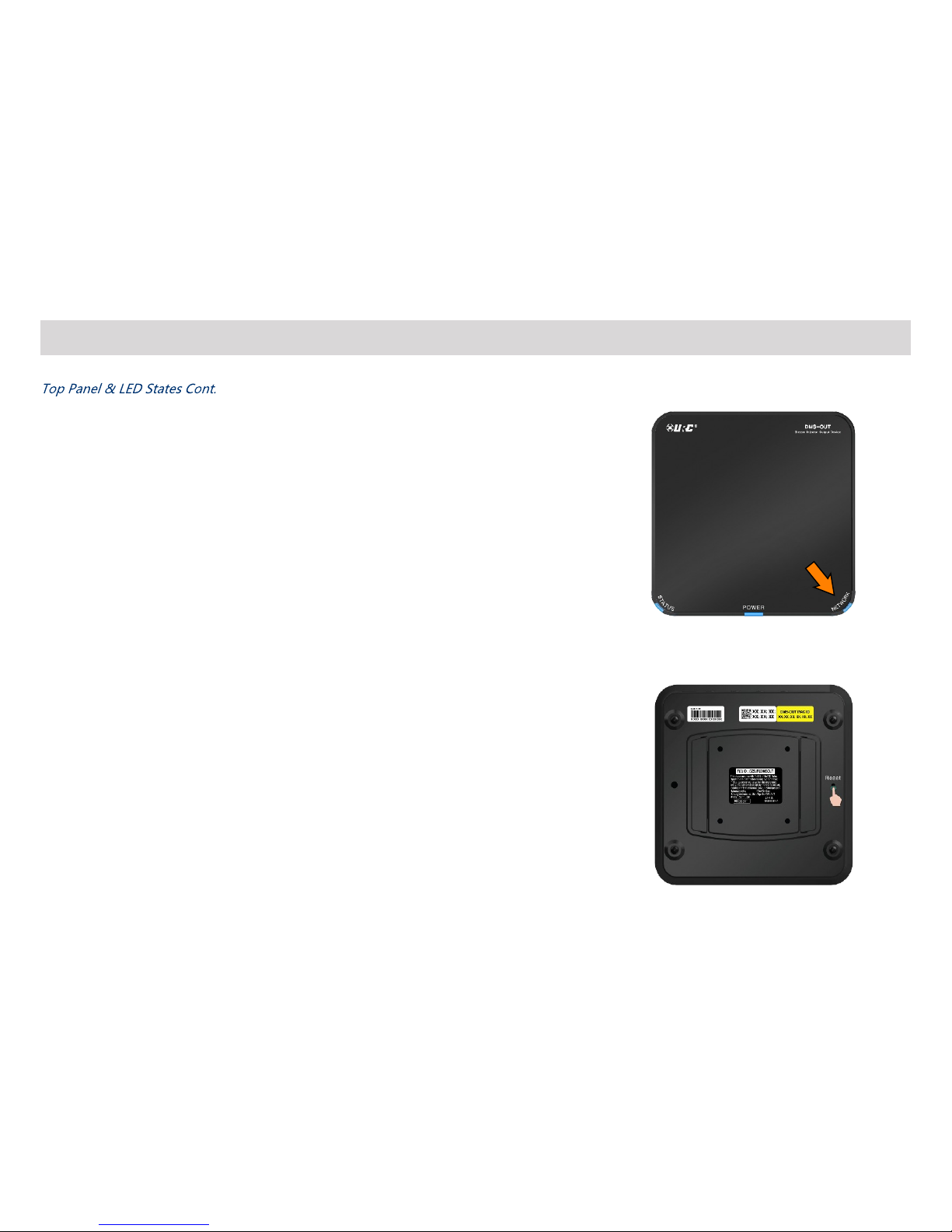

Top Panel & LED States:
There are three (3) LED lights at the top of the DMS-OUT which can provide users with basic troubleshooting information.
Status LED
● Off
Unit has not been programmed with a Total Control file.
● Yellow
Unit has been programmed with a Total Control file; however, is not creating
a DMS Audio Stream.
● Blue
Unit has been programmed with a Total Control file and is creating a DMS
Audio Stream through the network.
Power LED
● Off
Unit is not receiving power.
● Blue
Unit is receiving power via 5V DC adapter or PoE.
