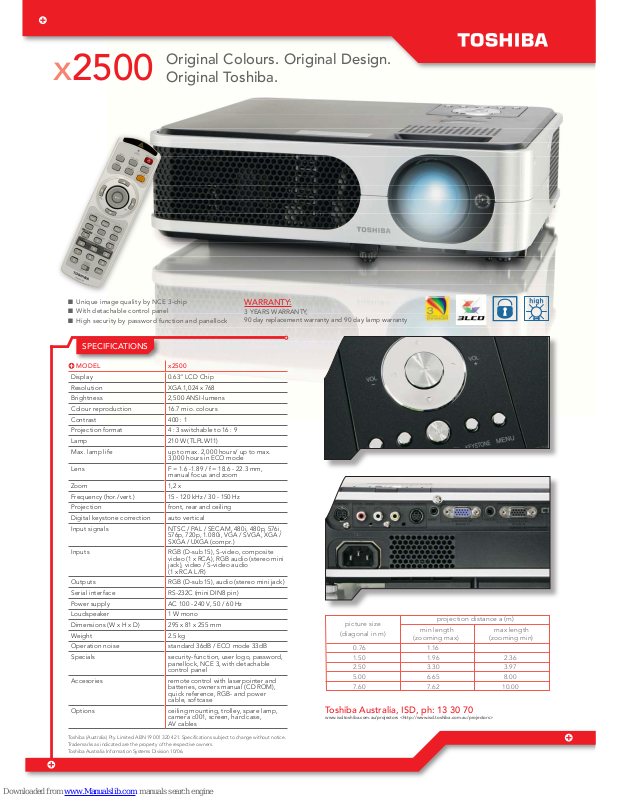

Toshiba TLP-X2500, X2500 Specifications

Toshiba (Australia) Pty. Limited ABN 19 001 320 421. Specifications subject to change without notice.
Trademarks as indicated are the property of the respective owners.
Toshiba Australia Information Systems Division 10/06.

SPECIFICATIONS

x2500

Unique image quality by NCE 3-chip
With detachable control panel
High security by password function and panellock

■

■

■

Original Colours. Original Design.
Original Toshiba.

MODEL x250 0

Display 0.63” LCD C hip

Resolution XGA 1,024 x 768

Brightness 2,500 ANSI-lumens

Colour reproduc tion 16.7 mio. colours

Contr ast 400 : 1

Projec tion format 4 : 3 switc hable to 16 : 9

Lamp 210 W (TLPLW11)

Max. la mp life up to max . 2,000 hours/ up to max.

3,000 hours in ECO mode

Lens F = 1.6 -1.89 / f = 18.6 - 22.3 mm,

manual focus and zoom

Zoom 1,2 x

Frequency (hor./vert.) 15 - 120 kHz / 30 - 150 Hz

Projec tion front, rear and ceiling

Digital keystone correction auto ver tical

Input signals NTSC / PAL / SECAM, 480i, 480p, 576i,

576p, 720p, 1.0 80i, VGA / SVGA, XGA /
SXGA / UXGA (compr.)

Input s RGB (D- sub 15), S-video, composite

video (1 x RC A), RGB audio (stereo mini
jack), video / S-video audio
(1 x RCA L/R)

Outputs RGB (D- sub 15), audio (s tereo mini jack)

Serial interface RS-232C (mini DIN8 pin)

Power supply AC 100 - 240 V, 50 / 60 Hz

Louds peaker 1 W mono

Dimensions (W x H x D) 295 x 81 x 255 mm

Weight 2.5 kg

Operation noise standard 36dB / ECO mode 33dB

Specials secu rity-function, user logo, password,

panellock, NCE 3, with detachable
control panel

Accesories remote control with laserpointer and

batteries, owners manual (CD ROM),
quick reference, RGB - and power
cable, softcas e

Options ceiling mounting, trolley, spare lamp,

camera c001, screen, hard case,
AV cables

picture size

(diagonal in m)

projection distance a (m)

min length

(zooming max)

max length

(zooming min)

0.76 1.16

1.50 1.96 2.3 6

2.50 3.30 3.97

5.00 6.65 8.0 0

7.60 7.62 10.0 0

Toshiba Australia, ISD, ph: 13 30 70

www.isd.toshiba.com.au/projectors <http://www.isd.toshiba.com.au/projectors>

WARRANTY:

3 YEARS WARRANTY,
90 day replacement warranty and 90 day lamp warranty
