UTV 1482
Schematic
9 pgs
526.34 Kb
0
Table of contents
Loading...

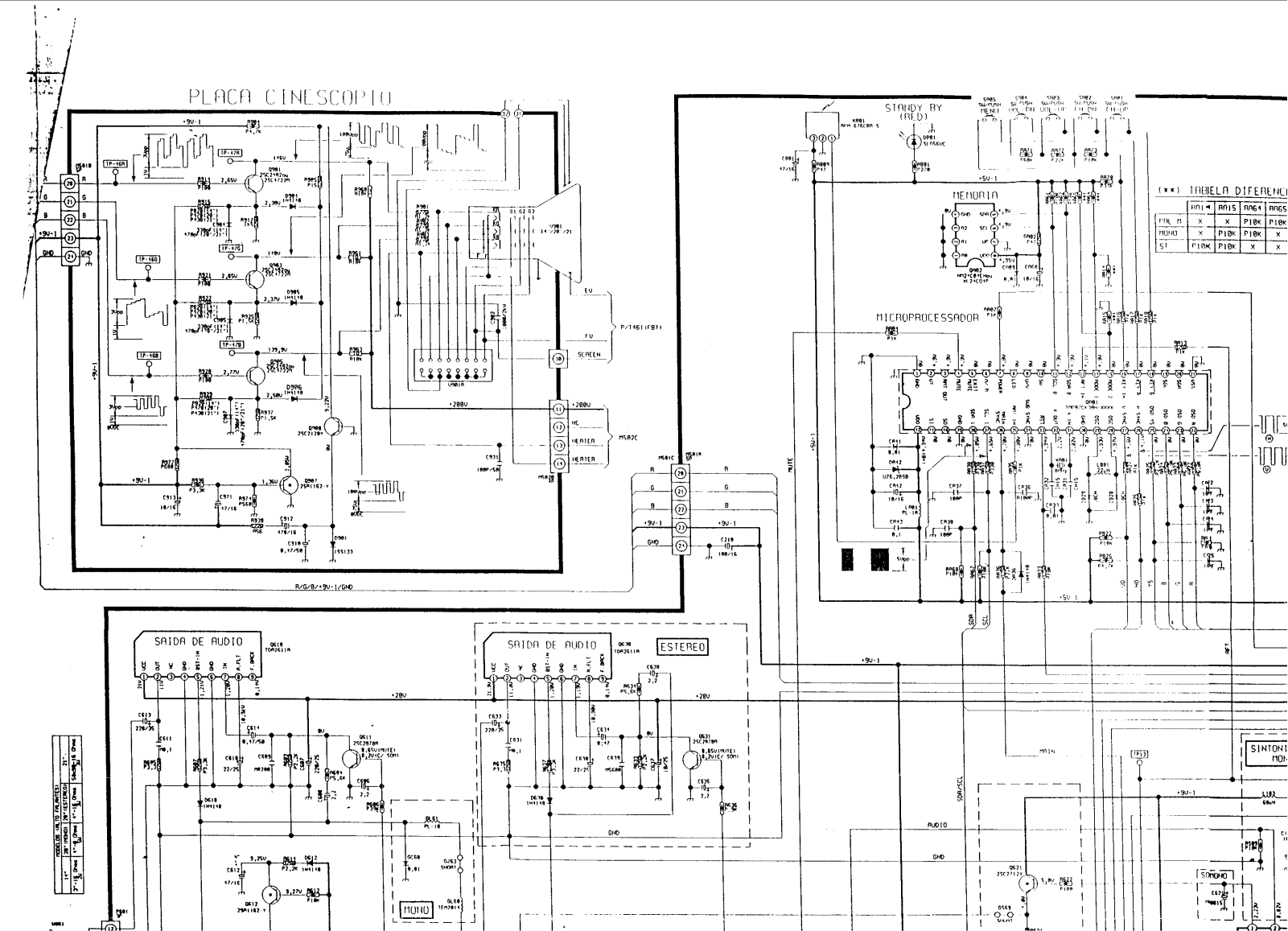

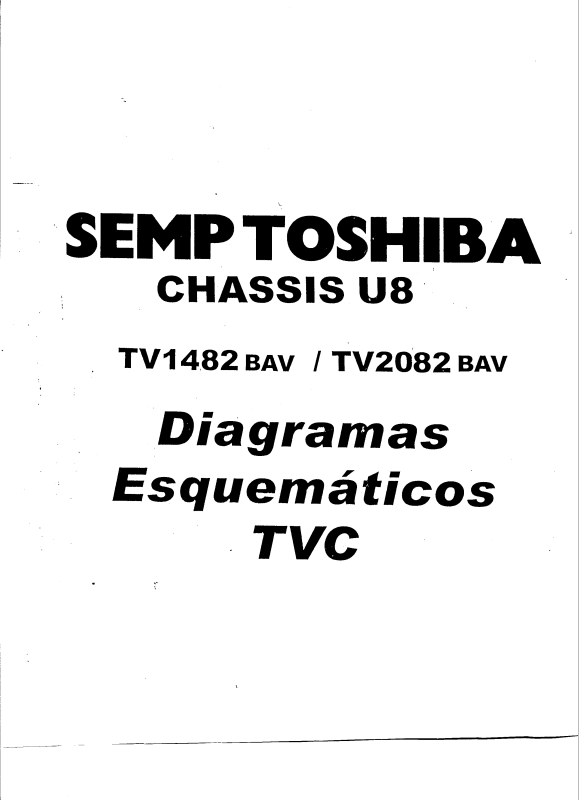

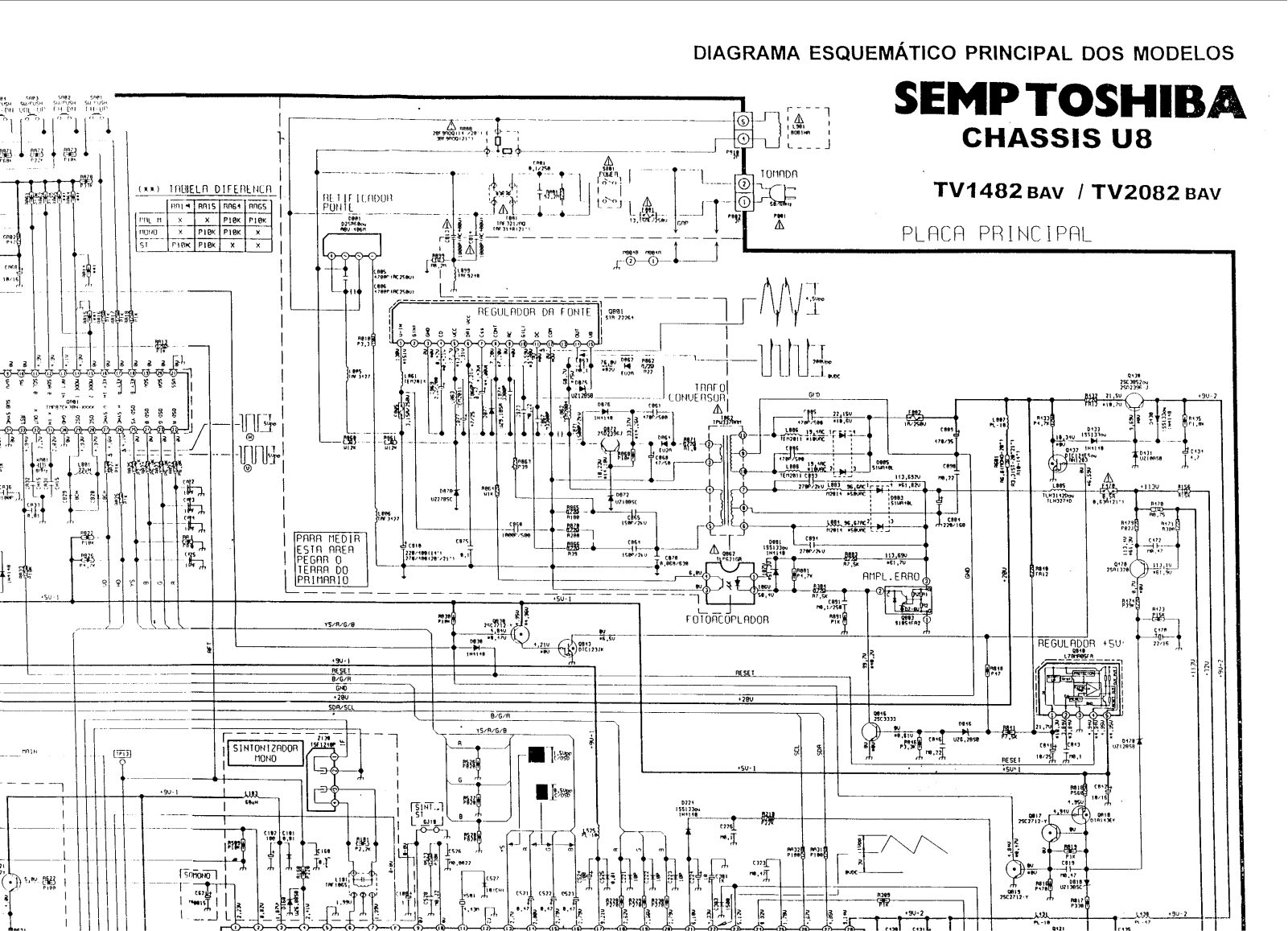

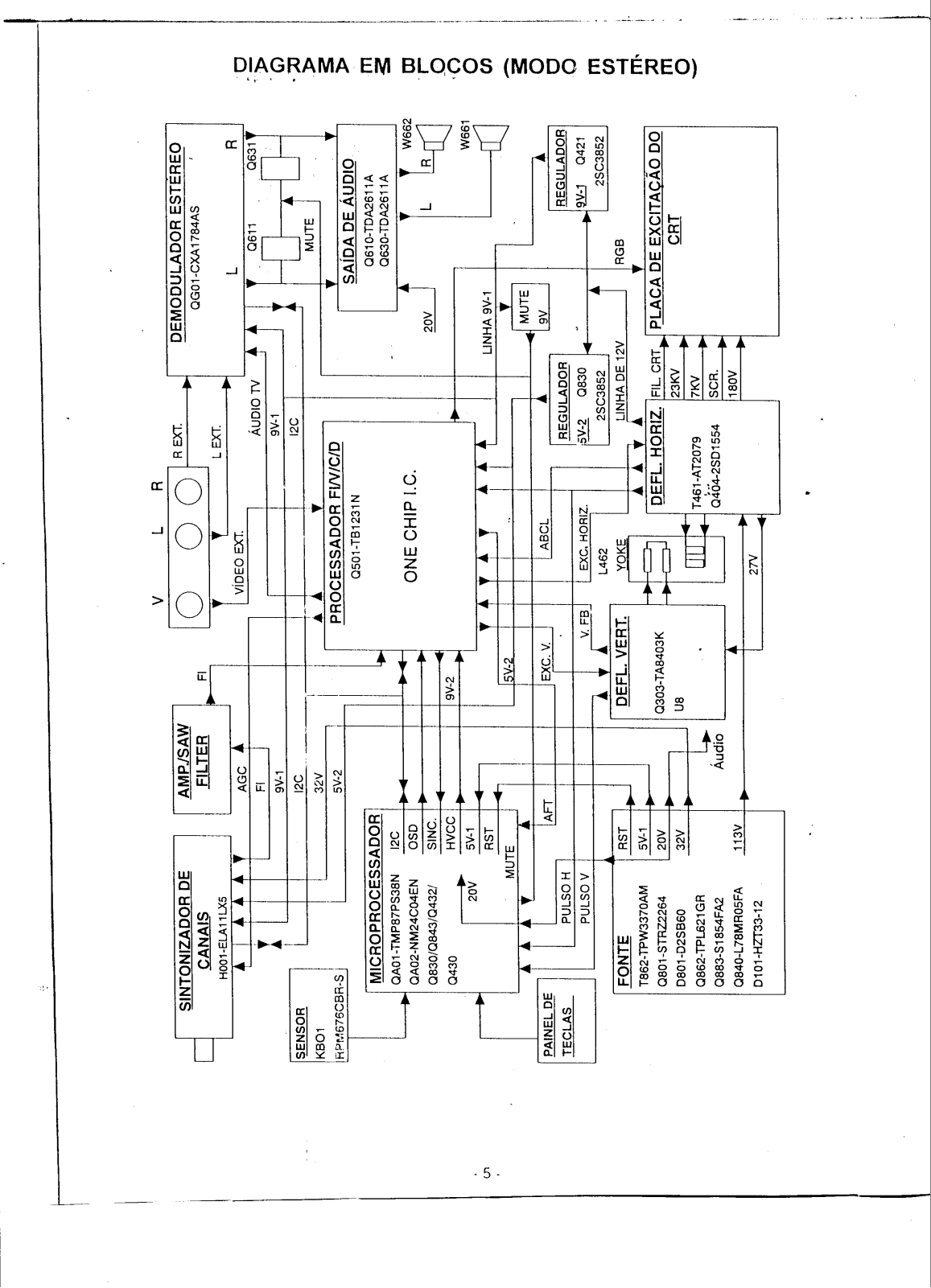

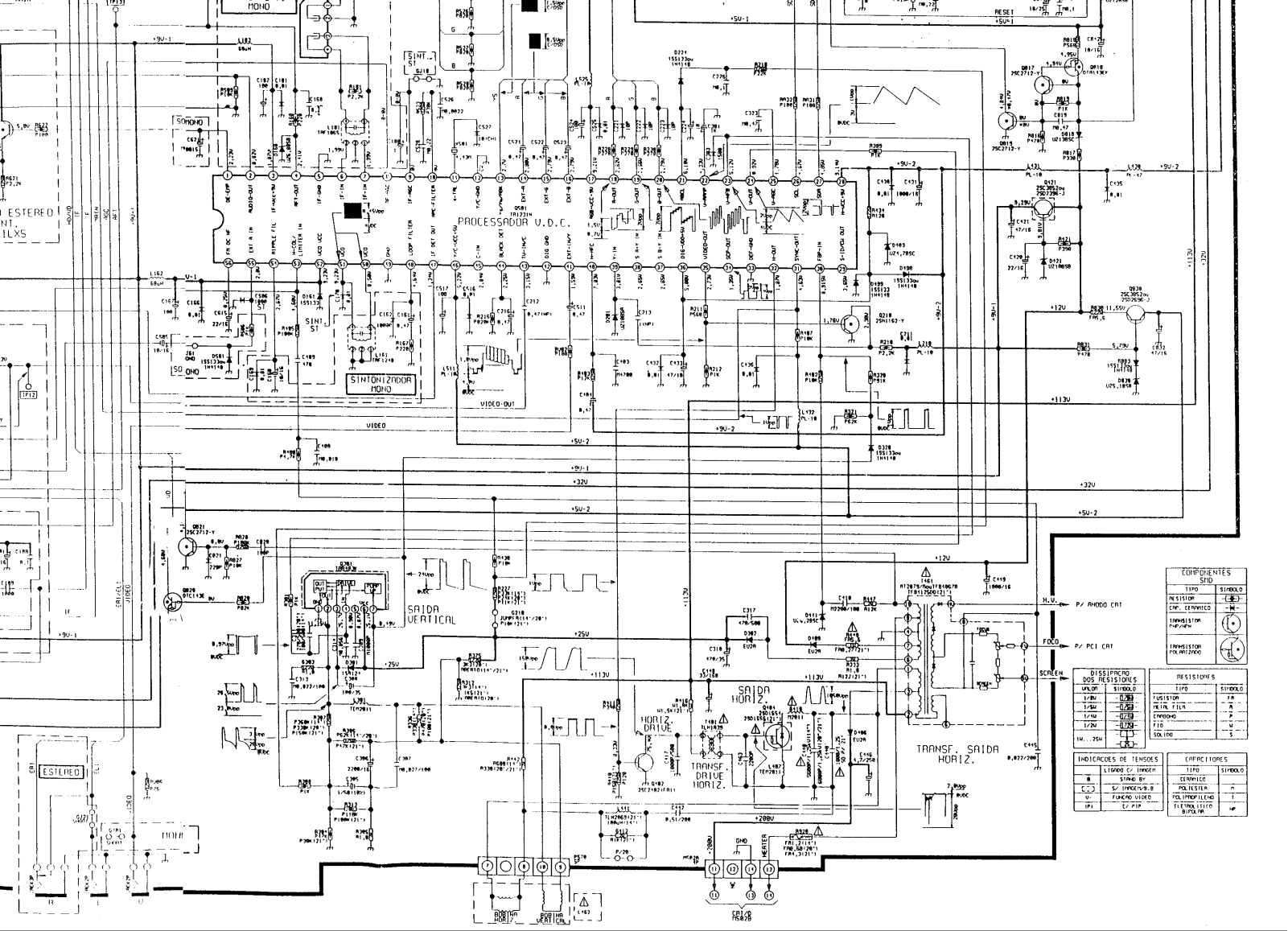

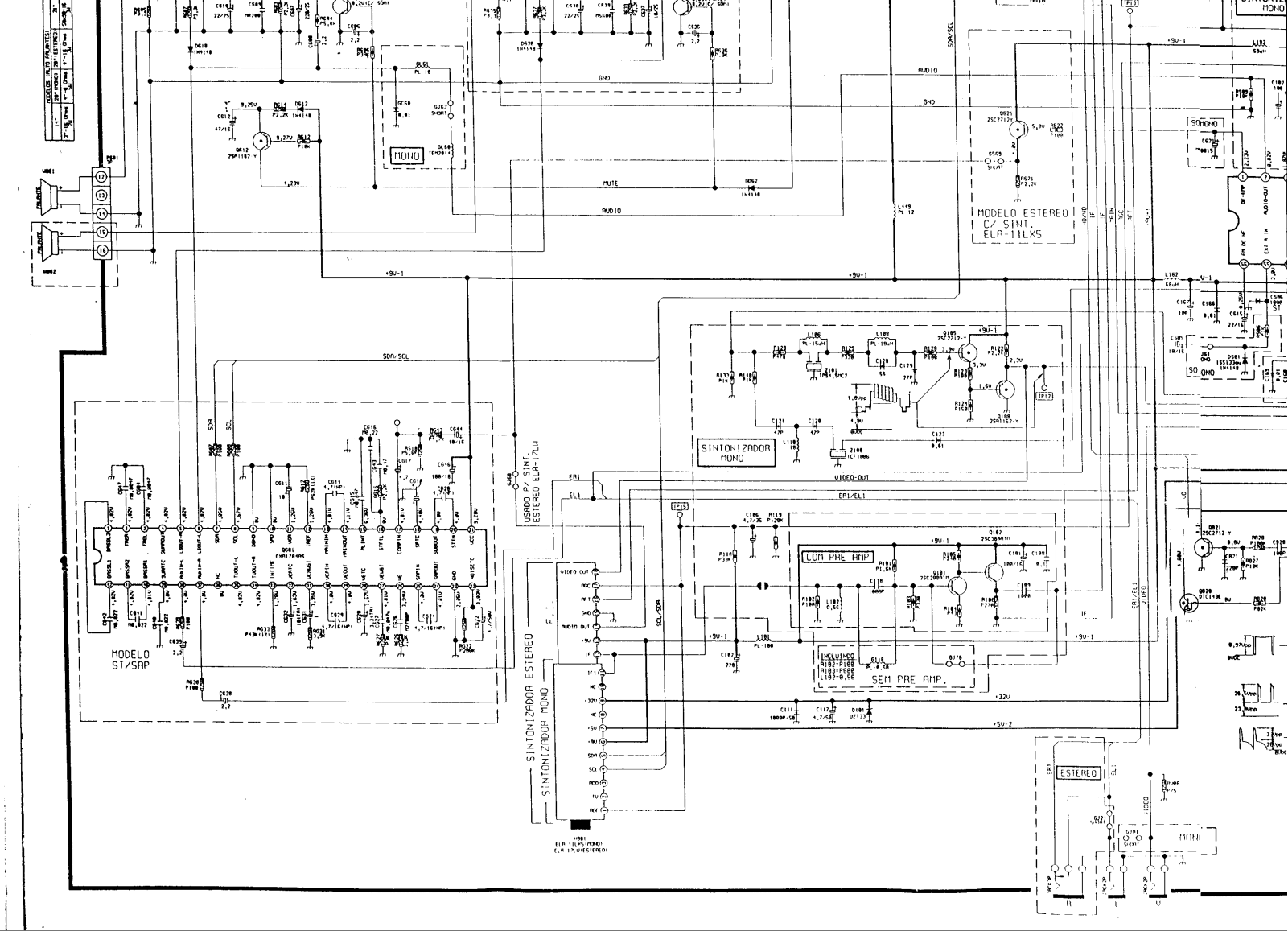

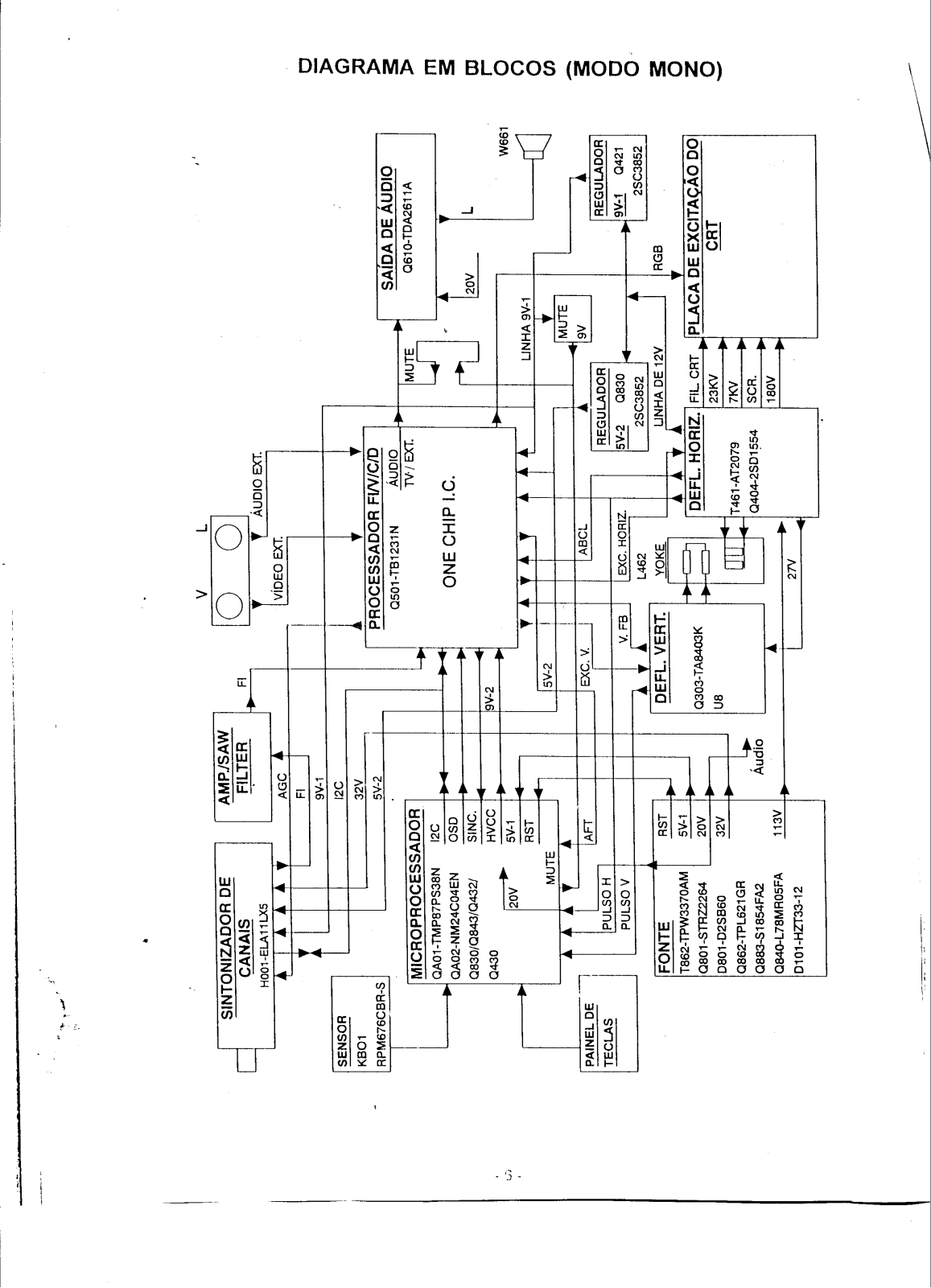

Toshiba TV2082BAV, UTV 1482, TV1482BAV Schematic
...
Toshiba Schematic
Download
Specifications and Main Features
Frequently Asked Questions
User Manual
Download
Page 1
Page 2
Page 3
Page 4
Page 5
Page 6
Page 7
Page 8
Page 9
