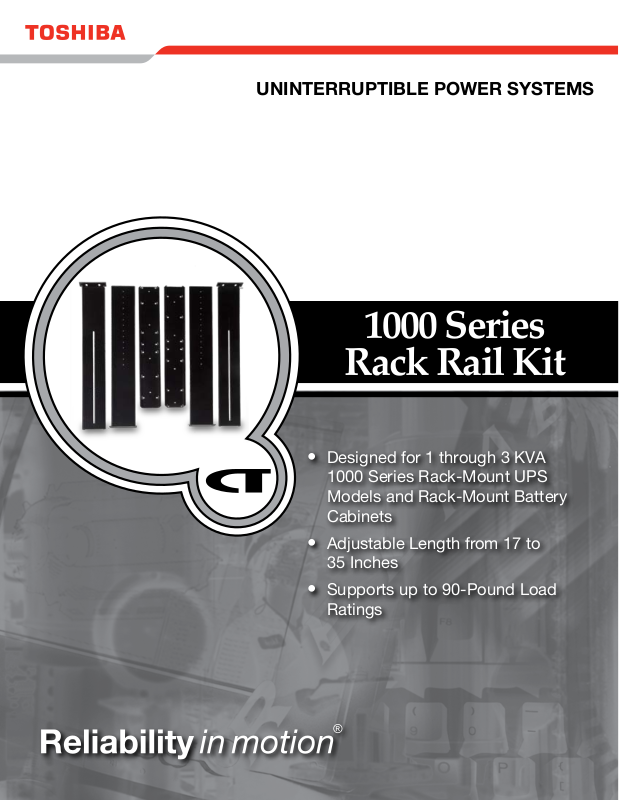

Toshiba 1000 Series, UT1-RAIL-KIT Specification

UNINTERRUPTIBLE POWER SYSTEMS

1000 Series

Rack Rail Kit

• Designed for 1 through 3 KVA

1000 Series Rack-Mount UPS
Models and Rack-Mount Battery
Cabinets

• Adjustable Length from 17 to

35 Inches

• Supports up to 90-Pound Load

Ratings

1000 SerieS rack rail kit

1000 Series UPS Rack-Mount 2U Rail Kit Specifications

Part Number UT1-RAIL-KIT

Three Right Adjustable Rails, Three Left Adjustable Rails,

Package Includes

Supported Products 1 through 3 KVA 1000 Series Rack-Mount UPS and

Equipment Length Minimum: 17 Inches; Maximum: 35 Inches

Weight Capacity Maximum: 90 Pounds

Four Spacers, Twelve 24 x 3/4 Mounting Screws, Twelve
32 x 1/2 Mounting Screws, Installation Instructions

1 through 3 KVA 1000 Series Rack-Mount Battery Cabinets

Installation Type Four-Post

This adjustable rail kit is specially
designed for Toshiba 1000 Series rack­mount products. It supports all 1000
Series uninterruptible power systems
and battery cabinets weighing up to 90
pounds. The sliding adjustable rail can
accommodate uninterruptible power
systems and battery cabinets between
17 and 35 inches. The kit includes easy
step-by-step instructions on installing
a four-post server rack.
