TEC LOAD CELL SCALE

MODEL SL3SN SERIES

(US. Version)

TEC TOKYO ELECTRIC CO., LTD

WARNING
This equipment generates, uses, and can radiate radio frequency energy and if
not installed and used in accordance with the instructions manual, may cause
interference to radio communications. It has been tested and found to comply
with the limits for a Class A computing device pursuant to Subpart J of Part 15
of FCC Rules, which are designed to provide reasonable protection against such
interfemce when operated in a commercial environment. Operation of this
equipment in a residential areais likely to cause interference in which case the
user at his own expense will required to take whatever measures may be required
to correct the interference.

9. BEFORE YOU CALL FOR SERVICE

It is our primary concern to give you full satisfaction and better service. If, however, any problem arises in
connection with the operation of this scale, please check the following points once more before calling for
service:

A) Is the power plug fully inserted into AC outlet ?

B) Is the power switch turned ON ?
C) Is AC power being properly supplied to outlet ? (Check it using other electric appliance.)
D) Check circuit breaker.
E) Has there been a power failure of any sort ?
F) Has the operation been carried out in the correct order ?

This scale has been manufactured under strict quality control. If you have trouble, however, DO NOT
TRY TO FIX IT BY YOURSELF. Pull the power plug out of the AC outlet, and contact your TEC representa
tive.

CAUTION:

The specifications given in this manual may be modified by TEC, if necessary.

1. Do not subject the weighing platter to sudden

shocks.

3. Clean the cover and weighing platter by wiping 4. Do not use thinner or other volatile solvent for
with a dry and soft cloth. cleaning.

2. Do not pour water directly on scale.

------------------------------------------WARNING
This equipment generates, uses, and can radiate radio frequency energy and if

not installed and used in accordance with the instructions manual, may cause
interference to radio communications. It has been tested and found to comply
with the limits for a Class A computing device pursuant to Subpart J of Part 15
of FCC Rules, which are designed to provide reasonable protection against such
interfemce when operated in a commercial environment. Operation of this
equipment in a residential areais likely to cause interference in which case the
user at his own expense will required to take whatever measures may be required
to correct the interference.

--------------------------------------------

2. OVERVIEW

Level Gauge

Platter

Printer Connector

(Option)

3. DISPLAY

Operator's View

Customer's View

Display

WEIGHT

Adjusting Leg

Keyboard

$ M TOTAL PRICE $

NET PREPACK

INTRODUCTION

We thank you very much for purchasing our TEC Electronic SL39N Series Scale. This series has been de

signed with TEC reliability and in consideration of future upgradability.
This model uses a new method which allows weighing wihtout any movement of the platter, thus providing
far greater accuracy. This method also allows you, the user, to change the unit price while the commodity
is on the platter simply by depressing the numeric keys; and to subtract tare weight by a single depression
of the T key.
Other functions are available on this unit, such as Tare Presetting. With the added feature of a micro
computer in the electronic calculation circuit, we believe that your needs will now be fully satisfied, and you
will have total reliability in price calculation.
This manual will help to aquaint you with the proper operation and care of the SL39N series scale. Please
keep it handy for future reference.

PRECAUTIONS

1. DO NOT SUBJECT the weighing platter to SUDDEN SHOCKS.

2. DO NOT DEPRESS THE KEYS TOO HARD. Keys will operate correctly if they are merely touched lightly.

3. Clean the cover and weighing platter by wiping with a dry cloth or a cloth soaked with detergent and
wring out thoroughly. NEVER USE THINNER OR OTHER VOLATILE SOLVENT FOR CLEANING.

4. This machine has been made drip-proof, but DO NOT POUR WATER directly on it.

5. To insure scale is operating correctly, place a known weight on platter and check for correct computing.
This should be done every morning before starting normal operations.

6. When in use, avoid locations subject to vibration and direct sunlight.

1. SPECIFICATIONS

Items

Maximum Capacity
Minimum Scale Division
Using Weight Range
Display Range
Tare
Unit Price Presettable
Minimum Price Display
Display:

Weight

Unit Price

Total Price
Display Designations
Display Mode

Power Requirement
Current Consumption
Operating Environment:

Temperature

Relative Humidity
Dimensions (approx.)
Weight
Printer Interface (Option)

SL39-30L-N-US

30 lbs

0.01 lbs

0.01 ~ 30 lbs

0.01 ~ 30.05 lbs
Up to 30 lbs

$0.01 ~ 99.99

$0.01

5 digits (including negative sign)
4 digits
5 digits
NET, PREPACK
Both sides
AC 120V ± 10%,60Hz

120V . 0.2A,60Hz

32“ ~ 104“F
35% ~ 85% RH (No condensation)

13.8"(W) X 13.3"(D) X 6.3"(H)

17.1 lbs

TEC Scale Printer H-7, H-18

Name of Key & Lamp Function

TARE Key « >

LJ

PRINT Key

PRINT

PLU Key j

Numeric Keys

------------

Lzj

□ □ □
□ □□
[D Q Q

1) Used to subtract tare weight.

2) Used to preset tare weight beforehand through the numeric keys.

3) Used to clear the tare weight.
When the SL39N is connected to the H-18 scale printer, this key

activates the print mechanism and a label is issued. This function can
only take place when the control switch on the H-18 is set in the
"MANUAL" or "BY COUNT" position.

1

Used to recall and display the PLU data which is stored in the H-18

scale printer.

1) In standalone mode, these keys are used to enter unit price and
tare weight.

2) When the SL39N is connected to the H-18, these keys are used to
enter PLU number, unit price, and tare weight.

□

\ 1 /

NET Lamp

\ i /

PREPACK Lamp Liohts when SAVE 1 kev is pressed.

NOTES:

(1) The Load Cell in the unit is turned ON when the power plug is connected to the AC outlet. The power of

the load cell cannot be turned OFF by the IPOWER/ZEROI key.

(2) When the I POWER/ZERO I key is turned on within about 16 seconds after the power plug is connected

to the AC outlet, the test scanning sequence is made, ZEROs are displayed and the scale is ready for
use.

(3) When the I POWER/ZERO I key is turned on over about 16 seconds after the power plug is connected to

the AC outlet, all "8"s appear on all displays for a moment, then ZEROs are displayed and the scale is
ready for use.

Lights when tare is subtracted.

4. KEY ARRANGEMENT

-PLU Key

»

7

8 9

4 5 6

1

2 3

0 C

-Numeric Keys

PLU

SAVE

SL39N

-CLEAR Key

PRINT

!4

/4

POWES-

■ZERO^

-PRINT Key

-TARE Key

-Per 1/2 lbs Key

- Per 1 /4 lbs Key

■ POWER/ZERO Key

5. KEY AND LAMP FUNCTIONS

Name of Key & Lamp

POWER/ZER

SAVE Key

CLEAR Key

OKe^

POWER
/ZERO

SAVE

i

□

Per 1 /2,1 /4 Keys

0 0

Function

Used to supply power to the main circuit and to adjust "ZERO"point.

Used to save tare and unit price.

1) Used to clear the unit price.

2) Used to release the scale from save or error mode.

3) Used to clear the price when scale printer is connected.

4) Used to clear the PLU number when scale printer H-18 is connect
ed.

Used to calculate the unit price by 1 /2 lbs or 1 /4 lbs.

NOTE:

When the 1 /2 (1 /4) key is depressed, the unit price is multipled by 2
(4).

6. LEVEL ADJUSTMENT

Correct Incorrect

Set the scale on a stable and level surface. Level the scale by turning the
adjusting legs so that the air bubble comes to the center circle. For
example, in the case of the condition shown in the left figure, turn the
Adjusting Legs (1) and (2) in the direction shown so that the bubble
comes to the center of the circle.

,<2)

)

7. NOTES BEFORE STARTING OPERATION

A. Be sure to insert power plug into AC outlet.
B. When turning IPOWER/ZEROI key on within about 16 seconds after inserting the power plug into AC

outlet, the scale enters the test scanning sequence, such as 00000, 0000, 00000, then 11111, 1111,

11111 ... until ZEROS are shown on all displays.
C. While scale is in the test sequence, do not put anything on the platter.
D. Do not move the unit while it is in operation. Should it become necessary to move it at any time, turn

the power switch off and be sure to readjust the level after relocating the scale.

E. Should a power failure occur during operation, turn the power OFF and remove the commodity from

the platter, and turn the power on again when power is restored.

F. If scale is used with an unrated power source, inaccurate scaling or other errors may occur.

G. If Zero Point has shifted during scaling, and no tare is displayed, adjust Zero Point by depressing

IPOWER/ZERQ] key.

8. OPERATIONAL PROCEDURE

8-1. Regular Operation (SL39-30L-N)

Turn adjusting
legs to level scale

Turn power on

T

QSS
E1ÌEI0
□S3

3

Level indicator

WEIGHT

(

0.00) C 0.00 X

Place tare weight
on platter

When tare is already known
Key-in

PRICE/lb

TOTAL PRICE

o.og)

0.20 lbs

------

i

0

IT

WEIGHT

T'

■c o-eo^

WEIGHT

nn

O

•c

.uu

Net lamp stays on

)

Place the commodity on
(Ex. 10 lbs)

Key-in Unit Price
(Ex. $1.50/lb)

Remove the commodity

WEIGHT

10.00 )

TOTAL PRICE

-C /.50 )( ;5.oq)

(entry error)

NOTES;

Clearing unit price

1) When tare weight is not preset, enter tare
weight throughUlkey.

2) When display does not show "0" even after
commodity is removed from platter during
operation, depress IPOWER/ZEROI key.

3) When weight exceeds 30.05 lbs, all displays
will blank, and when price exceeds 5 digits,
only price display will blank.

4) I1/2I or 11 /41 key should be depressed after

WEIGHT

—( -o.eo)

N I /

—Net lamp stays on

8-2. Tare Function Procedures

There are two kinds of tare subtraction procedures, one is "Direct tare", another is "Preset tare"

1 ) Direct tare subtraction

WEIGHT

( 000^

( 0.50 )

( 0.00 )

-■m- NET

/T\

Remove the
tare.

Clearing tare
weight.

Depress:

Depress:

Tare weight is cleared.

WEIGHT

C 0.00 )

NOTE:

Tare weight subtraction is available with up to
30 lbs.
When tare weight subtraction is in operation,
however, the scalable range for net weight
becomes less by the amount of the tare.

(Net weight = Weighing amount - Tare
weight)

2) Preset tare subtraction

Key-in the tare
weight.
(Ex. 0.50 lbs)

Depress:

Save tare weight.

Depress:

WEIGHT PRICE/lb

( 0.00) ( 0.0D)

Place tare weight
on platter.

Remove the
commodity.

Clear the save
mode.

Depress:

Clearing tare
weight.

Depress:

Depress:

Tare weight is cleared.

8-3. Unit Price per 1/2,1/4 lbs

WEIGHT PRICE/lb TOTAL PRICE

( O.DD) ( O.OD) ( 0.00)
( 5.00) ( 0.0D) ( 0,0/7)

( 5.00 ) ( 3.00) ( /5.00)

( 5.00) ( 6.Q0) ( 3S.00)

( 5.00) ( ¿>.50) ( /г.50)

(~ 5.00) ( /0.00) ( 50.00)

( 5.00) ( 10.00) C 50.00)

\ 1 /

PREPACK

( 0.00) ( /0.00) ( 0.00)

\ I /

PREPACK

( 0.00) ( 0.00) ( 0.00)

NOTES: 1)The SL39N will check details of unit price, if unit price after calculation (1/2 lbs: 2 times,

1 /4 lbs: 4 times) is exceeded 4 digits then unit price will be cleared.

2) ll /2I or ll /4l key should be depressed after key-in unit price.

8-4. When the H-7 SCALE PRINTER is Connected (Printer interface is optional)

1) Example of operation with the H-7 set to AUTO or MANUAL mode

NOTE: When the tare weight exceeds 0.20 lbs with the H-7 Label Issue Mode switch set to AUTO posi

tion, one tare label sheet will be issued automatically.
To prevent this, set the H-7 Label Issue Mode switch to MANUAL position.
When the H-18 Scale Printer is connected, this same phenomenon will occur.

8-5. When the H-18 SCALE PRINTER is Connected (Printer interface is optional)
Example of general operation

NOTE: If an error tone is heard from SL39N, you have indexed a invalid PLU #.

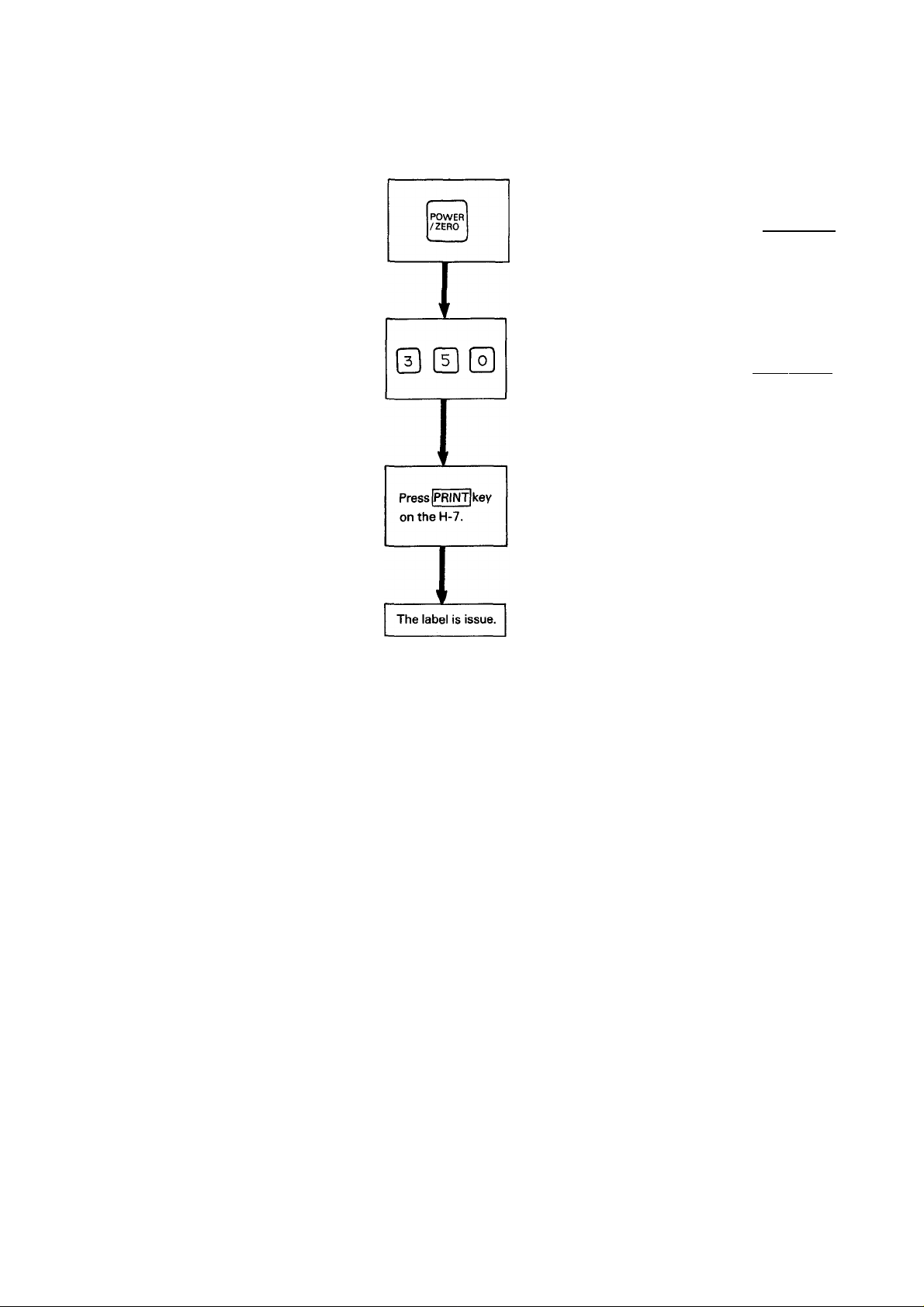

2) Example of operation with the H-7 set to BY COUNT mode.

Turn power on.

Key-in the price

for quantity

WEIGHT PRICE/lb TOTAL PRICE

c

) ( ) ( 0.00)

( 3.sa)

NOTE: The number of articles should be set with the H-7.

For details, refer to the H-7 Owners Manual.
